High Quality Cube Sugar Processing Production Line Sugar Cube Making Machine Price
- Category: >>>
- Supplier: Tianjin Sure International Trading Co. Ltd.Tianjin Ltd.
Share on (1601307620493):
Product Overview
Description
Product Overview

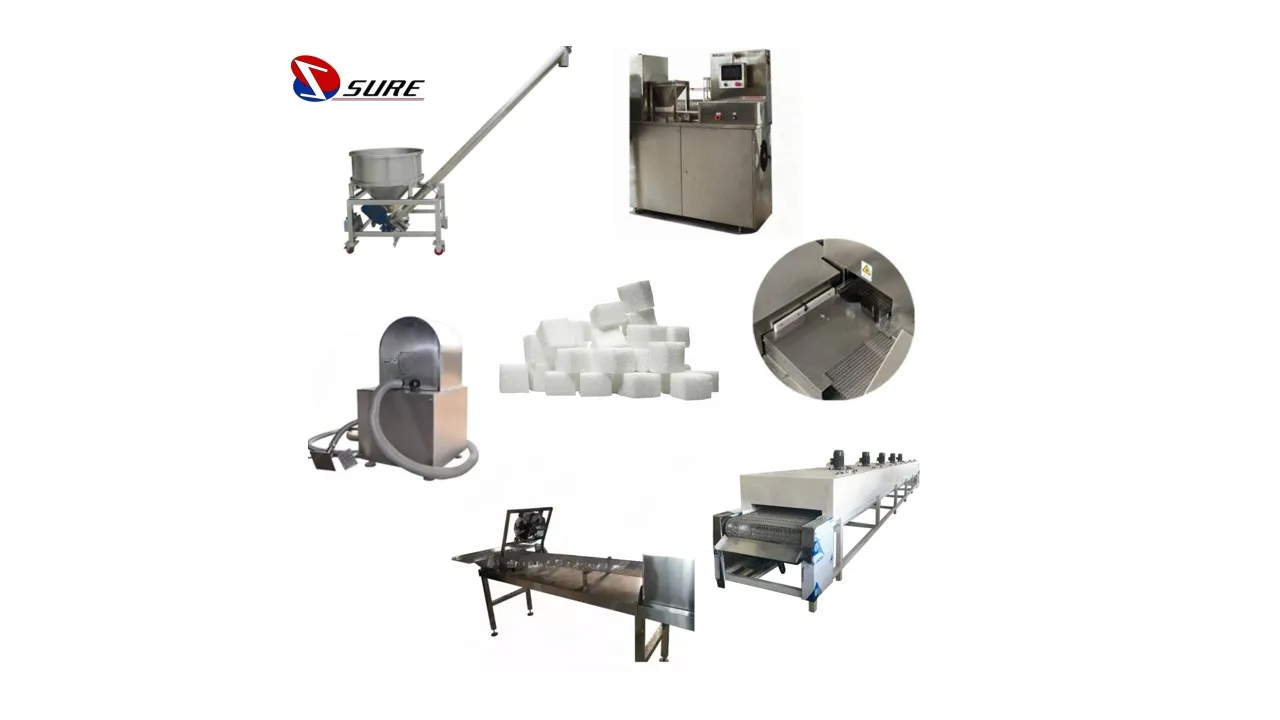

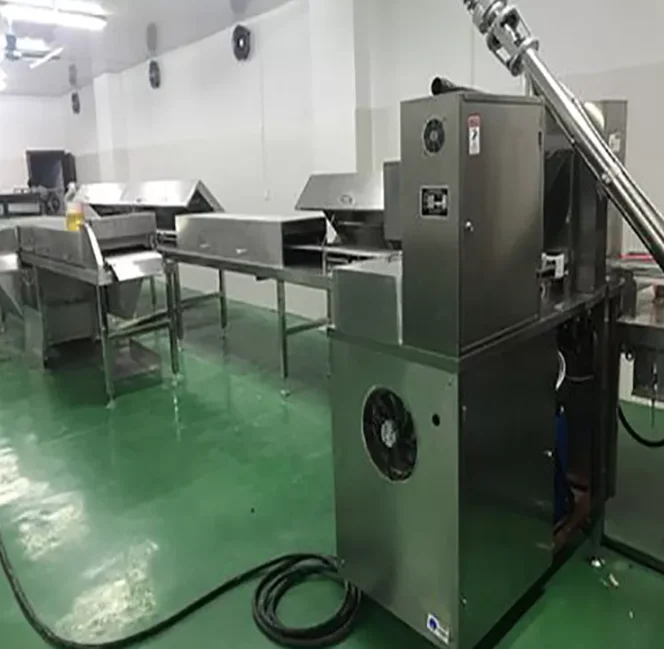

Sugar Cube Making Line
The production of sugar cubes is to use refined sugar with appropriate crystal size and particle size, mixed with a small amount of concentrated sugar solution (or purified water) to become wet sugar with a moisture content of 1.5 to 2.5%, and then use a molding machine to form a semi-square shape. The dryer dries to less than 0.5% moisture, and packs after cooling.
FEATURES AT A GLANCE
Pictures of Product

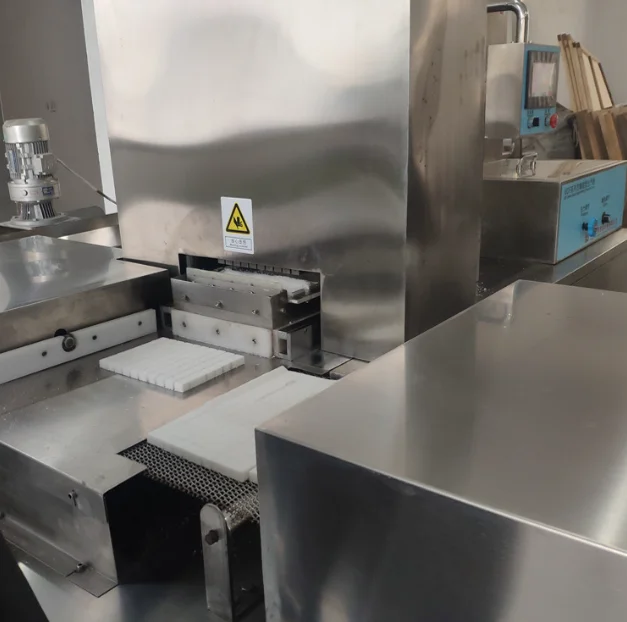

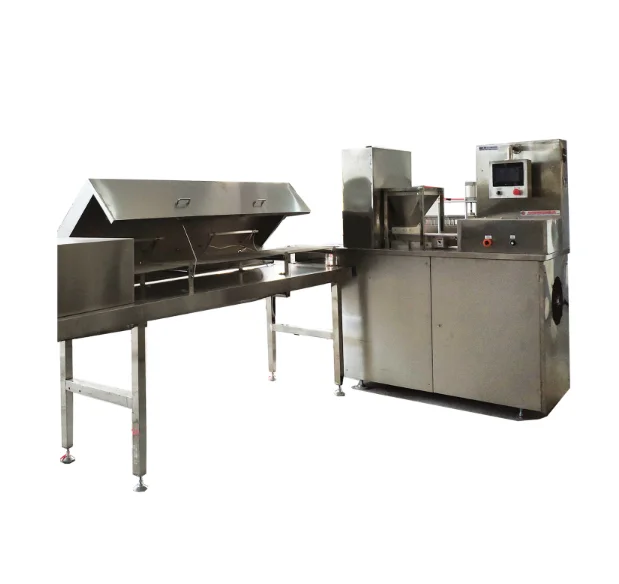

The sugar cube machine produced by our company is a machine with automatic sugar feeding, automatic forming and continuous pressing. It is mainly used for pressing cubes and other various shapes. 18*18*12mm and 20*20*15mm and various specifications.
This equipment is used for powder or granules with or without water, such as sugar (sugar, brown sugar, red sugar) and chicken essence, monosodium glutamate, sugar substitutes and other granules.
PRODUCT SPECIFICATIONS
No | Item | Data | ||||

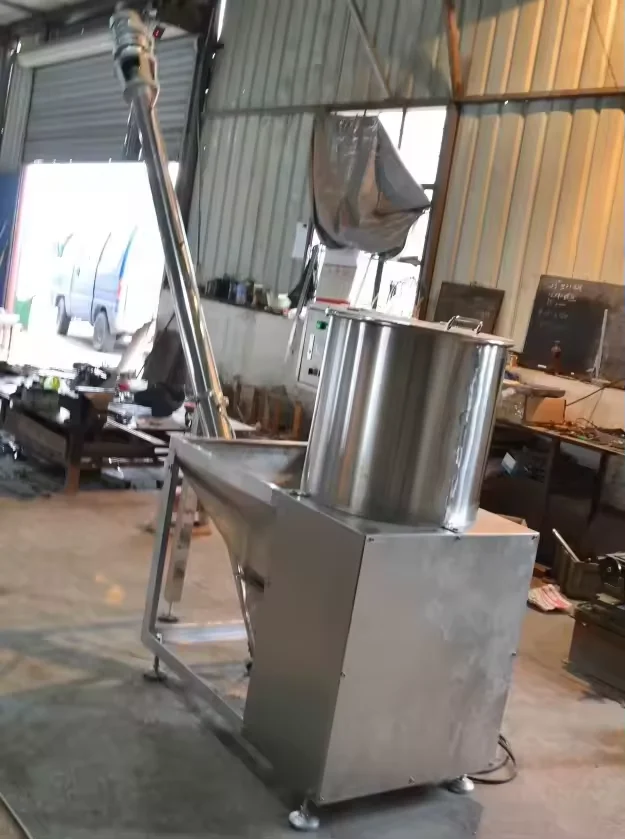

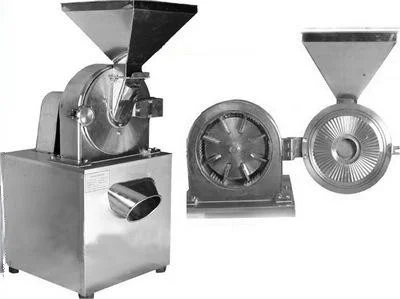

1 | Sugar Grinder Machine | Mixing and Feeding MachineProduction Capacity :150-300 KG/H Size: 880*750*1600mm Weight: 150kg Motor Power : 7.5KW Crushing fineness (mesh)：20-80 Feed size：＜5mm Function: Crush sugar granules | Mixed Spiral Feeding Machine | Production Capacity :1-3M3/H stepless adjustable Size: 1100*800*1700mm Weight: 140KG Discharge port height: 1700mm Function: mix crushed sugar and uncrushed sugar with water | ||
2 | Sugar Cube Forming Machine | Production Capacity:315 KG/H Size: 1600*700*1500mm Weight: 950kg Motor Power :4kw 380/50HZ Sugar Cube Size:15x15x16, 4.2g | Tablelon connector conveyor | Conveying Capacity: 0-10 m³/min Size: 1300*900*1000mm Weight: 60KG Air Pressure:0.3 Mpa-0.5 Mpa Function: Linkage, conveying | ||

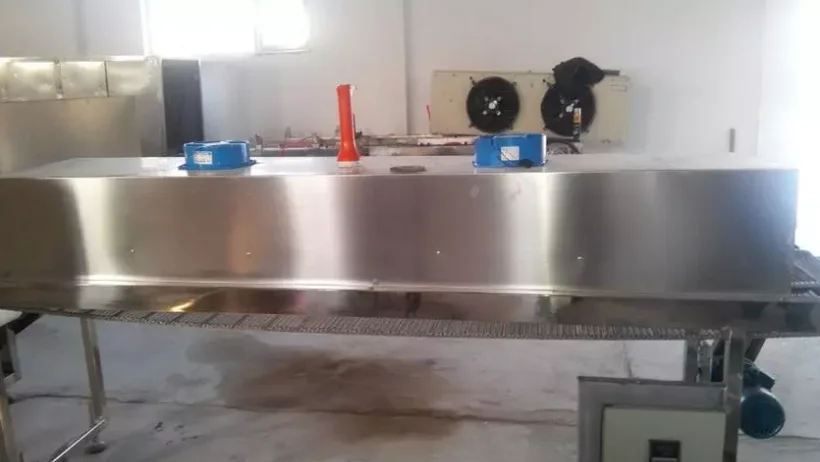

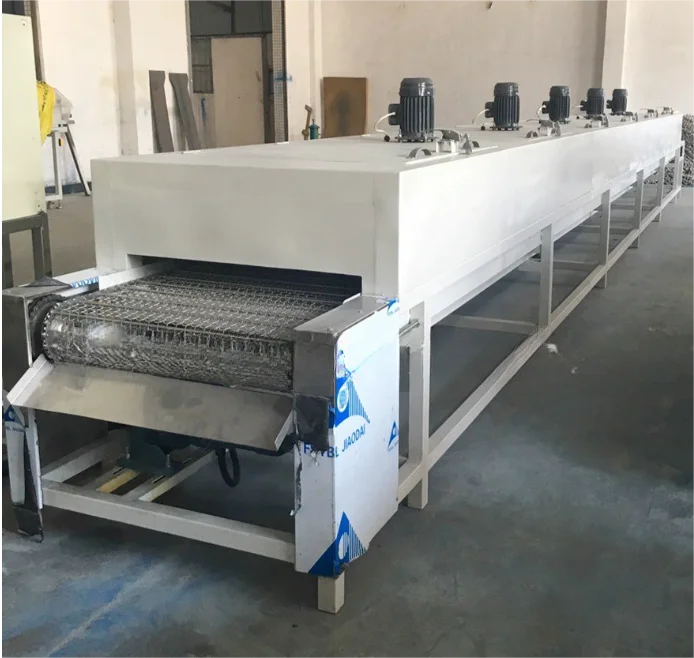

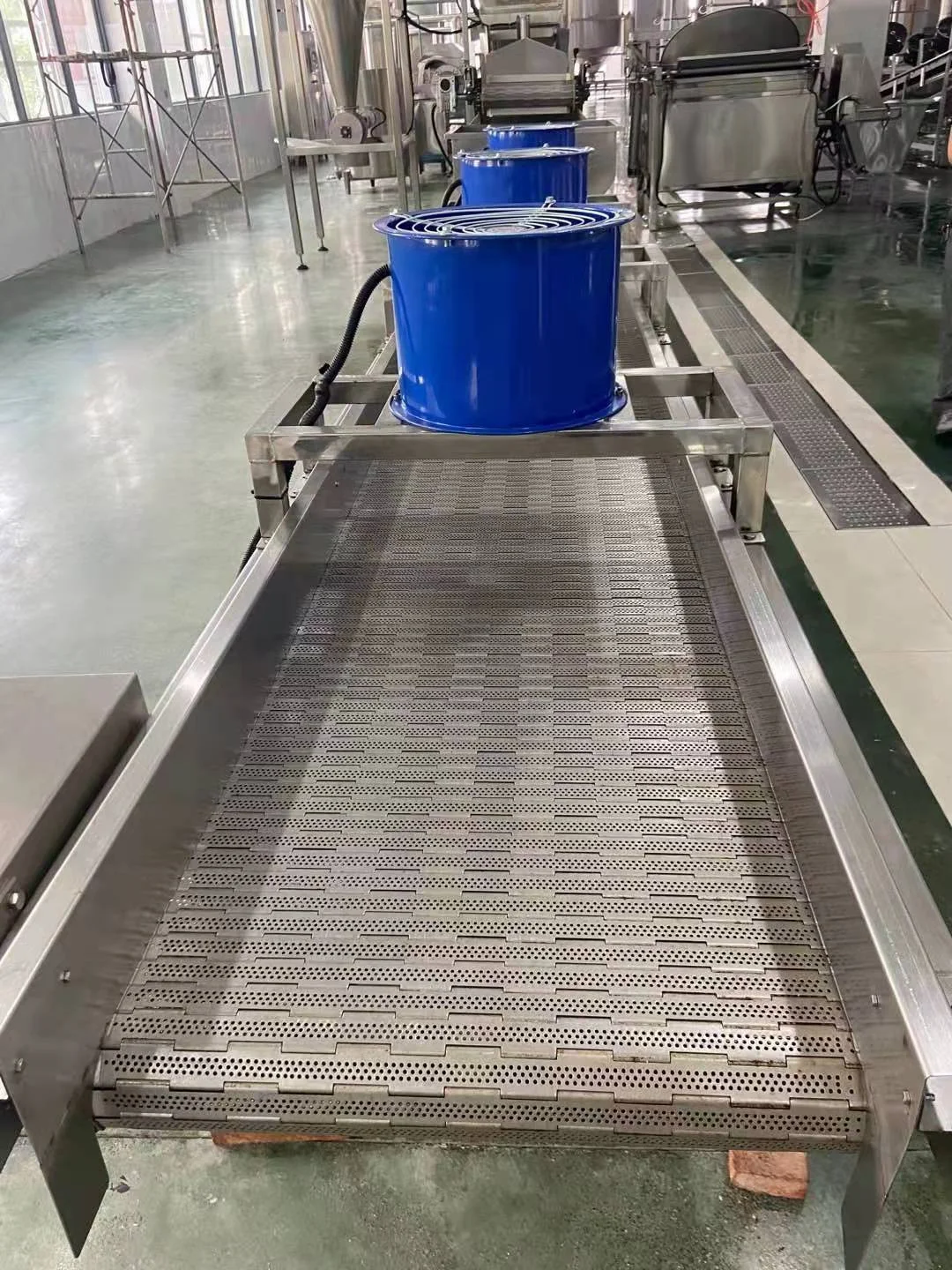

3 | Infrared Drying Tunnel | Speed: 0-10M/M/min Size: 2000*900*1150 mm Weight: 120KG*8 Power : AC380V50HZ 2.5KW *8 Function:Dry the sugar cubes | Cooling machine | Speed:0-10M/M/min Power: 0.16KW*4 Throughput :200kg/h Weight :90KG Size: 2000*900*700mm Function: Cooling | ||
4 | Semi-automatic Sugar Packing Machine | Maximum pressure：36Kpa Maximum vacuum：26KPA Power: 2.2KW Table size：customize Chuck: 2（handle） Weight :75KG Size:650*600*950mm Function: Filling | ||||
