Lab Ball Mill with 30 1000L Ceramic/PU/Stainless Steel Ball Mill Fine Mineral Ore Powder Dry Wet Grinding Roller Ball Miller
Lab Ball Mill with 30-1000L Ceramic/PU/Stainless Steel Ball Mill Fine Mineral Ore Powder Dry Wet Grinding Roller Ball Miller
Lab Ball Mill with 30-1000L Ceramic/PU/Stainless Steel Ball Mill Fine Mineral Ore Powder Dry Wet Grinding Roller Ball Miller
Lab Ball Mill with 30-1000L Ceramic/PU/Stainless Steel Ball Mill Fine Mineral Ore Powder Dry Wet Grinding Roller Ball Miller
Lab Ball Mill with 30-1000L Ceramic/PU/Stainless Steel Ball Mill Fine Mineral Ore Powder Dry Wet Grinding Roller Ball Miller
Lab Ball Mill with 30-1000L Ceramic/PU/Stainless Steel Ball Mill Fine Mineral Ore Powder Dry Wet Grinding Roller Ball Miller
Lab Ball Mill with 30-1000L Ceramic/PU/Stainless Steel Ball Mill Fine Mineral Ore Powder Dry Wet Grinding Roller Ball Miller

Lab Ball Mill with 30 1000L Ceramic/PU/Stainless Steel Ball Mill Fine Mineral Ore Powder Dry Wet Grinding Roller Ball Miller

Share on (1601307622883):


Price:$2,000.00-2,400.00

Quantity:


Product Overview

Description



Products Description

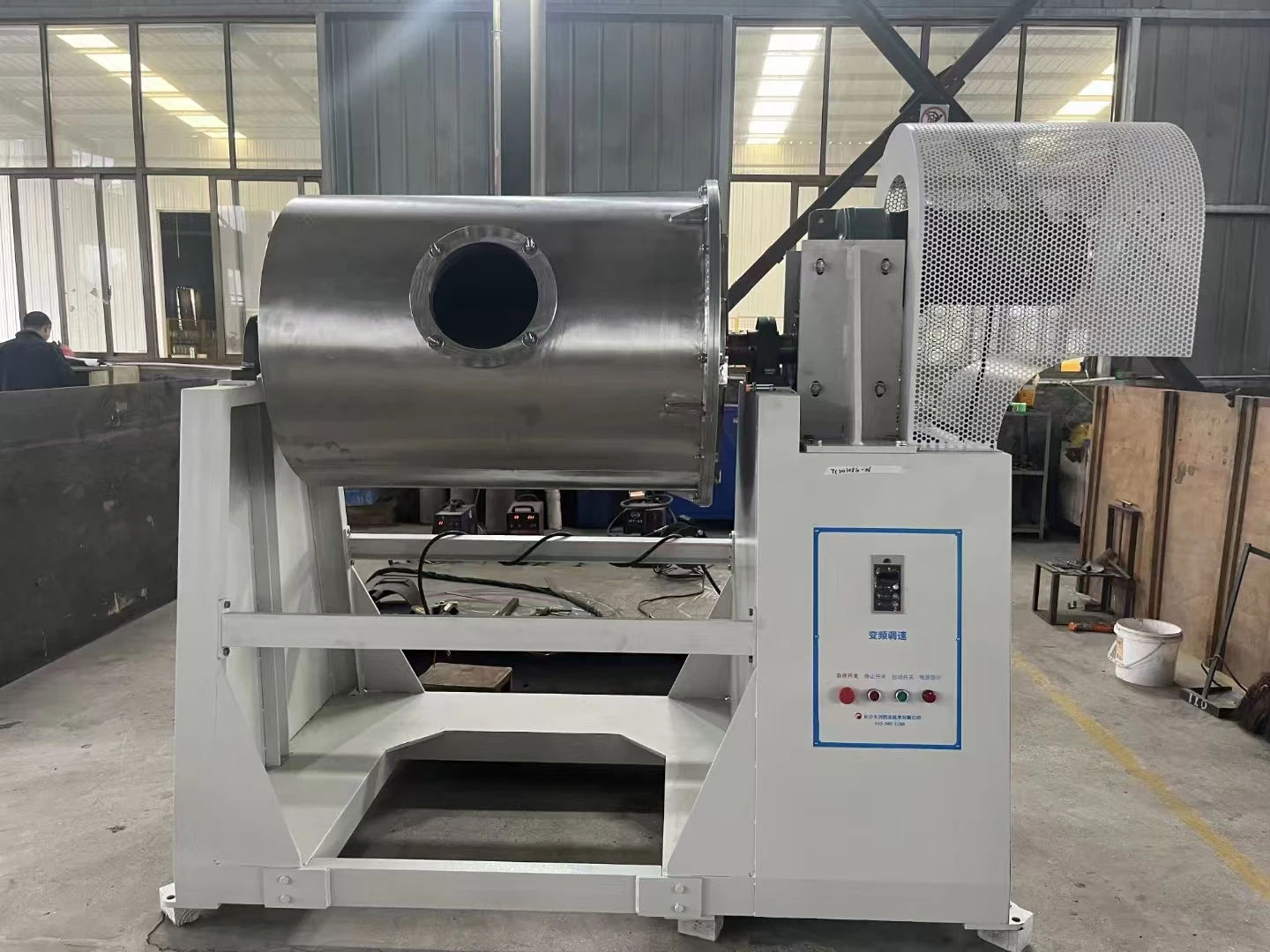

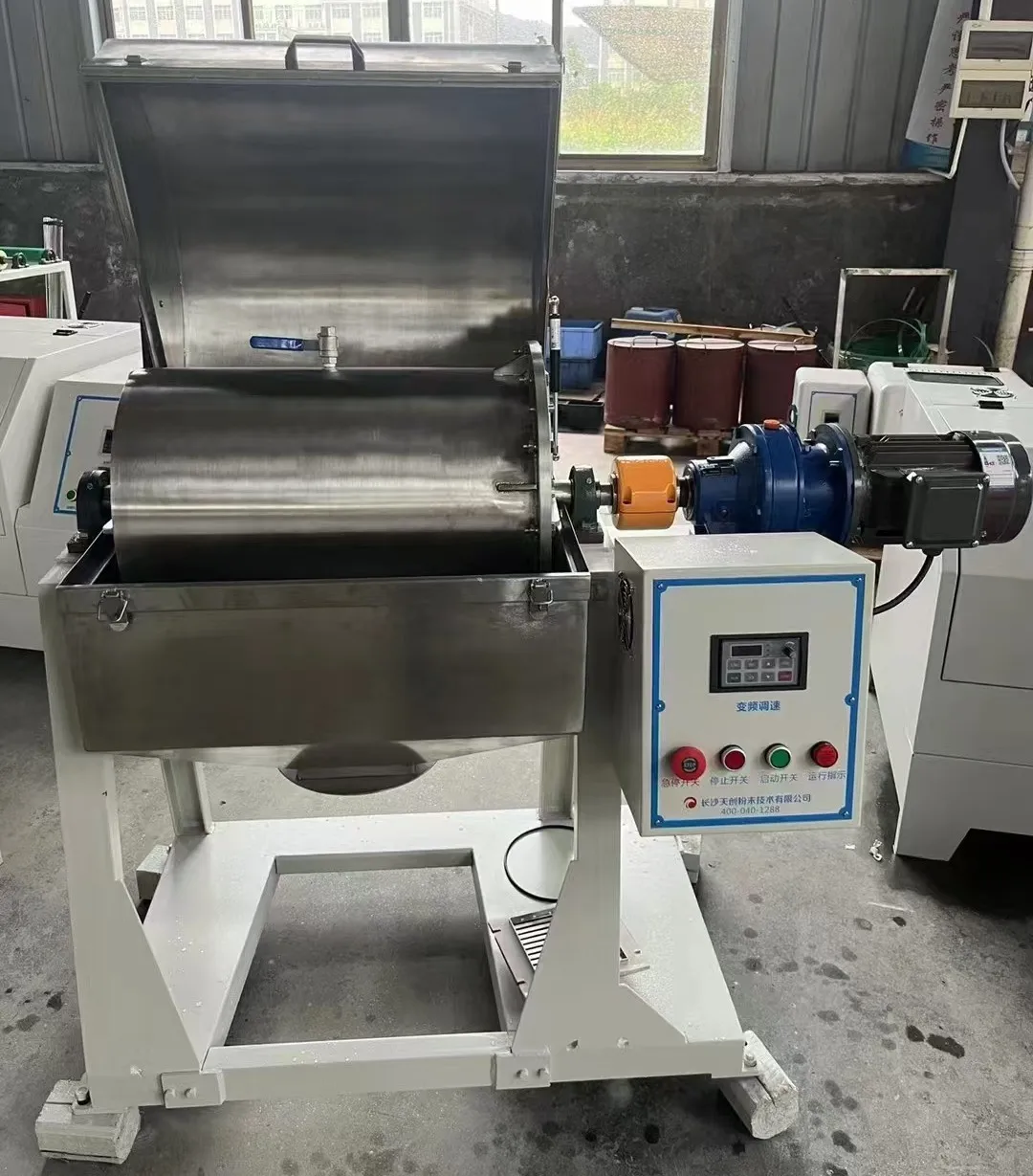

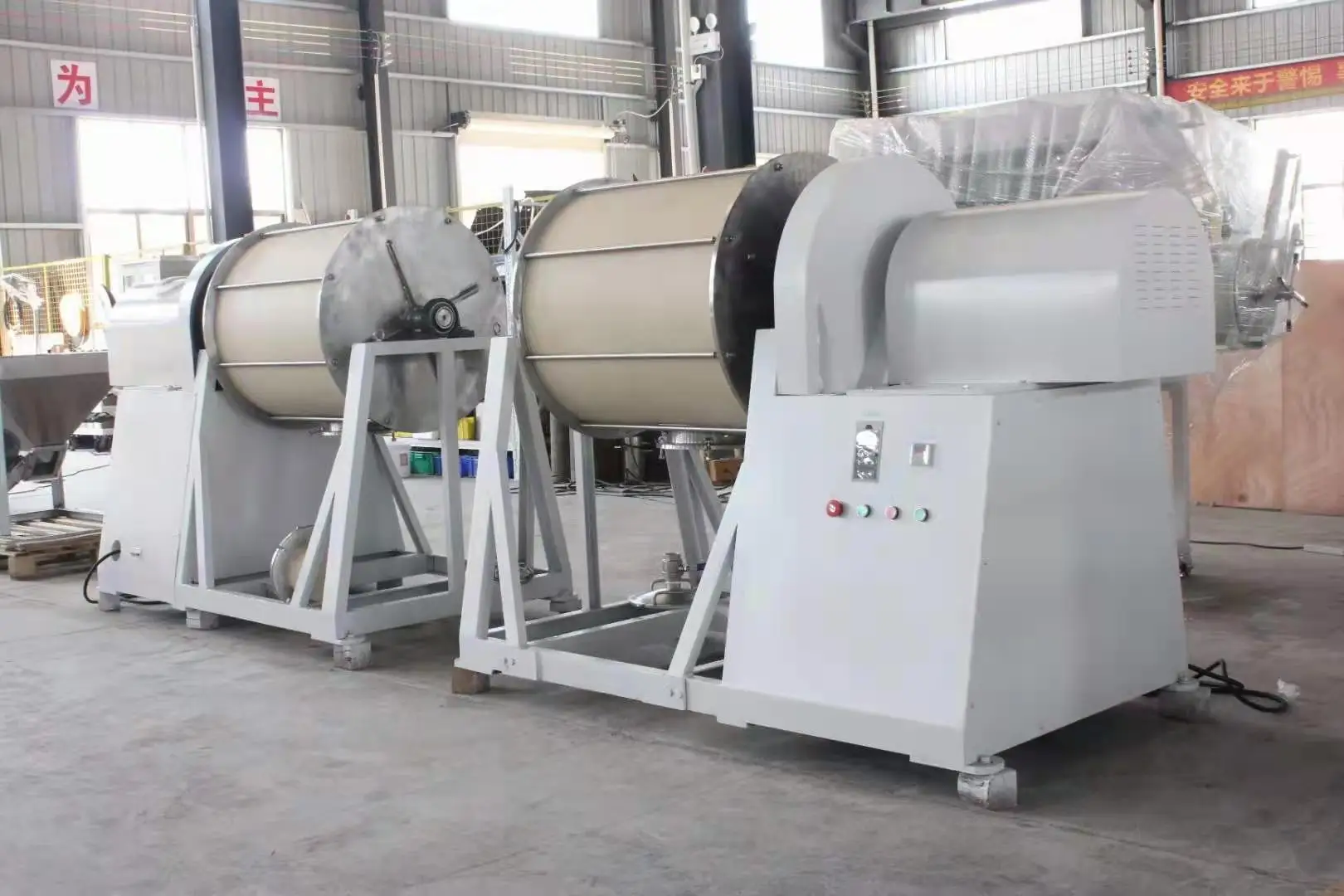

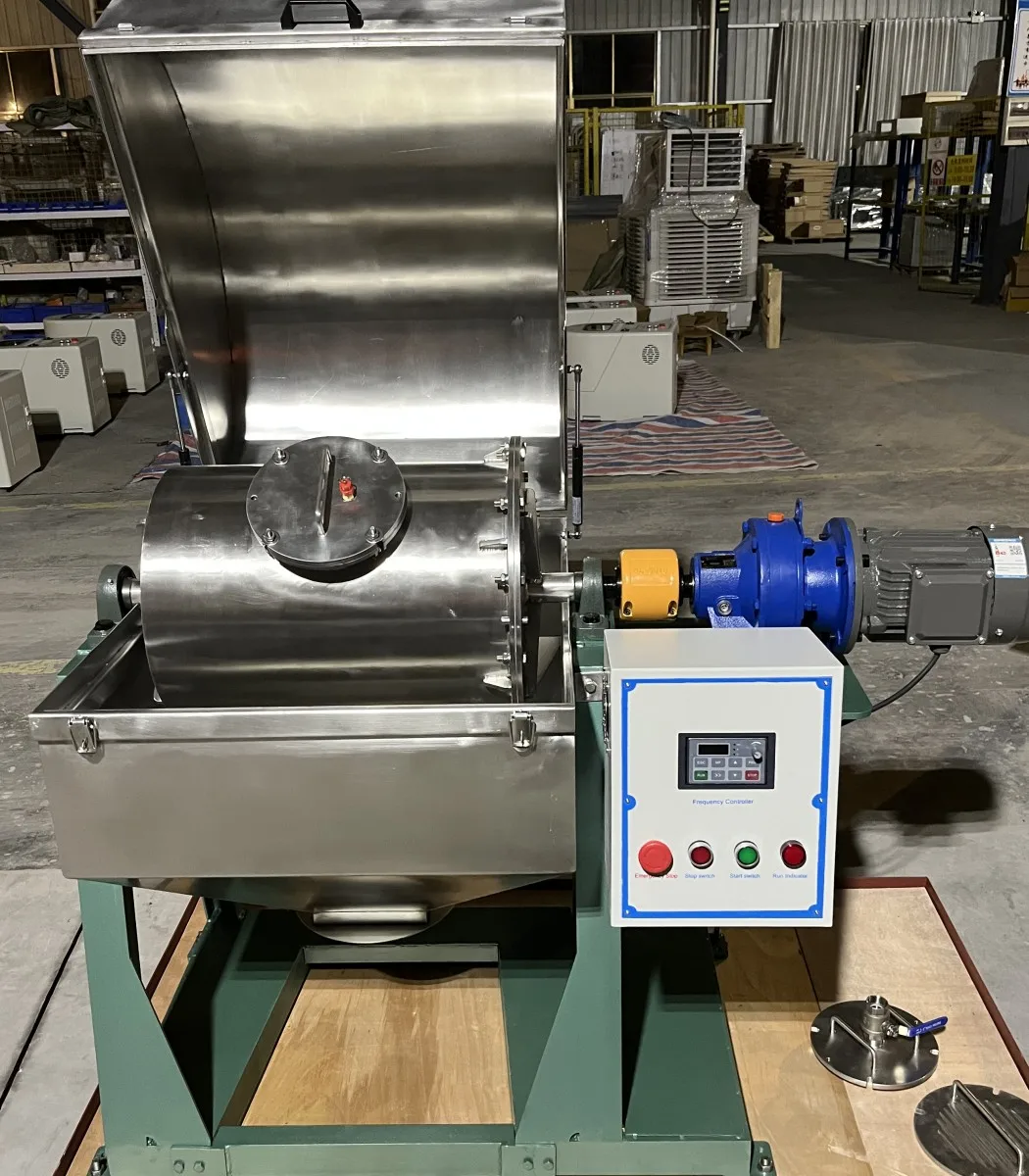

Laboratory Light Roll Ball Mill
When the lightweight drum ball mill is working, the grinding medium and material in the cylinder are lifted to a certain height together with the rotation of the cylinder, and fall from the cylinder wall along the parabola due to the action of gravity. The grinding medium and material roll in the grinding tank at a high speed, which produces strong shear, impact and rolling on the material to achieve the purpose of crushing, grinding, dispersing and emulsifying the material.



Model
Volume
Rotate Speed
Loading Volume
Motor
Voltage
Material of Tank
Input Size
Output Size
Speed
adjustment
mode
(L)
(rpm)
(L)
(KW)
(V)
（mm）
（mesh）
QM-25L
25
20-60
8.75
0.75
220
Alloy steel, stainless steel, high wear resistant polyurethane, corundum ceramics, zirconia lining, etc
≤10
300≤x≤1000
Frequency
control
or fixed
speed
QM-30L
30
20-60
10.5
0.75
220
QM-50L
50
20-50
17.5
1.5
220
QM-100L
100
20-45
35
2.2
380
≤20
QM-200L
200
20-40
70
4
380
QM-300L
300
20-38
105
5.5
380
QM-500L
500
20-36
175
7.5
380
QM-1000L
1000
20-34
350
11
380
≤30
QM-2000L
2000
20-34
700
22
380

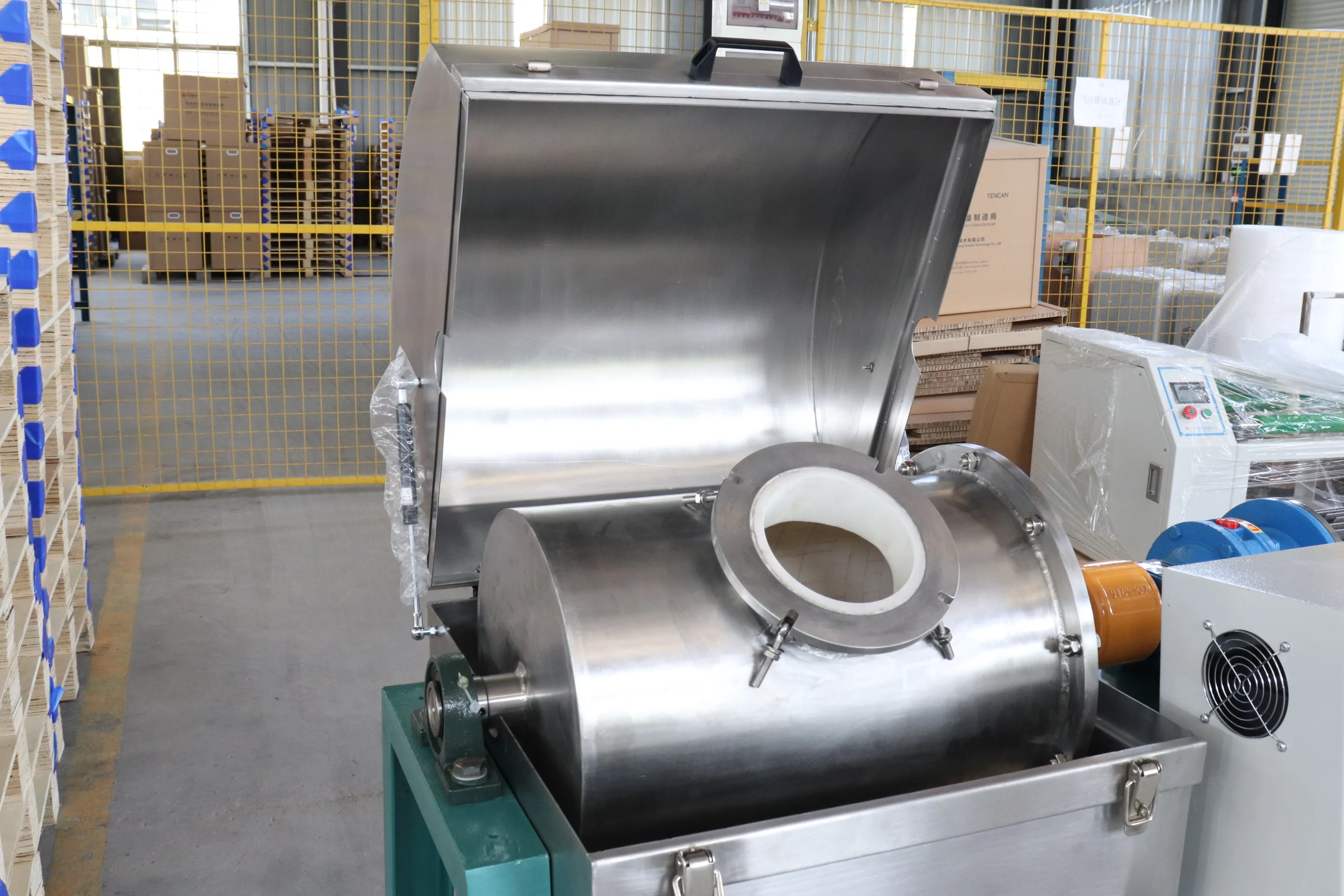

Details Images

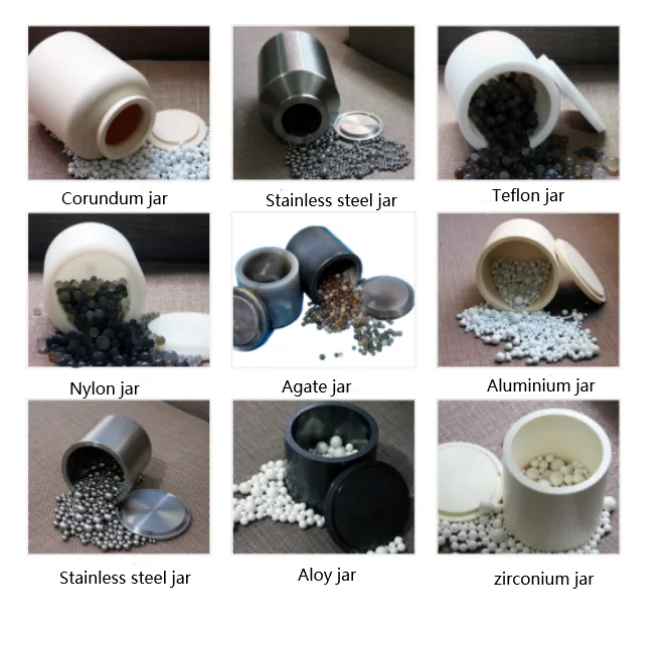

Besides the planetary ball mill machine, our factory provides all kinds of mill jars,like stainless steel mill jar, zirconia mill jar, alumina mill jar, nylon mill jar, PU mill jar, tungsten mill jar, hard metal mill jar and tempered nylon mill jar etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

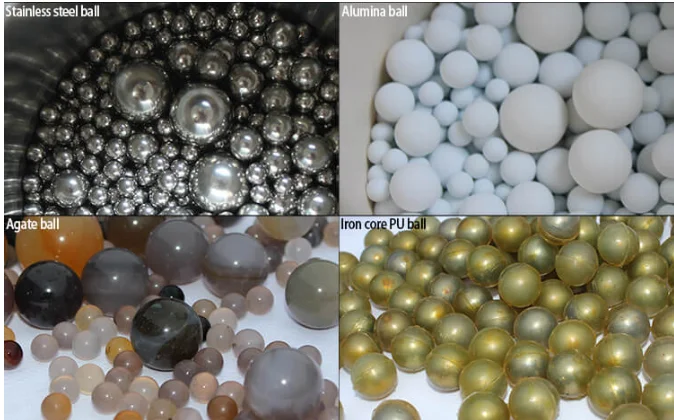

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.






Recommend Products




Company Profile




Hainan Oasis Industrial Equipment Technology Co., Ltd. established in Hainan free trade port engaged in mechanical equipment research and development;Mining machinery, sand making and washing equipment, experimental beneficiation equipment,intelligent instruments,construction waste treatment equipment,waste sorting and recycling equipment manufacturing and marketing; Precious metal smelting;Engineering and technical research, beneficiation test development;Industrial engineering design services;Special equipment manufacturing;Technical consultation;Planning and design services;Technology import and export.
Company mainly produces laboratory and production crushers, conveyors, feeders, vibrating screens, ball mill, washing machine, mixing tank, magnetic separator, shaking table, jigging machine, spiral chute, flotation machine, melting furnace, sand washing machine and etc.








Our Service


Our Service
1. Pre-sale service:
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients.

2. Serivces during the sale:
(1) Pre-check and accept products ahead of delivery;
(2) Help clients to draft solving plans;
(3) Guide clients how to install equipment successfully without problem.

3. After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site.


FAQ


1.Q:What Information needed to get accurate quotation and proposal?
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone, what is the general particle size(mm) of the raw ore?
3). What is the handling capacity (tons per hour) you need?
4) .What is the elements of the raw ore? How much percent % of each minerals?

2.Q:Can we send the mineral samples to you to run the ore-dressing experiment test?
A:?Yes, we can run the ore-dressing experiment for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipment selection. etc. based on the test results.

3.Q:What about warranty of the equipment? Any spare parts supplied?
A:The warranty period of OASIS equipment is 12 months. And of course we will supply the spare parts to you for life-long time at lowest cost.

4.Q: The reason you choose OASIS?
A:1). Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.?
2). Experienced and professional R&D team and manufacturing team.
3). Professional sales team consisted of dedicated, dynamic and innovative staff with international version.
4). Professional logistics service ensuring safety and timely delivery of products all over the world.
