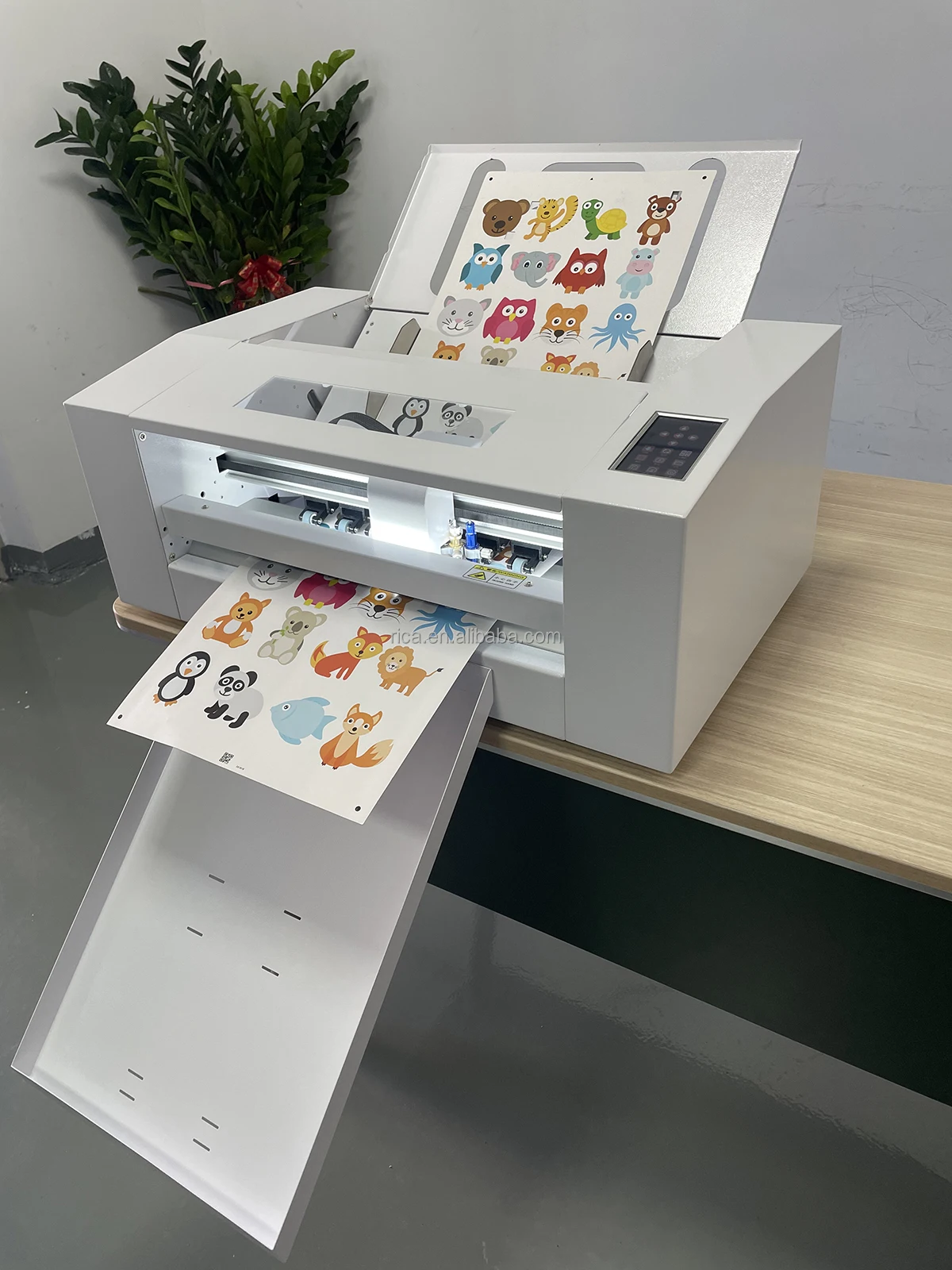

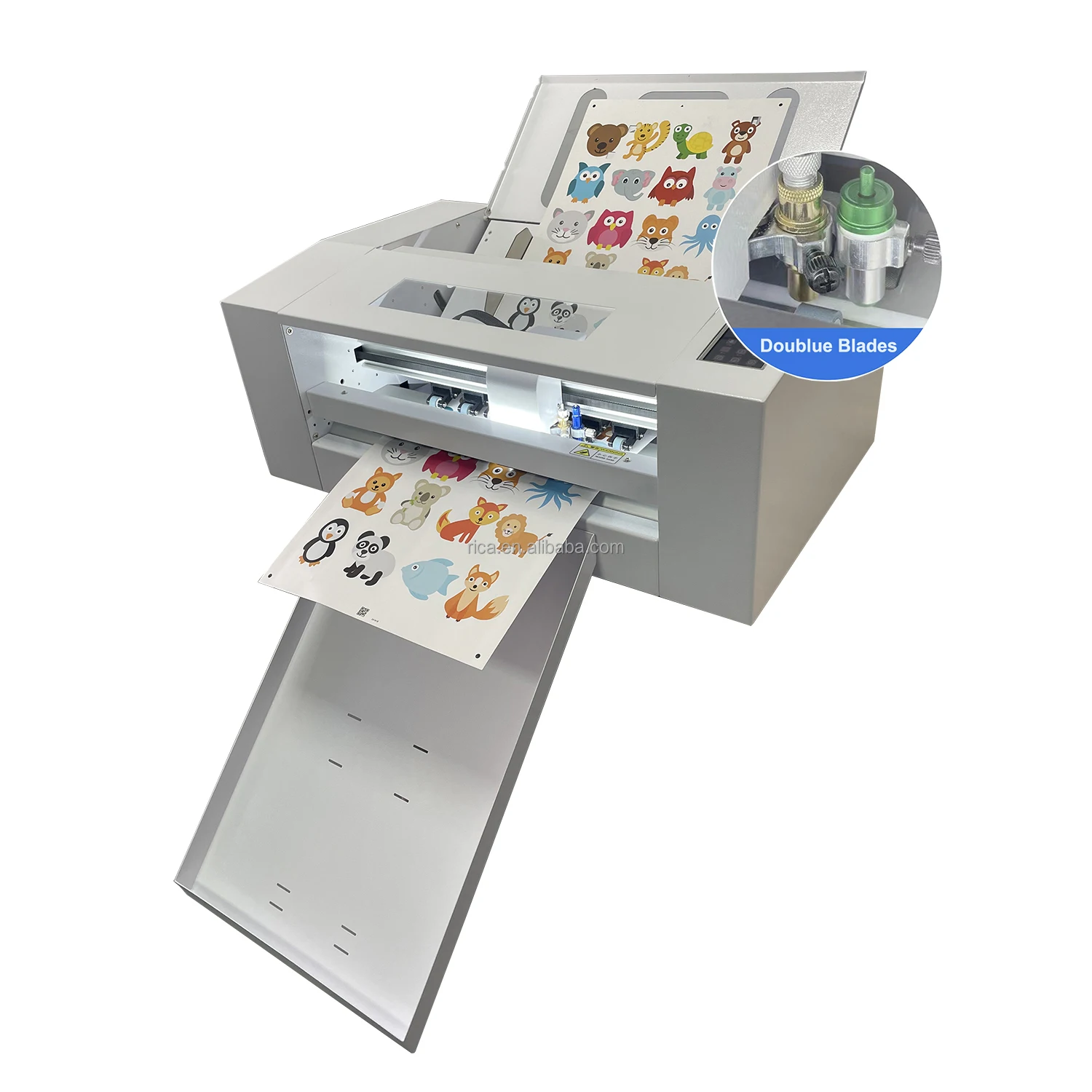

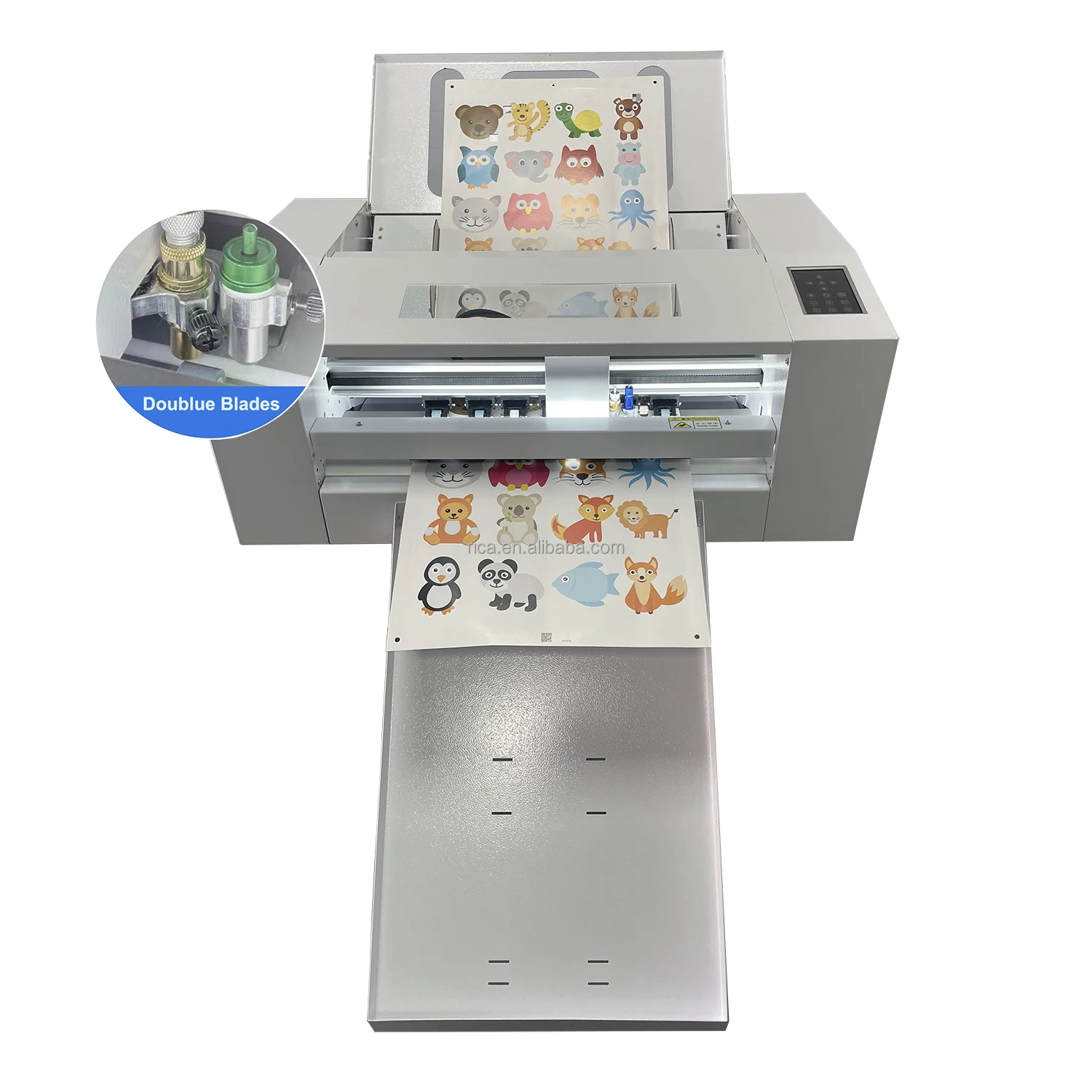

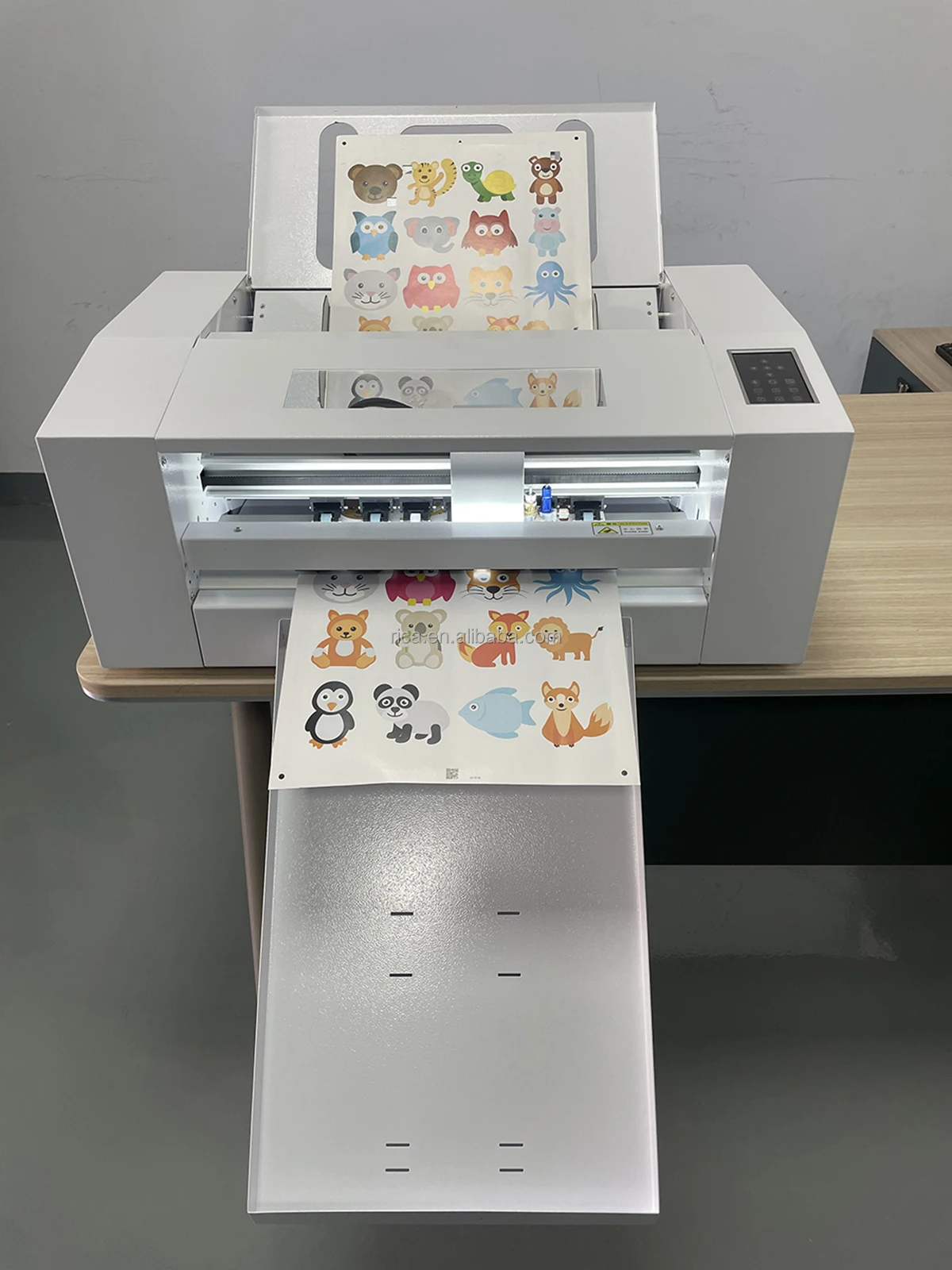

A3/A4 1200mm/s double head Die cut machine automatic sheet label cutter Automatic feeding paper for gift box and 350g cardboard
- Category: >>>
- Supplier: Suzhou Ruicai Electron Co. Ltd.Suzhou Ltd.
Share on (1601308105643):
Product Overview
Description
Welcome to our store
Ruicai Group is Professional machinery manufacturer since 1995.
We provide reliable quality machines and looking forwarder to
"long term business relationship, NOT one time business".
Here is our : A3/A4 1200mm/s double head Die cut machine automatic sheet label cutter Automatic feeding paper for gift box and 350g cardboard
Product Description
Specification
Product Name | A3/A4 1200mm/s double head Die cut machine automatic sheet label cutter Automatic feeding paper for gift box and 350g cardboard | |
Model | LC-350B | |
Cutting material | Instant stickers, self-adhesive paper, card paper, photo paper, heat transfer materials, copy paper, etc | |
Head | One Cutting head; One Creasing head | |
Maximum paper feed width | 350mm | |
Min paper feed width | 120mm | |
Maximum cutting width | 320mm | |
Maximum cutting thickness | 80g-400g (white cardboard and coated paper)/1mm | |
Max. pressure | 50-800g(digital adjustment) | |
Control panel | 4.3 inch Touch screen | |
Point seeking method | HD camera point seeking/circular marking/L-angle | |
Blank size | Leave 5mm space around the material | |
Compatible system and output software | Windows, support CorelDRAW/AI/AIDcut | |
Main board | 32-bit processor/high-speed subdivision | |
Drive | Step motor | |
Repeatable precision | < ±0.1mm | |
Mechanical precision | 0.025mm | |
Max cutting speed | 1200mm/s | |
Input paper | 100sheets | |
Type of plotter pen | all types diameter 11.4mm plotter pen | |
Plotter instruction | compatible DM/PL,HP/GL | |
Cutting type | Half cut/Full cut | |
Automatic edge tracking | Yes | |
Power supply | AC220V/110V,50HZ | |
blade | imported hardness alloy steel blade | |
Package size | 770*490*505cm | |
Net Weight/Gross Weight | 32kg/44kg | |
1. Over 18 years developed technology, WIFI , Flash drive, wire cable, Internet connection. 2. Cutting thickness 80gsm to 400gsm. 3. Camera scanner system. Faster precision. 4. Freedom, horizontal and vertical multi-functional cut. 5. Auto feeder without paper jam | ||
Details Images
Notice: The information on the product page is outdated and is for reference only. For specific and accurate information, please refer to the verification with the sales team. The final interpretation right belongs to Ruicai.
Company Profile
Ruicai Group found in 1995, we have 20 years of experience in the field of Printing and Finishing Equipment.
Our products include Printng machine, offset printing ,machine, UV printing machine, DTF printer, DTG printer, screen printing machine, corrugated box printing machine, bag printing machine, tag printing machine, cardboard slotting machine, die cutting machine, hot stamping machine, paper folding machine, paper cutting machine, creasing machine, perfect binding machine, roll laminator, card cutter, photobook making machine, and so on. We can provide one-stop solution to our customers.
In 2004, the products got CE proved and gradually came to Canada and European countries. In 2006, got ISO9000 proved. Now our products cover all mature and emerging markets. We have around 200 dealers all over the world.
We have an experienced R&D team, a hardworking production team, an excellent sales team and a perfect after sales team with high quality management system. We are keen on developing and innovating new products to meet different markets' need. Every year, there are several new machines being put on market. We believe through our efforts, we and our partners from all over the world will have a fantastic cooperation and great future together!
Our faith is "Honesty based quality first and service oriented".
Welcome your inquiry at any time!
