Chinese Brand XR130E HYDRAULIC DRILLING RIG used condition xr150dII XR160DIII xr220e xr280e xr280dII xr360e
Chinese Brand XR130E HYDRAULIC DRILLING RIG used condition xr150dII XR160DIII xr220e xr280e xr280dII xr360e
Chinese Brand XR130E HYDRAULIC DRILLING RIG used condition xr150dII XR160DIII xr220e xr280e xr280dII xr360e
Chinese Brand XR130E HYDRAULIC DRILLING RIG used condition xr150dII XR160DIII xr220e xr280e xr280dII xr360e
Chinese Brand XR130E HYDRAULIC DRILLING RIG used condition xr150dII XR160DIII xr220e xr280e xr280dII xr360e
Chinese Brand XR130E HYDRAULIC DRILLING RIG used condition xr150dII XR160DIII xr220e xr280e xr280dII xr360e
Chinese Brand XR130E HYDRAULIC DRILLING RIG used condition xr150dII XR160DIII xr220e xr280e xr280dII xr360e

Chinese Brand XR130E HYDRAULIC DRILLING RIG used condition xr150dII XR160DIII xr220e xr280e xr280dII xr360e

Share on (1601308199413):


Price:$98,000.00-100,000.00

Quantity:


Product Overview

Description



Product Description






Specification


Type
Unit
Parameter
Max.drilling diameter
m
1.5/1.3
configuration/driling depth
m
JS440-4x11.3/40((Standard )
MZ440-5x11.3/40( Optional )
MZ440-6x11.3/50( Optional)
Engine
Model
QSB7-C227
Power
kW
169

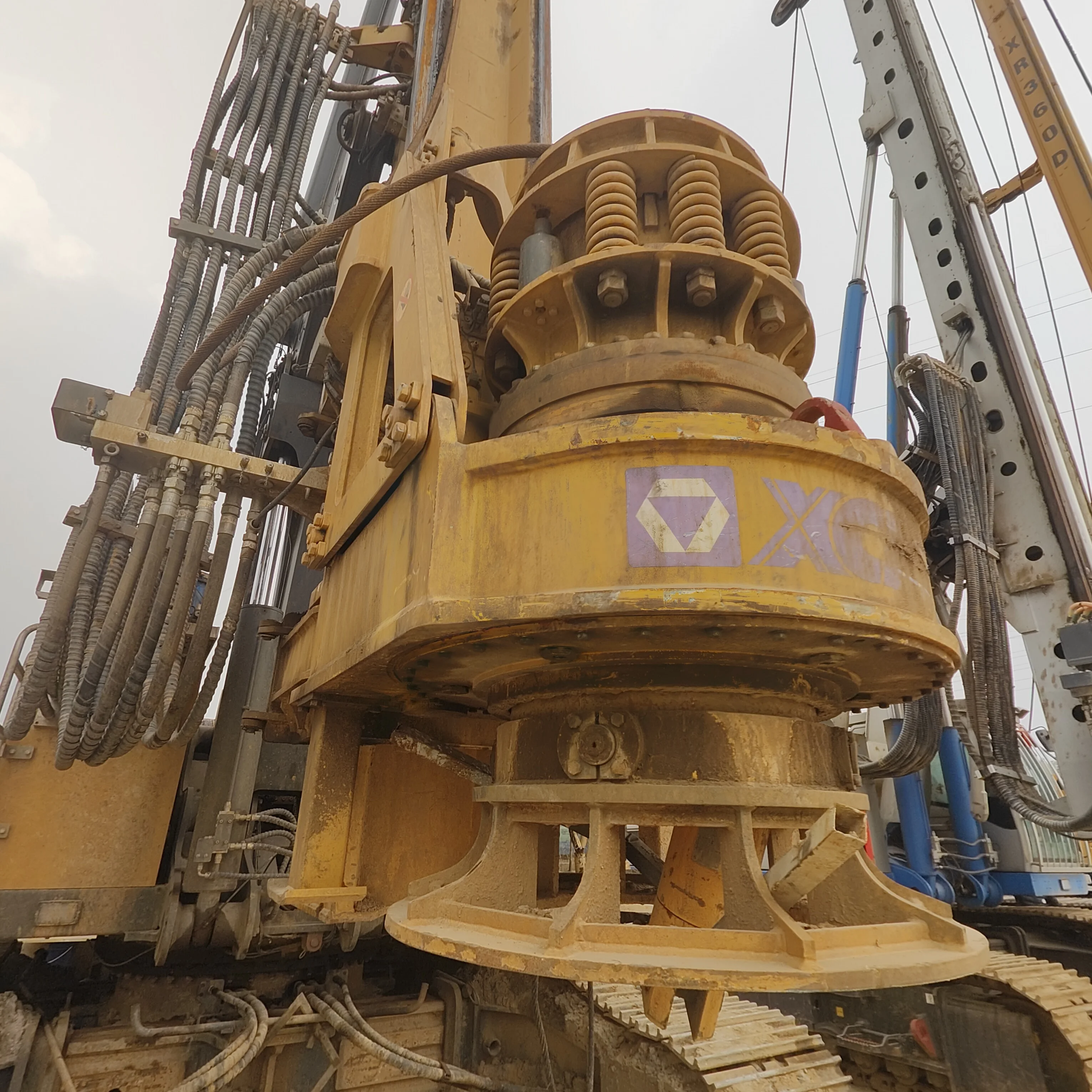

Rotary drive
Max.ouyput lorg
kN·m
130
Rotary speed
r/min
8-35
Crowd cylinda
Max. pult-down piston push
KN
120
Max. pu-down piston pull
kN
140
Crowd cylinda
Max. pul-down piston stroke
m
3.5
Crowd winch
Max. pull-down piston push
kN
200
Max. pull-down piston pul
kN
200
Max. pull-down piston stroke
m
11
Main winch
Max.pulling force
kN
140
Max.speed
m/min
75
Auxiliary winch
Max. puling force
kN
50
Max.speed
m/min
70
Mast inclinatio
Lateral/forwards/backwards
±3/5/15
Undercarrige
Max. traveling speed
km/h
2.7
Max.grade ability
%
40
Min.clearance
mm
345
Track shoe width
mm
600
Distance between tracks
mm
2500-3600
Hydtraulic system
Working pressure
MPa
35
Overall weight
t
43
Dimension

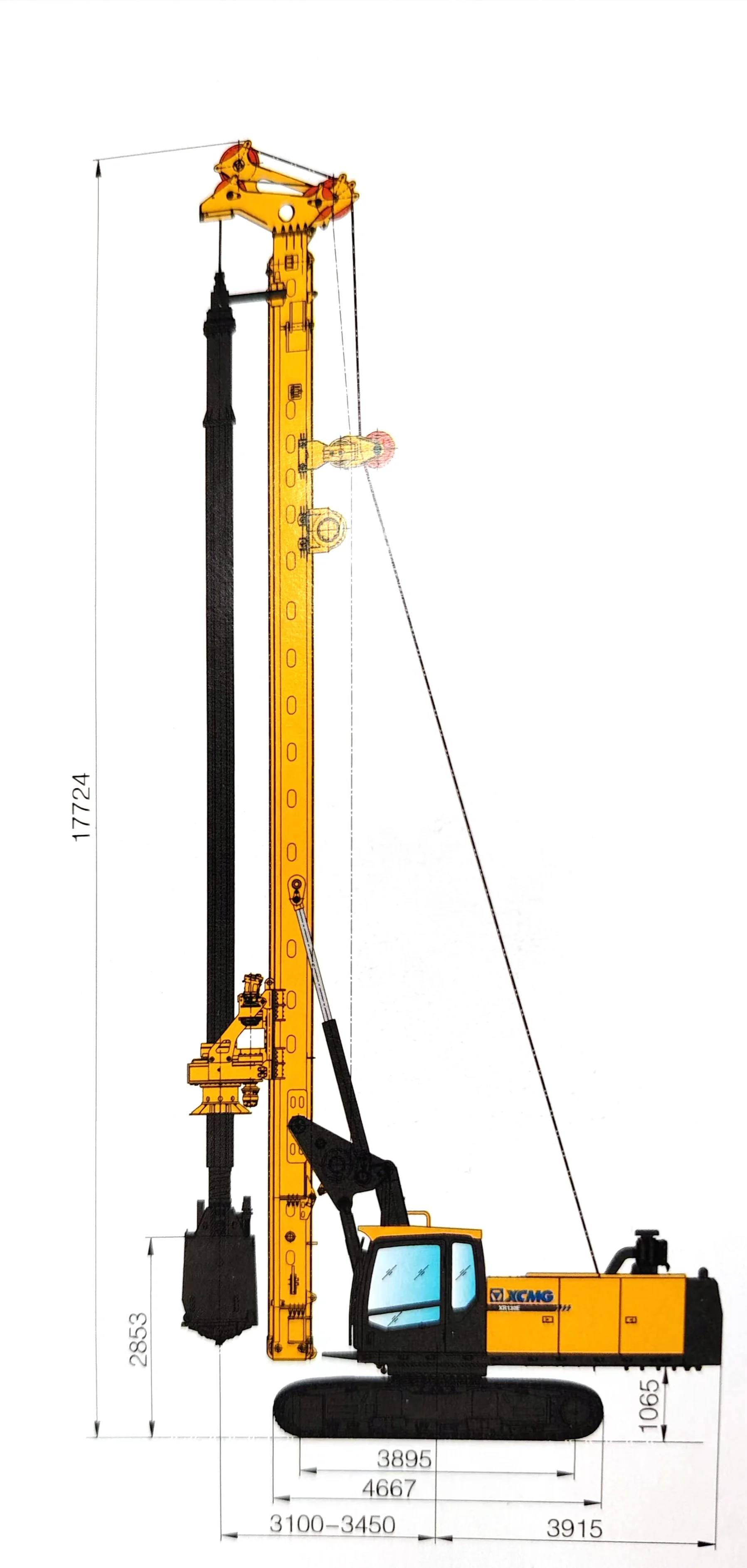

Working condition
mm
7546*3600*17724

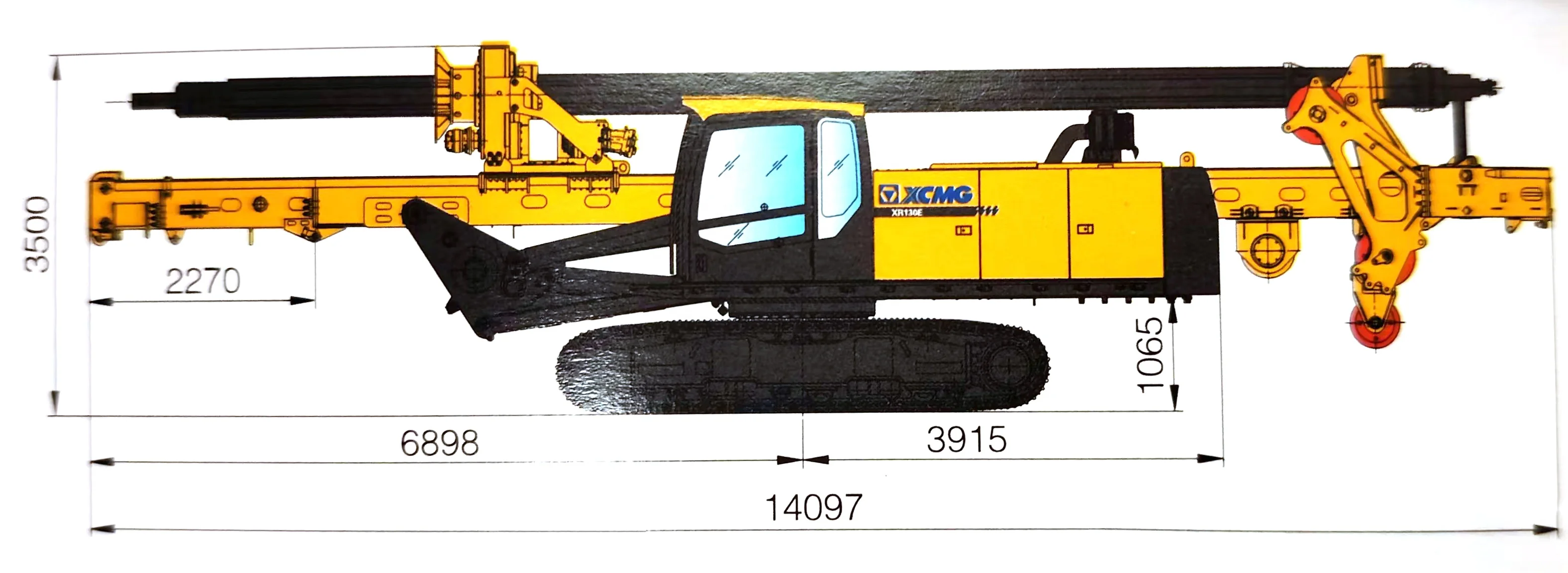

Transportation condition
mm
14097*2500*3500

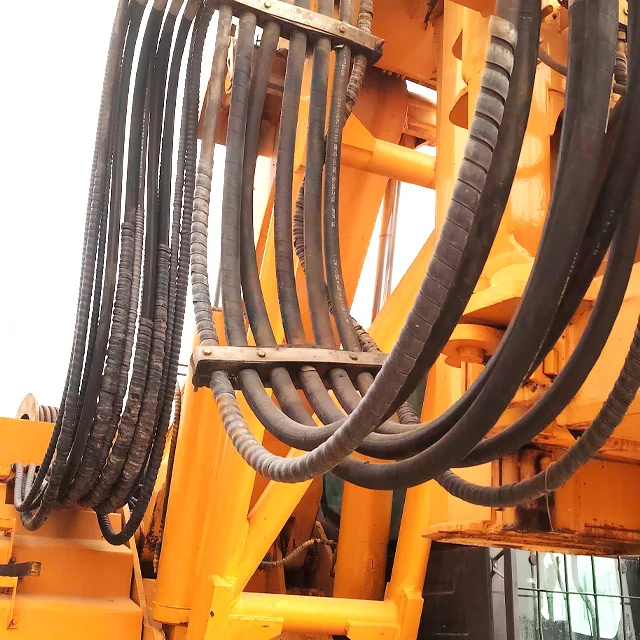

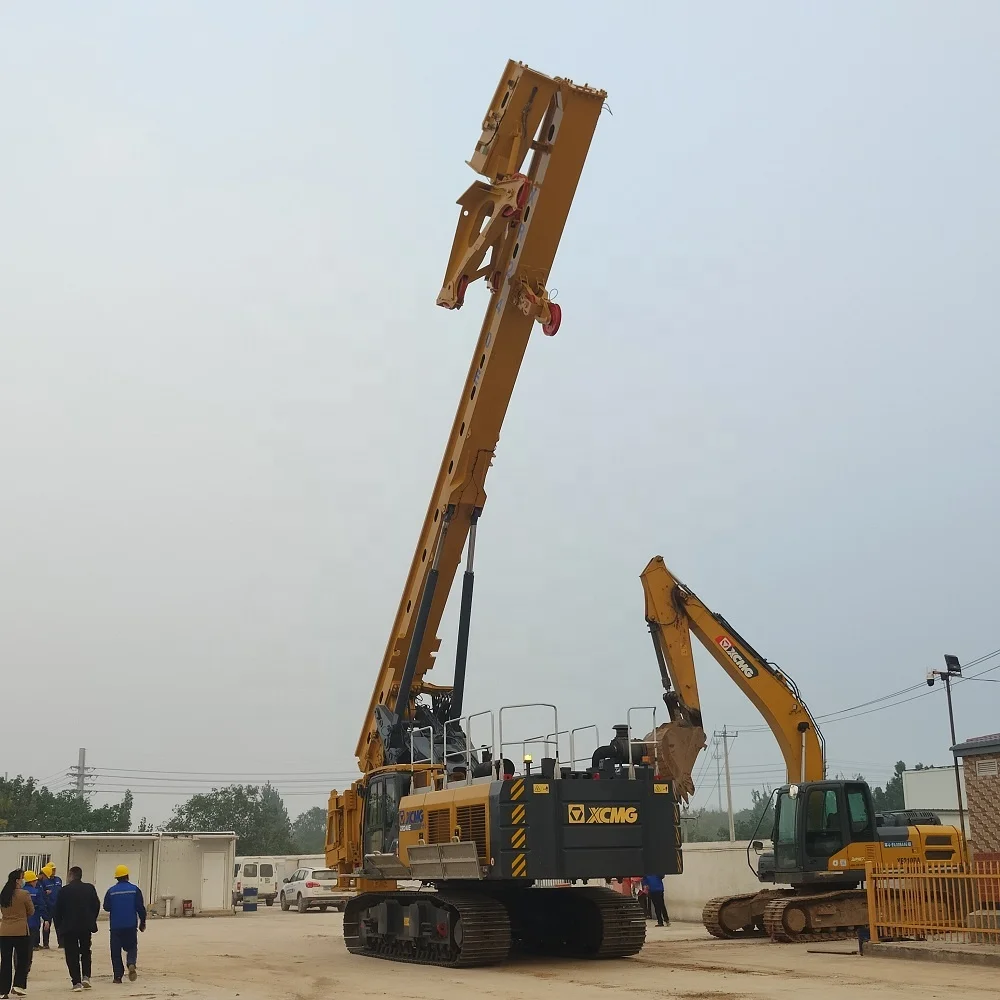

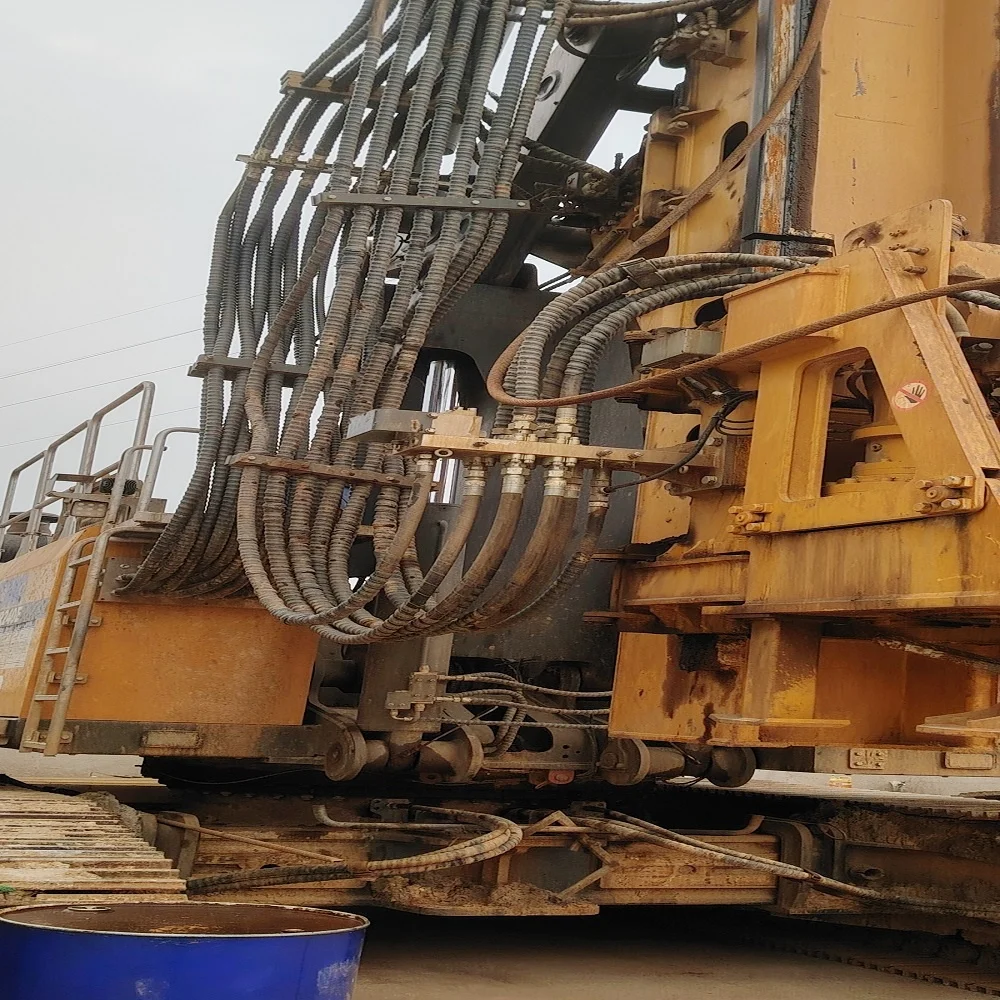

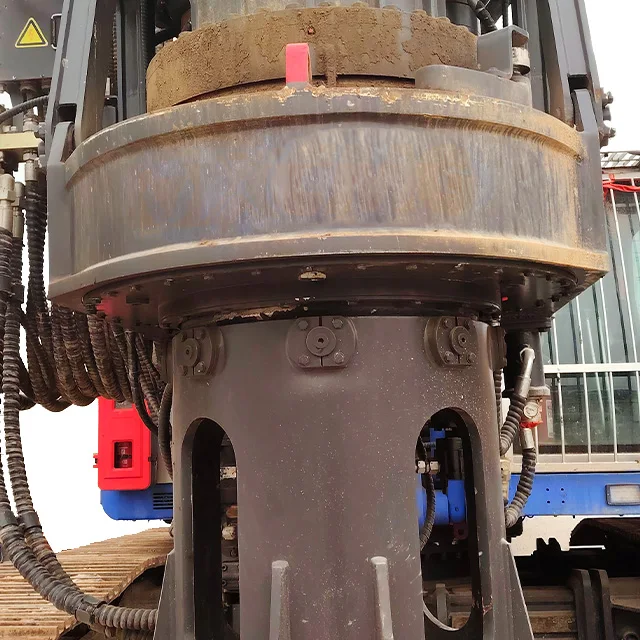

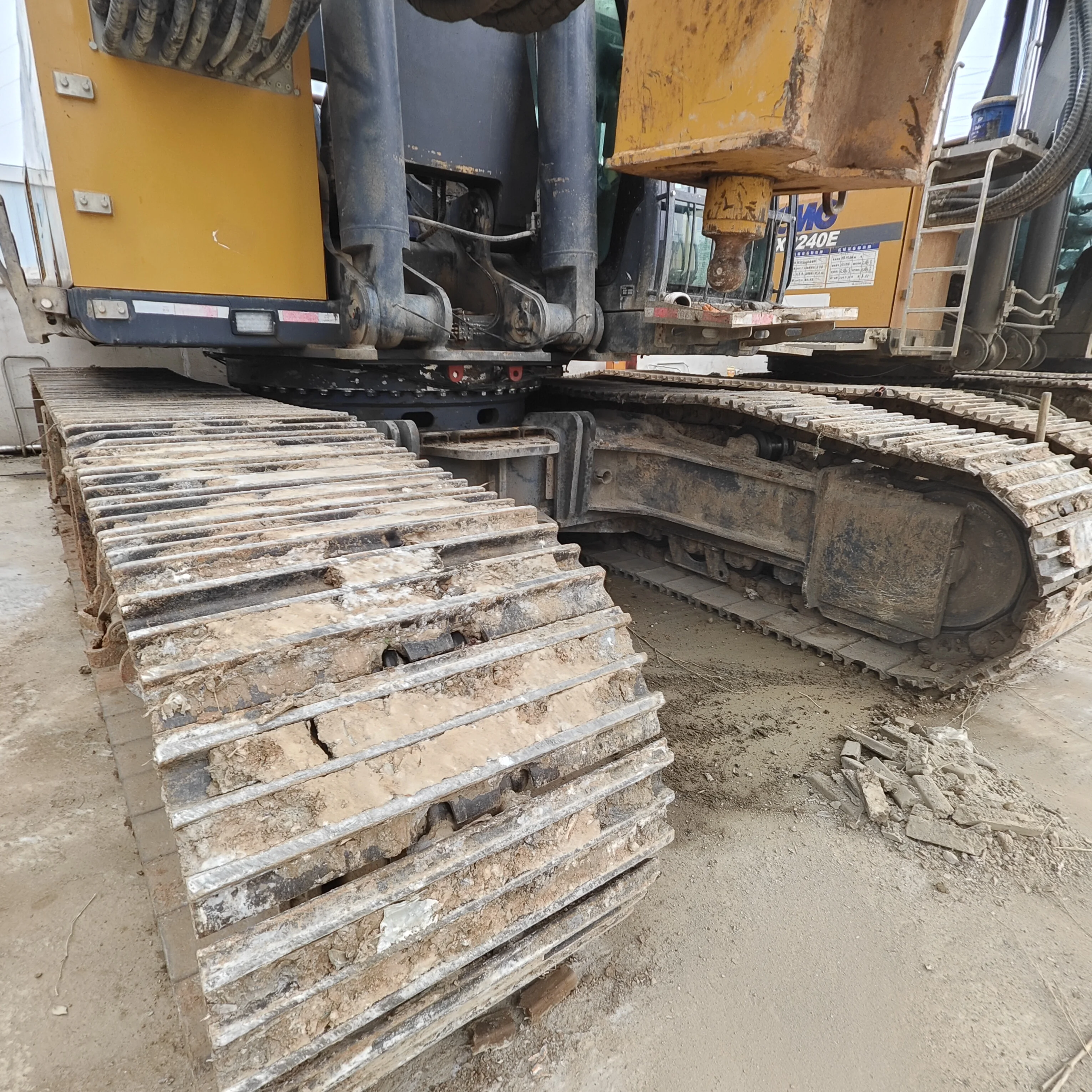

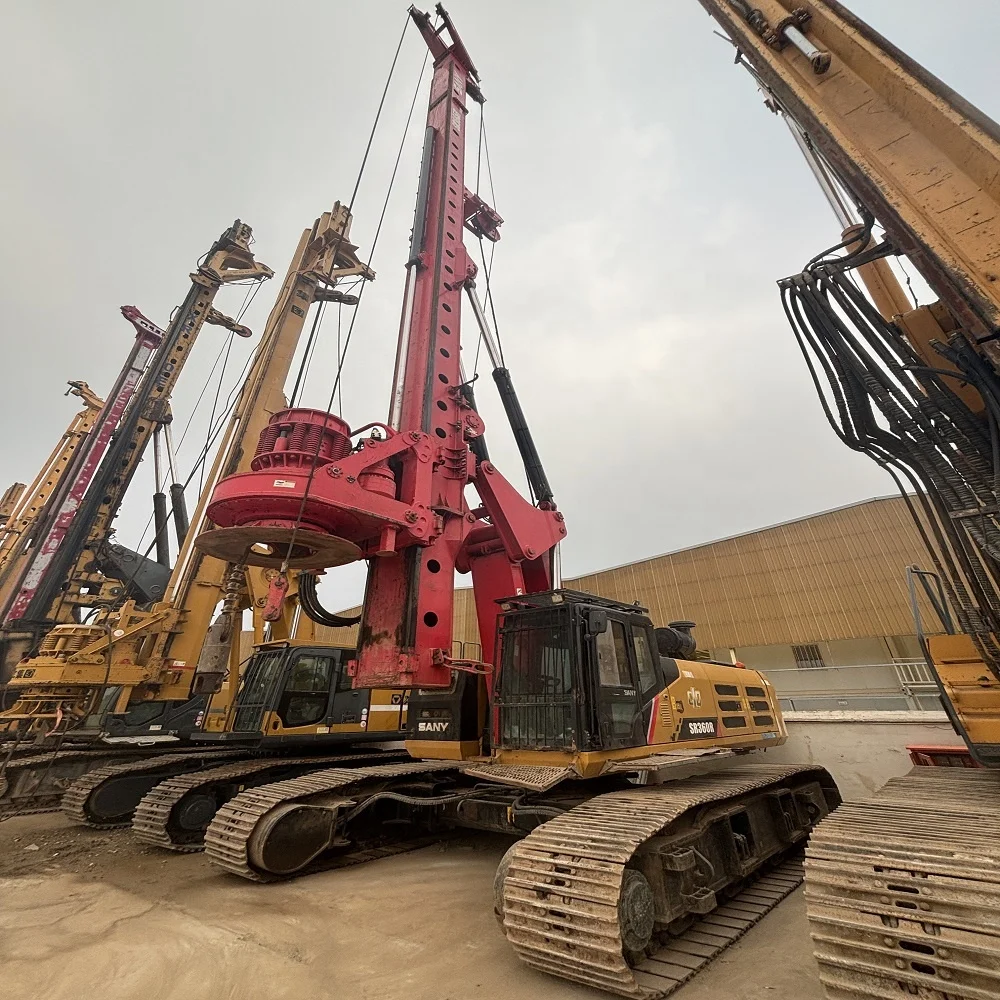

Details Images




Company Profile




Shandong Kairui Import and Export Co., Ltd is located in the beautiful city of Jinan, Shandong Province. It is a heavy-duty automobile enterprise integrating customization and sales. It has advanced production management experience, can independently design and produce, and can accept customized production.
Products cover a full range of commercial vehicles such as heavy trucks, medium trucks, light trucks, pickup trucks, rotary excavators, tractors, etc. At the same time, it also has mature second-hand car renovation and related accessories sales services,and is committed to designing high-quality procurement solutions for customers with different needs to achieve true win-win cooperation.
