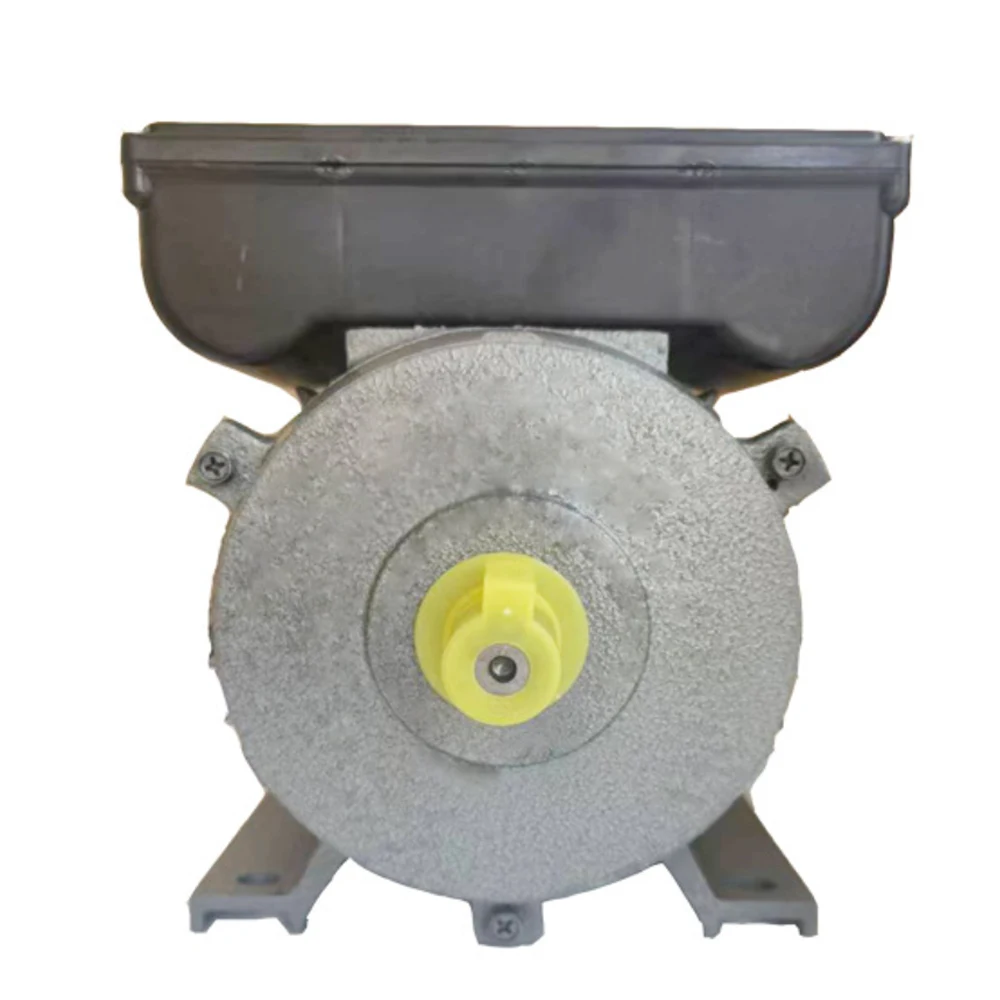

YL802 4 0.75kw 4 pole 1500rpm Single phase Cast Iron Shell Copper Wire Capacitor Start and Run YL Motor

Product Overview

Description

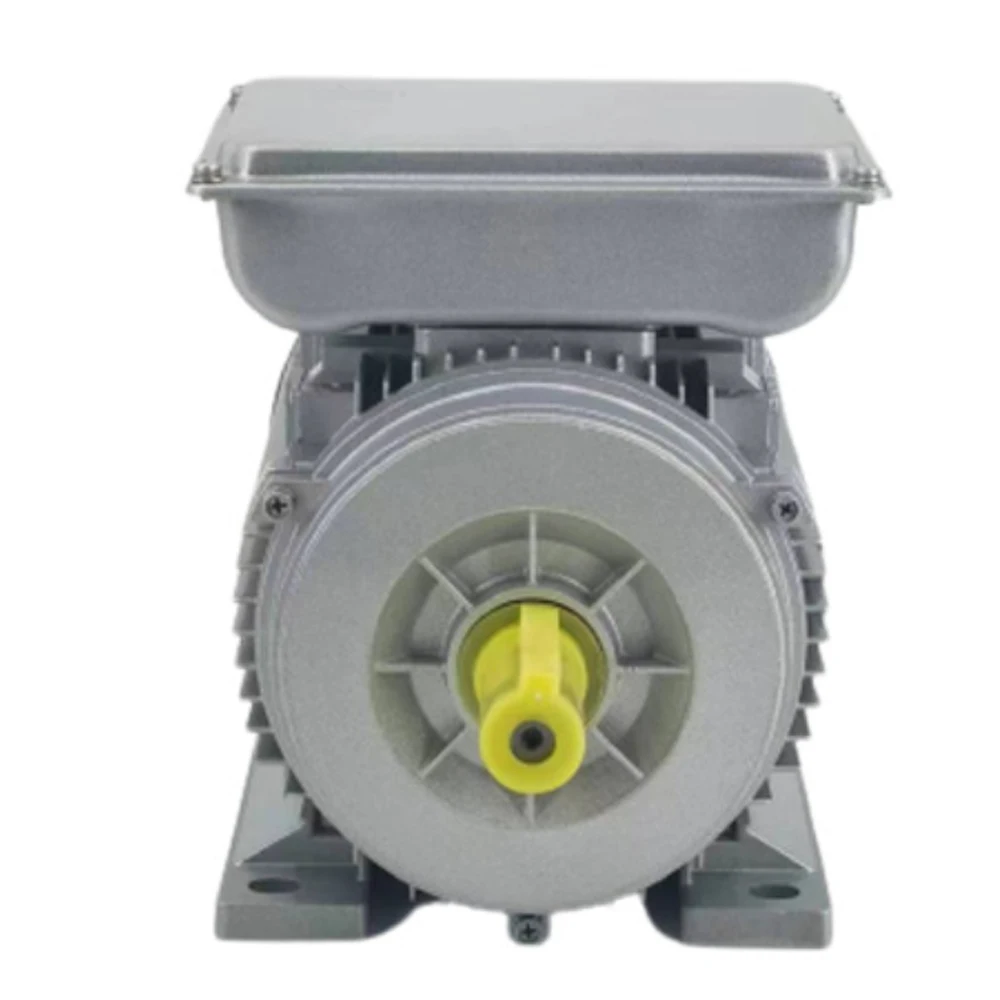

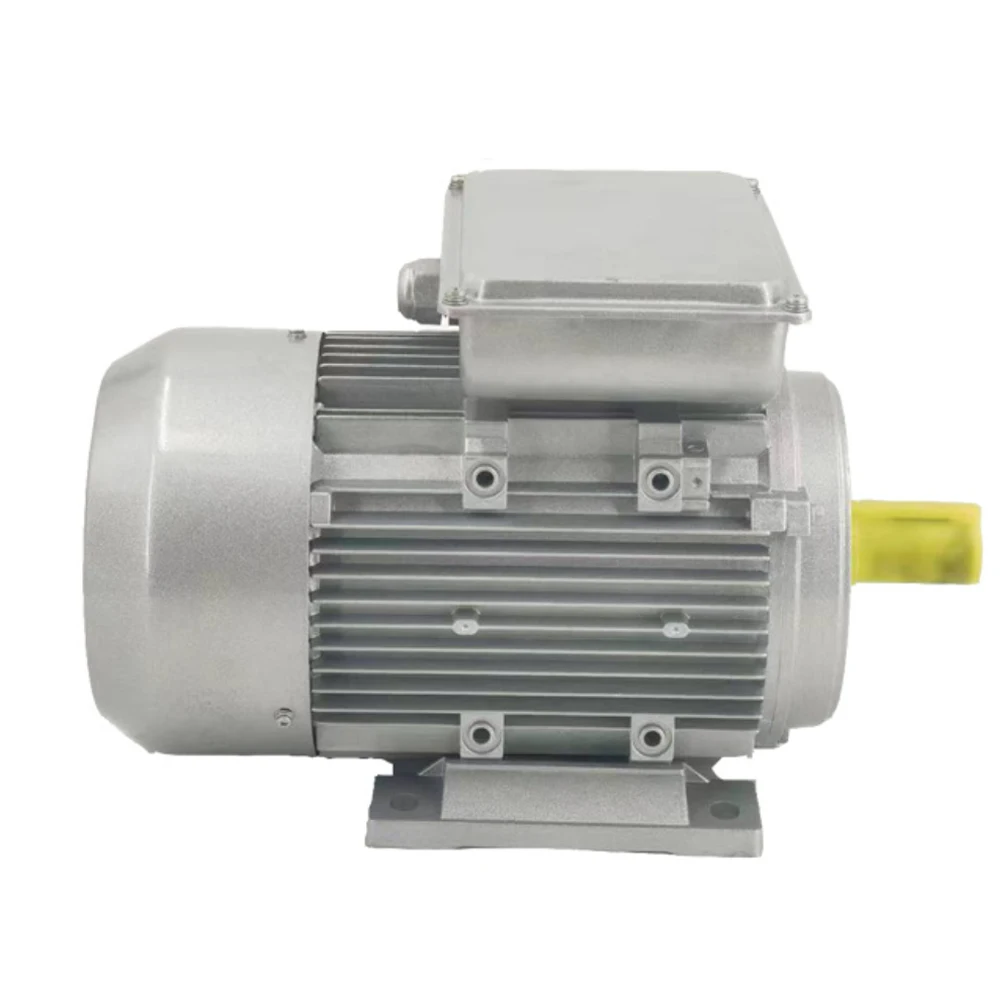

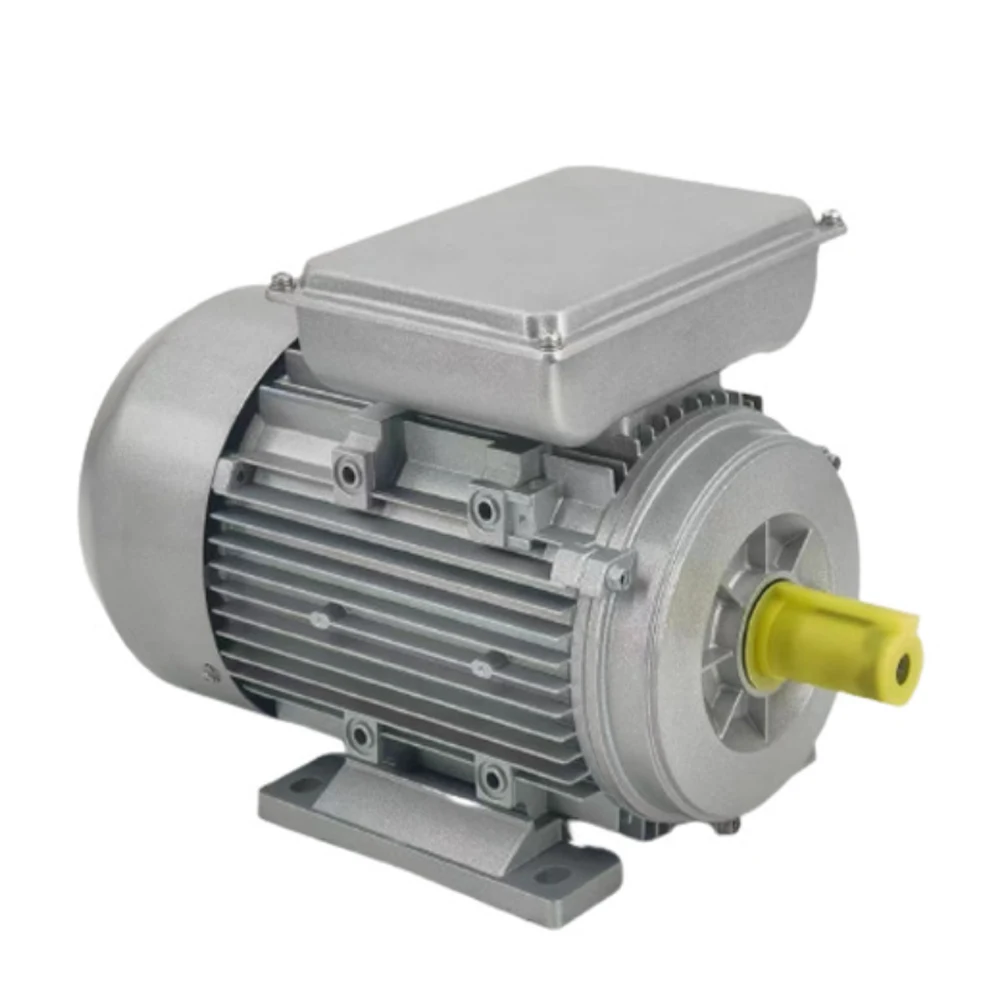

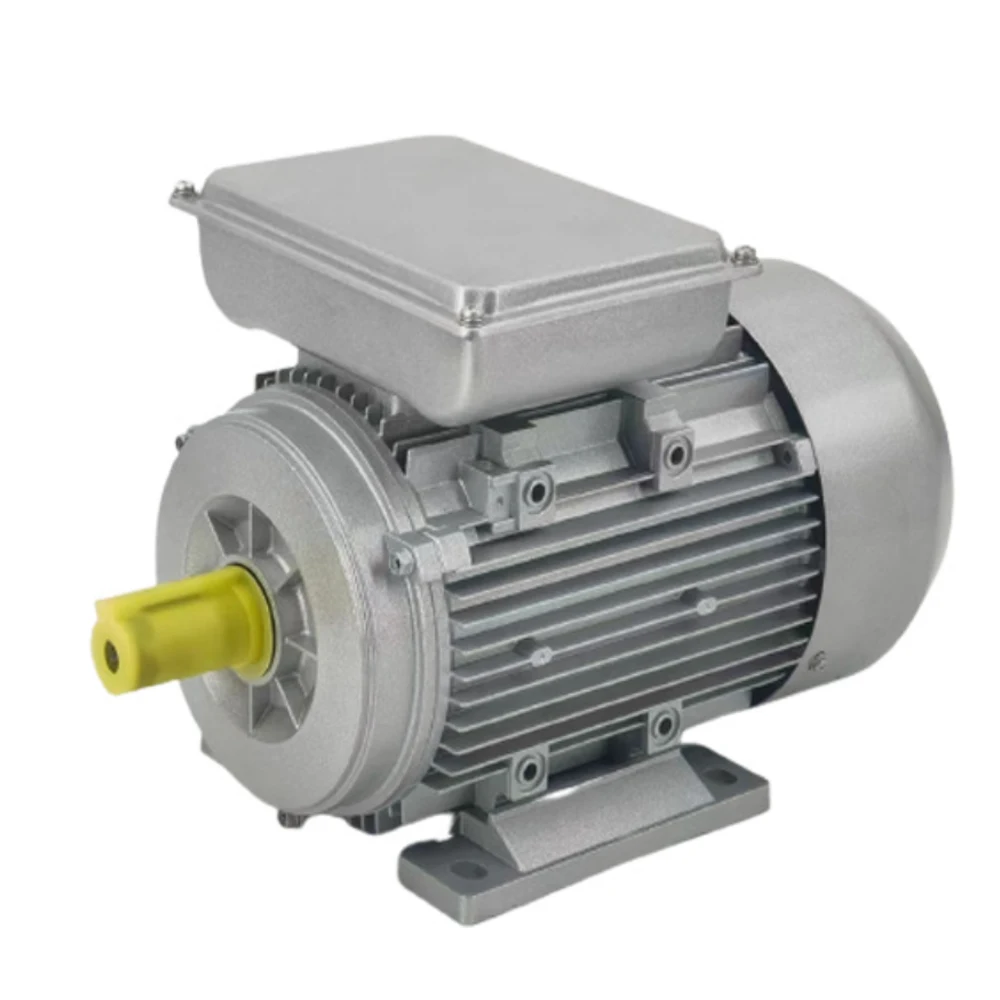

YL802-4 0.75kw 4-pole 1500rpm Single-phase Cast Iron Shell Copper Wire Capacitor Start and Run YL Motor

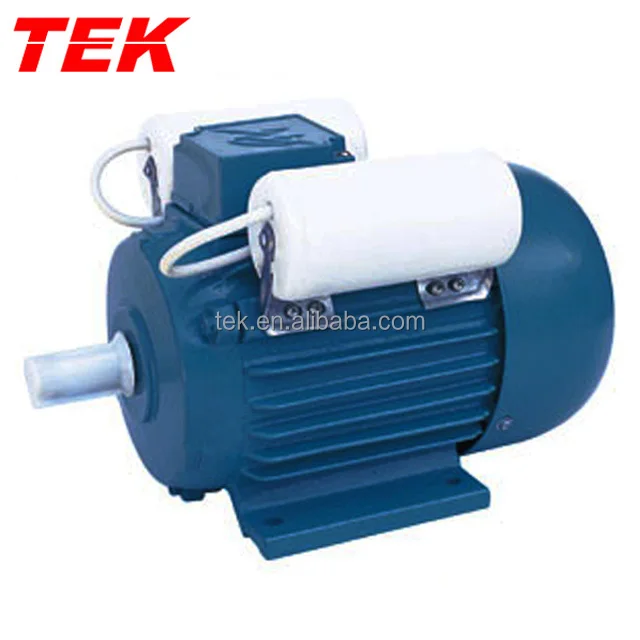

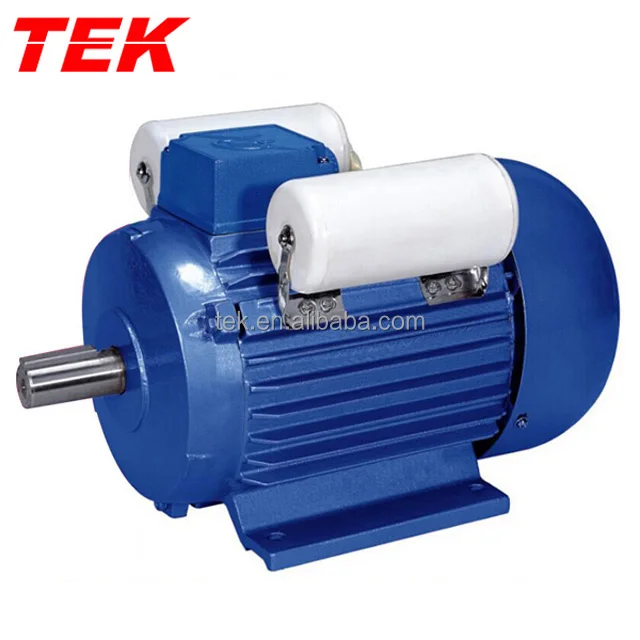

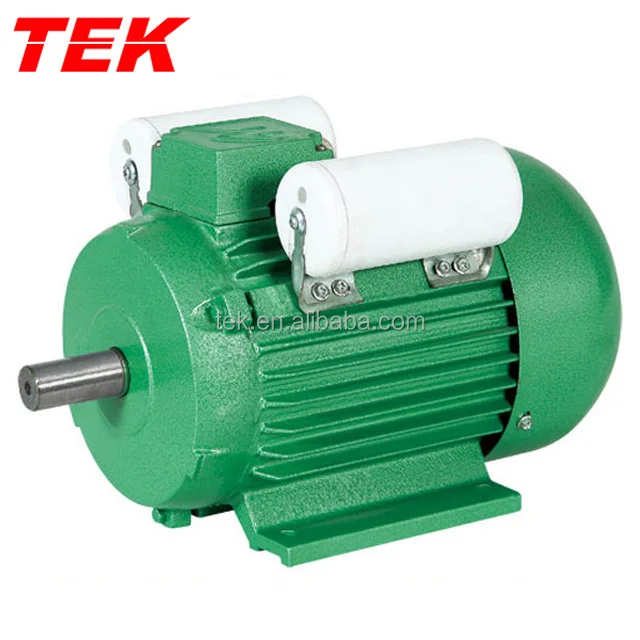

YL Series Single phase dual-capacitor asynchronous motor is designed and manufactured in according with national standard, newly developed by our company with low noise, compact dimension, light weight, easy maintenance, etc. These motors are widely used on air compressors, pumps, fans, refrigeration, medical instruments, small-size machines, etc, especially for occasion where only single-phase power supply is available. Protection type: Ip44 Insulation class: B Rated voltage: 220V Cooling type: IC 0141 Duty type: continuous running Rated frequency: 50Hz

Product Power:0.37-5.5KW

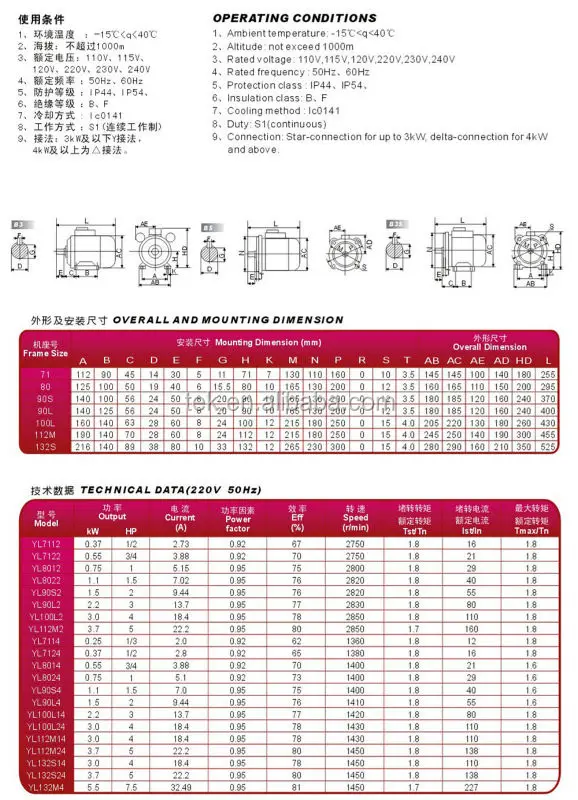

Model	Output		Current	Power factor	Eff	Speed	Tst/Tn	Ist/In	Tmax/Tn
	KW	HP	A		%	(r/min)
220V 50Hz Synchronous Speed 1500 r/min (4 Poles)
YL711-4	0.25	1/3	2	0.92	62	1360	1.8	12	1.8
YL712-4	0.37	1/2	2.8	0.92	65	1380	1.8	16	1.8
YL801-4	0.55	3/4	3.88	0.92	70	1400	1.8	21	1.6
YL802-4	0.75	1	5.1	0.92	73	1400	1.8	29	1.6
YL90S-4	1.1	1.5	7	0.95	75	1400	1.8	40	1.6
YL90L-4	1.5	2	9.44	0.95	76	1410	1.8	55	1.6
YL100L1-4	2.2	3	13.7	0.95	77	1420	1.8	80	1.8
YL100L2-4	3	4	18.4	0.95	78	1430	1.8	110	1.8
YL112M1-4	3	4	18.4	0.95	78	1430	1.8	110	1.8
YL112M2-4	3.7	5	22.2	0.95	80	1450	1.8	138	1.8
YL132S1-4	3	4	18.4	0.95	78	1450	1.8	110	1.8
YL132S2-4	3.7	5	22.2	0.95	80	1450	1.8	138	1.8
YL132M-4	5.5	7.5	32.49	0.95	81	1450	1.7	227	1.8
