Product Overview
Description
Products Description

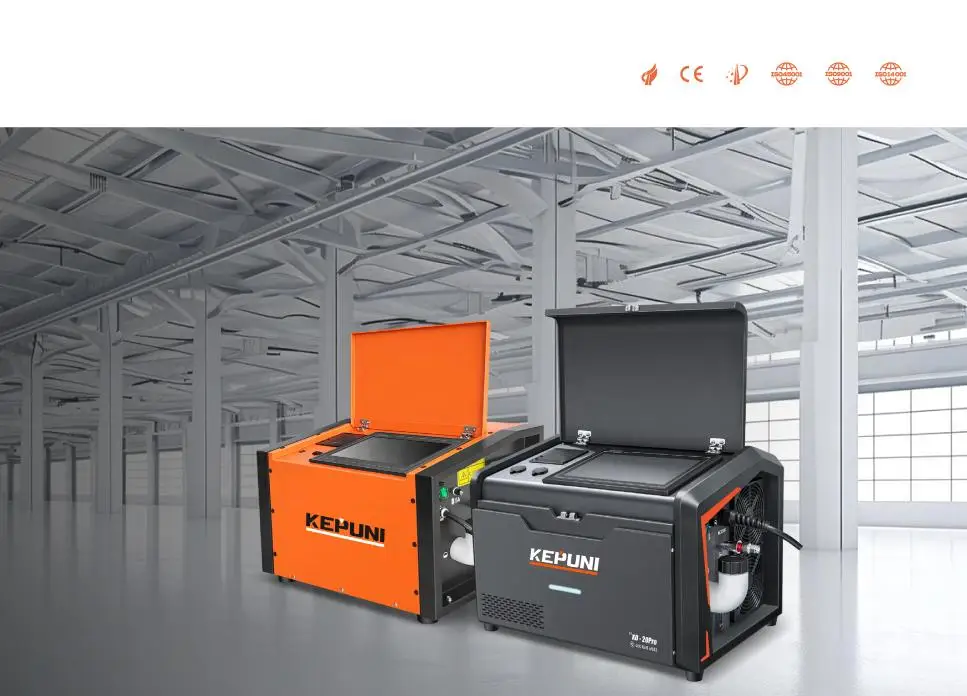

Orbital Welding Machine
Orbital pipe welding machine is used for the interface between pipe fittings and pipe fittings, and between pipe fittings and fittings. Special equipment for welding by welding power source, the welding power source is TIG.

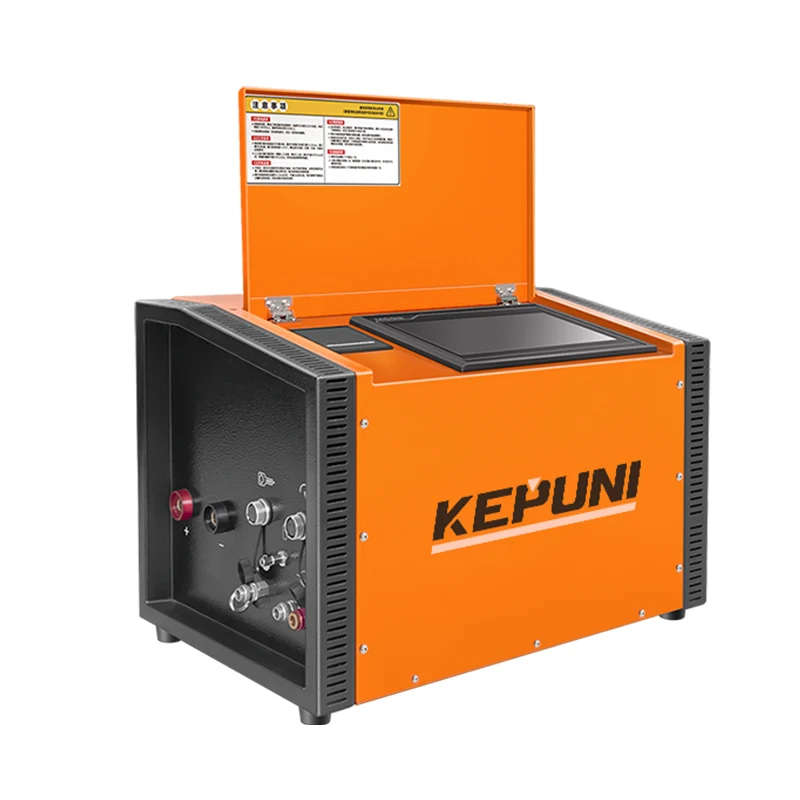

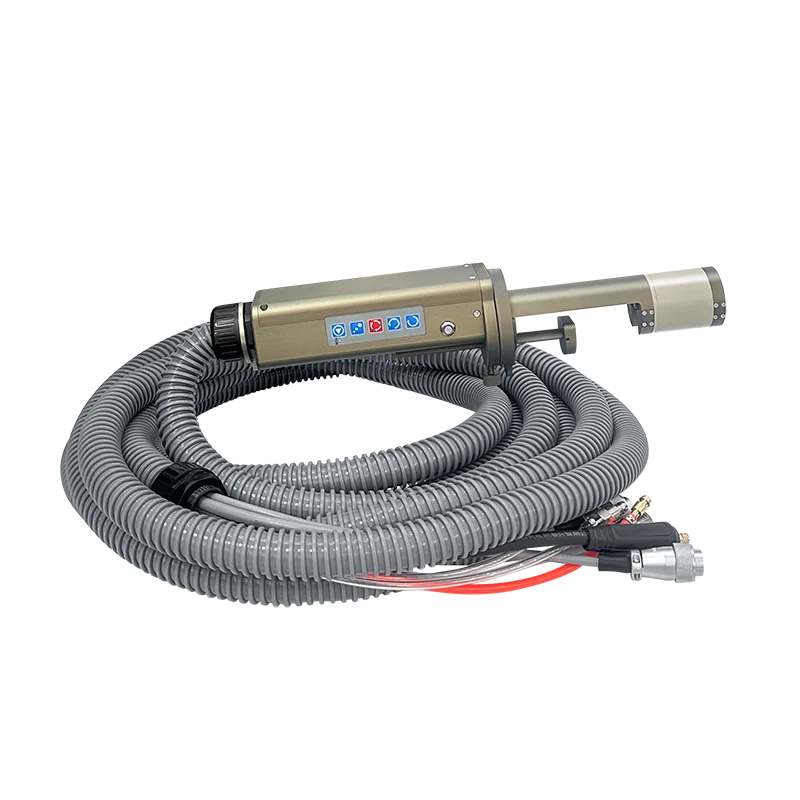

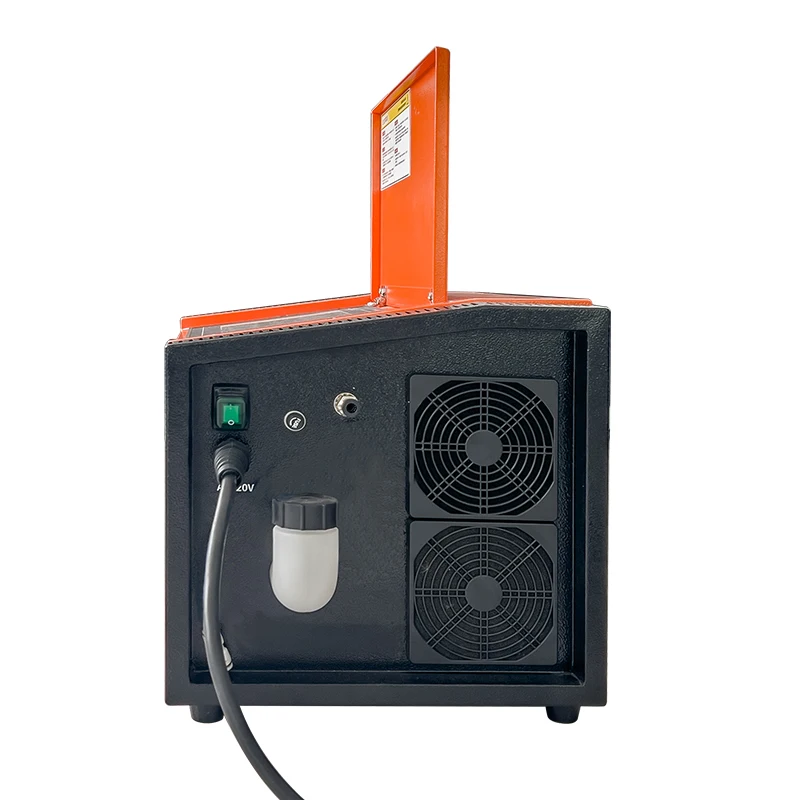

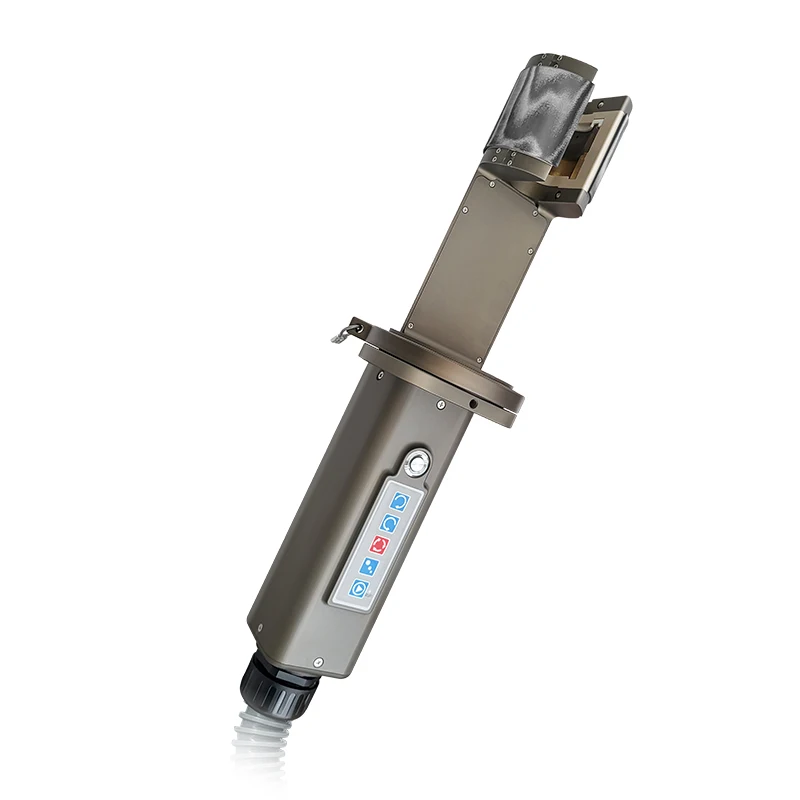

The orbital pipe welding machine welding system is composed of welding power supply and welding torch. The power supply of the orbital welding machine is composed of the control system, the power supply system and the cooling water tank. The system adopts PLC and develops a special pipe welding control system. It only needs to input the pipe diameter and wall thickness of the weldment, and the control system will automatically operate and start the gas and water cooling protection.
Product Paramenters
Model | XD-20W | XD-20PRO | |
Duty cycle | 200A 60% /155A 100% | ||
Floating voltage | 65V | ||
Input voltage | AC220V±10% 50Hz/60Hz | ||
Power | 4.5 KVA | ||
Welding gun cooling | Built-in circulating water cooling | ||
Screen | 10 inch touch screen | ||
Partition Free Space | 12 | ||
Insulation grade/Protection grade | 2F/IP21 | ||
Welding current | 5-200A | 5-200A | |
Programmable memory | 99 | 20 | |
Tank Volume | 4L | 4L | |
Weight | 33KG(Water inclusion 4L) | ||
Machine size | 512*355*350mm | 560*360*365mm | |
Control function | DC/pulse current control / gas control/rotary motion /auto printing/water cooling control | ||
Protection function | Overvoltage, overload, leakage, arc failure and tungsten needle short circuit protection | ||
Welding Case
Certifications
Company Profile
Customer Photos
Application
Orbital welding machines are mainly used in electric power, petroleum, semiconductor, laboratory, pipeline engineering and so on. Widely used in nuclear power aerospace, food fermentation, semiconductor, automobile manufacturing, pressure vessels, instrumentation, installation pipeline industry, heat exchangers, HVAC Refrigeration, beverage industry, etc.
The materials that can be welded by the orbital welding machine are stainless steel, carbon steel, titanium alloy, copper (1-1.2mm), and other thin-walled pipeline welding (stainless steel and carbon steel should be melted within 3mm)
FAQ
01 Are you factory?
Yes, we are factory self-produced and exported, located in shanghai.
02 Do you have CE?
Yes, we have CE,ISO9001.
03 How long is the delivery time?
Within 7 days after receiving payment
04 What are the advantages of orbital welding, and what are the scenarios?
Orbital welding machine is equipped with argon arc welding, torch water cooling,and all-position welding. The appearance is uniform and beautiful, intelligent, and the finished welding product can meet the requirements of clean weld bead.The light and compact appearance of the pipe welding machine is more convenient for on-site installation and piping. Such equipment is widely used in industries such as food, semiconductor, bio-engineering, instrumentation, pipeline installation and construction operations.
05 What are the advantages of laser welding?
1. Small range reduces thermal stress and heat-affected area, extremely low distortion
2. Narrow seam and smooth surface: reduce or even eliminate before processing
3. The welded workpiece can be subjected to bending or hydroforming
4. Easy to integrate
5. Only one side of the seam needs to be close
6. High process speed shortens processing time
7. Especially suitable for automation technology
06 What other products does your factory provide?

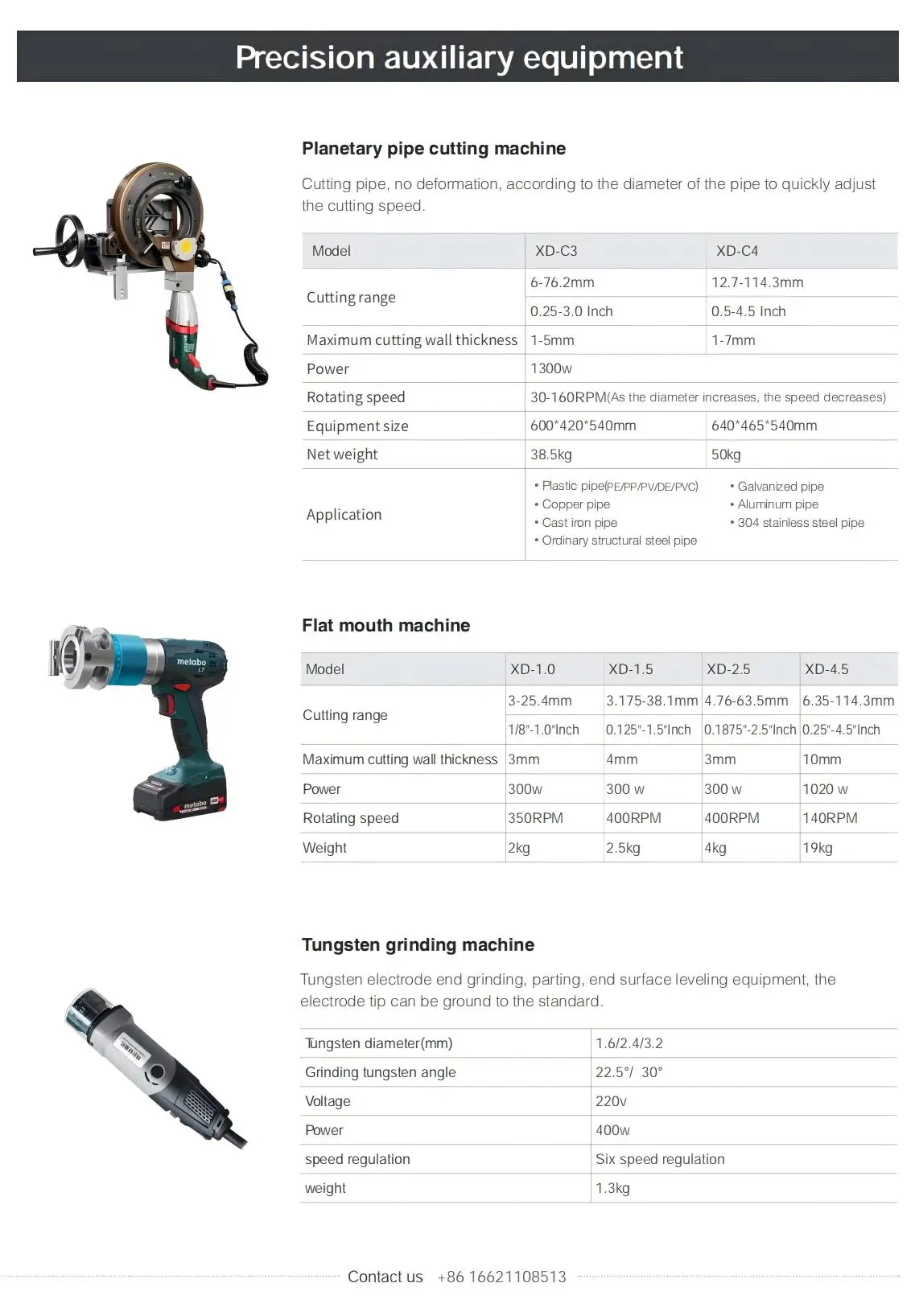

Our factory provides cold welding machine, pipe welding, hand-held laser welding, planetary pipe cutting machine, wire feeder, spark butt welding repair and related product accessories.
07 What payment methods does your company accept?
We accept payment in any way, and you can also pay directly by Alibaba credit order.
