MISJET 3W 5W mini lightweight Integrated UV laser marking machine for plastic glass Leaves
- Category: >>>
- Supplier: Shenzhen Tp-Mark Technology Co. Ltd.Shenzhen Ltd.
Share on (1601308429079):
Product Overview
Description

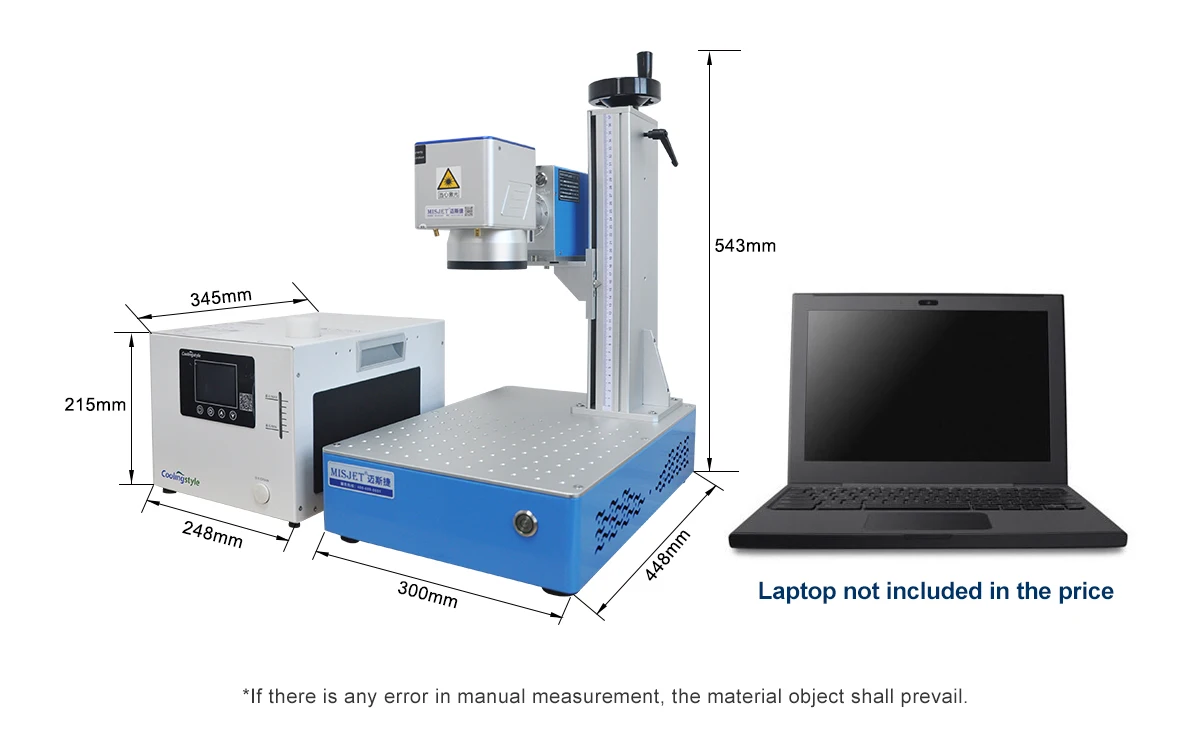

Function and size
Technical Specification
Laser Marking Machine

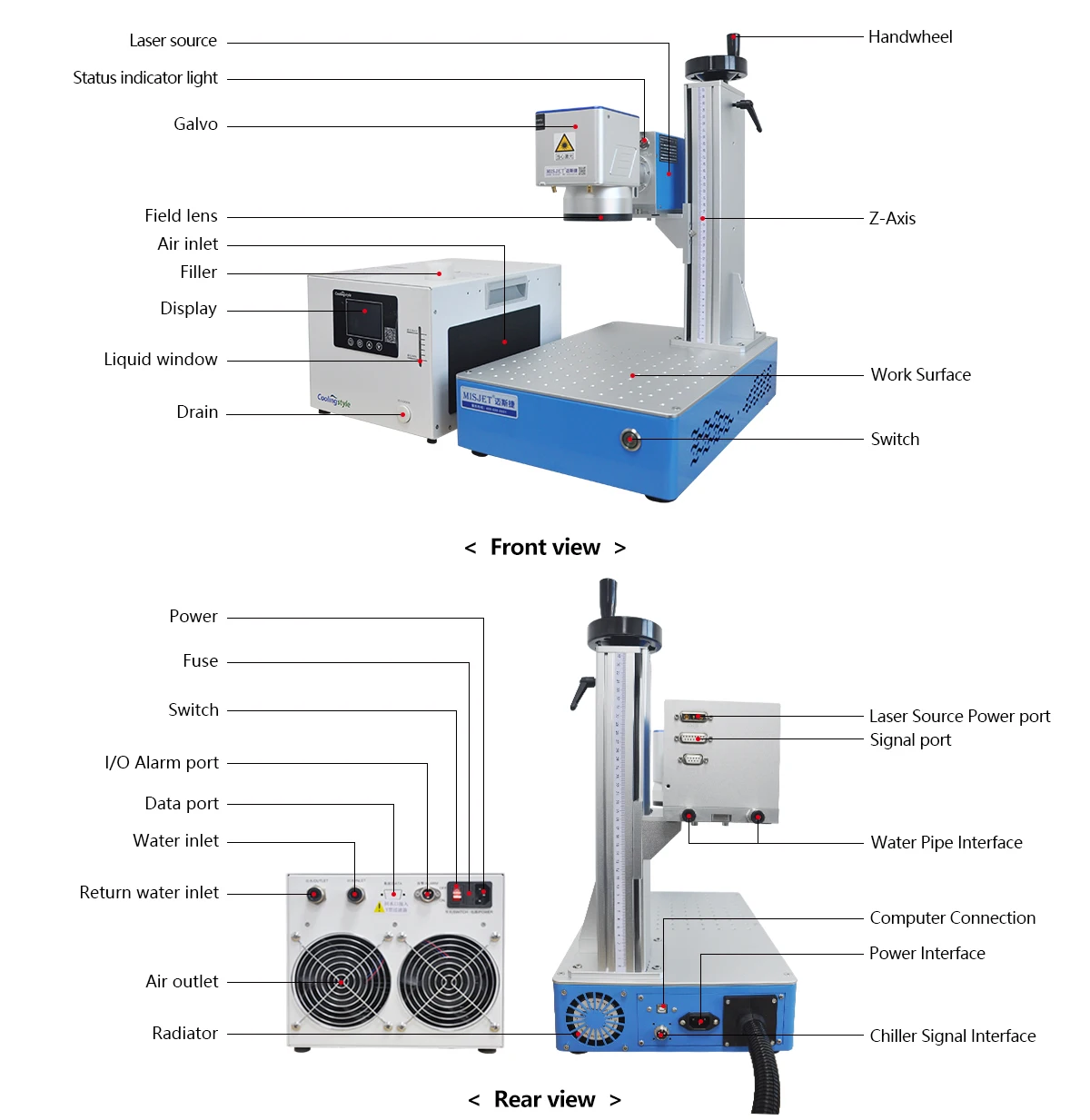

Lateral View
Lateral View
Laser Marking Machine Parameters | ||||
Laser Type | UV laser | |||
Laser power | >3W@40KHz | >5W@40KHz | ||
Laser Wavelength | 355nm | |||
Single Pluse Energy | 0.1mJ@30KHz | 0.17mJ@30KHz | ||
Pulse Duration | <15ns@40KHz | |||
Average Power Stability | ＜3% over 12 hours | |||
Spatial mode | TEM00(M2< 1.2) | |||
Beam circularity | ＞90% | |||
1/e2 beam diameter at output | 3mm | |||
DivergenceBeam | ＜0.2mRad | |||
Point Stability | ＜20μrad/°C | |||
Polarization ratio | > 100:1 Horizontal | |||
Warm-up time | ＜30min | |||
Operational Temperature Range | 15℃-30℃ | |||
Operation Humidity Range | 20% to 80% non-condensing | |||
Communication | RS232 | |||
Marking Speed | ＜6000mm/s | |||
Marking Content | Words, numbers, serial numbers, bar codes, QR code, graphics, etc. | |||
Marking Area | 70mm×70mm-175mm×175mm | |||
Cooling Method | Water Cooled | |||
Input Voltage | 12VDC | |||
Power Consumption | 500W | |||
Laser Sourse Size | 265mm×139mm×121mm | |||
Laser Sourse Weight | 2.5Kg | |||
Marking Machine Size | 300mm×448mm×543mm | |||
Marking Machine weight | 17.25kg | |||
Chiller
Front View
Rear View
Chiller Parameters | ||||||
Rated Voltage / Frequency | 220V/50Hz | Phase | 1Φ | |||
Rated Power | 310W | 310W | 420W | |||
Temperature Regulation Range | 10~35℃ | Temp Accuracy | ±0.1℃ | |||
Refrigerant | R134a | Pump Head | 20m | |||
Maximum Flow of Water Pump | 24L/min | Water Tank Capacity | 1.8L | |||
Coolant | Water/Glycol Aqueous Solution | |||||
Working Temperature | 0~45℃ | Storage Temperature | -10℃~60℃ | |||
Inlet / Outlet | PU pipe, outer diameter is 10mm | |||||
Size | 345mm(L)×248mm(W)×215mm(H) | |||||
Package Size | 410mm(L)×313mm(W)×273mm(H) | |||||
Net Weight | 10.5kg | Gross Weight | 12kg | |||

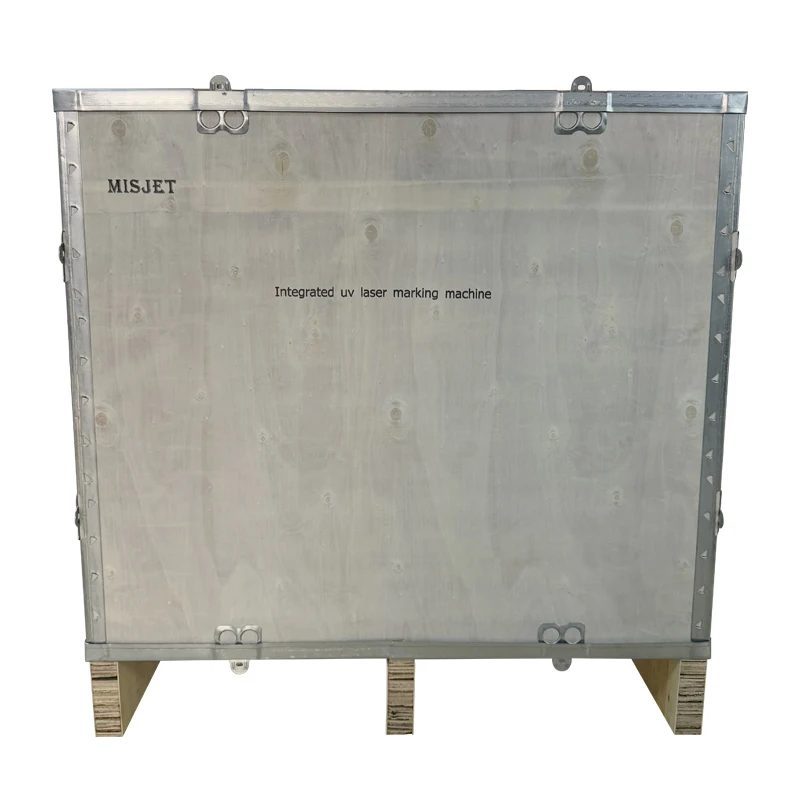

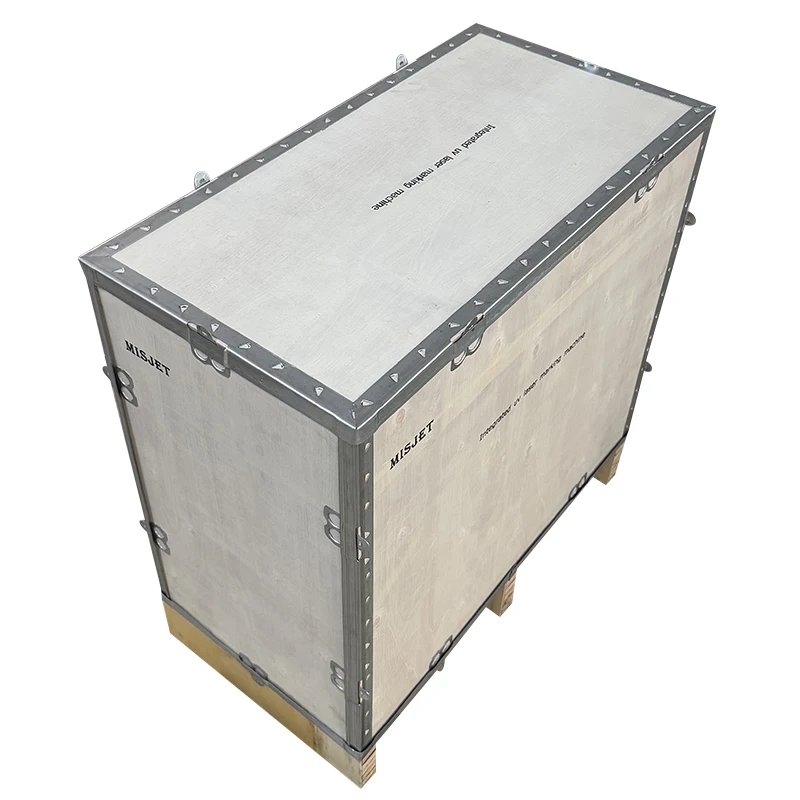

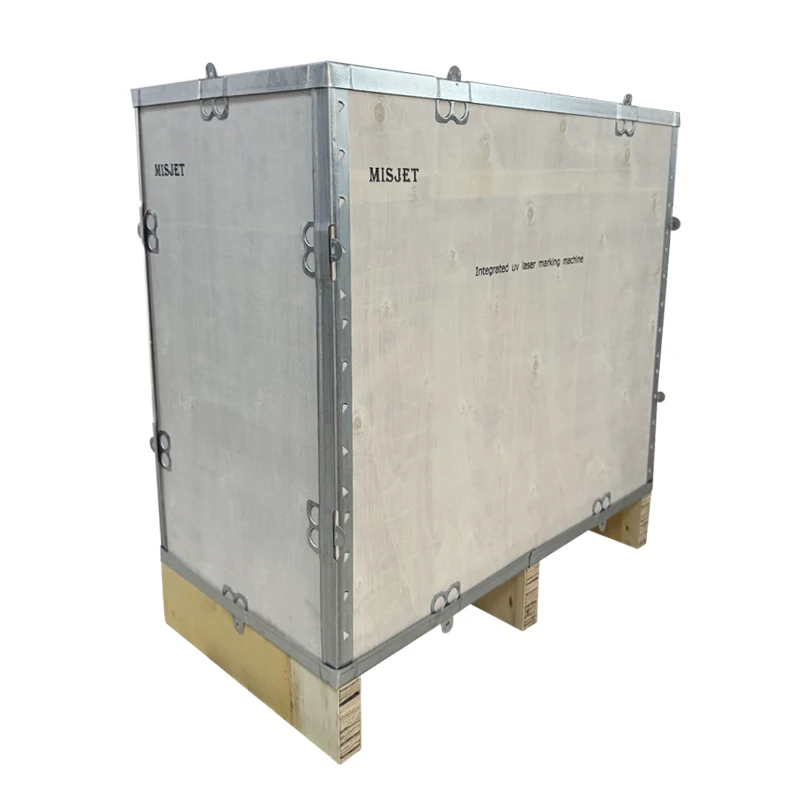

Packaging parameters | ||
Size | 675mm*355mm*680mm | |
weight | 40kg | |
Field Lens Parameters
Lens | Marking Area | Adjustable Extent (Product height) | Work Distance |
355-100-70 | 70mm×70mm | 232mm | 135mm |
355-160-110-L | 110mm×110mm | 174mm | 193mm |
355-210-150-L | 110mm×110mm | 117mm | 249mm |
355-254-175-L | 175mm×175mm | 74mm | 293mm |

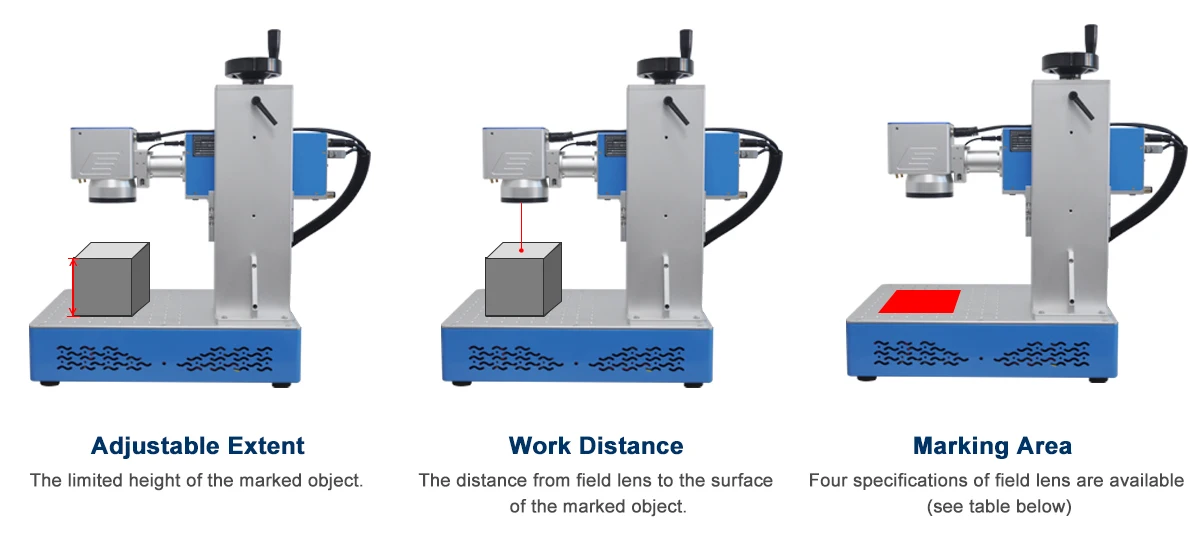

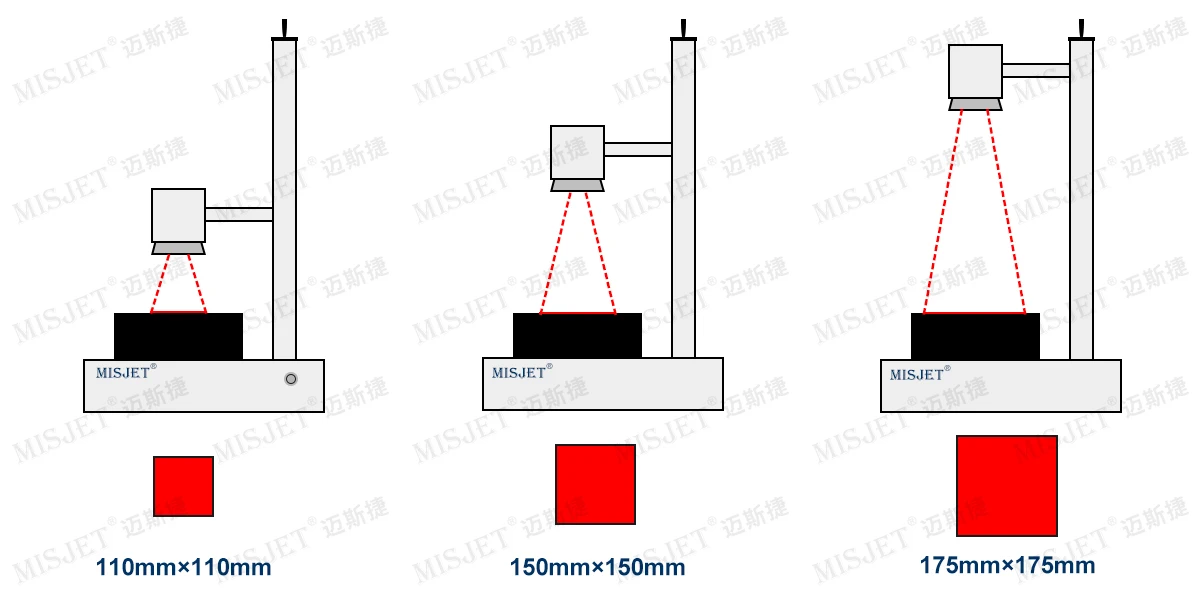

A: For the same marking object, choose field mirrors with different marking ranges, and the schematic diagram of marking distance.（Pictured below）

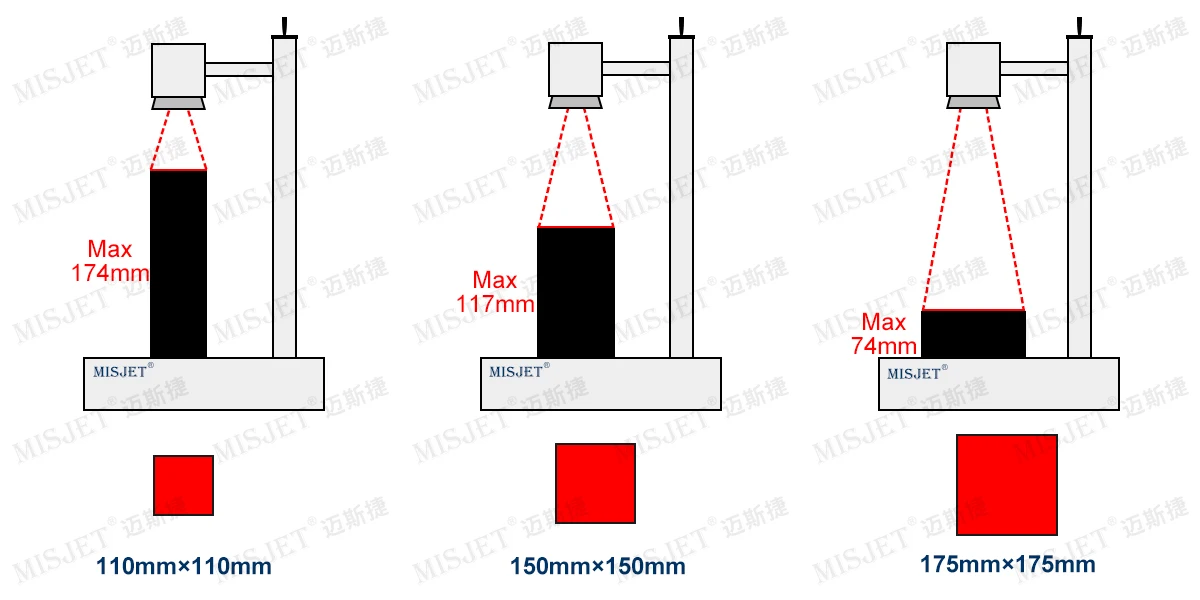

B: Schematic diagram of the maximum limiting height of field mirrors and marked objects with different marking ranges.

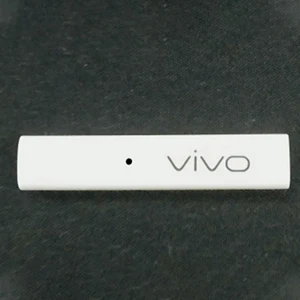

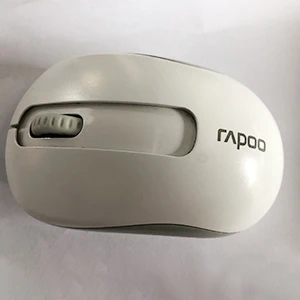

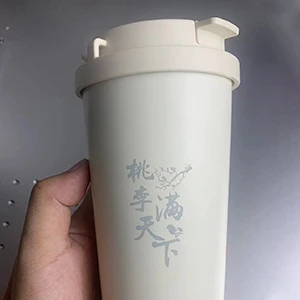

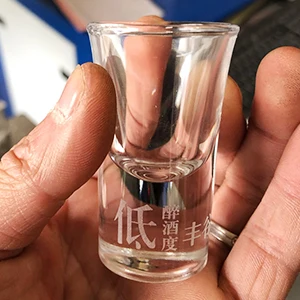

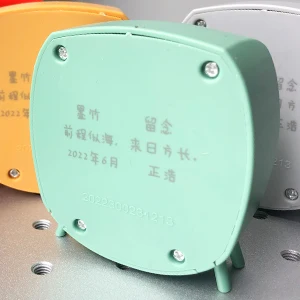

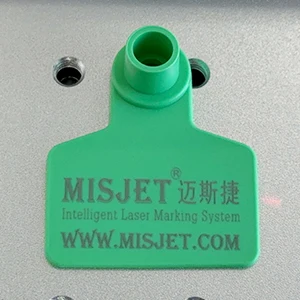

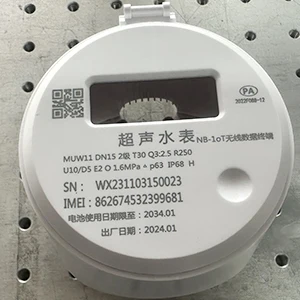

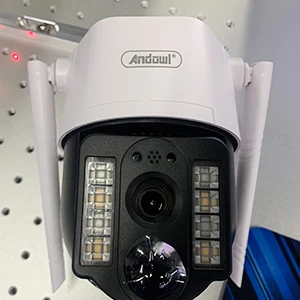

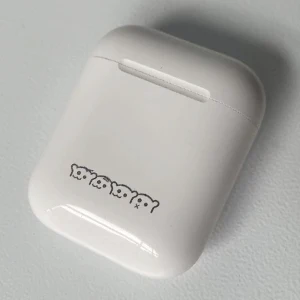

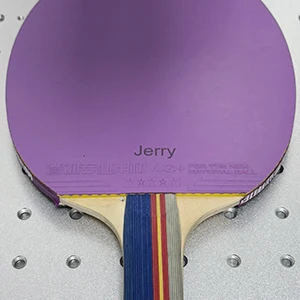

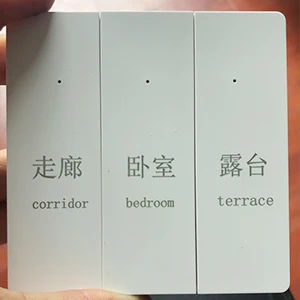

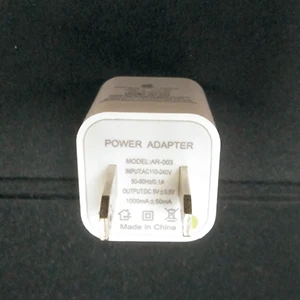

Applications And Samples
Applicable to most plastics,leather, glasses, ceramics, jade,crystal, and metallic coatings.
Company Profile
which ensure the rapid growth of the laser industry. Our products are of high quality and reliable performance, and are mainly used in printing,electronics, hardware, food and beverage, cosmetics, tobacco, wood, auto parts, cables and building materials and other industries.

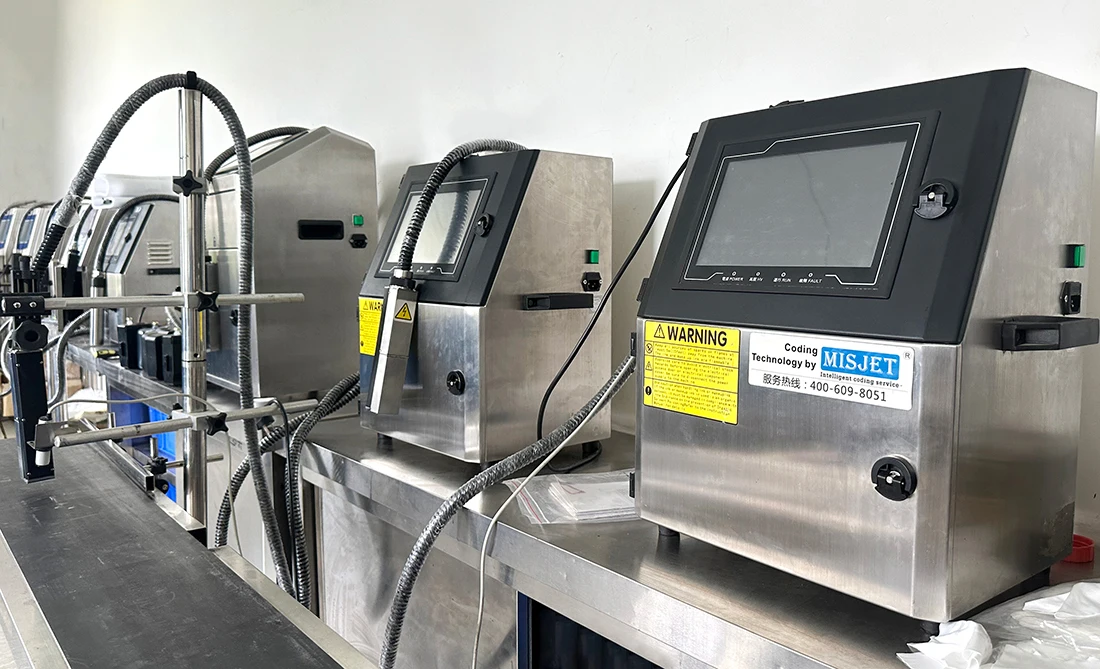

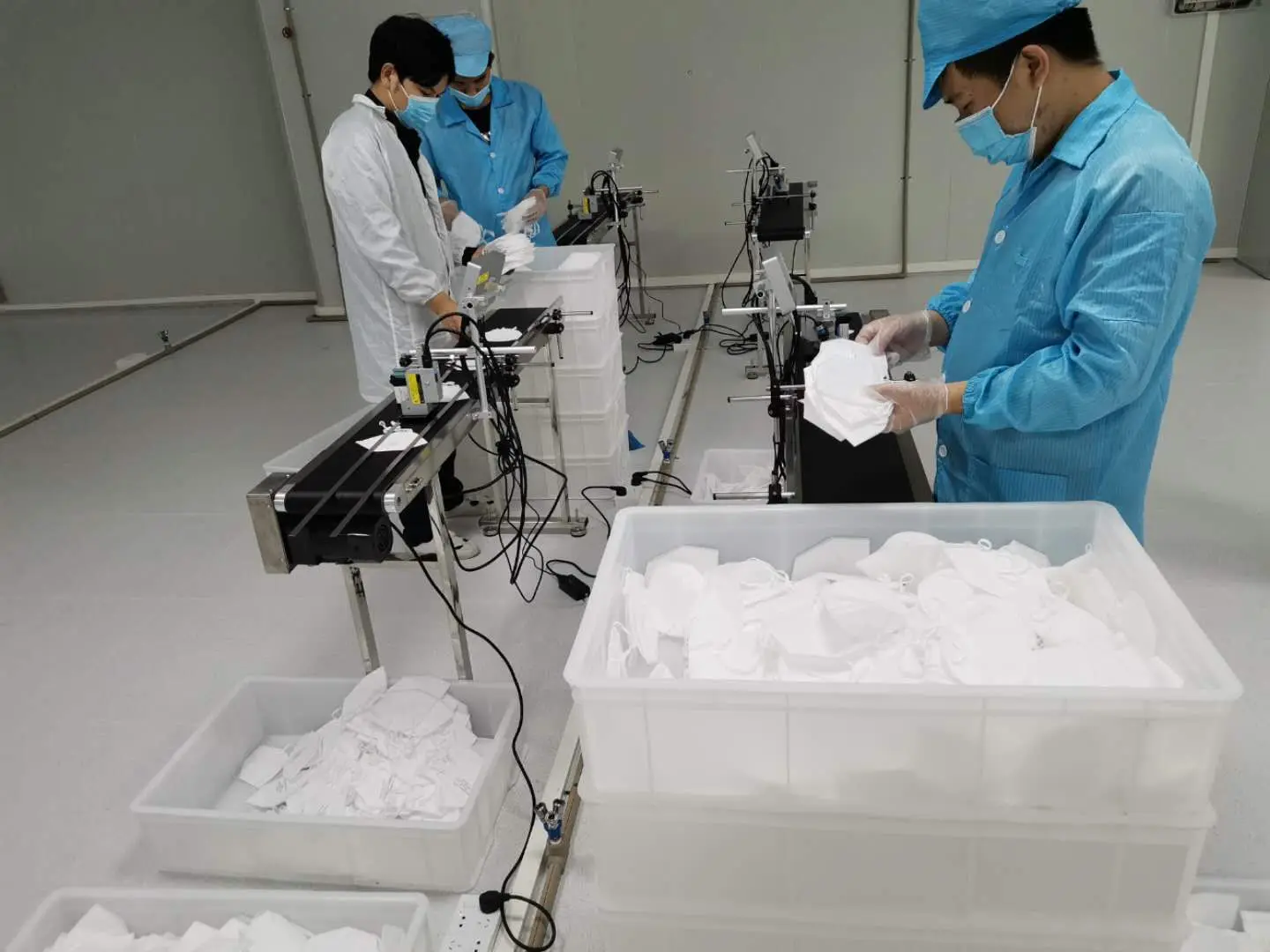

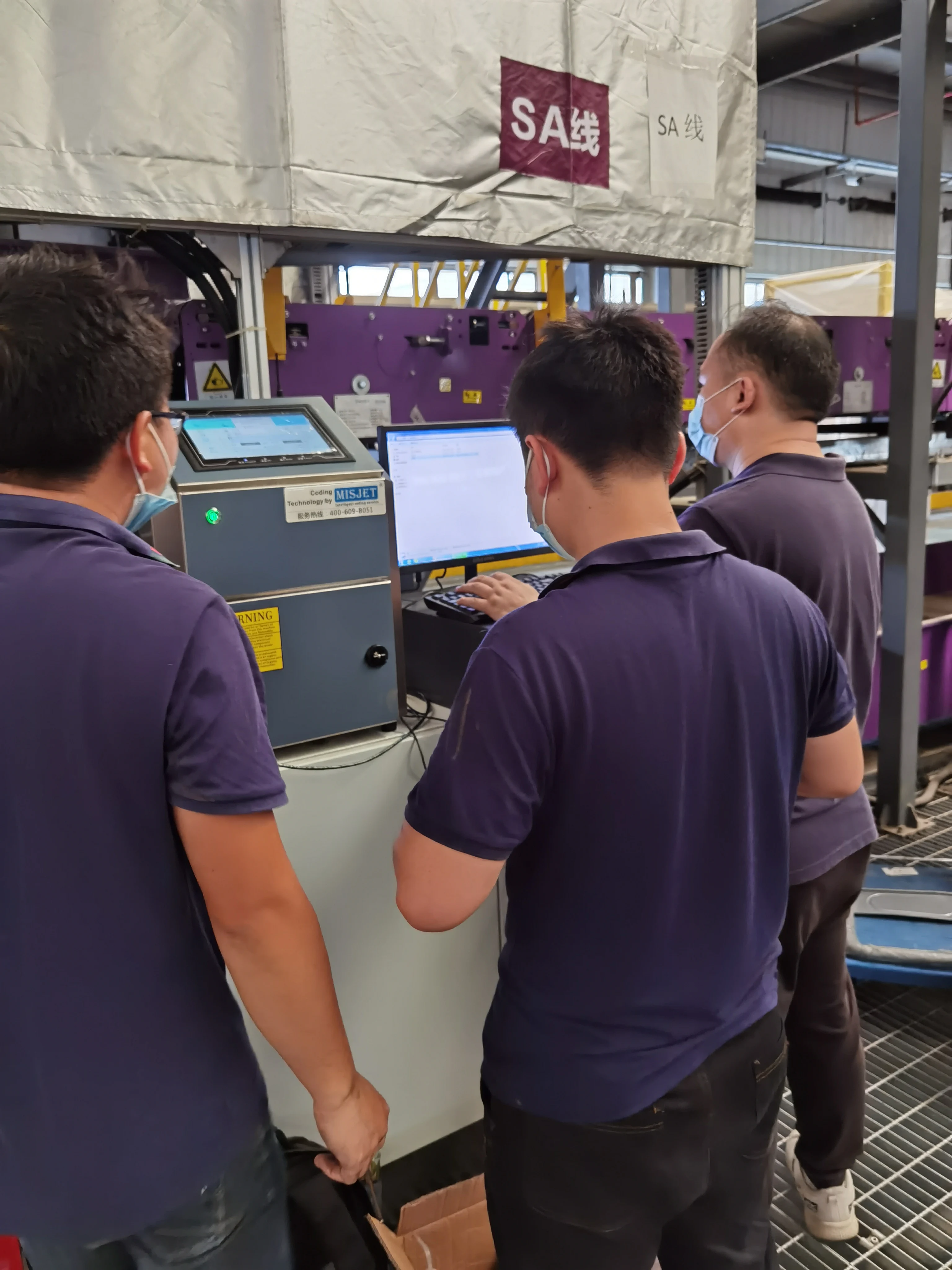

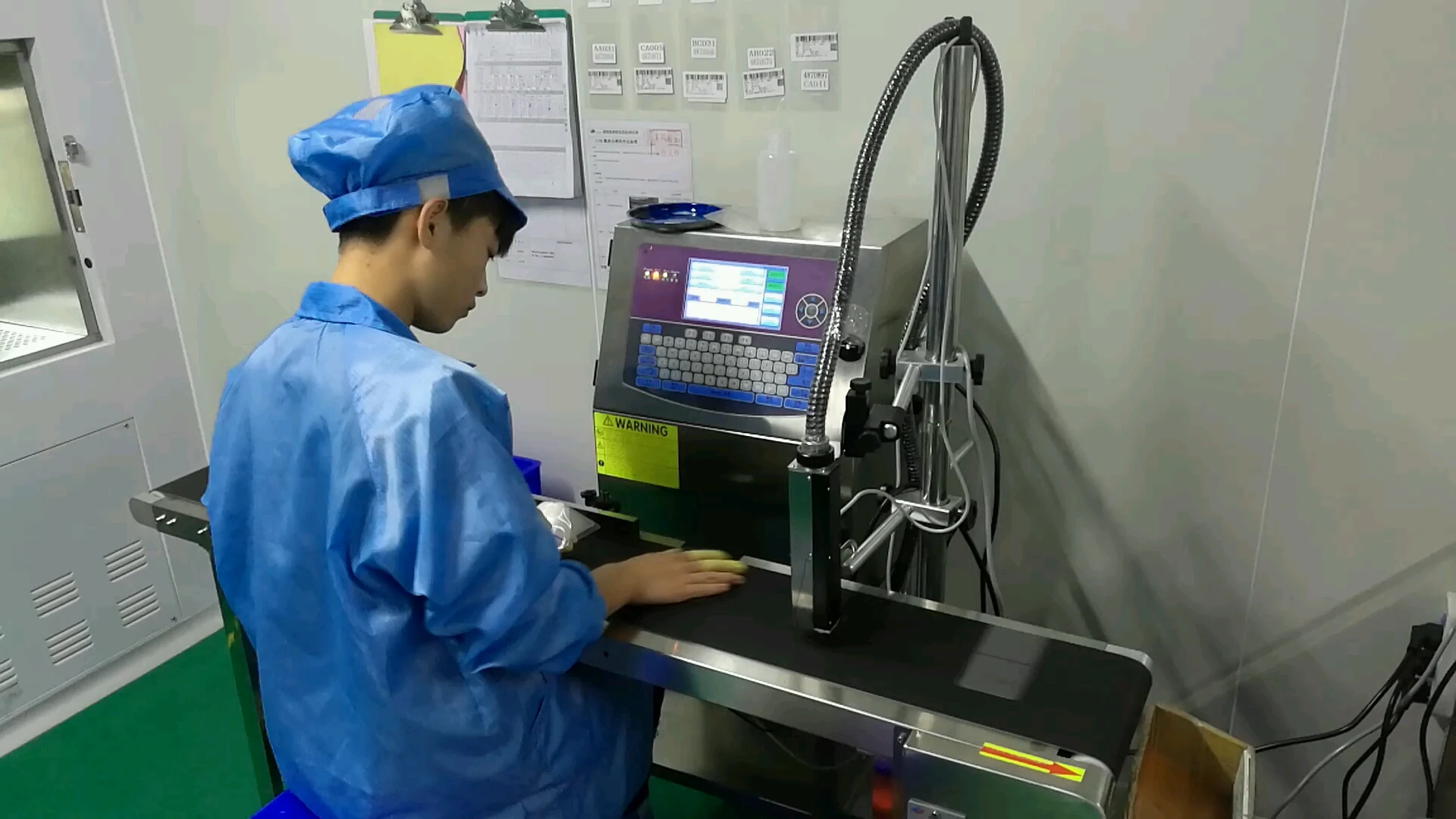

Inkjet printer - on-site

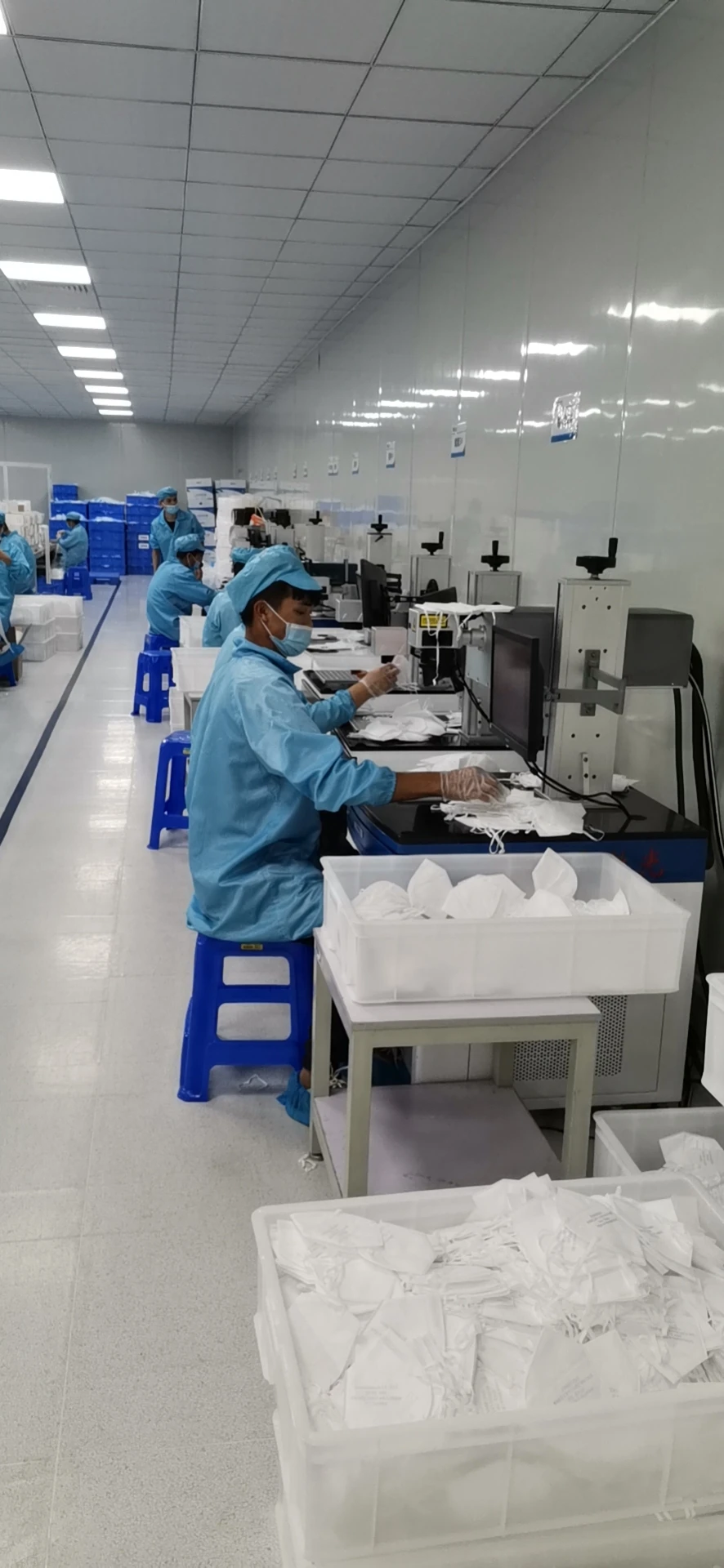

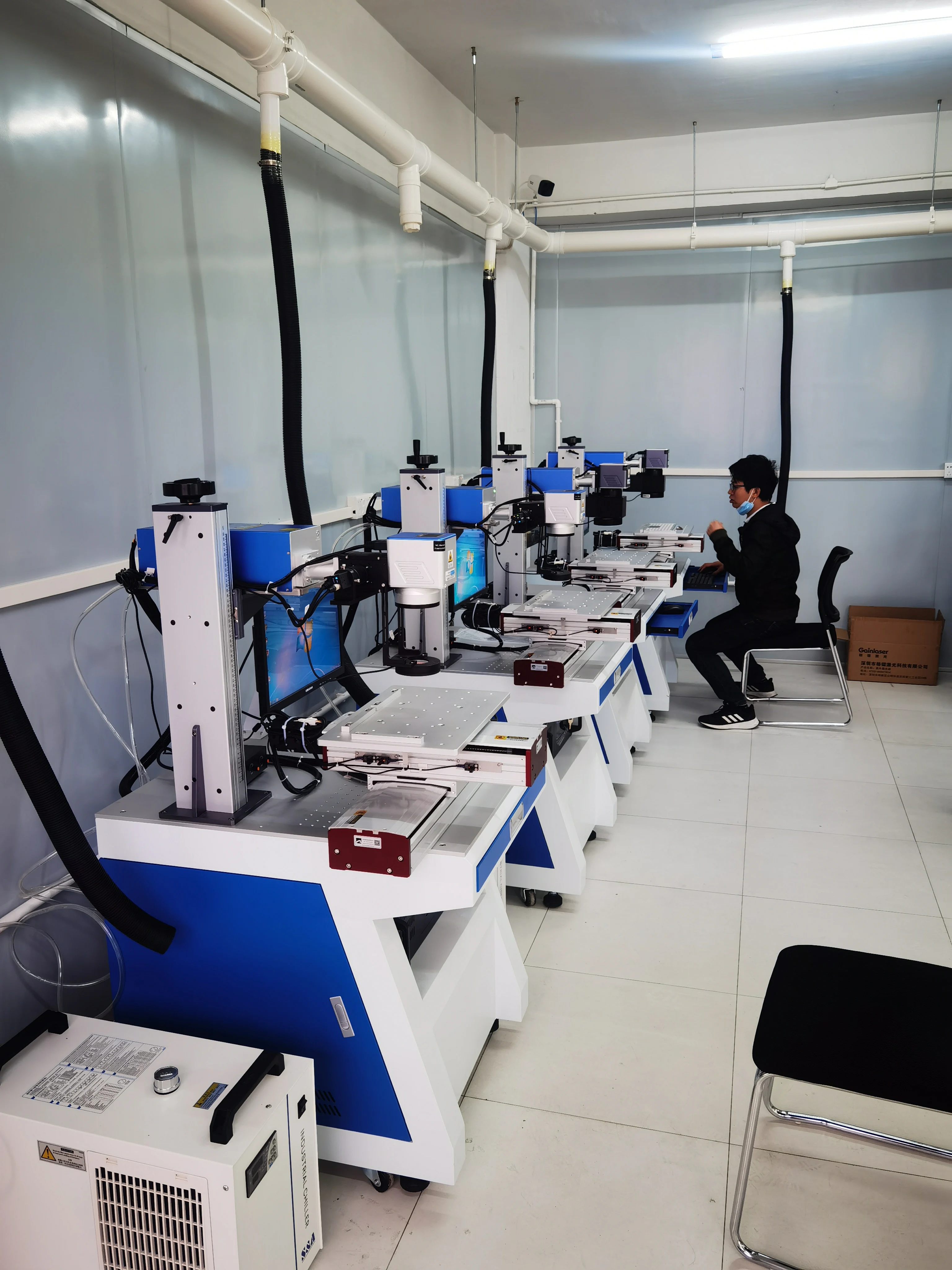

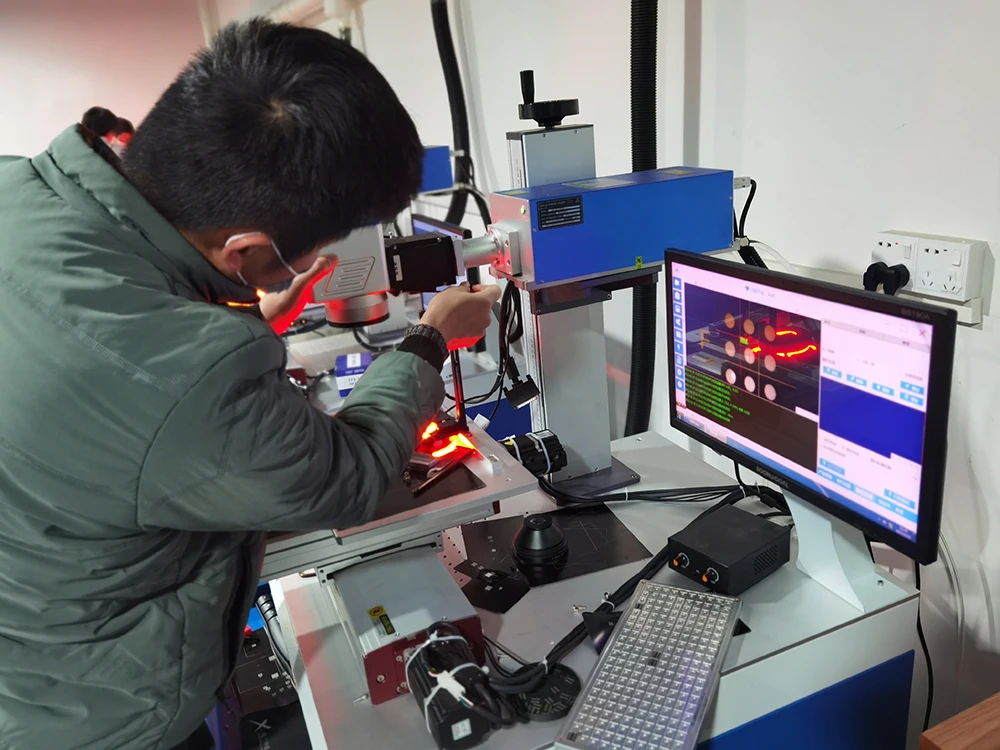

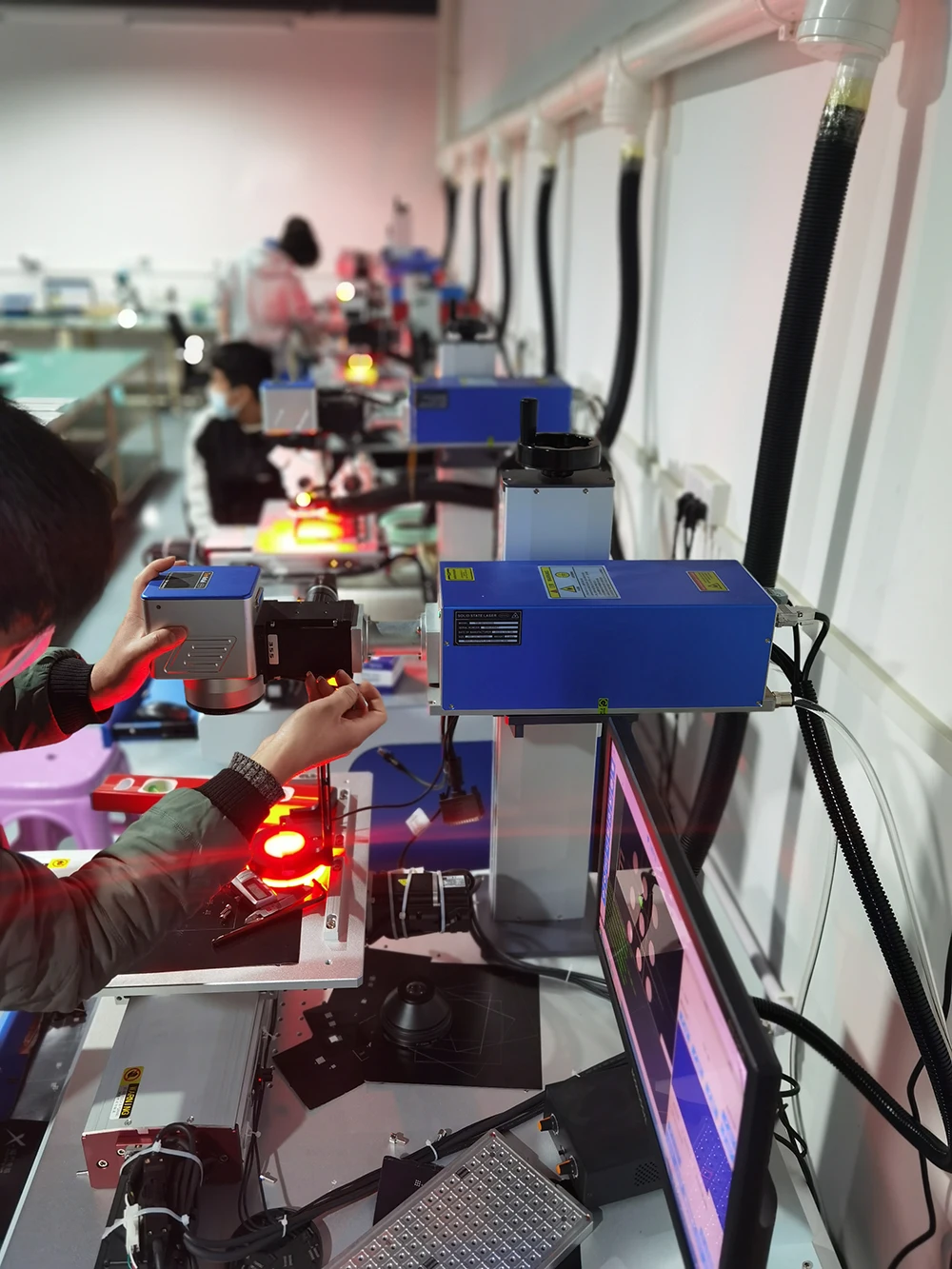

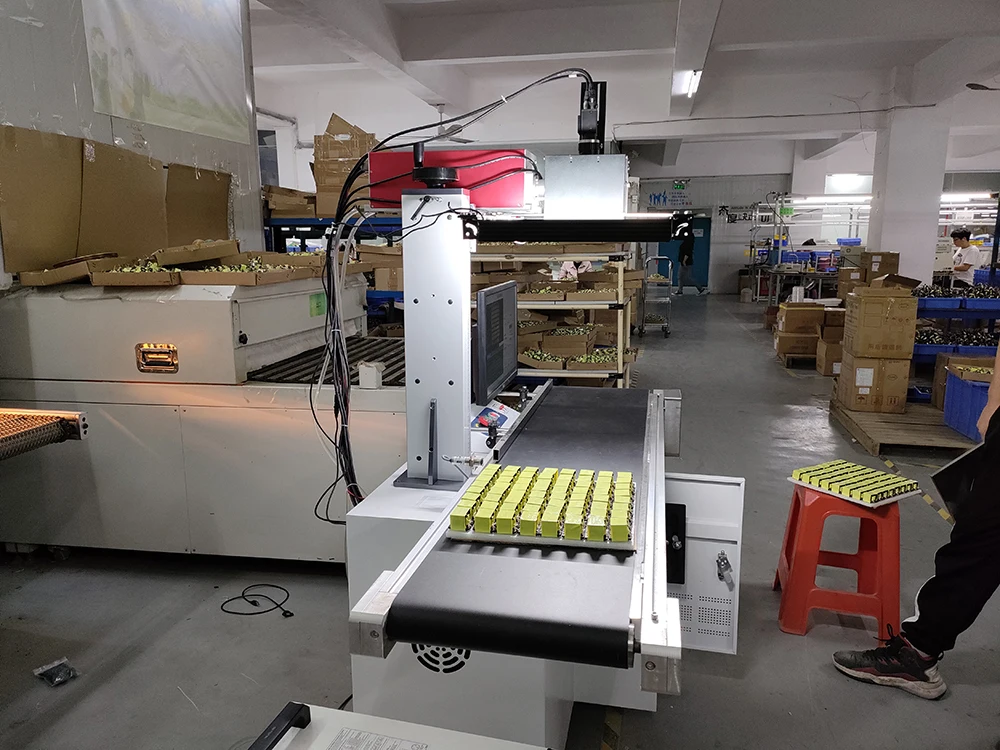

Laser machine - on-site
