2.1 Million Pixels High Definition Binocular Colposcope (with one step magnification) colposcopio binocular KN 22000B
- Category: >>>
- Supplier: Kernel Medical Equipment Co. Ltd.Kernel Ltd.
Share on (1601308590630):
Product Overview
Description
Product Description
Enabling Early,Accurate Diagnosis
Kernel video Colposcopy Solutions
We offer the Colposcope and Video Colposcope to meet the challenge of the growing science of gynaecology. It is provided with power microscopes and also video monitoring for a better view and understanding of the various tests. Our other accessories like Beam Splitter, Camera Attachment, Binocular Tube, Assistant Viewing Binocular Tube, Beam Splitter Attachment for CCD Digital Camera and Observation tube and assistant scope etc.

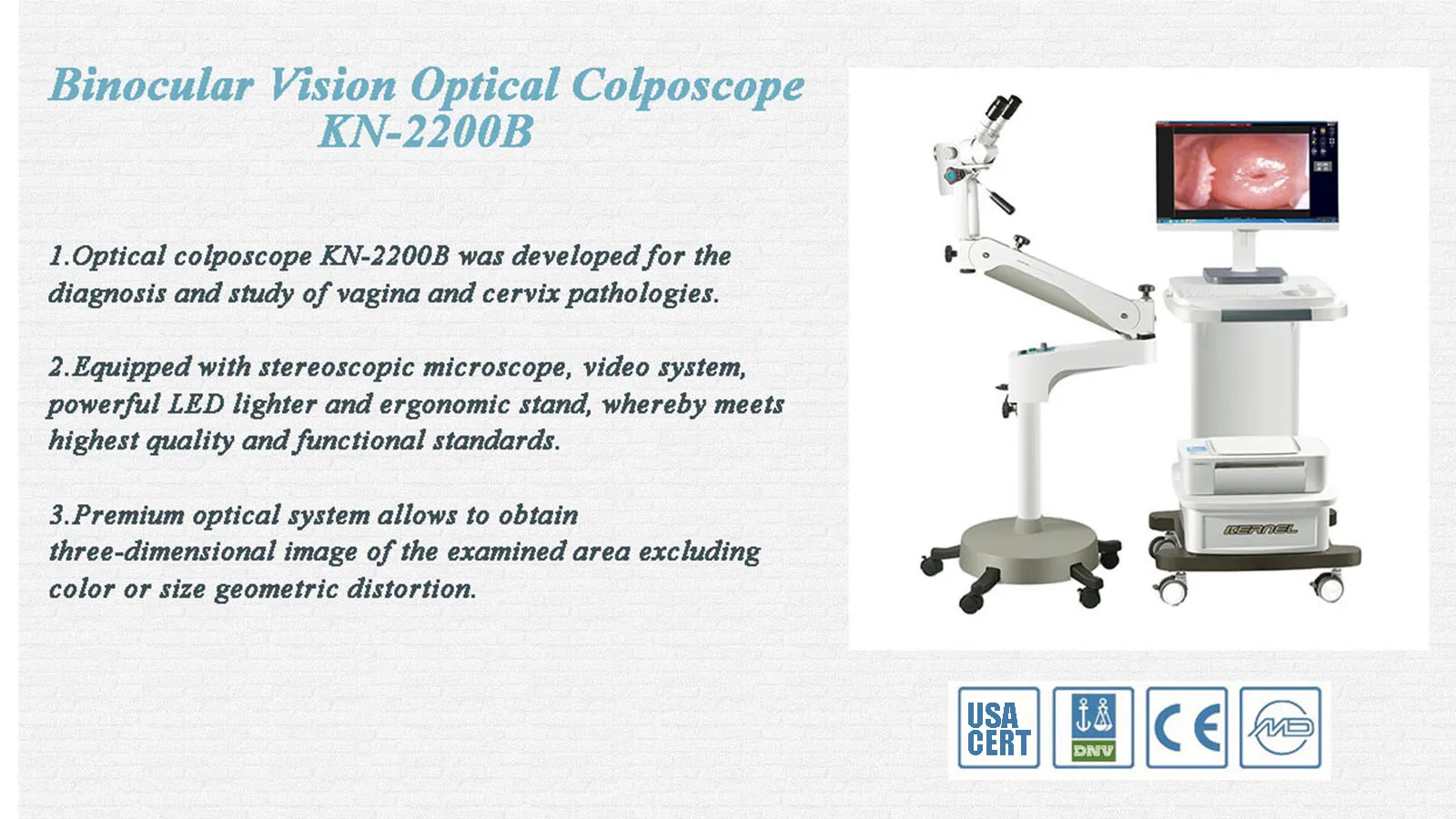

Premium optical system allows to obtain three-dimensional image of the examined area excluding color or size geometric distortion.
The colposcope video system provides output to HD LCD monitor or Lap-top and simultaneous connection to a PC with the software package which is developed by ourselves.

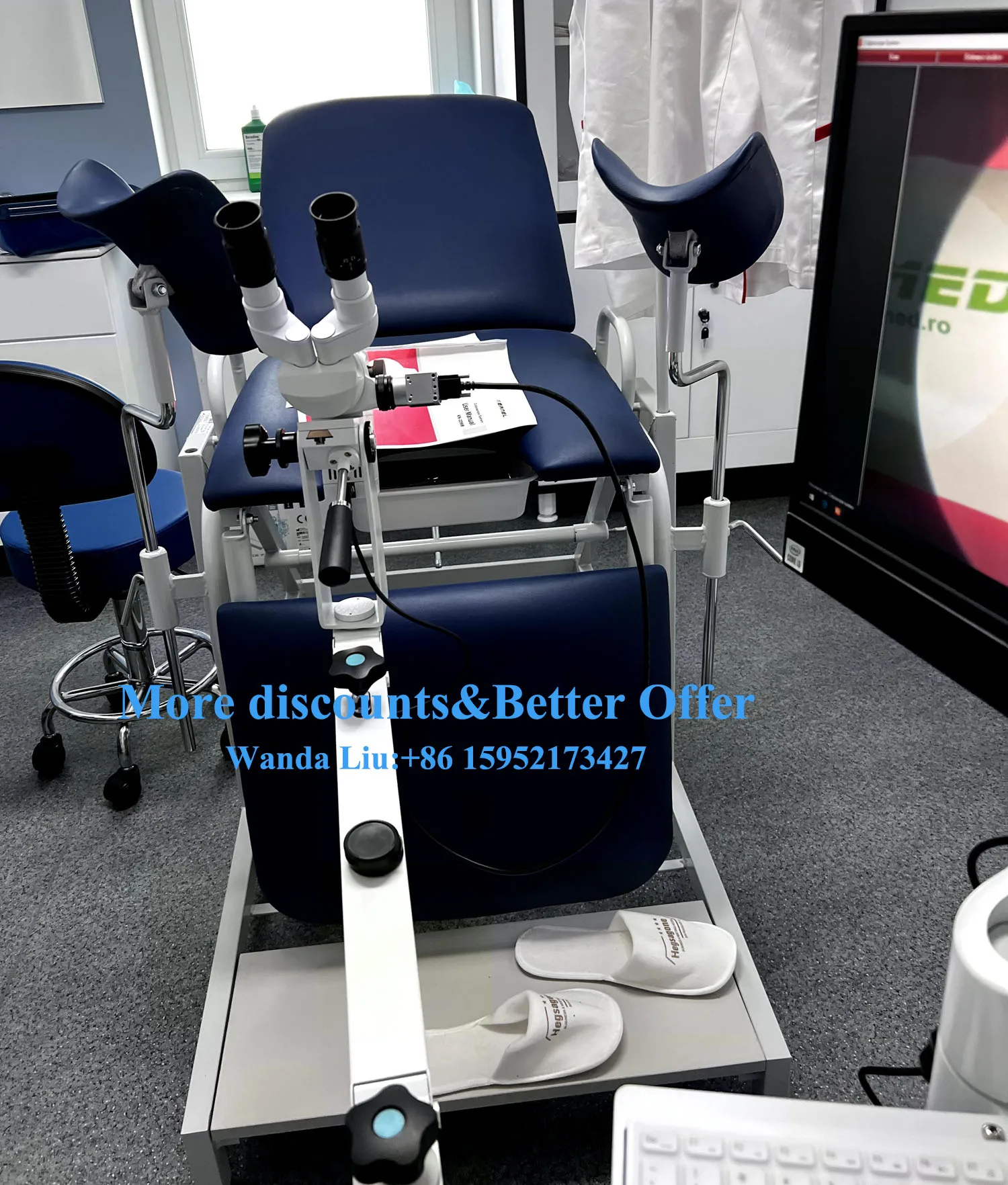

Compatible with all types gynecological examination chairs!
Compatible with all types gynecological examination chairs!
The best user experience in one system!
>>>>>> 2.1 Million Pixels High Definition Binocular Colposcope (with one-step magnification) colposcopio binocular KN-22000B
Eyepiece | 12.5X,Optical:20X | ||||||
Observation Angel | 45°/0° | ||||||
Diopter adjustment | -5D~+5D | ||||||
Eyepiece Adjustment Range | 55-75mm | ||||||
Objective Focal length | 300mm,Optical:250mm | ||||||
Focusing | Fine tune,manual | ||||||
Focusing distance | 40mm | ||||||
CCD Objective focal length | 65mm | ||||||
CCD interface Type | USB 3.0 | ||||||
Light source | LED | ||||||
Camera | 1/3" CMOS | ||||||
Effective pixels | 2.1Million | ||||||
Image size | 1920*1080 | ||||||
Horizontal resolution | 1080p/60 | ||||||
Optical gynecology Colposcope | binocular colposcope video colposcope | Digital Electronic Colposcope for GYN | Optical Colposcope Gynecological | Colpo Machine | |||
REACH ME FOR BOTTOM OFFER!
Related Products
Detailed Images

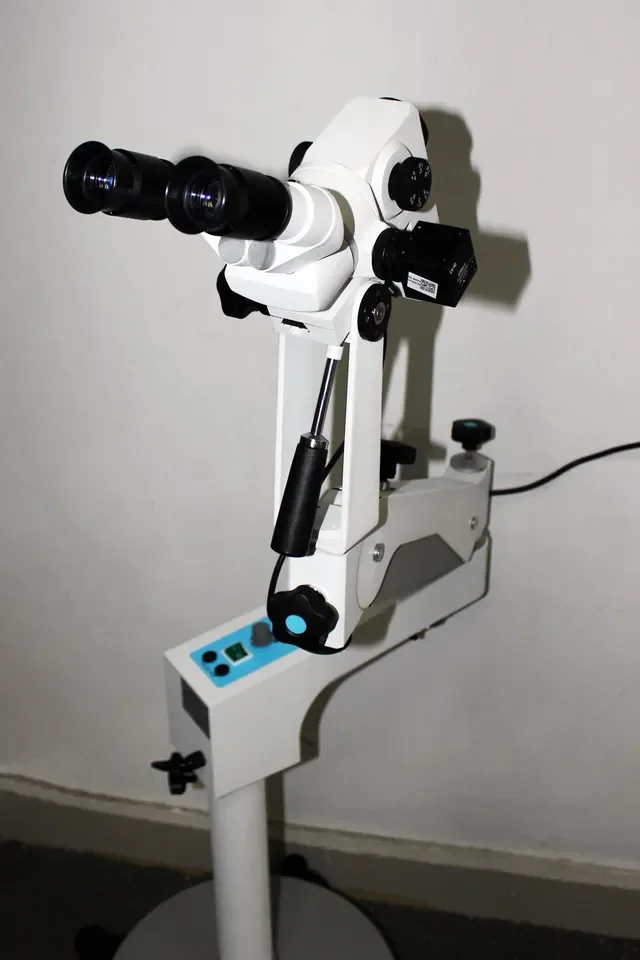

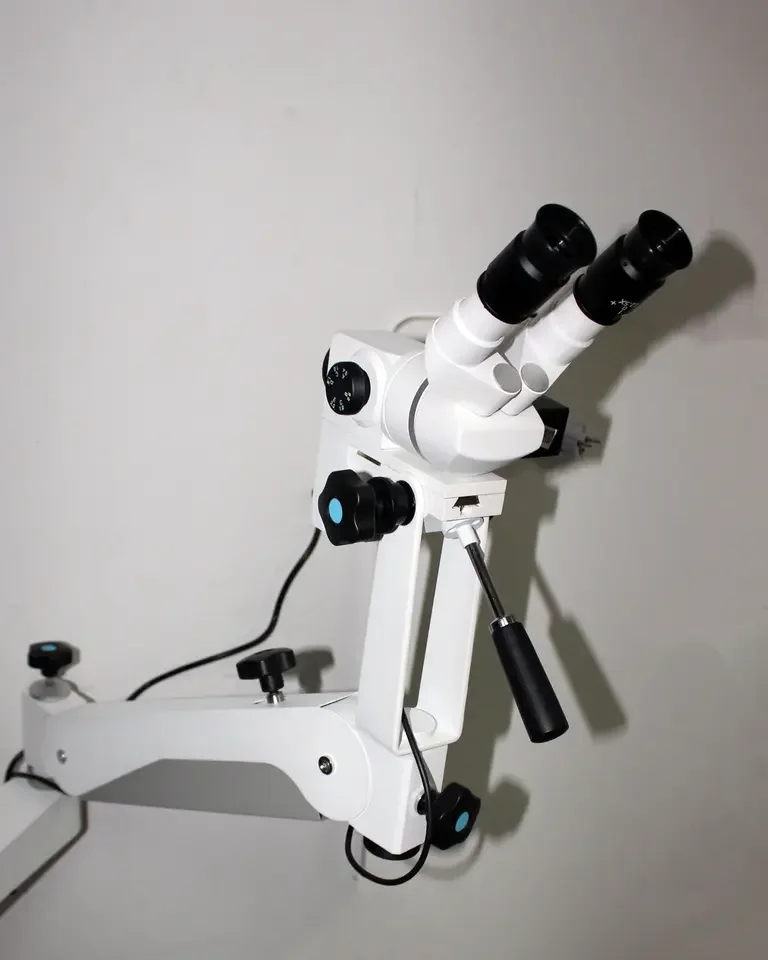

Binocular eyepieces
Video COLPOSCOPE
Camera Optical System
Portable colposcope
Ultra-long depth of field,large field of view,super-stereoscopic,realistic color reduction,unique light path design,for pre-cancerous,pathological changes before the point of blood vessels,colunar epithelial and some small lesions to provide true 3D visual Effects.

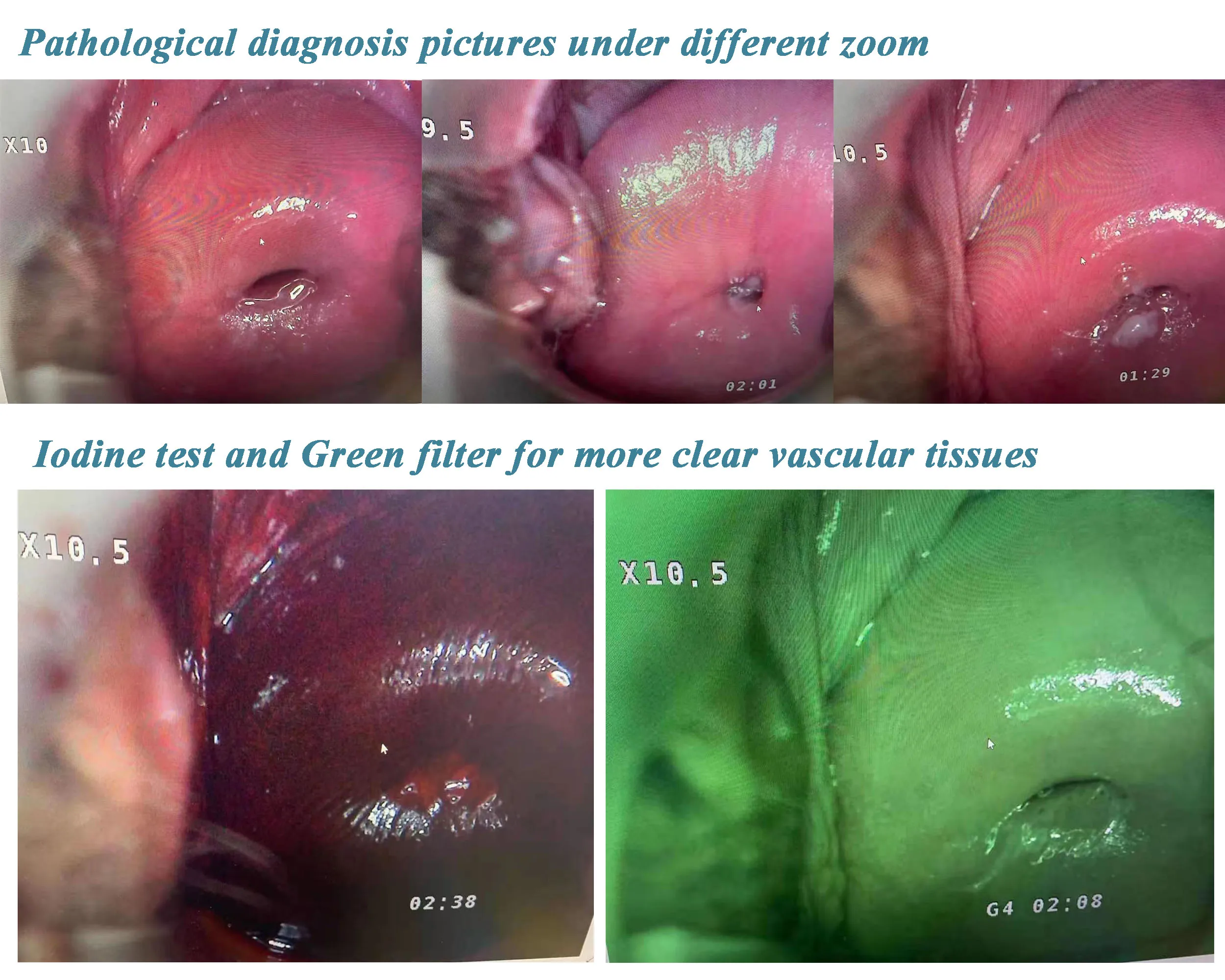

Five-step Zoom
colposcope price
Up to 30times of optical amplification,with high-quality amplification effect can be clearly observed a variety of small pathological cells,can be used to accurately locate biopsy of live lesions,help to improve the diagnosis of various cervical diseases,pre-cancerous screening accuracy,reduce missed diagnosis.

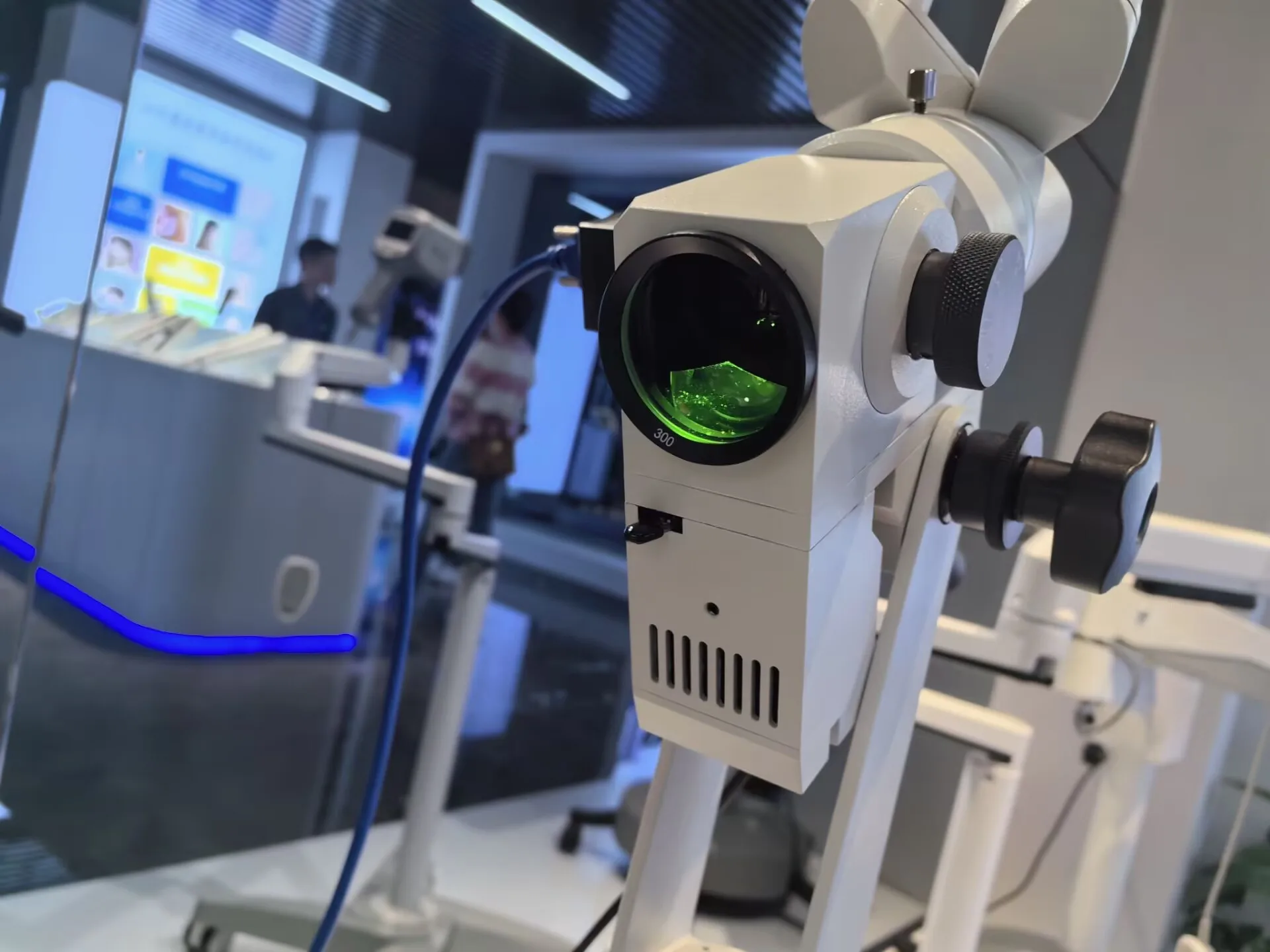

HD CCD Camera
VIDEO COLPOSCOPE
2.1 Million pixels
Image size:1920*1080
Horizontal resolution:1080p/60
CCD interface Type:USB 3.0
CCD Objective focal length:65mm

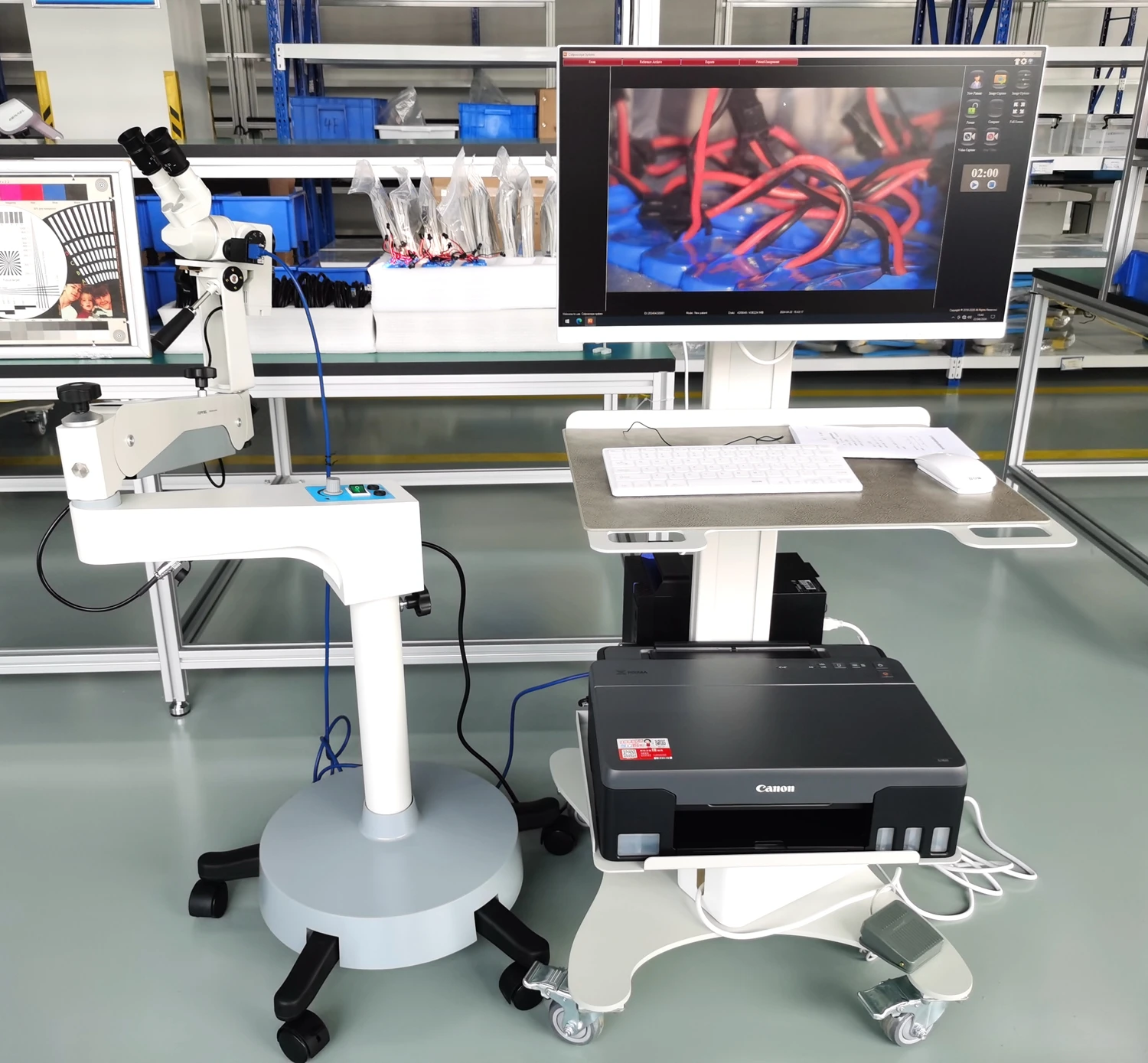

Standart complet set:
Optical eyepiece system
1/3 HD CCD with 2.1 Million effective pixels
LED Light source
Comfortable stable 5-wheel base
Software for saving and printing
USB interface
Footswitch for image capturing and video record.
LED Light source
Comfortable stable 5-wheel base
Software for saving and printing
USB interface
Footswitch for image capturing and video record.
5-step zoom
5-step magnification (17-30х) provides larger magnifying range and more selection on magnification to meet the requirement of your practice, from lowest magnification for an overview to high magnification for precise and close inspection and treatment.
5-step magnification (17-30х) provides larger magnifying range and more selection on magnification to meet the requirement of your practice, from lowest magnification for an overview to high magnification for precise and close inspection and treatment.
LED illumination
LED coaxial illuminator provides pure white color light similar to the sun light to show the real color. The bulb life can be over 10000 hours/10 years for lasting perfomance. It isn`t only avoids the trouble of changing bulbs, but also saves your cost for the spare bulbs and electric charge.
LED coaxial illuminator provides pure white color light similar to the sun light to show the real color. The bulb life can be over 10000 hours/10 years for lasting perfomance. It isn`t only avoids the trouble of changing bulbs, but also saves your cost for the spare bulbs and electric charge.
KN-2200BII
Upgraded all-in one trolley structure,Higher effective pixels of 6.37 million.
KN-2200BI
Economic portable and space-saving structure,more suitable for small clinic use.
Product Presentation

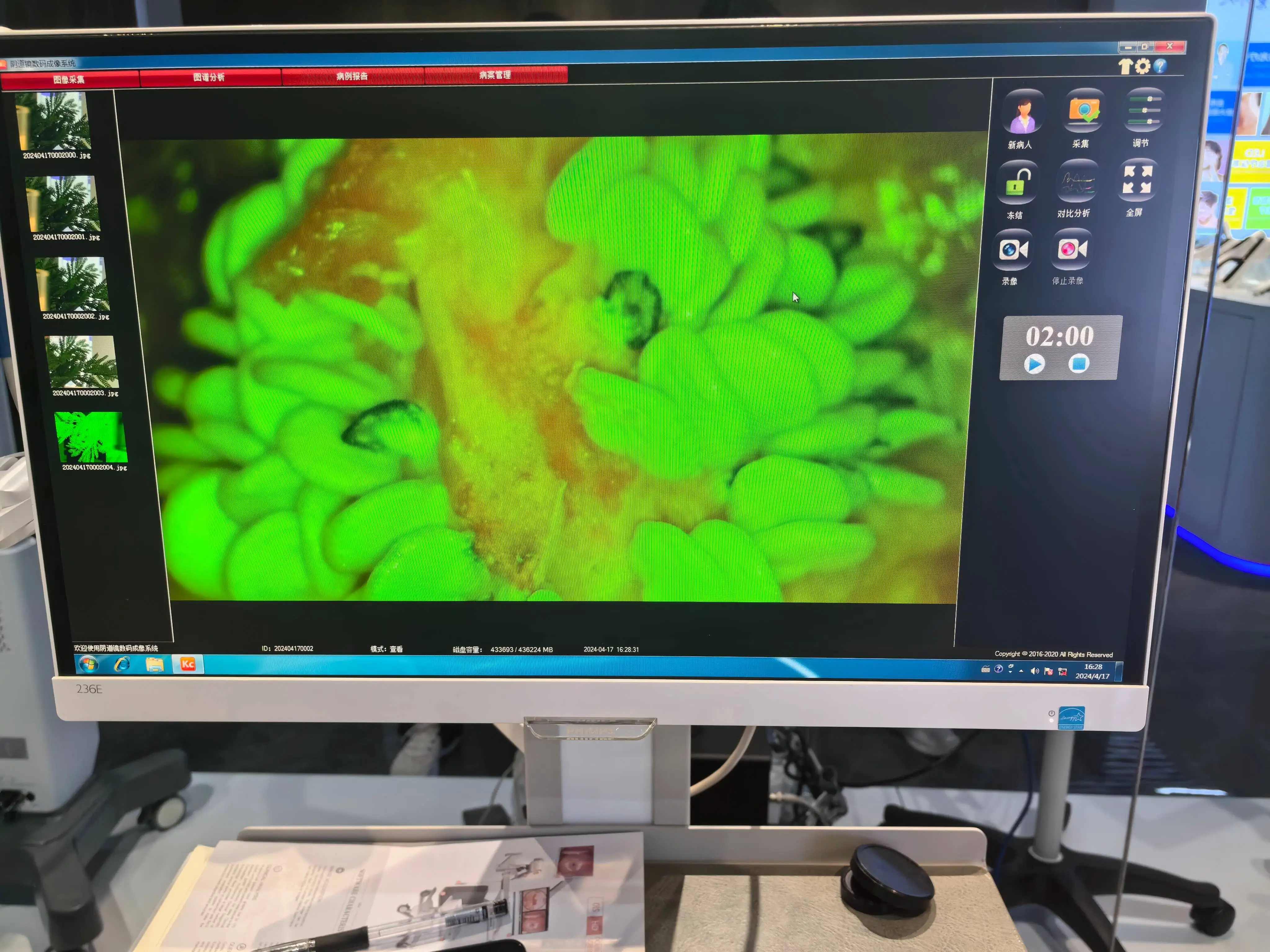

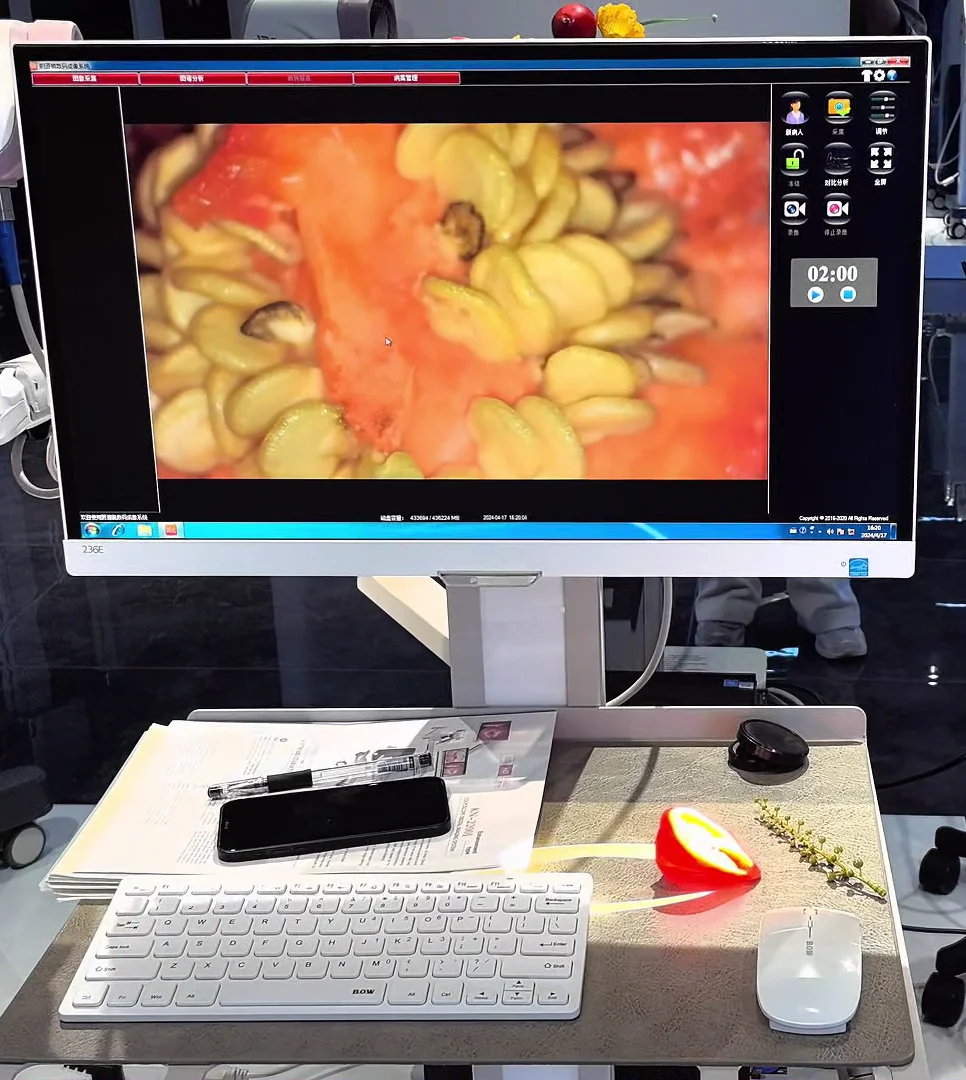

>>>>>>>Kernel kn2200 video colposcope Powerful Multifunctional software management:
>>>>Capture Images,Take Videos,Acetic Acid ,Iodine test timer ,Case report,175 Clinical disgnostic data bases comparison.
All of our colposcope come with multifunctional operate software
>>>>8 operating languages:
Chinese,English,Spanish,Russian,Turkish,Italian,France,Vietnamese
Chinese,English,Spanish,Russian,Turkish,Italian,France,Vietnamese
>>>>Capture Images,Take Videos,Acetic Acid ,Iodine test timer ,Case report,175 Clinical disgnostic data bases comparison.
Unique image capture function | With foot switch and software two ways of capturing, recording, and can realize dynamic, static, full screen image capture, 100 color images can be collected at each check each inspection is able to collect 100 color images. | ||||||
Powerful image processing function | With dynamic and static image comparison function, can be compared with standard image, and the collected images can be zoomed in, zoomed out, negatively imaged, marked, text annotated, partial magnified , area perimeter calculated etc, which is more convenient for doctors to identify the diseased tissue. | ||||||
Professional clinical diagnostic function | Professional case database (up to 175),satisfied cases images can be added,suitable for clinical contrast.The professional clinical diagnosis knowledge database provides a large number of editable clinical terms. With RCI automatic assessment system to make the inspection more objective and accurate. | ||||||

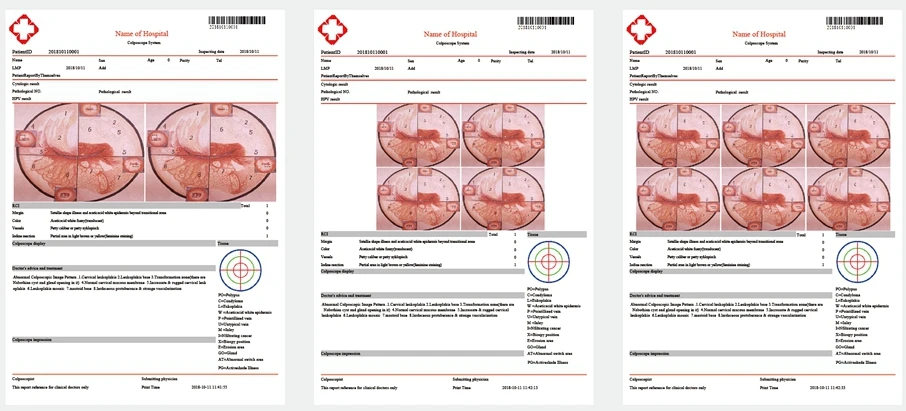

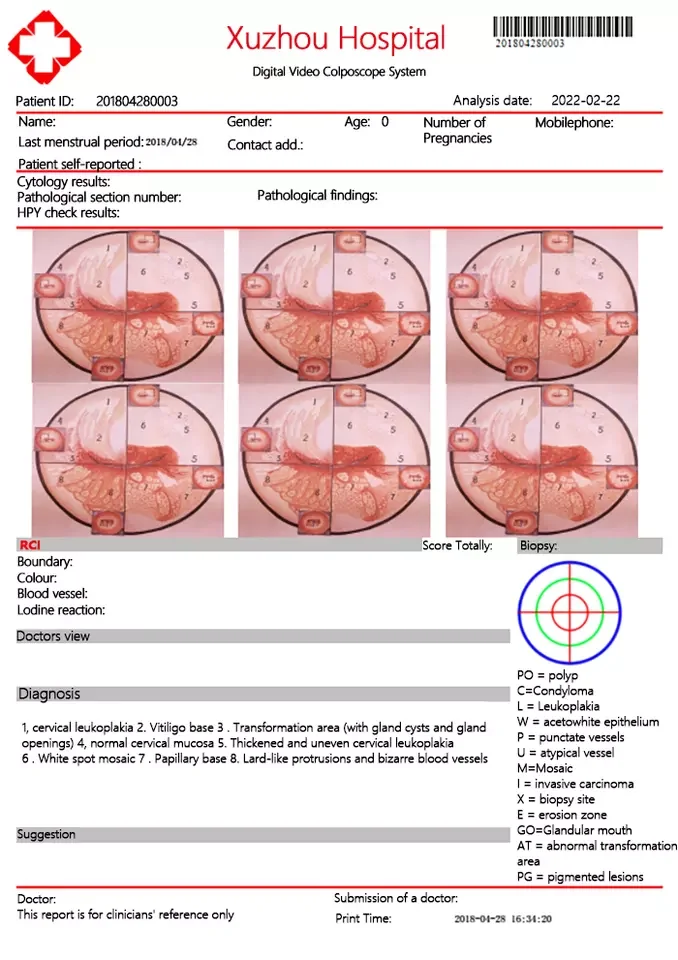

Rich report editing function | Built-in 19 standard case report template,convenient for editing and printing. It can display 1-6 pictures in the same screen . The report template can be designed, modified, and output in PDF format. Provides evidence for prevention of medical disputes. | ||||||
Convenient and quick query statistics function | Search cases via case number,name, bar code, date of birth and date of examination ;Image display,data modification,save,re-examination and video reply to the retrieved cases.Convenient for hospital information management, improve management efficiency. | ||||||
