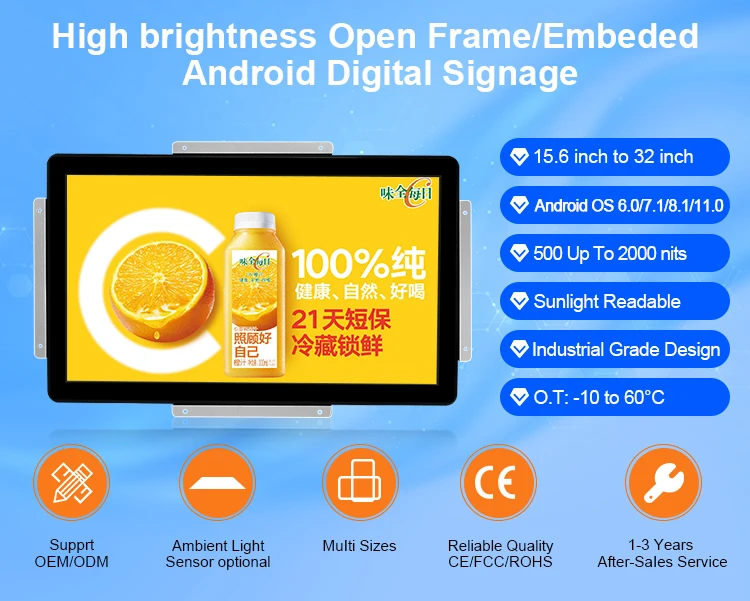

outdoor 15 inch 1000 nits high brightness vending machine lcd advertising screen display open frame digital signage
- Category: >>>
- Supplier: Shenzhen Maxway Technology Co. Ltd.Shenzhen Ltd.
Share on (1601308721750):
Product Overview
Description
Detailed Images

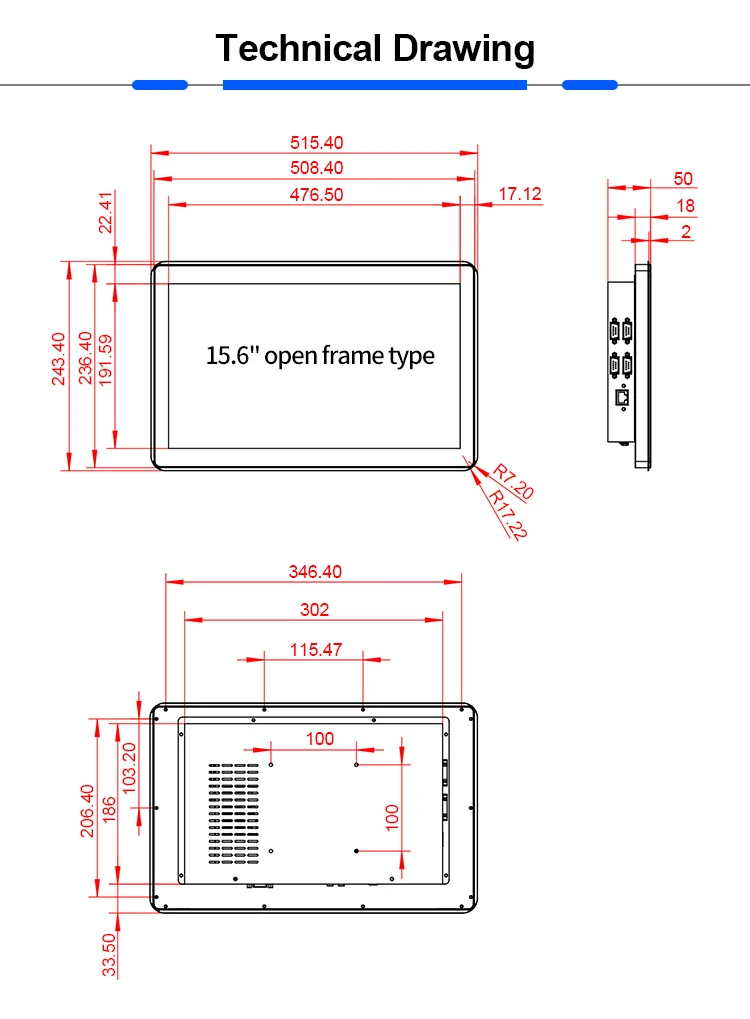

Product view of front, back, side and dimensions.
Product Name: outdoor 15 inch 1000 nits high brightness vending machine lcd advertising screen display open frame digital signage
Model number: MW-151AXNH
Product Description
Main features and specs.

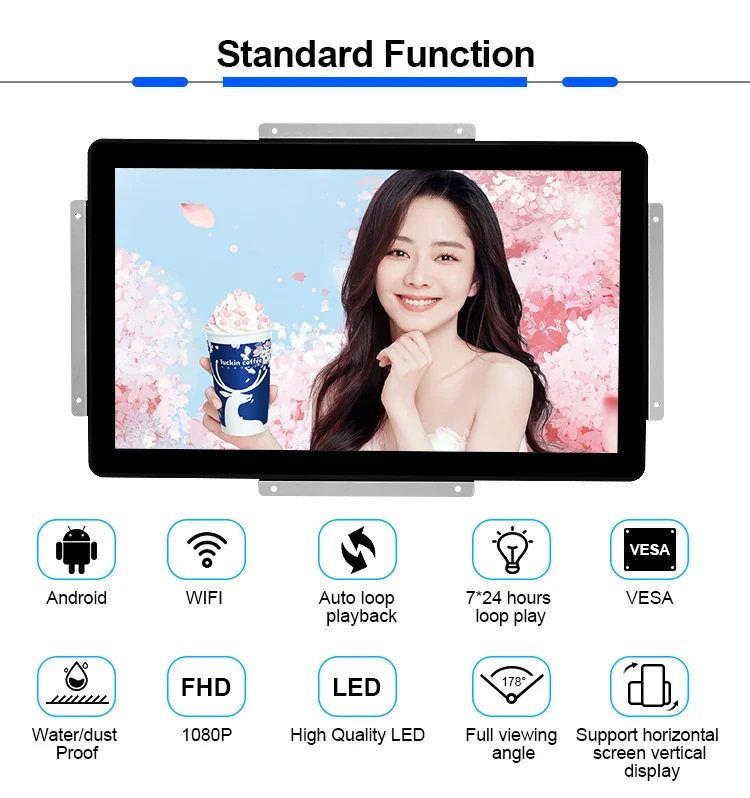

Main features
| OS: | Android version 6.0/7.1/8.1/11.0 (Linux optional) | |
Hardware (All IN ONE PC optiional) | CPU Options | A64 Quad-core ARM Cortex-A53,1.5GHz |
| RK3566 Quad-core ARM Cortex-A55,1.8GHz | ||
| RK3288 Quad-core ARM Cortex-A17,1.8GHz | ||
RK3399 Dual-core Cortex-A72 2.0GHz + Quad-core Cortex-A53 1.5GHz | ||
| RAM: | 2GB/4GB/8GB | |
| Nand Flash: | Standard 8GB(16GB/32GB/64G optional) | |
| WiFi network: | Support WIFI 802.11b/g/n | |
| 3G/4G network: | Support 3G/4G (optional) | |

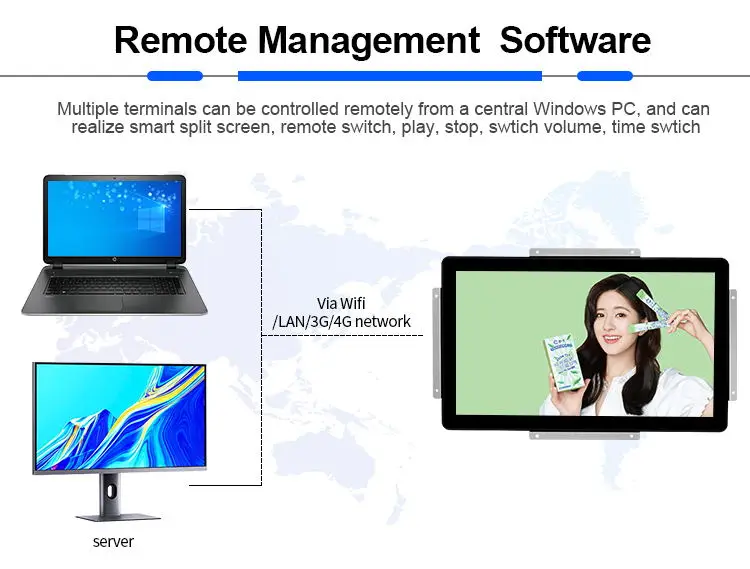

| Managing software: | Use our CMS software installed in server/your computer by which to control and group manage all terminals. Or you may use your own software | |
| Playlist editor: | Multimedia contents can play by playlist mode and loop. | |
| Scheduling playback: | Publish task by calendar, then appointed terminal/terminals would play accordingly | |

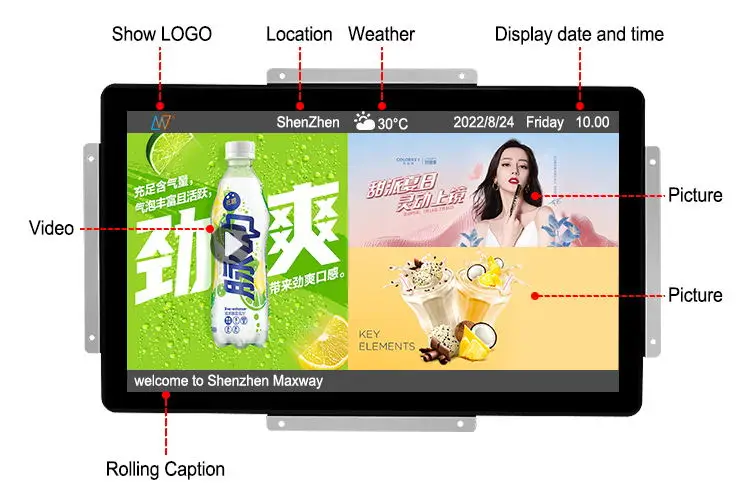

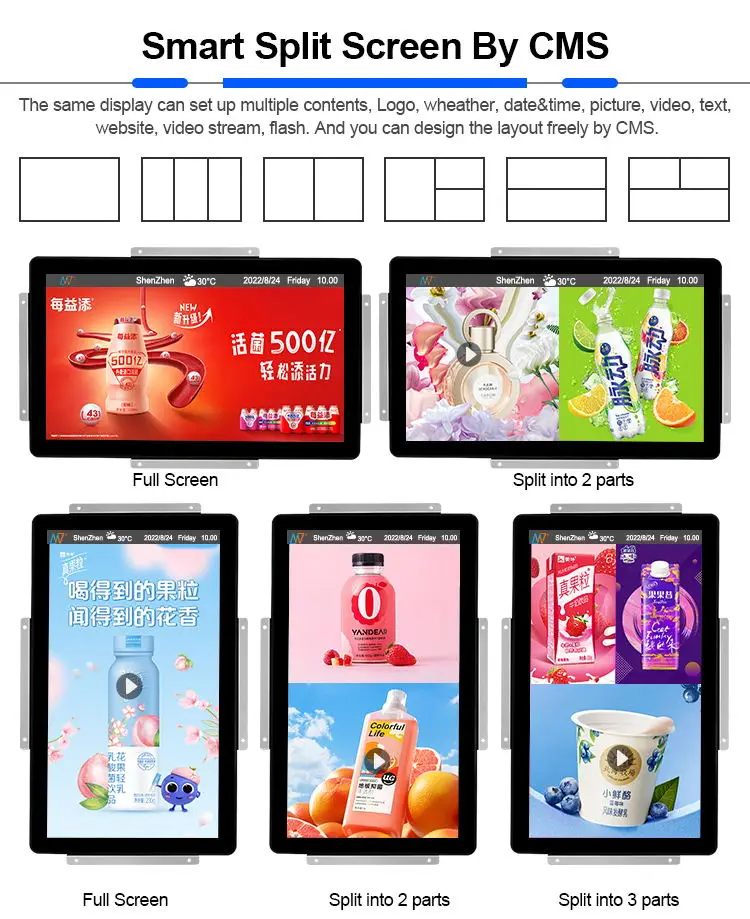

| Split Screen display: | Design the layout as you like, supports video, photo, text, ppt, word, excel, flash, rss, wheather, clock, date, web all can be display on different areas | |
| Auto Playback: | Set time power on /off and automatically display and loop, 7 days and 24 hours no manual operation. | |
| video/picture rotation: | 90/180/270 degree. (vertical display or horizontal display) | |
| Display type: | Horizontal or vertical/ landscape or portrait | |
| Two speakers: | Built-in stereo speakers (2x5W) | |
| Files update: | Files can be transmitted to flash memory automatically from server via LAN, WIFI or 3G/4G network | |
| Touch screen: | Capacitive touch | |
| Network options: | Standard with LAN and WiFi (3G/4G is optional) | |
| Accessories: | Use Manual,power cord, Remote Control, keys, screws, allen wrench | |
Welcome to contact us and get user manual for reference.
More specs
| LCD screen specs | Model number | MW-151AXNH |
| Screen size: | 15.6" | |
| Display proportion: | 16:9 | |
| Resolution(Pixel): | 1920*1080 | |
| Display color: | 16.7 M | |
| Response time : | 25 ms | |

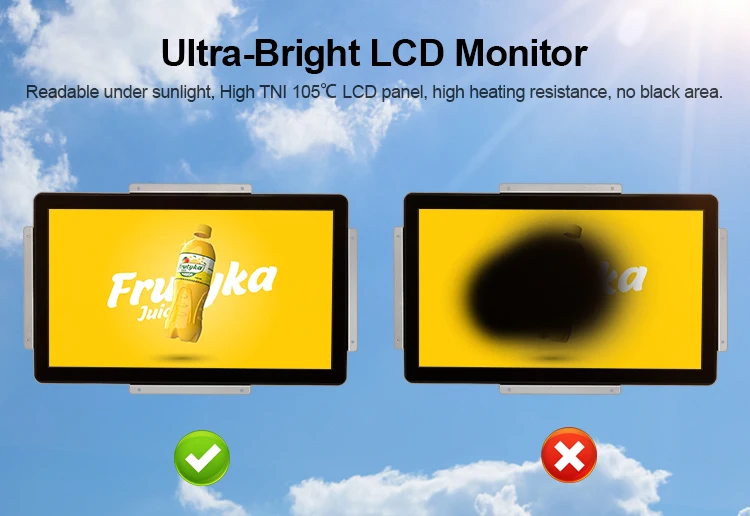

| Luminance: | 1000nits (700 up to 1500nits) | |
| Contrast ratio: | 700:1 | |

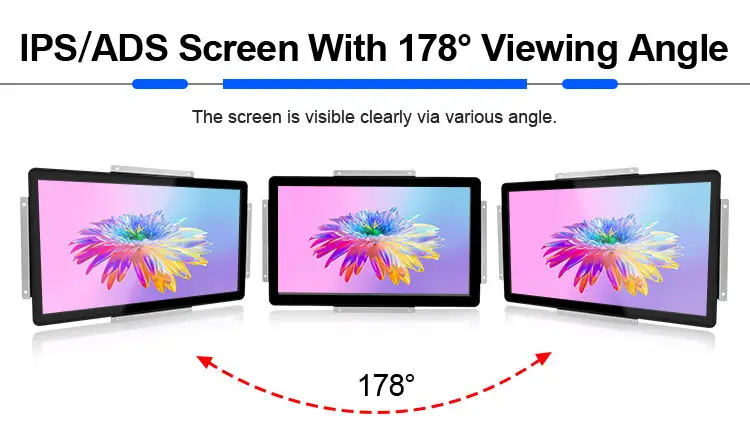

| View angel (L/R/U/D): | 85/85/85/85 | |
Media Formats | Video: | MPEG1/2/4,AVI,H.264, MOV,MKV,RMVB,RM,TS...etc |
| Audio: | MP3, WMA, WAV, EAAC+, MP2 dec, AC3, FLAC, APE, BSAC | |
| Picture: | JPEG ,BMP ,GIF ,PNG | |
| Others: | WORD, EXCEL, PPT, HTML | |
Power supply | AC Input: | 110-240V |
| DC Output: | 12V, 3A | |
| Appearance | Color option: | Black, white or optional |

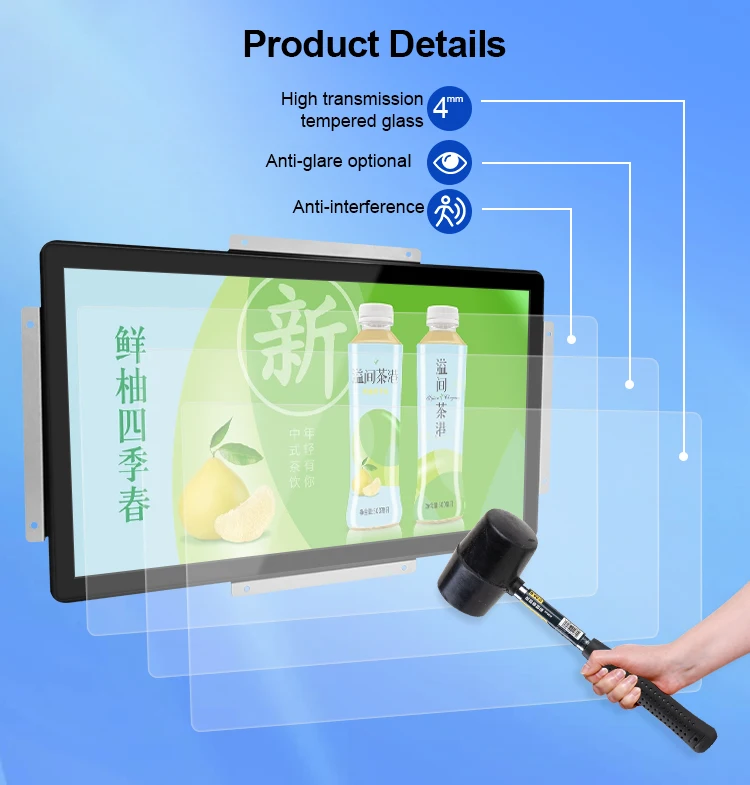

| Housing material: | Metal+front tempered glass | |

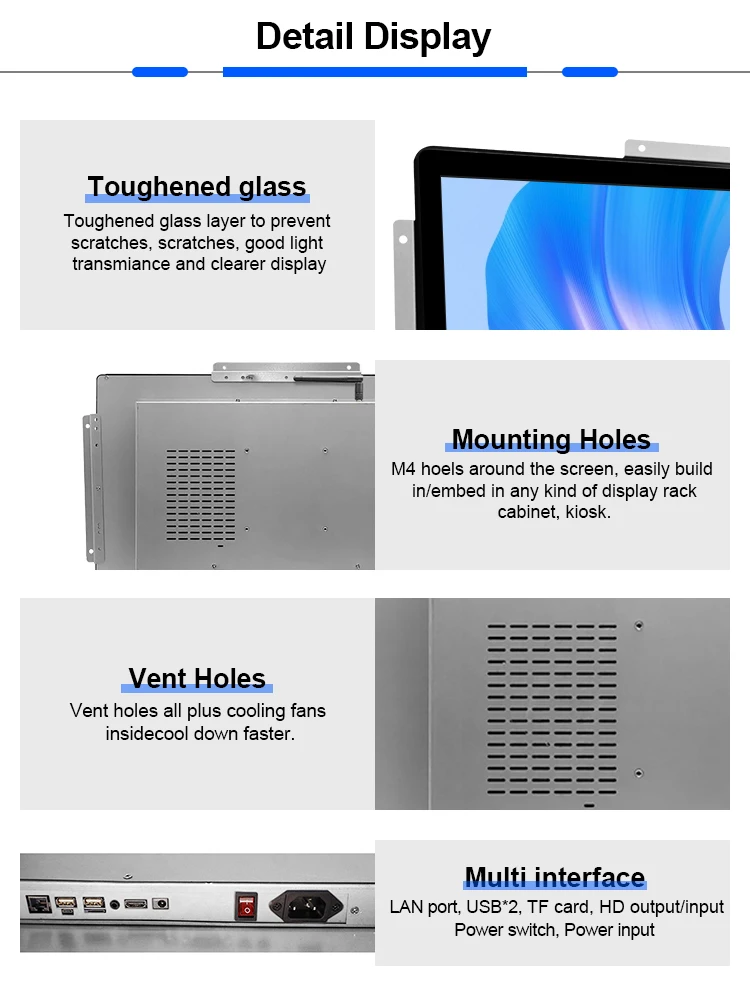

| I/O interface: | 1*LAN port, 2*USB,1*TF card, HD output/input, Power switch, Power input | |
| Installation: | Build-in | |
| Unit dimensions: | 515.4*243.4*18MM | |
| Screen area: | 476.5*191.59MM | |
| Packing details | Carton size: | 530*480*460MM |
| Quantity/Carton: | 5PCS /carton | |
| Gross Weight: | 23.5KGS |
