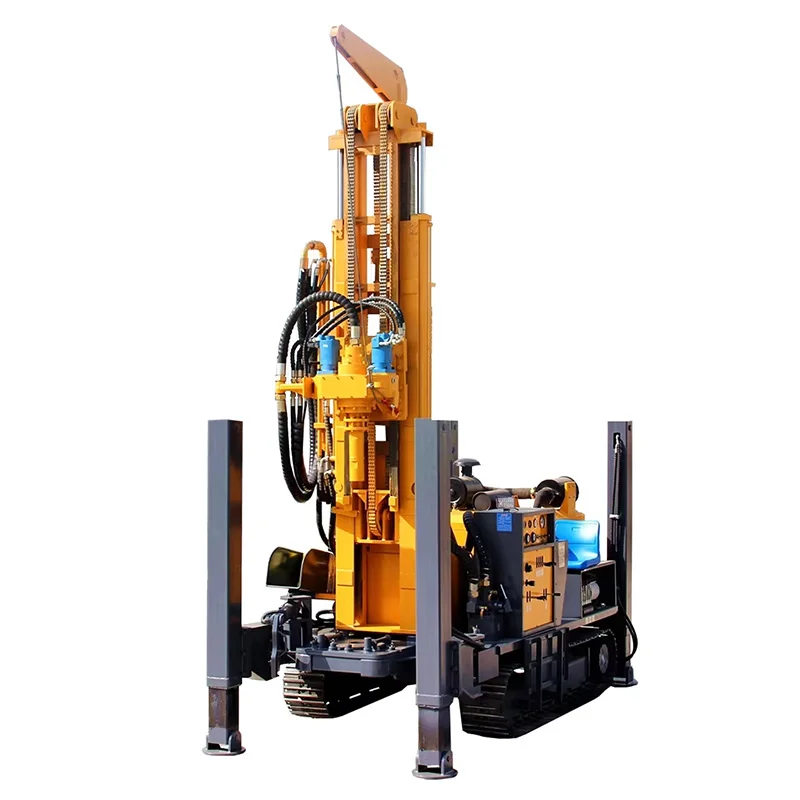

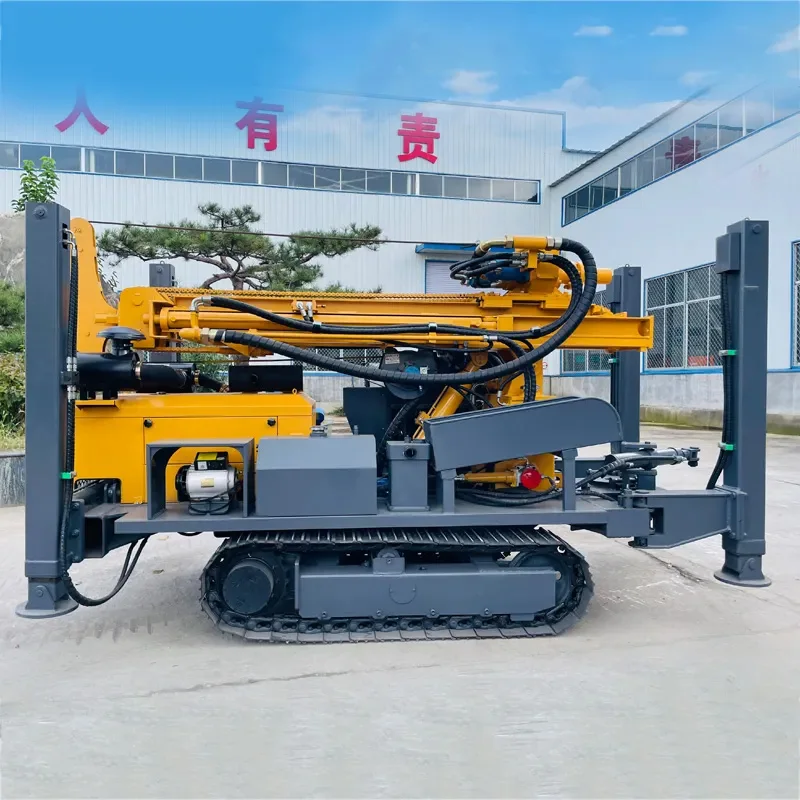

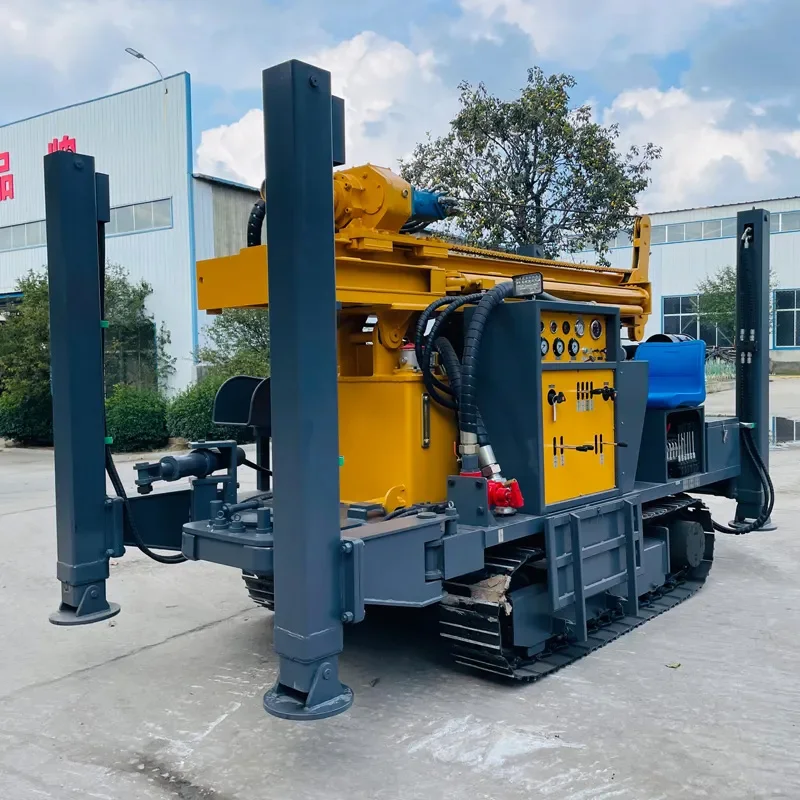

Zk300 Truck Mounted Drilling Rig For Water Well Hydraulic Water Well Drill Rig Drilling Rig Machine For Sale
- Category: >>>
- Supplier: Hebei Zhongke Jiantong Machinery Equipment Co. Ltd.Hebei Ltd.
Share on (1601308863055):
Product Overview
Description
Product Description
pneumatic dth drilling rig can drill 10-35m per hour . high drilling effective .the engine it is 76kw ,very powerful . pneumatic water borehole drilling rig it has 4 high hydraulic leg which can lifting 1.4m height can easy loading on the truck .air water well drilling rig machine is rubber crawler . hydraulic pump and valve both use import brand .Pneumatic water well borehole drilling rig tower height is 3m . 18ton High lifting force of crawler pneumatic drilling rig ,2ton lifting force of winch . Hydraulic pump can be change to Famous brand . diesel engine also can be changed according your requirements . It can add mud pump and foam pump .
This series of drilling rigs use excavator crawler chassis, strong off-road performance. The independent module design allows the rig to be mounted on the truck, increasing its mobility. Two-speed rotation and propulsion speed can suitable different geology of oil and rock area. The combined positioner can be adjusted and re placed according to different types of drill rods and impactors to ensure accurate and reliable positioning and centering. The hoisting mechanism facilitates the lifting of drill pipe and impactor, reducing labor intensity.

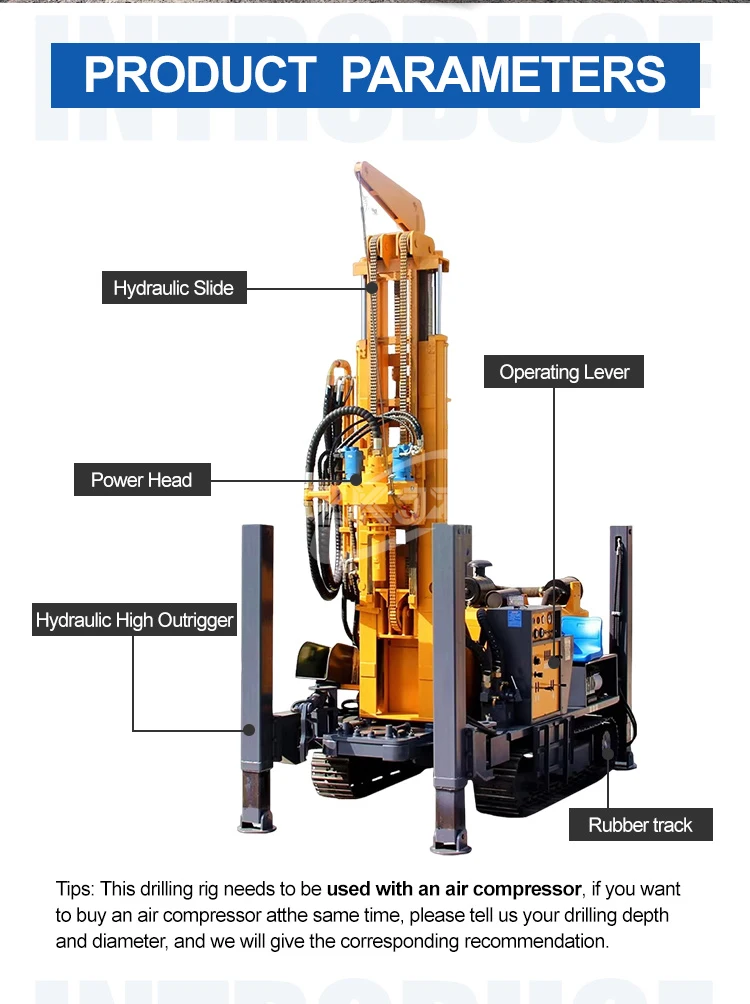

Product parameter
| Model | ZK-180 | ZK-200 | ZK-260 | ZK-300 |
| The weight(T) | 4.5 | 4.7 | 5.7 | 6.8 |
| The hole diameter(mm) | 140-254 | 140-254 | 140-305 | 140-325 |
| Drill depth(m) | 180 | 200 | 260 | 300 |
| One-time advance length(m) | 3.3 | 3.3 | 3.3 | 3.3 |
| Walking speed(km/h) | 2.5 | 2.5 | 2.5 | 2.5 |
| Gradeability(Max.) | 30 | 30 | 30 | 30 |
| Equipped capacitor(kw) | 55 | 58 | 76 | 85 |
| Working air pressure(MPA) | 1.7-2.5 | 1.7-2.5 | 1.7-2.5 | 1.7-3.0 |
| Air consumption(m³/min) | 17-31 | 17-31 | 17-31 | 17-36 |
| Swing speed(rpm) | 45-70 | 45-70 | 45-70 | 40-70 |
| High leg stroke(m) | 1.4 | 1.4 | 1.4 | 1.4 |
| Drill pipe diameter(mm) | φ76 φ89 | φ76 φ89 | φ76 φ89 | φ76 φ89 |
| Drill pipe length(m) | 1.5m/2.0m/3.0m | 1.5m/2.0m/3.0m | 1.5m/2.0m/3.0m | 1.5m/2.0m/3.0m |
| Rig lifting force(T) | 12 | 13 | 15 | 18 |
| Rapid rise speed(m/min) | 20 | 30 | 24 | 22 |
| Fast feedilng speed(m/min) | 40 | 60 | 40 | 40 |
| Width of loading(m) | 2.4 | 2.6 | 2.73 | 2.6 |
| Hoisting force of winch(T) | 1.5 | 1.5 | 1.5 | 2 |
| Swing torque(N.m) | 3200-4600 | 3400-4700 | 4000-5300 | 5700-7500 |
| Dimensions(mm) | 3950*1630*2250 | 3950*1750*2250 | 3900*1750*2250 | 4100*2000*2260 |
| The penetration effciency(m/h) | 10-35 | 10-35 | 10-35 | 15-35 |
| The engine brand | quanchai | yuchai | quanchai | yuchai |

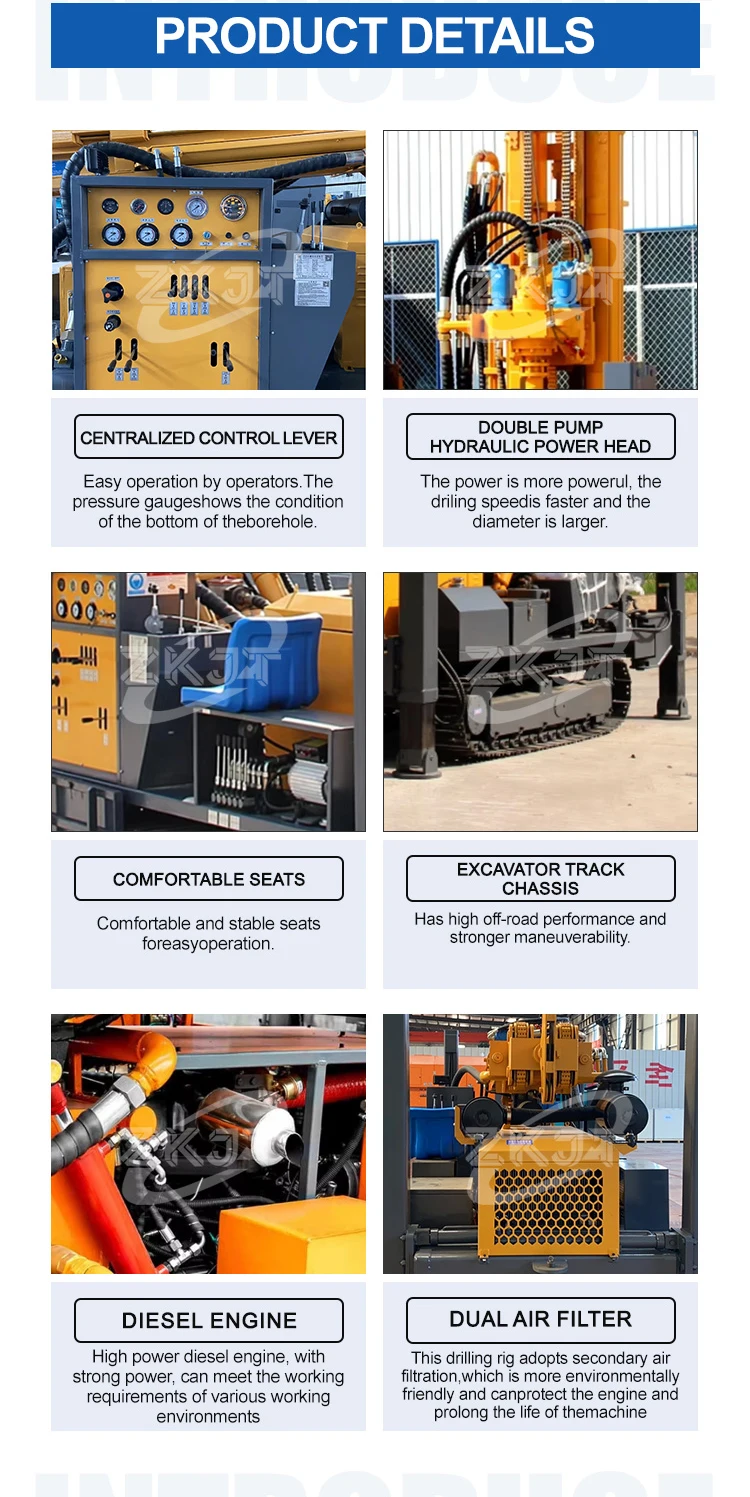

Product Details
Advantage

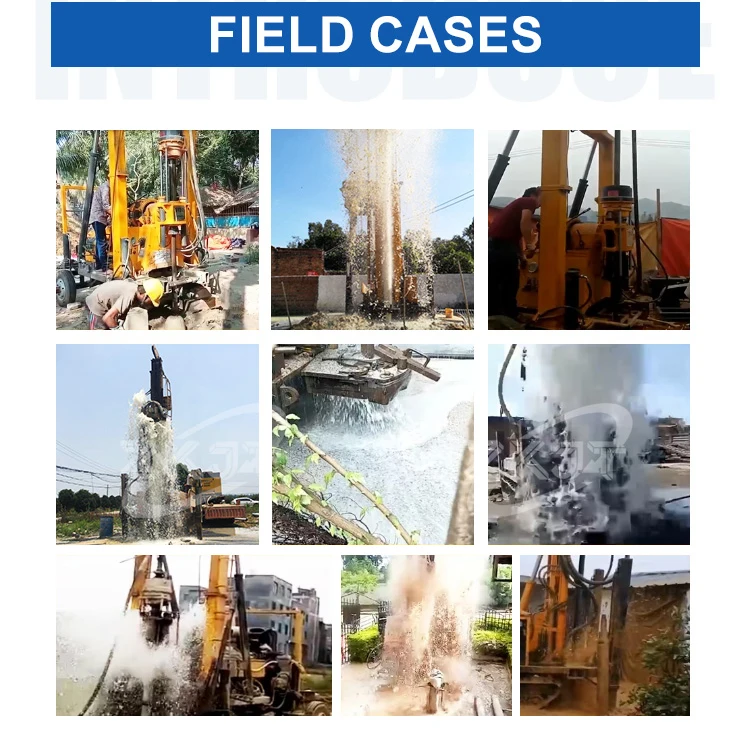

Field Application

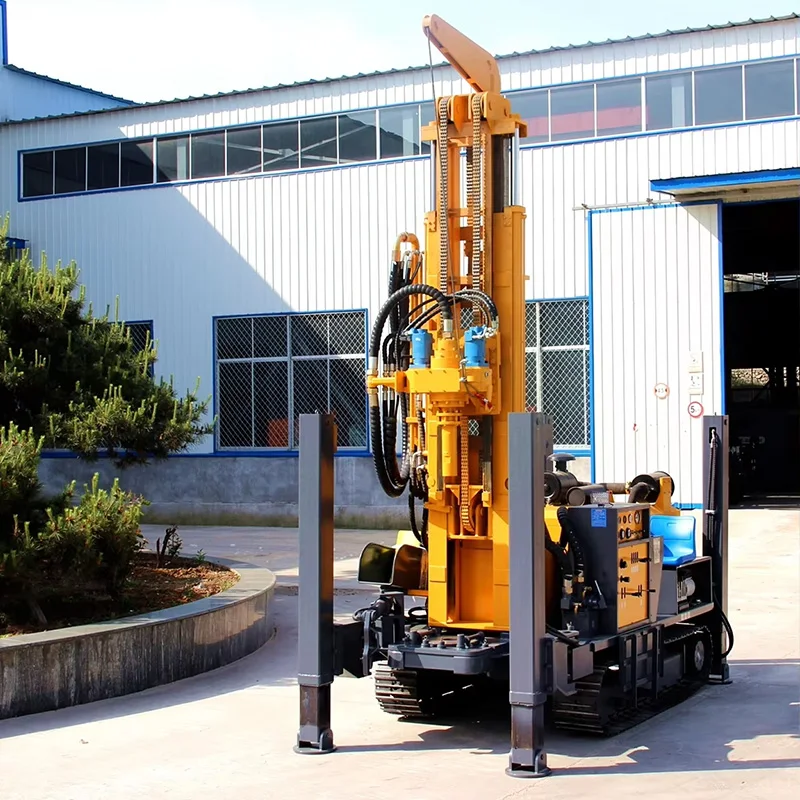

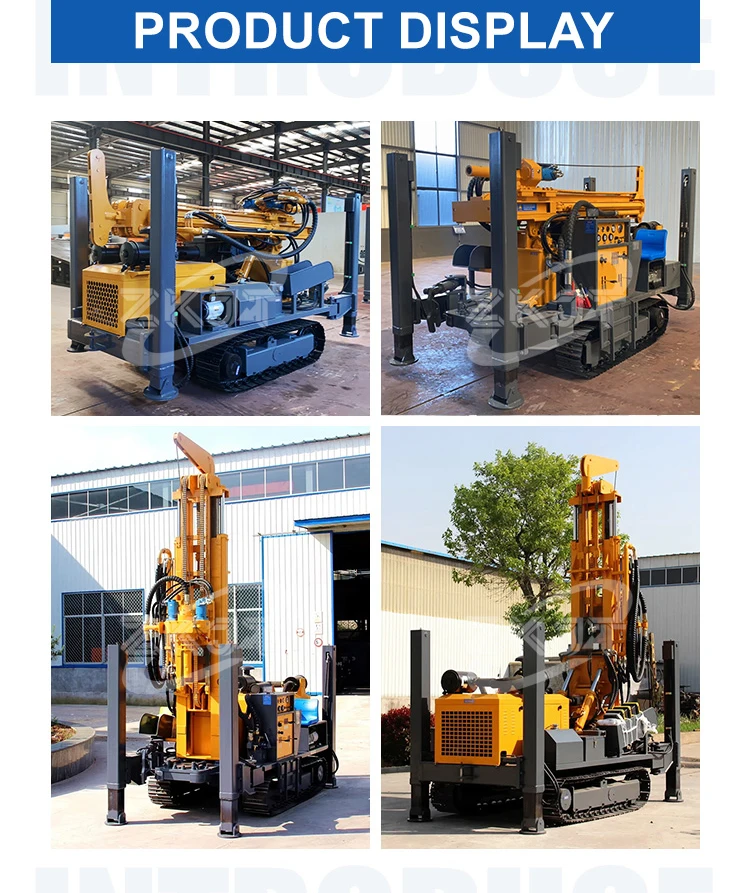

Product Display

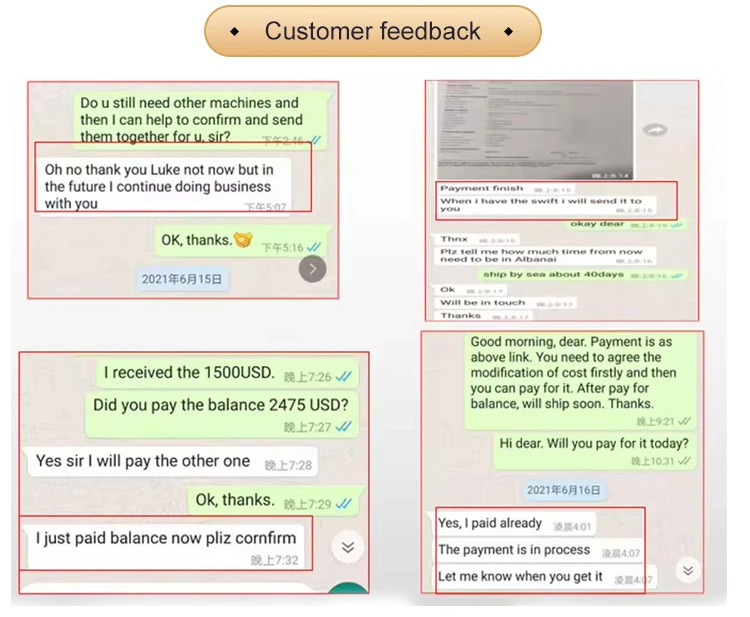

Customer Feedback
Company Information
Q1. Are you original manufacture?
Yes,we are a manufacturer.
Q2. What is the delivery time ?
Generally we need 7-10 days to produce the machine after prepayment .If in stock, we will ship within 1-3 days.
Q3. How about the warranty ?
We supply 3 years warranty .
Q4. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q5. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order
Q6. What kind terms of payment can be accepted?
T/T, L/C, Western Union is available.
Q7. Do you support customization?
Yes ,sir ,no problem .
Q8. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .
