Product Overview
Description
Products Description

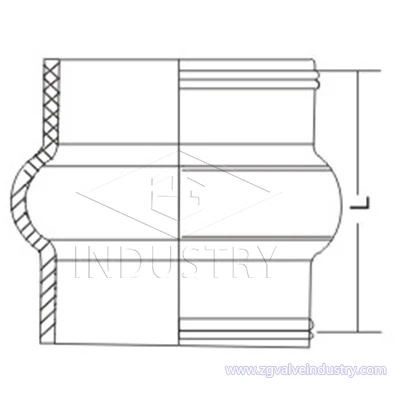

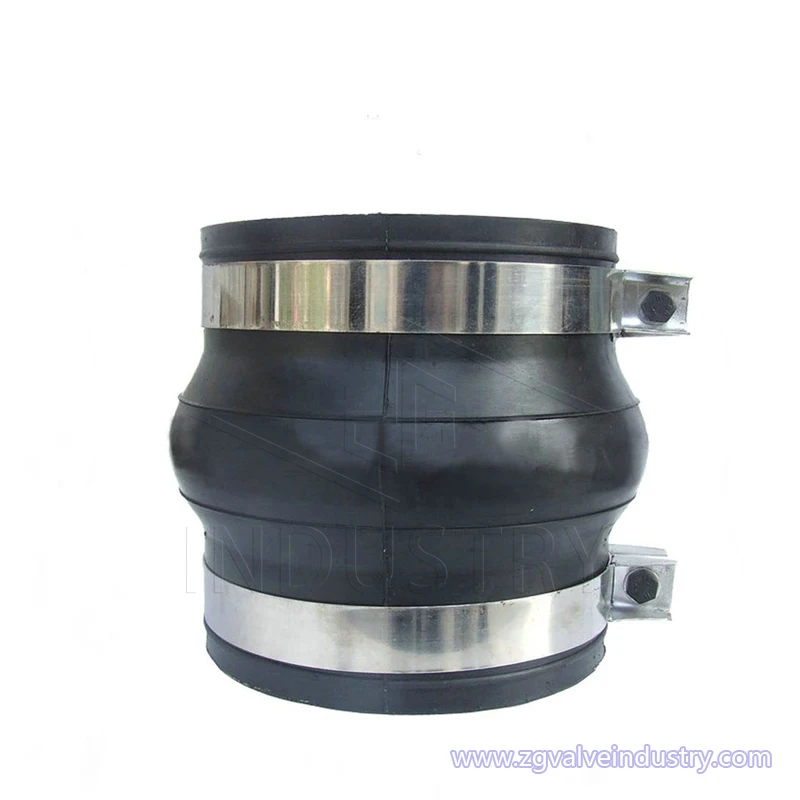

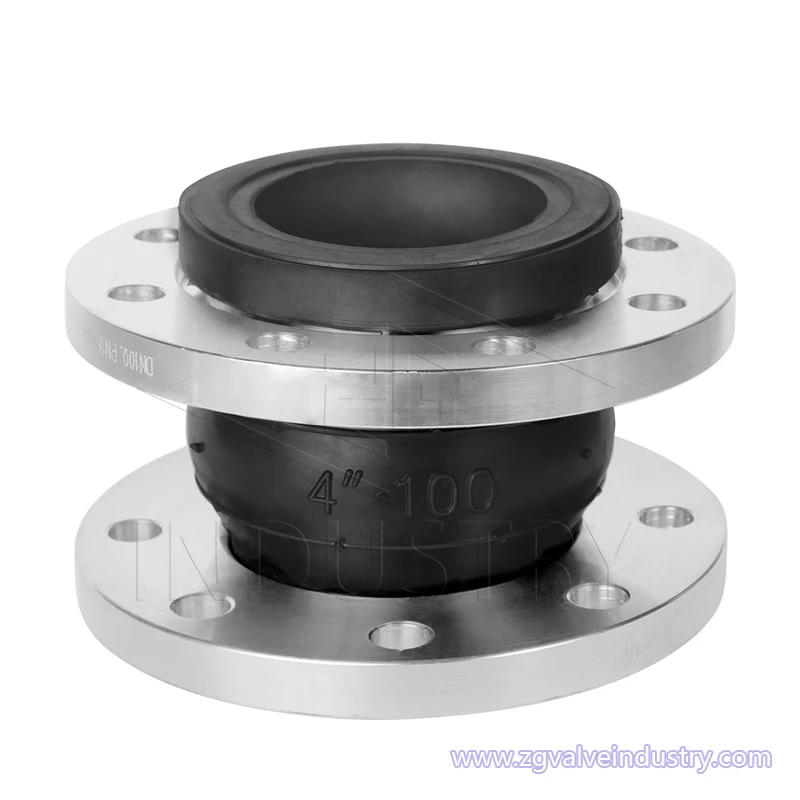

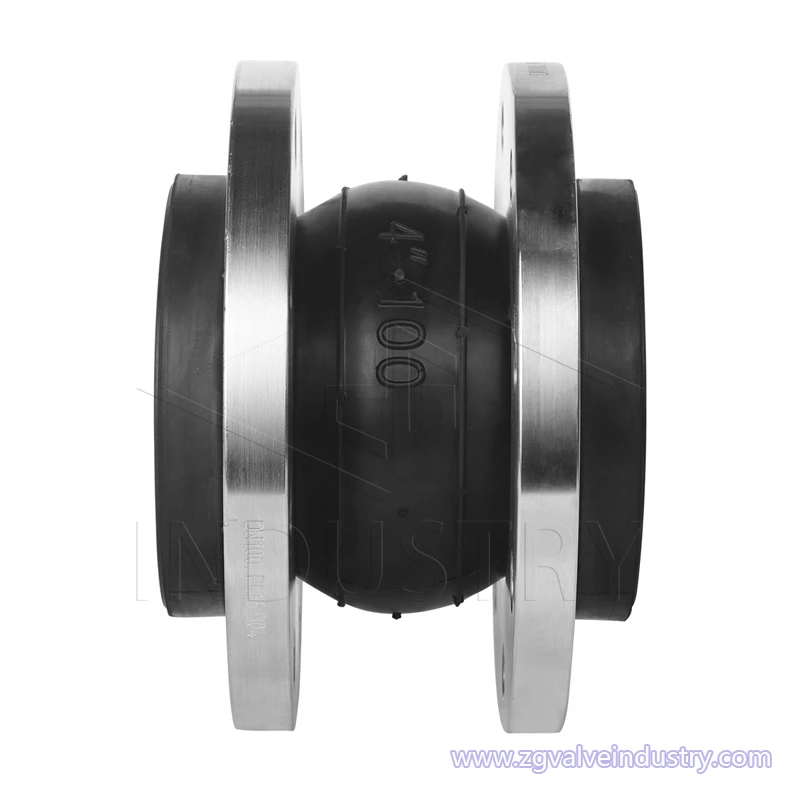

JGD (KXT) type clamp rubber joint
JGD (KXT) type clamp rubber joint
Size Range: 2"-80"/DN50-DN2000
Rubber Body Outer Layer: NR/EPDM/IIR/CR/NBR/VITON
Rubber Body Inner Layer: NR/EPDM/IIR/CR/NBR/VITON
Skeleton: Nylon
Clamp: Q235/SS304/SS316
Payment: T/T, D/P or L/C
Lead Time：5-30 days
Size Range: 2"-80"/DN50-DN2000
Rubber Body Outer Layer: NR/EPDM/IIR/CR/NBR/VITON
Rubber Body Inner Layer: NR/EPDM/IIR/CR/NBR/VITON
Skeleton: Nylon
Clamp: Q235/SS304/SS316
Payment: T/T, D/P or L/C
Lead Time：5-30 days
Description
1. Small size, light weight, good flexibility, easy installation and maintenance.
2. After installation, it can absorb the horizontal, axial and angular displacement caused by the vibration of the pipeline; it is not restricted by the non-concentricity of the pipeline and the non-parallel flange.
3. After installation, it can reduce the noise generated by the vibration of pipes, pumps, etc., and has a strong vibration absorption capacity.
4. The internal seamless high-pressure rubber joint can more effectively prevent the corrosive medium from corroding the inner wall of the rubber joint in high temperature, acid and alkali resistant, and oil resistant pipelines, and improve the service life.
Field of Application：
Size Range: 2"-80"/DN50-DN2000
Maximum Temperature: -15℃-(+)120˚C
Allowable Operating Pressure: 0.25MPa/0.6MPa/1.0MPa/1.6MPa/2.5MPa/6.4MPa
ZG rubber joints have good comprehensive performance and are widely used in basic projects such as chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire protection, and electric power. According to different materials, it can be made into various varieties such as acid resistance, alkali resistance, corrosion resistance, oil resistance, high temperature resistance, radiation resistance, abrasion resistance, and aging resistance, which can be adapted to various media and environments.
Features：
Note:The joints above DN200 used in high pressure and high building,anti-pull-off device should be installed if the pipe has no fixed stay or fixed bracket(actual axial force of the product is less than anti-supporting force).
Technical Specification：
Design Standard：GB/T26121
Face to Face Dimension：GB/T26121
Connection Type：GB/T9115.1-2000, HG, ANSI, DIN, BS, EN, JIS
Test Standard：GB/T26121
Design Features:
1. Small size, light weight, good flexibility, easy installation and maintenance.
2. After installation, it can absorb the horizontal, axial and angular displacement caused by the vibration of the pipeline; it is not restricted by the non-concentricity of the pipeline and the non-parallel flange.
3. After installation, it can reduce the noise generated by the vibration of pipes, pumps, etc., and has a strong vibration absorption capacity.
4. The internal seamless high-pressure rubber joint can more effectively prevent the corrosive medium from corroding the inner wall of the rubber joint in high temperature, acid and alkali resistant, and oil resistant pipelines, and improve the service life.
Field of Application：
Size Range: 2"-80"/DN50-DN2000
Maximum Temperature: -15℃-(+)120˚C
Allowable Operating Pressure: 0.25MPa/0.6MPa/1.0MPa/1.6MPa/2.5MPa/6.4MPa
ZG rubber joints have good comprehensive performance and are widely used in basic projects such as chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire protection, and electric power. According to different materials, it can be made into various varieties such as acid resistance, alkali resistance, corrosion resistance, oil resistance, high temperature resistance, radiation resistance, abrasion resistance, and aging resistance, which can be adapted to various media and environments.
Features：
Note:The joints above DN200 used in high pressure and high building,anti-pull-off device should be installed if the pipe has no fixed stay or fixed bracket(actual axial force of the product is less than anti-supporting force).
Technical Specification：
Design Standard：GB/T26121
Face to Face Dimension：GB/T26121
Connection Type：GB/T9115.1-2000, HG, ANSI, DIN, BS, EN, JIS
Test Standard：GB/T26121
Name | Material |
Outer | IIR/CR/EPDM/NR/NBR |
Inner | IIR/CR/EPDM/NR/NBR |
Skeleton | Nylon |
Clamp | Q235/SS304/SS316L |
5 | Stud |
6 | Nut |
6 | Nut |
Nominal diameter DN | Length L | Axial displacement | Lateral displacement(mm) | Deflexion angle(a1+a2)° | ||||
DN | inch | （mm） | Extension | Compression | ||||
50 | 2 | 180 | 7 | 10 | 10 | 15° | ||
65 | 2 1/2 | 180 | 7 | 13 | 11 | 15° | ||
80 | 3 | 180 | 8 | 15 | 12 | 15° | ||
100 | 4 | 180 | 10 | 19 | 13 | 15° | ||
125 | 5 | 180 | 12 | 19 | 13 | 15° | ||
150 | 6 | 180 | 12 | 20 | 14 | 15° | ||
200 | 8 | 200 | 16 | 25 | 22 | 15° | ||
250 | 10 | 200 | 16 | 25 | 22 | 15° | ||
300 | 12 | 200 | 16 | 25 | 22 | 15° | ||
350 | 14 | 200 | 16 | 25 | 22 | 15° | ||
400 | 16 | 200 | 16 | 25 | 22 | 15° | ||
450 | 18 | 200 | 16 | 25 | 22 | 15° | ||
500 | 20 | 200 | 16 | 25 | 22 | 15° | ||
600 | 24 | 200 | 16 | 25 | 22 | 15° | ||
700 | 28 | 200 | 16 | 25 | 22 | 10° | ||
800 | 32 | 200 | 16 | 25 | 22 | 10° | ||
900 | 36 | 200 | 16 | 25 | 22 | 10° | ||
1000 | 40 | 200 | 18 | 25 | 22 | 10° | ||
1200 | 48 | 200 | 18 | 25 | 24 | 10° | ||
1400 | 56 | 200 | 20 | 26 | 24 | 10° | ||
1600 | 64 | 200 | 25 | 26 | 26 | 10° | ||
1800 | 72 | 200 | 20 | 26 | 26 | 10° | ||
2000 | 80 | 200 | 20 | 26 | 26 | 10° | ||
2200 | 2220 | 730 | 60 | |||||
2400 | 2420 | 730 | 60 | |||||
2600 | 2620 | 840 | 80 | |||||
2800 | 2820 | 840 | 80 | |||||
3000 | 3020 | 840 | 80 | |||||
3200 | 3220 | 840 | 80 | |||||
