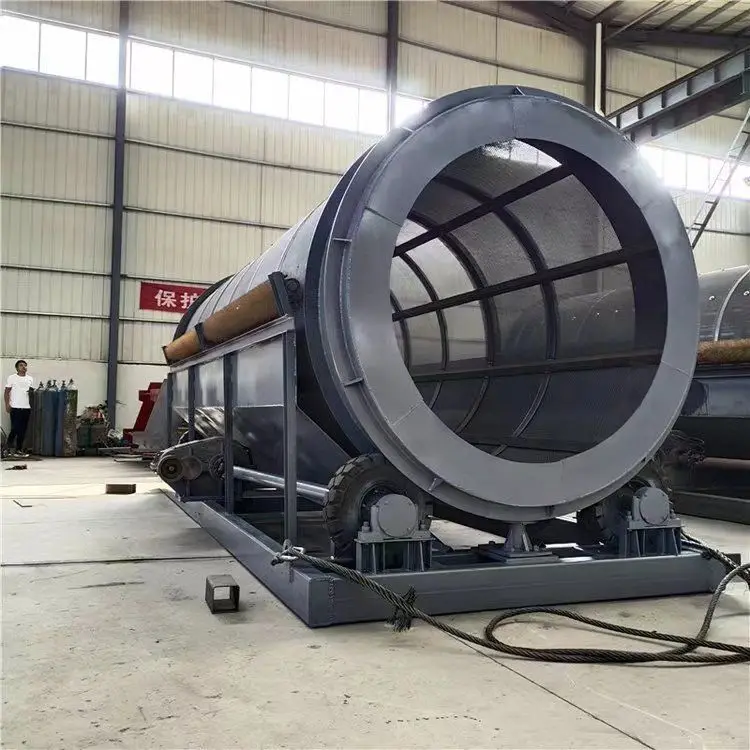

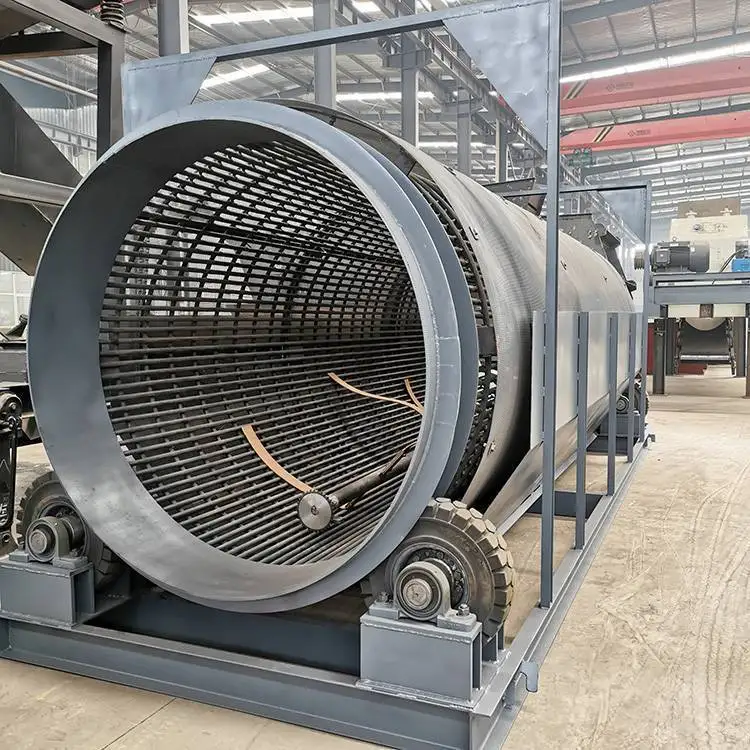

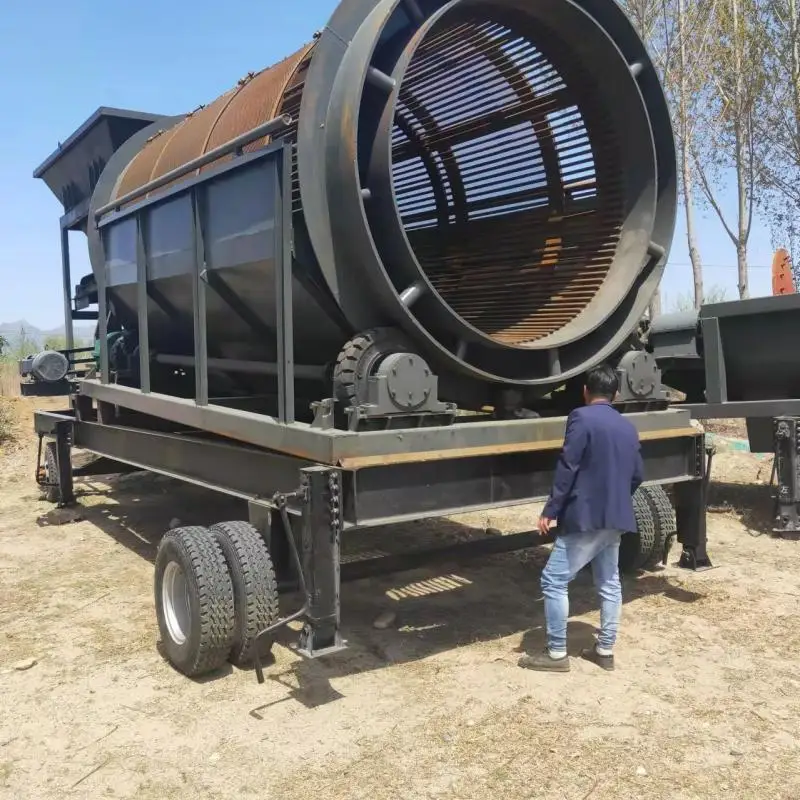

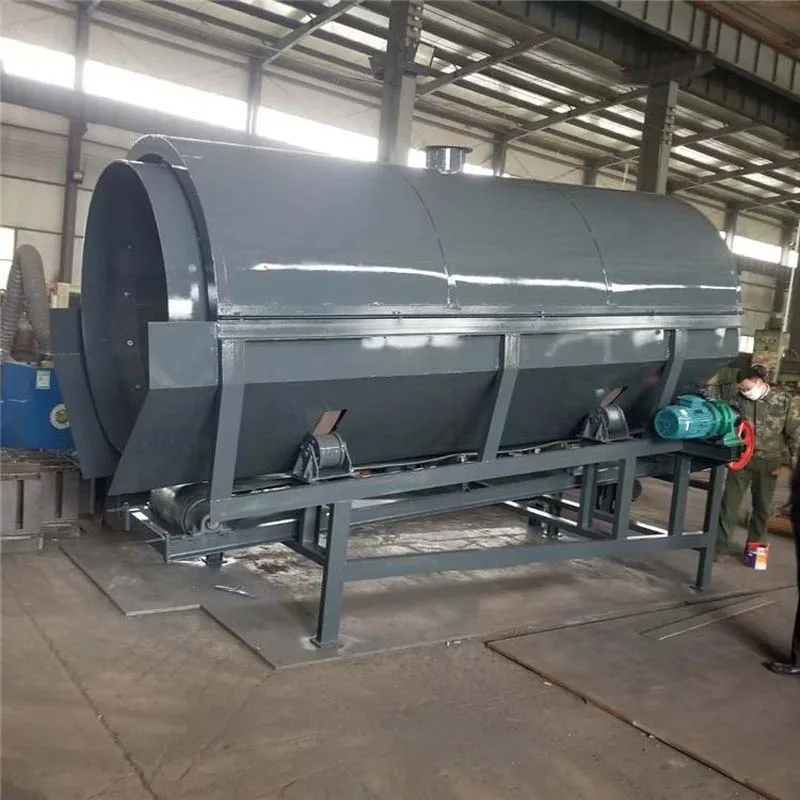

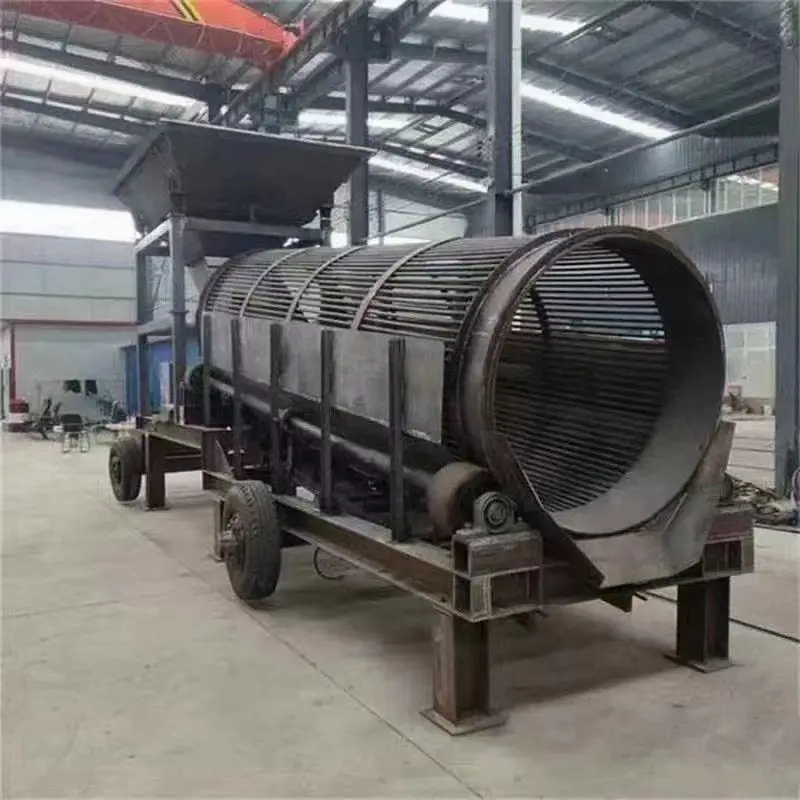

Heavy Duty Mobile Topsoil Rotary Drum Screening Machine Price Stone Trommel Screen Sand Screening Machine
- Category: >>>
- Supplier: Zhengzhou Juding Environmental Protection Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601309334877):
Product Overview
Description

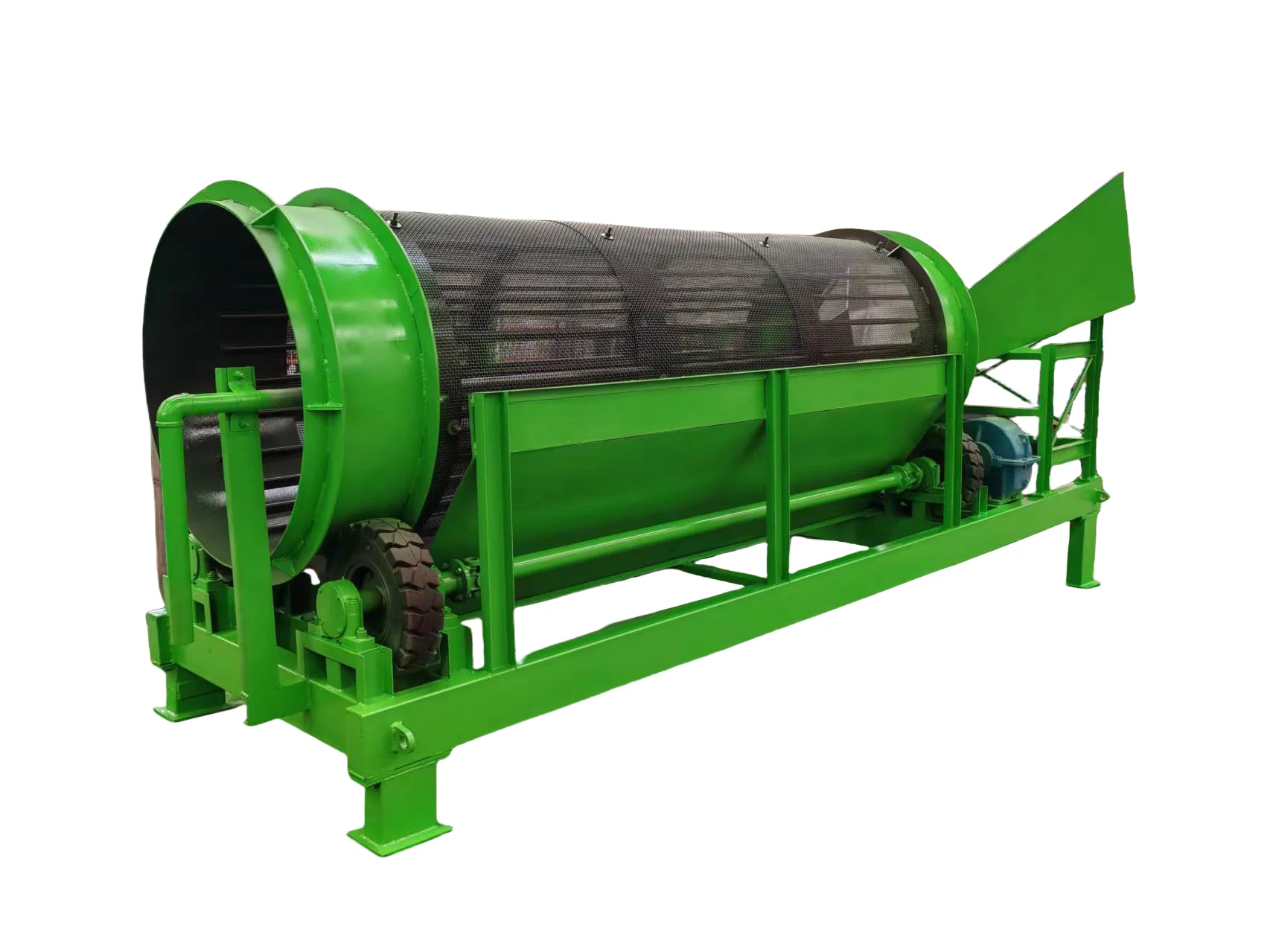

Trommel Screen is a cylindrical drum-like machine used to separate materials by size. It consists of a perforated cylindrical drum that is usually inclined at an angle and rotates slowly, allowing material to pass through the screen while larger pieces are retained inside the drum and eventually discharged at the other end.

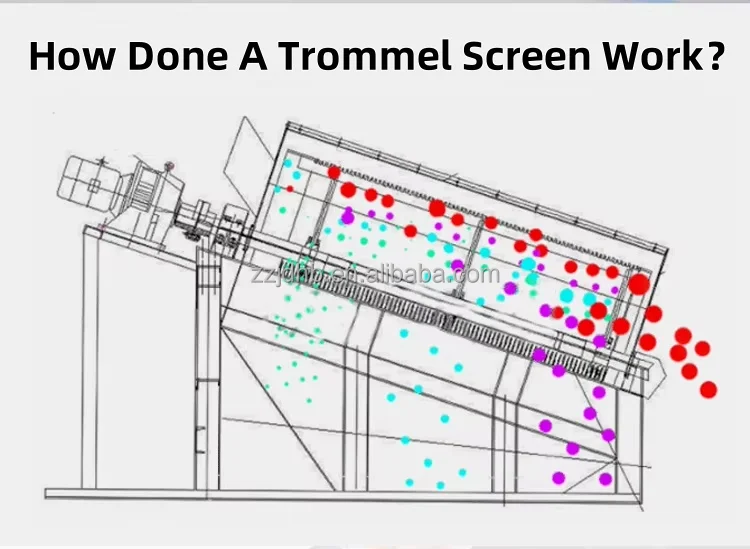

Trommel screen, or rotary screen, separates materials based on size through the following process:
1.Material Feeding: Material is fed into a rotating cylindrical drum with perforated sides, either through a hopper or a conveyor system.
2.Rotation and Lifting:The drum rotates, causing internal lifter bars to lift and tumble the material, promoting even distribution and thorough mixing.
3.Screening Process: As the drum rotates, smaller particles pass through the perforations in the drum's surface and are collected underneath as the undersized fraction.
3.Screening Process: As the drum rotates, smaller particles pass through the perforations in the drum's surface and are collected underneath as the undersized fraction.
4.Movement and Discharge: Larger particles that do not fit through the perforations move
along the length of the drum due to its slight tilt and rotational movement, eventually exiting at the opposite end as the oversized fraction.
along the length of the drum due to its slight tilt and rotational movement, eventually exiting at the opposite end as the oversized fraction.
The efficiency of a trommel screen depends on factors like the drum's speed, angle, diameter, length, and the size of the perforations.
A trommel screen is a mechanical screening machine used to separate materials, typically in the mining and recycling industries.
1.Rotating Drum : Consists of a cylindrical drum that rotates, usually inclined at an angle.
1.Rotating Drum : Consists of a cylindrical drum that rotates, usually inclined at an angle.
2.Screening Surface : The drum is perforated or has mesh, allowing smaller particles to pass through while larger ones move to the end.
3.Material Separation :Effective for separating different sizes of materials based on particle size.
4.Versatility : Used for various applications including soil, compost, and waste.
5.Low Operational Costs : Generally, it has lower maintenance and operational costs compared to other screening methods.
6.Scalability : Available in various sizes and capacities to handle different volumes of material.
7.Adjustable Parameters: Drum speed, angle, and screen size can be adjusted to optimize performance for specific materials.
Trommel Separator Application
Field : Trommel screen machines are commonly used in the mining processing, coal processing, power plant, waste management, waste
recycling, topsoil quarry separation, landfill, and composting, building materials industries ect. Material : Rotary drum screen ideal for separating materials such as soil, gold, diamond, rocks, sand, granite, coal, solid waste, sand, gravel and other aggregates.
recycling, topsoil quarry separation, landfill, and composting, building materials industries ect. Material : Rotary drum screen ideal for separating materials such as soil, gold, diamond, rocks, sand, granite, coal, solid waste, sand, gravel and other aggregates.
Model | Cylinder | Rotate Speed （R/MIN） | Gradient （℃） | Power（KW） | Production capacity（T/H） | Weight（T） | Overall dimension （mm） | ||
Diameter （mm） | Length （mm） | ||||||||
GS1.0X3.0 | 1000 | 3000 | 22 | 2-2.5 | 1.5 | 20-60 | 1.5 | 3500X1400X2200 | |
GS1.2X4.5 | 1200 | 4500 | 17 | 2-2.5 | 4 | 30-80 | 2.5 | 5700X1600X2400 | |
GS1.5X5.0 | 1500 | 5000 | 14 | 2-2.5 | 7.5 | 80-160 | 3.8 | 6860X1900X2810 | |
GS1.6X6.0 | 1600 | 6000 | 12 | 2-2.5 | 11 | 110-260 | 4.7 | 7300X2000X3000 | |
GS1.8X6.5 | 1800 | 6500 | 11 | 2-2.5 | 11 | 220-380 | 6.0 | 9000X2200X3200 | |
Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control over the industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the customer support. 24 hours service with.
Rotary Vibrating Screen Machine Main Parts Display:
1 Screen frame
2 Reducer
3 Electric Motor
4 Transmission Tire
5 Sieve
6 Transmission Base
Screen frame
Welded with 30mm round steel for high impact resistance and abrasion resistance.
Reducer
Adopting big brand reducer, gears after quenching process
Electric Motor
Adopting big brand motors with the advantages of high efficiency, low energy consumption and long life, you can specify the brand
of motor.
Transmission Tire
Brand new solid tyres, wear-resistant, high load capacity, low friction force
Sieve
Stencil made of manganese steel, automatic machine preparation
Transmission Base
Solid shaft type 120, machined by hardening process
Zhengzhou Juding Environmental Protection Equipment Co., Ltd. is an enterprise focusing on the research and development, manufacture, sales and service of mining machinery equipment and automation equipment. The main products are: mobile crushing plant, sand making machine, sand washing machine, all kinds of crushers, vibrating screen, feeder and related accessories. The products are widely used in mining, building materials, highway, railroad, bridge, chemical industry, metallurgy, refractory materials and other industries, and are exported to Vietnam, North Korea, Central Africa, the Middle East and other countries and regions. The company adheres to the enterprise tenet of “integrity, innovation, enterprise and win-win”, takes the market as the guide and customer satisfaction as the purpose, pursues excellence and continuous improvement.
A: our company warmly welcome clients to visit our plant at anytime. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc...
Q2: Where have your products been exported to?
Q2: Where have your products been exported to?
A:we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...
Q3:What Information should customers give us, so that we can be able to provide you suitable quotation and service.
A:What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q4: How long is the warranty of your equipment? Does your company supply the spare parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
Q3:What Information should customers give us, so that we can be able to provide you suitable quotation and service.
A:What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q4: How long is the warranty of your equipment? Does your company supply the spare parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
