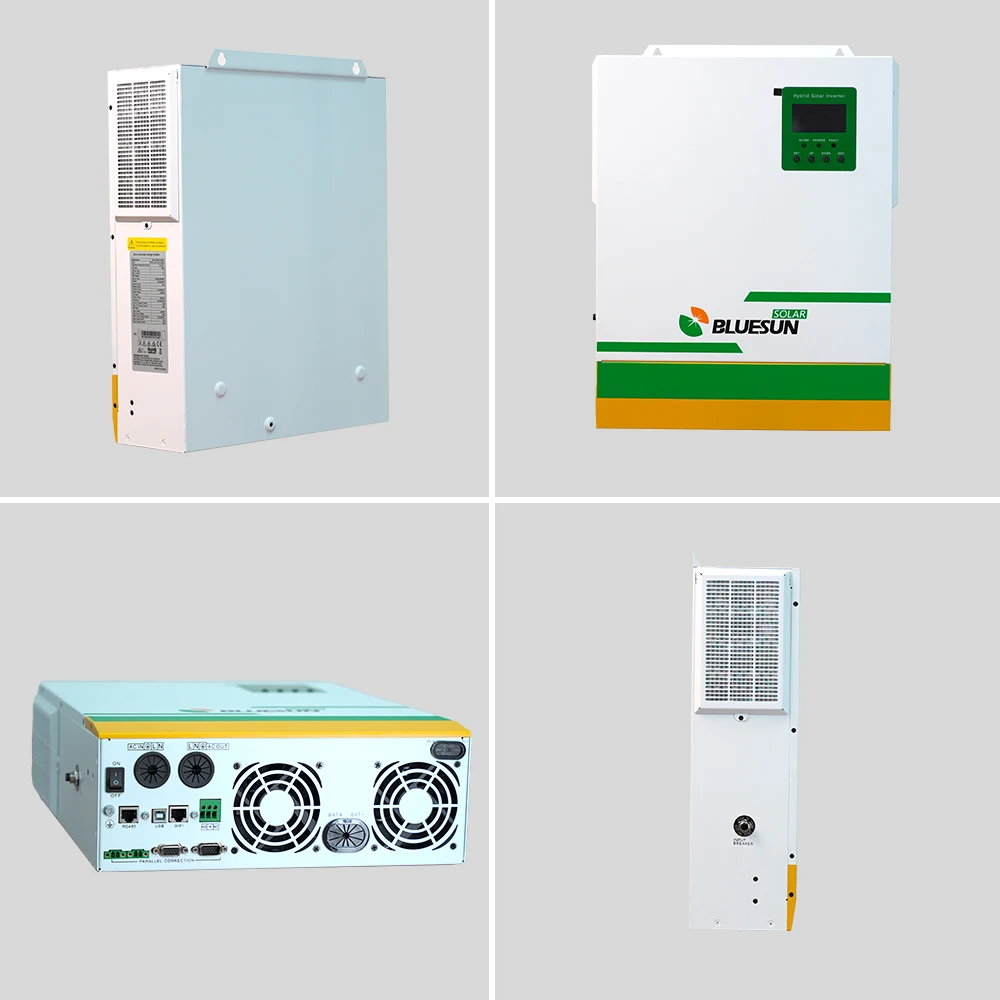

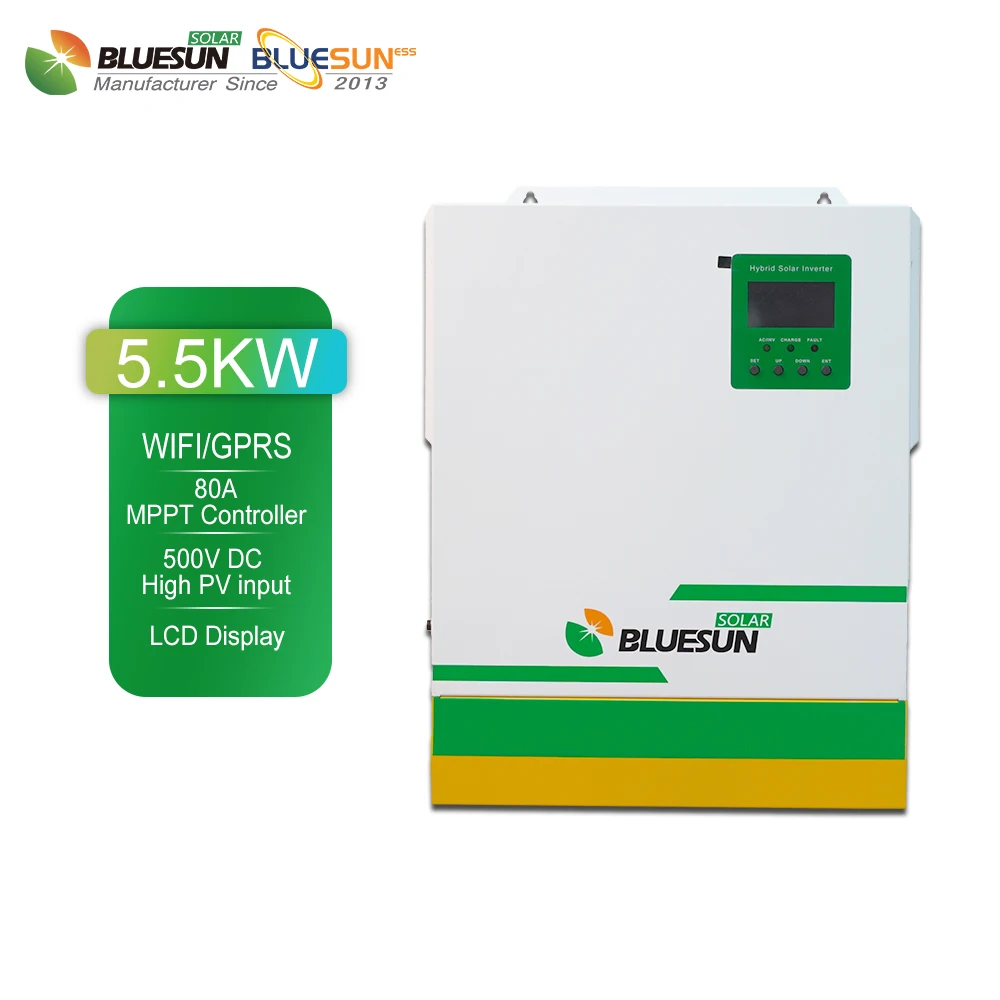

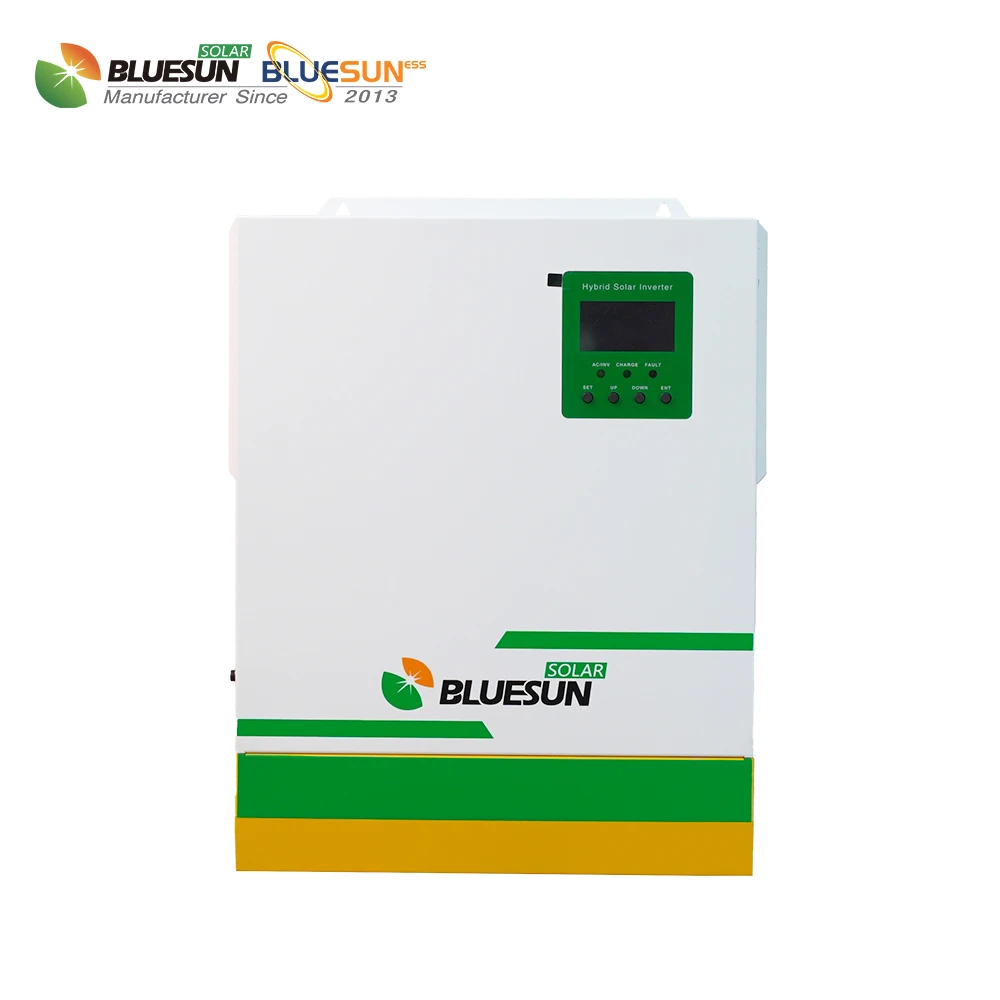

Bluesun Solar Inverter 5kw 5.5kva On Grid Off Grid Inverter for solar panels system Battery system For Household use

Share on (1601309344361):


Price:$272.00-285.00

Quantity:


Product Overview

Description



Product Description










Technical Specifications




Model
BSM-5500BLV-48DA
Adjustable
Battery Input
Battery type
Sealed 、FLood 、GEL 、LFP 、Ternary
Rated Battery Input Voltage
48V ( Minimum Startup Voltage 44V)
Hybrid Charging Maximum Charging Current
80A
Battery Voltage Range
40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning/Shutdown Voltage/ Overvoltage Warning/Overvoltage Recovery...)
Solar Input
Maximum PV Open-circuit Voltage
500Vdc
PV Working Voltage Range
120-500Vdc
MPPT Voltage Range
120-450Vdc
Maximum PV Input Current
22A
Maximum PV Input Power
6000W
Maximum PV Charging Current
80A
AC Input(generator/grid)
Mains Maximum Charging Current
60A
Rated Input Voltage
220/230Vac
Input Voltage Range
UPS Mains Mode:(170Vac~280Vac)土2%
APL Generator Mode:(90Vac~280Vac)±2%
Frequency
50Hz/ 60Hz (Automatic Detection)
Mains Charging Efficiency
>95%
Switch Time (bypass and inverter)
10ms(Typical Value)
Maximum Bypass Overload Current
40A
AC Output
Output Voltage Waveform
Pure Sine Wave
Rated Output Voltage (Vac)
230Vac
Rated Output Power (VA)
5500W
Rated Output Power(W)
5500W
Peak Power
On-load Motor Capacity
4HP
Output Frequency Range(Hz)
50Hz±0.3Hz/60Hz±0.3Hz
Maximum Efficiency
>92%
No-load Loss
Non Energy-saving Mode: ≤50W Energy-saving Mode:≤25W (Manual Setup)
General
Number of parallel/split phases
1-6PCS
Working Temperature Range
-10°C ~ 55°C
Storage Temperature Range
-25°C ~ 60°C
Humidity Range
5% to 95%(Conformal Coating Protection)
Dimensions
426mm*322mm*124mm
Weight (KG)
10.5


Bluesun Factory




Solar Exhibition

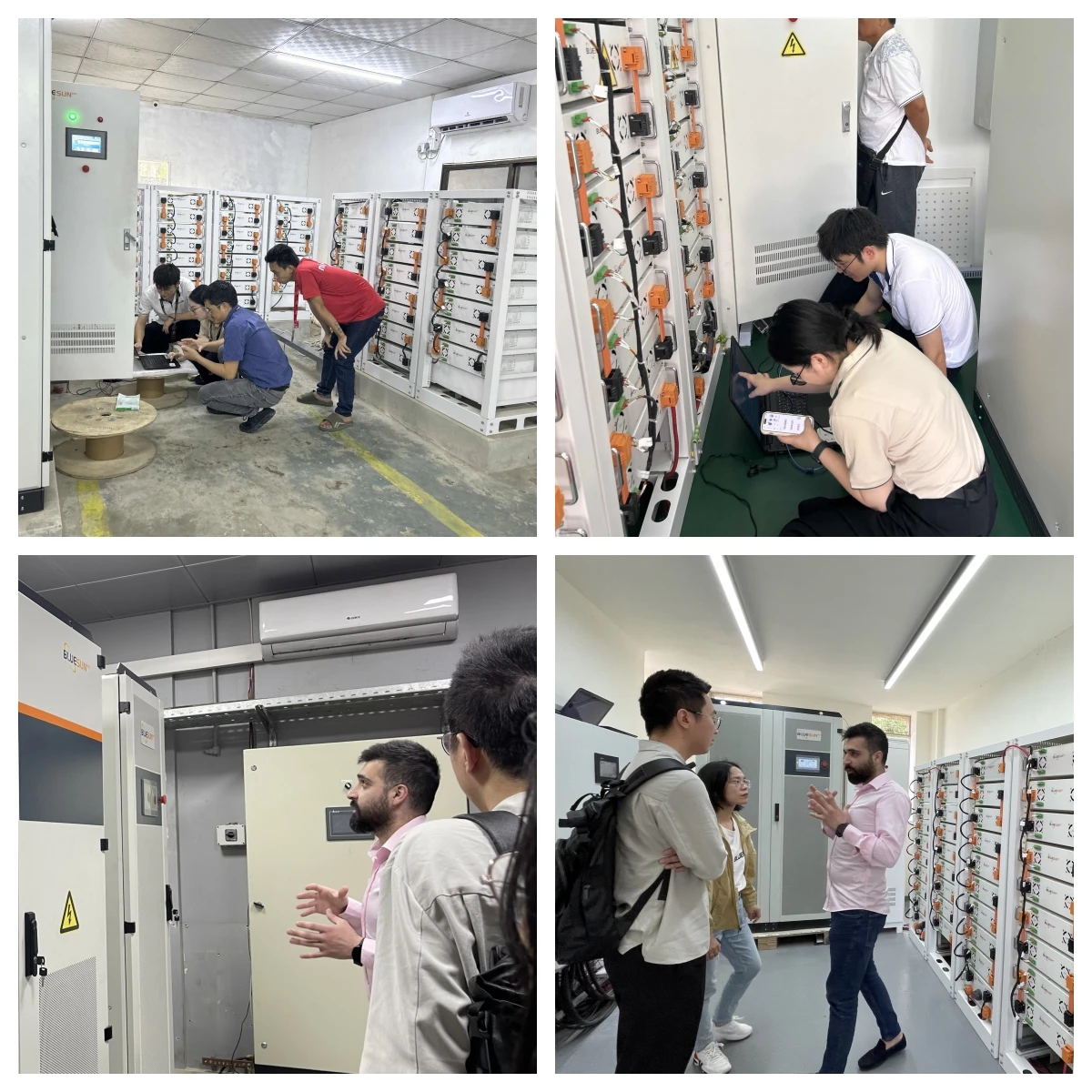

Technical Service Team

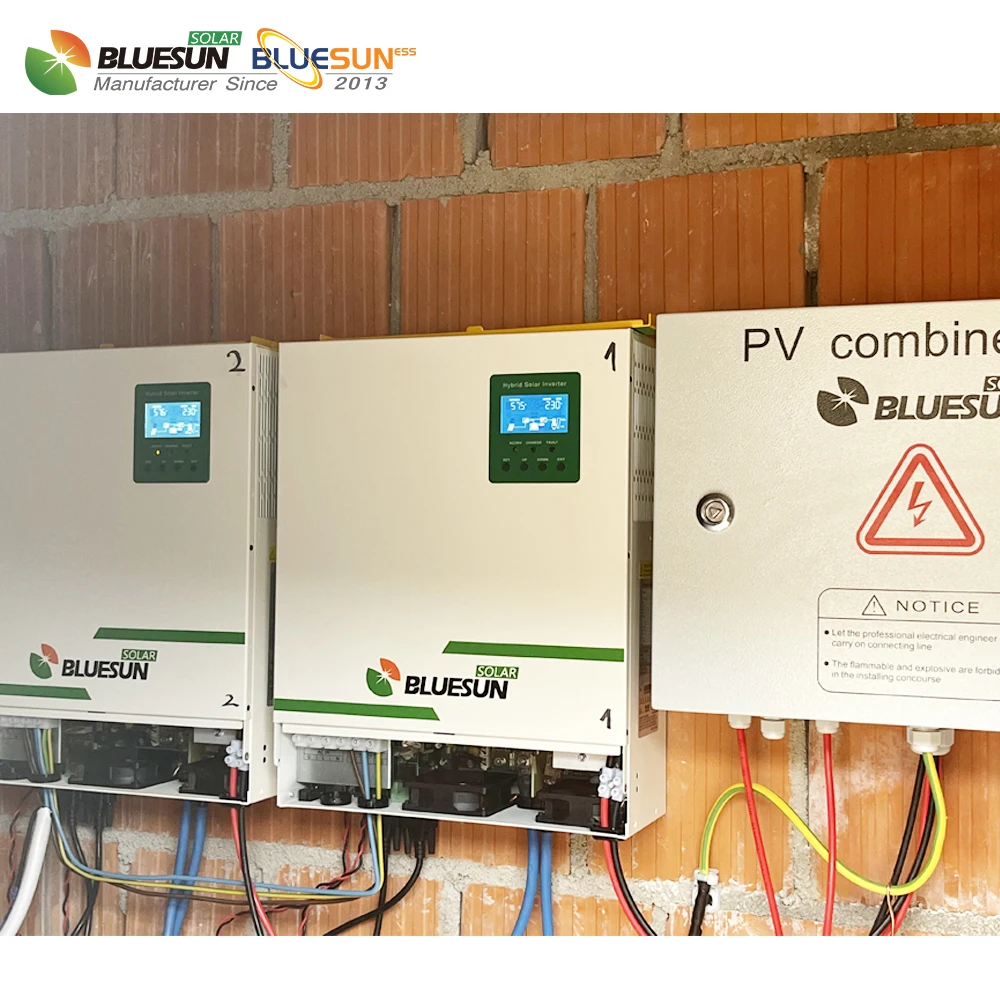

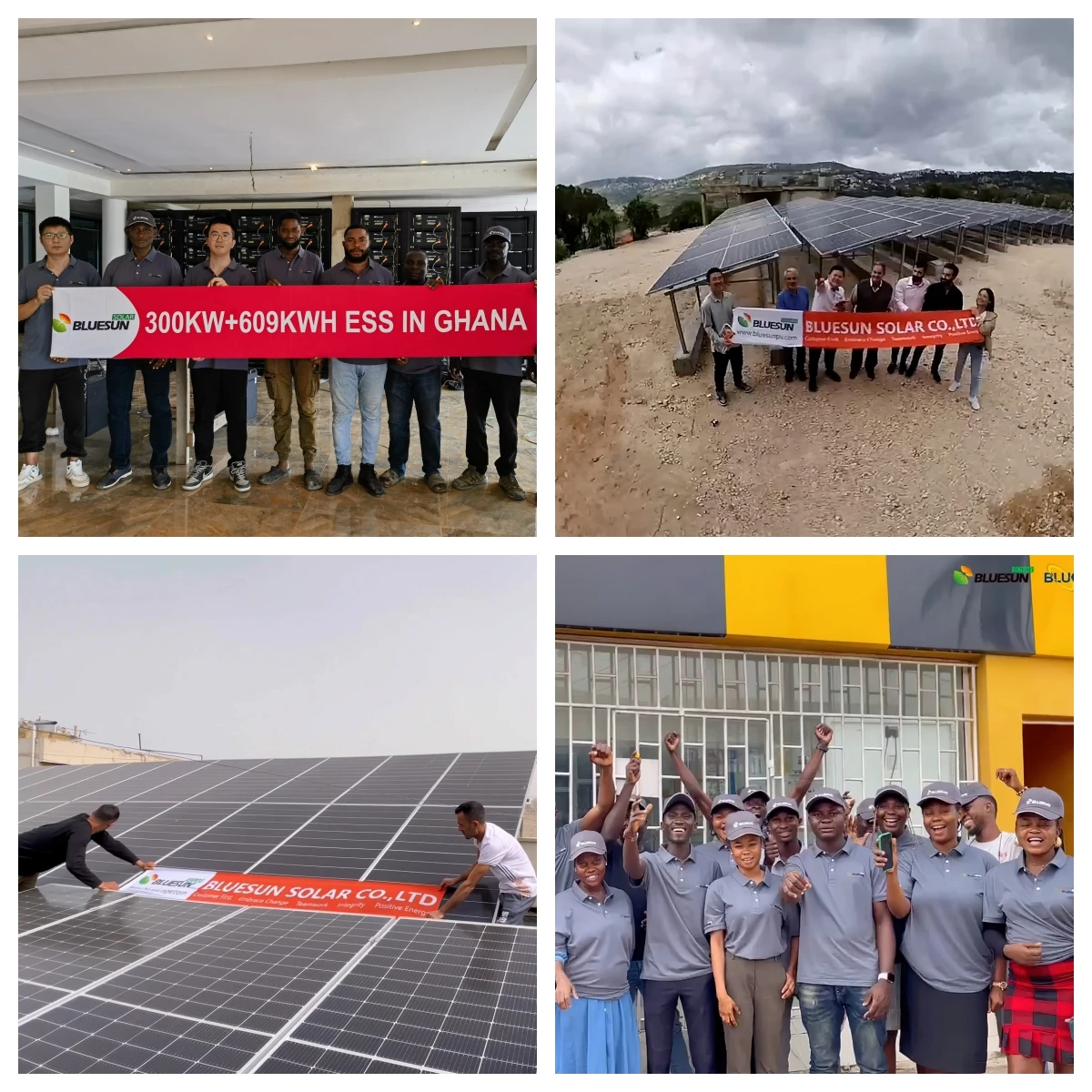

Bluesun Project
