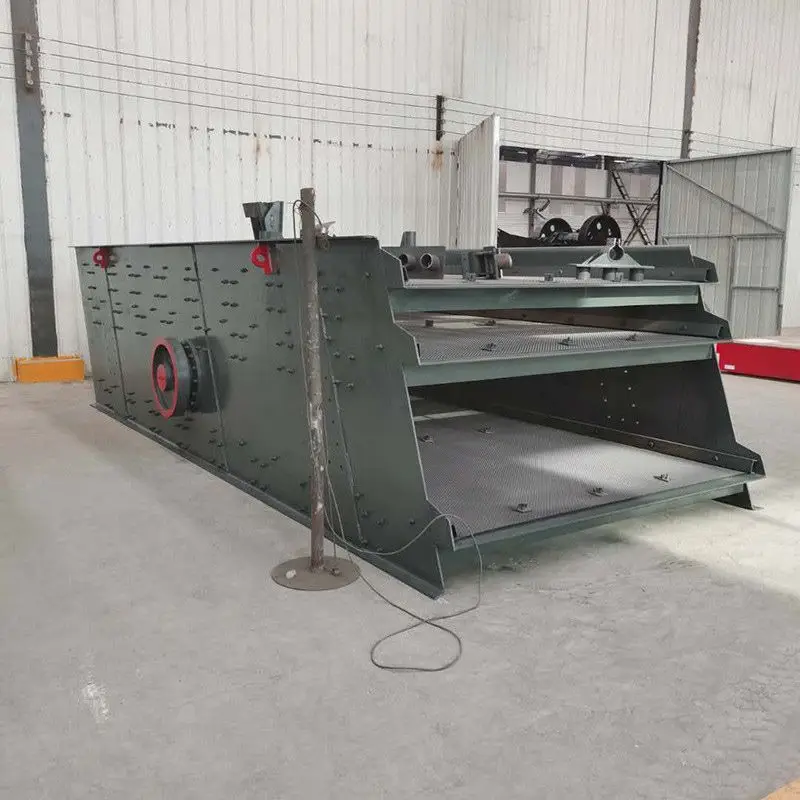

Low Price Single/Double Deck Vibrating Screen for Coal
Low Price Single/Double Deck Vibrating Screen for Coal
Low Price Single/Double Deck Vibrating Screen for Coal
Low Price Single/Double Deck Vibrating Screen for Coal
Low Price Single/Double Deck Vibrating Screen for Coal
Low Price Single/Double Deck Vibrating Screen for Coal
Low Price Single/Double Deck Vibrating Screen for Coal

Low Price Single/Double Deck Vibrating Screen for Coal

Share on (1601310062202):


Price:$5,400.00-5,850.00

Quantity:


Product Overview

Description

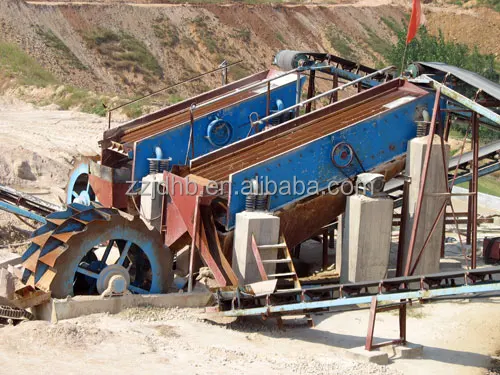

Vibrating Screen
Vibrating screens are used to separate materials into various sizes for further processing or end use. The material is separated by means of a vibrating “screen” which comes in many different sizes depending on the customer's requirements. The end product can be used in the building and construction industry. It is characterized by advanced structure, high vibration force, low vibration noise, easy maintenance and high durability.


Working Principle
Vibrating screen is driven by v-belt vibrator under the power of ordinary motor, so that the screen body makes cyclic reciprocating motion along the direction of vibration power, and the material makes circular motion on the screen surface, so as to make the material screening.





Advantages:
1 Certified Quality And
Reliable.
2 1-4 Decks Optional Type Of Vibrating Screen.
3 Unique And Advanced Design.
4 Powerful Vibration Force, Low Vibration Noise
5 Easy Maintenance, High Durability, Etc.




Model
Screen mesh
Feed
Size
Capacity
Motor Power
(kw)
Screensize
Dimension
Weight
1YK1237










2-50
200
25-160
11
1.2*3.7
3.9*2.4*2.4
4.8
2YK1237
200
25-160
11
1.2*3.7
3.9*2.4*2.4
4.9
3YK1237
400
30-180
11
1.2*3.7
4.0*2.4*2.9
5.2
4YK1237
400
30-180
11
1.2*3.7
4.3*2.4*2.9
5.3
1YK1548
200
45-250
15
1.5*4.8
4.9*2.7*2.9
5.9
2YK1548
200
45-250
15
1.5*4.8
4.9*2.7*2.9
6.3
3YK1548
400
45-280
15
1.5*4.8
5.1*2.7*3.1
6.5
4YK1548
400
45-280
18.5
1.5*4.8
5.3*2.7*3.4
6.6
1YK1848
200
55-330
15
1.8*4.8
4.9*3.0*2.9
6.2
2YK1848
200
55-330
15
1.8*4.8
4.9*3.0*2.9
6.9
3YK1848
400
55-350
22
1.8*4.8
5.1*3.0*3.1
7.2
4YK1848
400
55-350
22
1.8*4.8
5.3*3.0*3.4
7.5










Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control over the industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the customer support. 24 hours service with.

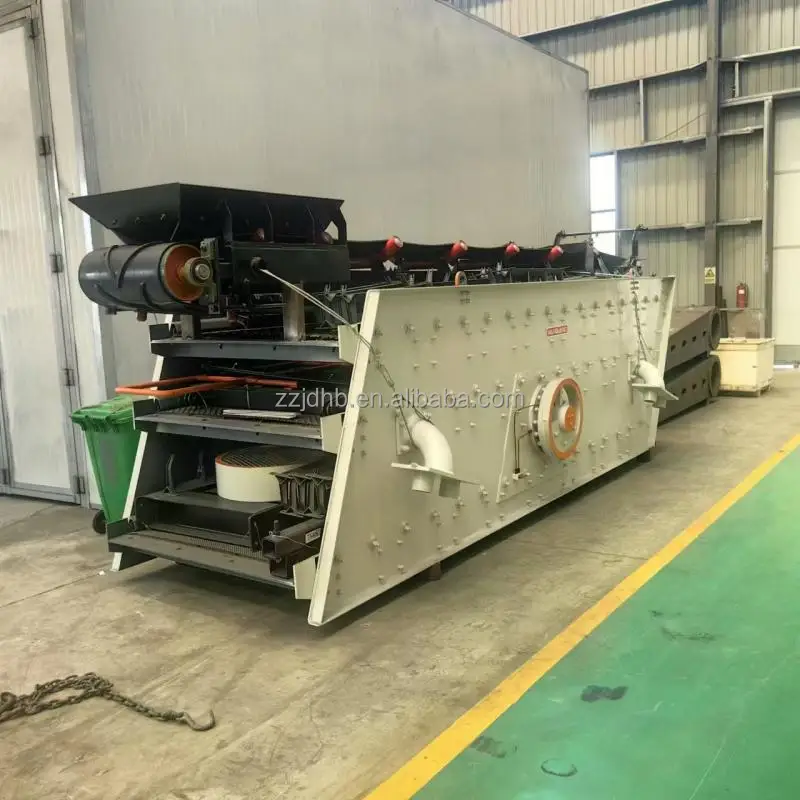

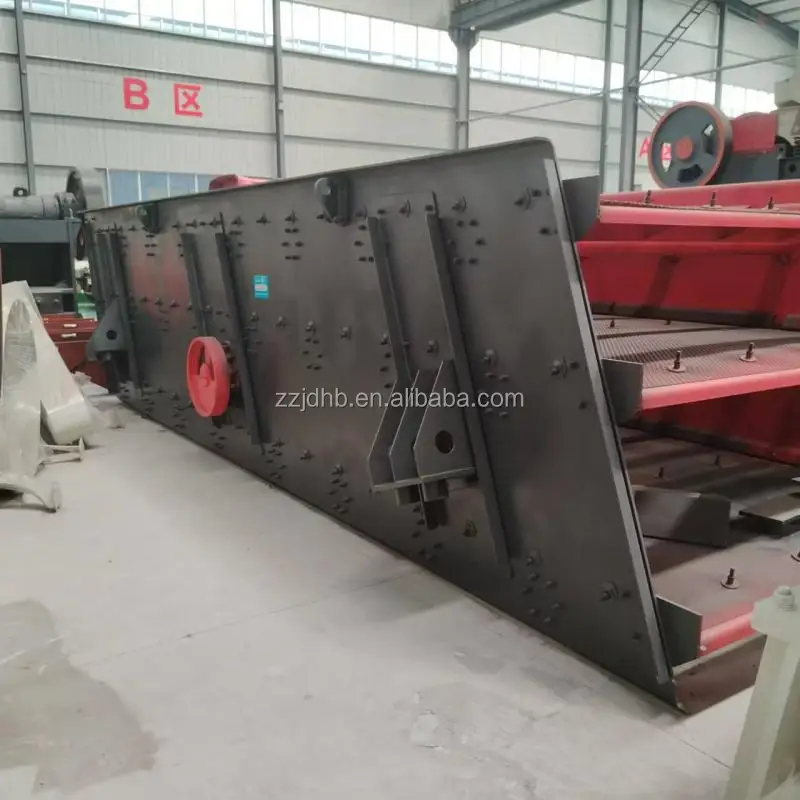

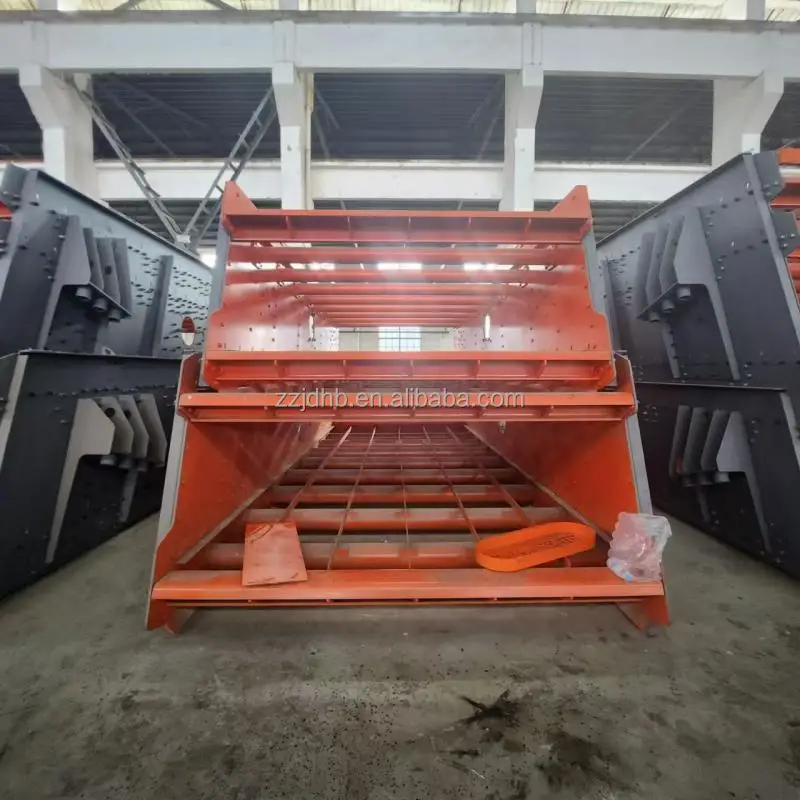

Vibrating Screen Machine Main Parts Display:
1 Supporting Foot
2 Eccentric Wheel
3 Frame
4 Vibration Exciter
5 Spring

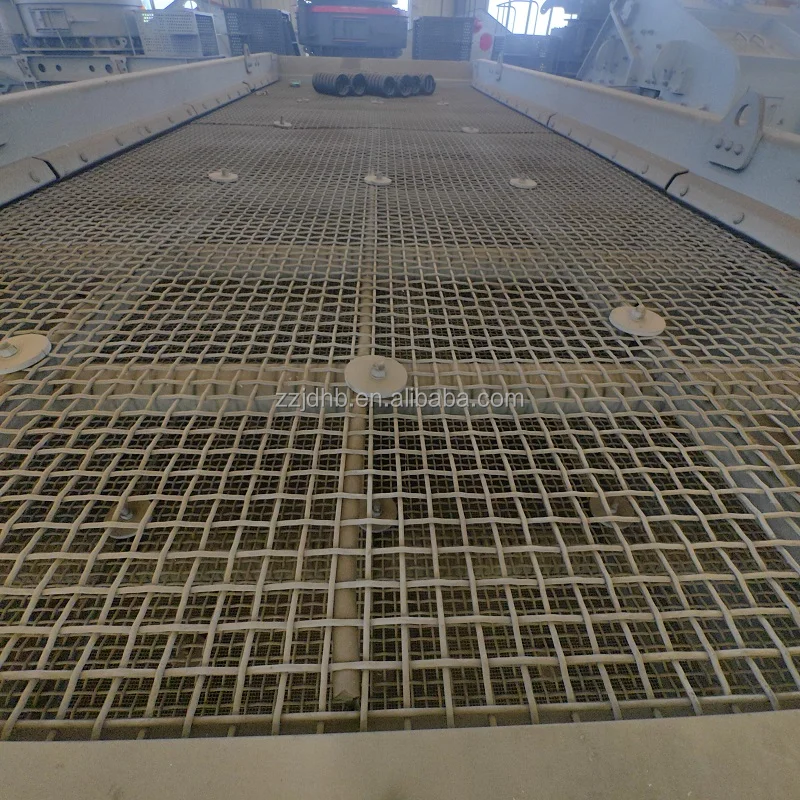

6 Sieve



Supporting Foot
Reducer
Frame


Vibration Exciter
Spring
Sieve














Zhengzhou Juding Environmental Protection Equipment Co., Ltd. is an enterprise focusing on the research and development, manufacture, sales and service of mining machinery equipment and automation equipment. The main products are: mobile crushing plant, sand making machine, sand washing machine, all kinds of crushers, vibrating screen, feeder and related accessories. The products are widely used in mining, building materials, highway, railroad, bridge, chemical industry, metallurgy, refractory materials and other industries, and are exported to Vietnam, North Korea, Central Africa, the Middle East and other countries and regions. The company adheres to the enterprise tenet of “integrity, innovation, enterprise and win-win”, takes the market as the guide and customer satisfaction as the purpose, pursues excellence and continuous improvement.































Q1: Are you a factory or a trading company?
A: our company warmly welcome clients to visit our plant at anytime. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc...

Q2: Where have your products been exported to?
A:we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...

Q3:What Information should customers give us, so that we can be able to provide you suitable quotation and service.
A:What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?

Q4: How long is the warranty of your equipment? Does your company supply the spare parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send
atechnician to your location, so you will be responsible for all related costs.

Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
