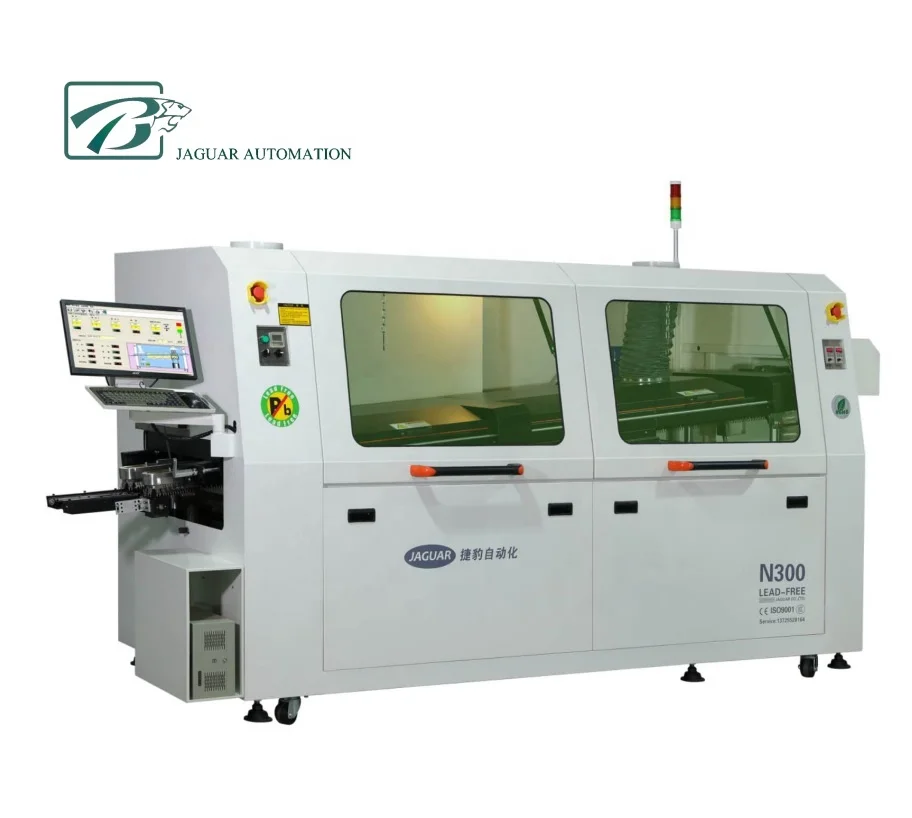

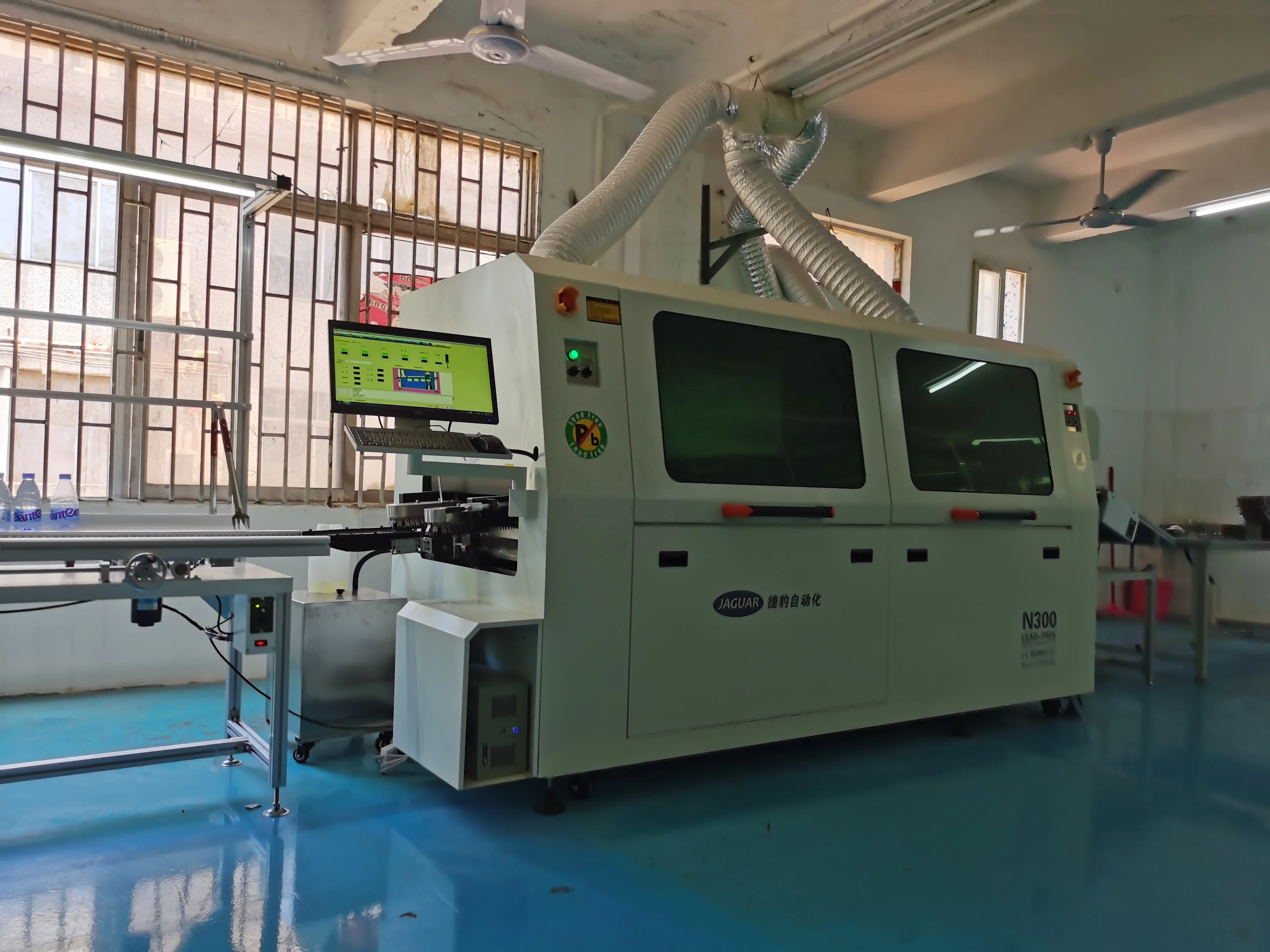

SMT line lead free wave solder for DIP wave solder N300
- Category: >>>
- Supplier: Shenzhen Jaguar Automation Equipment Co. Ltd.Shenzhen Ltd.
Share on (1601310078043):
Product Overview
Description

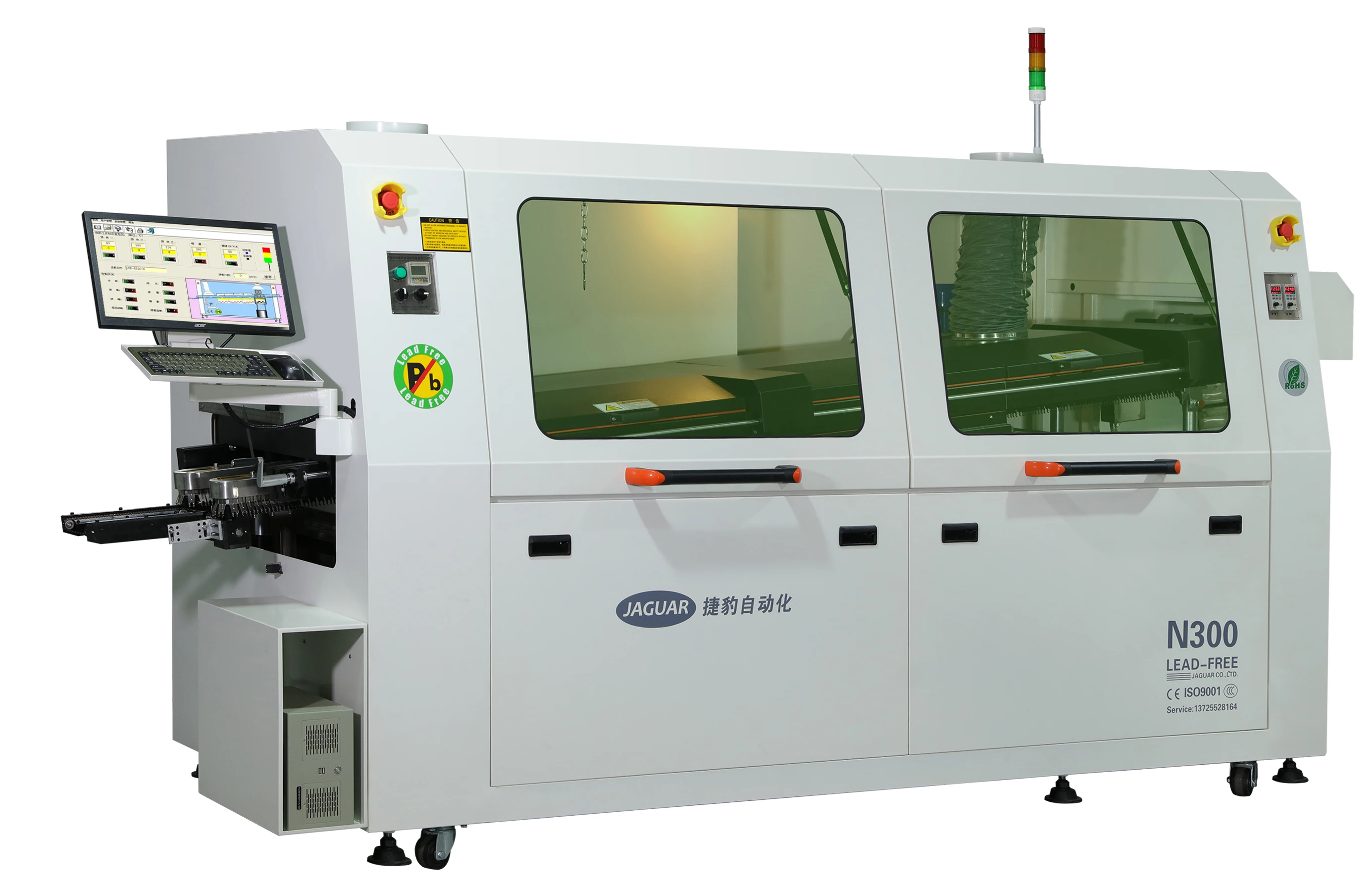

SMT line lead free wave solder oven for DIP automation N300
Specification:
Model No. | JAGUAR N300 |
Number of heating zones | 3 |
Length of heating zones | 1450mm |
Body size | 2800(L)*1250(W)*1700(H) |
Outside dimension | 3600(L)*1250(W)*1700(H) |
Weight | 1200KG |
Total/running power | 26KW/6-9KW |
Air supply | 0.5MPa |
Preheating method | IR(standard)/Hot air |
Preheating power | 220V 6KW |

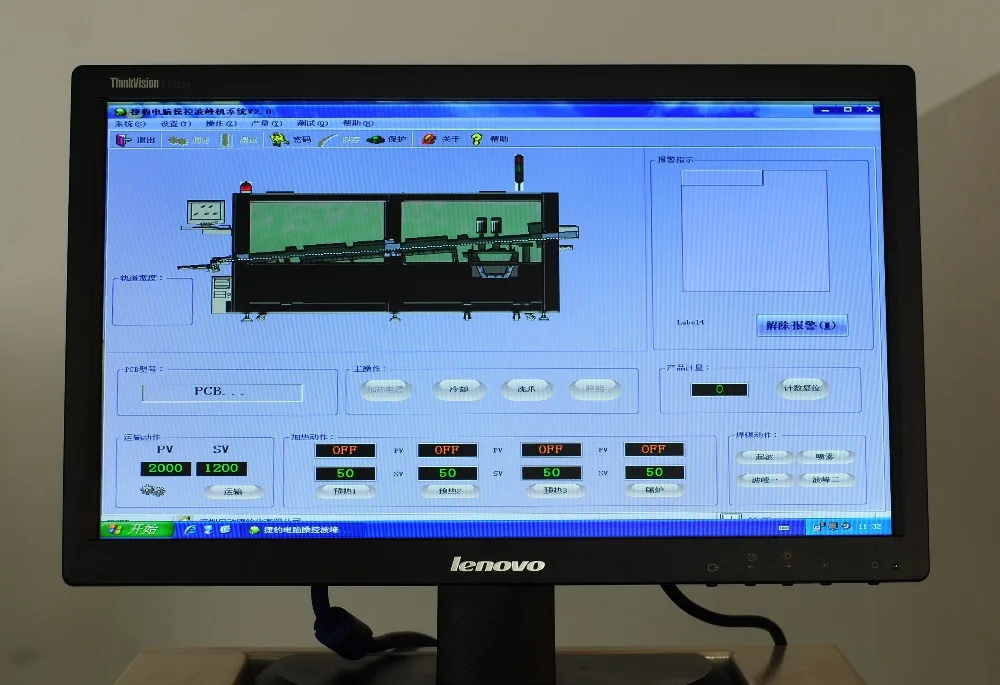

Control method | PC +PLC/Touchtone/Touch screen |
Range of temp. control | Room temperature---300ºC |
Preheating time | About 10-15mins for setting 150ºC |
Solder type | Lead-free / Sn-Pb |
Solder pot capacity | 280KG |
Solder pot temperature | 300ºC |
Solder power | 380V 9KW |
Solder temp. control method | PID&SSR |
Wave crest drive power | 1KW 220V |
Warm-up time of solder | About 120mins for setting 250ºC |
PCB width | 50-300mm |
Convey speed | 300-2000mm/min |
Convey direction | L→R (R→L optional) |
Convey angle | 4-7 º |
Flux pressure/capacity | 3-5 bar/6L |
INTRODUCTION:
1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

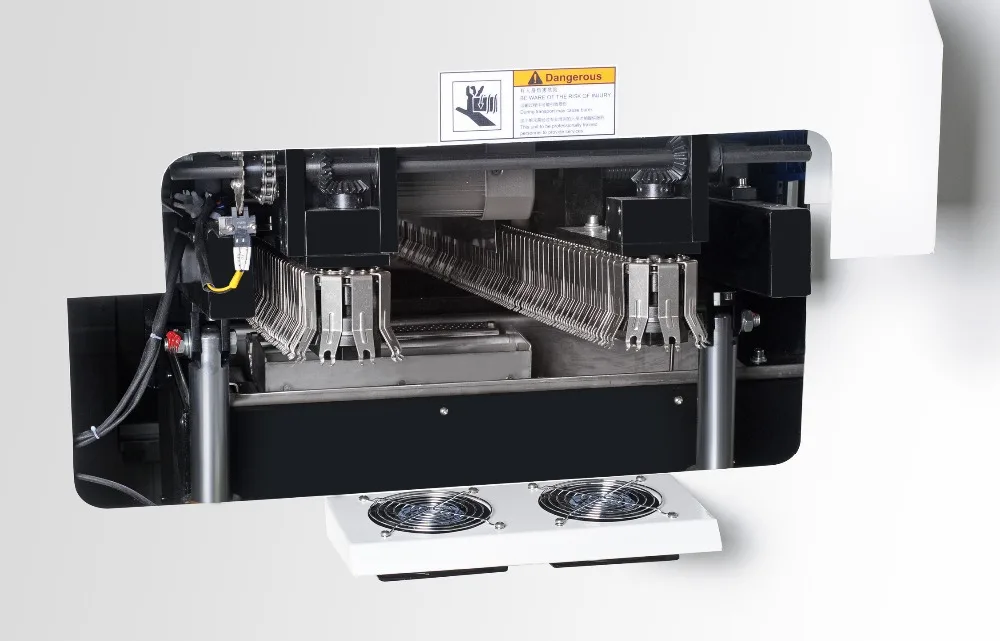

5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

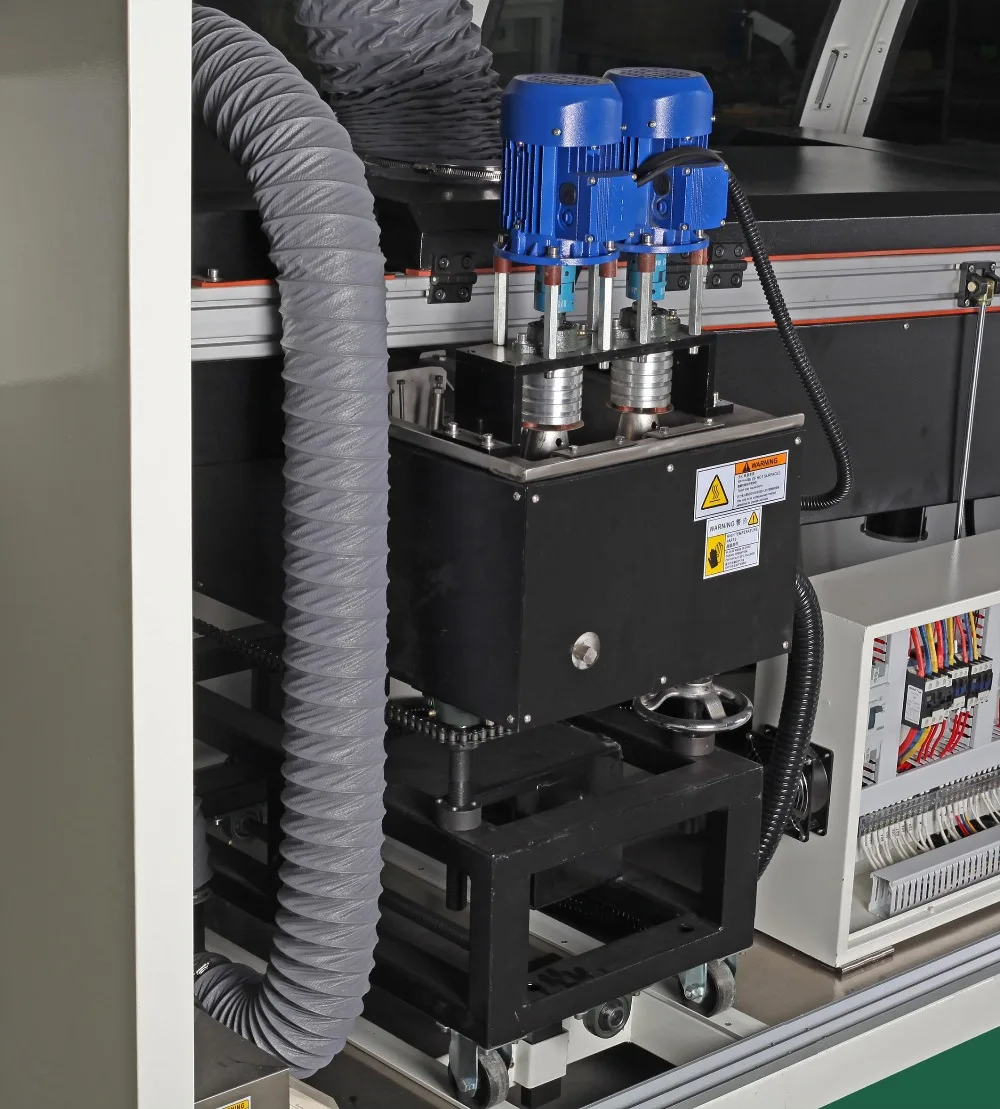

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
7.Lead-free solder furnace with independent design, environmental protection and safety,
easy to clean.
8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
10.With black box memory function, the machine can always store the production management records, improve work efficiency.
Product Description
Hot Products:
Company Information
Shenzhen Jaguar Automation Equipment Co., Ltd is professional in manufacturing wave soldering machine and reflow oven,besides both two kinds of products, we also engaged in offering SMT conveyor, pick and place machine, LED equipments, PCB loader and unloader, screen printer and other SMT machines.Our services, we devote to serve customers and meet all of their diversified requirments with stable technical level, innovative design concept, precise manufacturing process, reasonable price and customer first after-sales system.JAGUAR has been committed to develop to lead-free machine and manufacture lead-free electronic devices since foundation. At present, we have researched and developed 4 sorts of environmental friendly reflow oven, there are A series, M series, F series and R series. What's more, we have also develop wave soldering machine, for example, the econimic wave solder, top lead free wave solder and high-end of large size wave solder. All of our machines are not only used wildly in electronic circuit, LED industry, instruments and apparatuses, but also in household appliances, such as washing machine, microwave, television ect.

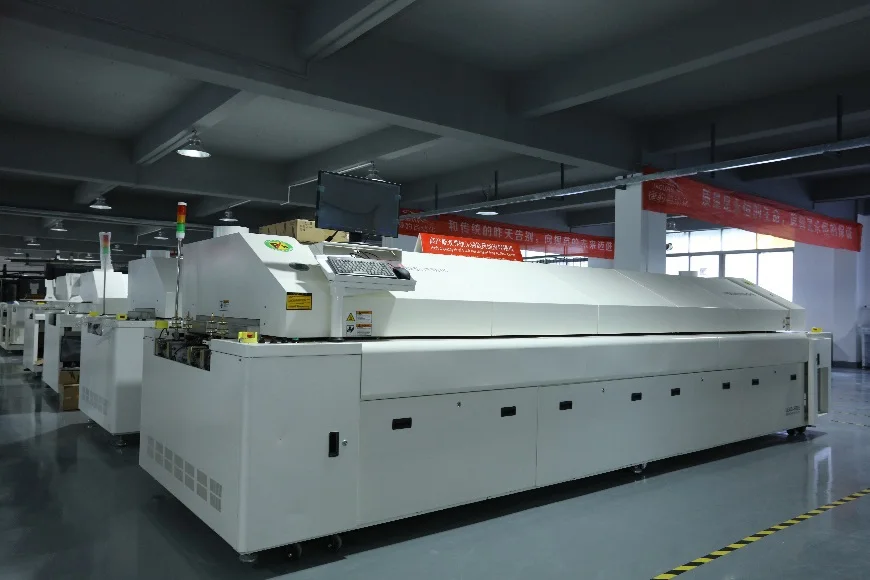

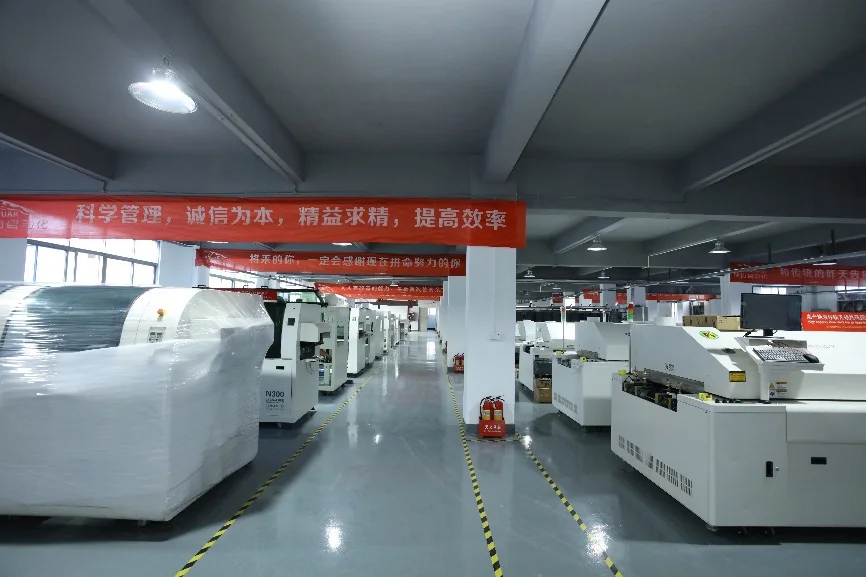

Workshop and Packing Photoes:
Company Exhibition
Our Services

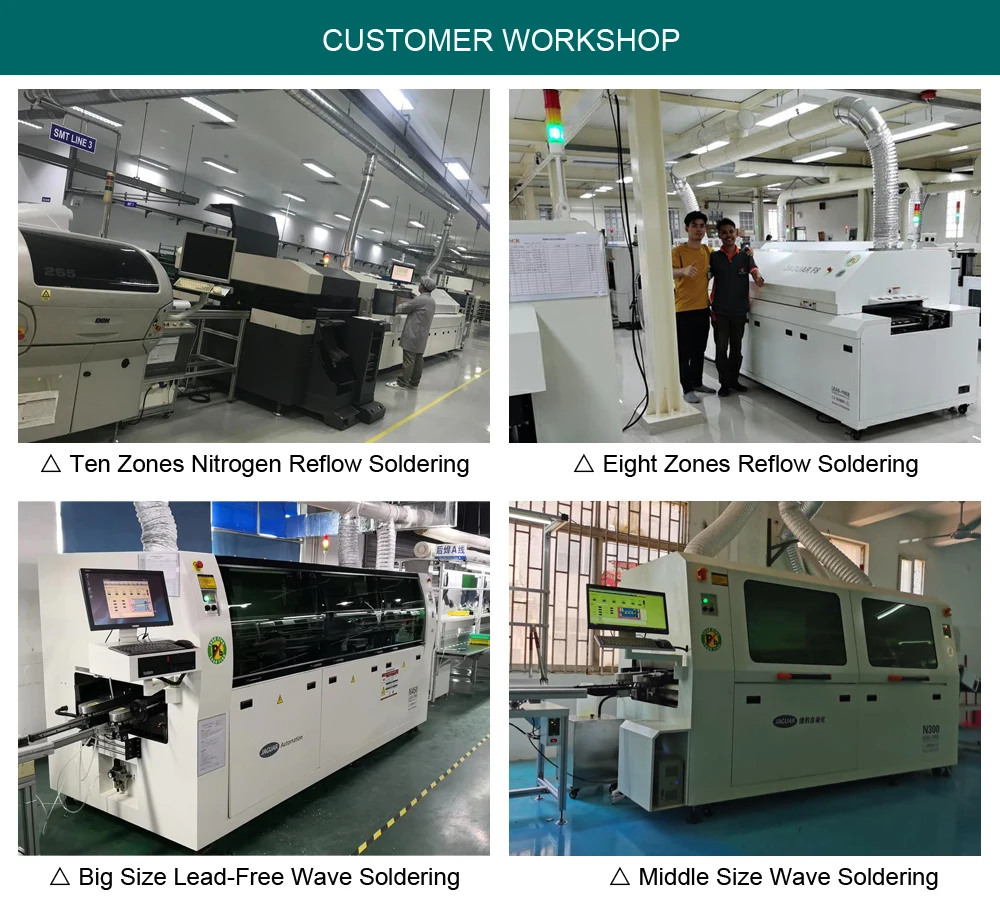

Our Servic & Customer Feedback
FAQ
1) This is the first time I use this kind of SMT wave soldering machine, is it easy to operate?
There is english manual or guide video that show you how to use SMT wave soldering machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If SMT wave soldering machine have any problem after I receive it, how can I do ?
Free parts send to you in SMT wave soldering machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set SMT wave soldering machine, mixed order is also welcome.
4) How can I buy this SMT wave soldering machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other
terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming
your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
