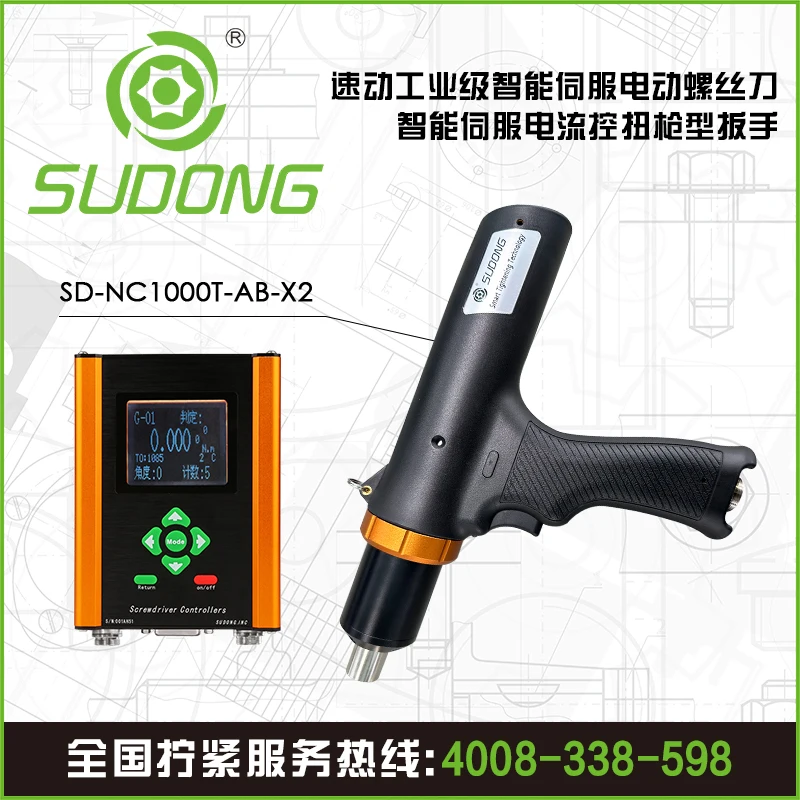

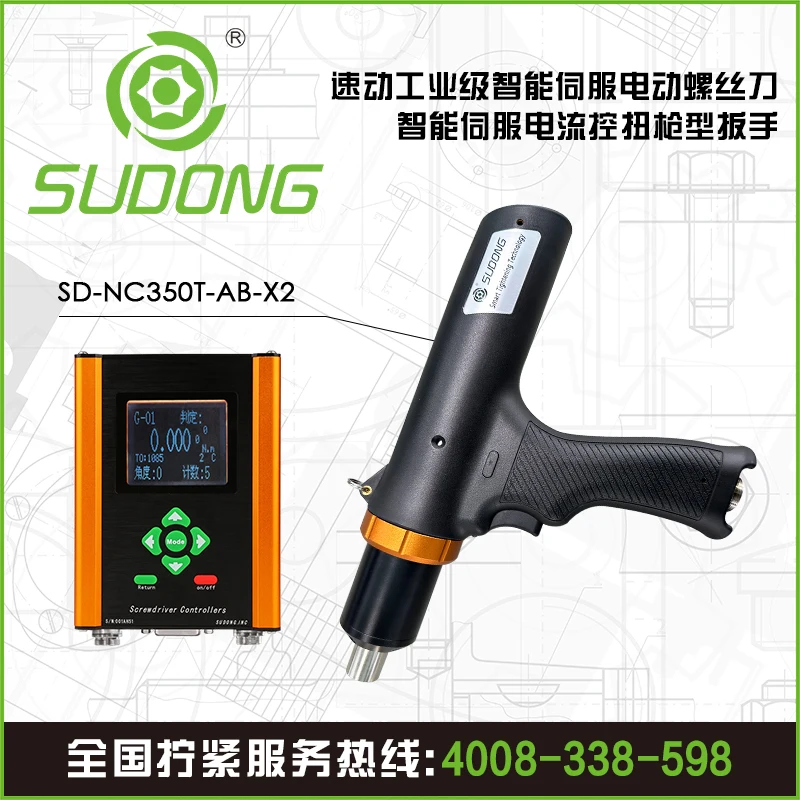

SUDONG Smart Current Controlled Pistol Electric Screwdriver Adjustable Torque Electric Wrench Drill Servo Motor 2 inch screen

1.    Sudong brushless servo electric screwdrivers can realize free programming of the tightening assembly process. Within the performance parameters, it can realize precise fastening ,according to different tightening process requirements to set freely adjusting torque, speed, waiting time and direction of rotation.

2.    Sudong brushless servo electric screwdriver is based on servo control technology, to ensure that the torque accuracy of tightening torque assembly controlled within standard deviation + 2.5%.

3.    Through the build-in torque and rotative angle sensor, it can achieve precise control of the NCS screwdrivers during each tightening process and record all important parameters of tightening process in real time.

4.    Under proper working condition. Sudong brushless servo electric screwdriver con achieve CMK ≥1.67(torque setting tolerance±10%) complying with ISO 5393 and 6Sigma principles .CMK value of 1.67means only 0.6 failure rate per million screws. that is the qualified rate is as high as 99.99994%.

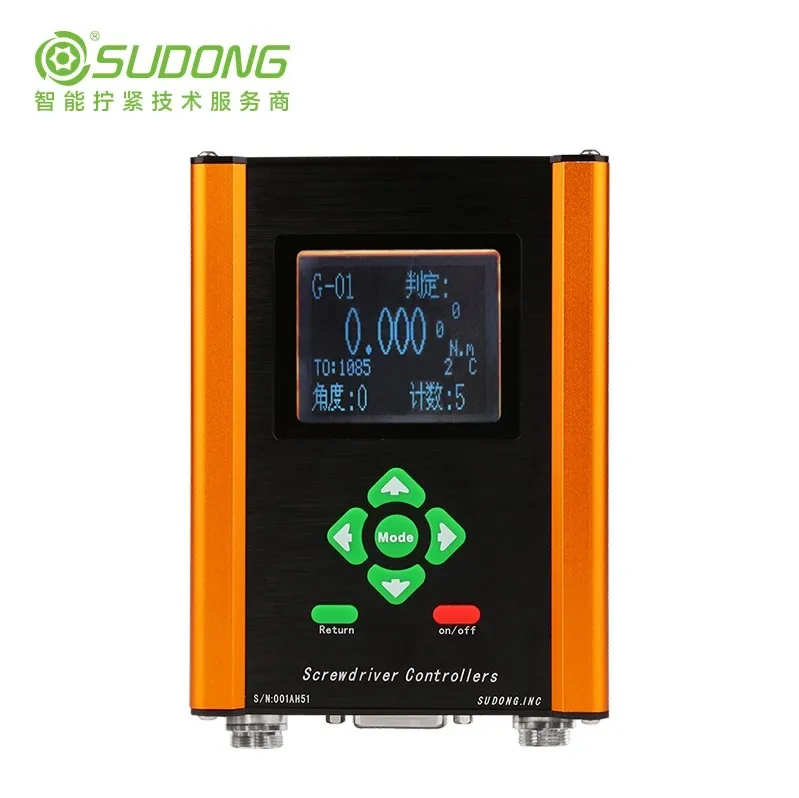

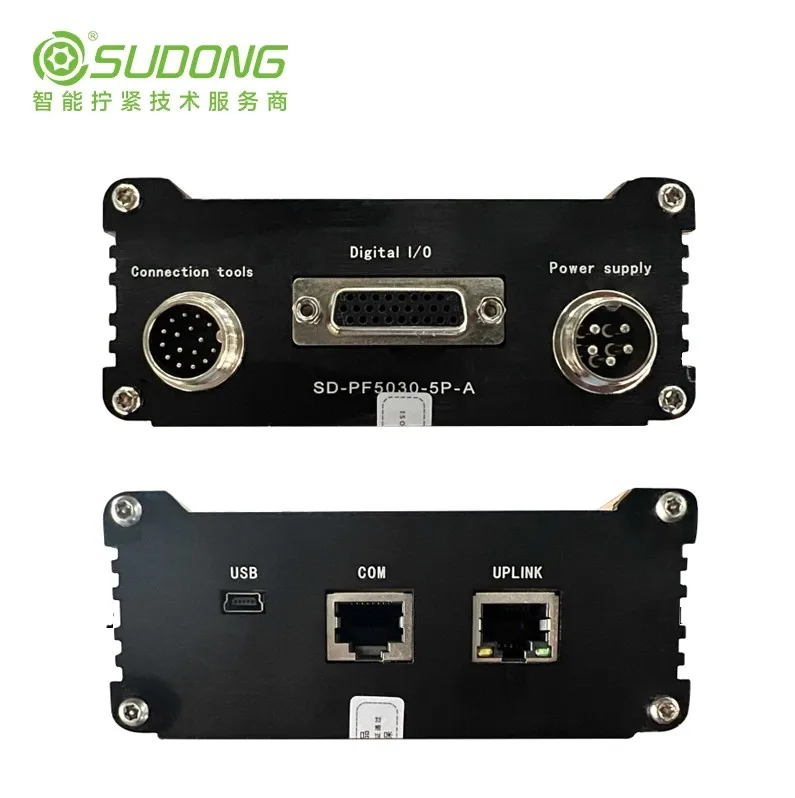

5.    Sudong brushless servo electric screwdriver adopts brushless motor, supplied with SD-X7-8-Scontroler, to ensure the flexibility of tightening technique and reliability of tightening process.

6.    Built-in current and rotative angle measurements can realize precise control and monitoring of Sudong brushless servo electric screwdrivers during each tightening process record al important parameters of tightening process and ensure the highest accuracy.

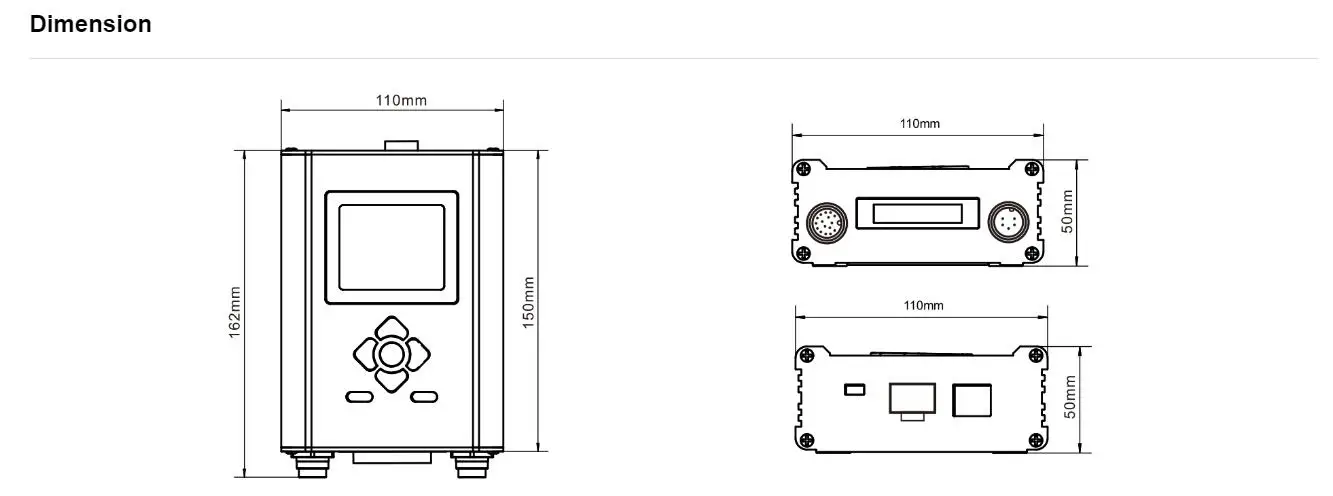

 Specification:
