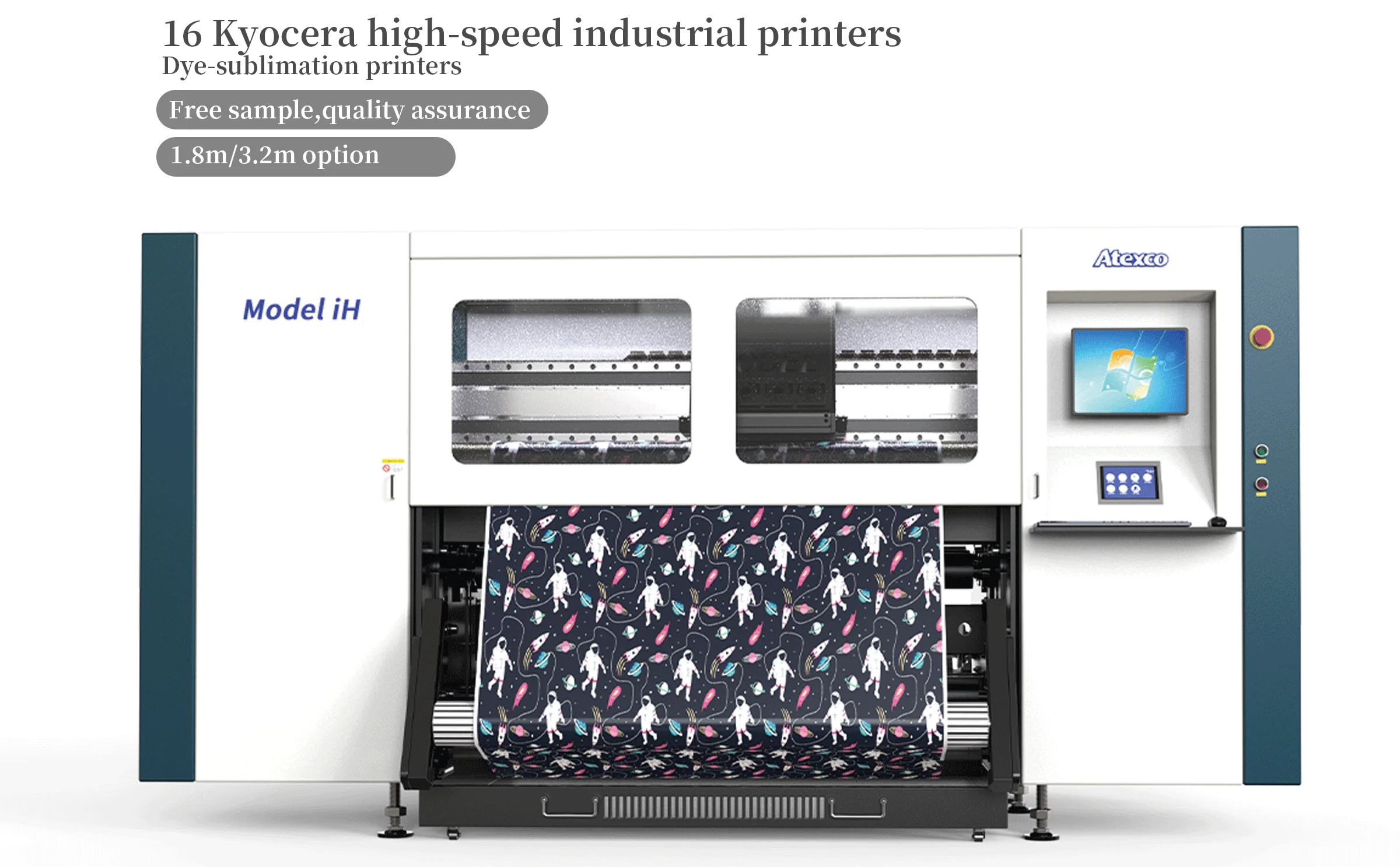

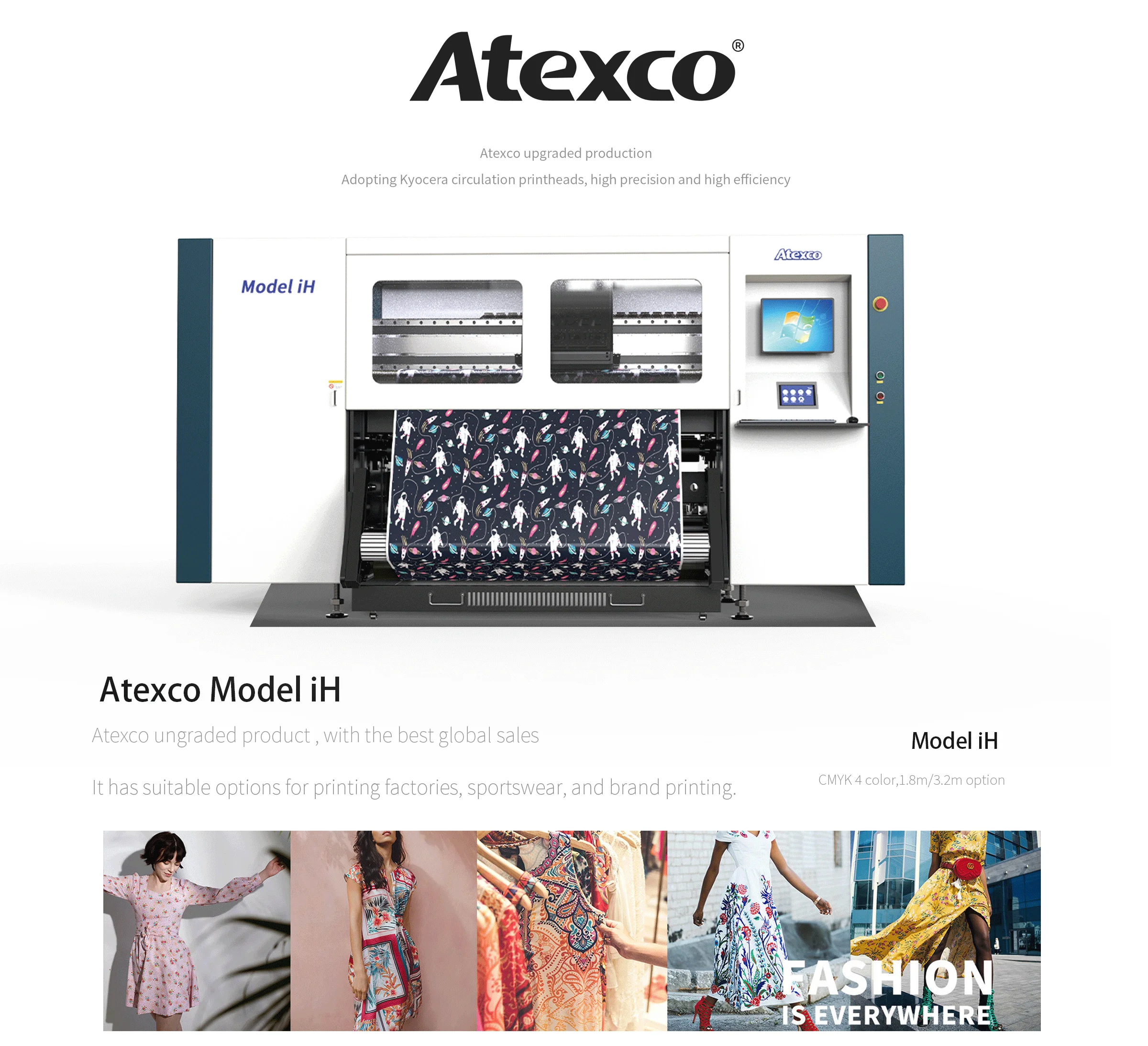

Atexco model iH Roll sublimation paper sublimation tumbler textile printing machine 1.8m 3.2m custom Jersey polyester fabric
- Category: >>>
- Supplier: Zhenfeng(guangzhou) Technology Co. Ltd.Zhenfeng(guangzhou) Ltd.
Share on (1601310132603):
Product Overview
Description
Model | Model iH | ||||
Nozzle & Quantity | Kyocera industrial printhead 16pcs | ||||
Max print width | 1800mm | 3150mm | |||
Ink system | Ink | sublimation | |||
Color | 4 color CMYK | ||||
Volume | 12L/color | ||||
Media | sublimation paper | ||||
Speed | Mode | Refer(1.5m width) | |||
Production(300 1Pass) | 800m/h | ||||
Normal(508 1Pass) | 720m/h | ||||
Quality(300 2Pass) | 460m/h | ||||
Roll weight | Unwinding 1100mm/1200kg | Unwinding 1000mm/1500kg | |||
Operating Environment | Humidity | 55%-70% | |||
Temperature | 20℃-30℃ | ||||
Operating system | Win10 | ||||
Computer configuration | recommend I7-13700/32G/512G+2T/64bit | ||||
Software | Drive software | AJet Server | |||
Rip software | Standard AJet RIP & third-party RIP interface open | ||||
Image type | File format JPEG/TIF/BMP; Color mode RGB/CMYK | ||||
Language | Chinese/English | ||||
Power | AC380V (three-phase five-wire), 50HZ/60HZ | ||||
Power | 24.5KW | 38KW | |||
Noise | 60dB (Different data for different measurement distances) | ||||
Machine size/Weight | 4.10m*2.65m*1.90m / 2700Kg | 5.60m*2.65m*1.90m / 4300Kg | |||
