5kw 1.5kw DC12V 300ah Mppt Off Grid Inverter DC to AC Solar Inverter pine sine wave inverter
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.Foshan Ltd.
Share on (1601310196305):
Product Overview
Description
Product Description
Specification
Model | FTS-152 | FTS-202 | FTS-302 | FTS-402 | FTS-502 | FTS-602 | ||||||
Rated Power | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | ||||||
Surge Power | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | ||||||
AC Input & Output | ||||||||||||
Voltage | 220VAC | |||||||||||
Selectable Voltage Range | 165-275VAC (220VAC) | |||||||||||
Frequency Range | 50Hz/60Hz automatic recognition | |||||||||||
AC Voltage Regulation (BATT. Mode) | (DC Batt.mode)220vac±3% | |||||||||||
Transfer Time | ≤4ms | |||||||||||
Wave Form | Pure Sine Wave | |||||||||||
Transformer Type | Toroidal | |||||||||||
Transfer Efficiency | ≥85% | |||||||||||
Battery | ||||||||||||
Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |||||||||
Type | Gel/SLA/AGM/Water/Lithium(lifepo4) Battery | |||||||||||
DC Charge Voltage | 12~16VDC(12V)/20~32VDC(24V)/40~64VDC(48V) | |||||||||||
Overcharge Protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V), stop charging after 60s alarm | |||||||||||
Solar Charge & Ac Charger | ||||||||||||
Maximum PV Array Open Circuit Voltage | 150VDC | |||||||||||
Maximum PV Array Power | 900W(12V)/1700W(24V)/3400W(48V) | |||||||||||
Maximum AC Charge Current | 35A(adjustable) | |||||||||||
Maximum Solar Charge Current | 30/60A MPPT (OPTIONAL) | 60A MPPT | ||||||||||
Maximum Charging Current | 95A | 95A | ||||||||||
Working mode | ||||||||||||
01 Mode | AC mains priority mode | |||||||||||
02 Mode | ECO mode | |||||||||||
03 Mode | DC battery priority mode | |||||||||||
04 Mode | Generator mode | |||||||||||
05 Mode | Unattended mode | |||||||||||
Communication Port | ||||||||||||
Type | RS485, available for wifi box & external control screen | |||||||||||
Physical | ||||||||||||
Dimension, D*W*H(MM) | 600*380*280 | 780*380*280 | ||||||||||
G.W.(KGS) | 19 | 21 | 23 | 30 | 32 | 36 | ||||||
Environment | ||||||||||||
Humidity | 0~95%（NO CONDESNSATION) | |||||||||||
Operating Temperature | 0~60℃ | |||||||||||
Storage Temperature | 0~60℃ | |||||||||||
*Product Specifications Are Subject To Change Without Further Notice | ||||||||||||

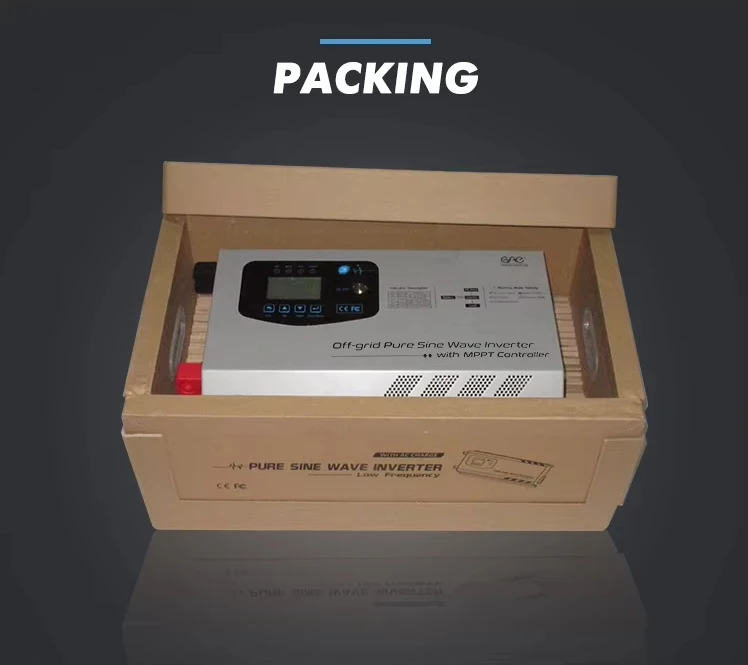

Packing & Delivery
Company Profile
FAQ
FAQ
Q1: Does your company also provide other solar products except Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller,off grid solar inverter, lithium battery, High frequency
solar inverter etcm, related to the solar power system.
Q2: How to choose a right inverter?
A2: Tell us your demand, our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 7-15 days for sample, bulk order will be negotiated.
Q4: What is the warranty of inverter?
A4: 1 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q1: Does your company also provide other solar products except Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller,off grid solar inverter, lithium battery, High frequency
solar inverter etcm, related to the solar power system.
Q2: How to choose a right inverter?
A2: Tell us your demand, our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 7-15 days for sample, bulk order will be negotiated.
Q4: What is the warranty of inverter?
A4: 1 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
