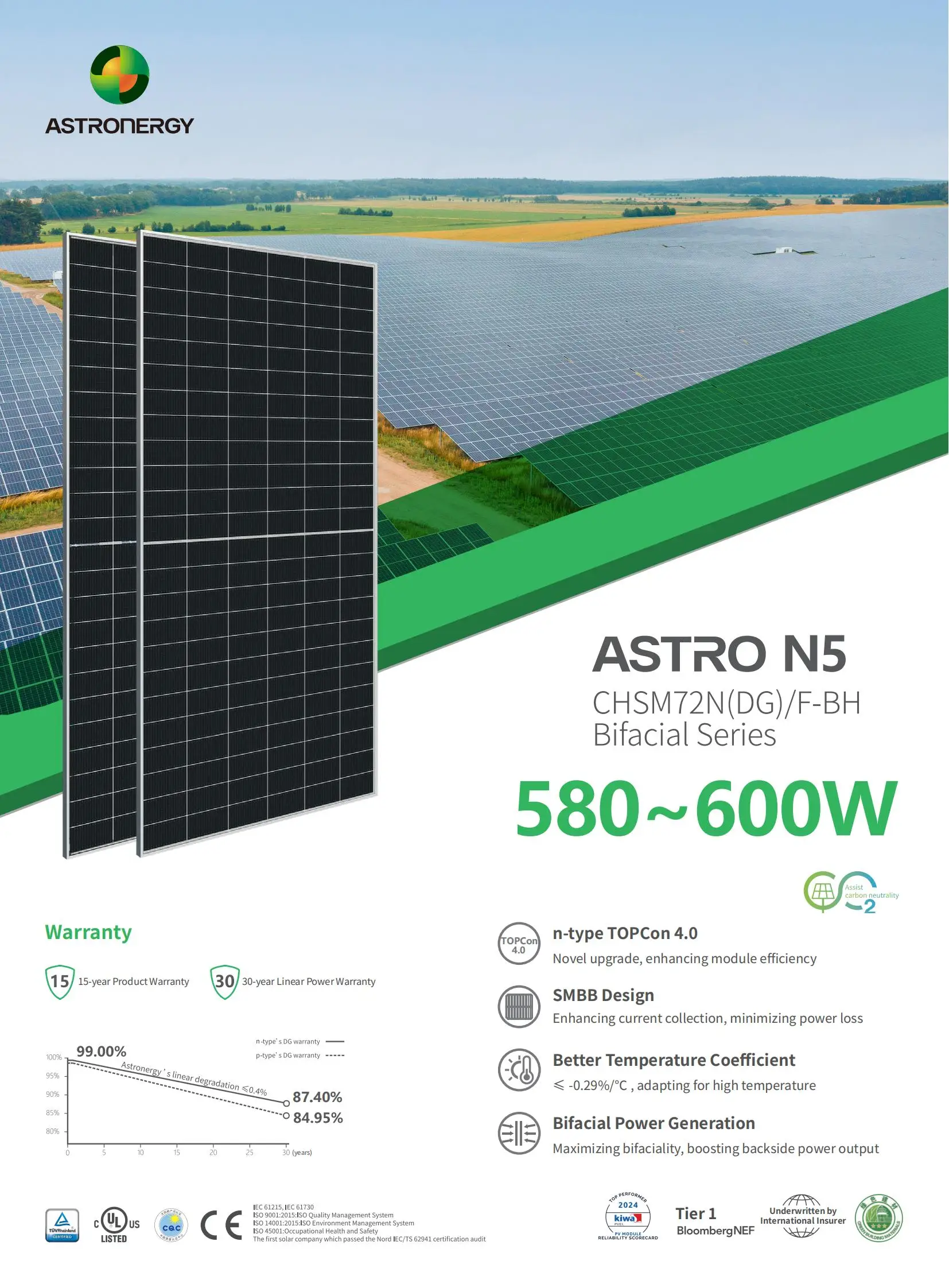

Astronergy solar panel 580W price TopCon N Type bifacial solar panel double glass Pv module 580w 585w 590w 600watt
- Category: >>>
- Supplier: Shenzhen Meisongmao Industrial Co. Ltd.Shenzhen Ltd.
Share on (1601310682291):
Product Overview
Description
Product Description
Mechanical Specifications | ||||||||
Cell type | n-type mono-crystalline | |||||||
Number of half Cell | 144 Cells | |||||||
Module Dimension | 2278×1134×30mm | |||||||
Module Weight | 32.1 kg | |||||||
Front Glass | 2.0 mm, Anti-reflection Coating,High Transmission, Low Iron, Tempered Glass | |||||||
Back Glass | 2.0 mm, Anti-reflection Coating,High Transmission, Low Iron, Tempered Glass | |||||||
Frame technology | Aluminum, silver anodized | |||||||
Cable length | Portrait: ( + )350 mm,( - )250 mm；Customized length | |||||||
Cable diameter (IEC/UL) | 4 mm² / 12 AWG | |||||||
Maximum mechanical test load | 400 Pa (front) / 2400 Pa (back) | |||||||

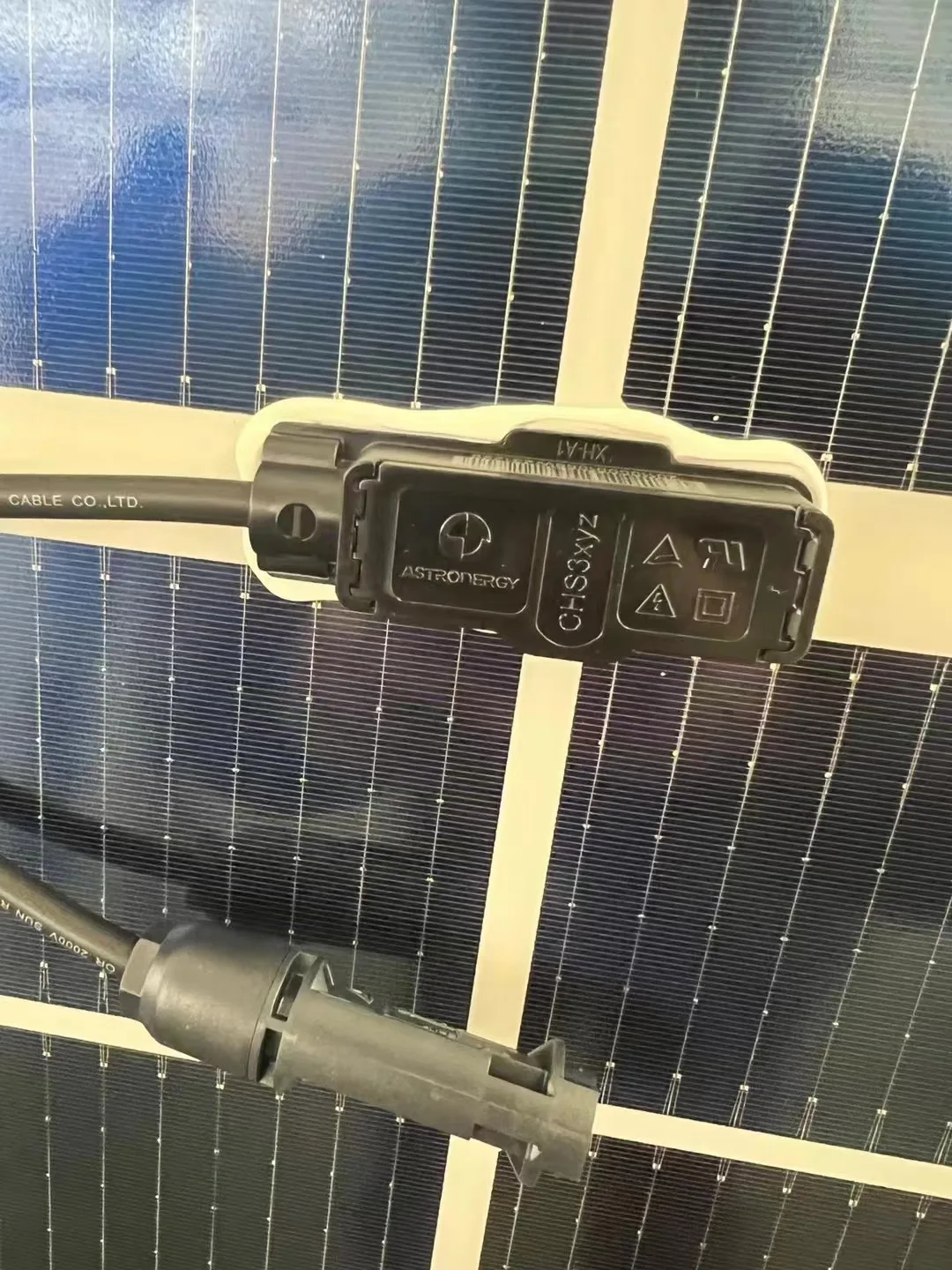

Connector type (IEC/UL) | HCB40 (Standard) / MC4-EVO2A (Optional) | |||||||
Packing unit | 36 pcs / pallet;720 pcs / 40'HQ | |||||||
STC | ||||||||||
Module Number | CHSM72N(DG)/F-BH-580 | CHSM72N(DG)/F-BH-585 | CHSM72N(DG)/F-BH-590 | CHSM72N(DG)/F-BH-595 | CHSM72N(DG)/F-BH-600 | |||||
Maximum Power(Pmax) | 580Wp | 585Wp | 590Wp | 595Wp | 600Wp | |||||
Optimum Operating Voltage(Vmp) | 43.11 | 43.27 | 43.45 | 43.61 | 43.78 | |||||
Optimum Operating Current(Imp) | 13.45 | 13.52 | 13.58 | 13.64 | 13.70 | |||||
Open-circuit Voltag(Voc) | 51.30 | 51.50 | 51.70 | 51.90 | 52.10 | |||||
Short-circuit Voltage(Isc) | 14.28 | 14.36 | 14.45 | 14.53 | 14.61 | |||||
Module Efficiency(%) | 22.5% | 22.6% | 22.8% | 23.0% | 23.2% | |||||
Operating Temperature(℃） | -40℃~+70℃ | |||||||||
Maximum System Voltage | 1500VDC (IEC) | |||||||||
Maximum Rated Fuse Current | 30A | |||||||||
Output Power Tolerance | 0~+3% | |||||||||
Pmax Temperature Coefficient | -0.29%/℃ | |||||||||
Voc Temperature Coefficient | -0.25%/℃ | |||||||||
Isc Temperature Coefficient | 0.043%/℃ | |||||||||
NOCT | 41±2℃ | |||||||||

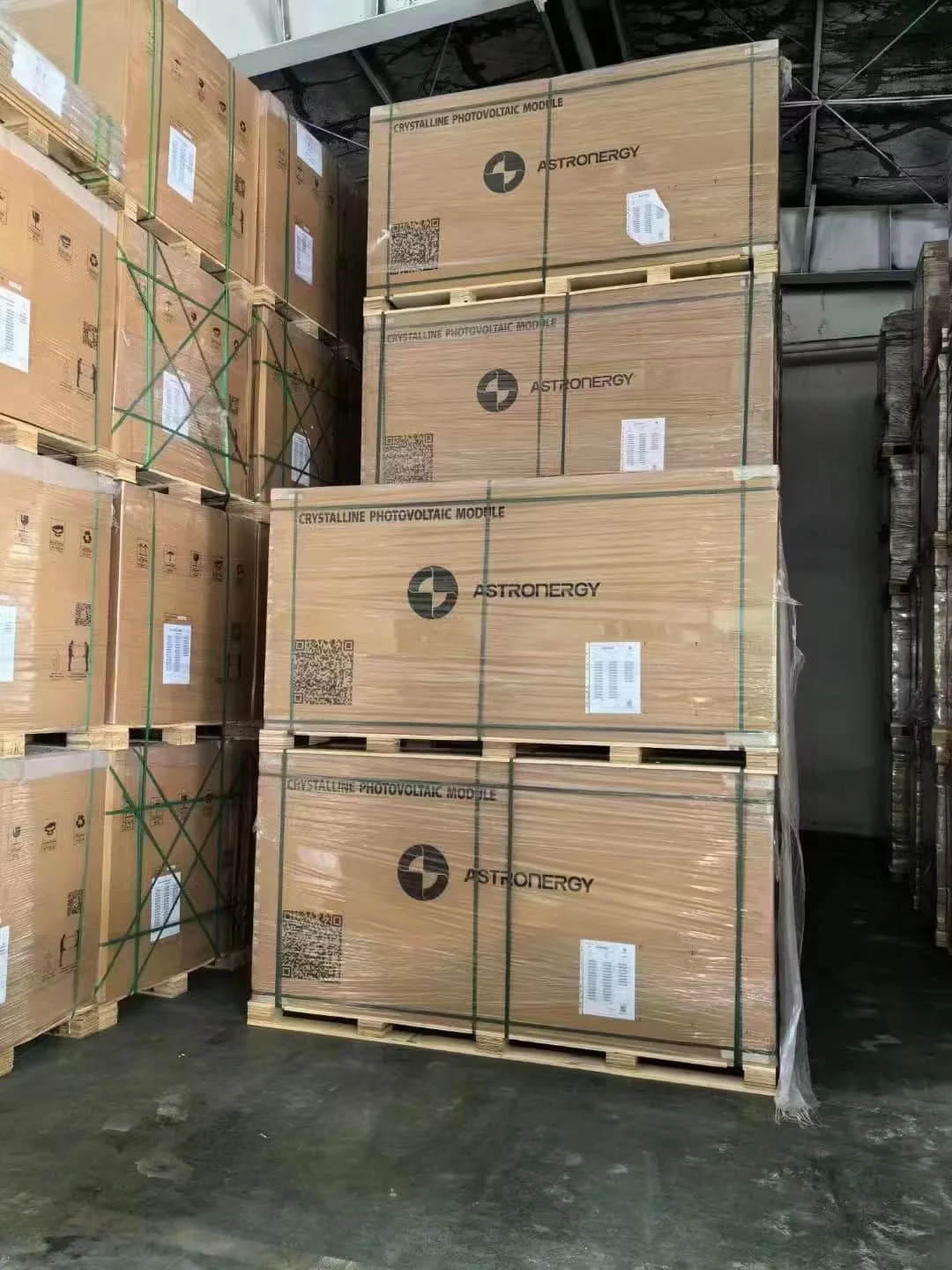

Packing& payment terms
Packaging Configuration | ||||||||
36pcs/pallets, 72pcs/stack, 720pcs/ 40'HQ Container | ||||||||
Lead time | ||||||
Quantity(Watts) | 0-100000 | 1000001-1000000 | 10000001-10000000 | |||
Est. Time(days) | 5 | 7 | 11 | |||
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | |
FOB | ||||
CNF | 30% T/T in advance, paid the balance against copy of B/L | |||
CIF | ||||
West Union | Amount lower than 5000usd | |||

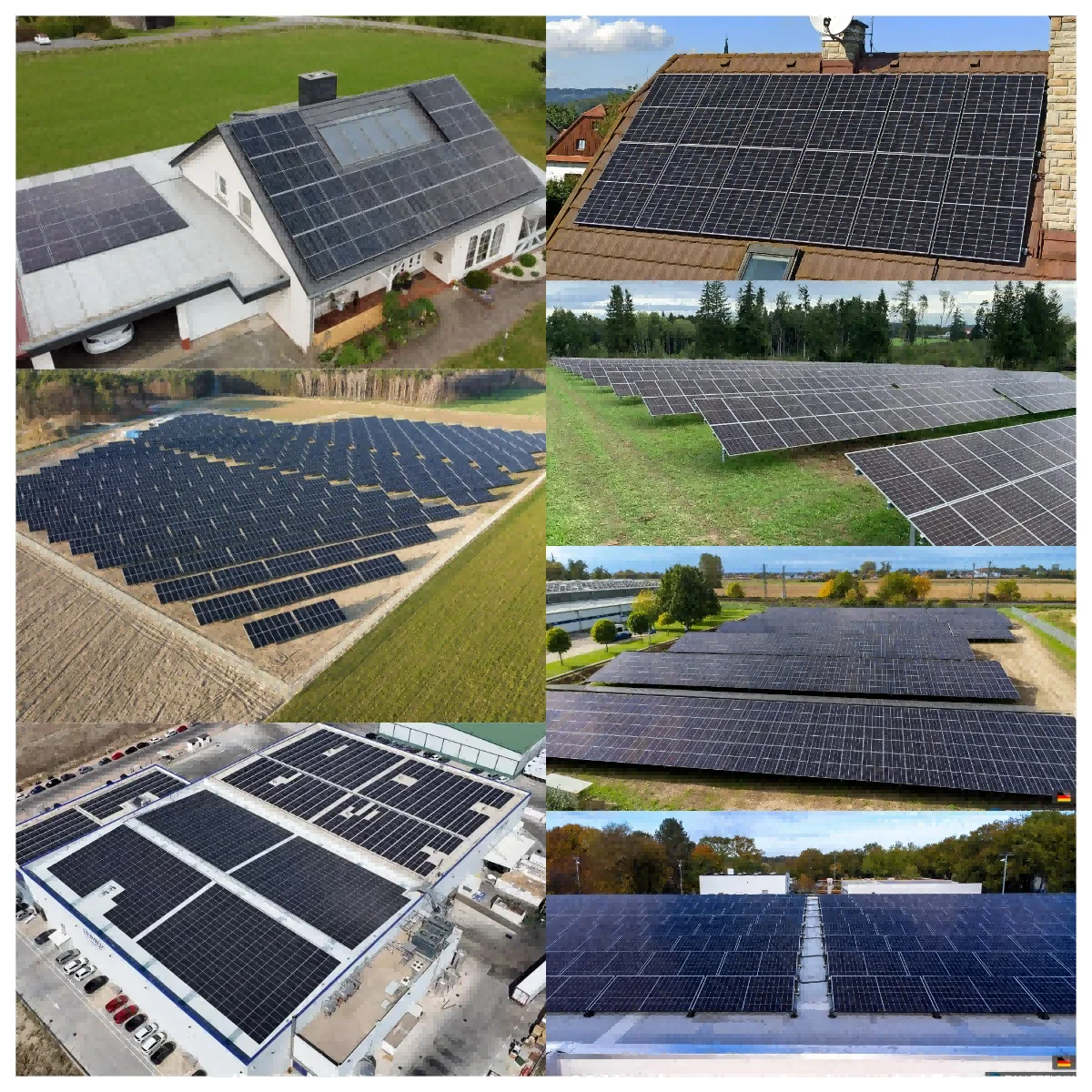

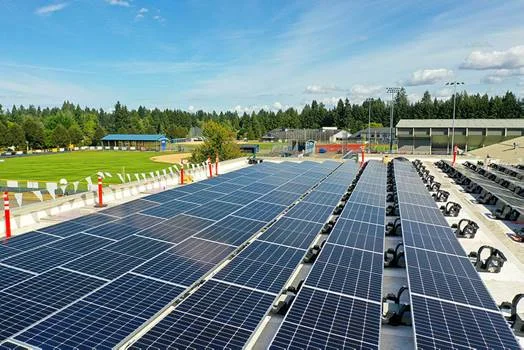

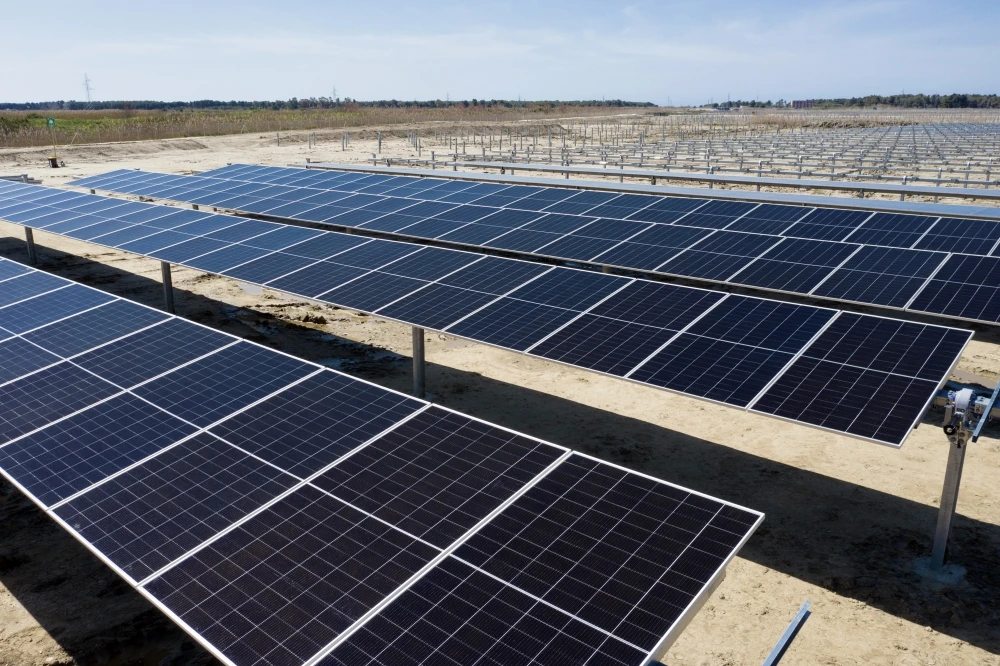

Our Project
