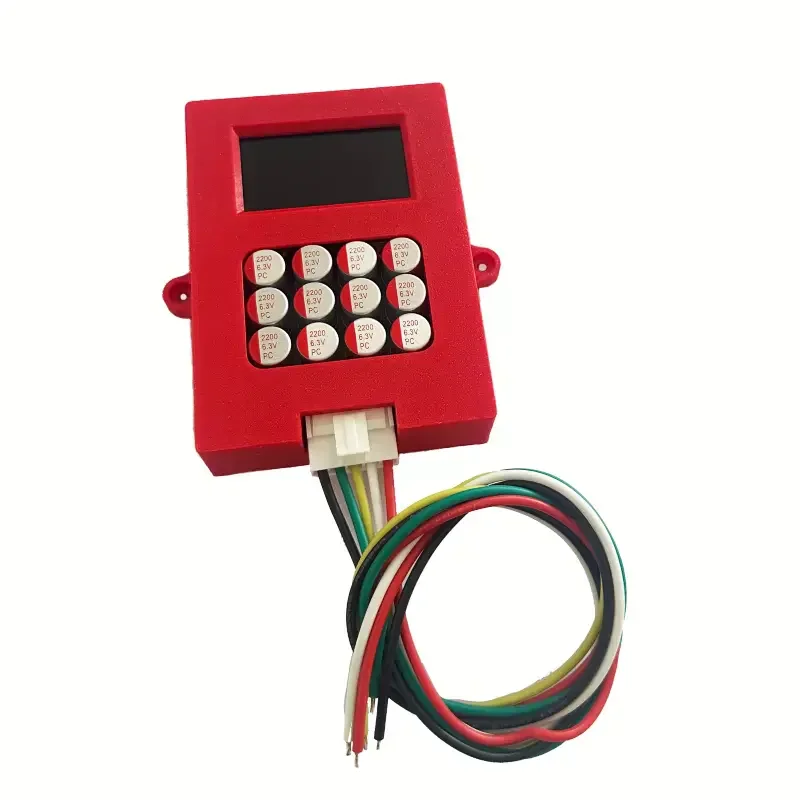

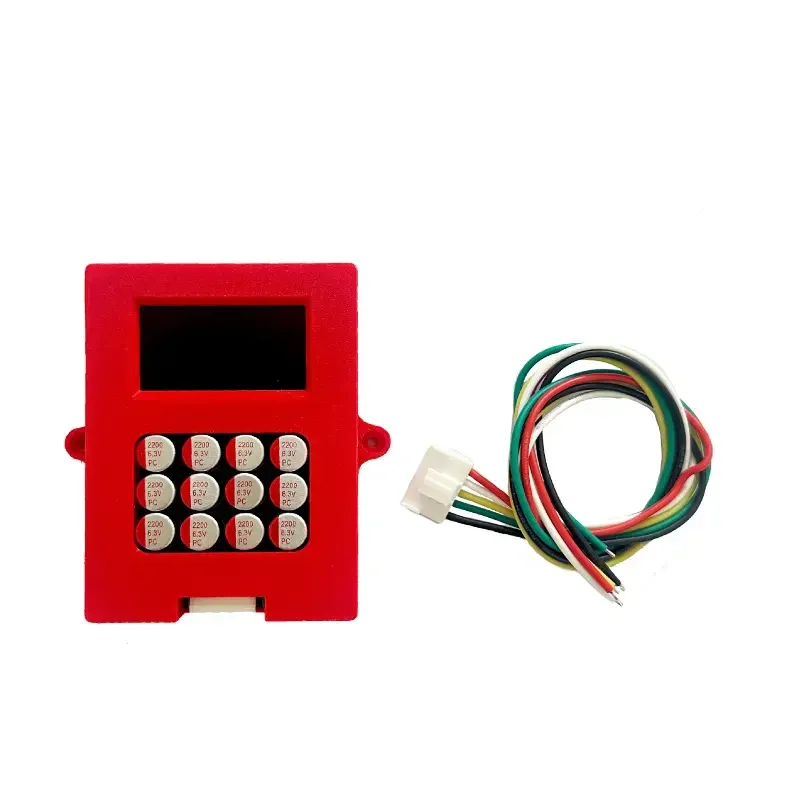

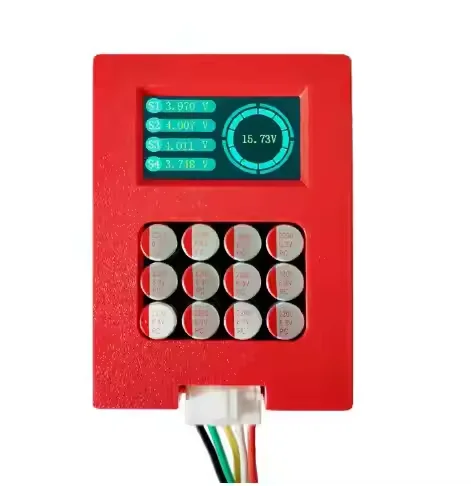

5A 5.5A Max Active Balancer LiFePO4 Lithium ion LTO Car Audio Motor Starter Battery 4S 6S Balancer Equalizer with LCD Display
- Category: >>>
- Supplier: Shenzhen OSN Power Tech Co. Ltd.Shenzhen Ltd.
Share on (1601310721176):
Product Overview
Description
Highlights

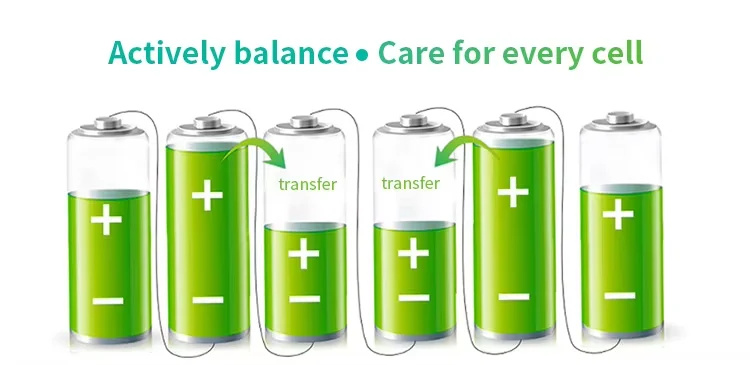

About Active Balancer
In the ever-evolving landscape of energy storage technology, the active balancer of batteries has emerged as a game-changer. This sophisticated electronic device plays a pivotal role in optimizing the performance and lifespan of battery packs.
At its core, a battery active balancer is an advanced electronic system engineered to manage and regulate individual cells within a battery pack. Its primary function is to ensure that each cell maintains a balanced charge, preventing overcharging or over-discharging that can lead to reduced capacity and a shortened lifespan. By achieving equilibrium among all cells, active balancers elevate the overall efficiency and effectiveness of the battery pack.
At its core, a battery active balancer is an advanced electronic system engineered to manage and regulate individual cells within a battery pack. Its primary function is to ensure that each cell maintains a balanced charge, preventing overcharging or over-discharging that can lead to reduced capacity and a shortened lifespan. By achieving equilibrium among all cells, active balancers elevate the overall efficiency and effectiveness of the battery pack.
Product Description
Technical Indicators | SKU | ||||||||||
Applicable Strings | 3-4S | 4-6S | 6-8S | 9-14S | 12-16S | 17-21S | |||||
SKU(Standard) | 0855A | 1004A | 0877A | 1400 | 0999A16 | 1323 | |||||
Applicable Battery Type | Ternary Lithium/ Lithium Iron Phosphate | Ternary Lithium/Lithium Iron Phosphate/ Lithium Titanate | |||||||||
Working Voltage Range | Ternary Lithium/Lithium Iron Phosphate: 2.7-4.2V Lithium Titanate: 1.8-3.0V | ||||||||||
Balanced Voltage Range | 5mV (Typical) | ||||||||||
Balance Mode | The whole group of batteries participates in active balancing of energy conversion at the same time | ||||||||||
Balance Current | When the voltage difference is 0.08V, the equalizing current is 1A.The larger the voltage different, the larger the equalizing current. The maximum equalizing current is 5A. | ||||||||||
Undervoltage Protection Sleep Voltage | Ternary Lithium/Lithium Iron Phosphate: 2.7V Lithium Titanate: 1.8V | ||||||||||
Static working current | 13mA | 8mA | 8mA | 15mA | 17mA | 16mA | |||||
Product Size (mm) | 66*46*16 | 69*69*16 | 91*70*16 | 125*80*16 | 125*91*16 | 145*130*18 | |||||
Working Temperature | -10℃ ~ 60℃ | ||||||||||
External Power | No external power supply is required, relying on the energy transfer inside the battery to achieve the balance of the entire battery pack. | ||||||||||

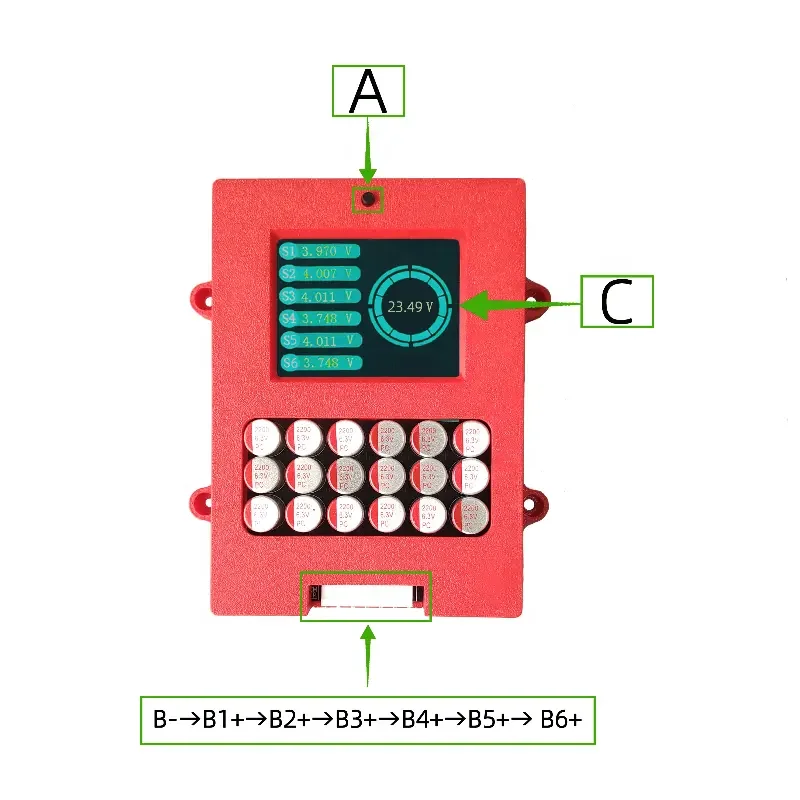

Feature
3S~21S 2A~5A
Working voltage: 1.8V-4.5V
Suitable for ternary lithium, lithium iron phosphate, lithium titanate, etc.
Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB
Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv! The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.

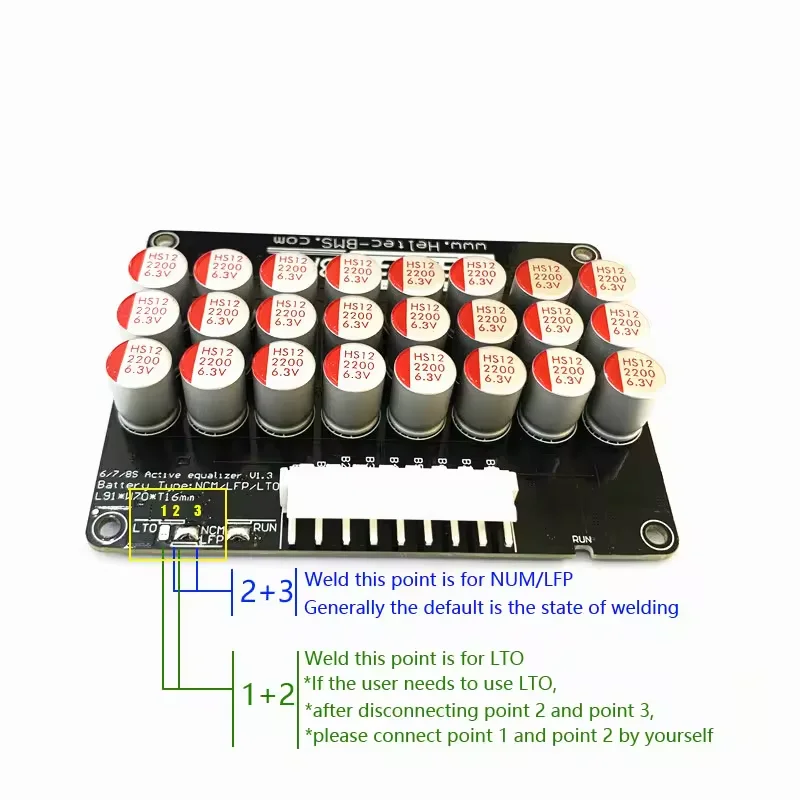

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA. LTO Only means that this edition is only applicable to lithium titanate. The indication without LTO applies to ternary lithium and lithium iron phosphate. for all means suitable for ternary lithium, lithium iron phosphate, lithium titanate.
Applications

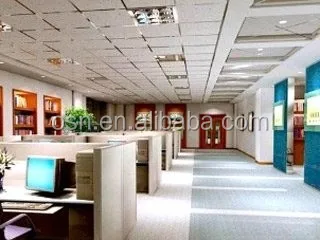

Our Company

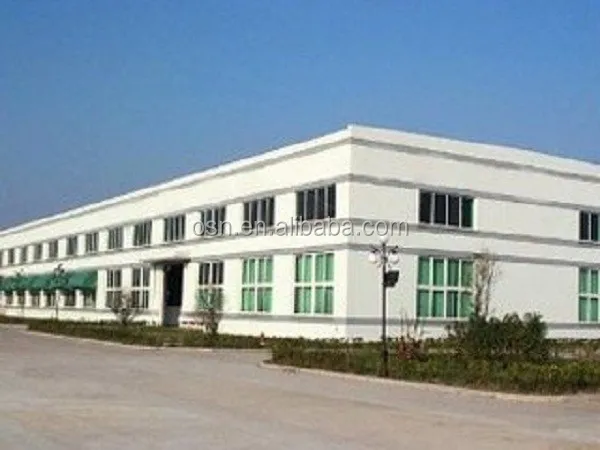

Located in a Chinese high-tech city of Shenzhen, OSN POWER TECH LIMITED is a pioneer in R&D, manufacturing of Lifepo4 and other Li-ion batteries. Since its founding in 2008, OSN has always insisted on providing total power solutions to customers in the field of electric vehicles / power tools / backup power / energy storage power/ smart device with strong expertise and advanced automation equipment.
OSN has been awarded as Hi-Tech Company, and OSN batteries have been approved by UL, CE, RoHs, UN38.3 and compliant with many other international standards. With the quality control goal of “Zero Defects”, we have developed an original digital automatic measuring & analytic system and process statistical control system.
Base on quality products, attractive design, reasonable price and excellent services, we have won praises from thousands of satisfied customers all over the world.
Multi - channel automatic sorting machine
Matching of cells according to voltage and inner resistance
Automatic welding Fixture
Automatic welder
QC inspection
OSN working staff
Certifications
Packing & Delivery
Packing
Compliant with international package regulation for overseas transportations
Delivery
+sea shipment (about 1 month)
+air shipment to major airports all over the world
+ UPS, DHL, FedEx, etc
