High quality CNC seven axis end milling machine is on sale

Share on (1601310835381):


Price:$2,500.00-2,600.00

Quantity:


Product Overview

Description



Company Information

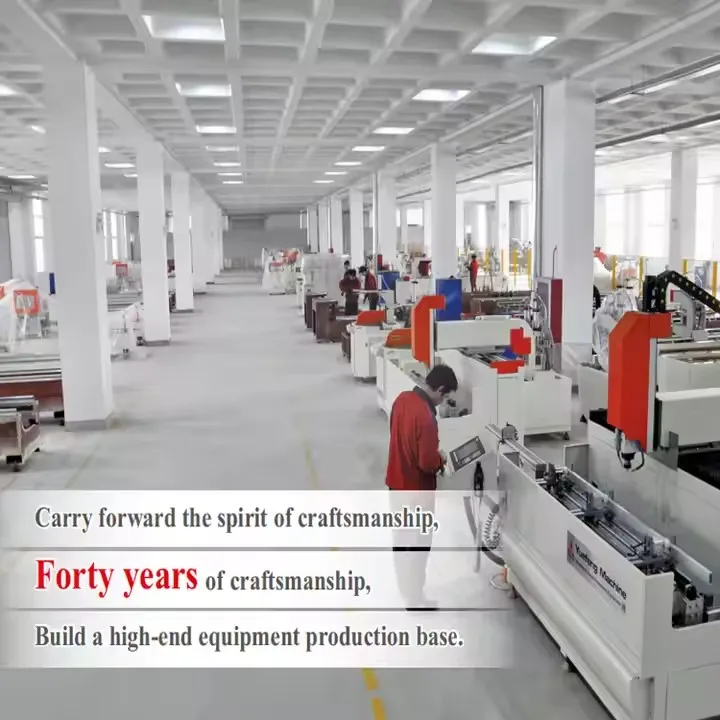

ABOUT YUEFENG MACHINE YUEFENG New Industrial Park Jinan YUEFENG Machinery CO., Ltd. founded in 1983 year, is a Win-door & Curtain wall equipment company with long history, enorm-ous development potentiality and best social reputation. YUEFENG own independent property rights of four modern high-grade factory buildings the construction area of more than 28,000 square meters. The headquarters is located in Jinan Prior Zone For Replacing Old Growth Drivers With New Ones, close to Huashan exit of Jiqing expressway. The transportation is extremely facilitates. YUEFENG is constantly focused on machinery manufacture and research and development, and is dedicated to “promoting the energy saving, advocating the green life”. It mainly engaged in aluminum curtain wall, aluminum doors and Windows, plastic steel doors and Windows processing equipment r & d and manufacturing, is the domestic energy. YUEFENG has been awarded the title of “advanced private enterprise” by Shandong provincial government, “key protection enterprise”, “abide by the contract and credit enterprise” and many other honors. At present, YUEFENG brand recognition and market share for years has been to maintain industry-leading, more than market network all over the country provinces and cities and exported to the Middle East, southeast Asia, North America, South America, India, Russia, Australia, Mongolia, Africa and other countries and regions, with deeply domestic and foreign customer’s wide acclaim and praise. YUEFENG’s perfect quality system and strict process management ensure the accuracy, strength and stability of the product. By drawing on the advanced technology and experience of foreign and domestic, YUEFENG establish a much better development. Customer-centric, cast top quality, is our only standard! YUEFENG company is looking forward to work closely with the industry for creating a better future of Windows and curtain wall industry!








Product Description

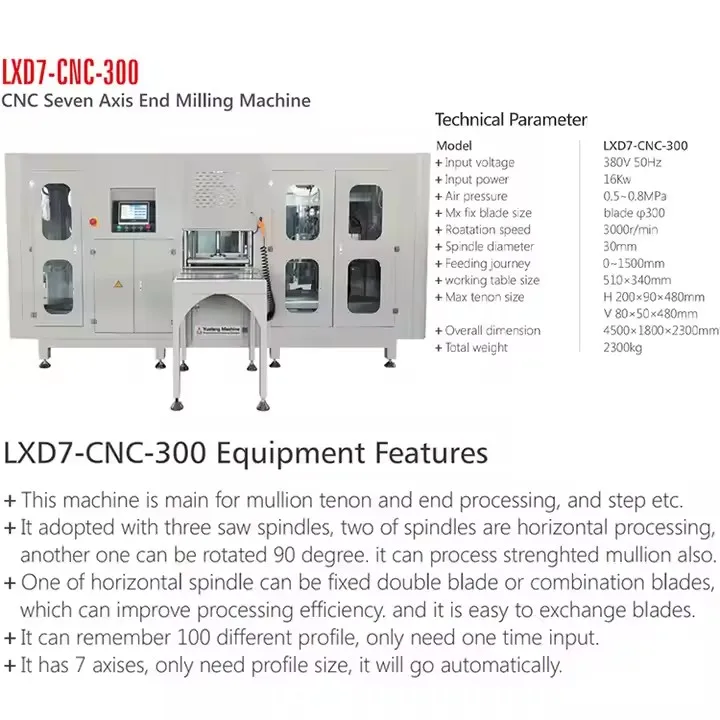

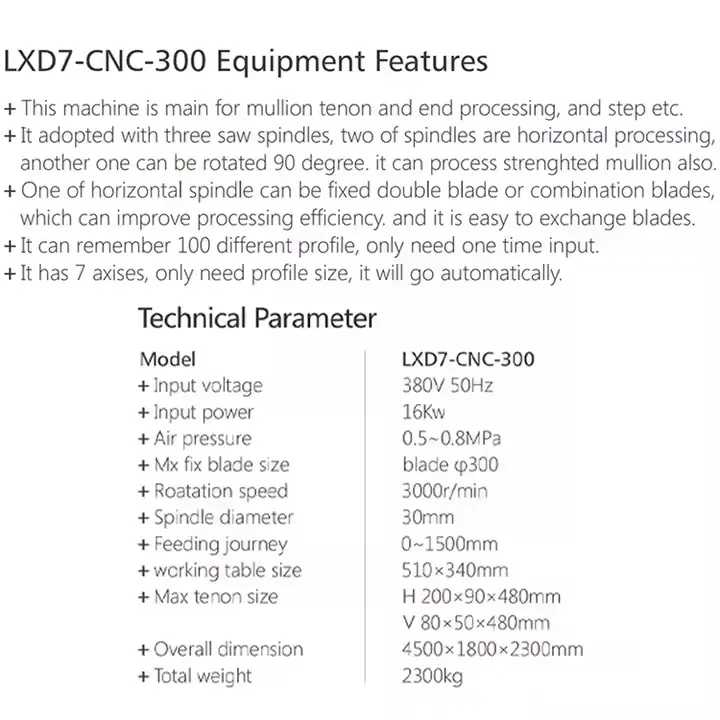

Technical Parameter
Model
LXD7-CNC-300

Input voltage
380V 50Hz


Input power


16Kw


Air pressure


0.5~0.8MPa


Mx fix blade size


blade φ300


Roatation speed


3000r/min


Spindle diameter


30mm


Feeding journey


0~1500mm


working table size


510×340mm


Max tenon size


H 200×90×480mm


V 80×50×480mm



Overall dimension



4500×1800×2300mm



Total weight



2300kg

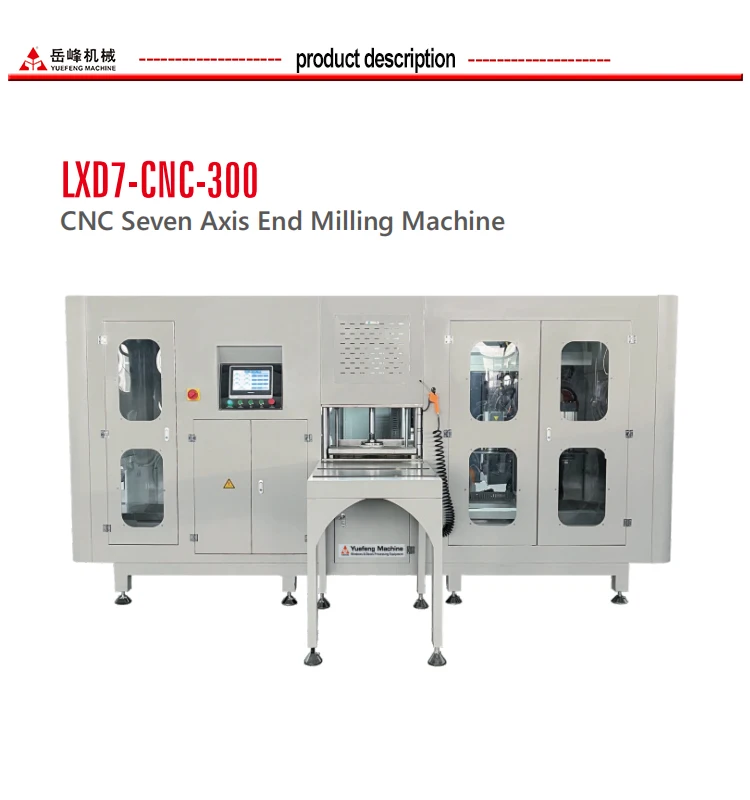

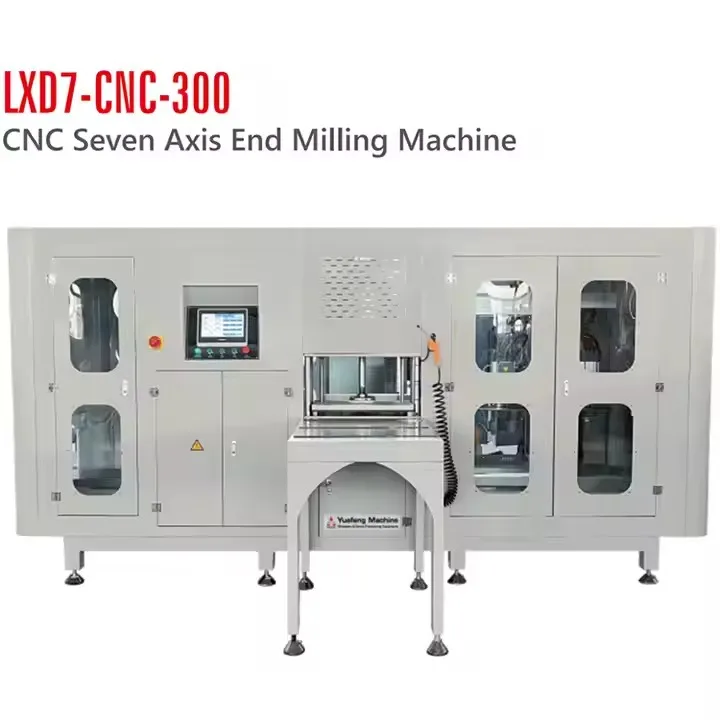

High quality CNC seven-axis end milling machine is on sale




+This machine is main for mullion tenon and end processing, and step etc.

+It adopted with three saw spindles, two of spindles are horizontal processing,

another one can be rotated 90 degree. it can process strenghted mullion also.

+One of horizontal spindle can be fixed double blade or combination blades,

which can improve processing efficiency. and it is easy to exchange blades.

+It can remember 100 different profile, only need one time input.

+It has 7 axises, only need profile size, it will go automatically
