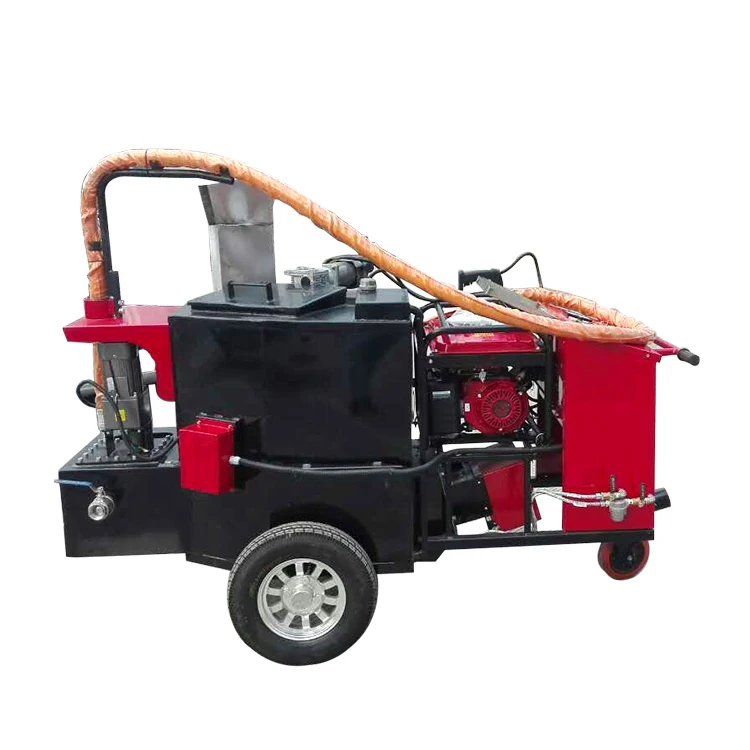

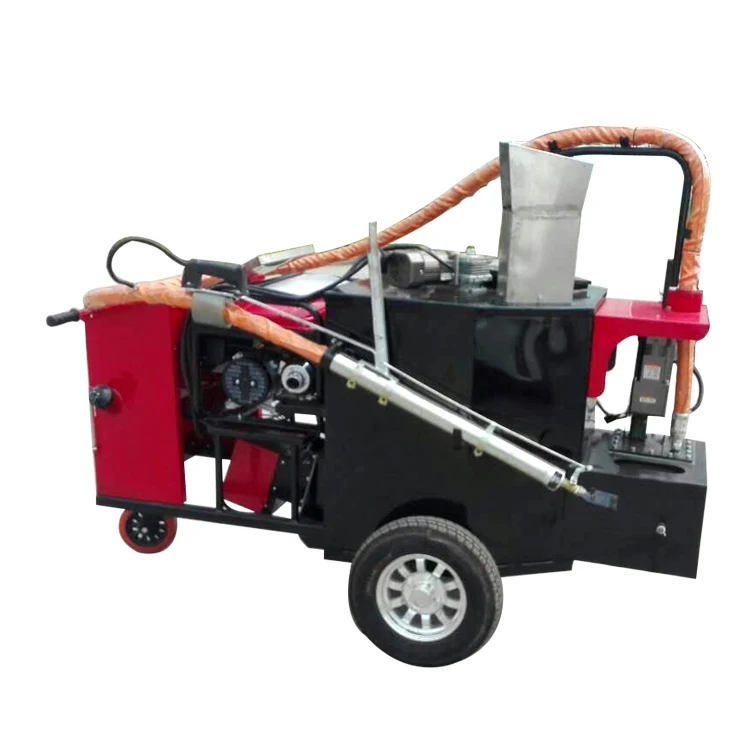

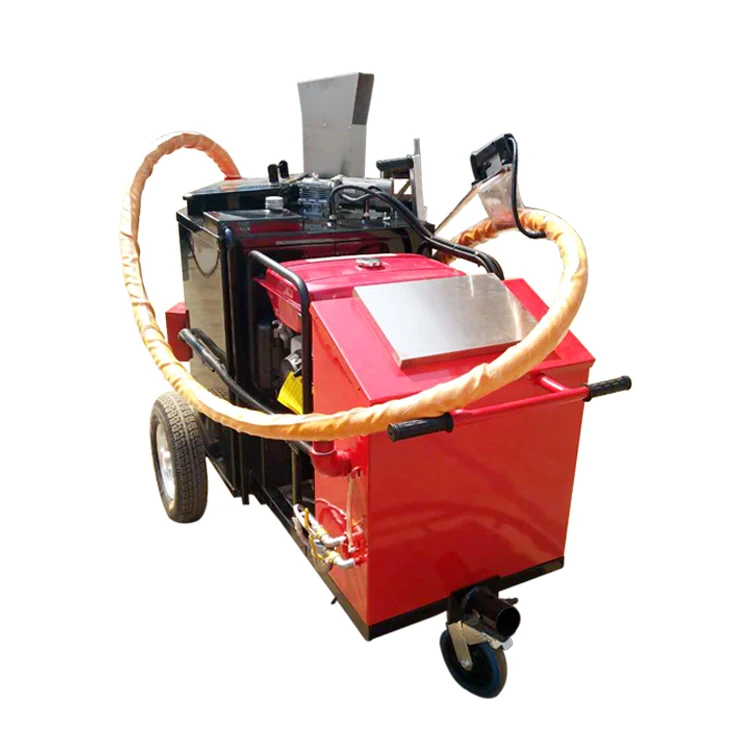

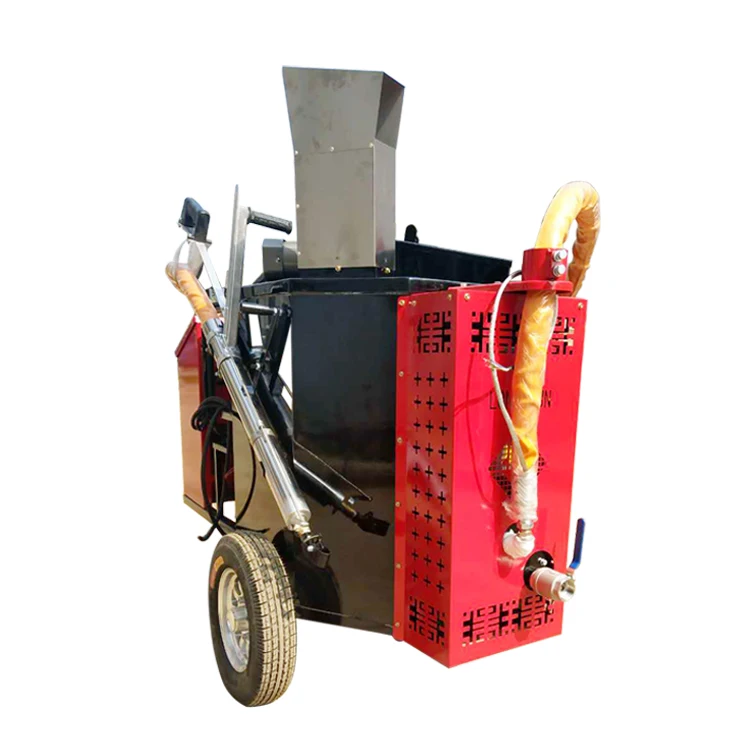

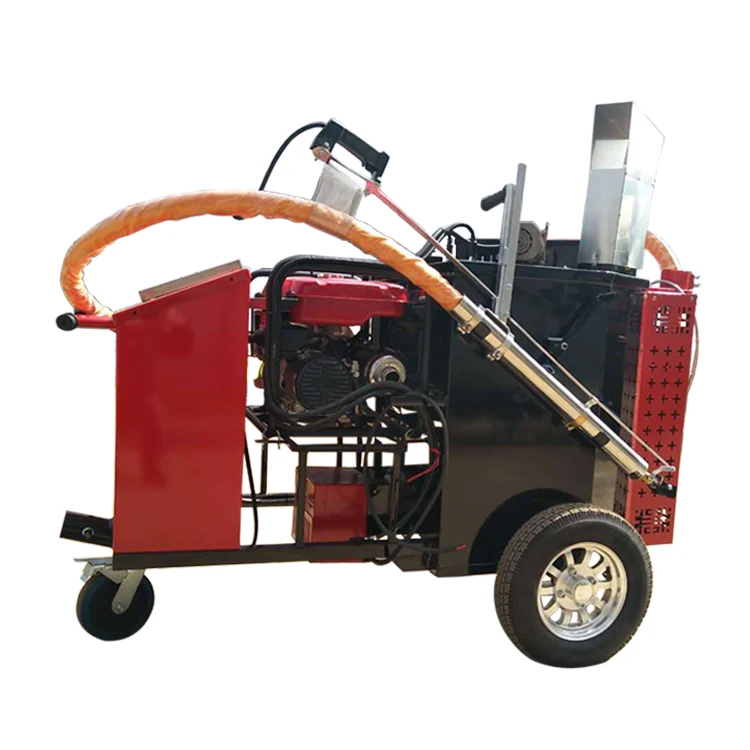

Durable Asphalt Crack Repair Asphalt Joint Filling Machine
- Category: >>>
- Supplier: Zhengzhou Yugong Construction Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1601312384129):
Product Overview
Description
Products Description

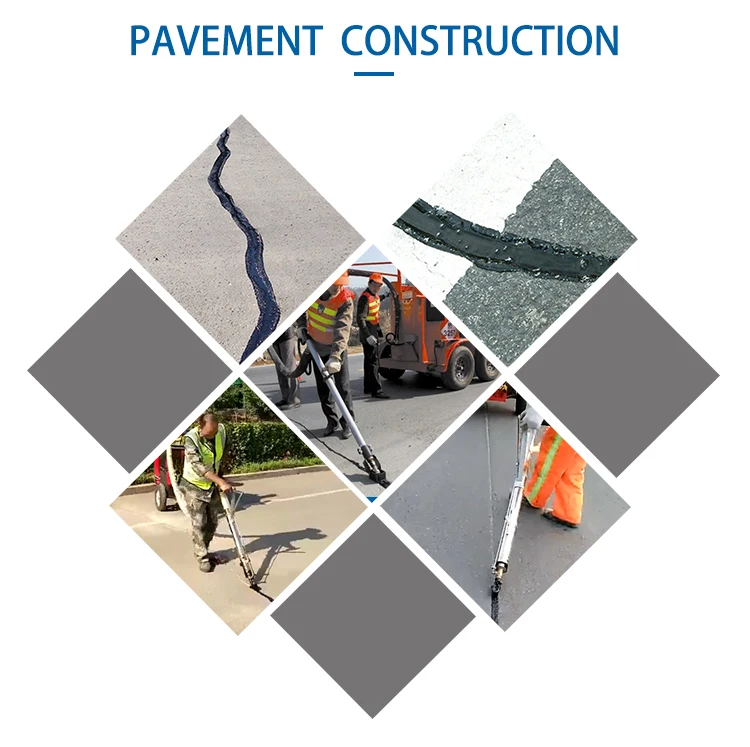

Asphalt crack filler machine is a kind of asphalt crack repair machine which is suitable for filling the cracks of road, expressway, asphalt and concrete pavement of municipal, airports, squares, industrial parks,as well as filling cracks of complicated and irregular pavement. As an indispensable road maintenance machine, it is mainly used for preventive maintenance of road surface diseases and in conjunction with road grooving machine and air blower.
Product Paramenters
Model | YG-100L | YG-200L | YG-350L |
Generator | Import Japan Brand 2KW generator | Import Japan Brand 2.8 kw generator | Japan Brand 6.5kw |
Power | \\ | 60KW | 400kw |
Speed | 20m/min | 8L/min | 3600r/min |
Crack sealing pressure | 2Mpa | ||
Output speed | Adjustable | Adjustable | Adjustable |
Volts | 220V/380V | 220V/380V | 220V/380V |

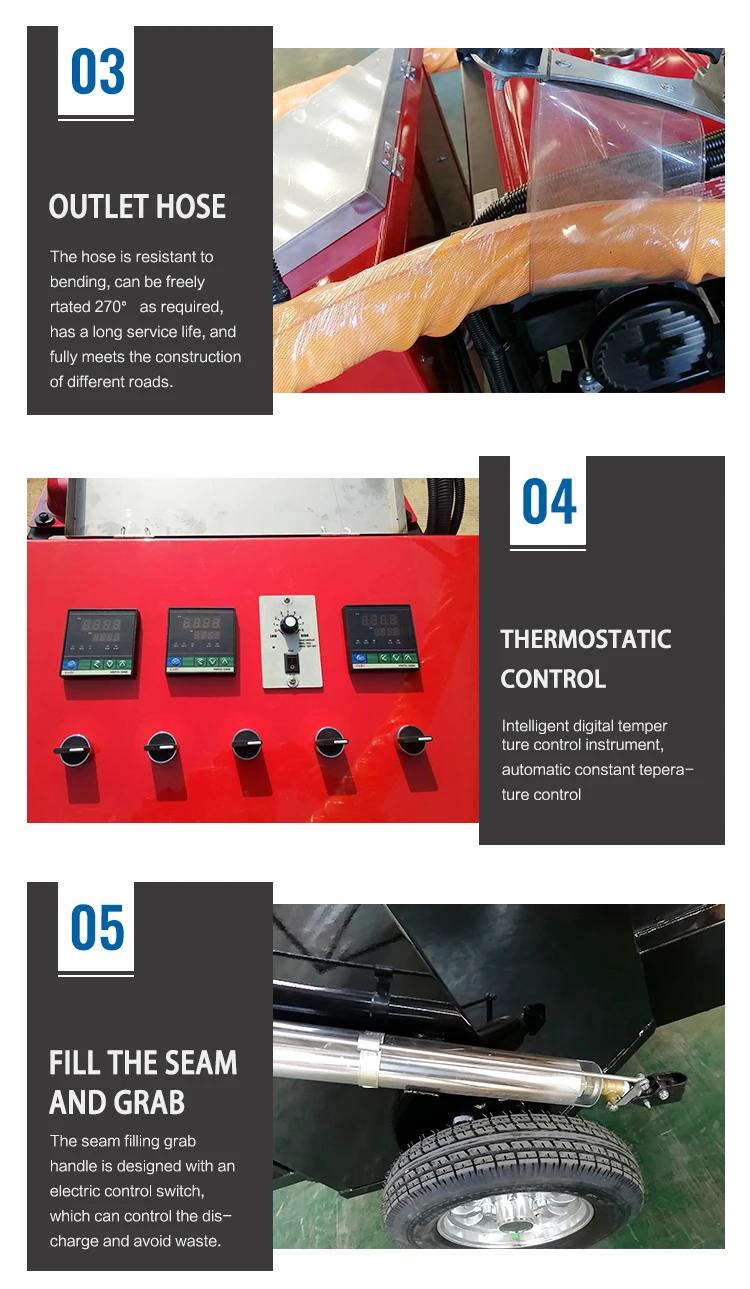

The length of electric heating tube | 5m | 5m | 5m |
Method | Electric | Electric | Electric |
Hot melt kettle volume | 100L | 200L | 350L |
Moving method | Towed/Hand Push | Towed | Trailer or Towed |
Combustor | Ltalian Riello 445T1 combustor | Imported REILLO 445T1 diesel burner from Italy fuel consumption 6.6-15L/h. | Ltalian Riello 445T1 combustor |
Automatic temperature control system | SLA-5000 intelligent digital temperature controller | Automatic control by SLA-5000 intelligent digital temperature controller | |
Heating method | Italian diesel burner, heat transfer oil cycle heating | Conduction oil indirect heating and external oil pump circulating heating | Conduction oil indirect heating and external oil pump circulating heating |
Filling material heating time | 30-40min | 30-40min | 30~40min |
Temperature range | 0-200℃ | 0-200℃ | 0~200℃ |
Size | 1350*1000*1900mm | 2400*1400*1700mm | 2000*1700*1900mm |
Weight | 240kg | 860kg | 960KG |
