The Galleo-Radar-RVF-2000 Traffic Boundary Intrusion Radar is a sensor that integrates a 24GHz millimeter wave radar, monitoring, and an audio-visual alarm into a single unit. This sensor is primarily designed for outdoor area security and perimeter security, capable of accurately and in real-time locating and tracking ground moving targets within the radar's effective detection range. Moreover, the radar, through integration with video and audio-visual alarms, actively alerts for potential suspicious targets entering the protected area and provides video and image evidence for post-event analysis.


The Galleo-Radar-RVF-2000 Traffic Boundary Intrusion Radar utilizes advanced technologies such as LFMCW+TDM-MIMO+Sparse Array, achieving full coverage of the monitored area. Compared to traditional video, infrared, and cable sensing devices, it offers advantages such as smaller size, lighter weight, higher reliability, smaller distance blind spots, no speed blind spots, high distance resolution, and good anti-interference capabilities.

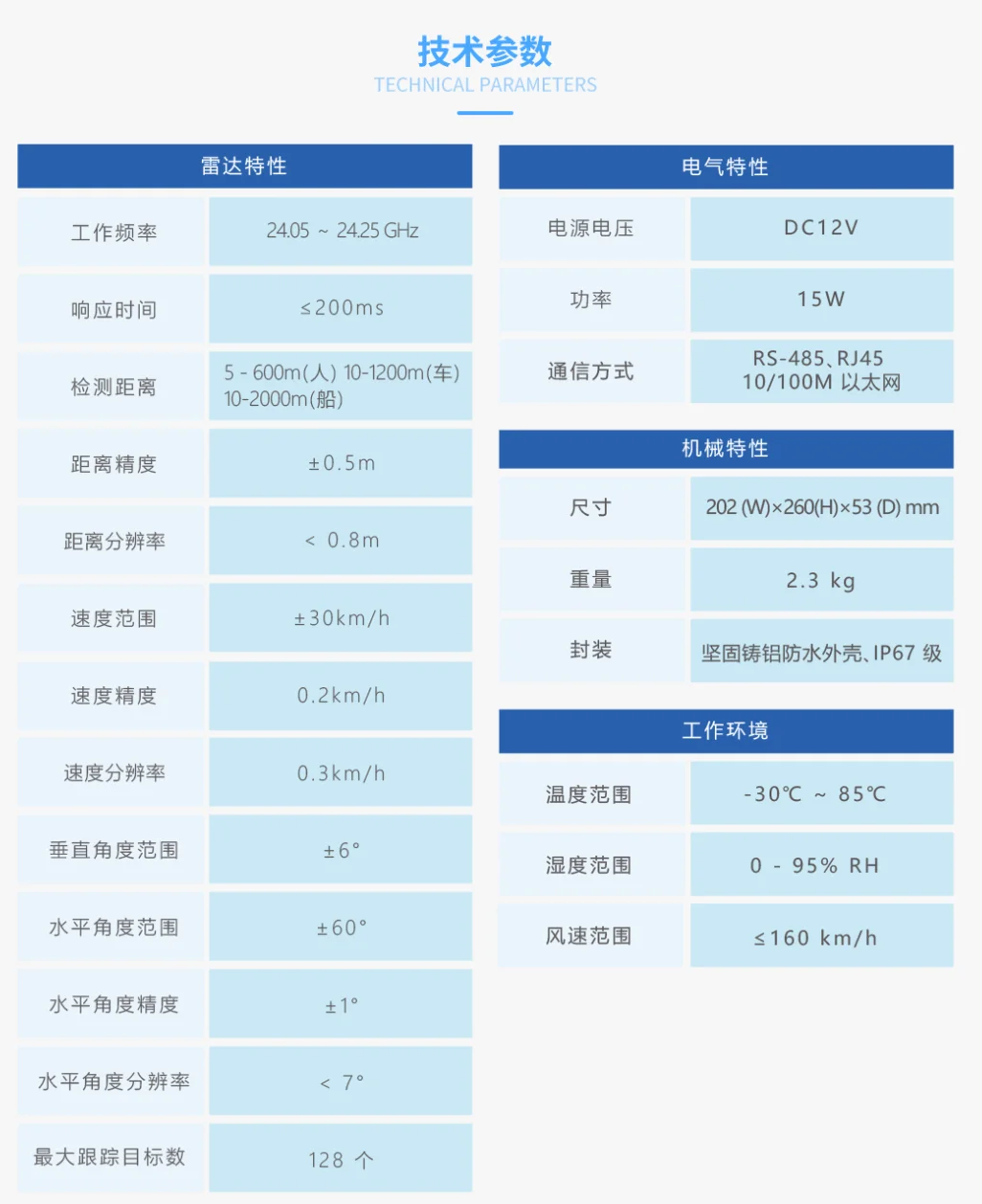

TECHNICAL PARAMETERS



  Radar characteristics



Work frequency



  24.05 - 24.25 GHZz



 Response time



  ≤200ms



  Detect distance



  5-600m(Person)10-1200m(Car)10-2000m(Ship)



  Distance accuracy



  ±0.5m



  Range resolution



  <0.8m



Speed range



    +30km/h



Speed accuracy



  0.2km/h



 Speed resolution



  0.3km/h



  Vertical angle range



  ±6°



  Horizontal angle range



  ±60°



  Horizontal angle accuracy



  ±1°



 Horizontal Angular Resolution



   7°



 Max. number of tracking targets



  128



 Electrical characteristics



  Power supply voltage



  DC12V



 Power



  15W



 Communication methods



  RS-485,RJ4510/100M Ethernet



  Mechanical properties







Size



  202 (W)x260(H)x53 (D) mm



Weight



  2.3 kg



Package



Rugged cast aluminum waterproof housing, IP67.



Work environment



  Temperature range



  -30℃ - +85℃



  Humidity range



  0-95% RH



  Wind speed range



  ≤160 km/h
