Source Factory P3.9 Window Outdoor Indoor Glass Transparent Led Film Display Transparent Panels Led Display Screen
- Category: >>>
- Supplier: Shenzhen Huaxintong Photoelectric Technology Co. Ltd.Shenzhen Ltd.
Share on (1601313655945):
Product Overview
Description
Related Products
Product Description

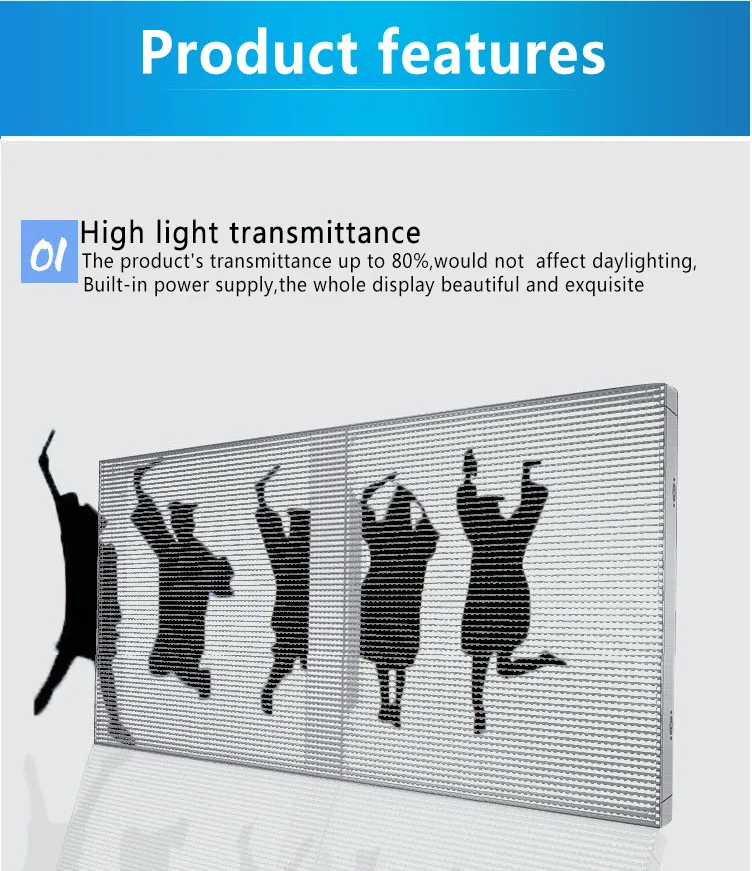

1.About 50% of the perspective effect enables the glass to retain the function of light perspective, and the LED lights can hardlybe seen from a distance, so that the lighting of the glass curtain wall is not affected.

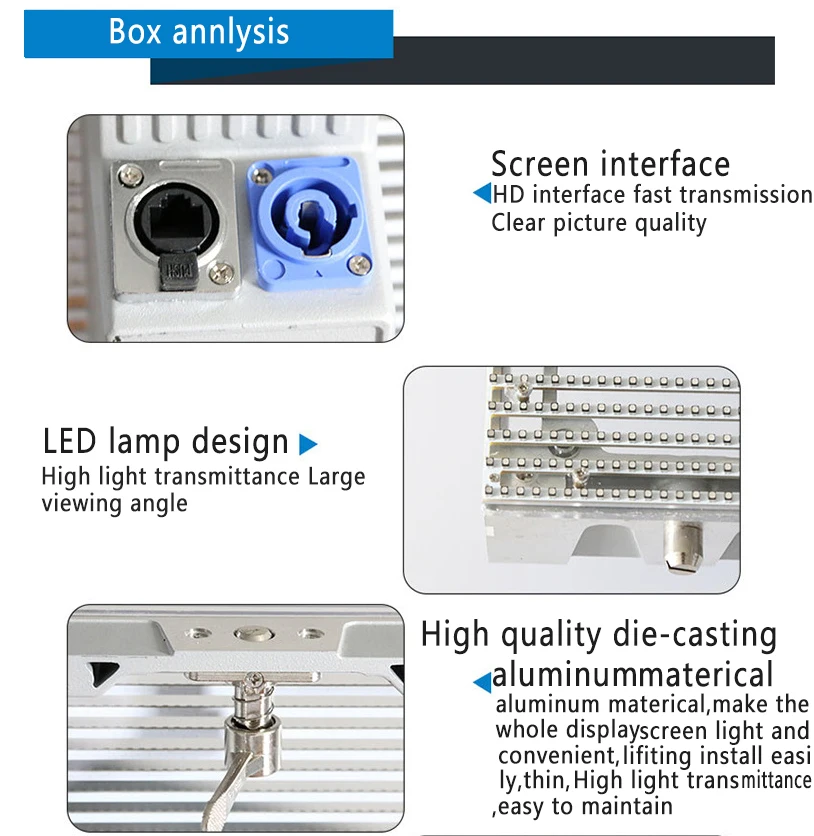

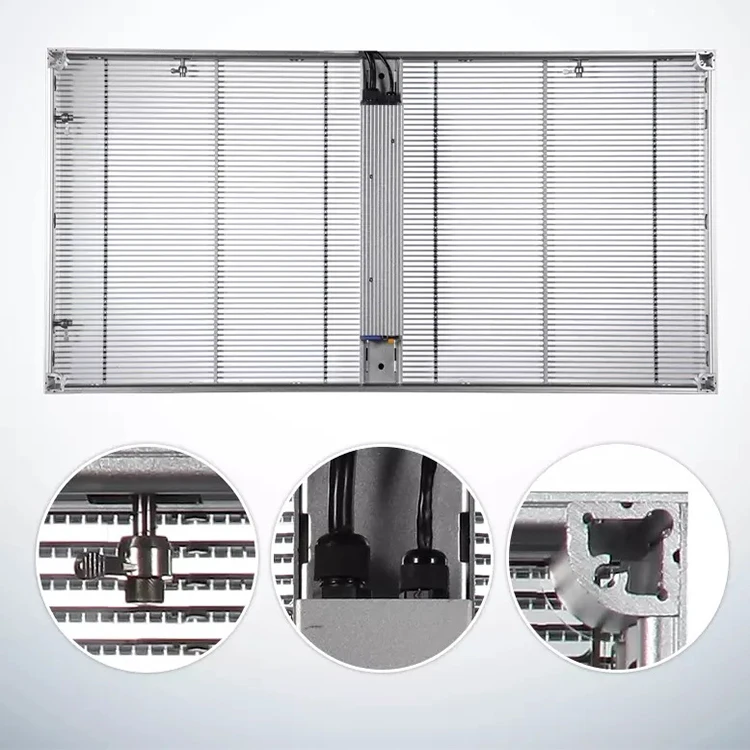

2.The screen is thin and supports front and rear maintenance. The unit light bar screen can be removed separately for easy and quick maintenance.

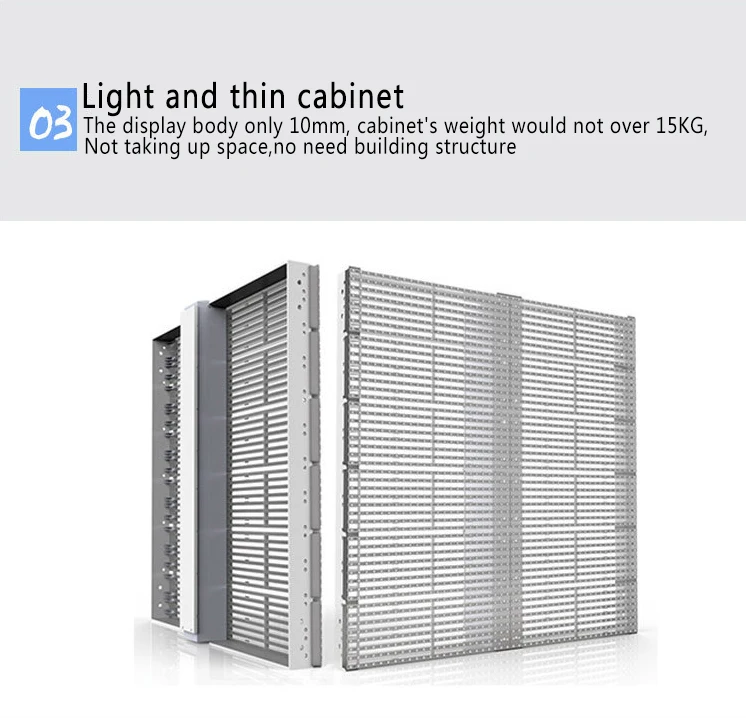

3.The main board of the screen is only 10mm thick. The LED transparent screen takes up almost no space after installation and does not interfere with other facilities or structures near the glass curtain wall.
4.Energy saving and environmental protection: small power consumption, average power consumption is less than 150-280w/m2, no need for traditional refrigeration system and air conditioning cooling.
5.The weight of LED transparent screen is only 15kg/㎡, which is light. There is no need to build steel structure. It is easy to install and disassemble.
2.The screen is thin and supports front and rear maintenance. The unit light bar screen can be removed separately for easy and quick maintenance.
3.The main board of the screen is only 10mm thick. The LED transparent screen takes up almost no space after installation and does not interfere with other facilities or structures near the glass curtain wall.
4.Energy saving and environmental protection: small power consumption, average power consumption is less than 150-280w/m2, no need for traditional refrigeration system and air conditioning cooling.
5.The weight of LED transparent screen is only 15kg/㎡, which is light. There is no need to build steel structure. It is easy to install and disassemble.
Specification
Model No. | Parameters | Parameters | Parameters | ||
Pixel pitch | Horizonal 3.9mm | Horizonal 3.9mm | Horizonal 3.9mm | ||
Pixel pitch | Vertical 7.8mm | Vertical 7.8mm | Vertical 7.8mm | ||
Scan method | 1/16 scan,constant current | 1/16 scan,constant current | 1/16 scan,constant current | ||
Drving IC | High refresh MBI 5124 | High refresh MBI 5124 | High refresh MBI 5124 | ||
Cabinet size(L*H*T) | 500*1000*15mm | 500*1000*15mm | 500*1000*15mm | ||
Cabinet resolution | 128*128dots | 128*128dots | 128*128dots | ||
Pixel density | 32768 dots/m2 | 32768 dots/m2 | 32768 dots/m2 | ||
Cabinet material | Aluminum material and PC panel | Aluminum material and PC panel | Aluminum material and PC panel | ||
Brightness | 1500cd/㎡ | 2500cd/㎡ | 5000cd/㎡ | ||
Viewing angle | Horizonal 120°，Vertical 120° | Horizonal 120°，Vertical 120° | Horizonal 120°，Vertical 120° | ||
Smallest viewing distance | ≥4M | ≥4M | ≥4M | ||
Gray scale | 16bit | 16bit | 16bit | ||
Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ||
Repetition frequency | 60fps | 60fps | 60fps | ||
Input voltage | AC100-240V | AC100-240V | AC100-240V | ||
Max power | 400W/㎡~600W/㎡ | 400W/㎡~600W/㎡ | 400W/㎡~600W/㎡ | ||
Avg power | 150W/㎡~240W/㎡ | 150W/㎡~240W/㎡ | 150W/㎡~240W/㎡ | ||
Screen weight | 15kg/㎡ | 15kg/㎡ | 15kg/㎡ | ||
MBTF | >10,000 Hrs | >10,000 Hrs | >10,000 Hrs | ||
Life span | ≥100,000 Hrs | ≥100,000 Hrs | ≥100,000 Hrs | ||

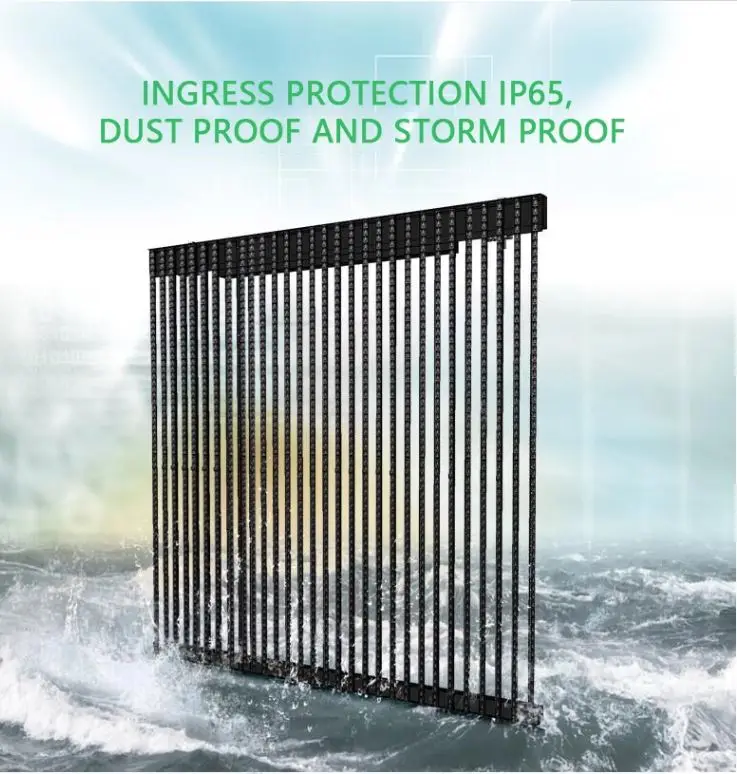

IP protection level | IP65 | IP65 | IP65 | ||
Permeation ratio | ≥50% | ≥50% | ≥50% | ||
Temperature | 0°C~40°C(working temperature) | 0°C~40°C(working temperature) | 0°C~40°C(working temperature) | ||
-20°C~60°C(store temperature) | -20°C~60°C(store temperature) | -20°C~60°C(store temperature) | |||
Humidity | 35%~85% (working humidity) | 35%~85% (working humidity) | 35%~85% (working humidity) | ||
10%~90% (store humidity) | 10%~90% (store humidity) | 10%~90% (store humidity) | |||
Install method | hanging/stacking/floor standing/fixed installation | hanging/stacking/floor standing/fixed installation | hanging/stacking/floor standing/fixed installation | ||
Packaging | Flight case | Flight case | Flight case | ||
Install method | hanging/stacking/floor standing/fixed installation | hanging/stacking/floor standing/fixed installation | hanging/stacking/floor standing/fixed installation | ||
Packaging | Flight case | Flight case | Flight case | ||

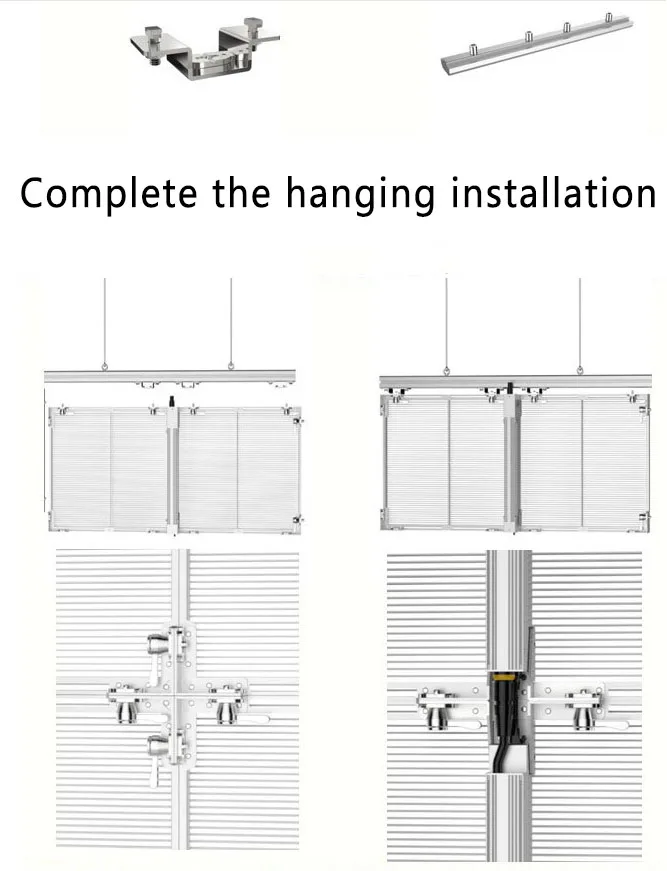

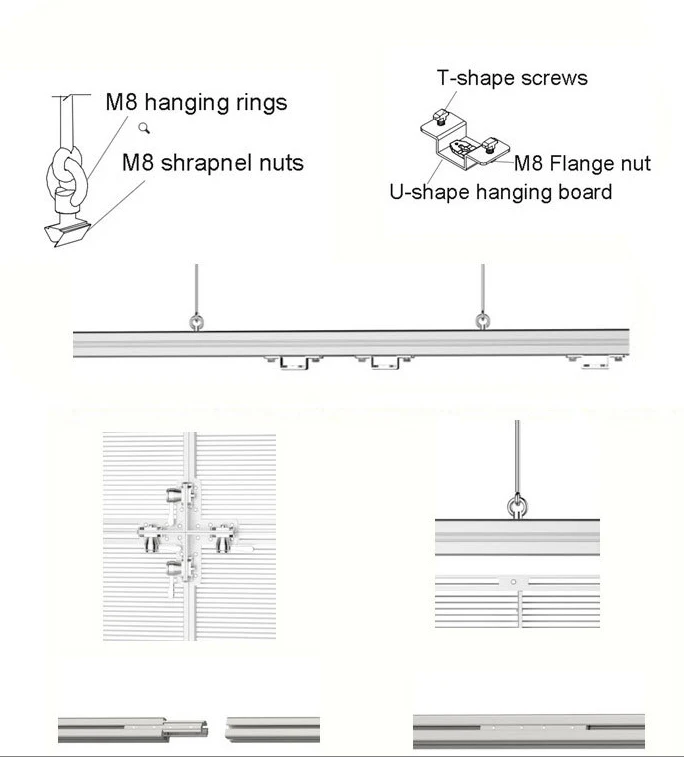

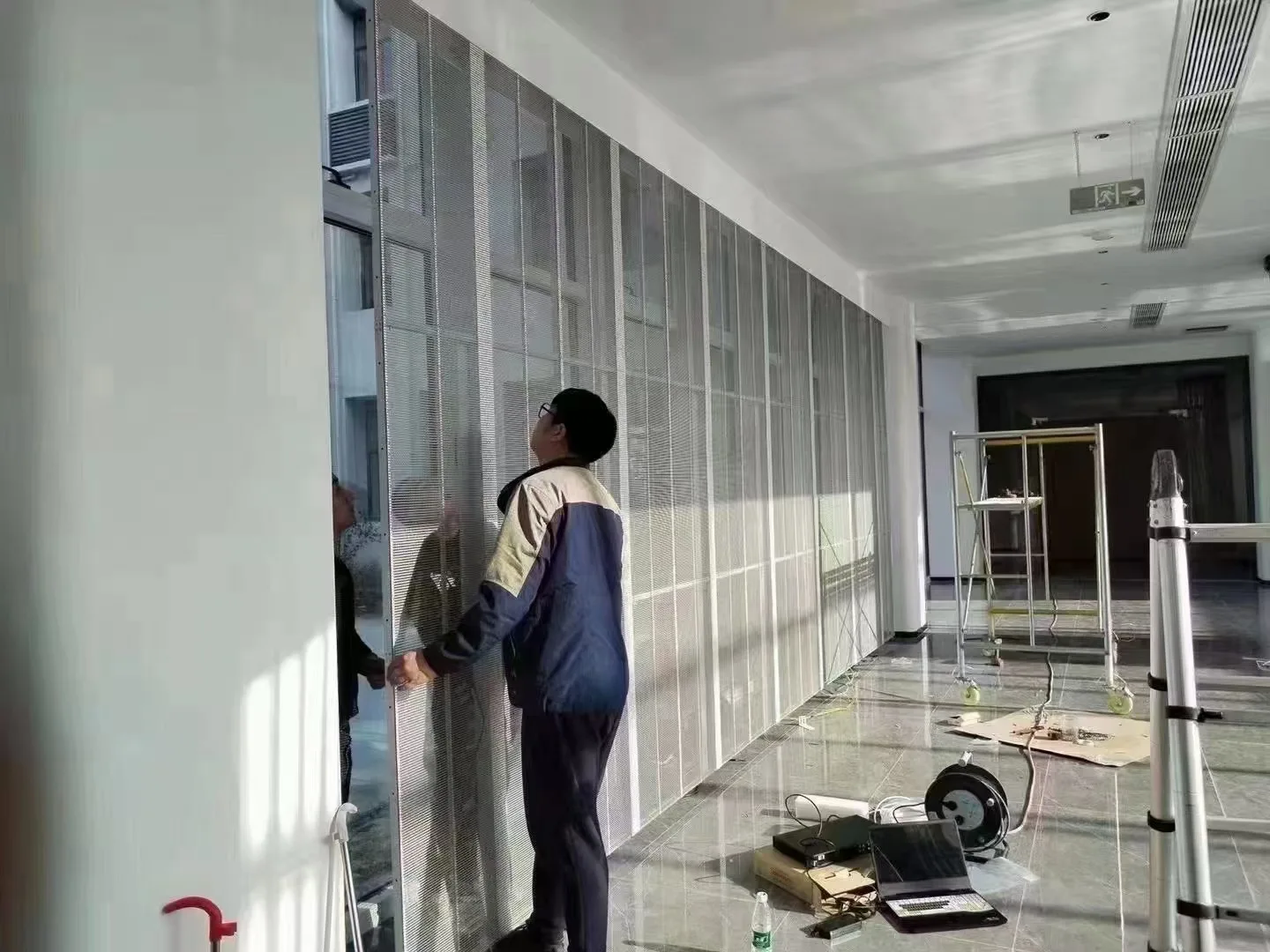

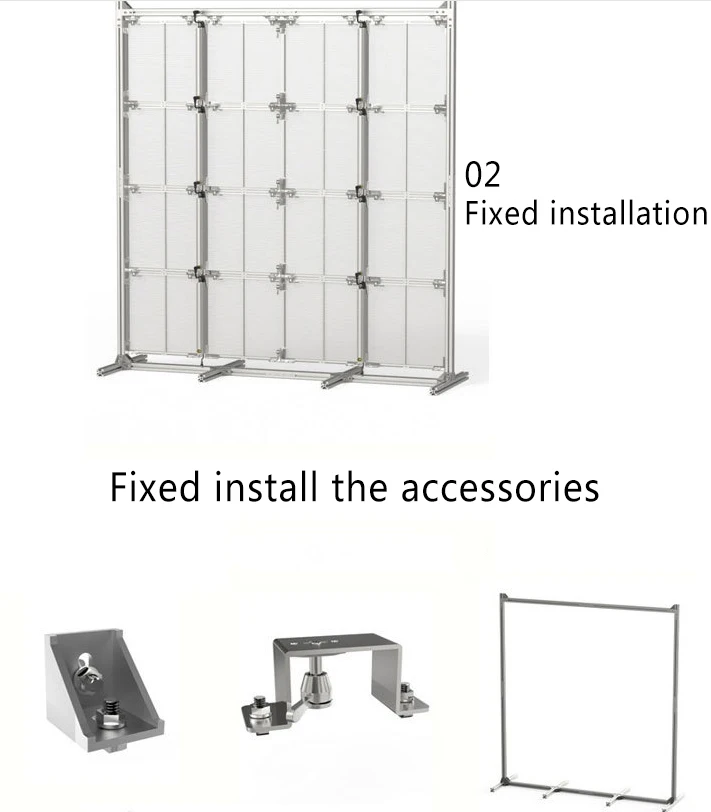

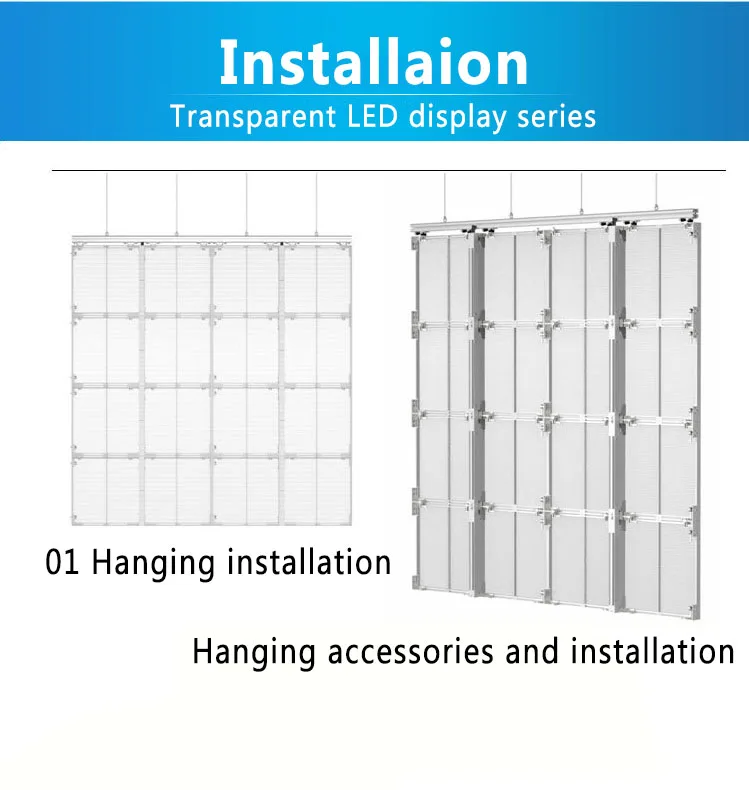

Install method

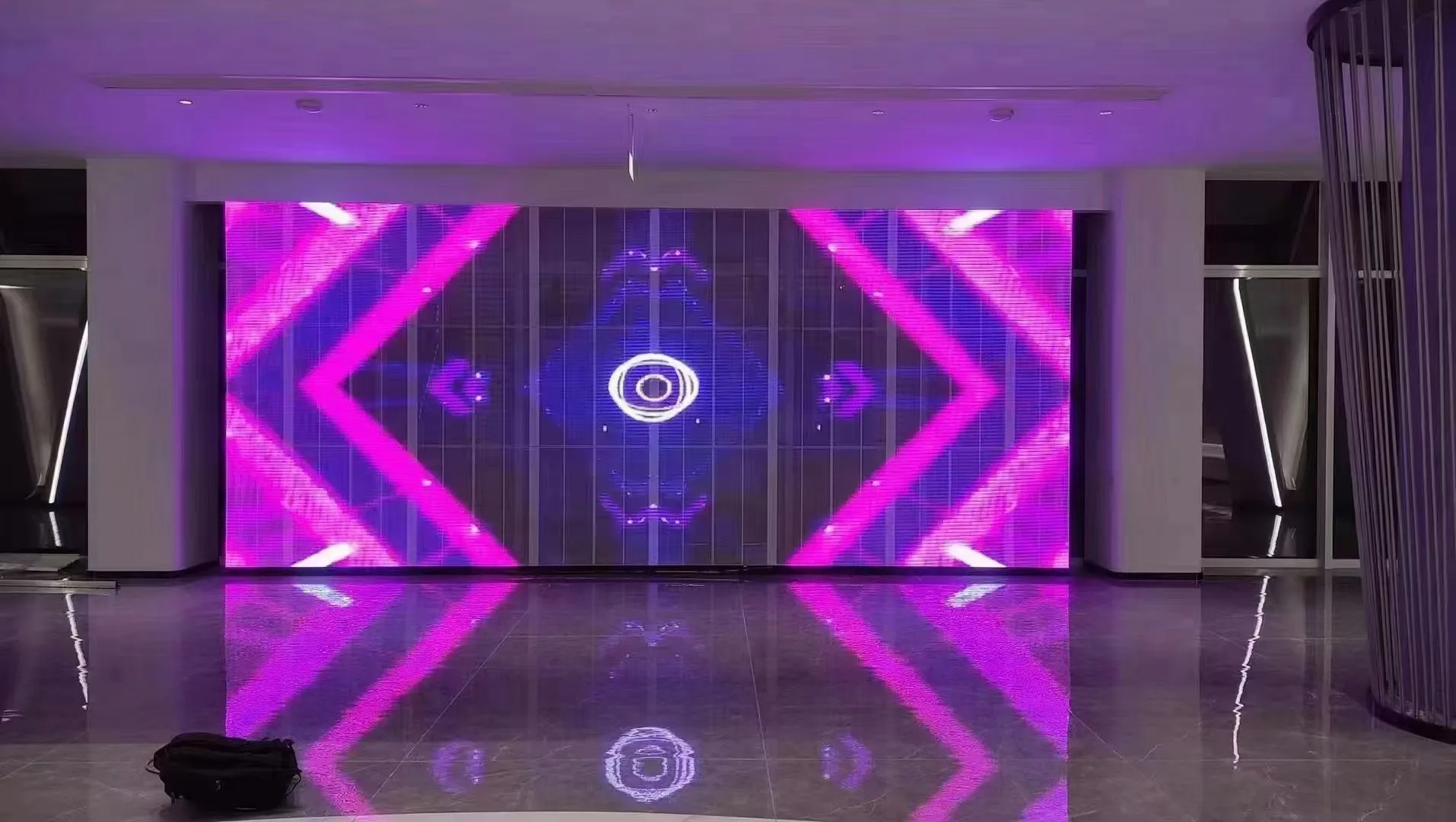

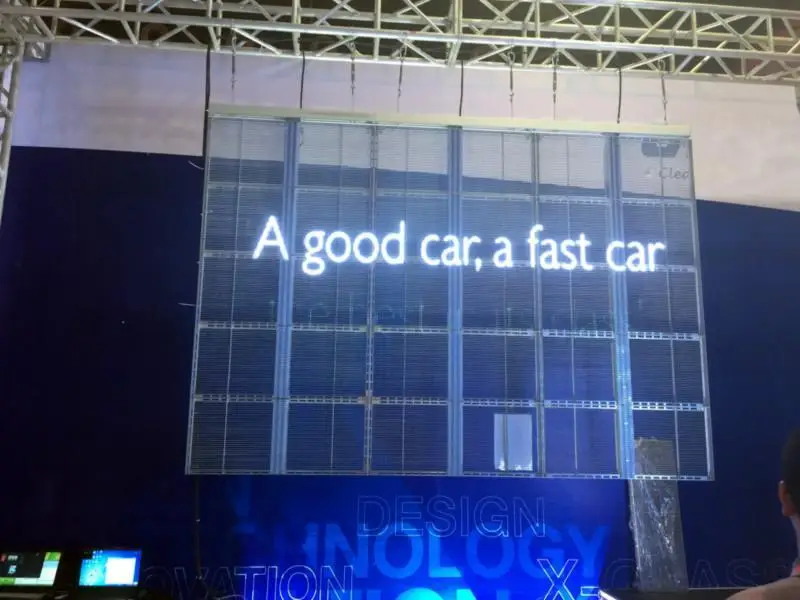

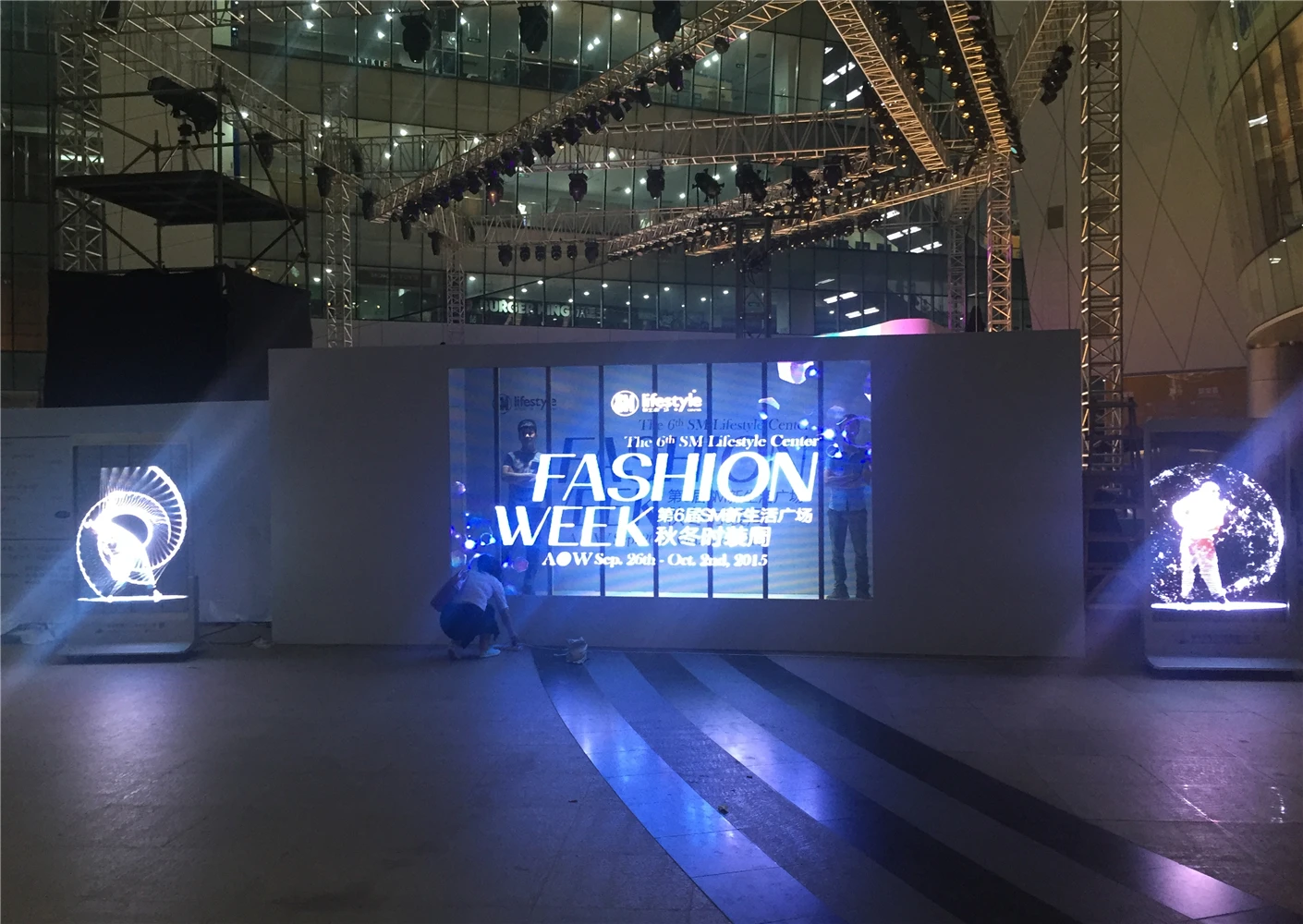

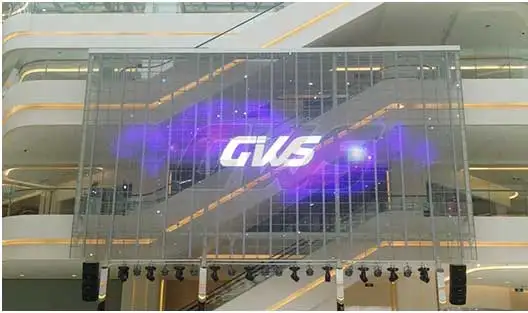

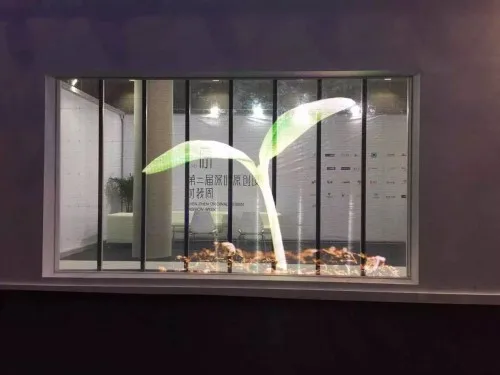

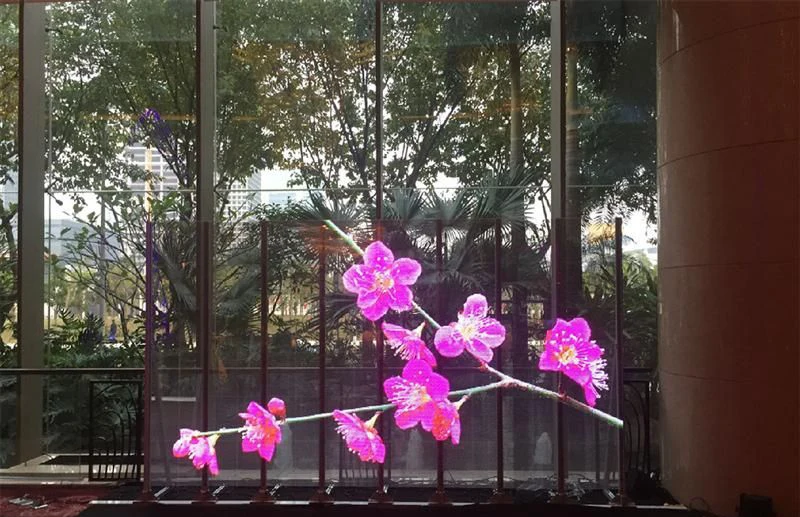

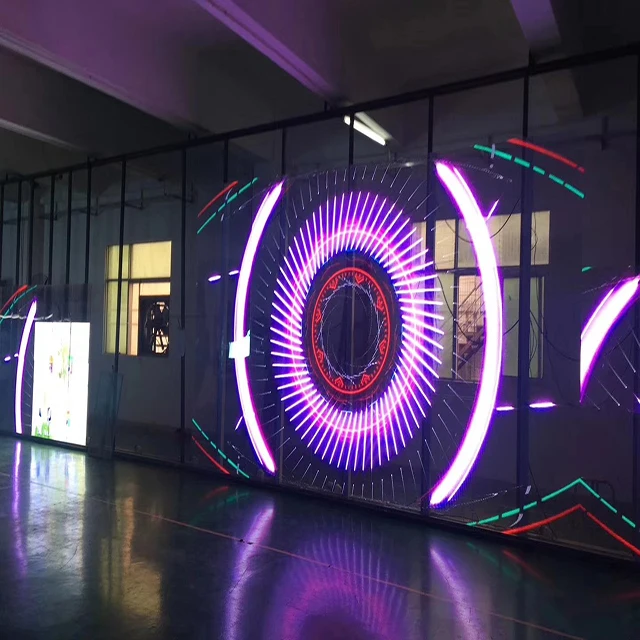

Application
Packing&Shipping
Package type: 1.Flight case 6 in 1 or 8 in 1;2.Carton box; 3. Wooden Box, 6 in 1;
Port: ShenZhen
Port: ShenZhen

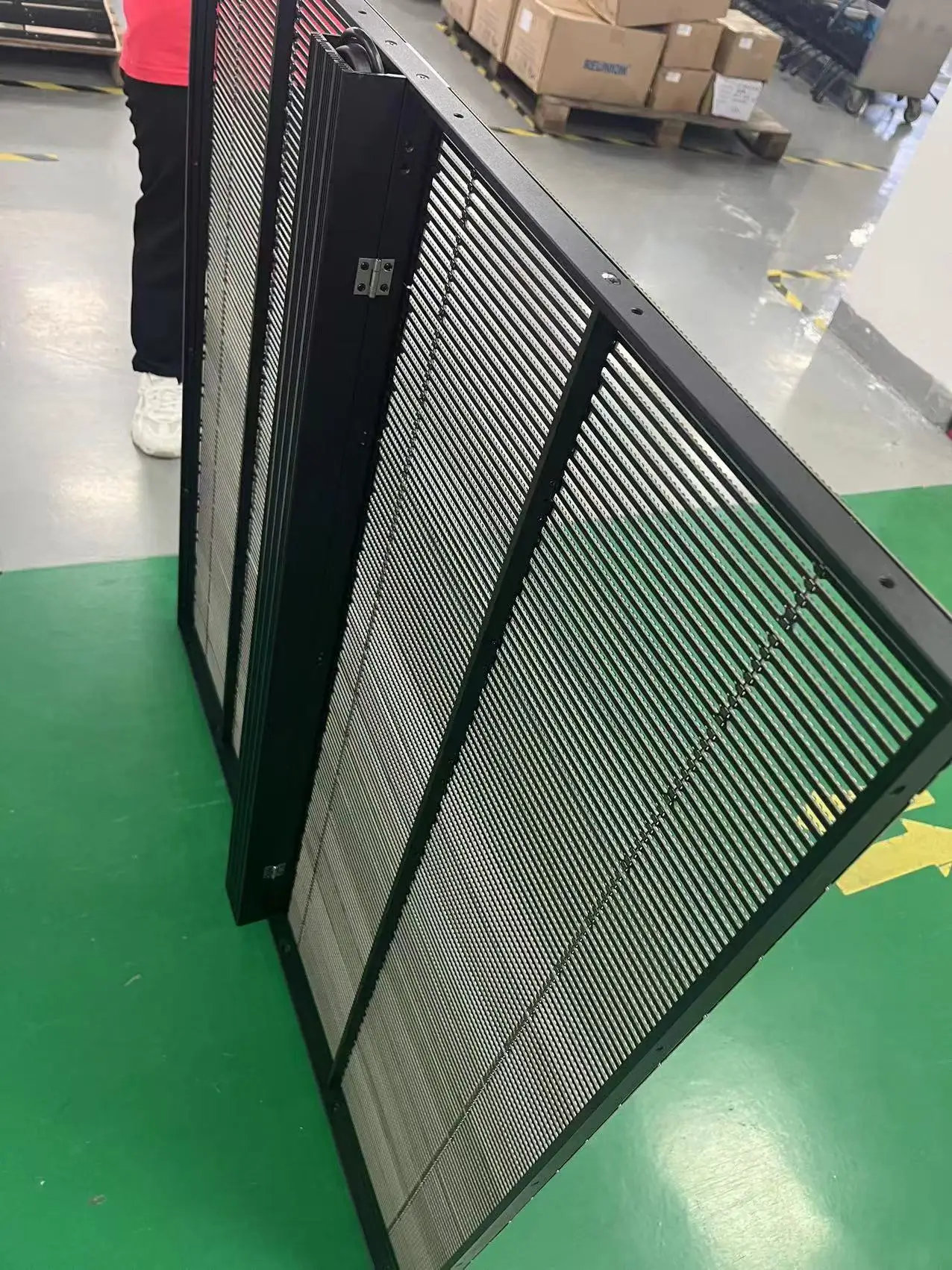

Our Factory
FAQ
Pre-sale service:
1. Inquiries will be replied within 24 hours. 2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
How to Order?
1. Know your application, indoor or outdoor use, fixed install in one place or move often.
2. Know you desired size or available space for the LED Display
3. Know the types of message you want to display on your LED Display: Picture messages, or video messages.
4. Know your budget – need to balance between what you want to do and your budget to choose an optimal LED Display.
5. Choose your resolution (pixel pitch) depending on your need and your budget.
6. If you are not sure, you can contact us with above information. Our knowledgeable customer service will help you choose a right led display for you.
What is after sale service?
RE: Our engineer will give you the drawing CAD, after you are ordered the display, our engineer can remote control, before you got the display, our engineer will design customized drawings for you, Because different size, installation ways, different drawings.
How to install?
RE: We have 2 optional solutions.
a: Our professional engineers can go to your country to provide installation guidance on site, but you need to pay some fees, personnel $120 per day, and accommodation, airfare and so on.
b:Our company provides free training for new customers. When we confirm the order, you can send your engineers to our factory for free training. and our engineer will make the led cabinets which is very convenient for you to install it.
How are these LED lights controlled?
RE: We use colorlight control system. we can can provide C4 or C6 player box specification and manual. Before delivery, our engineer will shoot the video for installation and debugging. Including all connect cable video.main pow power cable ,main data cable connect diagram.
What the software your company uses for your product?
RE: Colorlight, Linsn or Nova is the main software we provide at the moment.
RE: Our engineer will give you the drawing CAD, after you are ordered the display, our engineer can remote control, before you got the display, our engineer will design customized drawings for you, Because different size, installation ways, different drawings.
How to install?
RE: We have 2 optional solutions.
a: Our professional engineers can go to your country to provide installation guidance on site, but you need to pay some fees, personnel $120 per day, and accommodation, airfare and so on.
b:Our company provides free training for new customers. When we confirm the order, you can send your engineers to our factory for free training. and our engineer will make the led cabinets which is very convenient for you to install it.
How are these LED lights controlled?
RE: We use colorlight control system. we can can provide C4 or C6 player box specification and manual. Before delivery, our engineer will shoot the video for installation and debugging. Including all connect cable video.main pow power cable ,main data cable connect diagram.
What the software your company uses for your product?
RE: Colorlight, Linsn or Nova is the main software we provide at the moment.
