Black 3K 12K Customized Width Best Sale High Quality Carbon Fiber Braided Sleeve For Heat Resistant
- Category: >>>
- Supplier: Wuxi GDE Technology Co. Ltd.Wuxi Ltd.
Share on (1601313696687):
Product Overview
Description
Product Description

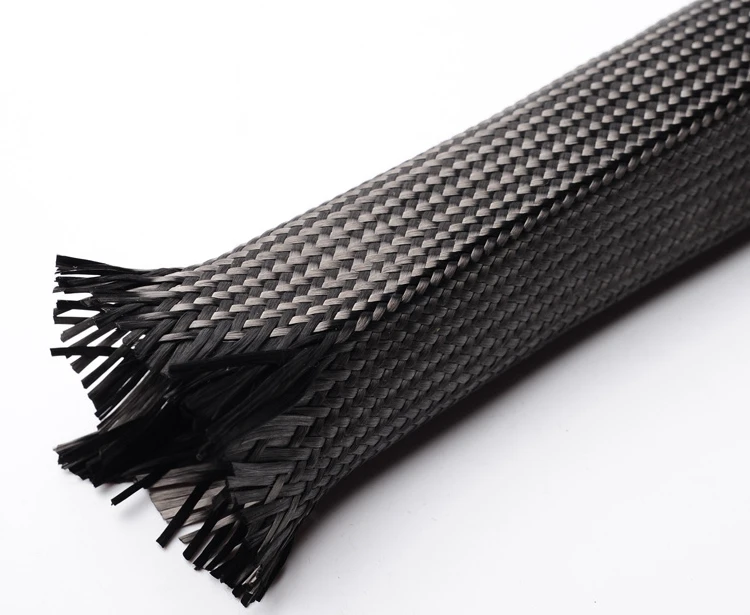

Carbon Fiber braided Sleeve can contract and expand when pulled or pushed resulting in a smaller diameter and longer length or a larger diameter and shorter length. As a result of this it is very difficult to measure woven sleeves by length when cutting. Measuring by length can result in a final cut length off by +/- 25% or more. To account for this problem we weigh all our sleeves and cut based on the weight not the length. This will result in a more accurate final cut length. Still using this method, lengths may be off by +/- 5%.
Specification
Type | Yarn | Strength diameter (mm) | Double Wall(mm) | Weight(g/m2) |
GDE-10 | 3K Carbon fiber | 8-12 | 0.8-0.9 | 10 |
GDE-13 | 3K Carbon fiber | 13-18 | 0.8-0.9 | 13 |
GDE-15 | 3K Carbon fiber | 19-22 | 0.8-0.9 | 15 |
GDE-20 | 3K Carbon fiber | 20-40 | 0.8-0.9 | 20 |
GDE-24 | 3K Carbon fiber | 40-50 | 0.8-0.9 | 24 |
GDE-29 | 3K Carbon fiber | 50-60 | 0.8-0.9 | 29 |
GDE-20 | 6k Carbon fiber | 15-25 | 1-1.2 | 20 |
GDE-26 | 6k Carbon fiber | 18-30 | 1-1.2 | 26 |
GDE-29 | 6k Carbon fiber | 19-35 | 1-1.2 | 29 |
GDE-39 | 6k Carbon fiber | 30-50 | 1.2-1.5 | 39 |
GDE-48 | 6k Carbon fiber | 50-65 | 1.2-1.5 | 48 |
GDE-58 | 6k Carbon fiber | 60-80 | 1.2-1.5 | 58 |

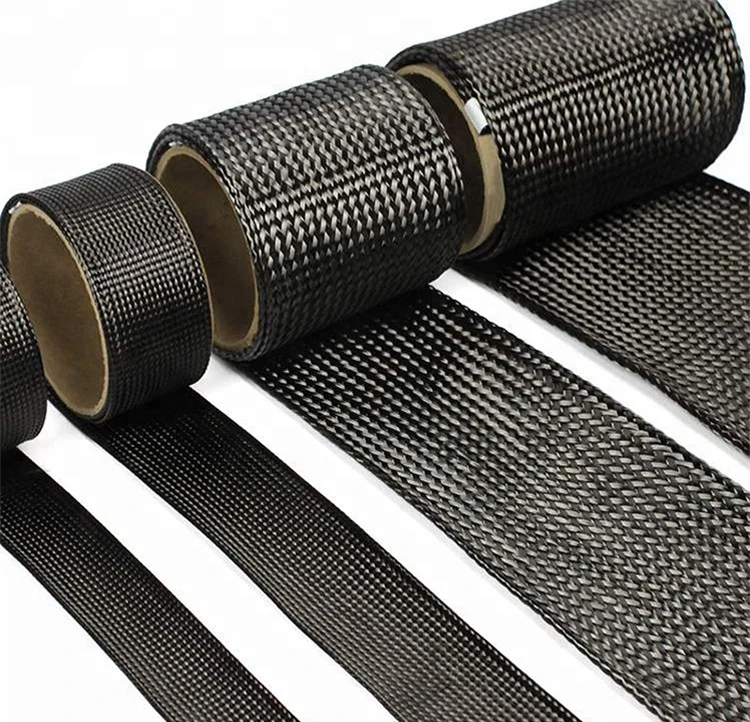

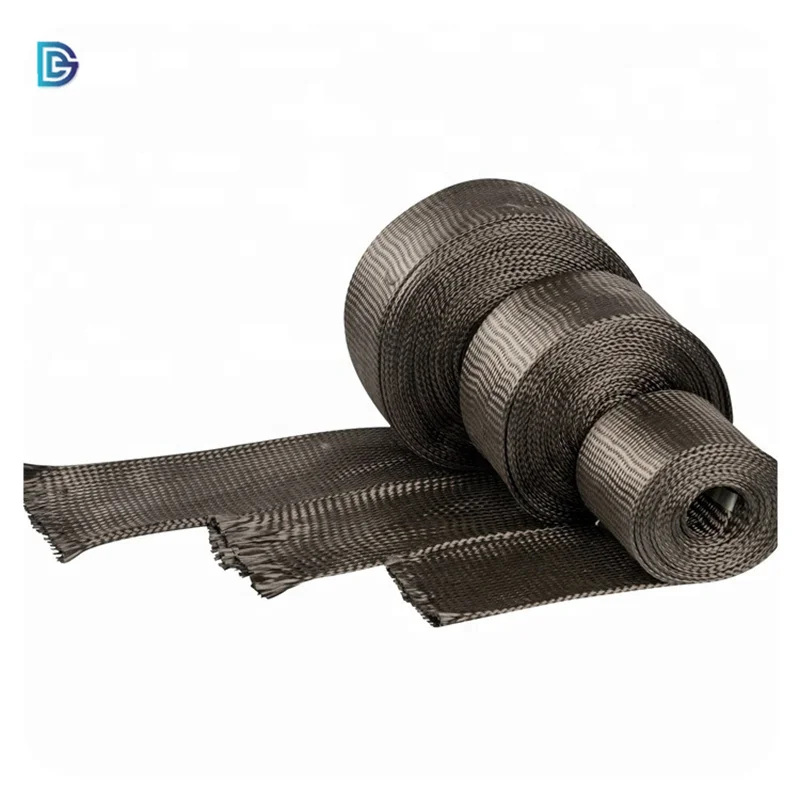

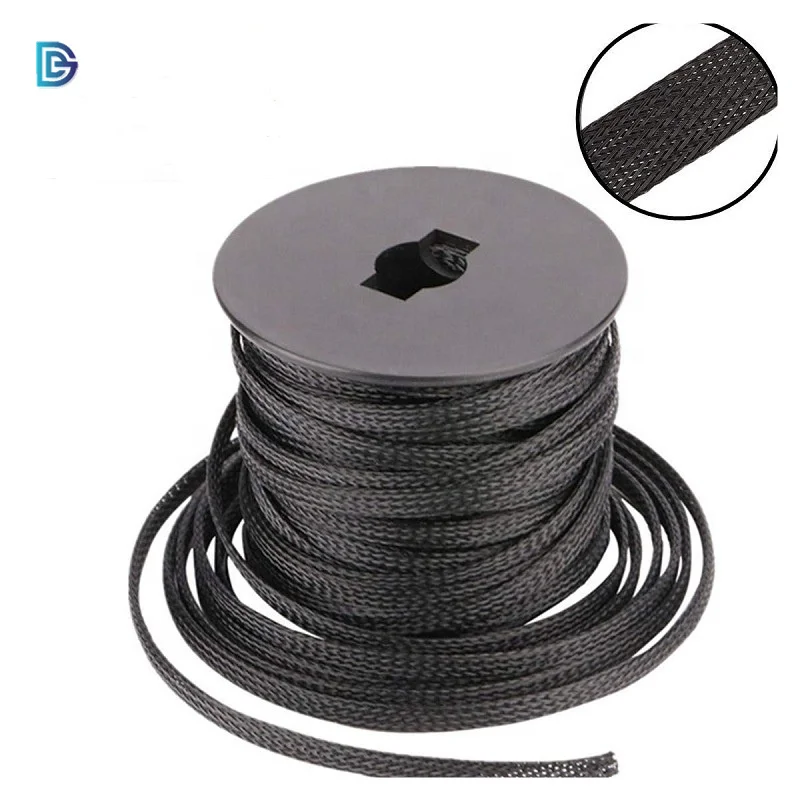

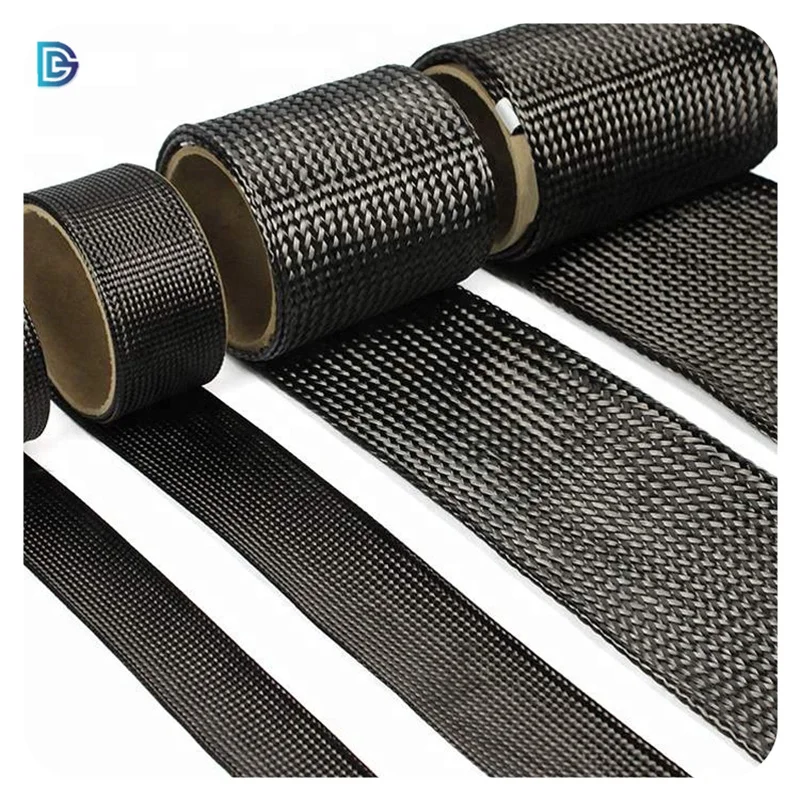

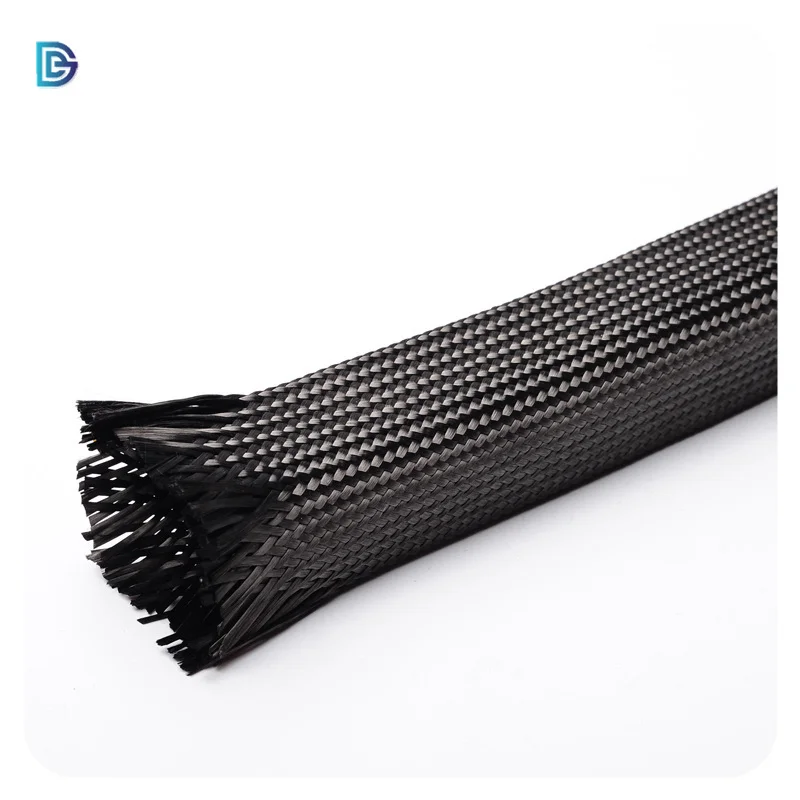

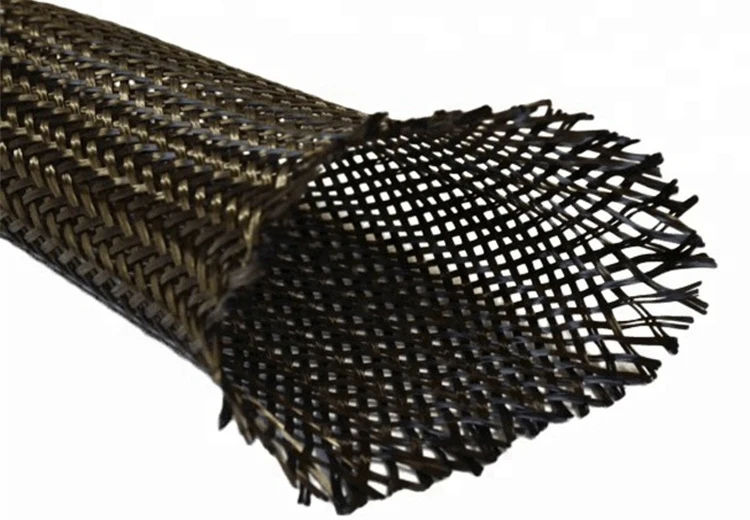

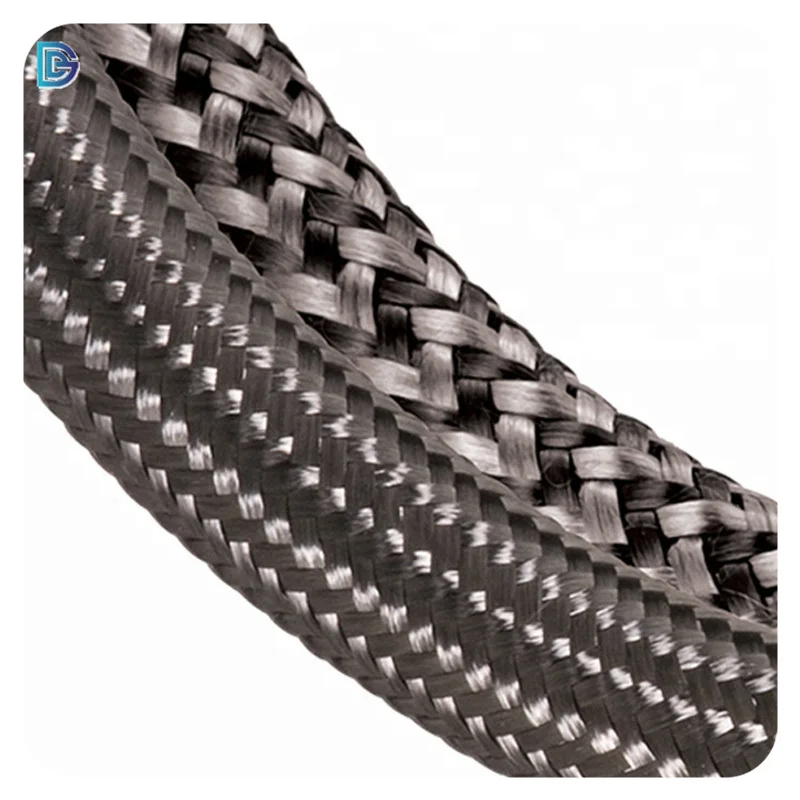

Detailed photos
Related products

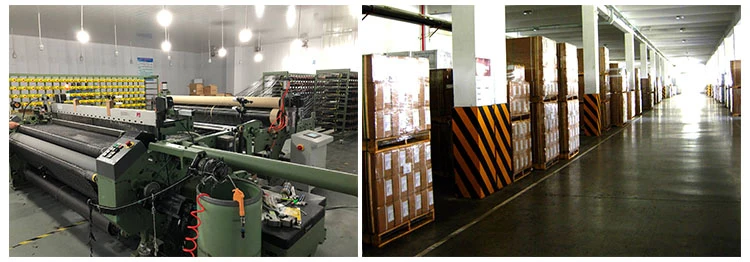

Workshop
Why Choose Us
Transport & Payment
FAQ
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can I get sample order?
Yes, welcome sample order to test and check our quality! Some of sample we can free to supply. Customer just need to bear the
shipping cost.
3. What's the lead time for regular order?
Stock available!Customized order 1-3 days for small quantity ; For more quantity 5-9 days negotiate with us.
4. Can I get a discount?
Yes, for the order quantity negotiate with us.
5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can I get sample order?
Yes, welcome sample order to test and check our quality! Some of sample we can free to supply. Customer just need to bear the
shipping cost.
3. What's the lead time for regular order?
Stock available!Customized order 1-3 days for small quantity ; For more quantity 5-9 days negotiate with us.
4. Can I get a discount?
Yes, for the order quantity negotiate with us.
5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
