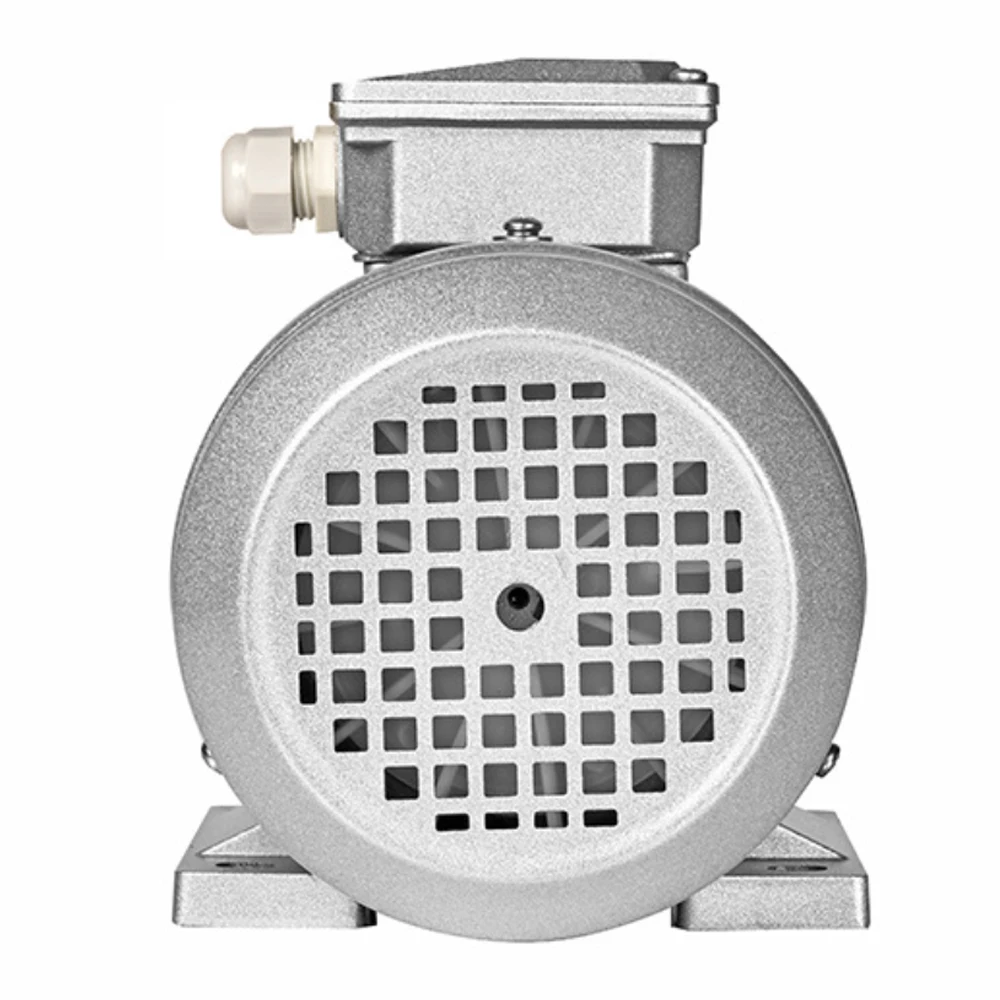

MS132S2 2 7.5kw 2 pole 2950rpm Three phase Aluminum Housing Copper Wire Induction Asynchronous MS Motor Factory OEM

Product Overview

Description

MS132S2-2 7.5kw 2-pole 2950rpm Three-phase Aluminum Housing Copper Wire Induction Asynchronous MS Motor Factory OEM



INTRODUCTION:
MS series three-phase asynchronous motors with aluminum housing adopted the newest design and high quality material. It is conformity with the IEC34-1 standards. The efficiency of the motors can meet EFF2 and EFF1 if requested. It has good features: perfect performance, low noise, slight vibration, reliable running, good appearance, small volume and light weight.

Use environment :
OPERATING CONDITIONS
Ambient temperature: -15°C<q<40°C
Altitude: not exceed 1000m

Product characteristic :

Rated voltage: 380V, any voltage between 220V-760V
Rated frequency: 50HZ or 60HZ
Protection class: IP55
Insulation class:  F . H
Cooling method: IC 411
Duty: S1(continuous)
Connection: Star-connection for up to 3KW, delta-connection for 4KW and above.
Shaft: Close keyway
Bearing: SKF, NSK or NTN
Remark: Motors can be equipped with PTC, fixed foot (terminal box on top), extruded frame removable foot (terminal box on top) or die casting frame direction changed removable foot (terminal box on top, right or left side) at buyer's option.
