DIN Rail Aluminum Enclosure for 12V 5A 15W Switching Power Supply, CE & RoHS Certified AC to DC Converter
DIN Rail Aluminum Enclosure for 12V 5A 15W Switching Power Supply, CE & RoHS Certified AC to DC Converter
DIN Rail Aluminum Enclosure for 12V 5A 15W Switching Power Supply, CE & RoHS Certified AC to DC Converter
DIN Rail Aluminum Enclosure for 12V 5A 15W Switching Power Supply, CE & RoHS Certified AC to DC Converter
DIN Rail Aluminum Enclosure for 12V 5A 15W Switching Power Supply, CE & RoHS Certified AC to DC Converter
DIN Rail Aluminum Enclosure for 12V 5A 15W Switching Power Supply, CE & RoHS Certified AC to DC Converter
DIN Rail Aluminum Enclosure for 12V 5A 15W Switching Power Supply, CE & RoHS Certified AC to DC Converter

DIN Rail Aluminum Enclosure for 12V 5A 15W Switching Power Supply, CE & RoHS Certified AC to DC Converter

Share on (1601313752273):


Price:$7.20-8.00

Quantity:


Product Overview

Description



Product Description




Specification


SPECIFICATIONS
OUTPUT
Model
DR-45-5
DR-45-12
DR-45-15
DR-45-24
DC Voltage
5V
12V
15V
24V
Rated Current
5A
3.5A
2.8A
2A
Current Range
0-5A
0-3.5A
0-2.8A
0-2A
Rated Power
25W
42W
42W
48W
Ripple & Noise
100mVp-p
200mVp-p
240mVp-p
480mVp-p
Voltage Adj. Range
4.75-5.5V
10.8-13.2V
13.5-16.5V
21.6-26.4V
Voltage Tolerance
±2%
±1%
±1%
±1%
Line regulation
±1%
±1%
±1%
±1%
Load regulation
±1%
±1%
±1%
±1%
Setup, Rise, Hold Up Time
800ms, 60ms/230VAC at full load
60ms/230VAC at full load
Voltage Range
85~264VAC 47~63Hz; 120~370VDC
AC Current
1.5A/115V 0.75A/230V
Efficiency
72%
77%
77%
80%
Inrush Current
Cold start 28A/115VAC 56A/230VAC
Leakage Current
<1mA/240VAC
Over Load
105%~150% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
5.75-6.75VAC
13.8-16.2VAC
17.25-20.25VAC
27.6-32.4VAC
Protection type: Shut off o/p voltage, clamping by zener diode
Over Temp..
Tj 135℃ typically (U1) Detect on heat sink of power transistor
Protection type: Shut down o/p voltage, re-power on to recover
Working Temp., Humidity
-10℃~+50℃; 20%~90%RH non-condensing
Storage Temp., Humidity
-20℃~+85℃; 10%~95%RH
Temp. Coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Withstand Voltage
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC/20℃/70%RH
Safety Standard
Design refer to UL508,TUV EN60950-1
EMC Standard
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2(EN50082-2),heavy industry level,
criteria A
Dimension
93*78*67mm (L*W*H)
Weight
0.31Kg
Packing
48pcs/17.5Kg/1.3CUFT

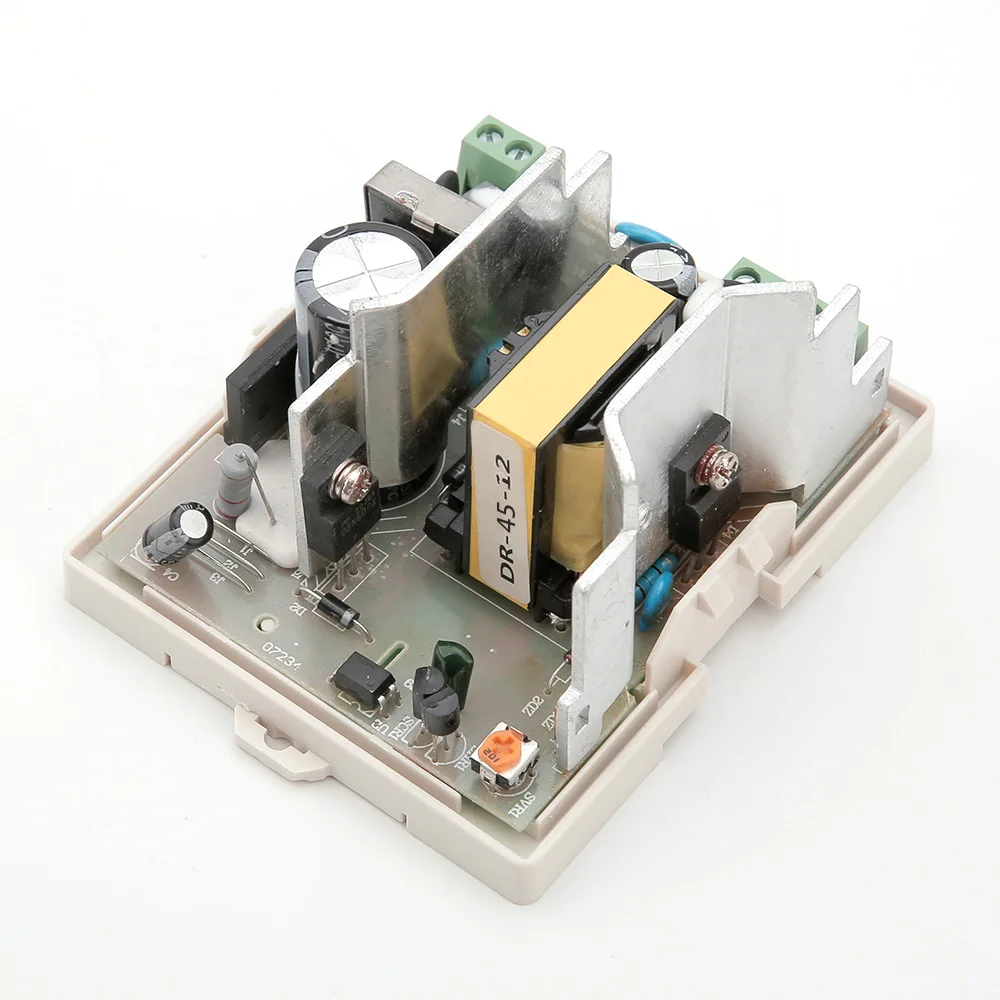

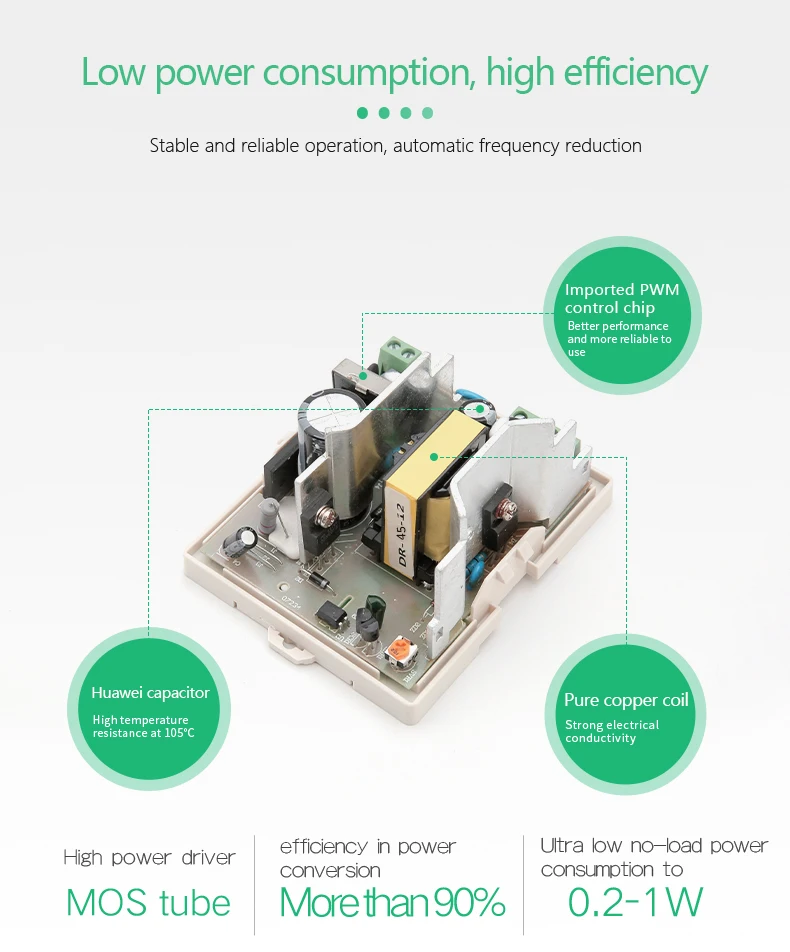

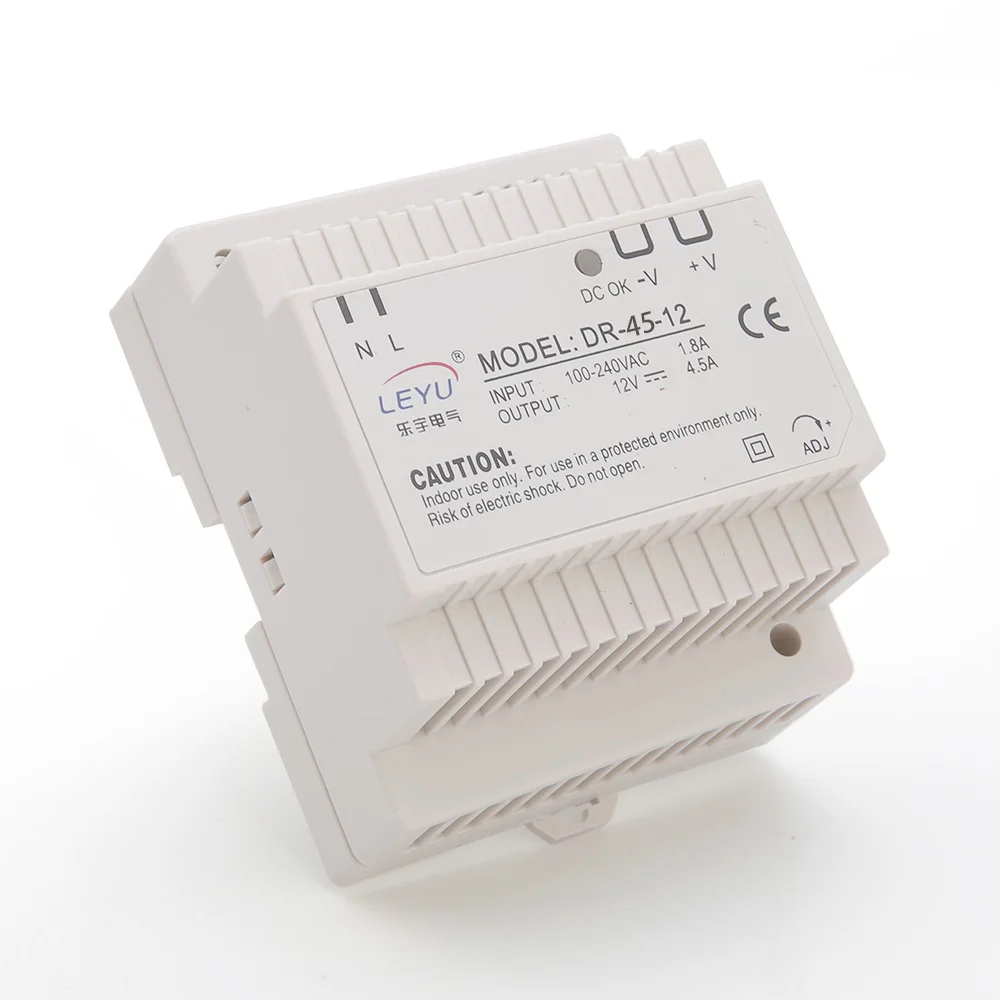

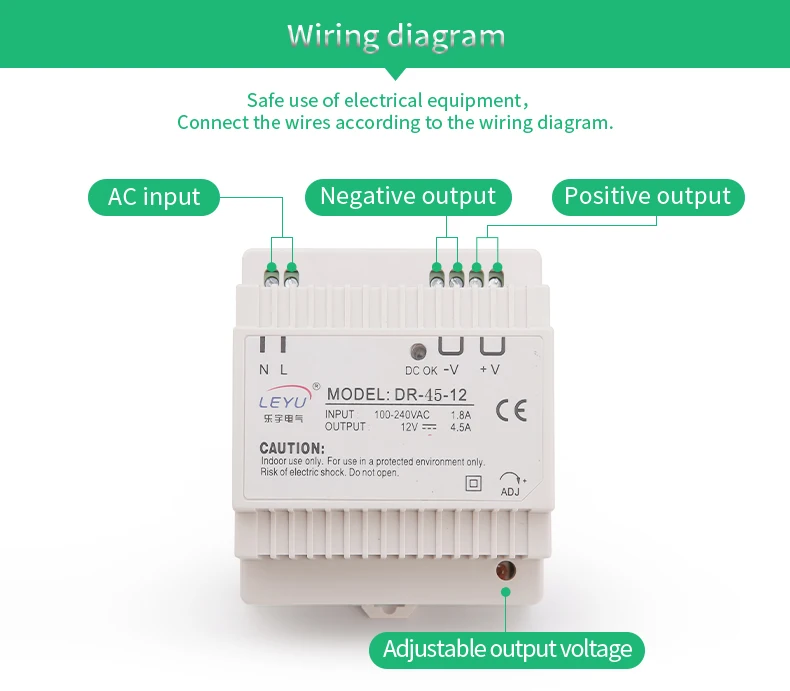

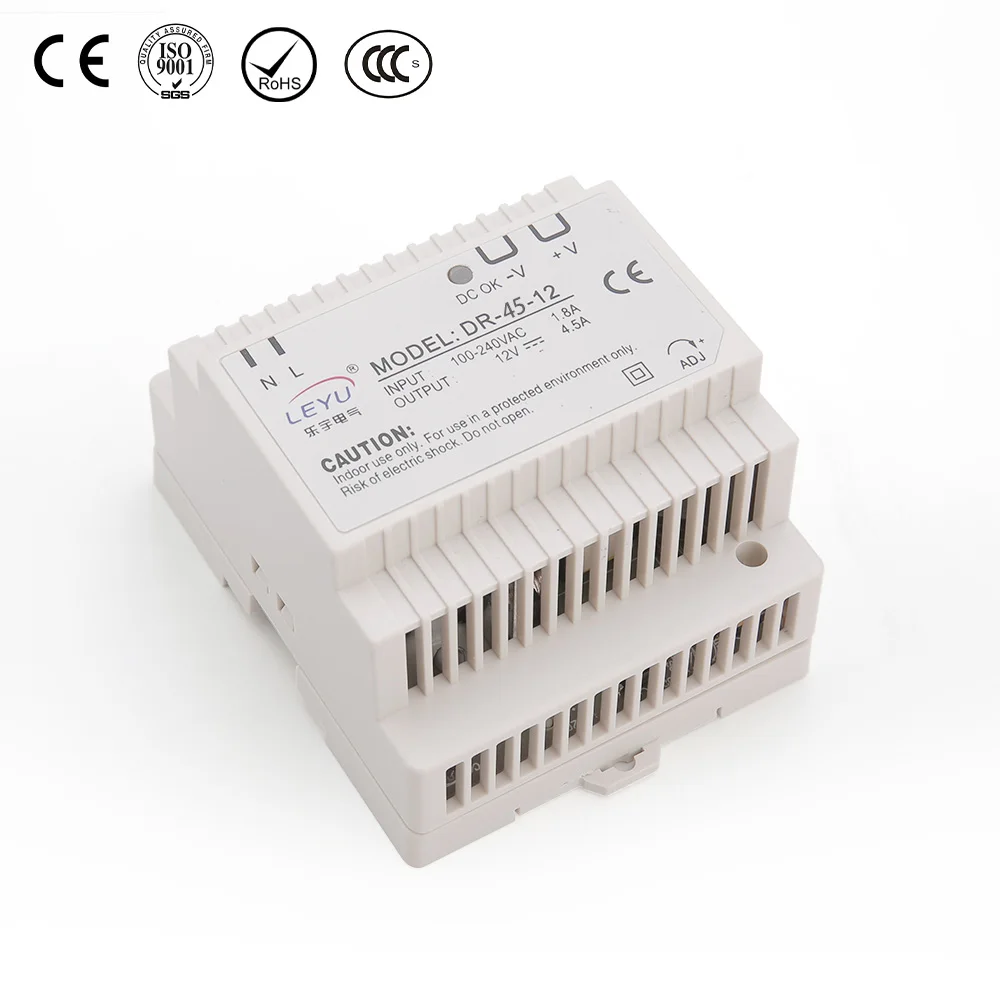

Details Images






Recommend Products


DR-15
DR-30
DR-45


DR-60
DR-75
DR-120


Company Profile










Packing & Delivery


Standard packing or as for your requirement .
