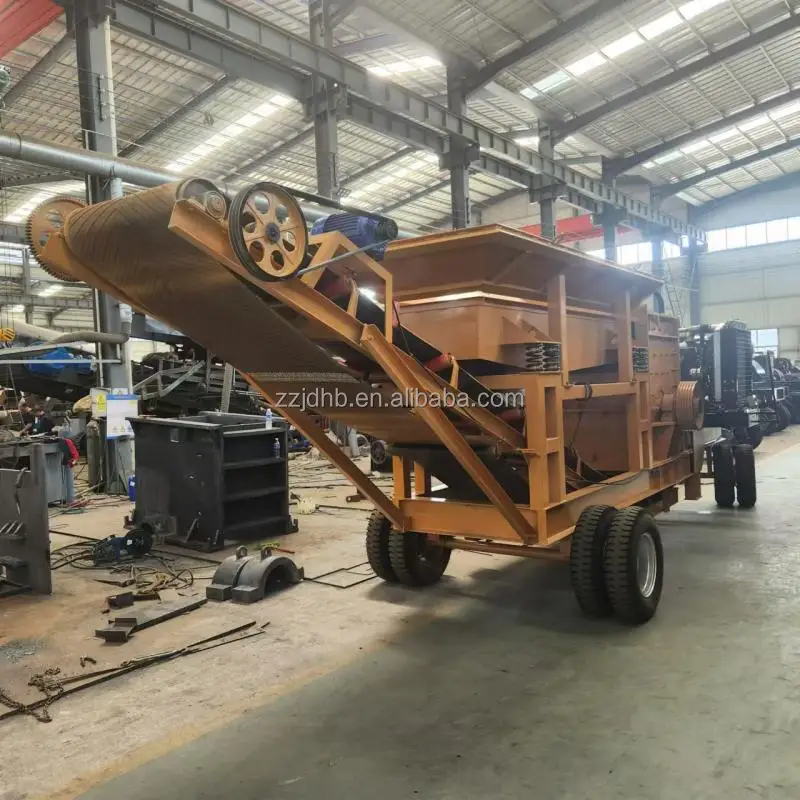

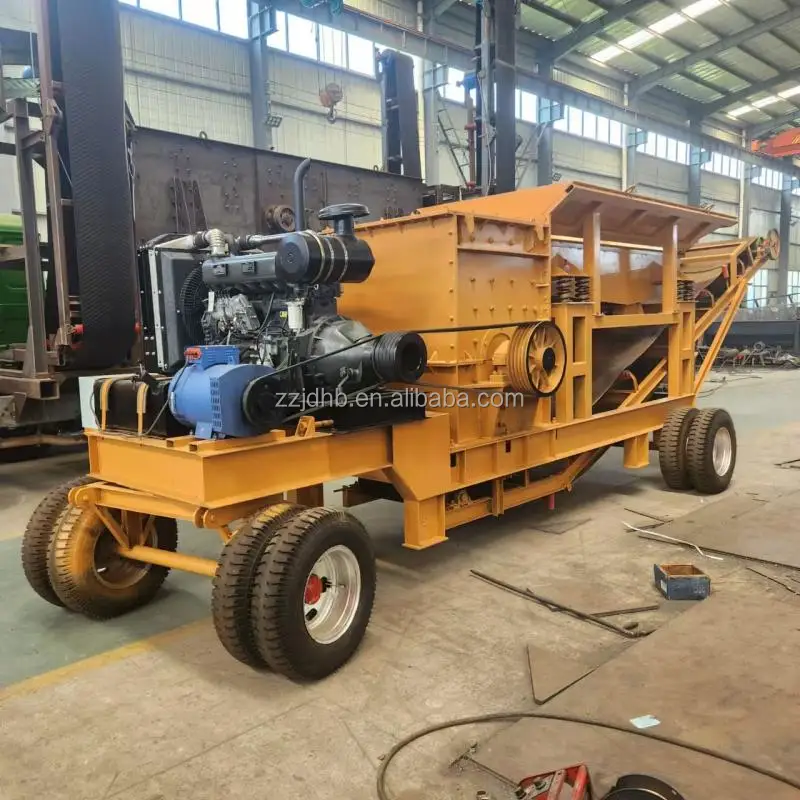

Factory direct selling Mobile Crushing Station High performance mineral crusher High yield discount price box crusher
- Category: >>>
- Supplier: Zhengzhou Juding Environmental Protection Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601313816274):
Product Overview
Description

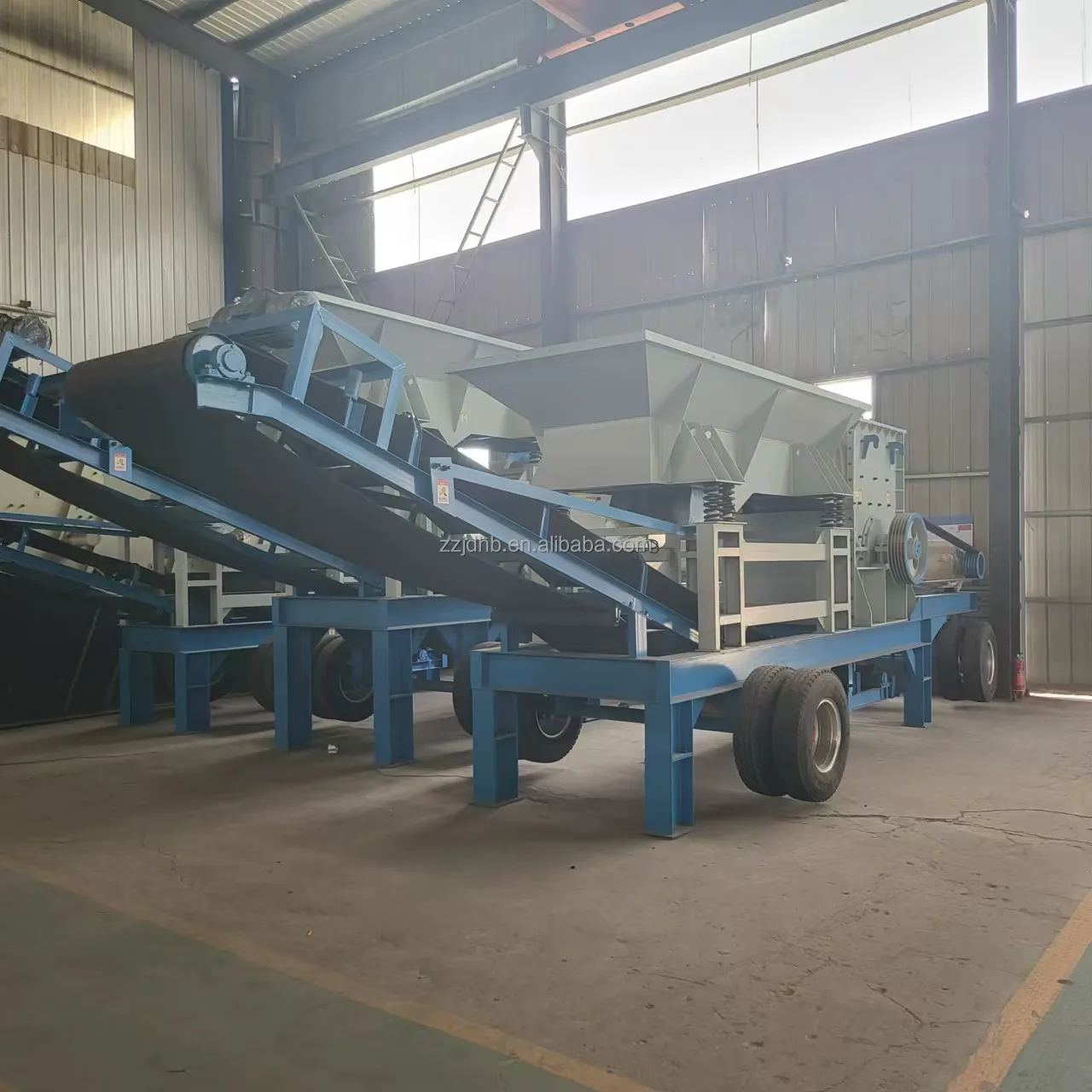

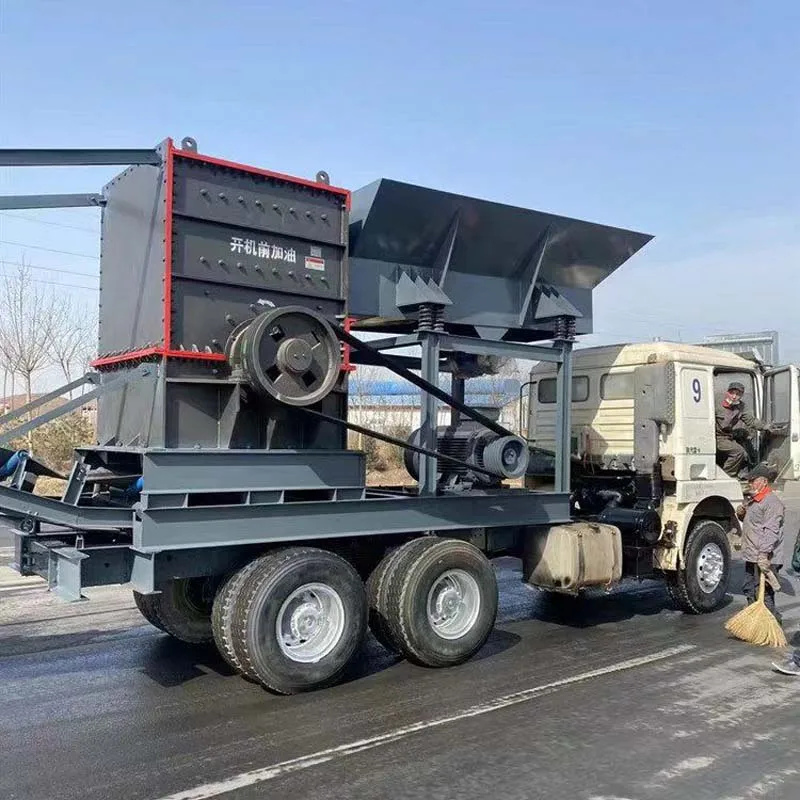

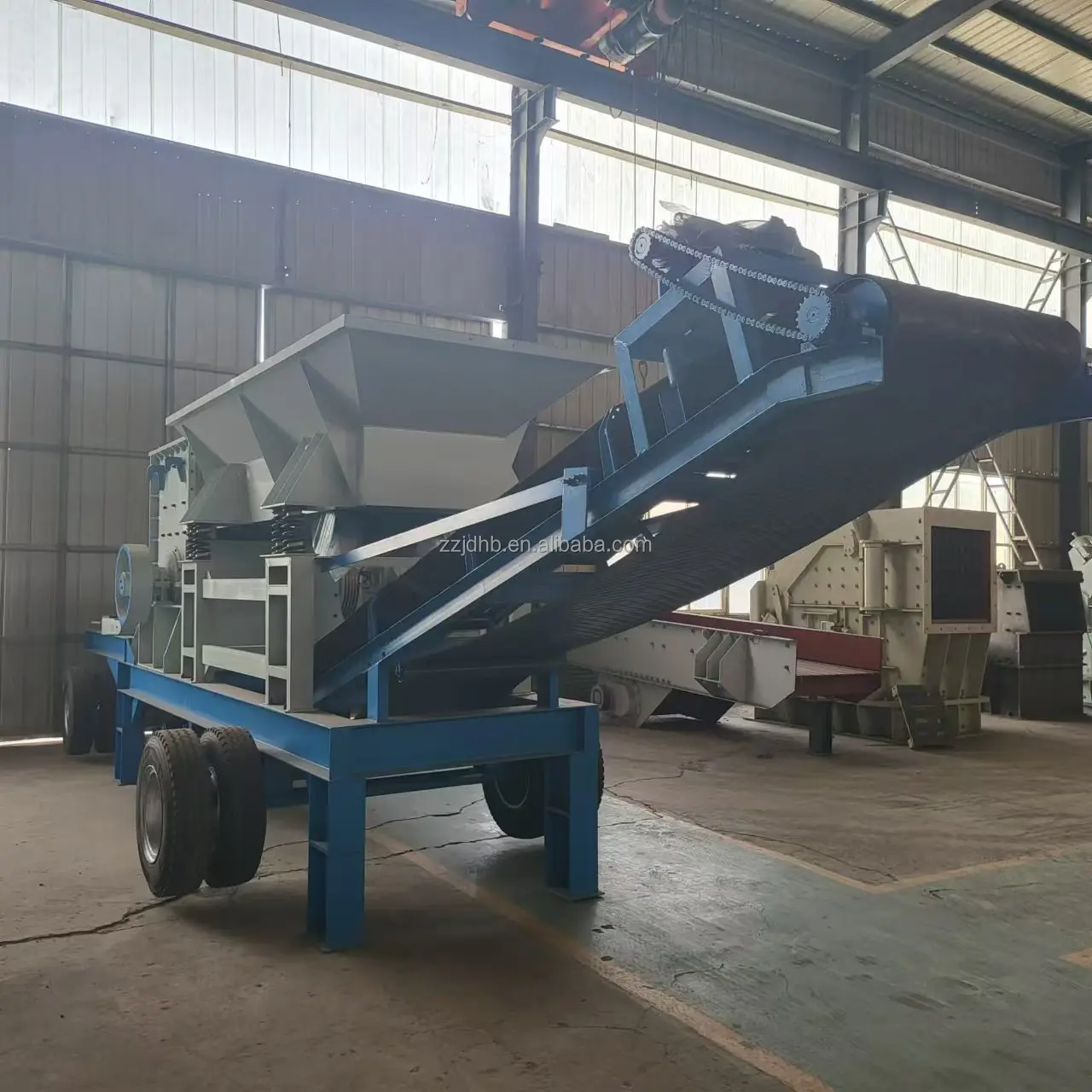

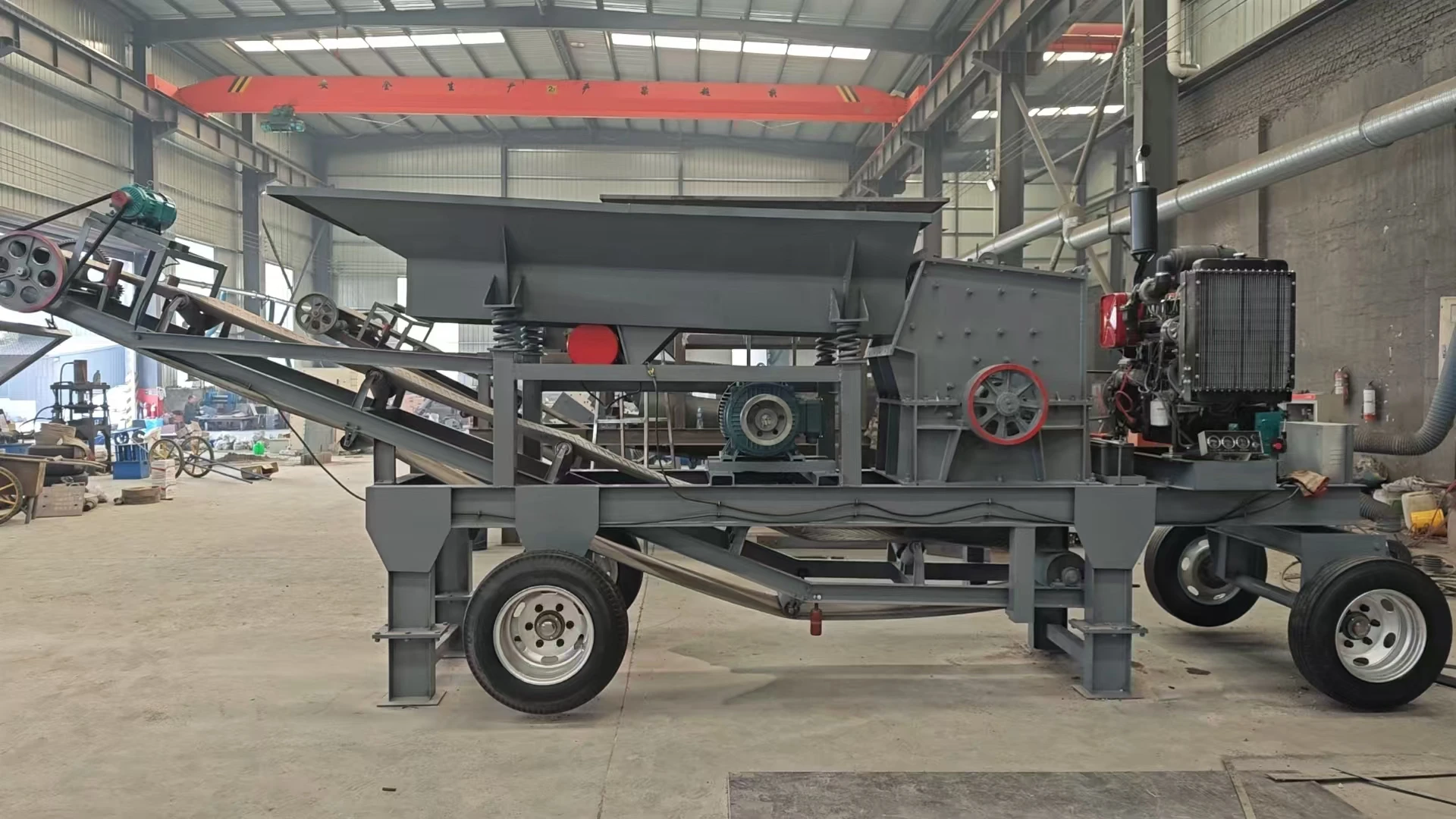

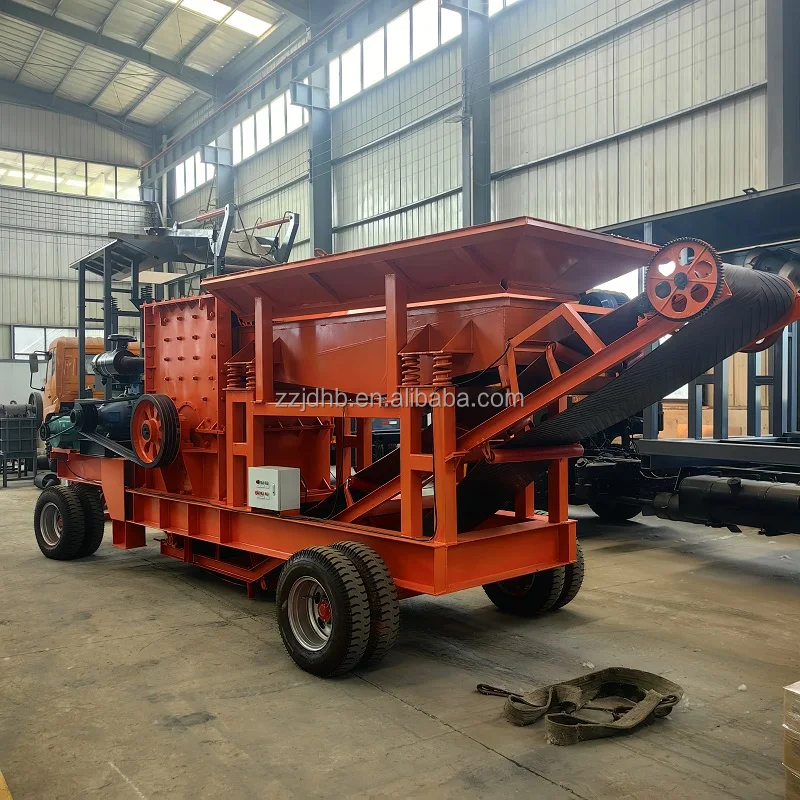

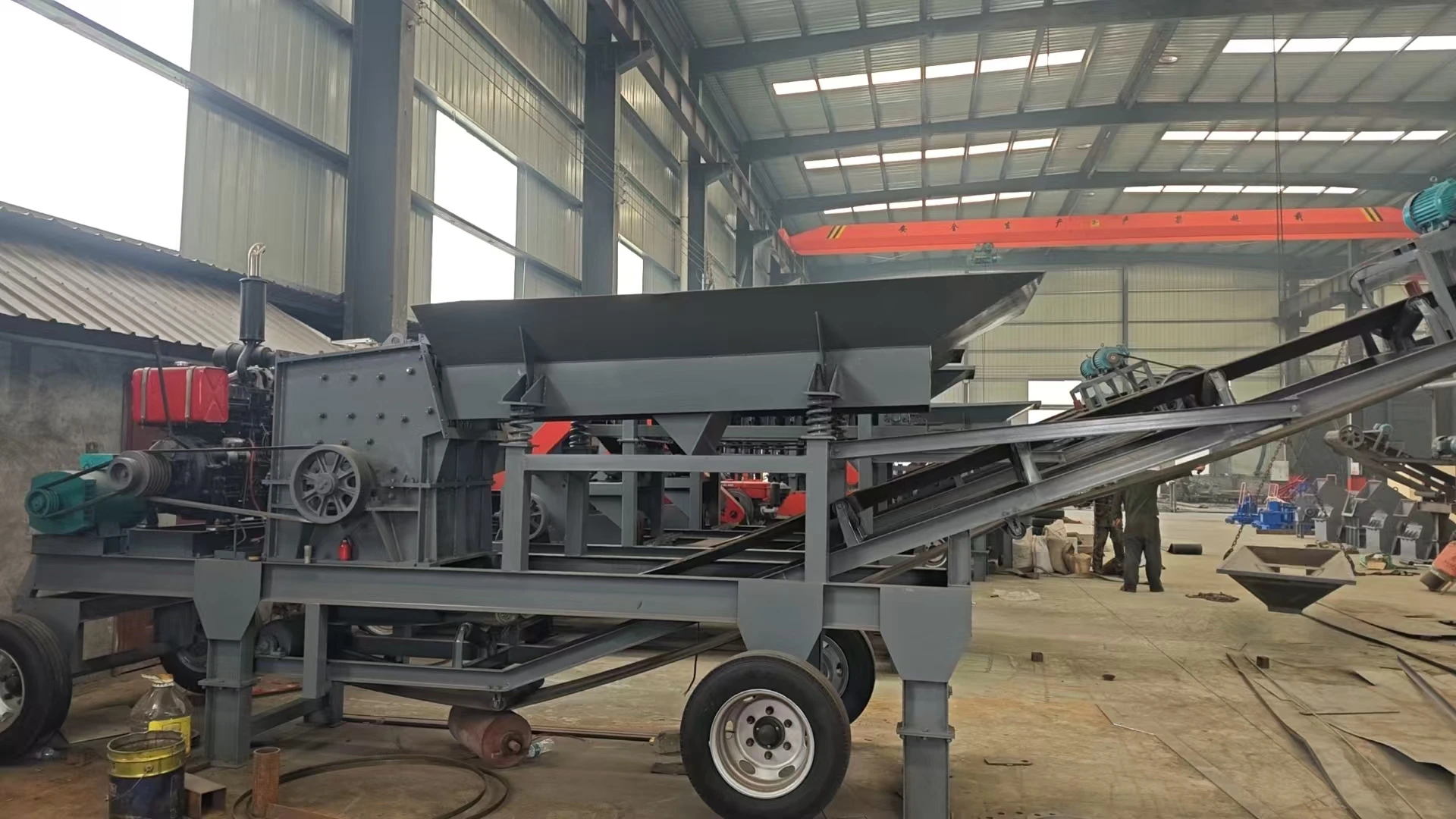

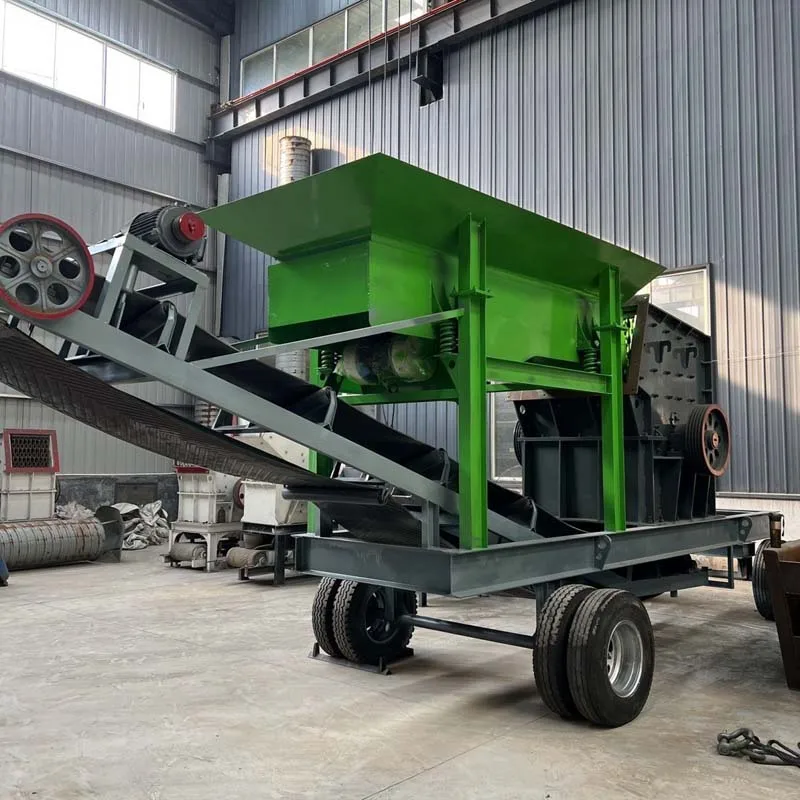

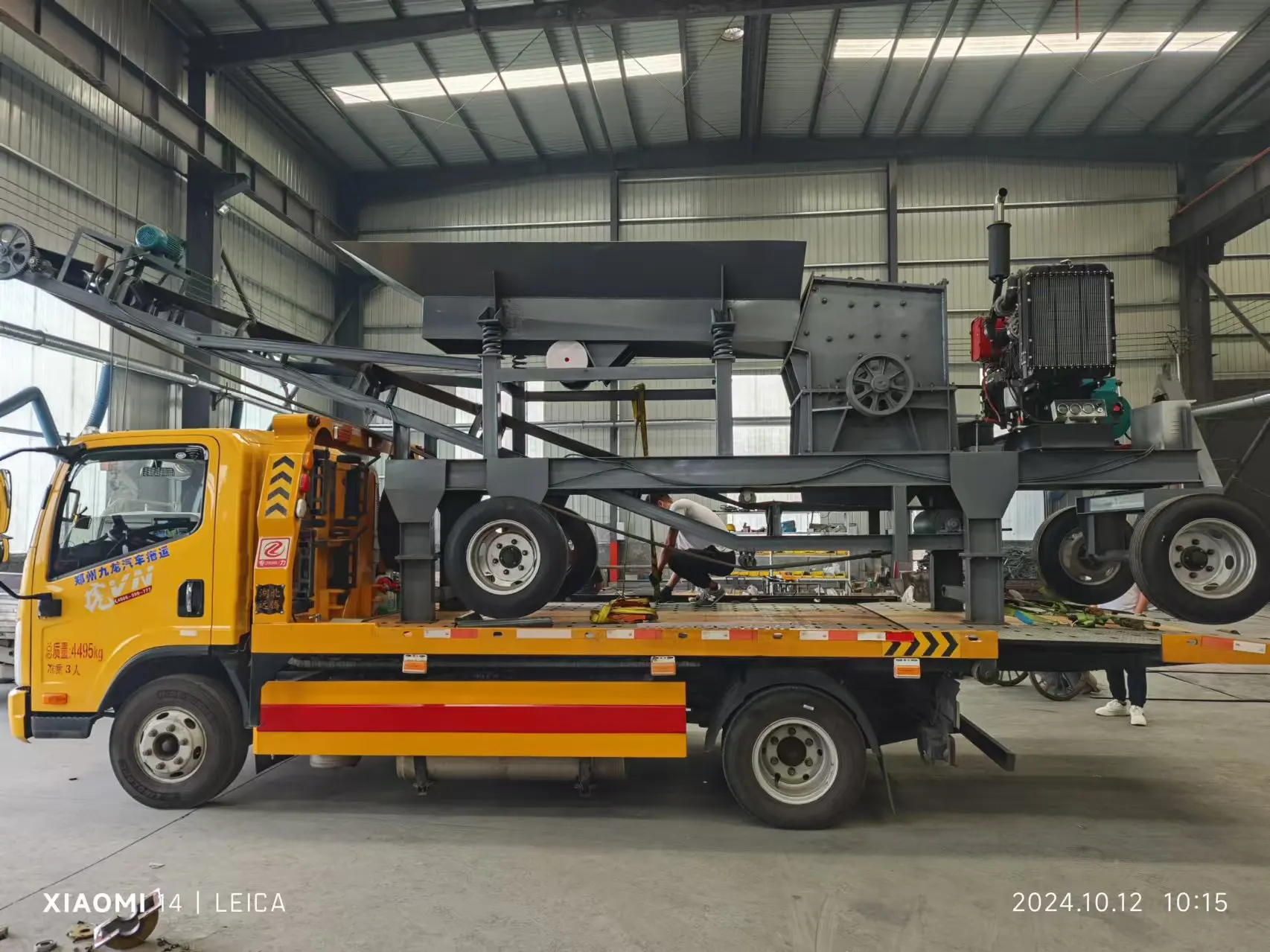

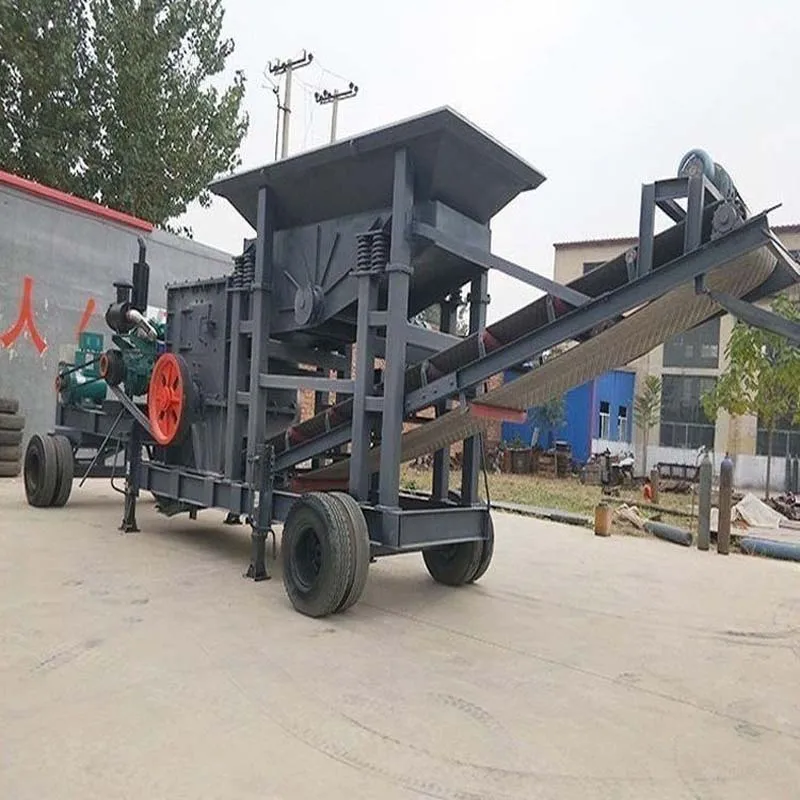

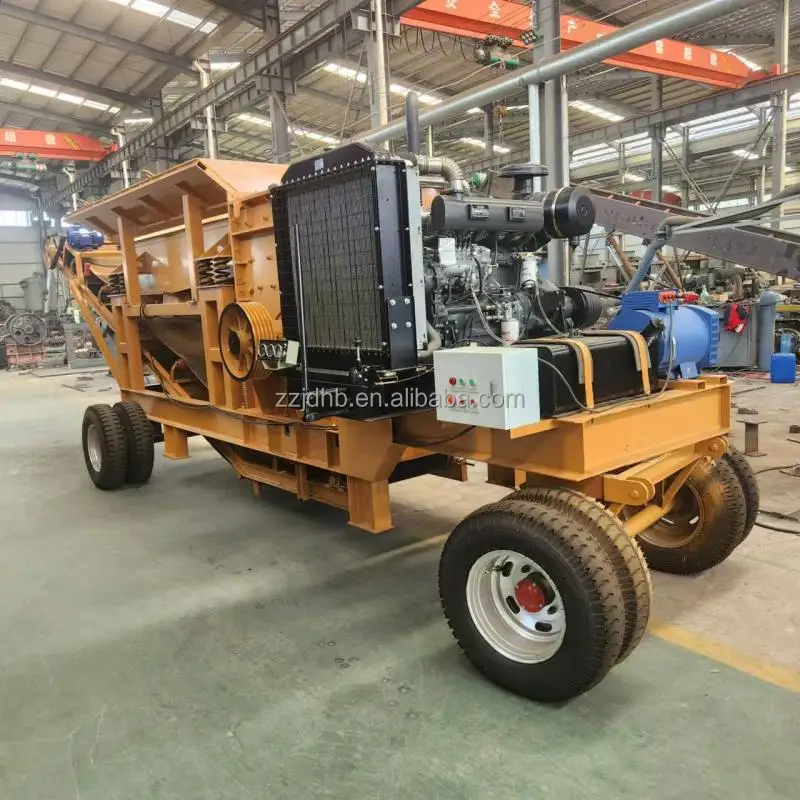

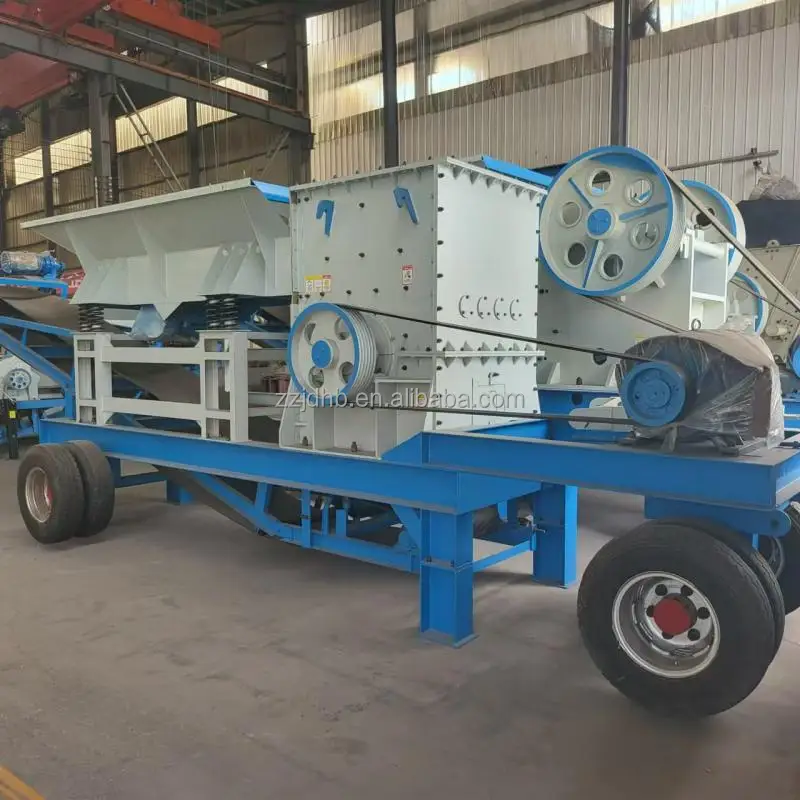

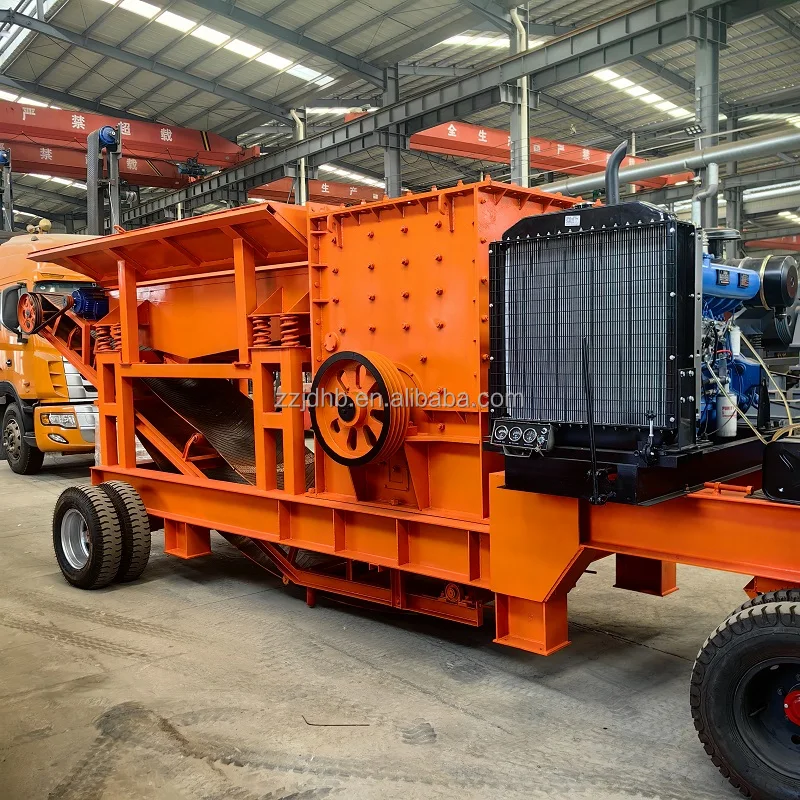

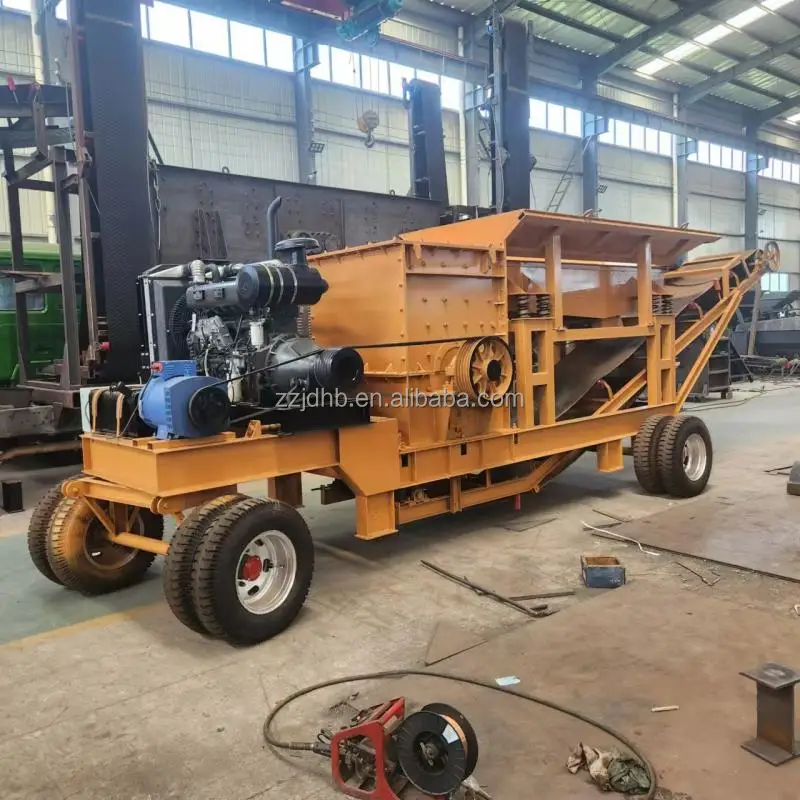

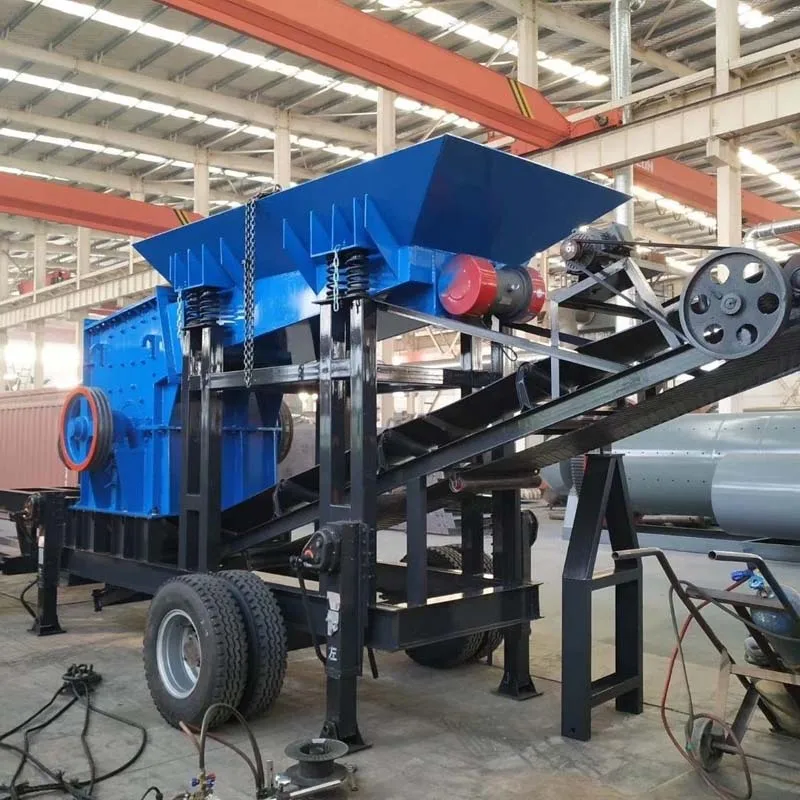

Mobile Box Crusher
The box crusher is mainly used for crushing materials below medium hardness and brittle materials, such as coal,cement,gypsum,alum, bricks, tiles, limestone, etc. The compressive strength of the material should not exceed 300 MPa, and the humidity should not exceed 15%. The equipment has the characteristics of simple structure, large crushing ratio, high production capacity and uniform particle size of the finished product. Different discharge sizes can be achieved according to customer requirements.
The stone falls into the high-speed rotating turntable from the upper p. of the machine. Under the action of high-speed centrifugal force, the hi speed impact and high density crushing are generated.After the stone strikes each other, it will form eddy current movement between th turntable and the housing,causing repeated mutual blows, friction, crushing, until it is crushed into the required particle size.
1 Large Feed Size, High Crushing Ratio, Uniform Particle Size .
2 Finished Product Size Is Adjustable, High Productivity.
3 Durable Hammers, Flip-Type Cabinet, Easy To Maintain.
4 One Time Coarse And Medium Reduction, Simplify The Sand Making Process .
Model | RollerDiameter (mm) | Roller Length (mm) | Feeding size(t/h) | Capacity(mm) | Motor power(kw) |
600*600 | 700 | 1000 | 45-55 | ≤500 | 45-55 |
800*800 | 900 | 1200 | 60-75 | ≤800 | 75-90 |
1000*1000 | 1000 | 1000 | 90-120 | ≤800 | 75-90 |
1200*1200 | 1200 | 1200 | 130-160 | ≤900 | 110-132 |
1400*1400 | 1400 | 1400 | 190-210 | ≤1000 | 132-160 |
1600*1600 | 1600 | 1600 | 250-300 | ≤1000 | 160-210 |
1800*1800 | 1800 | 1800 | 300-400 | ≤1200 | 210-280 |
Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control over the industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the customer support. 24 hours service with.
Box Crusher machine main parts display:
1 Pulley
2 Impactor Plate
3 Wear-Resistant Hammer Head
4 Screen Bottom
5 Rotor
6 Outside The Chamber
Pulley
Heavy duty casting pulley rotation, high inertia, long life cycle
Impactor Plate
The impact plate is made of high manganese after quenching process, and the impact plate can be adjusted to continue to use after the angle
Wear-Resistant Hammer Head
using new technology casting, with wear resistance, impact resistance.
Screen Bottom
The screen is made of forged manganese steel and can be replaced with different sizes according to production requirements
Rotor
The material is crushed by
the high-speed rotation
of the hammer head.
Outside The Chamber
The shell is made of national standard steel plate, durable and not easy to deform
Zhengzhou Juding Environmental Protection Equipment Co., Ltd. is an enterprise focusing on the research and development, manufacture, sales and service of mining machinery equipment and automation equipment. The main products are: mobile crushing plant, sand making machine, sand washing machine, all kinds of crushers, vibrating screen, feeder and related accessories. The products are widely used in mining, building materials, highway, railroad, bridge, chemical industry, metallurgy, refractory materials and other industries, and are exported to Vietnam, North Korea, Central Africa, the Middle East and other countries and regions. The company adheres to the enterprise tenet of “integrity, innovation, enterprise and win-win”, takes the market as the guide and customer satisfaction as the purpose, pursues excellence and continuous improvement.
A: We are factory.
Q2: Where have your products been exported to?
Q2: Where have your products been exported to?

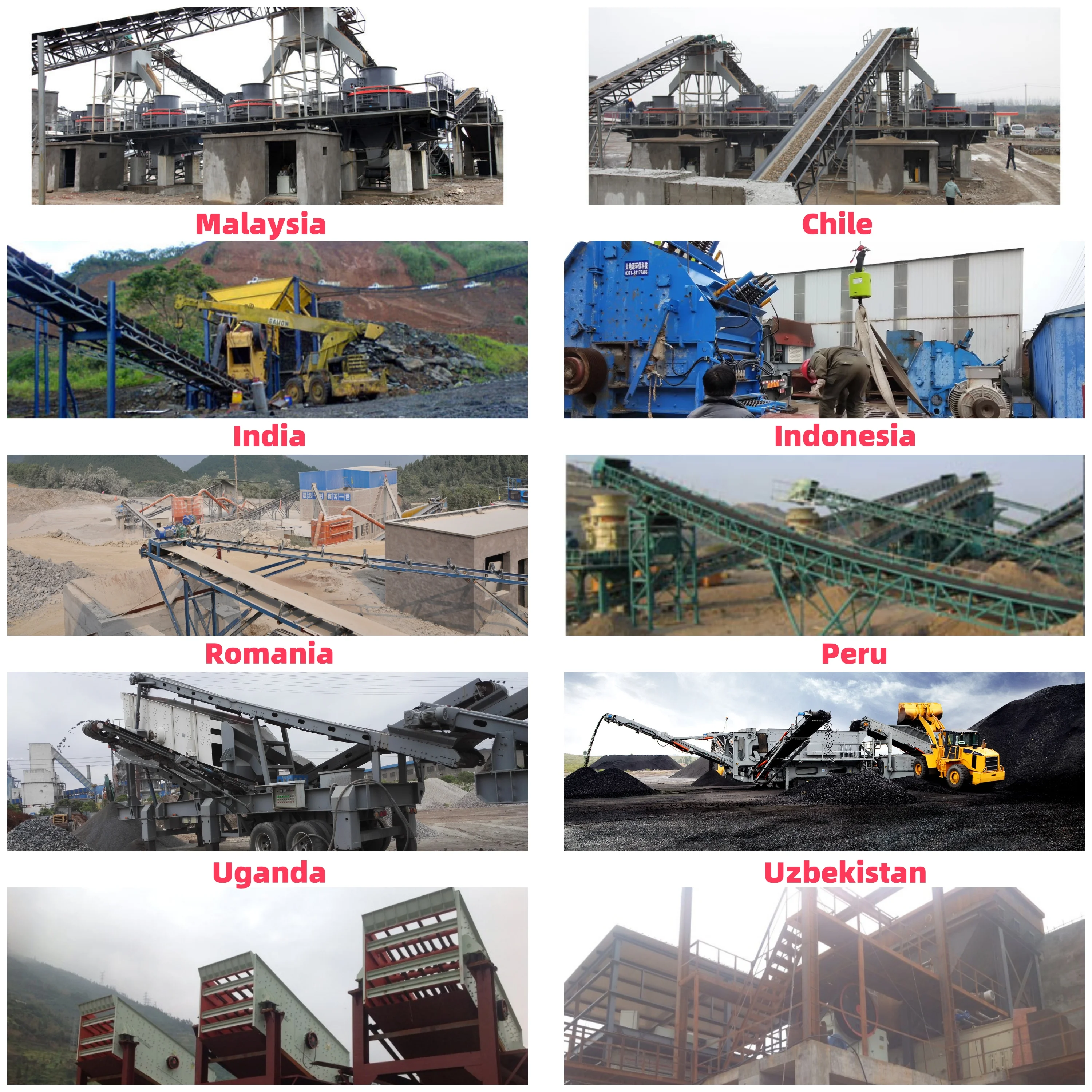

A:Our products have been sold to South Asia, Africa, South America and the Middle
East.
Q3:How can I help my customers install their equipment?
A:Our senior engineers will video guide you through installation,commissioning and initial production.
Q4: What is the availability of wearing parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send
atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
East.
Q3:How can I help my customers install their equipment?
A:Our senior engineers will video guide you through installation,commissioning and initial production.
Q4: What is the availability of wearing parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send
atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
If you have concerns and worries that are not mentioned here, please send an e-mail or call us with your inquiries. We will answer them wholeheartedly.
