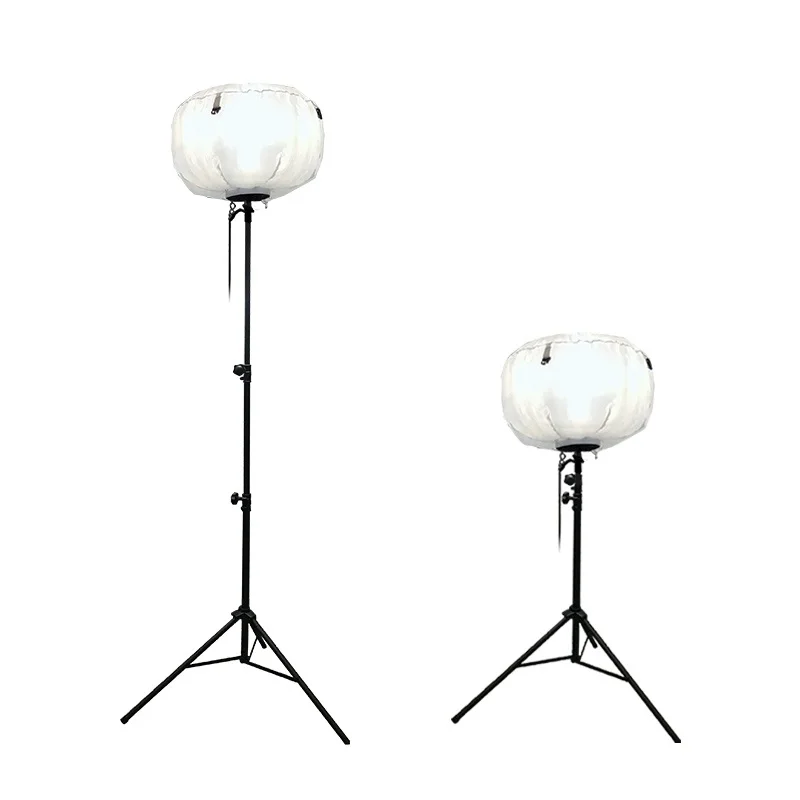

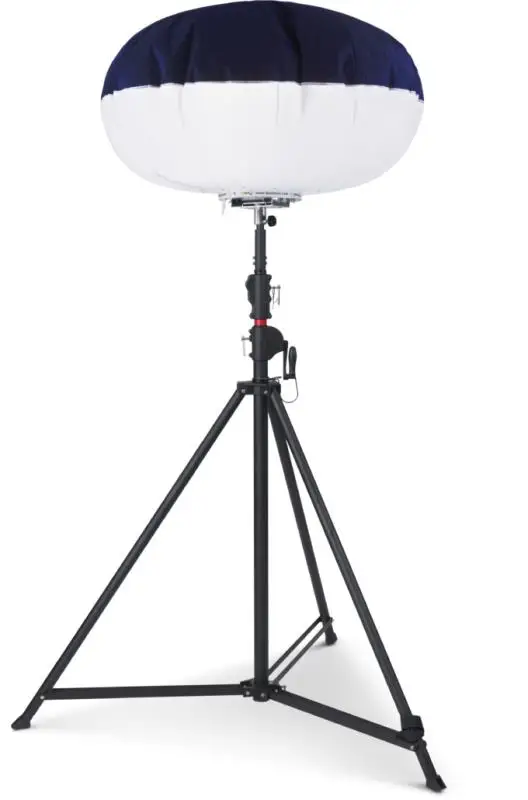

Mobile 1000W high power LED Balloon Light for fire fighting activity

Product Overview

Description

Mobile LED Balloon Light high power 1000W for fire fighting activity

Features

Ø  Used high brightness, stable quality of Samsung/Philips LED chip, even heat distribution, LM80 certified.

Ø  Produces bright and diffused soft lights to provide a very comfortable lighting environment.

Ø  Built-in Integrated constant current LED driver ensure long life span.

Ø  Wide power range from 100W to 1000W, even bigger if customer needs.

Ø  Could be fixed or installed with a tripod stand, a clamp, a hitch or even a trailer.

Ø  Portable with bags, and lamp covers could be customized with different color or shapes.

Ø  360 degree beam angle, 150lm/w, IP42 protection grade, CE ROHS certified, 3-year warranty



Application

Apply to a wide range of indoor or outdoor activities. Such as lighting up film sets; providing even lighting for studio photographing, interior or exterior construction working; and giving portable outdoor lighting for camping, parties, sporting events, road or tunnel constructions, and supplying emergency lighting for rescues.









Basic Parameters

Model No		ML-618-100	ML-618-150	ML-618-240	ML-618-360	ML-618-500	ML-618-1000
Rated Power		100W	150W	240W	360W	500W	1000W
Input Voltage		AC100~277V(50~60Hz)
CCT		1800~6500K
Power Factor		>0.9
CRI		>70Ra/80Ra/90Ra
Lumen Max		13500LM	20250LM	32400LM	48600LM	67500LM	135000LM
LED Chip		2835
Fixed/Installed		a tripod stand, a clamp, a hitch or a trailer for options
Size	Balloon	φ80cm	φ80cm	φ80cm	φ80cm	φ80cm	Φ150cm
	Tripod Stand	1.32-3.0m	1.32-3.0m	1.32-3.0m	1.32-4.0m	1.32-4.0m	1.32-5.0m
Net weight		5.8kg	6.5kg	7.0kg	8.2kg	12.8kg	22.5kg
Certificate		CE ROHS



Absolute Maximum Rating

Parameter	Rating
Aluminum radiator temperature	60℃
Operating temperature	-30~+80℃
Storage temperature	-20~+50℃
Storage Humidity	20%-70% RH
Equilibrium temperature	25℃



Installation Instructions (with Tripod Stand)

Step 1: Fixed the support rod on the Tripod Stand.

Step 2: Fixed the balloon light with cover on the support rod.

Step 3: Connect the wires and turn on the balloon light.

Step 4: Adjust the height of Tripod Stand according to requirements.



Cautions

Ø  Don’t take apart the balloon light without our permit under warranty period.

Ø  Don’t remove the data label for warranty.

Ø  Don’t stare at the strong light for a long time as it may cause injury to eyes.

Packaging

Model No	ML-618-100	ML-618-150	ML-618-240	ML-618-360	ML-618-500	ML-618-1000
Unit weight	5.8kg	6.5kg	7.0kg	8.2kg	12.8kg	22.5kg
Pcs per CTN	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs
CTN size	51.7*29.2*30.1cm	51.7*29.2*30.1cm	56.2*29.2*30.1cm	56.2*29.2*30.1cm	61.2*40.0*40.6cm	64.7*42.7*43.6cm
G.W. per CTN	6.6kg	7.3kg	8.5kg	9.7kg	14.8kg	25kg
