High Efficiency Dozers 17Ton 816D Crawler Bulldozer With 4.3m³ Blade
High Efficiency Dozers 17Ton 816D Crawler Bulldozer With 4.3m³ Blade
High Efficiency Dozers 17Ton 816D Crawler Bulldozer With 4.3m³ Blade
High Efficiency Dozers 17Ton 816D Crawler Bulldozer With 4.3m³ Blade
High Efficiency Dozers 17Ton 816D Crawler Bulldozer With 4.3m³ Blade
High Efficiency Dozers 17Ton 816D Crawler Bulldozer With 4.3m³ Blade
High Efficiency Dozers 17Ton 816D Crawler Bulldozer With 4.3m³ Blade

High Efficiency Dozers 17Ton 816D Crawler Bulldozer With 4.3m³ Blade

Share on (1601313890086):


Price:$35,600.00-36,600.00

Quantity:


Product Overview

Description





Contact


Sales Manager: Sergio Wang
Whatsapp/Mobile phone/WeChat:: +86 17755362153
Email:sergio@liebty.com
Company: liebty Machinery(Hangzhou) Co.,Ltd
Add: Room 208, Building 3, Bo.1866, Binxing Road, Changhe Street, Zhejiang, China


Details Images

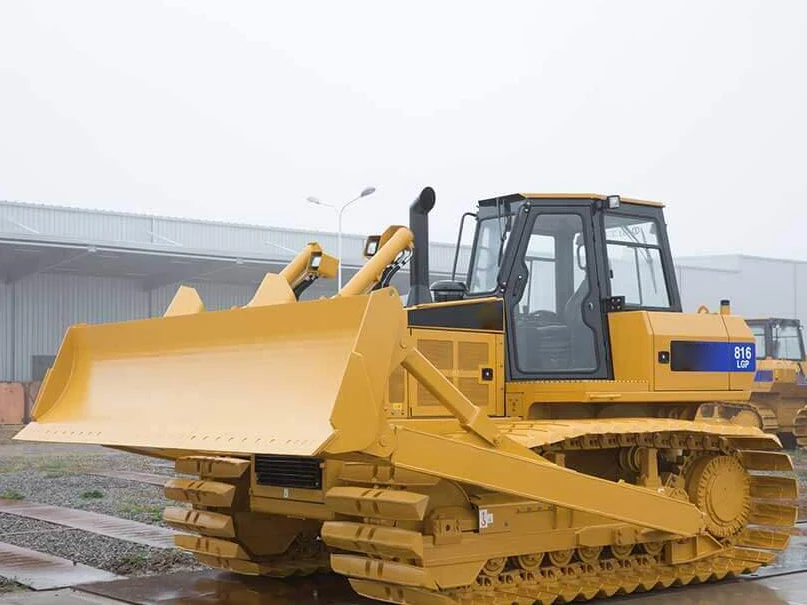

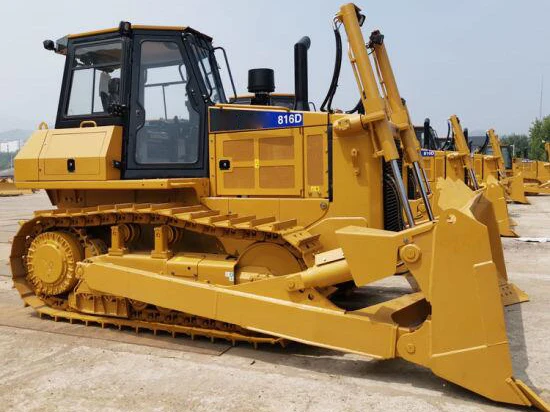

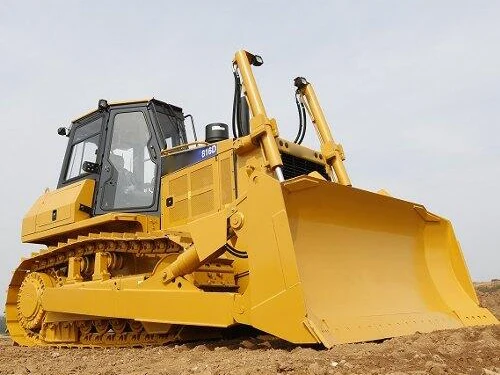

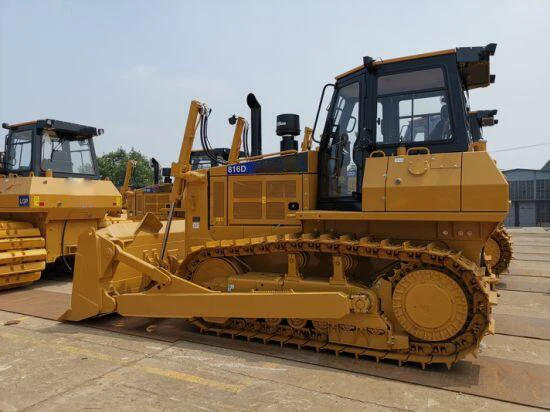

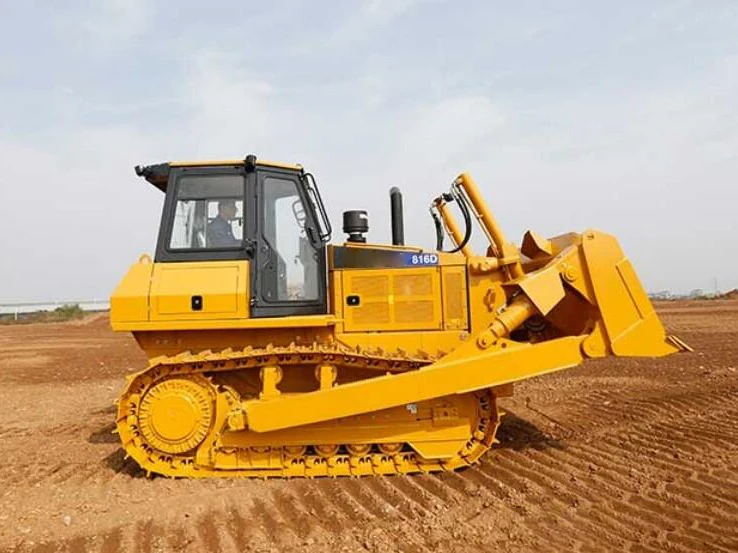

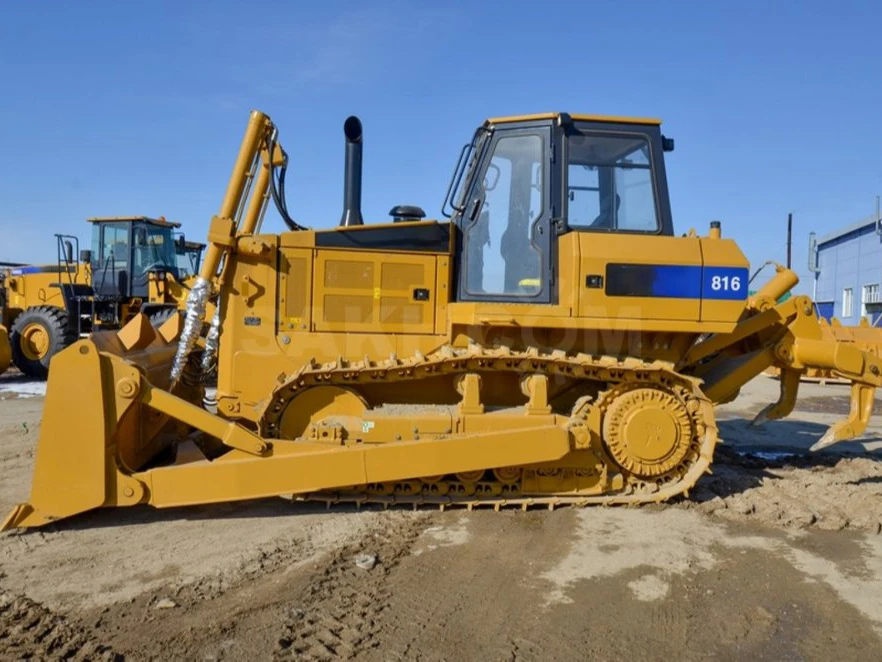

High Efficiency Dozers 17Ton 816D Crawler Bulldozer With 4.3m³ Blade
*Upgraded hydrostatic system not only leverages Caterpillar automatic, dual path, hydro-static drive with electronic control technology of the third generation TTT, but also increas.es efficiency and reliability
*Adopt Rexroth Gemman new generation drive pump to combine control valve, trackmotor, simplified hose line design, continue to increase the reliability.

*Caterpillar high pressure hose provides reliability and durability. Caterpillar controltechnology provides accurate control and high transmission efficiency.

*Integrated the hydrostatic oil tank and implement hydraulic oil tank to improve filtratedprecision and cooling capability of hydraulic system, increasing reliability and reducincmaintenance cost.

*Maintenance costs are reduced by 60% when compared competitors with torqueconverter and transmission and rear axle.

*Counter rotation, power turn and infinitely variable speed save lots of time, increasingworking efficiency.






Specifications


Model
SEM816D
SEM816D LGP
SEM816D DS
SEM816D CH
Operating Weight
16,900kg
19,490kg
19,760kg
17,160kg
Ground Pressure
66.8kPa
31.1kPa
34.8kPa
61.8kPa
Ground Clearance
410mm
410mm
410mm
410mm
Max. Slope
30°
30°
/
30°
Engine Model
WD10G178E25
WD10G178E25
WD10G178E25
WD10G178E25
Rated Power
131kW
131kW
131kW
131kW
Blade Type
SU / S
LGP
LGP
U
Blade Capacity
4.3m³ / 3.5m³
3.4m³
3.4m³
5.6m³
Blade Width
3,180mm / 3,590mm
4,410mm
4,410mm
3,580mm
Blade Height
1,240mm / 1,165mm
1,000mm
1,000mm
1,400mm
Max. Blade Digging Depth
430mm / 430mm
470mm
470mm
430mm
Max.Blade Lift Ground Clearance
1,041mm / 1,041mm
1,055mm
1,055mm
1,041mm
Max.Output Rimpull
280kN
280kN
280kN
280kN
Max. Digging Depth of Ripper
584mm
/
/
584mm
Max. Clearance Under Tip
615mm
/
/
615mm
Type
dual-path, closed loop electronically controlled hydrostatic drive system
dual-path, closed loop electronically controlled hydrostatic drive system
dual-path, closed loop electronically controlled hydrostatic drive system
dual-path, closed loop electronically controlled hydrostatic drive system
Travel Speed-F/R
infinitely variable speeds 0-10 km/h
nfinitely variable speeds 0-10 km/h
infinitely variable speeds 0-10 km/h
infinitely variable speeds 0-10 km/h
Steering & Brake
hydrostatic steering; wet,multi-disc brake
hydrostatic steering; wet,multi-disc brake
hydrostatic steering; wet,multi-disc brake
hydrostatic steering; wet,multi-disc brake
Minimum Streeing Radius
3,610mm
3,740mm
3,740mm
3,610mm
Track Shoe Width-Single
510mm
/
950mm
560mm
Track Shoe Width-APEX
/
1,050mm
950mm
/
Track Shoe Quantity
37
42
42
37
Track Length On Ground
2,430mm
2,925mm
2,925mm
2,430mm
Track Gauge
1,880mm
2,300mm
2,300mm
1,880mm
Track Roller Quantity
6
7
7
6
Carrier Roller Quantity
2
2
2
2
Type
center close, pilot control
center close, pilot control
center close, pilot control
center close, pilot control
Implement Hydraulic System Pressure
19 MPa
19 MPa
19 MPa1
9 MPa
Fuel Tank
320L
320L
320L
320L
Cooling System
45L
45L
45L
45L
Hydraulic Tank
140L
140L
140L
140L
Pivot Shaft Case(each side)
1.2L
1.2L
1.2L
1.2L
Final Drive(each side)
30L
40L
40L
30L
Engine Crankcase
24L
24L
24L
24L
