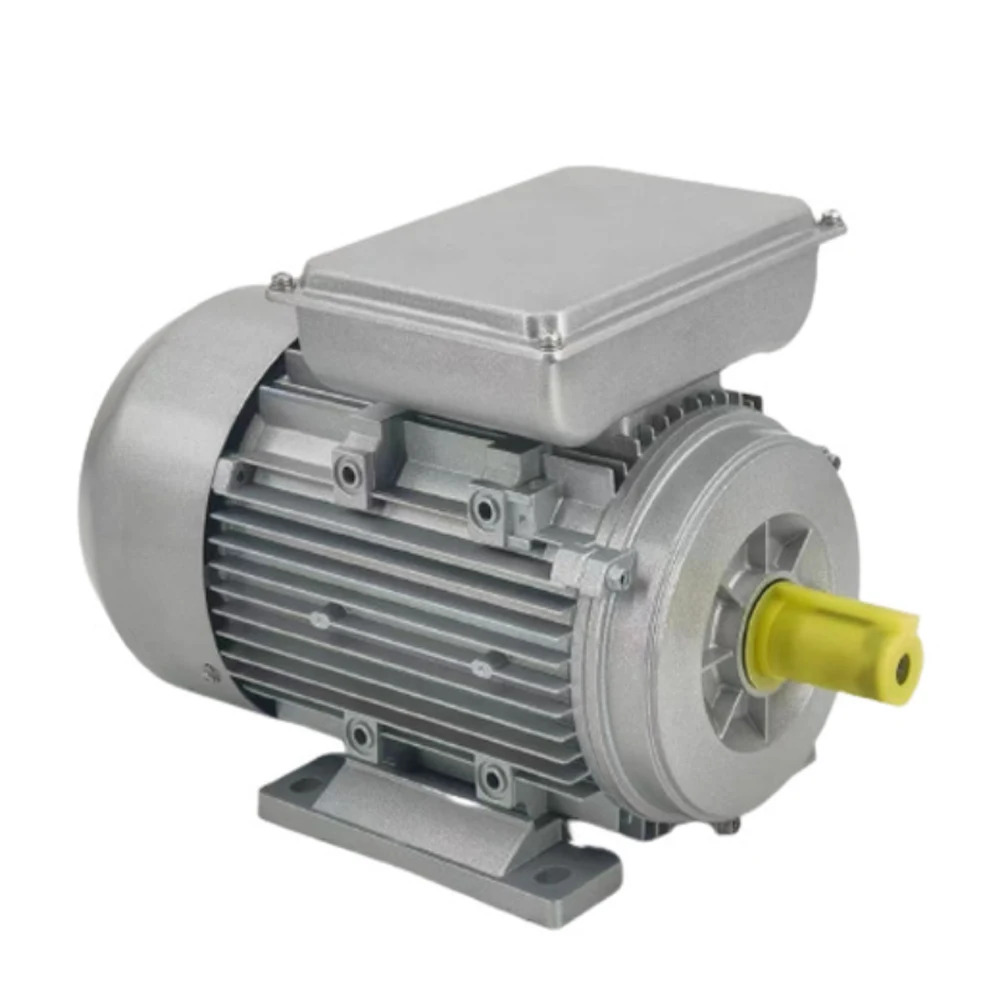

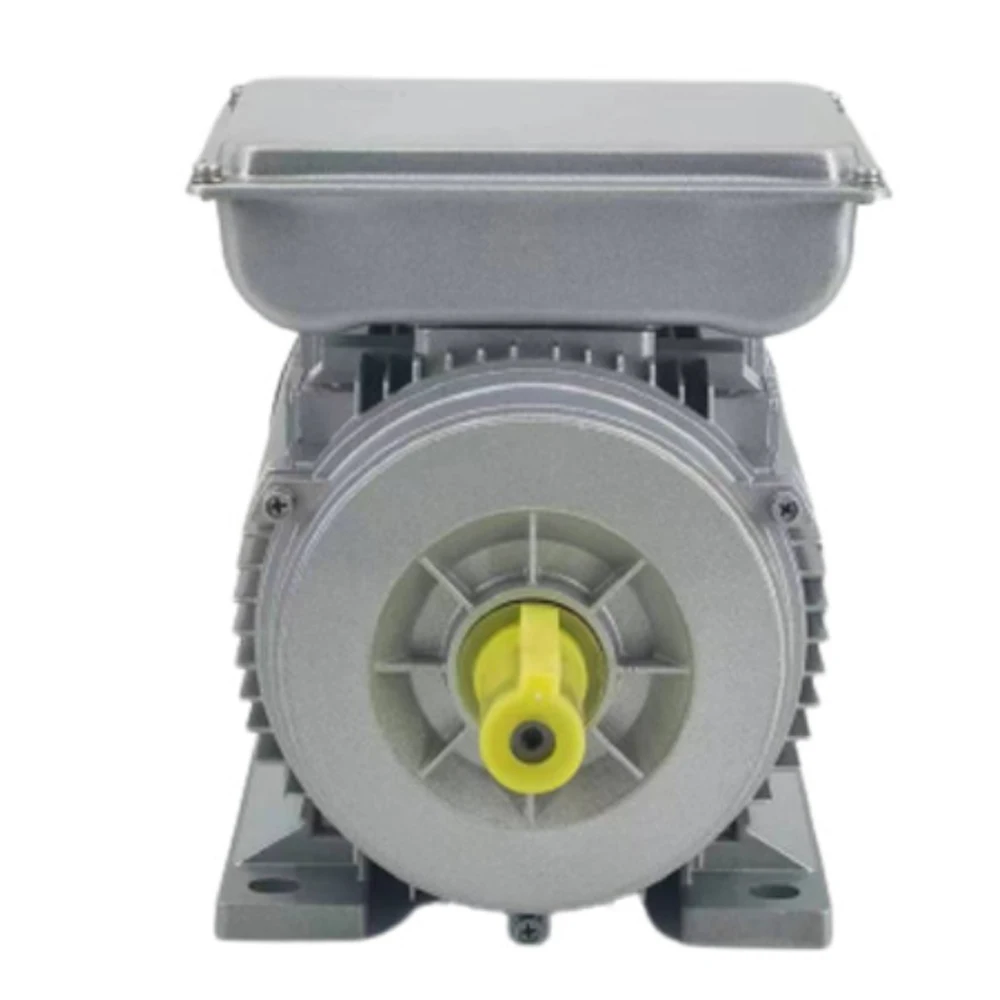

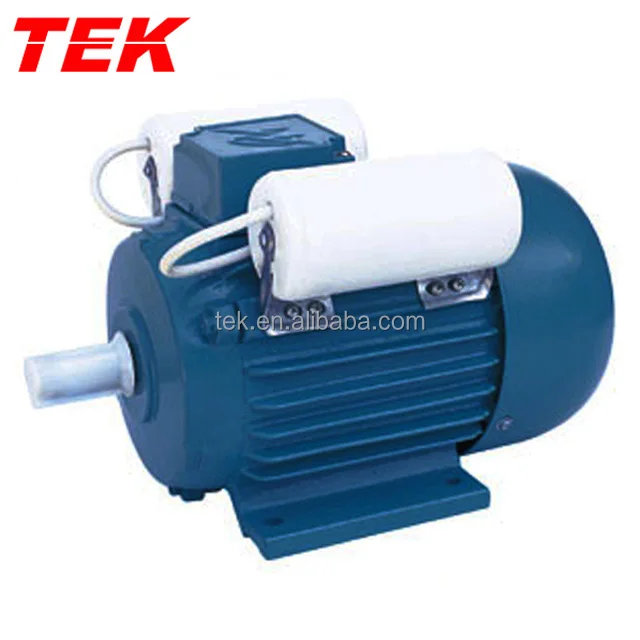

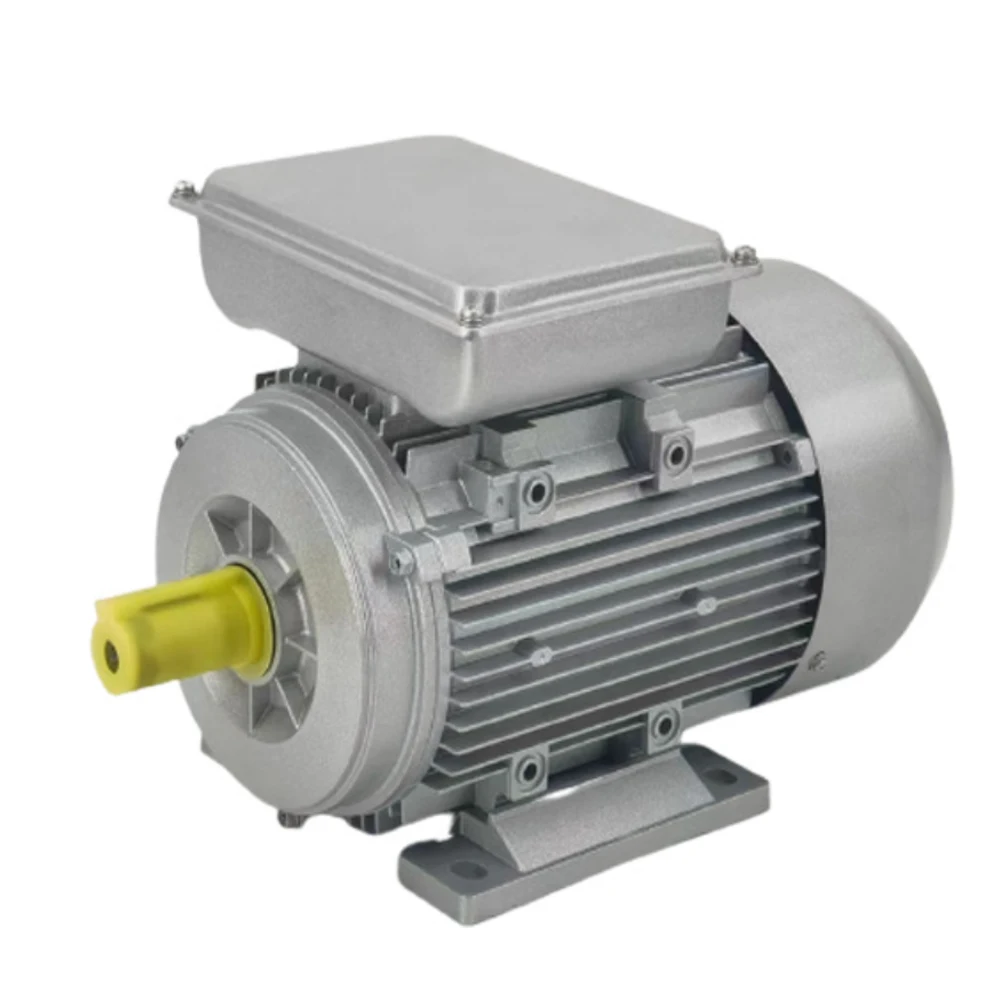

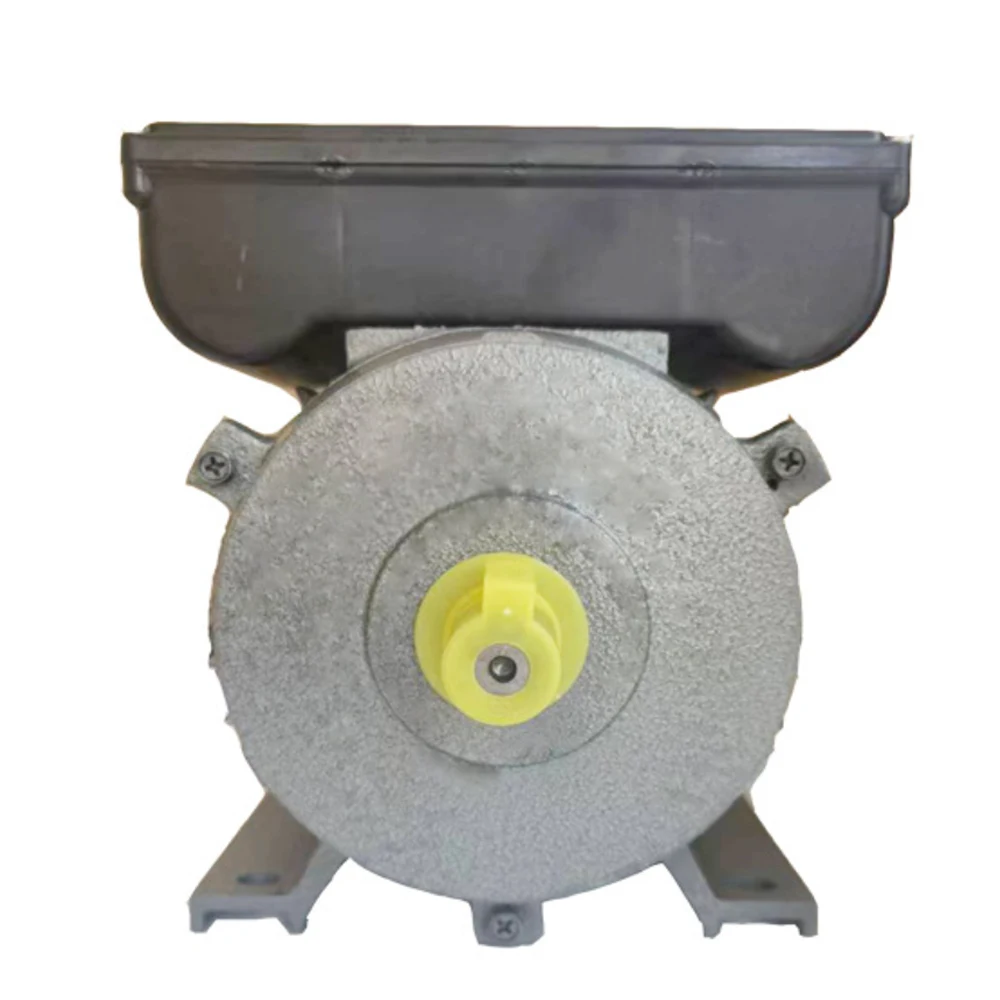

YL Series Single phase Capacitor Start and Run dual capacitor Copper Iron Shell Wire asynchronous induction Motor

Product Overview

Description

YL Series Single-phase Capacitor Start and Run dual-capacitor Copper Iron Shell Wire asynchronous induction Motor



YL Series Single phase dual-capacitor asynchronous motor is designed and manufactured in according with national standard, newly developed by our company with low noise, compact dimension, light weight, easy maintenance, etc. These motors are widely used on air compressors, pumps, fans, refrigeration, medical instruments, small-size machines, etc, especially for occasion where only single-phase power supply is available. Protection type: Ip44 Insulation class: B Rated voltage: 220V Cooling type: IC 0141 Duty type: continuous running Rated frequency: 50Hz

Product Power: 0.37-5.5KW



Model	Output		Current	Power factor	Eff	Speed	Tst/Tn	Ist/In	Tmax/Tn
	KW	HP	A		%	(r/min)
YL7112	0.37	1/2	2.73	0.92	67	2750	1.8	16	1.8
YL7122	0.55	3/4	3.88	0.92	70	2750	1.8	21	1.8
YL8012	0.75	1	5.15	0.95	75	2800	1.8	29	1.8
YL8022	1.1	1.5	7.02	0.95	76	2820	1.8	40	1.8
YL90S2	1.5	2	9.44	0.95	76	2820	1.8	55	1.8
YL90L2	2.2	3	13.7	0.95	77	2830	1.8	80	1.8
YL100L2	3	4	18.4	0.95	78	2850	1.8	110	1.8
