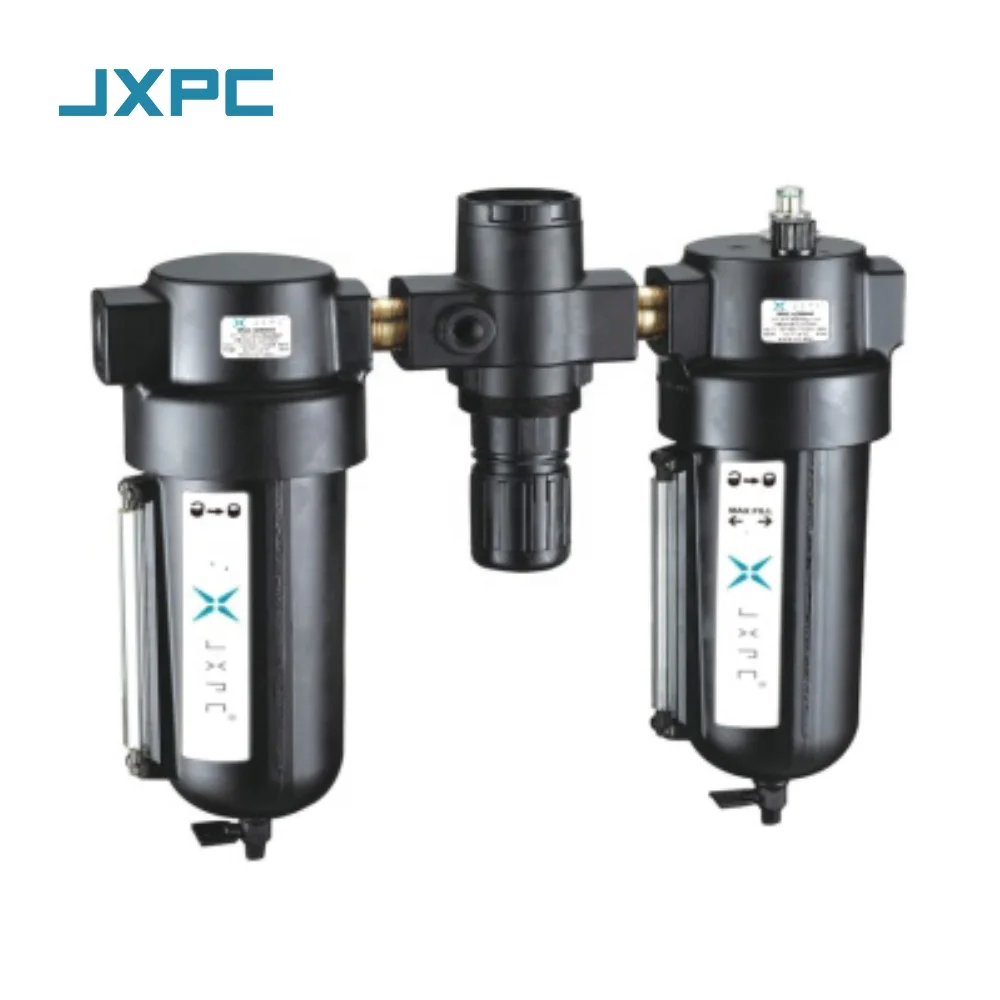

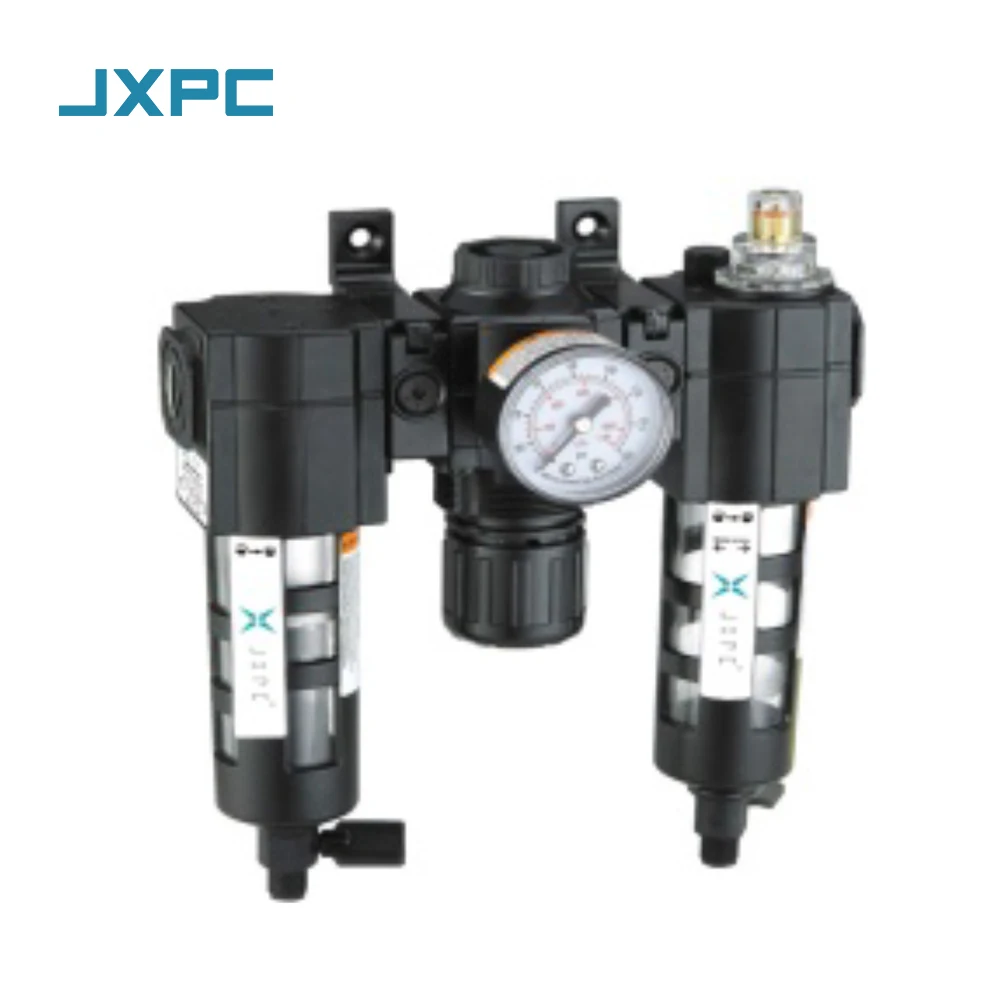

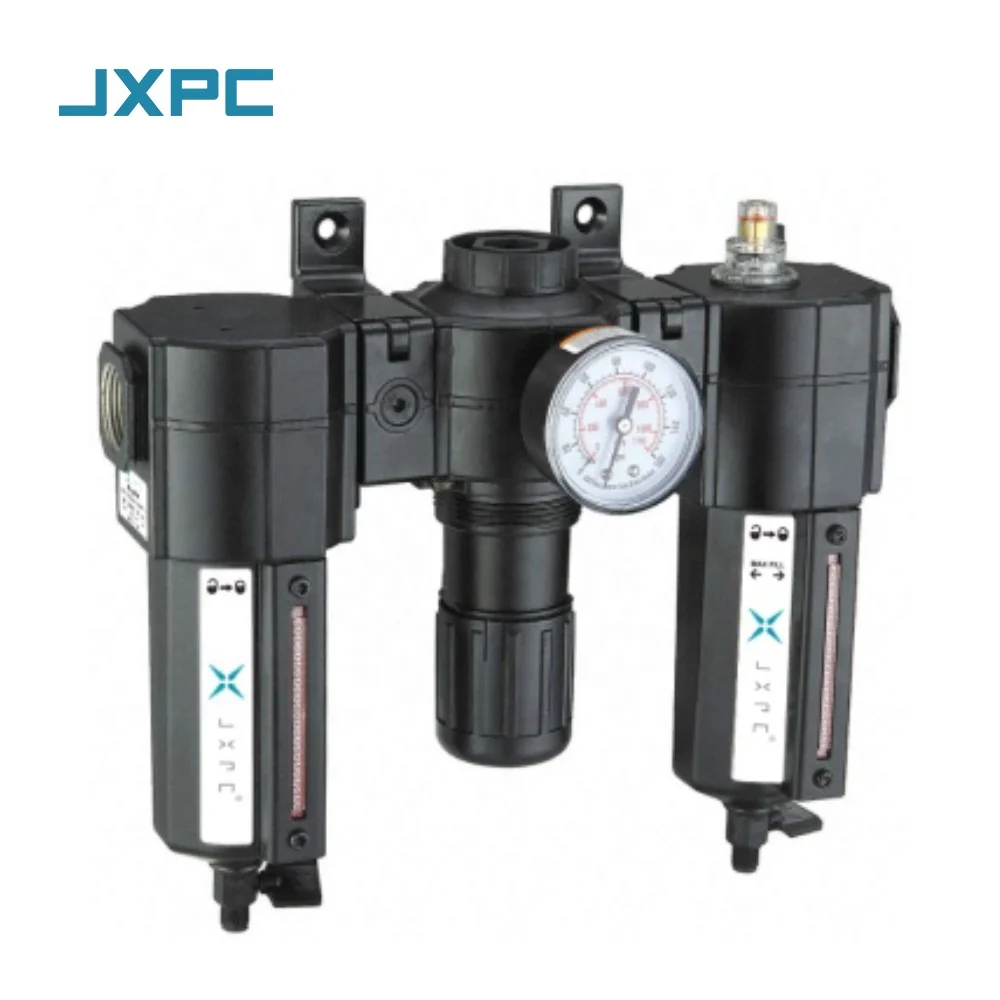

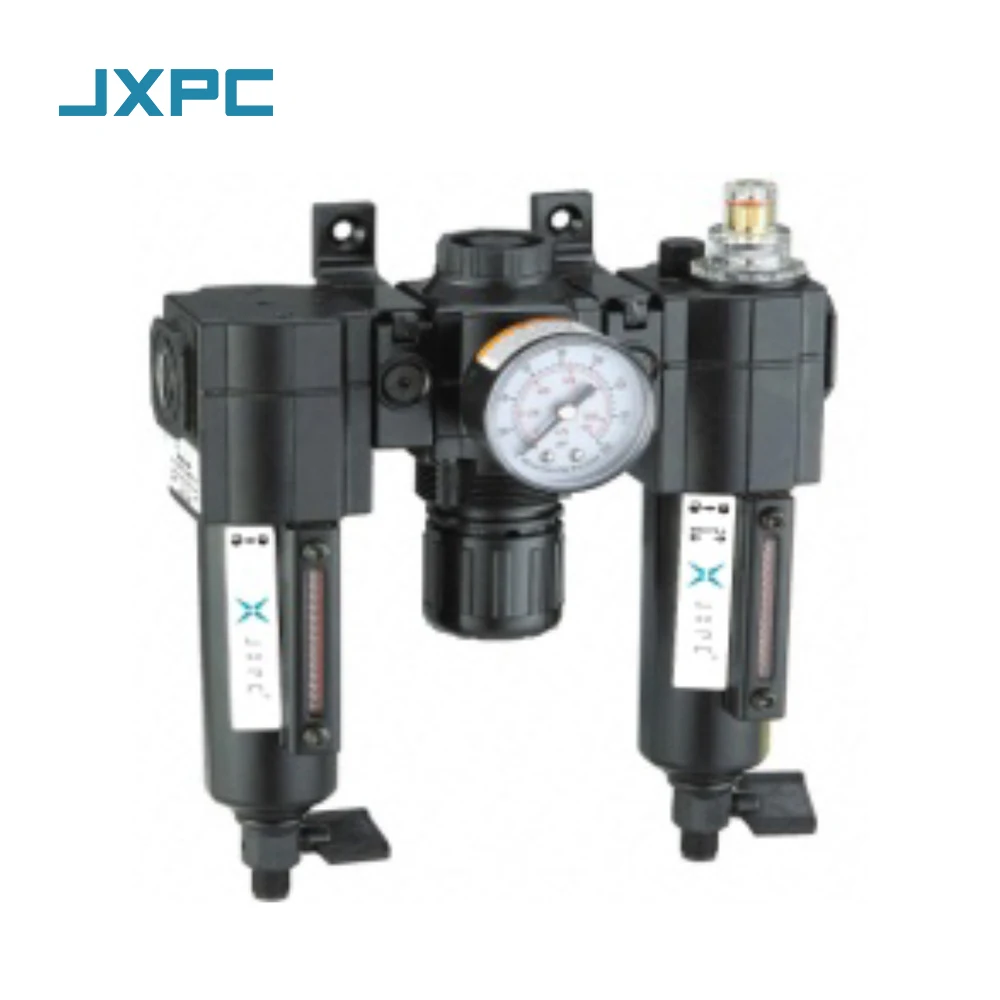

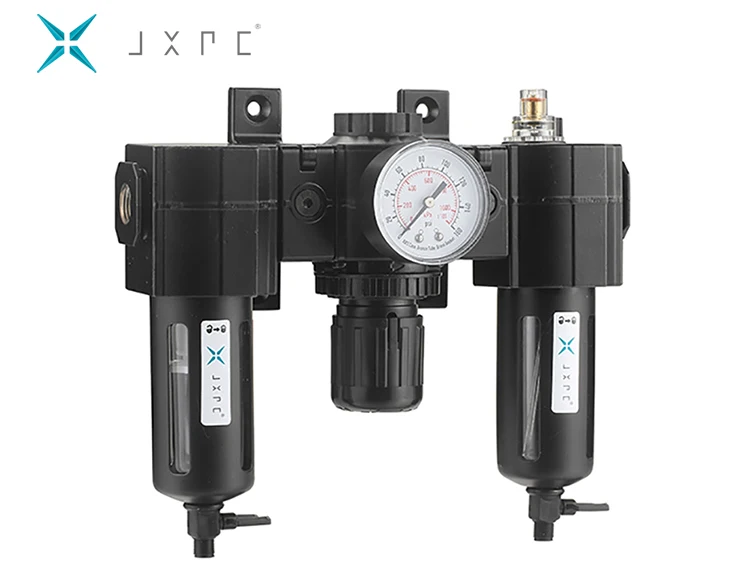

JXPC 40UM Modular Design Filter Element 4Z Air Regulator Lubricator Synthetic Fiber Manufacturer Farms Manufacturing Plants
- Category: >>>
- Supplier: Ningbo New Jiaxing Automatic Industry Co. Ltd.Ningbo Ltd.
Share on (1601314271786):
Product Overview
Description
Products Description
Technical data:
Max. working pressure: 17bar/250psi
Adjusting pressure range:0.5-10bar/5-150psi
Temperature:5-80
plastic or metal bowl optional
5μm and 40μm filter element optional
Micro mist can inject the oil mist up to 15 meters
Modular design
Aμot drain optional
Max. working pressure: 17bar/250psi
Adjusting pressure range:0.5-10bar/5-150psi
Temperature:5-80
plastic or metal bowl optional
5μm and 40μm filter element optional
Micro mist can inject the oil mist up to 15 meters
Modular design
Aμot drain optional
Model Type | Miniature | |||||
3FRL40M-03 | 3FRL40M-04 | 3FRL40M-05 | ||||
Medium | Compressed Air | |||||
FIlter Precision | 40µm(5µm) 40µm(5µm is optional) | |||||
Pressure Adjusting Range | 0.05~0.1MPa(5psi~150psi) | |||||
Max. Working Resistance | 1.7MPa(250psi) | |||||
Working Temperature | -5~80℃(No Freeze) | |||||
Container Cup Material | Water Cup: Polycarbonate | |||||
Nominal Flow Rate | 114 Cfm | 192 Cfm | 186 Cfm | |||
Port Size | NPT1/8 | NPT1/2 | NPT3/4 | |||
*In order to increase the service life, we suggest you install 5µm' filter which will keep the efficiency of filter precision. | ||||||
* When the red annunciator shows up, under the circumstance of inlet and outlet's pressure are over 0.1 Mpa, Please change the filter element(or change it after one year) | ||||||
* G, NPT, PT port size is optional. | ||||||
