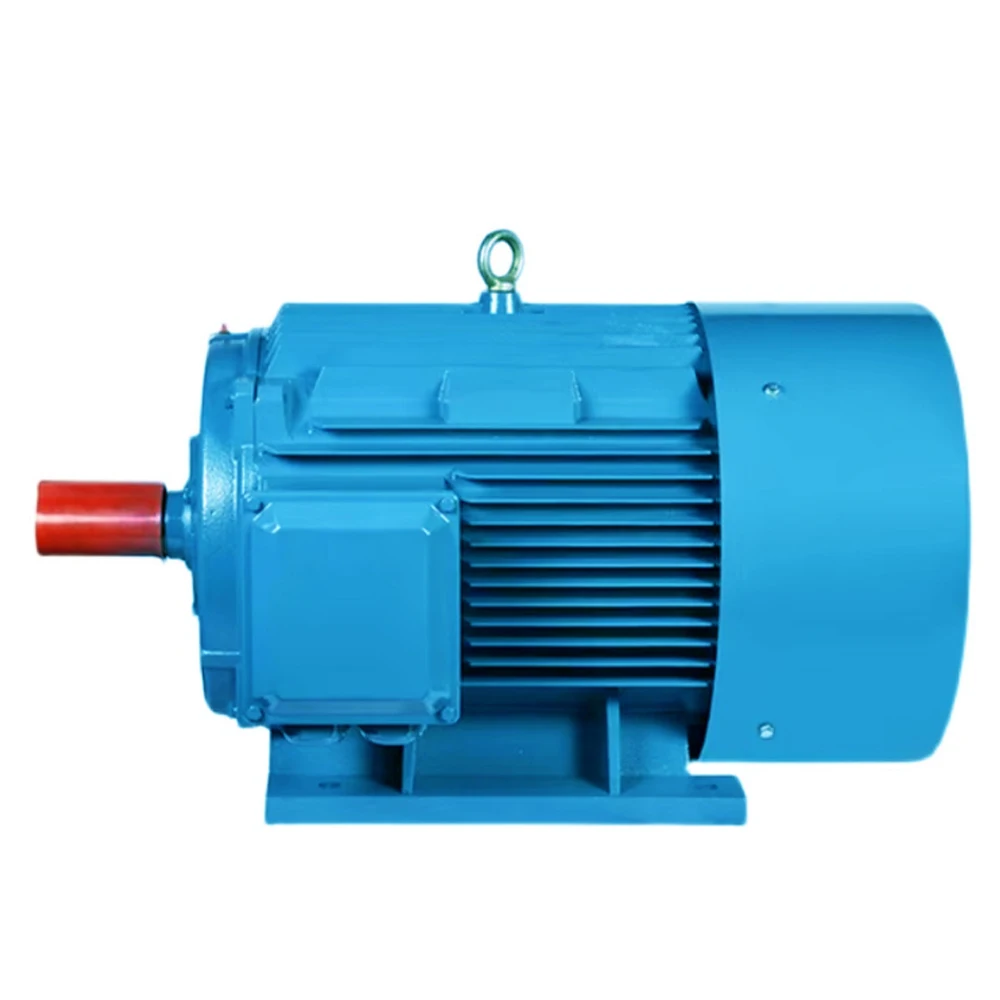

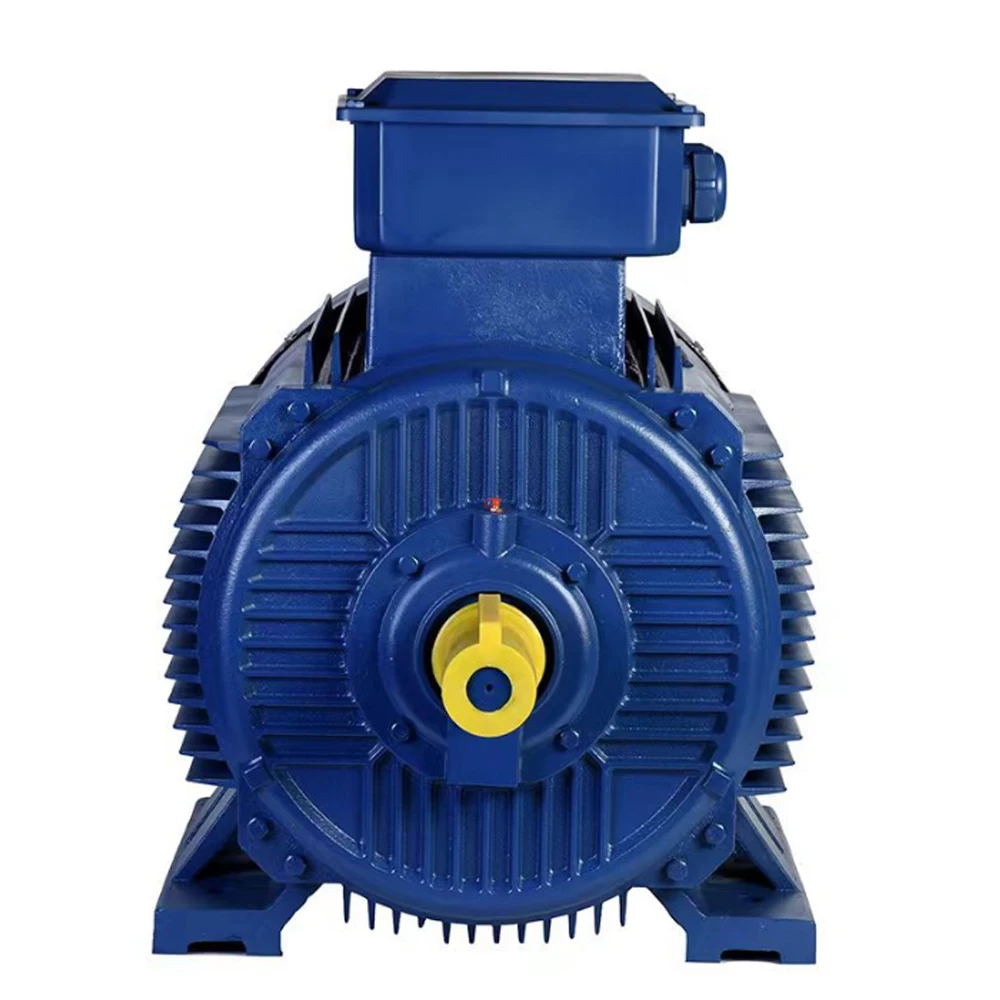

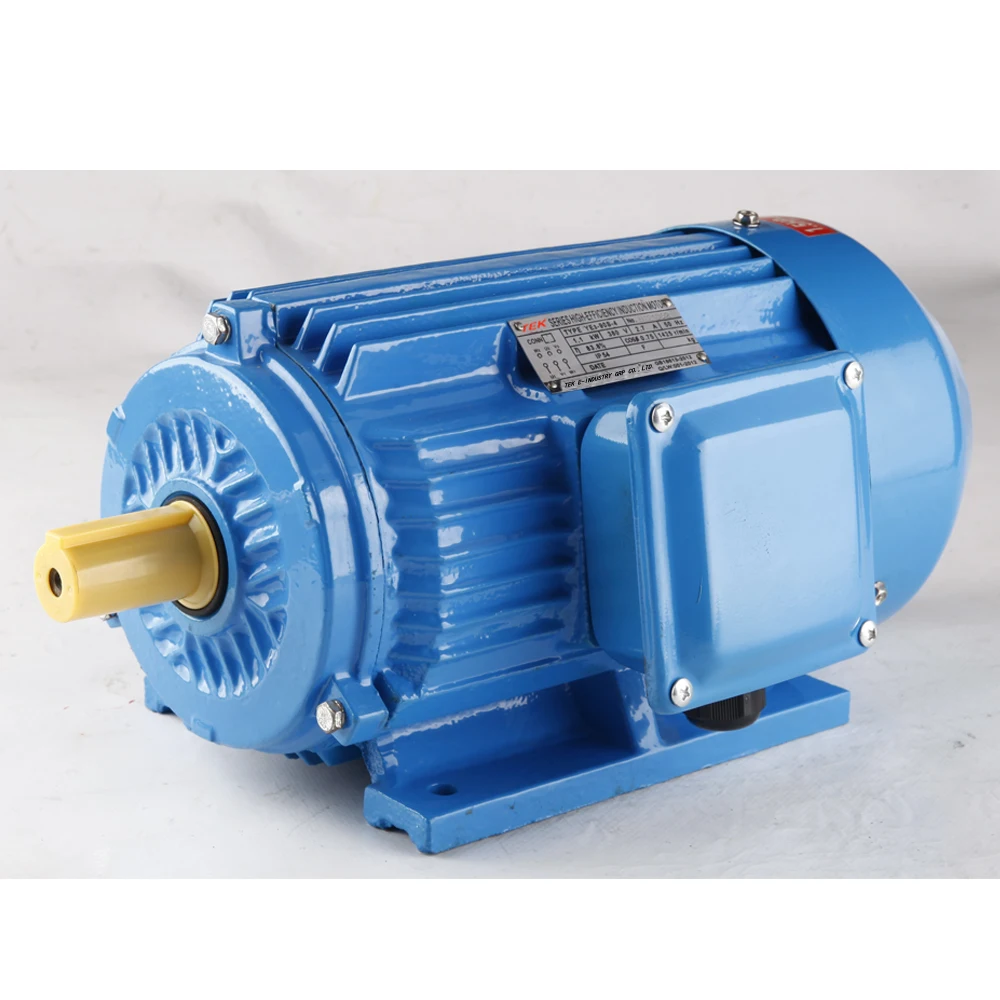

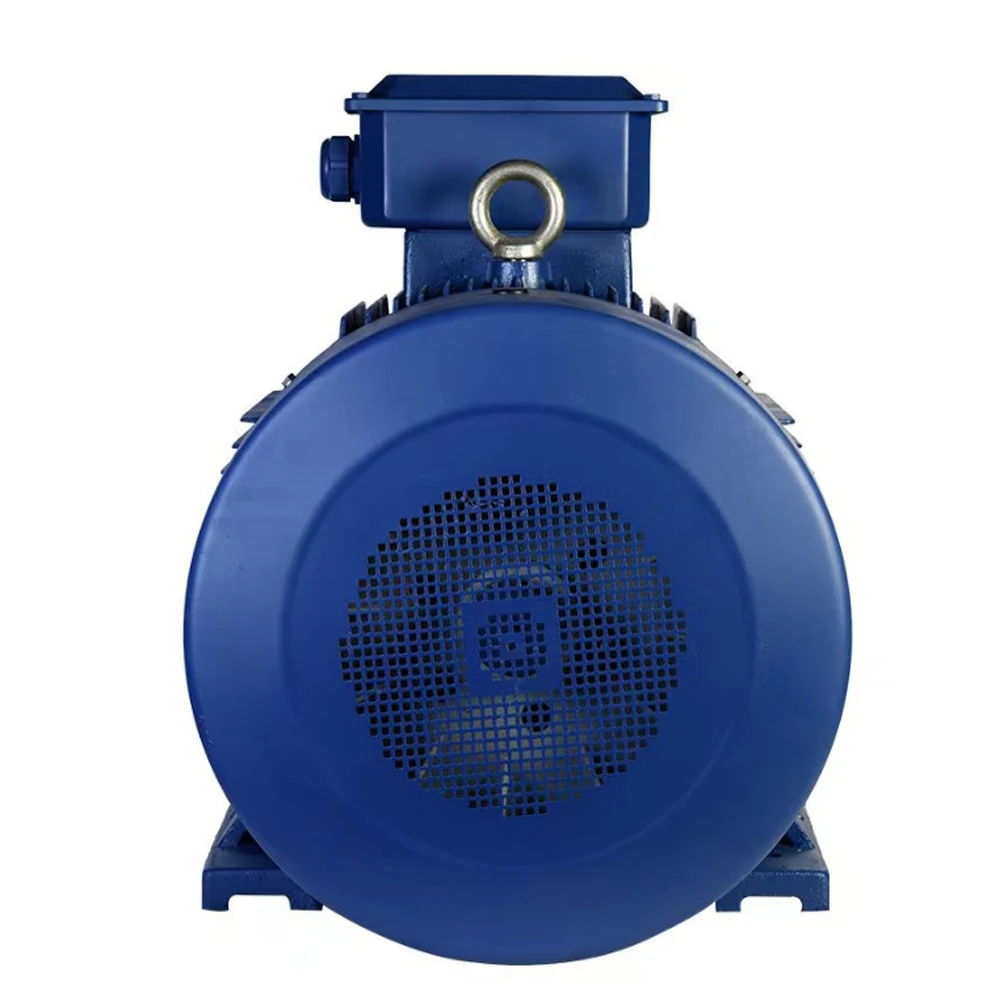

YE3 80M1 4 0.55kw 4 pole 1500rpm 50Hz Three phase Ultra high efficiency energy saving Asynchronous Induction Electric YE3 Motor

Product Overview

Description

YE3-80M1-4 0.55kw 4-pole 1500rpm 50Hz Three-phase Ultra-high-efficiency energy-saving Asynchronous Induction Electric YE3 Motor



YE3 series Three-phase Ultra-high-efficiency energy-saving asynchronous motor is specially designed for European market.
whose terminal box is located on the top of motor.
The motor has a very compact structures and attractive appearance.the sizes and mounting dimensions are all in comformity.
with IEC standard.The motor has some good feature,such as high efficiency,energy-saving.High starting torque and easy maintenance etc.
Insulation class;F Protection type: IP55
Voltage:380V or 415 V Frequency:50 Hz or 60 Hz
Cooling type:IC 1041
There are three kinds of installation construction for motor;
B3:Frame with foot,end shield without flange;
B35: Frame with foot,end shield with flange;

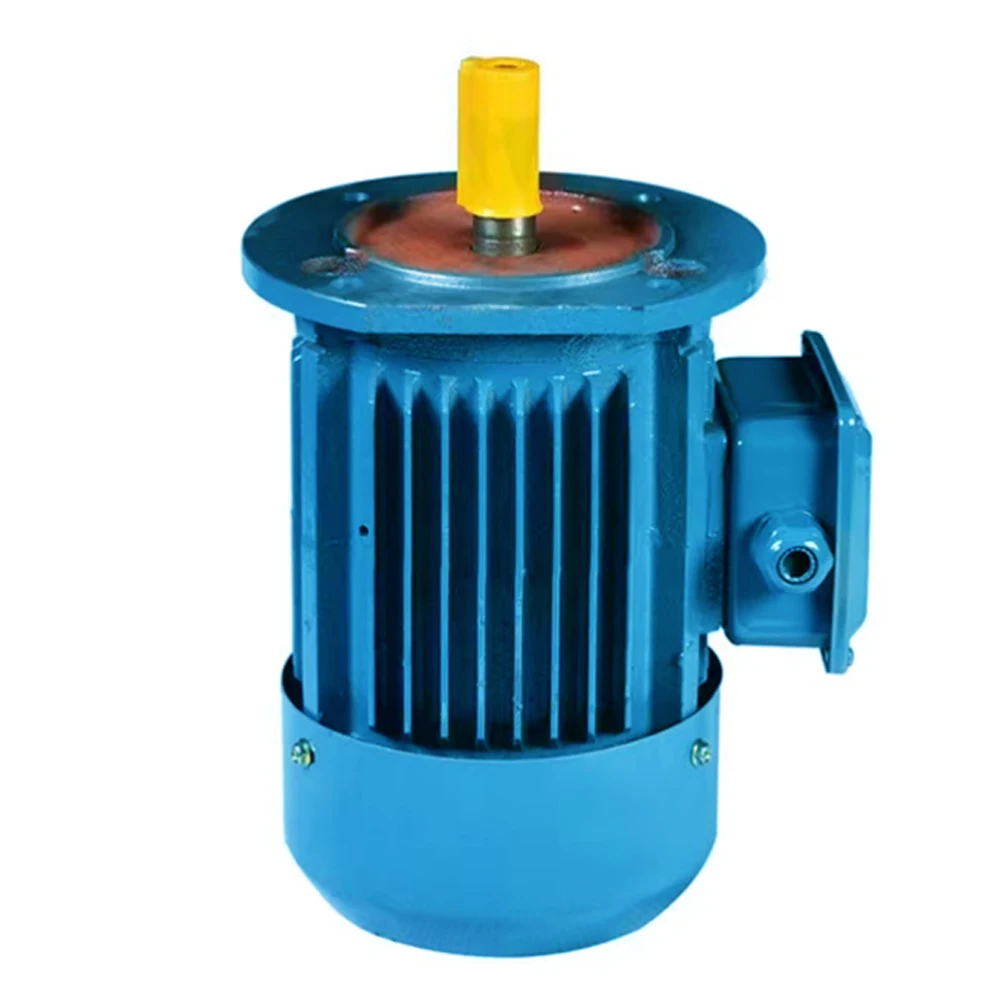

B5: Frame without foot,end shield with flange;

Product Power 0.18-315KW
