120m3/h concrete mixing plant portable aggregate batching machine hzs120 mobile concrete batching plant
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.Ningdu Ltd.
Share on (1601314297053):
Product Overview
Description
Product Description
120m3/h concrete mixing plant portable aggregate batching machine hzs120 mobile concrete batching plant

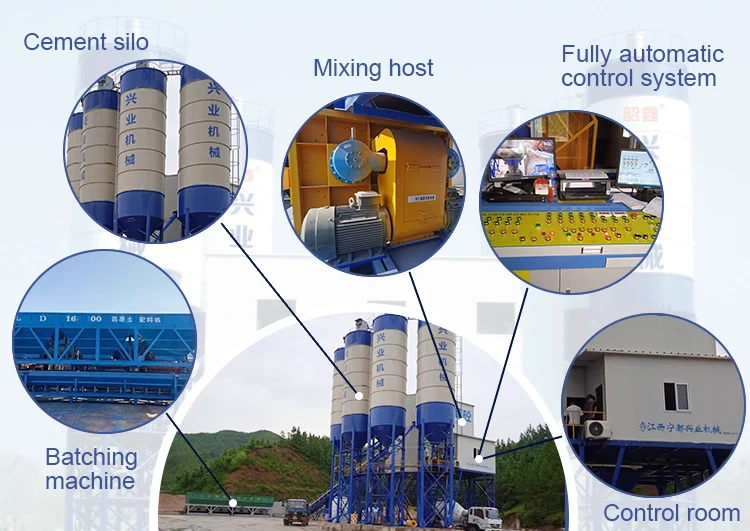

Concrete Batching Plant:batching machine,concrete mixer,mixing host,cement silo,control room,fully automatic control system.
Mixing system:
Equipped with high -wear -resistant alloy stirring arms, high abrasion resistance and strong impact resistance.
Ingredient system:
Microcomputer remote control operation, fast accurate ingredients, simple operation, and strong control function. Reservoir system:
The cement warehouse tank is equipped with a capacity system, which prevent powder from arched.
Conveyor system:
Run smoothly, automated, centralized control; long -distance transportation, large transport volume, continuous transportation and other advantages.
Measuring system:
Water, cement powder, and external agents are measured by electronic scale; precise ingredients, stable structure.
Control System:
Remote management, intelligent control, manual control, and equipment have functions such as alarm correction and operation monitoring.
HZS series is a new kind of compulsory volumetric concrete mixing equipment . It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.
And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.

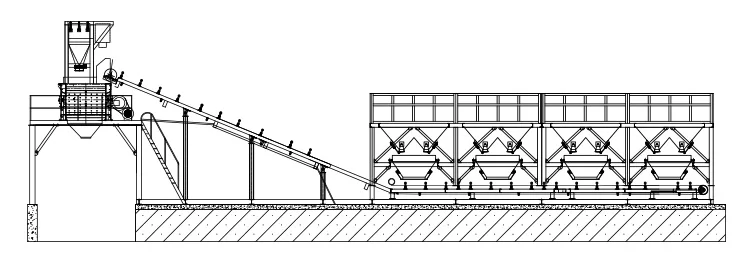

Concrete Batching Plants consists
Aggregate weighing system,
The modular design to make quickly installation and relocation; the fully automatic control system to make easily operation and reduce the civil workers; the external packing of the mixing tower and main conveyor to reduce the dust and avoid noise.
Conveying system,
Cement weighing system,
Water weighing system,
Additive weighing system
Mixer system,
Dust removal system,
Pneumatic system,
Computer control system
Cement silo.
Cement weighing system,
Water weighing system,
Additive weighing system
Mixer system,
Dust removal system,
Pneumatic system,
Computer control system
Cement silo.
Additive scale Water scale Cement scale Water inlet pipe for the water scale Water inlet pipe for the mixer Load sensor Pneumatic control Aggregate bins Weighing bin Screw conveyor Belt conveyor Vibrator Air compressor Control table
The modular design to make quickly installation and relocation; the fully automatic control system to make easily operation and reduce the civil workers; the external packing of the mixing tower and main conveyor to reduce the dust and avoid noise.
Product Paramenters
Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
Total Installed Capacity(kw) | 60 | 65 | 85 | 100 | 145 | 165 | 210 | 230 | 260 |
NO. | Foundation-free Concrete Batching Plant Main Components | ||||||
1 | CONCRETE MIXING SYSTEM | ||||||

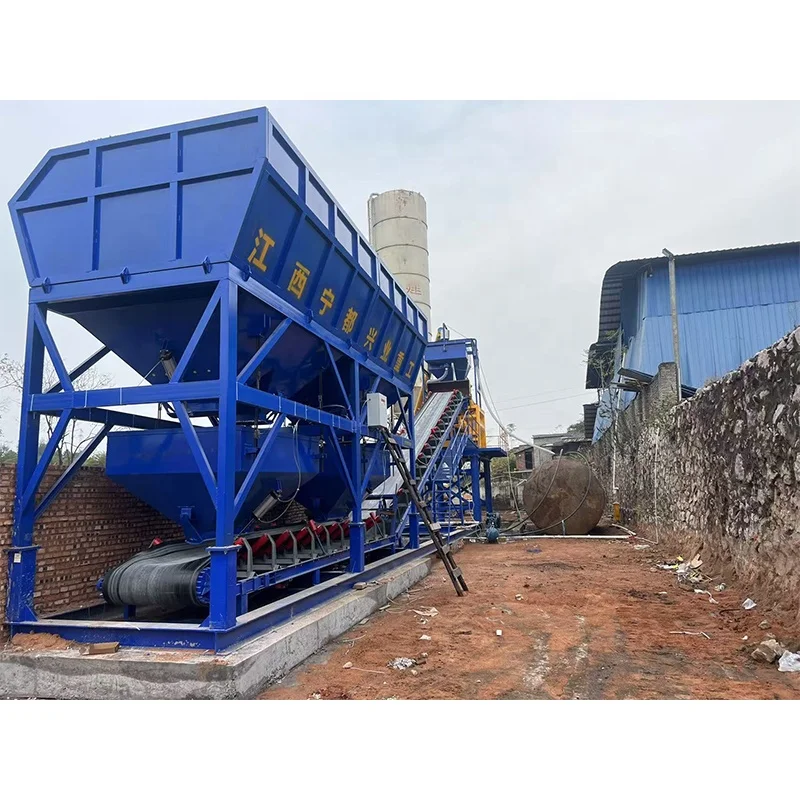

2 | AGGREGATE BATCHING MACHINE | ||||||
3 | INCLINED BELT CONVEYOR | ||||||
4 | AGGREGATE PRO-STORAGE BIN | ||||||
5 | CEMENT MEASURING SYSTEM | ||||||
6 | WATER MEASURING SYSTEM | ||||||
7 | ADDITIVE MEASURING SYSTEM | ||||||
8 | PNEUMATIC SYSTEM | ||||||
9 | FULL AUTOMATIC CONTROL SYSTEM | ||||||
10 | CONTROL ROOM | ||||||
11 | OTHER ACCESSORIES (CABLE & CABLE TRAY) | ||||||
12 | BOLTED CEMENT SILO (OPTIONAL) | ||||||
13 | SCREW CONVEYOR (OPTIONAL) | ||||||
Item No. | Item Name | Models and Specifications | QTY | ||||

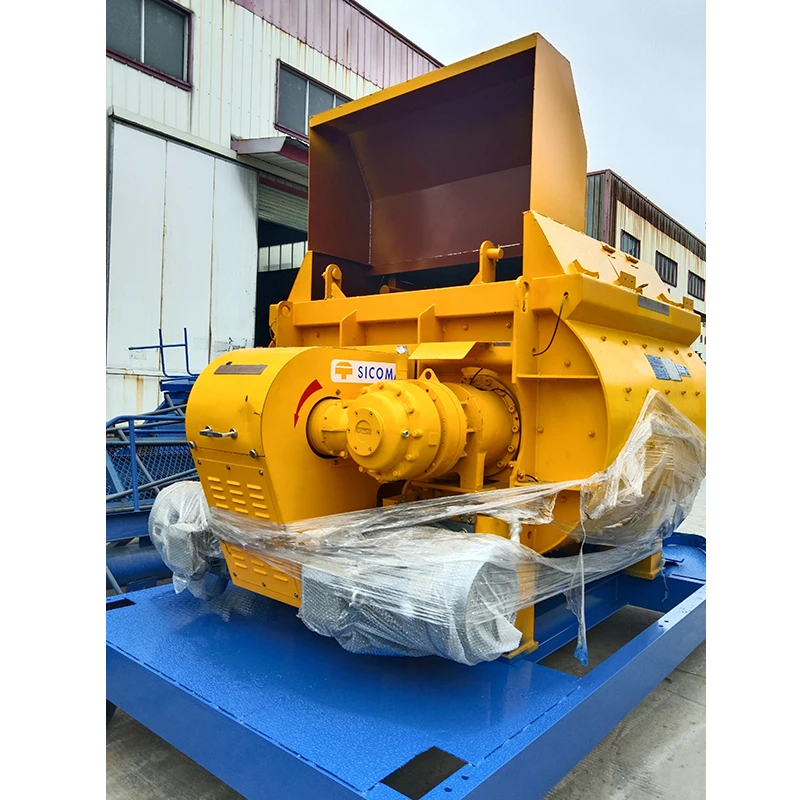

1 | Mixer | Double-horizontal forced stirring host | JS2000 | 1set | |||
gearbox | Planetary 2000 | 2sets | |||||
motor | 37KW | 2sets | |||||
Air unloading | 100X250 | 2pcs | |||||
Electric lubricating system | 380V/1KW | 1set | |||||
High Strength Liner | 1set | ||||||
Host frame structure | 200# National standard channel steel | 1set | |||||
Model No. | JS500 | JS750 | JS1000 | JS1500 | JS2000 | ||||||
Output capacity | 500L | 750L | 1000L | 1500L | 2000L | ||||||
Input capacity | 800L | 1200L | 1600L | 2400L | 3200L | ||||||
Productivity | ≥25m3/h | ≥37.5m3/h | ≥50m3/h | ≥75m3/h | ≥100m3/h | ||||||
Aggregate Maximum Particle Size (Pebble/Gravel) mm | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | ||||||
Stirring blade | Rotating speed | 35r/m | 31r/m | 25.5r/m | 25.5r/m | 23r/m | |||||
Quantity | 2×7 | 2×7 | 2×7 | 2×8 | 2×8 | ||||||
Stirring motor | Model No. | Y180M-4 | Y200L-4 | Y225S-4 | Y225M-4 | Y280S-4 | |||||
Productivity | 18.5KW | 30KW | 18.5KW*2 | 30KW*2 | 37KW*2 | ||||||
Hoist motor | Model No. | YEZ132S-4-B5 | YEZ132M-4-B5 | YEZ160S-4 | YEZ180L-4 | YEJ180L-4 | |||||
Productivity | 5.5KW | 7.5KW | 11KW | 18.5KW | 22KW | ||||||
Water pump motor | Model No. | 50DWB20-8A | 65DWB35-5 | KQW6 | KQW65 | CK65/20L | |||||
Productivity | 750W | 1.1KW | 3KW | 3KW | 4KW | ||||||
Hopper lifting speed | 18m/min | 18m/min | 21.9m/min | 23m/min | 26.8m/min | ||||||
Dimensions (length x width x height) | shipping status | 3050×2300×2680mm | 3650×2600×2890mm | 4640×2250×2250mm | 5058×2250×2440mm | 5860×2250×2735mm | |||||
working status | 4461×3050×5225mm | 4951×3650×6225mm | 8765×3436×9540mm | 9645×3436×9700mm | 10720×3870×10726mm | ||||||
Total Weight | 4000kg | 5500kg | 8700kg | 11130kg | 15000kg | ||||||
Discharge height | Customized | ||||||||||
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are one of the largest concrete batching plant manufacturers in China.
The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
Certifications
The product has many certification,has patented products,and obtained relevant production licenses.

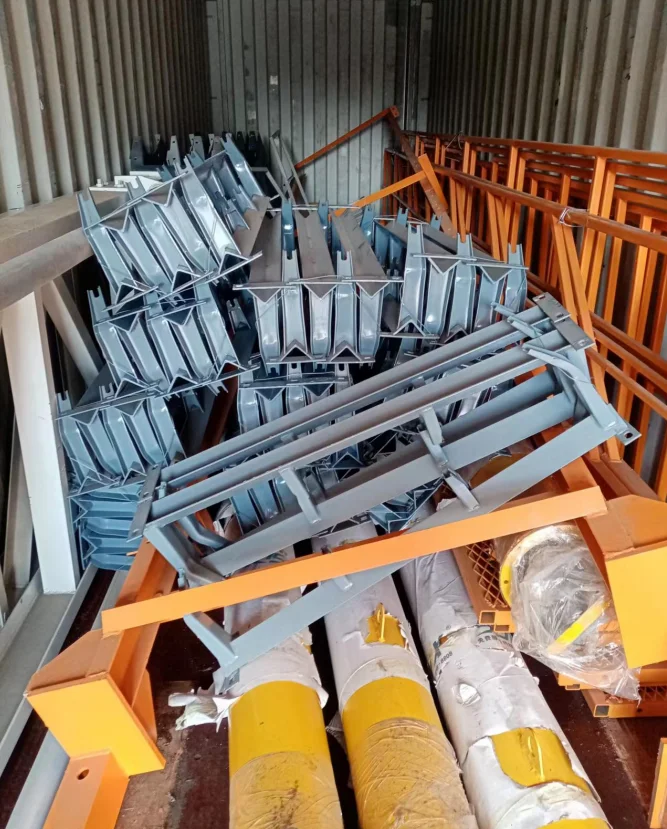

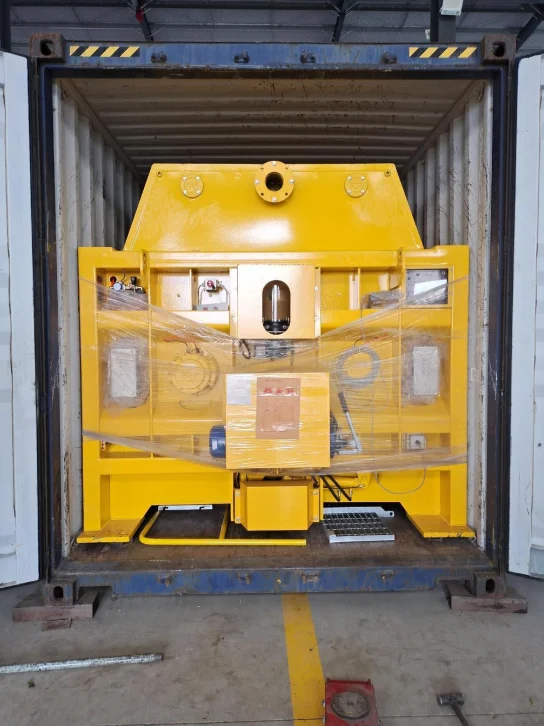

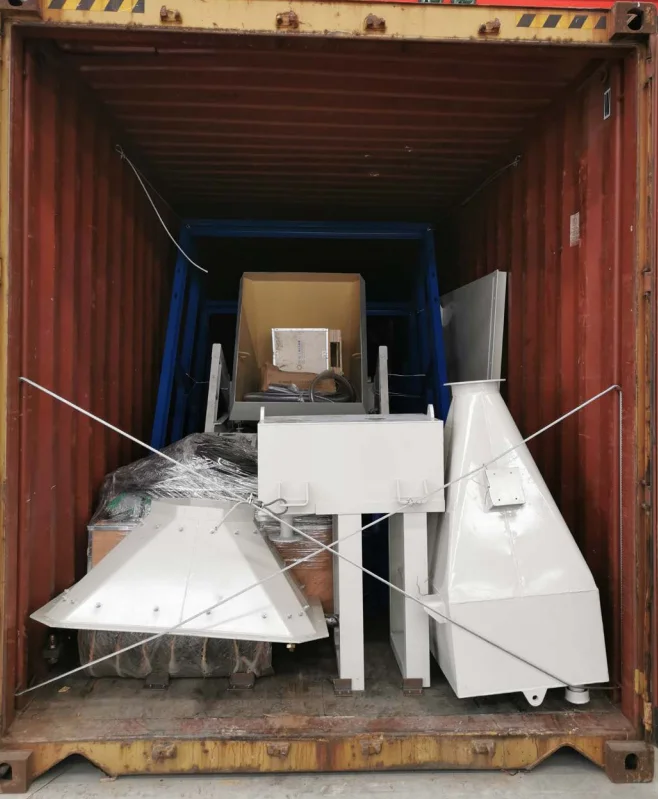

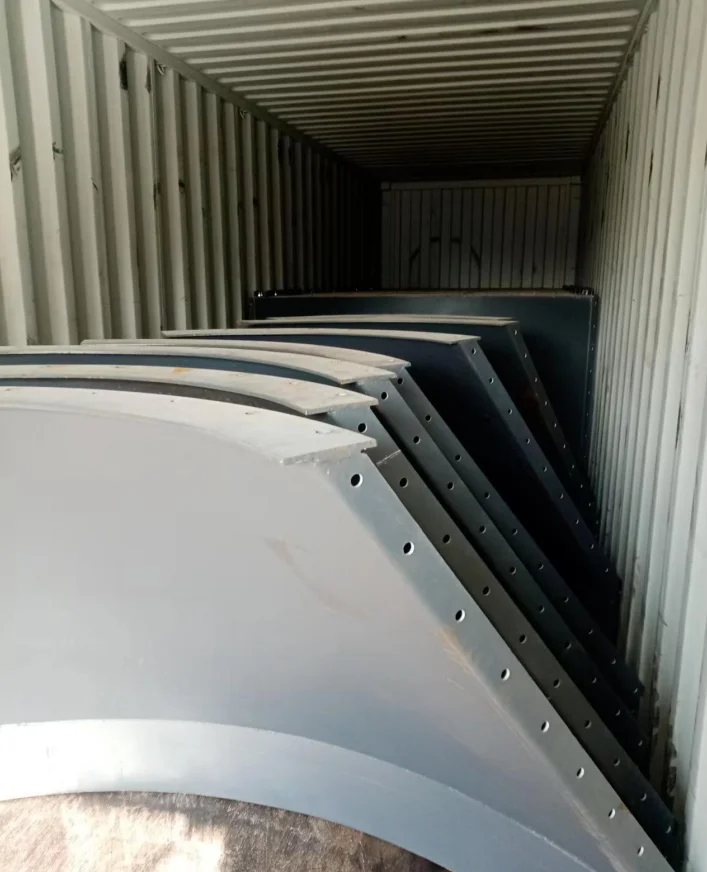

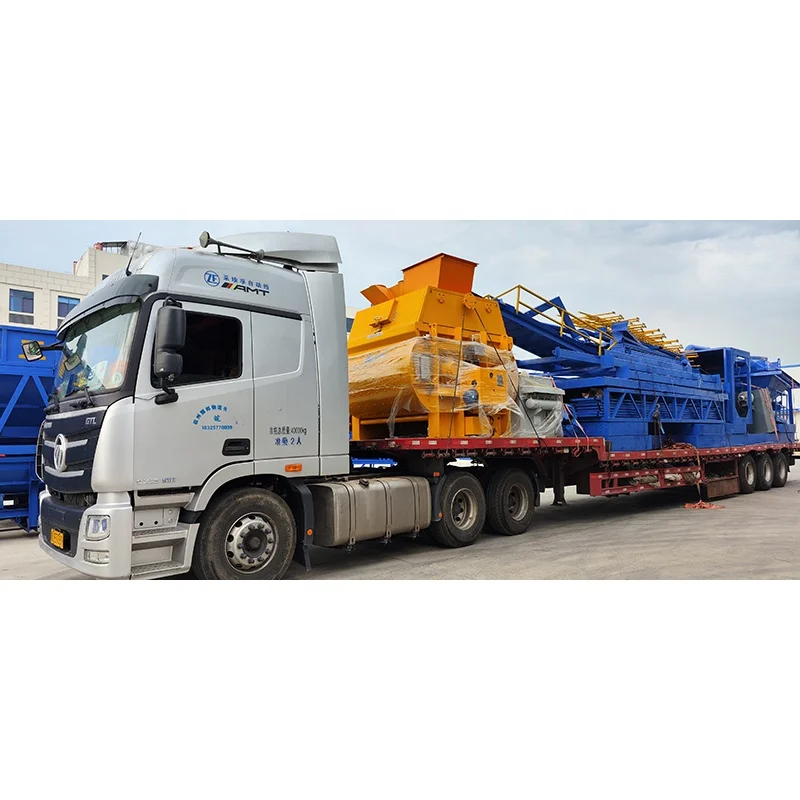

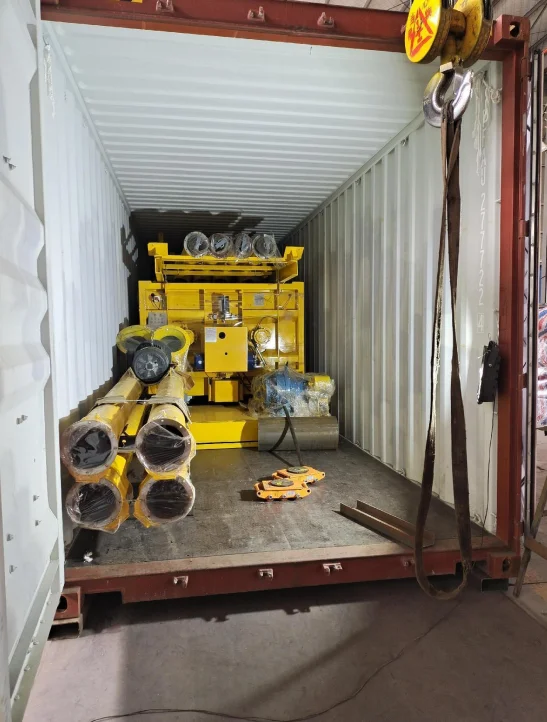

Packing and Delivery

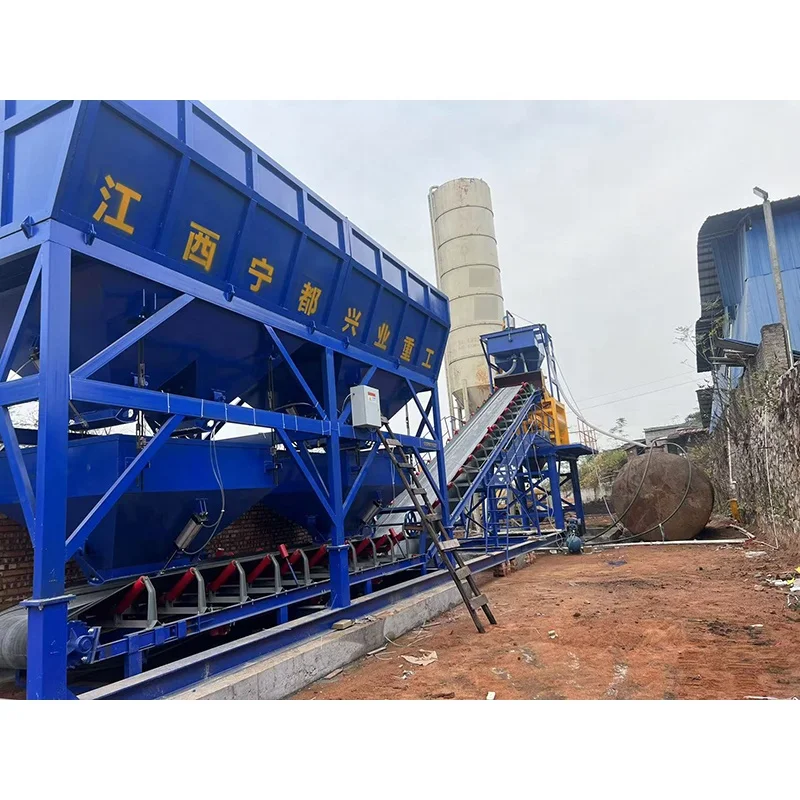

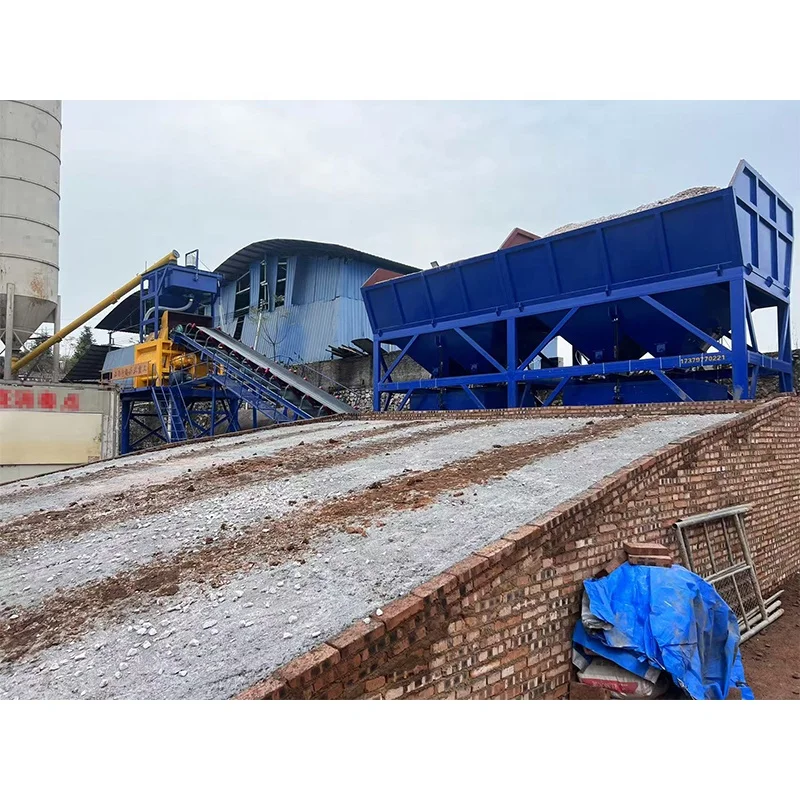

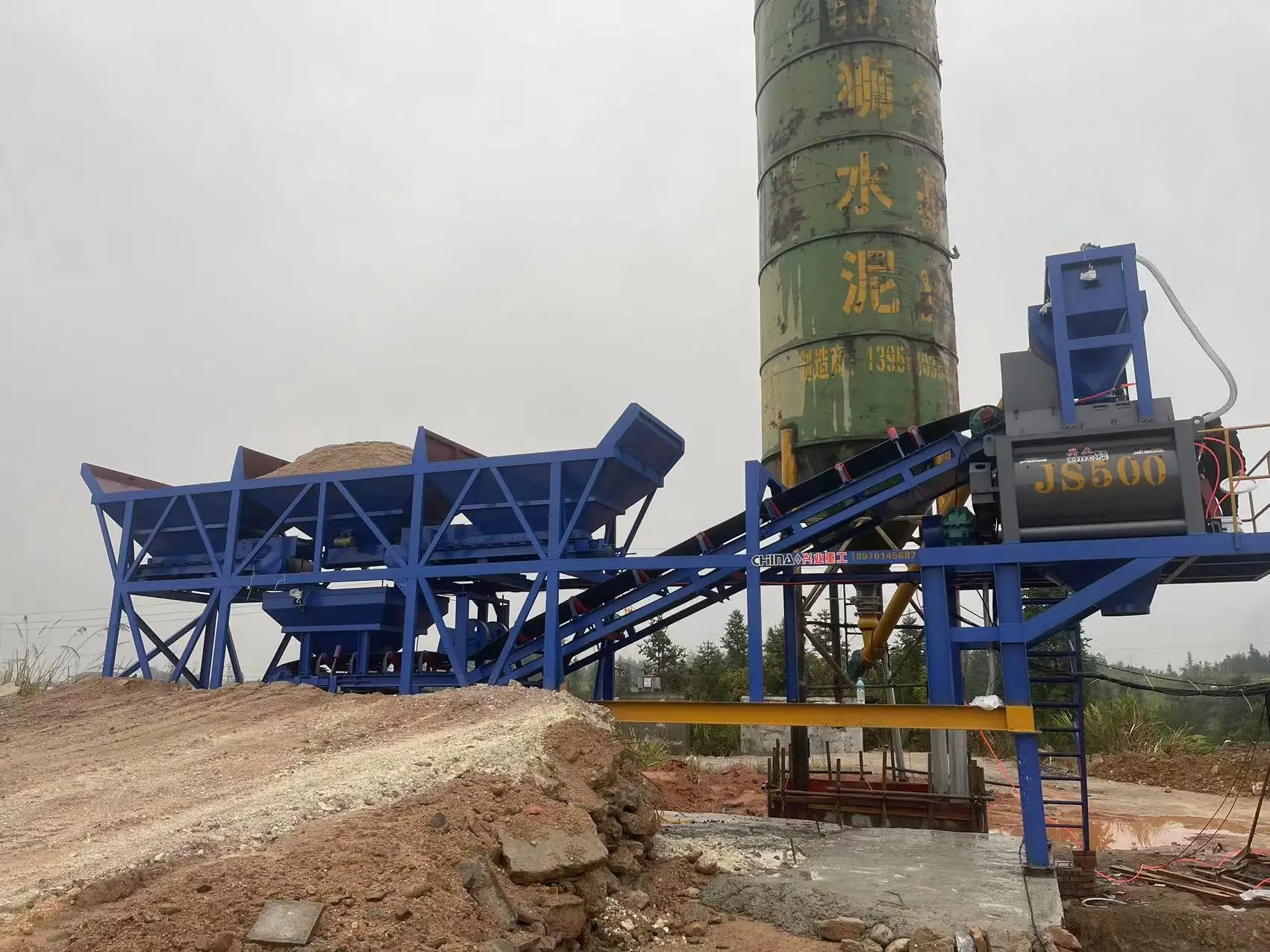

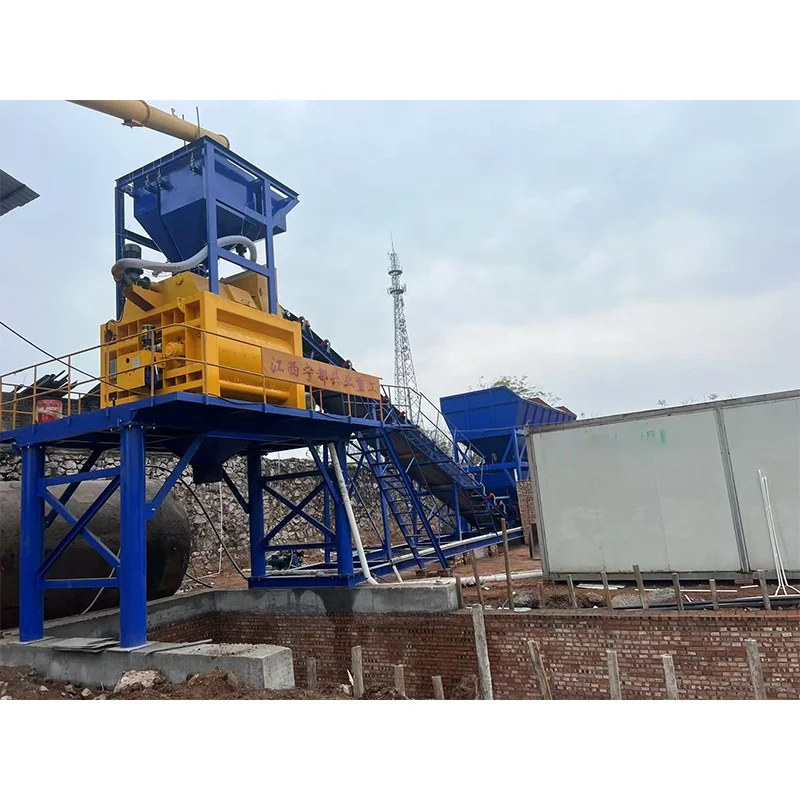

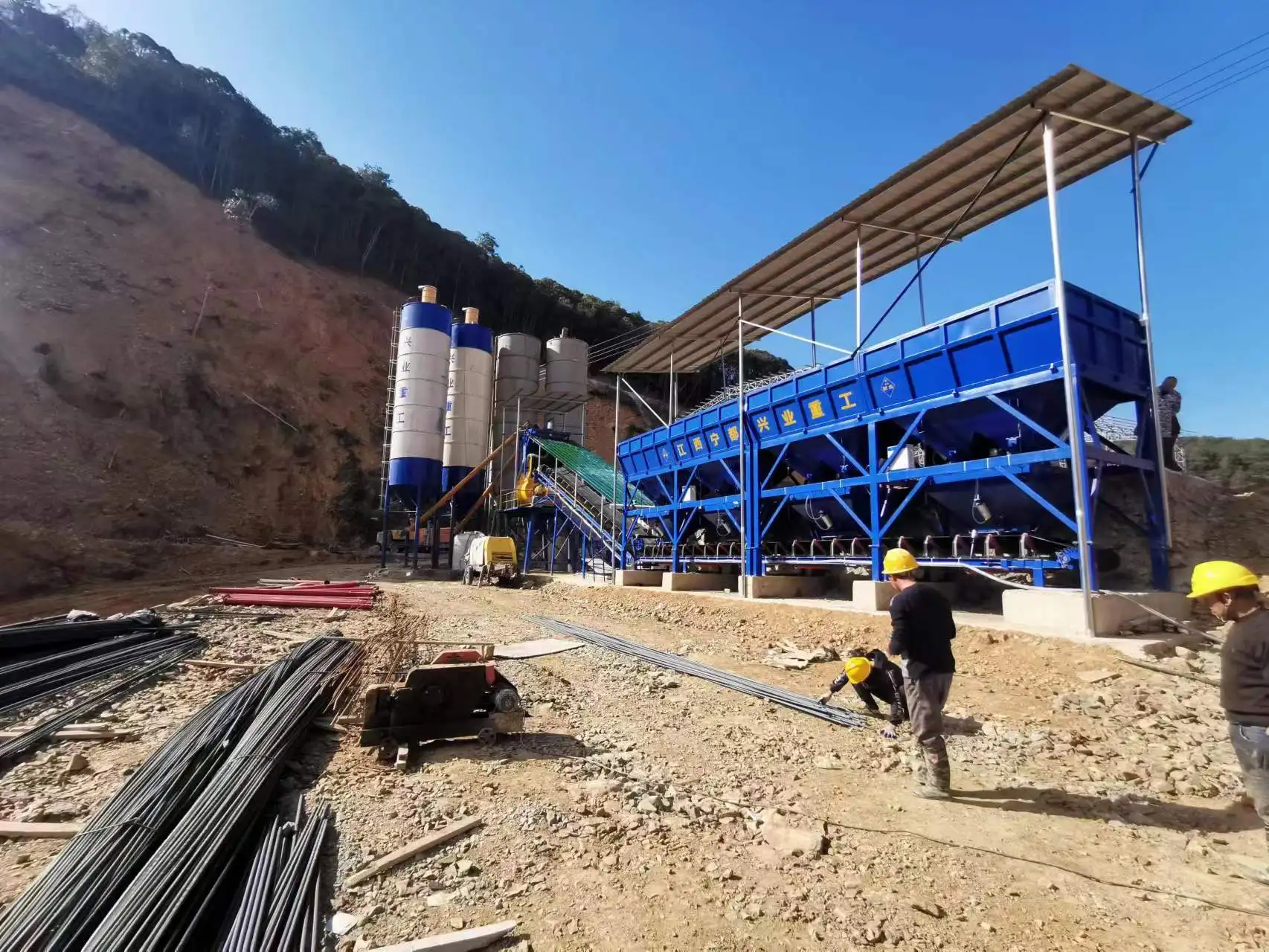

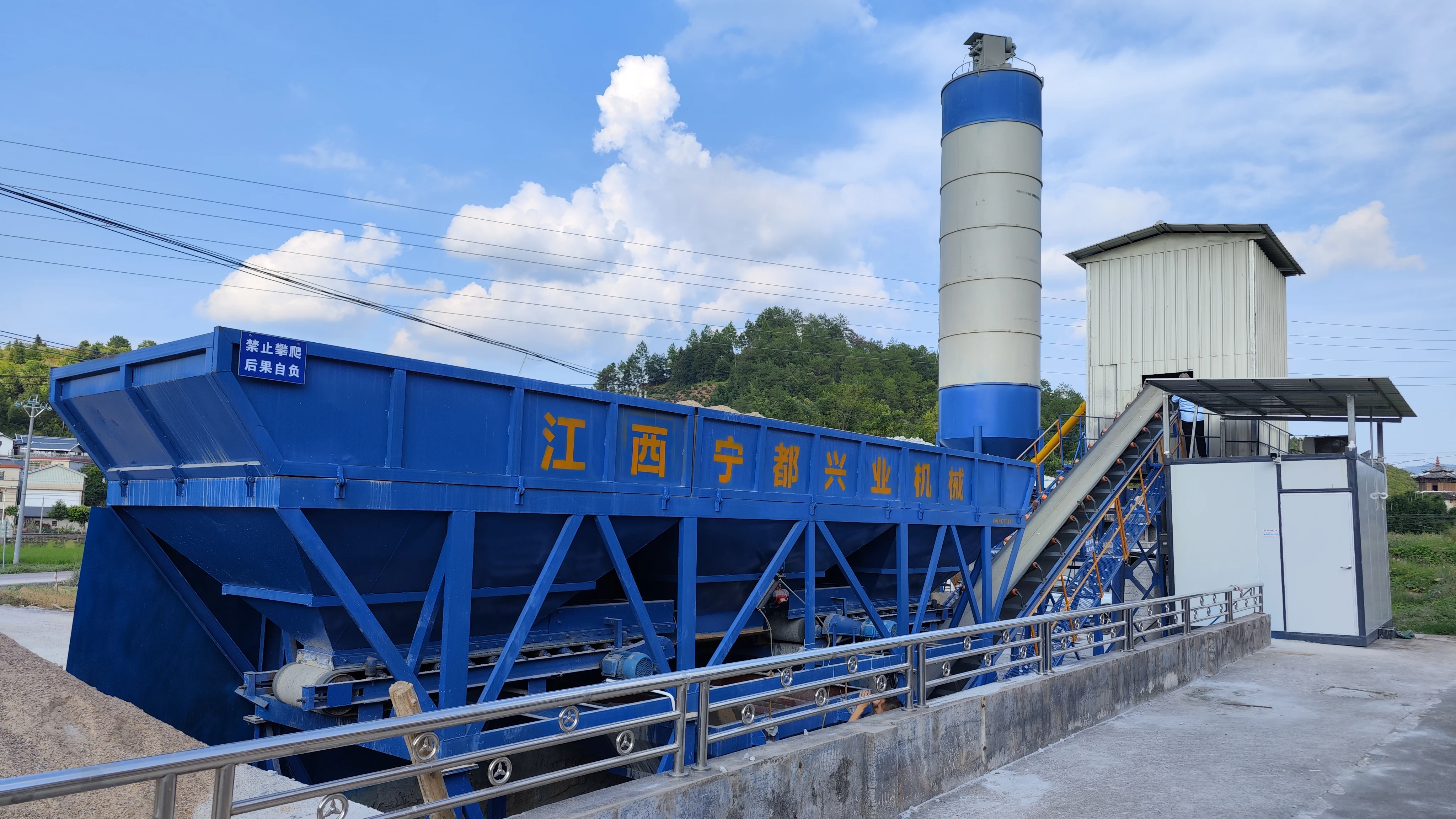

Installation Cases
YOU MAY LIKE
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment.
EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.
For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
