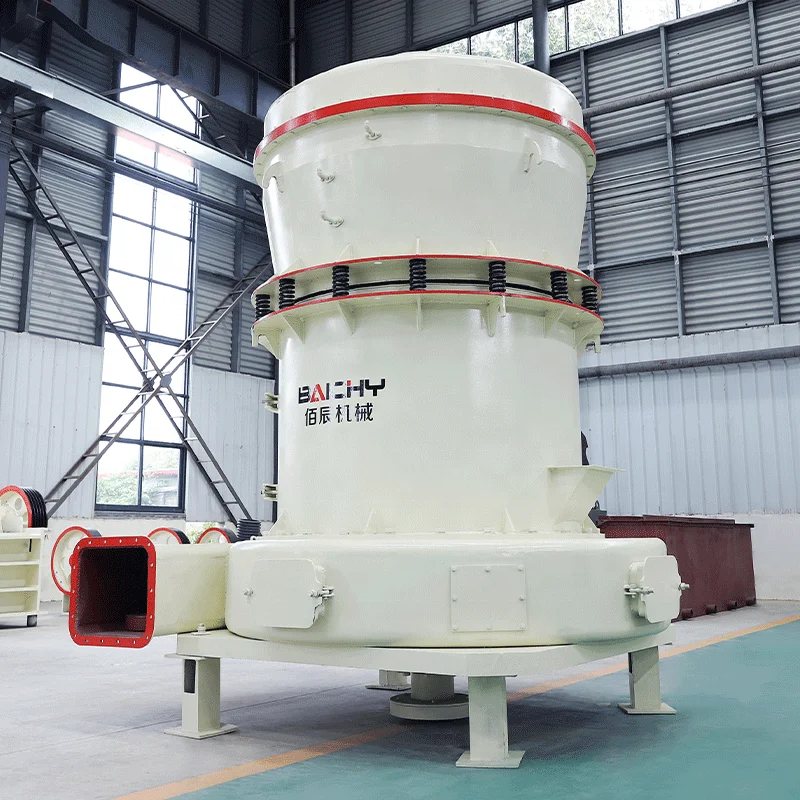

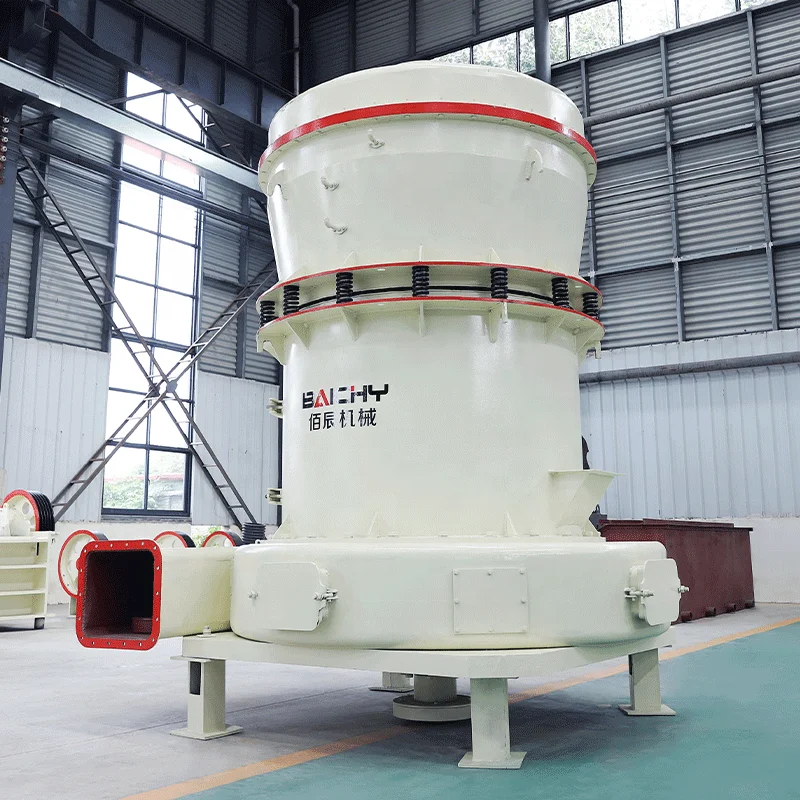

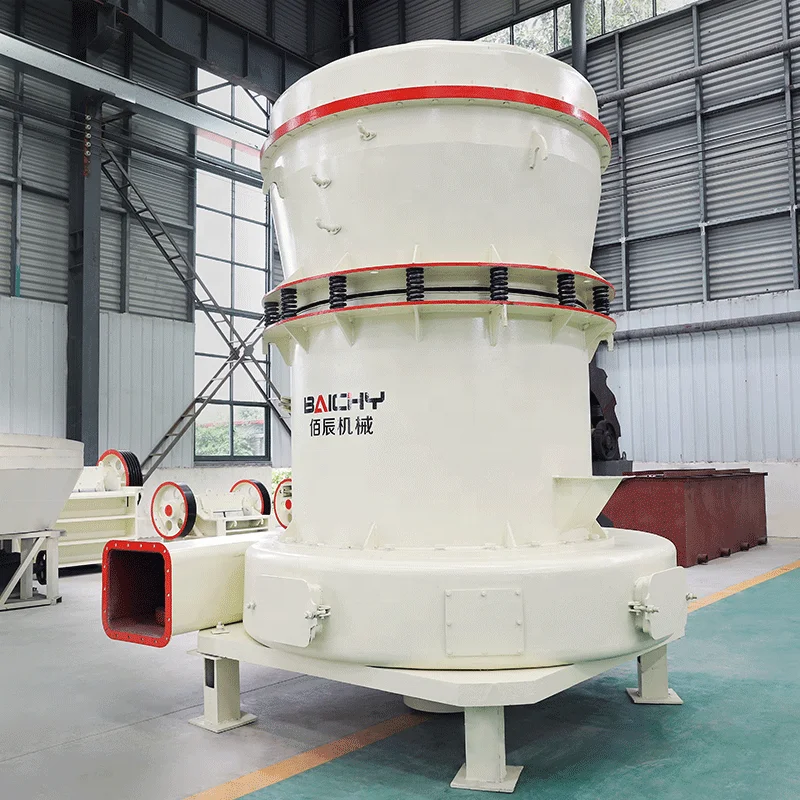

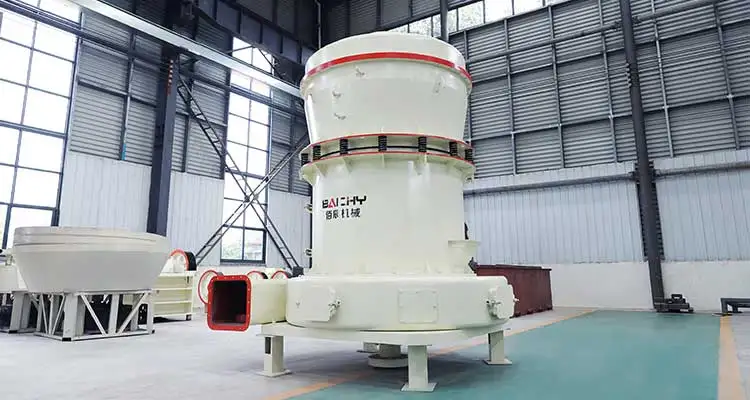

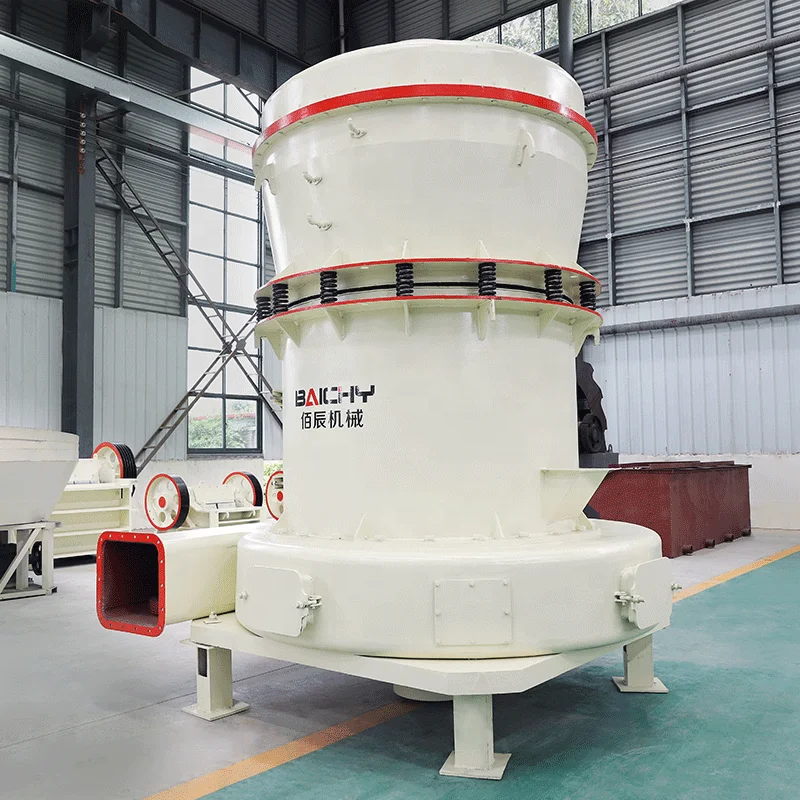

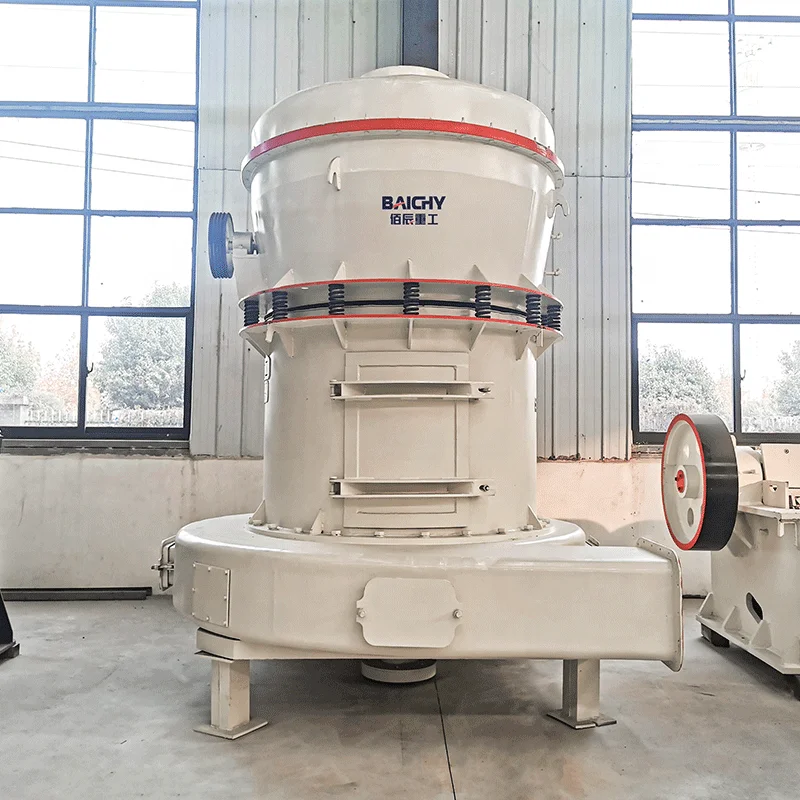

What is Raymond Mill?

Raymond mill is a commonly used industrial grinding equipment, which has become a powder-making equipment widely used in mining, metallurgy, building materials, chemical industry, ceramics, power, and other industries.

Raymond Mill has many advantages such as high efficiency and energy saving, high and uniform finished product fineness, high screening rate, strong adaptability, easy operation, small footprint, good environmental performance, and a high degree of automation.

Application scenarios of Raymond Mill

The particle size range of Raymond mill finished products is usually between 80-320 mesh (0.019mm~0.0038mm), and the maximum fineness of some materials can reach 1000 mesh (0.013 mm).

Raymond mill is widely used in quartz, talc, marble, limestone, dolomite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, graphite, glass, manganese ore, titanium ore, copper ore, chromium ore, and other mineral industries.

Main structure of Raymond mill

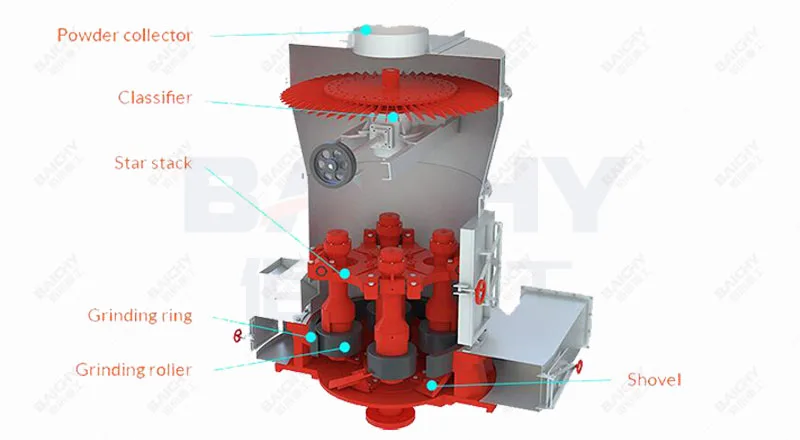

The Raymond mill is mainly composed of the main machine, analyzer, fan, finished product cyclone separator, micro powder cyclone separator and air duct. Among them, the main machine is composed of the frame, air inlet volute, scraper, grinding roller, grinding ring, cover and other parts. After the material is ground, the wind force of the fan blows up the powder, and it is sorted by the analyzer. The material with too coarse fineness will fall back into the grinding chamber for grinding, and the material with fineness that meets the specification will enter the cyclone collector with the wind flow and finally become the finished product.

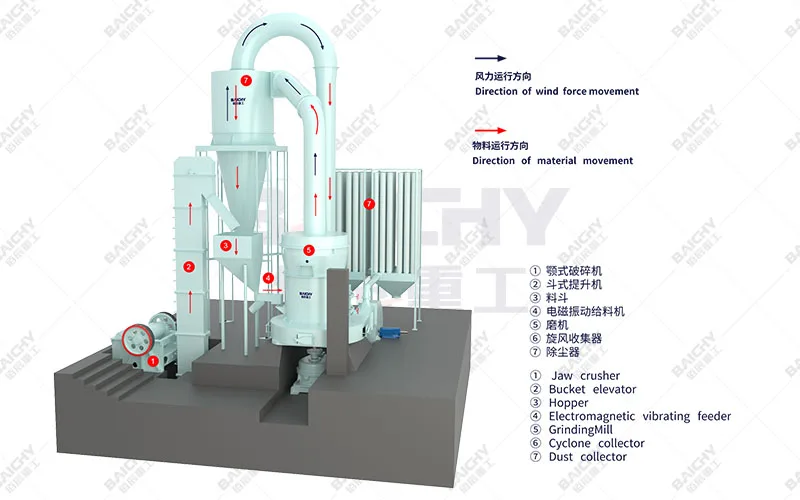

What Is The Working Principle Of The Raymond Mill?

Step 1 :The raw material is crushed into a specified particle size by the jaw crusher, lifted to the hopper by the bucket elevator, and then quantitatively sent to the crushing chamber by the feeder.

Step 2 :A rotating shovel scoops up the ingredients and projects them between the rollers and the ring where the grinding takes place.

Step 3 :The pulverized powder is blown into the classifier by the air blower for classification. Oversized particles fall into the grinding chamber for regrinding. Qualified powder flows into the cyclone collector through the classifier and is collected as finished product.

Step 4 :To ensure that the Raymond mill works under negative pressure. The increased air flow enters the pulse dust collector through the pipeline, and is discharged into the atmosphere after purification. The dust-free operation in the workshop is realized through the pulse collector.

Advantages and features of Raymond mill

High efficiency and low consumption: Raymond mill has higher efficiency and lower power consumption than ball mill, and occupies less area, and has a small one-time investment.

Wear-resistant and durable: The replacement cycle of the grinding roller and grinding ring is long, which eliminates the disadvantage of a short replacement cycle of wearing parts of the centrifugal crusher.

Environmental protection and cleanliness: The airflow of wind selection circulates in a closed system, with less dust, a clean operation workshop, and a pollution-free environment.

Easy operation: The electrical system adopts centralized control, with a high degree of automation and easy operation.

200 Mesh Feldspar Grinding Mill Plant In Thailand

Raw material: feldspar

Finished product requirement: 200 mesh

Production capacity: 2-3tph

Equipment configuration: YGM95 mill + Screw Conveyor

Country: Thailand

Time: March 2023

The equipment recommended by Baichy Machinery is the YGM95 high-pressure suspension roller mill

The YGM95 high-pressure suspension roller mill is an important industrial equipment, mainly used for the grinding and processing of various ores; it uses high-pressure suspension roller technology to efficiently and finely grind various ores and non-metallic minerals.

Production capacity: usually 2.1-5.6 tons/hour, and the specific production capacity will vary according to factors such as material properties and operating conditions.

Main engine power: generally 37 kilowatts, providing stable power support for the equipment.

Maximum feed particle size: ≤25 mm, ensuring that the equipment can handle block materials of a certain size.

Finished product particle size: adjustable, usually between 0.8-0.038 mm, to meet the requirements of different users for powder fineness.

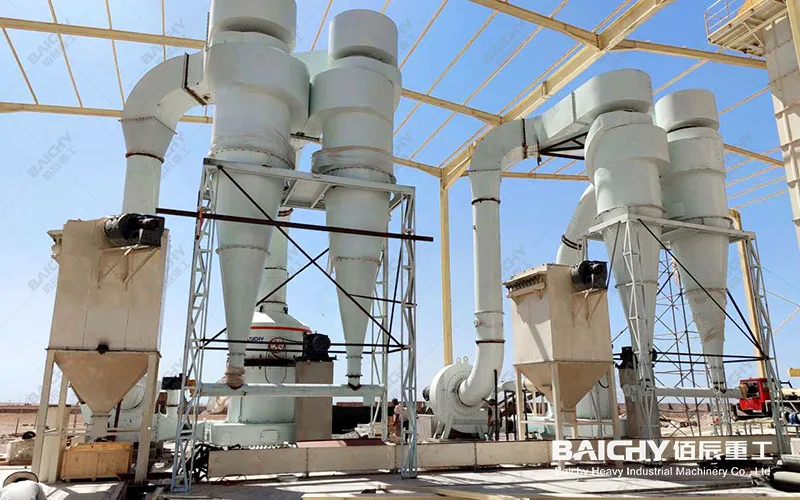

20-25tph Gypsum Grinding Plant In Morocco

Raw material: Gypsum

Finished product requirement: 200 mesh

Production capacity: 20-25tph

Equipment configuration: MTW175 European trapezoidal grinding mill

Country: Morocco

Time: 2024

The equipment recommended by Baichy Machinery is the MTW175 European trapezoidal grinding mill

The 20-25t/h gypsum grinding production line uses the MTW175 European trapezoidal grinding mill as the main equipment, combined with auxiliary equipment such as the crushing system, conveying system, calcination system, storage and conveying system and electronic control system, which can achieve efficient, stable and environmentally friendly gypsum powder production.

Bevel gear integral transmission: compact structure, no reducer required, easy and quick installation and adjustment, greatly improved efficiency.

Internal thin oil lubrication system: adopts internal oil pump, no external oil pump or lubrication station required, automatic oil supply, reduces transmission resistance, and extends equipment service life.

Arc air duct: adopts curved surface design, no resistance inlet volute, which is conducive to material dispersion, not easy to block material, and reduces energy consumption.
