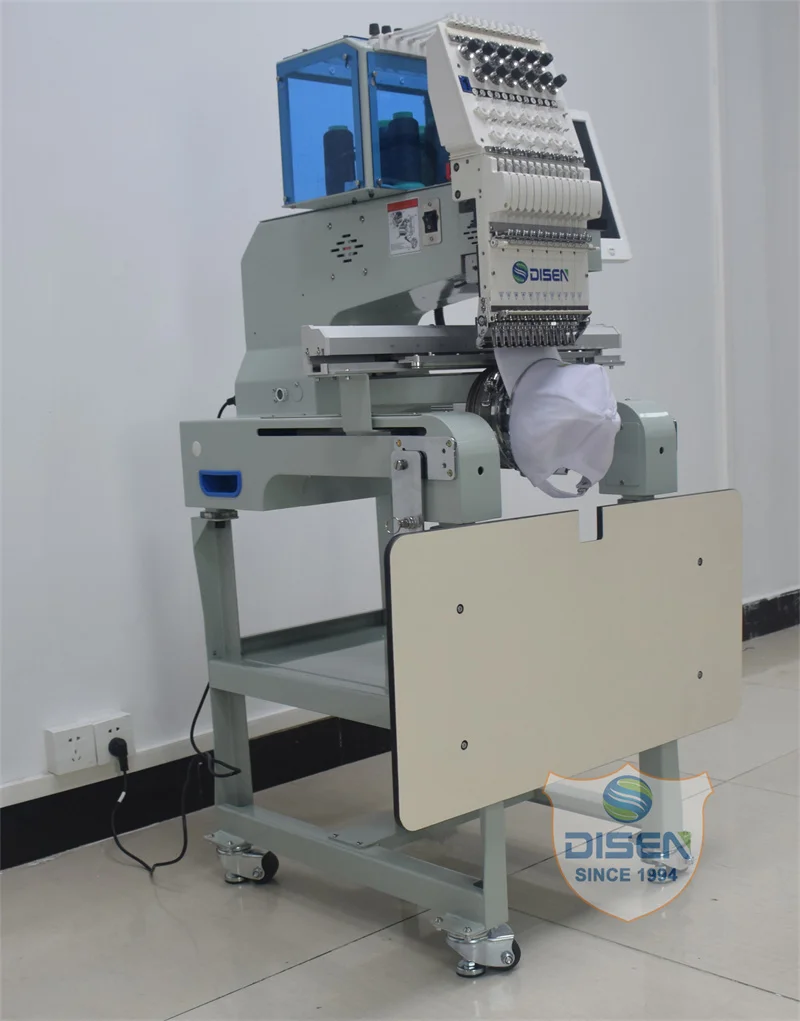

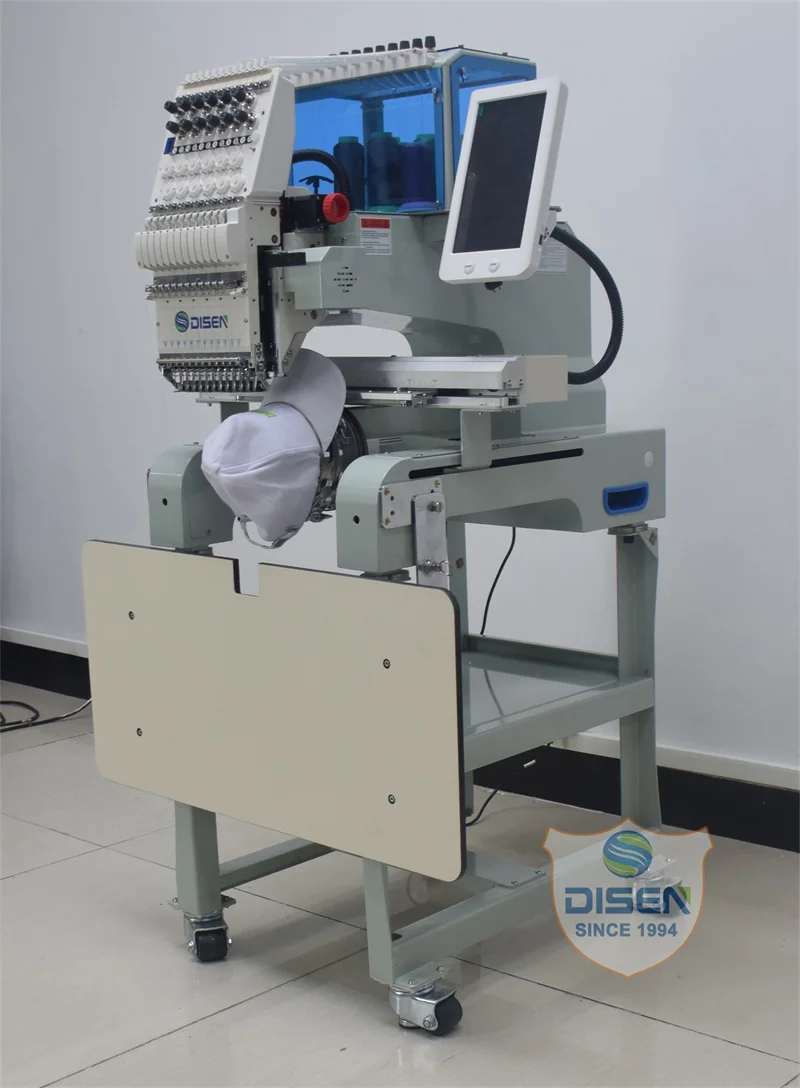

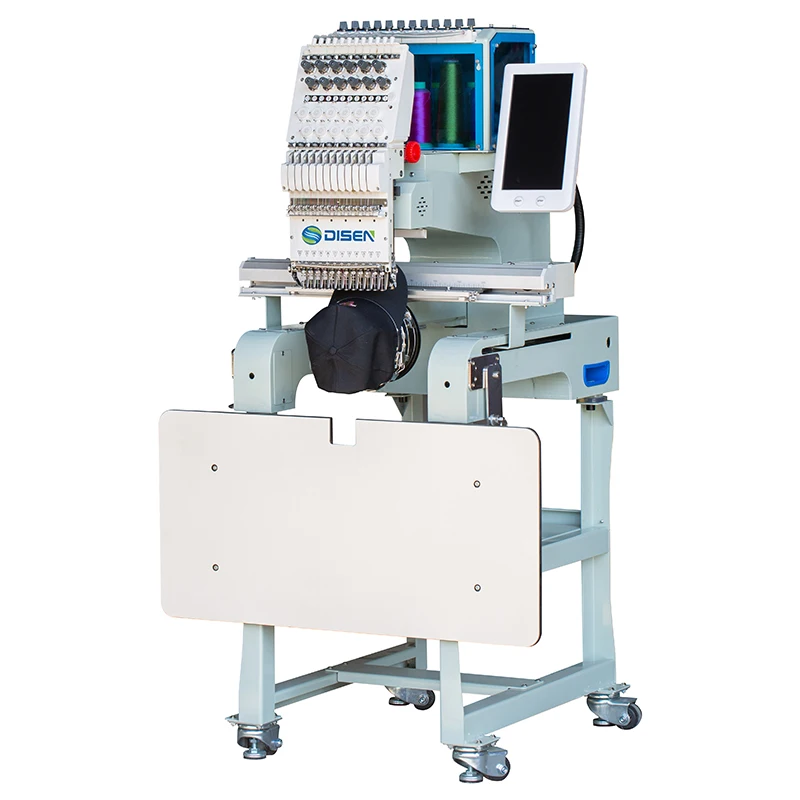

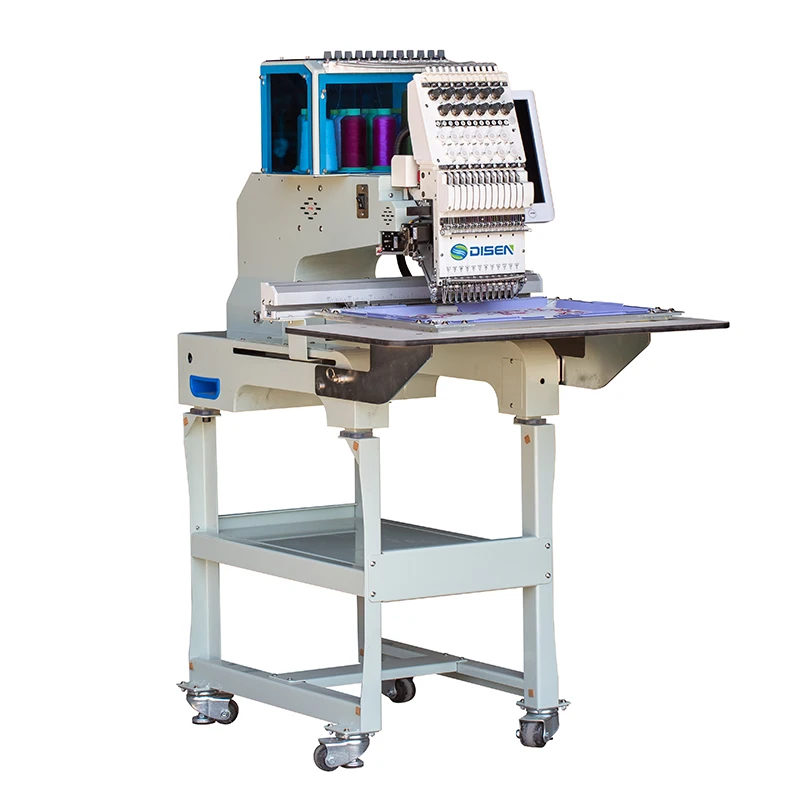

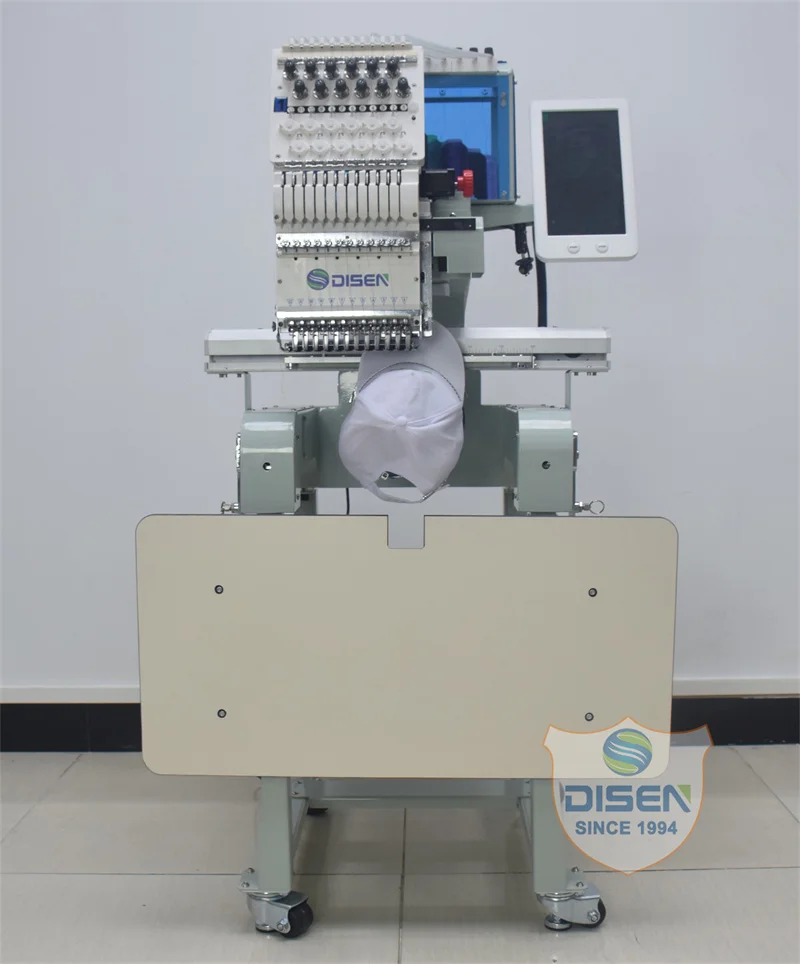

300*400mm mini home use embroidery sewing machine single head 12 15 needles hat t shirt cap computerized embroidery machine
- Category: >>>
- Supplier: Guangzhou Disen Electronic Equipment Co. Ltd.Guangzhou Ltd.
Share on (1601314582826):
Product Overview
Description
Product Description
Specification
MODEL: 1201 Single Head 12 Needles Embroidery Machine
1.Head number: 1
2.Needle number: 12/15
3.Embroidery area: 300 * 400mm
4.Control system: Raynen
5.Dimensions: length 650 * width 700 * height 1400mm
6.Net weight: 150KG
7.Maximum speed: 1000RPM
8.Memory pattern total capacity: 32 million needles
9.Max stitches for a single pattern: 10 million stitches
10.Function: Flat embroidery, hat embroidery, ready to wear embroidery, patch embroidery, combination and loop embroidery, letter embroidery, graffiti embroidery.
11.Supported languages: Chinese, English, Spanish, Turkish, French, German, Portuguese, Russian, Thai, Italian, Arabic, Dutch, Polish
Detailed parameters of control system
1.Display screen: 10 inch touch screen,resolution 1024 * 600
2.Control accuracy: minimum control stitch distance 0.1mm
3.Stitch size range: 0.1mm-12.7mm
4.Pattern input and output forms: USB, network
5.Servo main motor,stepper XY motor,motor color change,motor trimming, motor thread hooking
6.In conjunction with the main shaft zero position plate,the main shaft angle detection and mian motor share the same encoder
7.Using an external multi turn potentiometer, directly detect the position of the color changing needle and display it on the operating head
8.Using highly reliable plugins to ensure the reliability of system connections
9.Lock encryption:have
Machine configurations
1.Head number: 1
2.Needle number: 12/15
3.Embroidery area: 300 * 400mm
4.Control system: Raynen
5.Dimensions: length 650 * width 700 * height 1400mm
6.Net weight: 150KG
7.Maximum speed: 1000RPM
8.Memory pattern total capacity: 32 million needles
9.Max stitches for a single pattern: 10 million stitches
10.Function: Flat embroidery, hat embroidery, ready to wear embroidery, patch embroidery, combination and loop embroidery, letter embroidery, graffiti embroidery.
11.Supported languages: Chinese, English, Spanish, Turkish, French, German, Portuguese, Russian, Thai, Italian, Arabic, Dutch, Polish
Detailed parameters of control system
1.Display screen: 10 inch touch screen,resolution 1024 * 600
2.Control accuracy: minimum control stitch distance 0.1mm
3.Stitch size range: 0.1mm-12.7mm
4.Pattern input and output forms: USB, network
5.Servo main motor,stepper XY motor,motor color change,motor trimming, motor thread hooking
6.In conjunction with the main shaft zero position plate,the main shaft angle detection and mian motor share the same encoder
7.Using an external multi turn potentiometer, directly detect the position of the color changing needle and display it on the operating head
8.Using highly reliable plugins to ensure the reliability of system connections
9.Lock encryption:have
