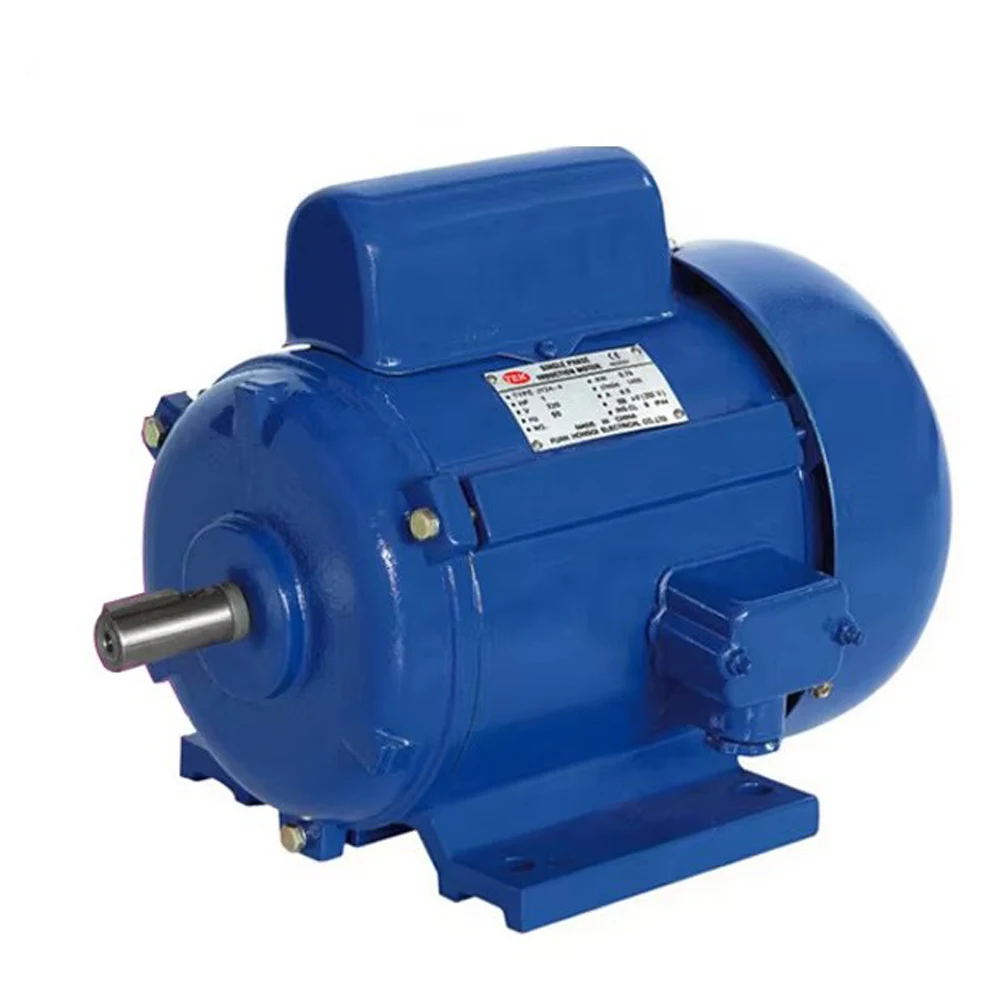

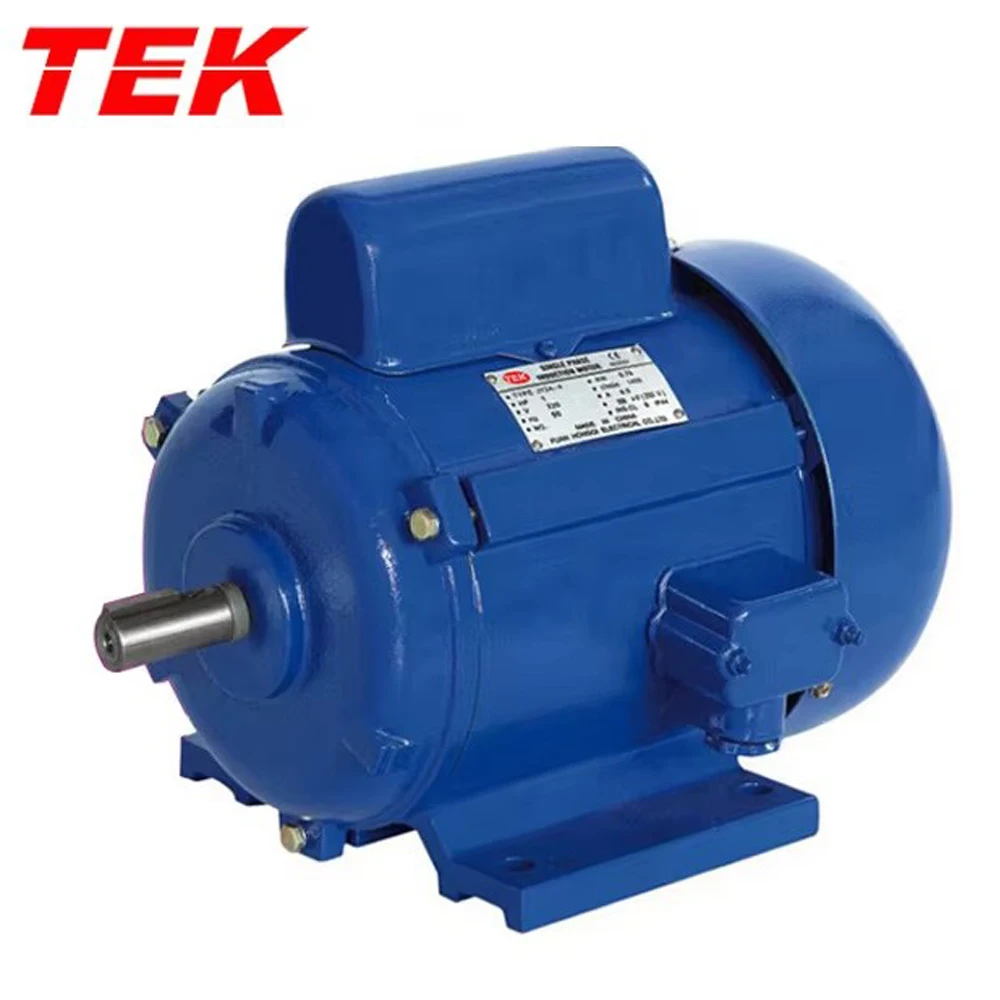

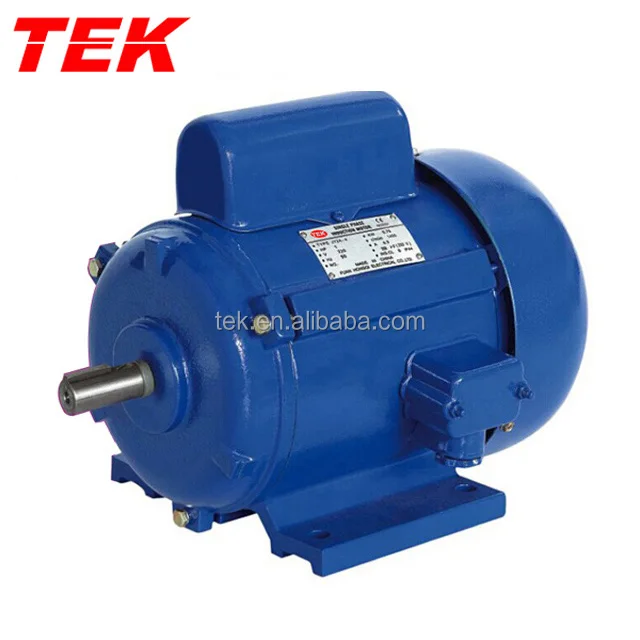

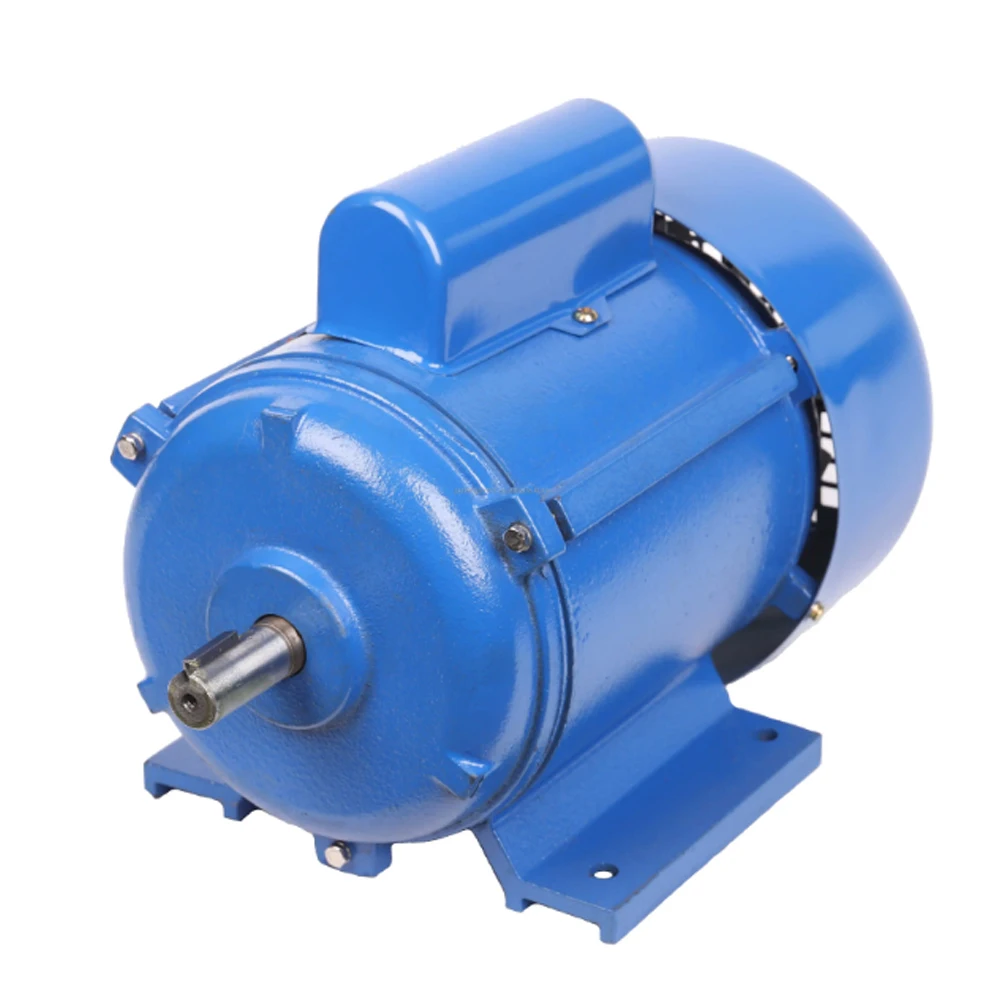

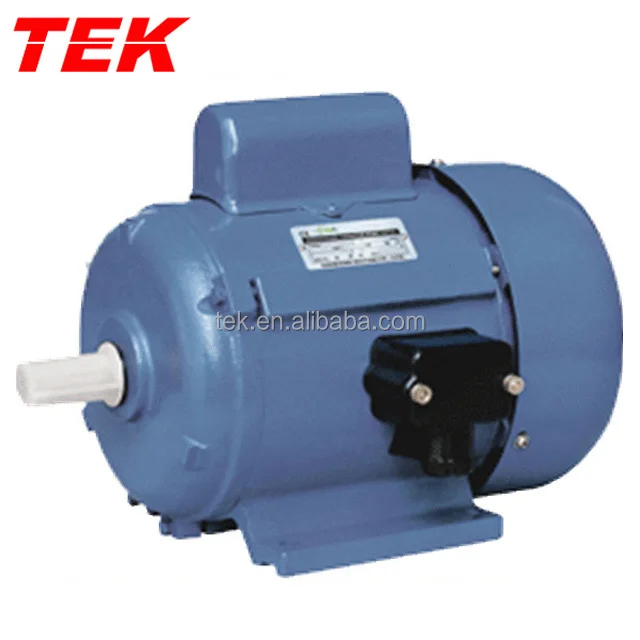

JY2A 2 1.1kw 3000rpm 2 pole Single phase Heavy duty Capacitor Start Copper Wire Induction Asynchronous JY Motor

Product Overview

Description

JY2A-2 1.1kw 3000rpm 2-pole Single-phase Heavy-duty Capacitor Start Copper Wire Induction Asynchronous JY Motor



JY series single-phase capacitor start induction motor is suitable for any where a larger starting torque and the starting current to be limited are required, and is used as driving motor of air compressors, refrigerators, medical apparatus and other small machines in which full-load starting is demanded.

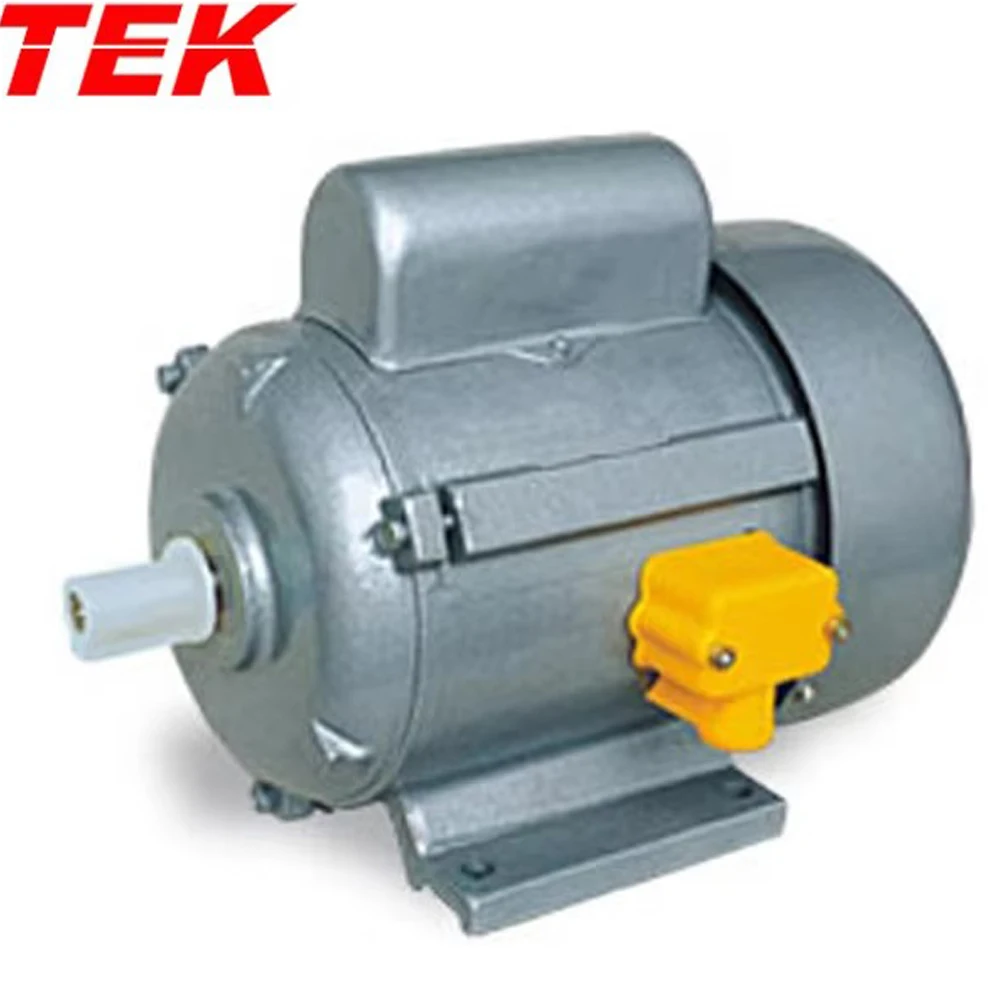

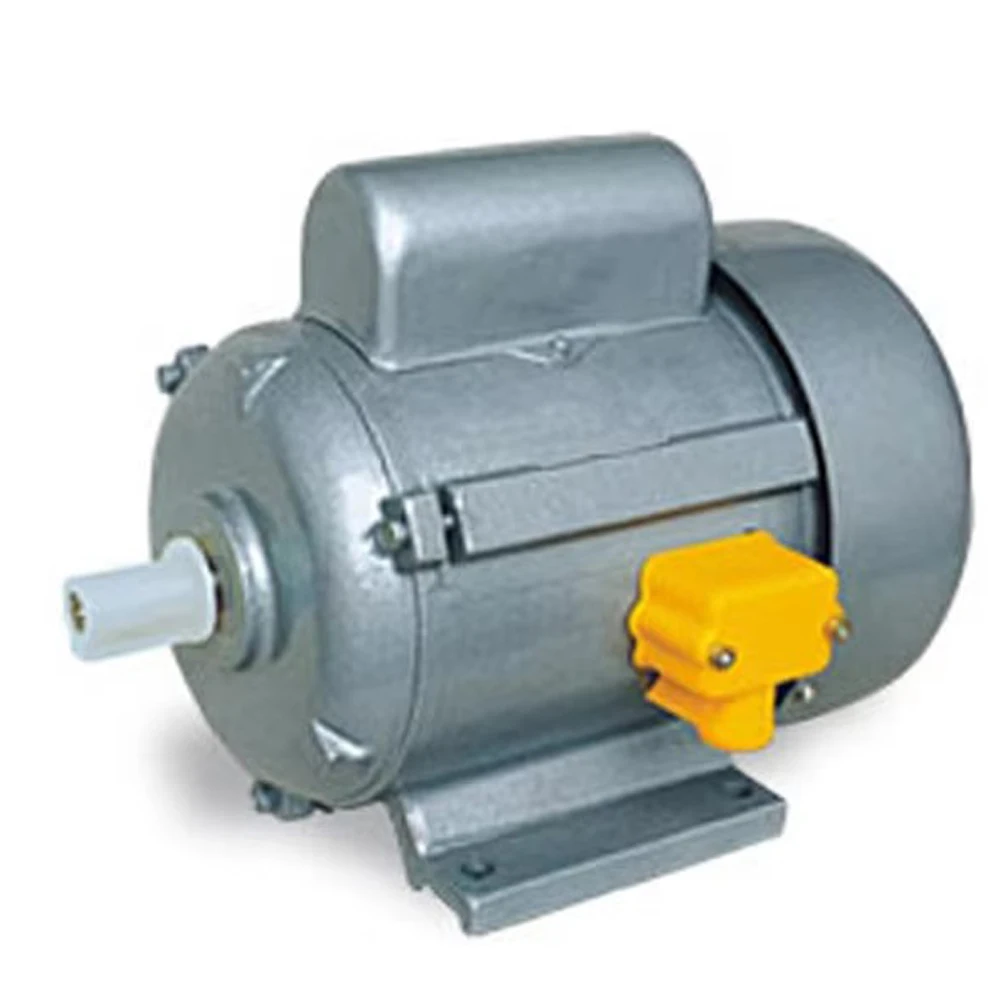

These series motors are of totally enclosed fan-cooled and having three frame sizes 09, 1 and 2. The frame are made of cast iron or cast aluminium according to the requests.
Protection type: IP44
Insulation class: B
Cooling type: IC0141
Rated frequency: 50Hz
Product Power: 1.1 KW

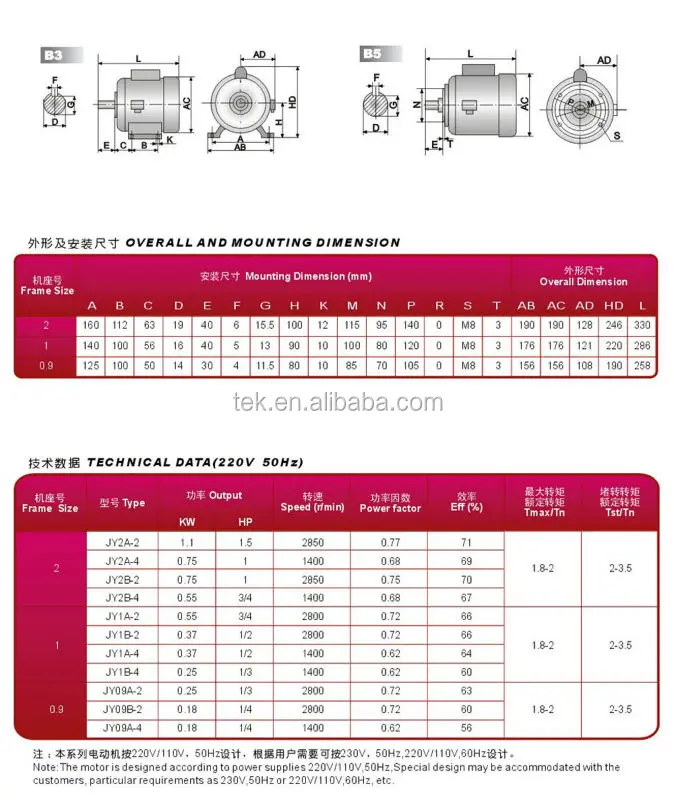

Frame Size	Type	Output		Speed	Power	Eff	Tmax/Tn	Tst/Tn
		kW	HP	(r/min)	Factor	(%)
2#	JY2A-2	1.1	1.5	2850	0.77	71	1.8-2	2-3.5
2#	JY2B-2	0.75	1	2850	0.75	70	1.8-2	2-3.5
2#	JY2A-4	0.75	1	1400	0.68	69	1.8-2	2-3.5
2#	JY2B-4	0.55	3/4	1400	0.68	67	1.8-2	2-3.5
1#	JY1A-2	0.55	3/4	2800	0.72	66	1.8-2	2-3.5
1#	JY1B-2	0.37	1/2	2800	0.72	66	1.8-2	2-3.5
1#	JY1A-4	0.37	1/2	1400	0.62	64	1.8-2	2-3.5
1#	JY1B-4	0.25	1/3	1400	0.62	60	1.8-2	2-3.5
09#	JY09A-2	0.25	1/3	2800	0.72	63	1.8-2	2-3.5
09#	JY09B-2	0.18	1/4	2800	0.72	60	1.8-2	2-3.5
09#	JY09A-4	0.18	1/4	1400	0.62	56	1.8-2	2-3.5
09#	JY09B-4	0.12	1/6	1400	0.61	53	1.8-2	2-3.5
