Product Overview

Description



Product display

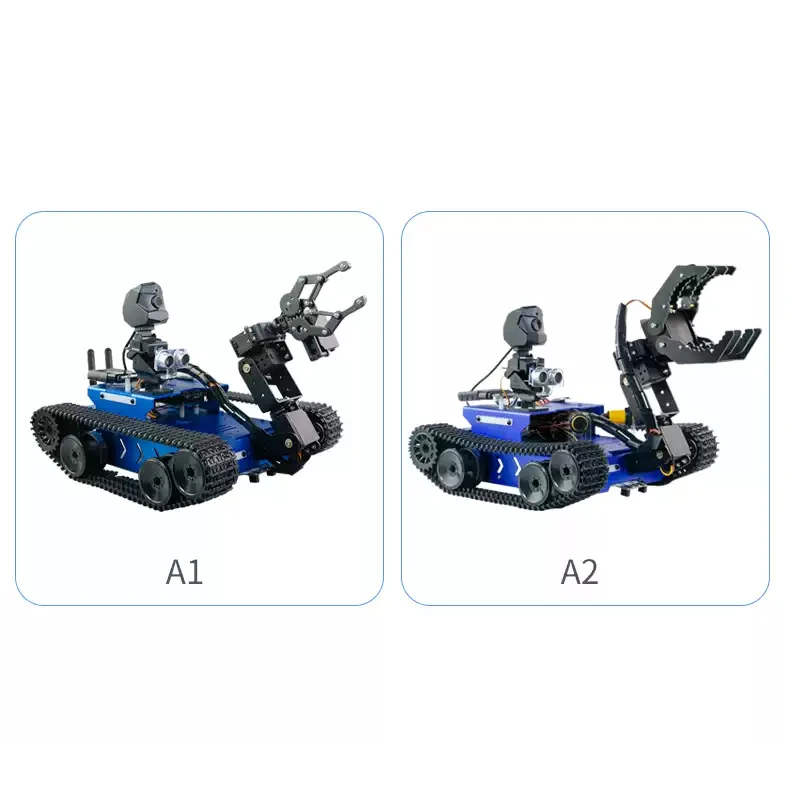

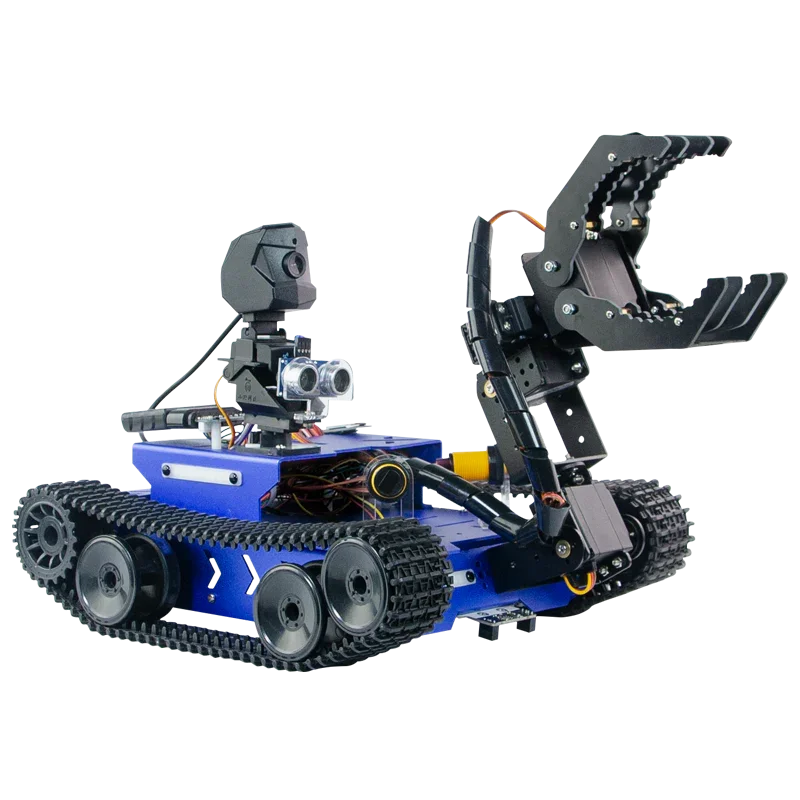

DF-GFS-X robot
The GFS-X robot is an advanced vehicle-shaped robot with a crawler structure. The large size of the vehicle body makes it easy to install various sensors and expansion modules. It is suitable for different application scenarios such as rough roads, climbing slopes, crossing ditches, etc.
The GFS-X robot also has AI machine vision, which allows users to learn and expand artificial intelligence functions such as visual line detection, face recognition and color recognition..




Specification


Development Boards
Raspberry Pi
Camera
720P HD camera
Driver board
PWR.X.A
Drive wheel
Crawler
Size
301*260*211mm
Remote control method
WiFi/Bluetooth/PS2 controller
Frequency range
2.400-2.4835GHz
Programming language
Arduino-c/c/python
Battery
12.6V-2200mAh
Motor
TT DC gear motor
Robotic Arm
Four-degree-of-freedom robotic arm
Signal range
≤80m open distance
Motor drive
TB6612 Dual Motor Driver
Charging method
No need to disassemble the plug-in
Wireless Communications
Support 802.11b/g/n protocol up to 150Mbps.
Control Platform
1. Mobile APP 2. PC client 3. PS2 controller
Supply voltage
12V lithium battery pack


Product Feature

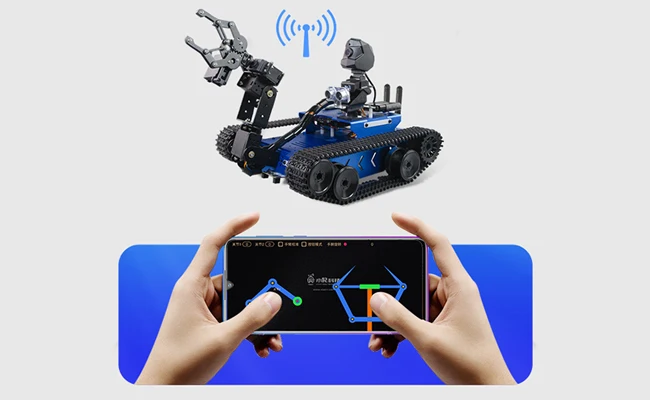

WlFI Wireless Remote Control

After the car is turned on, it generates a WiFi signal.and the mobile phone or tablet can connect to the car through WiFi,and control it with a dedicated APP.

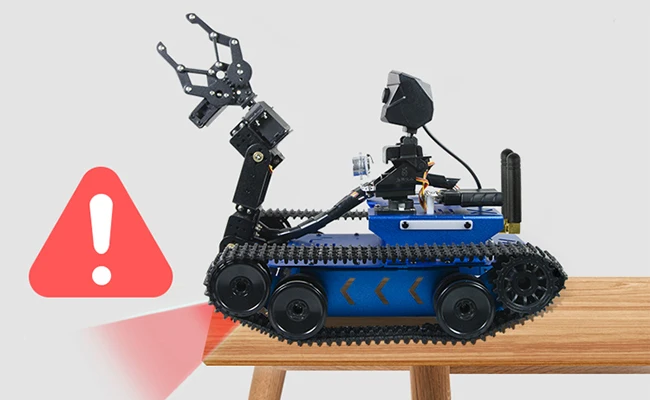

Infrared Anti-drop Function


The car is running smoothly on the table. when it is close to the edge of the table, the infrared sensor of the car detects that there is a danger of falling, and it will no longer respond to the forward command.

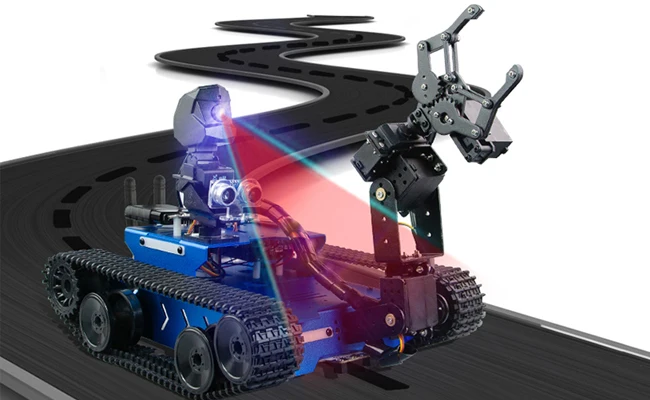

720P Camera Line Inspection

The car recognizes the black tracking line arranged on the ground through the camera,and automatically follows the tracking line
[Raspberry Pi version only]

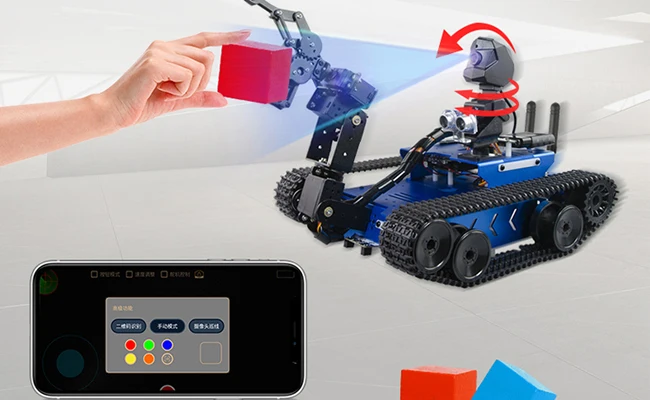

Visual Recognition Color

The DSV-RSP car is equipped with infrared sensors and ultrasonic sensors as standard, which can realize intelligent gameplay such as infrared patrol, ultrasonic ranging, and maze walking.


Applications




Artificial Intelligence Training Course
Youth Robotics Competition

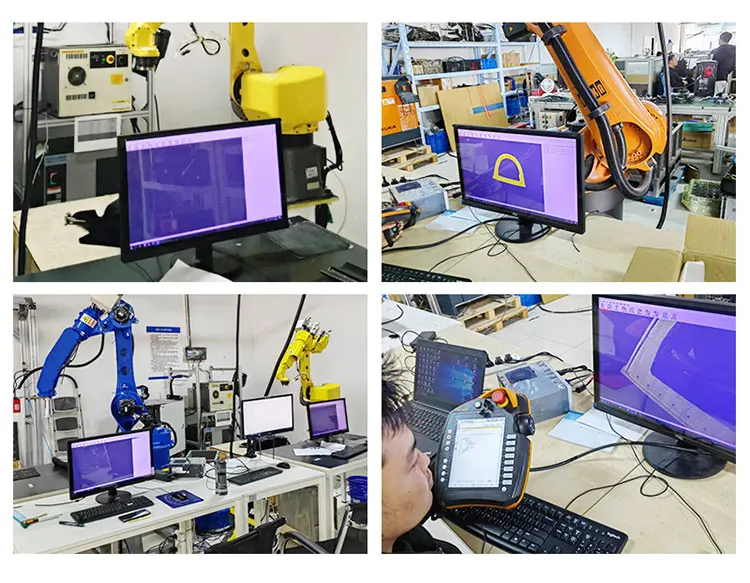

Zhejiang University Laboratory

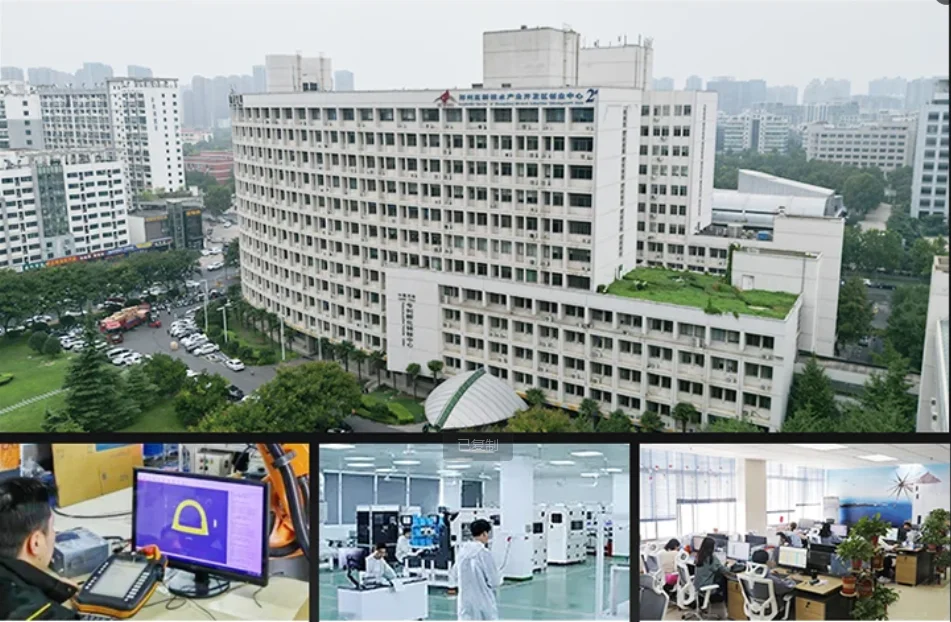

Company profile
