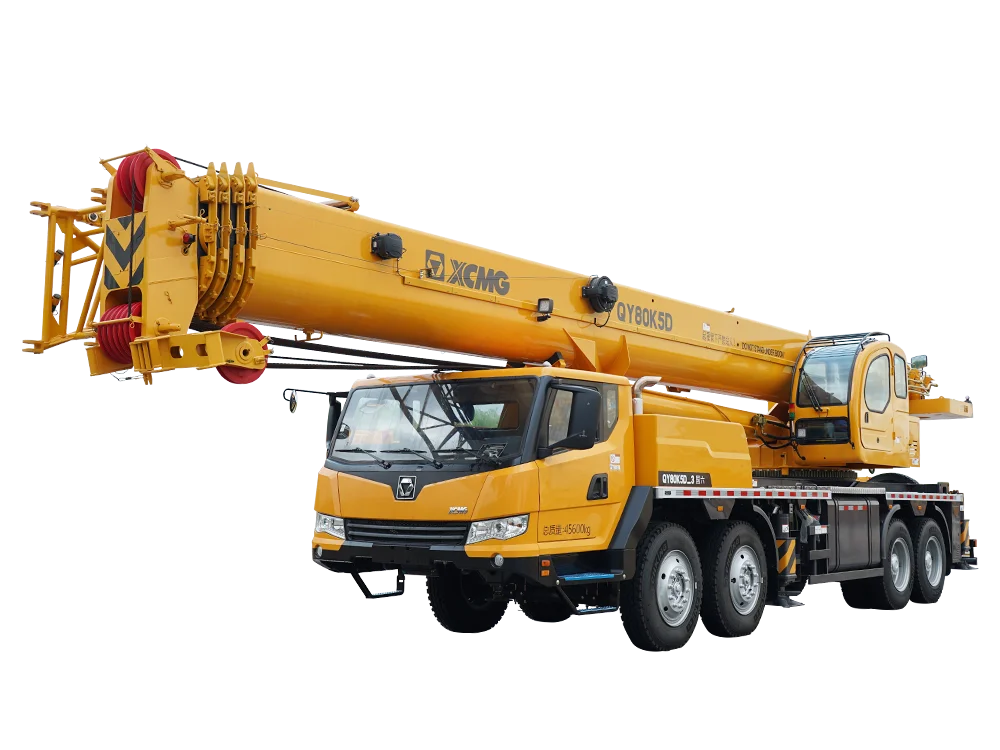

QY80K5D 3 Mobile Truck Crane 80Ton Lifting Solution With Telescopic Boom remote control crane price overhead wheel crane
- Category: >>>
- Supplier: Newindu Construction Engineering (Shanghai) Co. Ltd.Newindu Ltd.
Share on (1601316580175):
Product Overview
Description
Products Description
New 80 Ton High Efficiency Truck Crane QY80K5D With Telescopic Boom For Factory Supply
● Power transmission system The engine is paired with a ten-speed gearbox, and the double-reduced axle is adapted to high-load
tires, which can carry a maximum of 20t of counterweight to the field. 470L extra large aluminum alloy fuel tank increases
cruising range by 45%.
● Proprietary composite hydraulic control technology, higher efficiency Dual-variable pump + post-valve
compensation load-sensitive system, dual-pump automatic splitting and merging control, can achieve any combination of working
conditions, and the operating efficiency is industry-leading. The post-valve compensation technology is adopted to reduce the
throttling loss of the hydraulic system, and improve the micro-movement and smooth operation of the hoisting operation, realizing
the perfect combination of economical efficiency and precise control.
● Finely crafted - more exquisite details The appearance details of the whole machine are newly designed, and the interior of the
cab is comprehensively improved: dust-proof, noise-reducing and highly airtight two-chamber, Seiko high-gloss metal brushed
texture decoration, new high-precision length and
angle sensor, molded aluminum alloy arm head junction box, etc.
● Intimate and humanized - more convenient to use Large field of view hoisting monitoring mirror, hoisting work is safer;
one-piece cast counterweight logo, counterweight combination identification is higher, hoisting is safer; jib double-pointed pin
shaft design, shaft threading is more convenient; lifting hook
is easy to wear The rope system eliminates the need to disassemble the wedge sleeve and saves 48% of the rope threading time.
tires, which can carry a maximum of 20t of counterweight to the field. 470L extra large aluminum alloy fuel tank increases
cruising range by 45%.
● Proprietary composite hydraulic control technology, higher efficiency Dual-variable pump + post-valve
compensation load-sensitive system, dual-pump automatic splitting and merging control, can achieve any combination of working
conditions, and the operating efficiency is industry-leading. The post-valve compensation technology is adopted to reduce the
throttling loss of the hydraulic system, and improve the micro-movement and smooth operation of the hoisting operation, realizing
the perfect combination of economical efficiency and precise control.
● Finely crafted - more exquisite details The appearance details of the whole machine are newly designed, and the interior of the
cab is comprehensively improved: dust-proof, noise-reducing and highly airtight two-chamber, Seiko high-gloss metal brushed
texture decoration, new high-precision length and
angle sensor, molded aluminum alloy arm head junction box, etc.
● Intimate and humanized - more convenient to use Large field of view hoisting monitoring mirror, hoisting work is safer;
one-piece cast counterweight logo, counterweight combination identification is higher, hoisting is safer; jib double-pointed pin
shaft design, shaft threading is more convenient; lifting hook
is easy to wear The rope system eliminates the need to disassemble the wedge sleeve and saves 48% of the rope threading time.
Contact Way
Sales Staff
Julia Guo
Mobile / Whatsapp/ Facebook/Instagram/Wechat: +86-17527625593
E-mail:Julia@newindu.com
Product Paramenters
Item | Unit | Parameter | ||
Dimensions (length *width * height) | mm | 14990*2800*3940 | ||
Total vehicle mass in travel configuration | kg | 49600 | ||
Engine rated power/rpm | kW/(r/min) | 276/1900 | ||
Max. output torque/rpm | Nm/(r/min) | 1800/1000-1400 | ||
Max. travel speed | km/h | 80 | ||
Min. turning diameter | m | ≤24 | ||
Max. grade ability | % | 45 | ||
Fuel consumption per 100 km | L | 44 | ||
Max. total rated lifting capacity | t | 80 | ||
Min rated working radius | m | 3 | ||
Max. load moment | Base boom | kN m | 3450 | |
Hoist height | Base boom | m | 13.3 | |
Fully-extended boom | m | 50.5 | ||
Boom length | Base boom | m | 13 | |
Boom raising time | s | ≤55 | ||
Boom fully extending time | s | ≤135 | ||

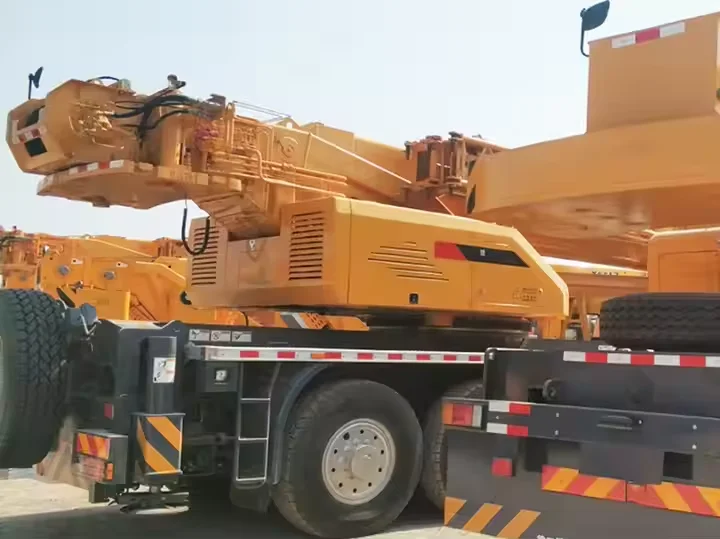

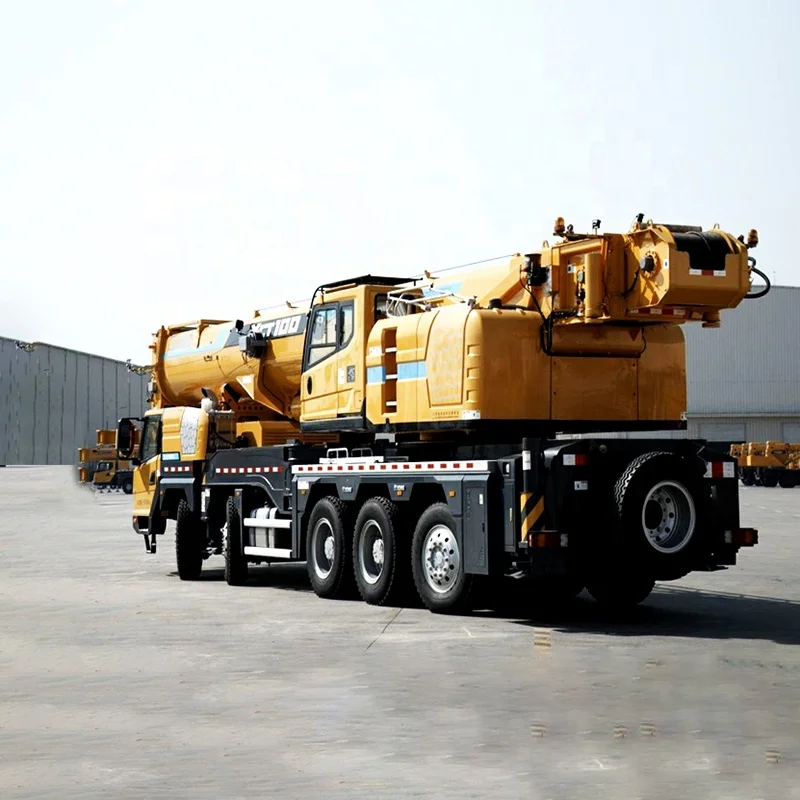

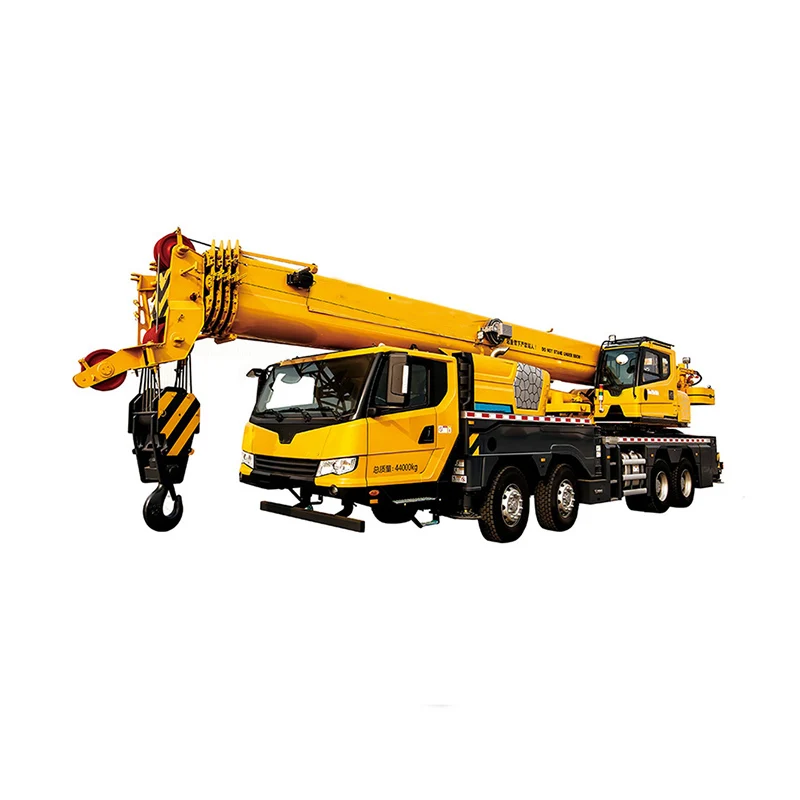

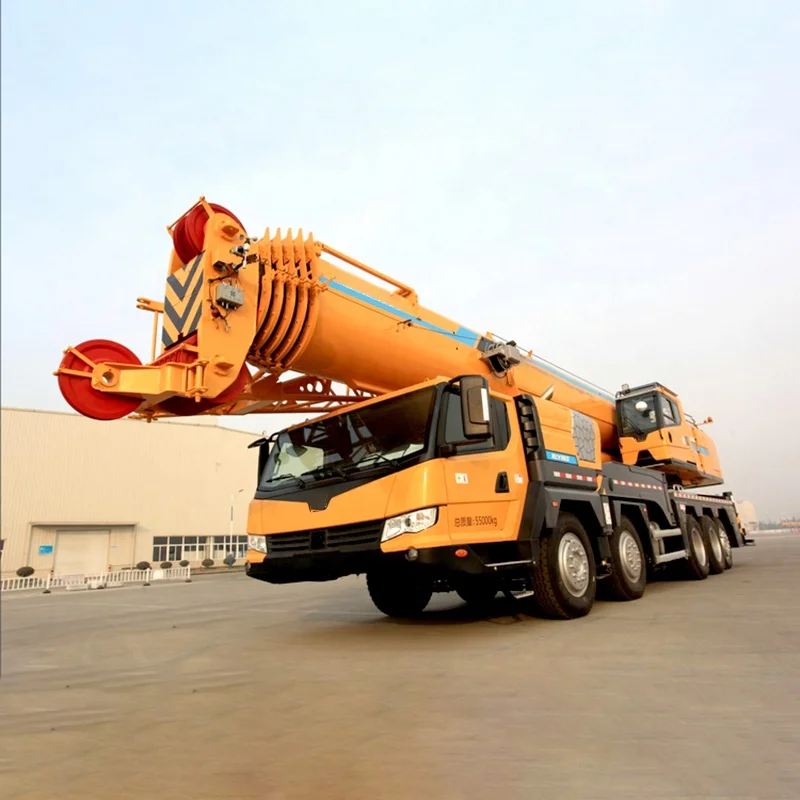

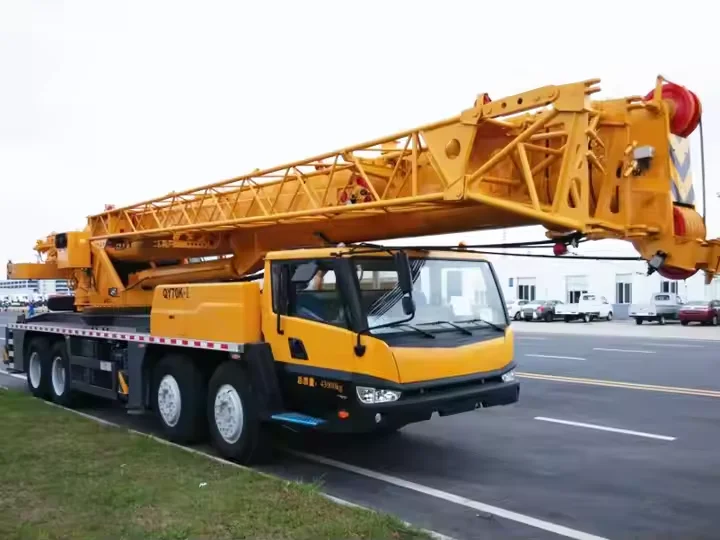

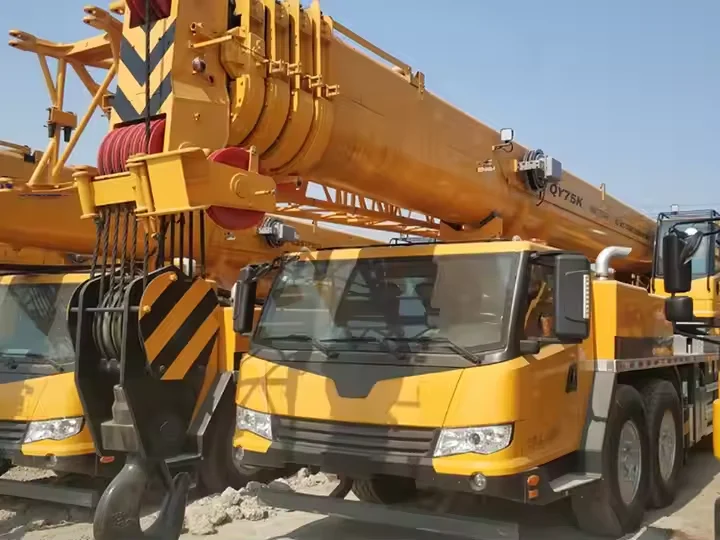

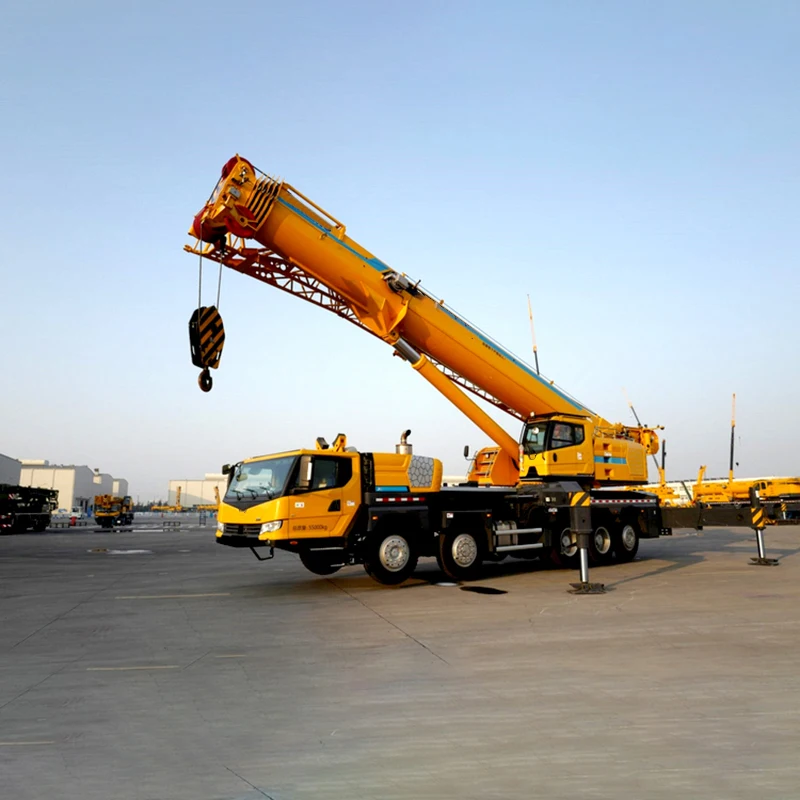

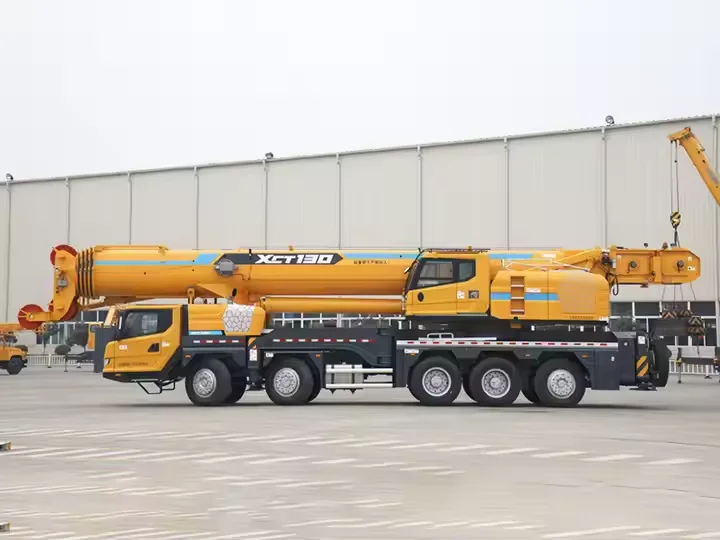

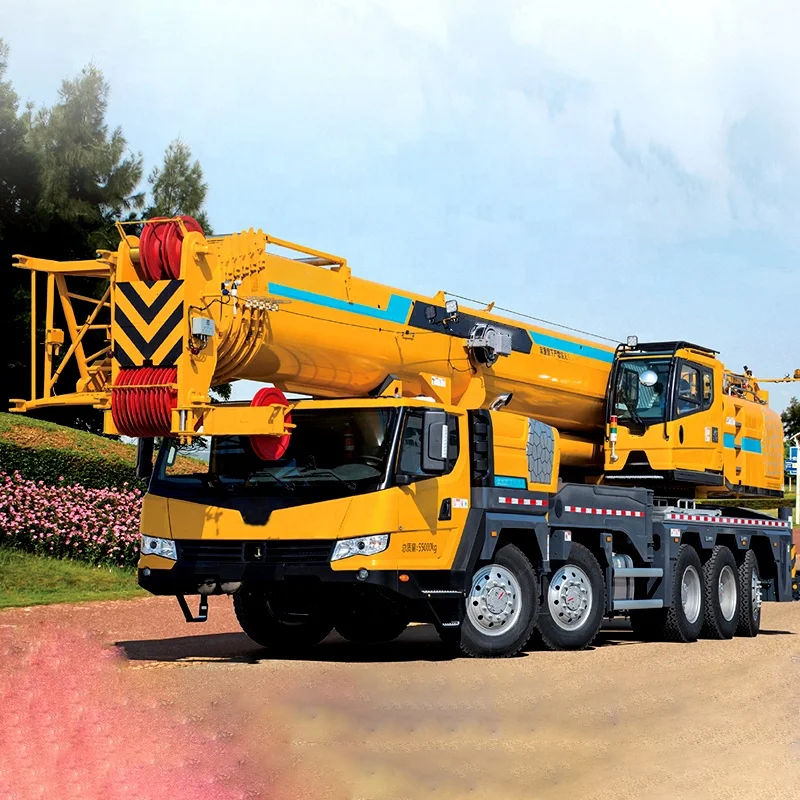

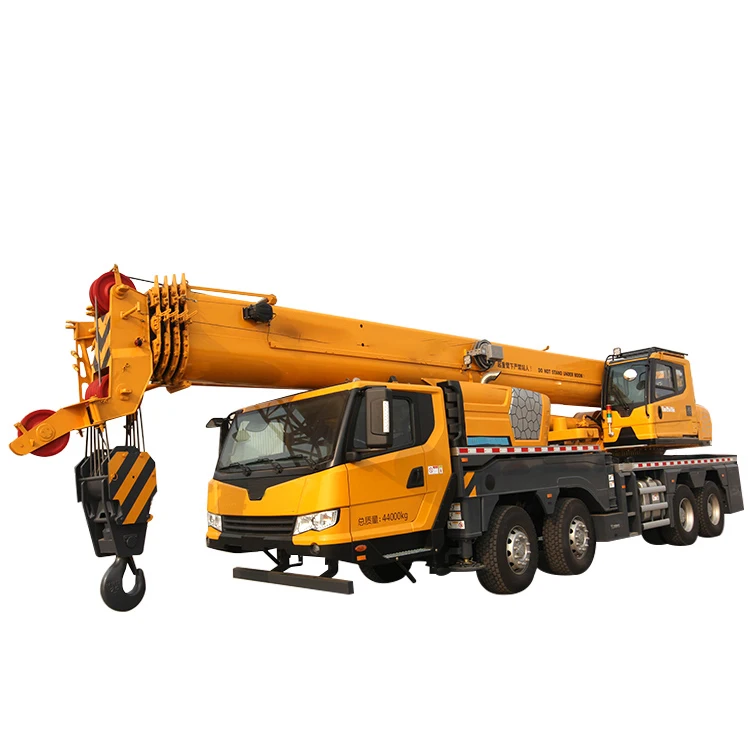

Product Image
