RS485 interface Tracer4210AN G3 40amp 12V /24VDC mppt tracer solar charger controller regulator
- Category: >>>
- Supplier: Hangzhou Maixi Electronics Co. Ltd.Hangzhou Ltd.
Share on (1601316653075):
Product Overview
Description

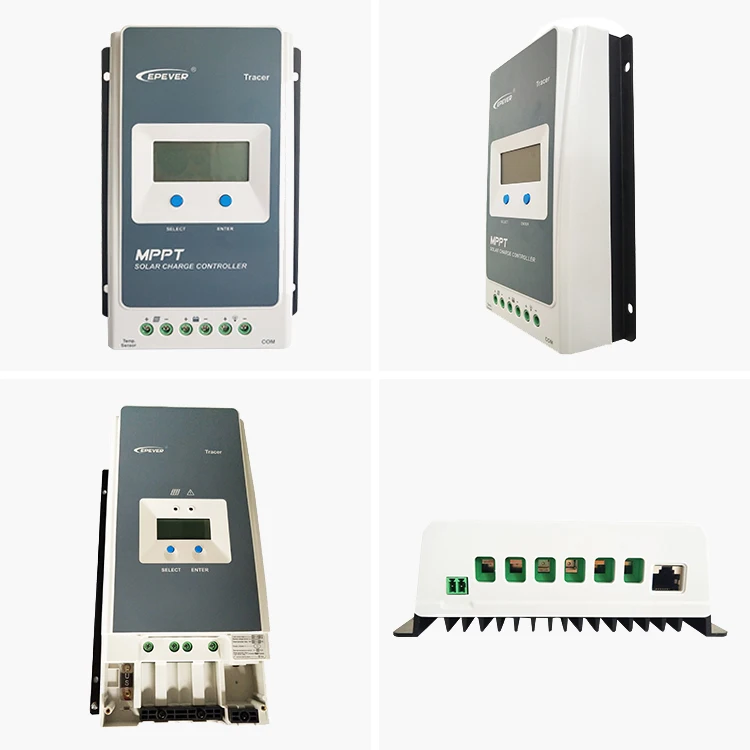

RS485 interface Tracer4210AN G3 40amp 12V /24VDC mppt tracer solar charger controller regulator
Product Description
Tracer AN series MPPT solar charge controller adopts common positive design and advanced MPPT control algorithm. The products can track the MPP point fast and accurately in any situation which will improve energy efficiency and obtain the maximum solar energy.
Highlights:
Voltage: 12/24V Auto Work
Current: 40Amp
Max PV Voltage: 100V
Max PV Input: 520W(12V), 1040W(24V)
Advanced MPPT technology
Current: 40Amp
Max PV Voltage: 100V
Max PV Input: 520W(12V), 1040W(24V)
Advanced MPPT technology
High tracking efficiency above: 99.5%
Support lead-acid(Sealed)/Gel/Lithium(LiFO4) batteries
Paramenters
Series | Tracer-AN G3 | ||||||
Model | Tracer1210ANG3 | Tracer2210AN G3 | Tracer3210AN G3 | Tracer4210AN G3 | |||
Norminal system voltage | 12/24VDC Auto Work | ||||||
Rated charge current | 10A | 20A | 30A | 40A | |||
Rated charge power | 130W/12V 260W/24V | 260W/12V 520W/24V | 390W/12V 780W/24V | 520W/12V 1040W/24V | |||
Battery type | Lead-acid(Sealed)/Gel/Lithium(LiFO4) | ||||||
Max. conversion efficiency | ≤98.0% | ||||||
MPPT tracking efficiency | ≥99.50% | ||||||
Max. PV open circuit voltage | 100V①; 96V② | ||||||
MPP voltage range | (Battery voltage +2V)～72V | ||||||
Equalization voltage | Sealed:14.6V, Flooded: 14.8V, User-defined: 9-17V | ||||||
Boost voltage | Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, User-defined: 9-17V | ||||||
Float voltage | Gel/Sealed/Flooded: 13.8V, User-defined: 9-17V | ||||||
Self Consumption | ≤12mA | ||||||
Temperature compensation | -3mV/℃/2V(Default) | ||||||
Relative humidity | ≤95%, N.C. | ||||||
Enclosure | IP30 | ||||||
RS485 interface | 5VDC/100mA | ||||||
Operating Temp. range | -25℃～+50℃(100% input and output) | ||||||
Dimensions(L*W*H)mm | 172*139*44 | 220*154*52 | 228*164*55 | 252*180*63 | |||
Net weight | 0.57KG | 0.94KG | 1.26KG | 1.65KG | |||
Gross weight | 0.8KG | 1.3KG | 1.6KG | 2.05KG | |||
①At minimum operating environment temperature.
②At 25℃ environment temperature.

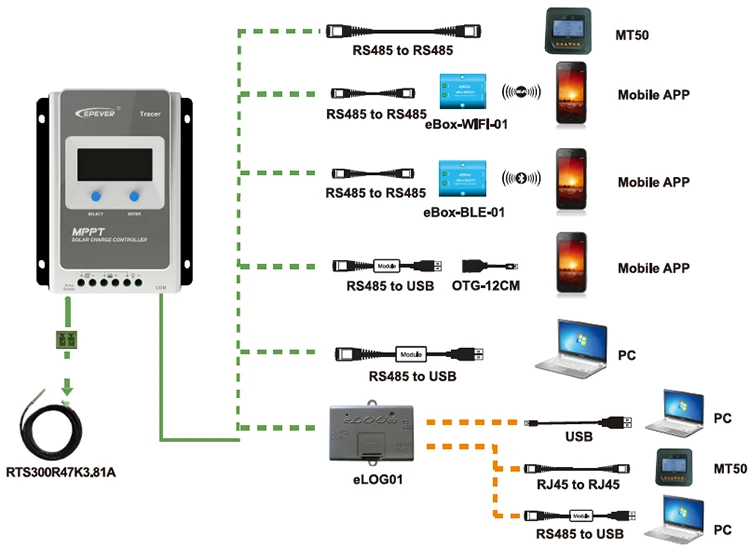

OPTIONAL ACCESSORIES
MT50 Remote Meter
Connector Type: RJ45
Dimension: 114*114mm
2m communication cable
Working temp.: -20℃-+70℃
eBOX-WIFI-01 Adapter
Input voltage: 5VDC
Standby power consump.: 0.20W
Interface type: RJ45
Dimension: 51*67*24.5mm
eLOG01 Logger
Input voltage: 4-10VDC
Interface: 2 RJ45 1 Micro USB
Dimension: 71*67.62*25.8mm
Working temp.: -25℃-+75℃
eBOX-BLE-01 Adapter
Input voltage: 5VDC
Standby power consump.: 0.04W
Interface type: RJ45
Dimension: 51*67*24.5mm
Standby power consump.: 0.04W
Interface type: RJ45
Dimension: 51*67*24.5mm
Remote Temperature Sensor
RTS300R47K3.81A
Line length: 3m
Rated resistance: 47K
Connector: 3.81mm/2P

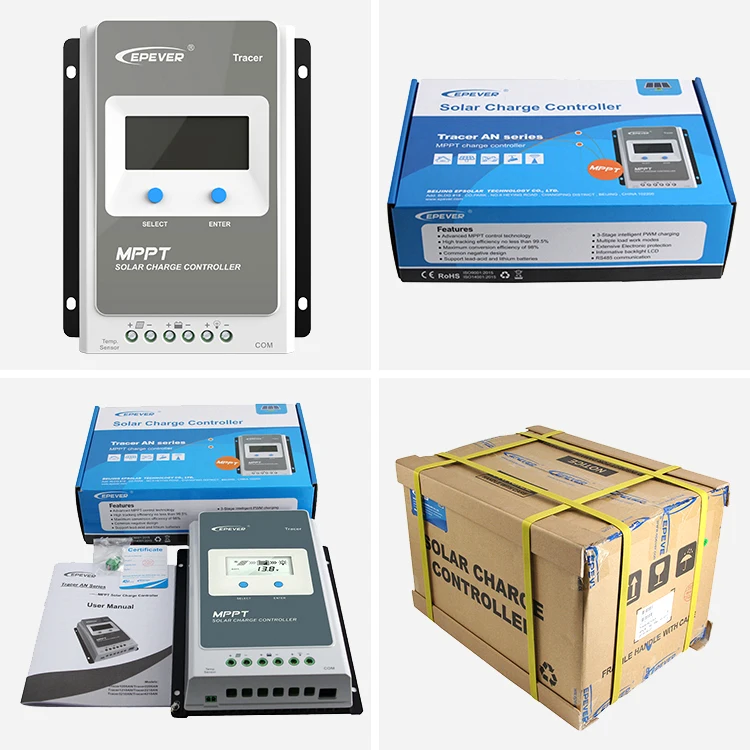

Packing & Delivery
The MPPT solar charge controllers packed by customized Inner&Outer cartons+wooden pallets available for sea shipment to protect the goods arrived in good conditions.
Package can be customized according to customer's demands(LOGO design)
Package can be customized according to customer's demands(LOGO design)
We chose most economical shipment according to customer demands(By international EXPRESS(DHL, FedEx, UPS, TNT), By Air, By Train, By Sea all available).
We support DDP solution(Delivered Duty Paid), which helps you import the products easily.
We support DDP solution(Delivered Duty Paid), which helps you import the products easily.

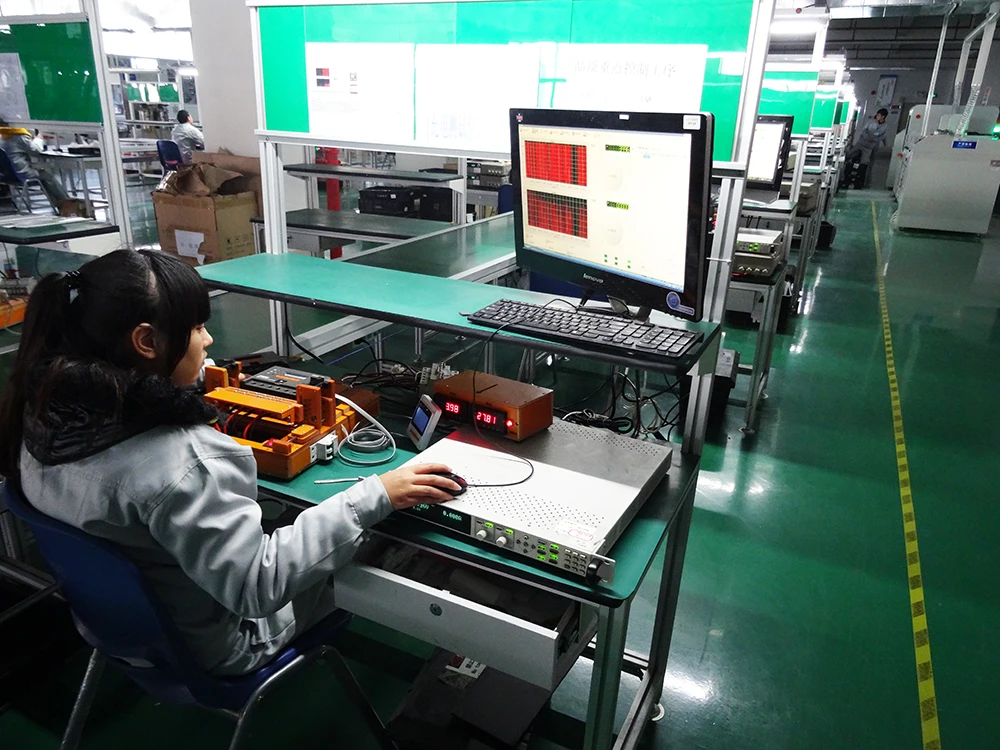

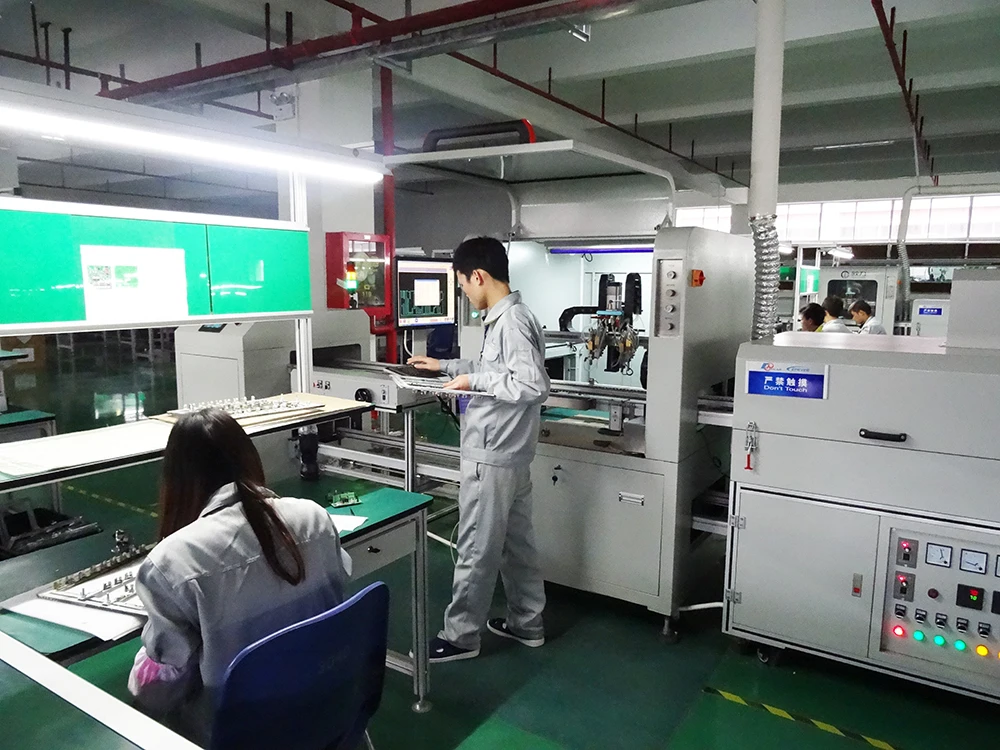

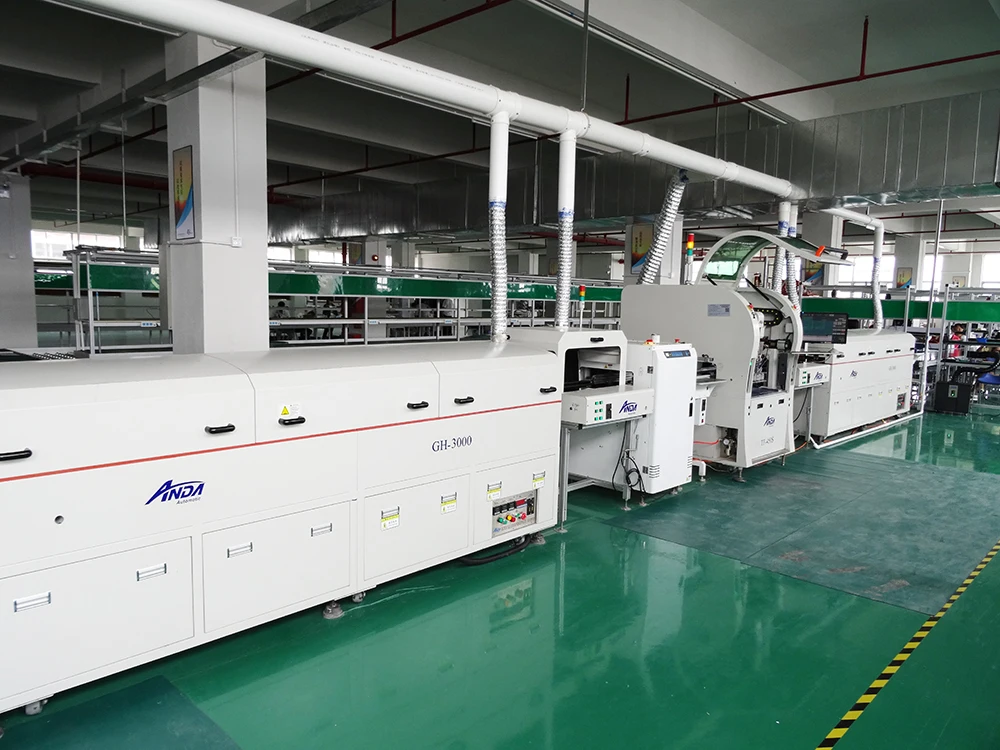

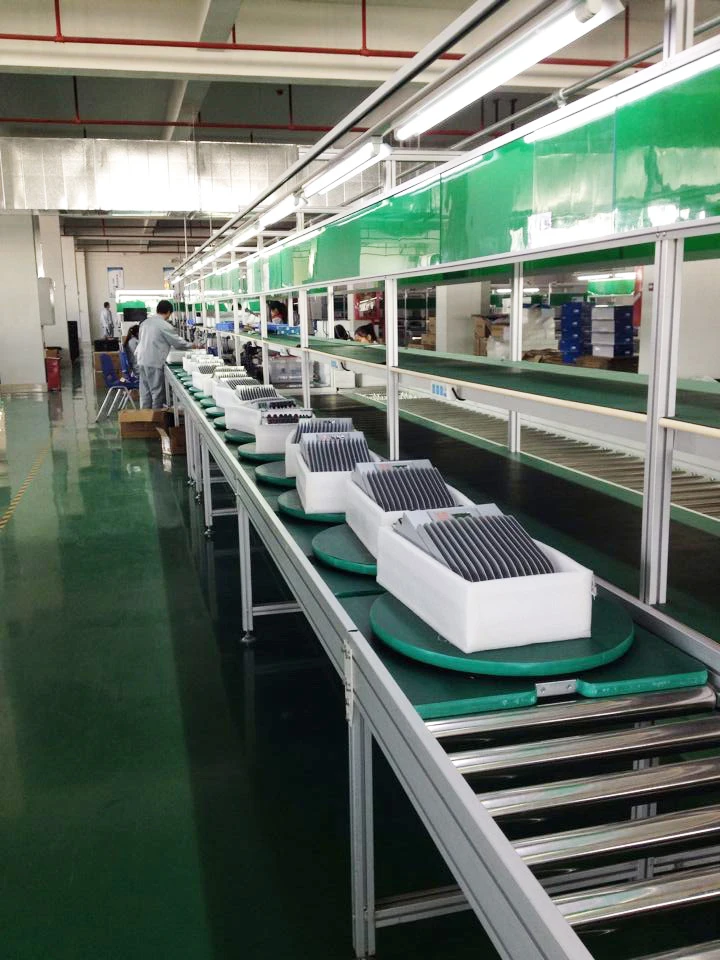

Workshop
5 production line for regularly capacity
More than 200 workers
Imported SMT and production machine
Proffesional R&D department

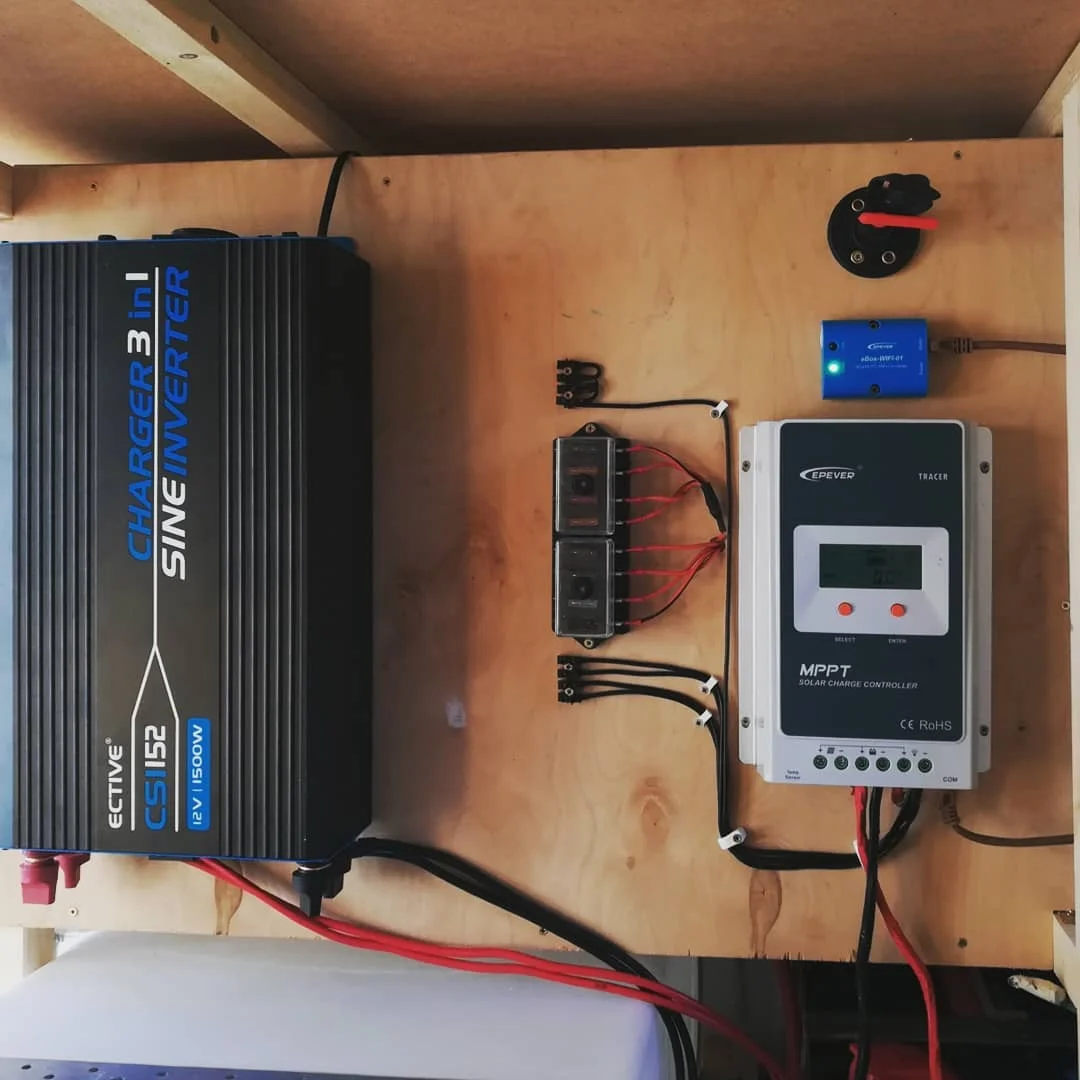

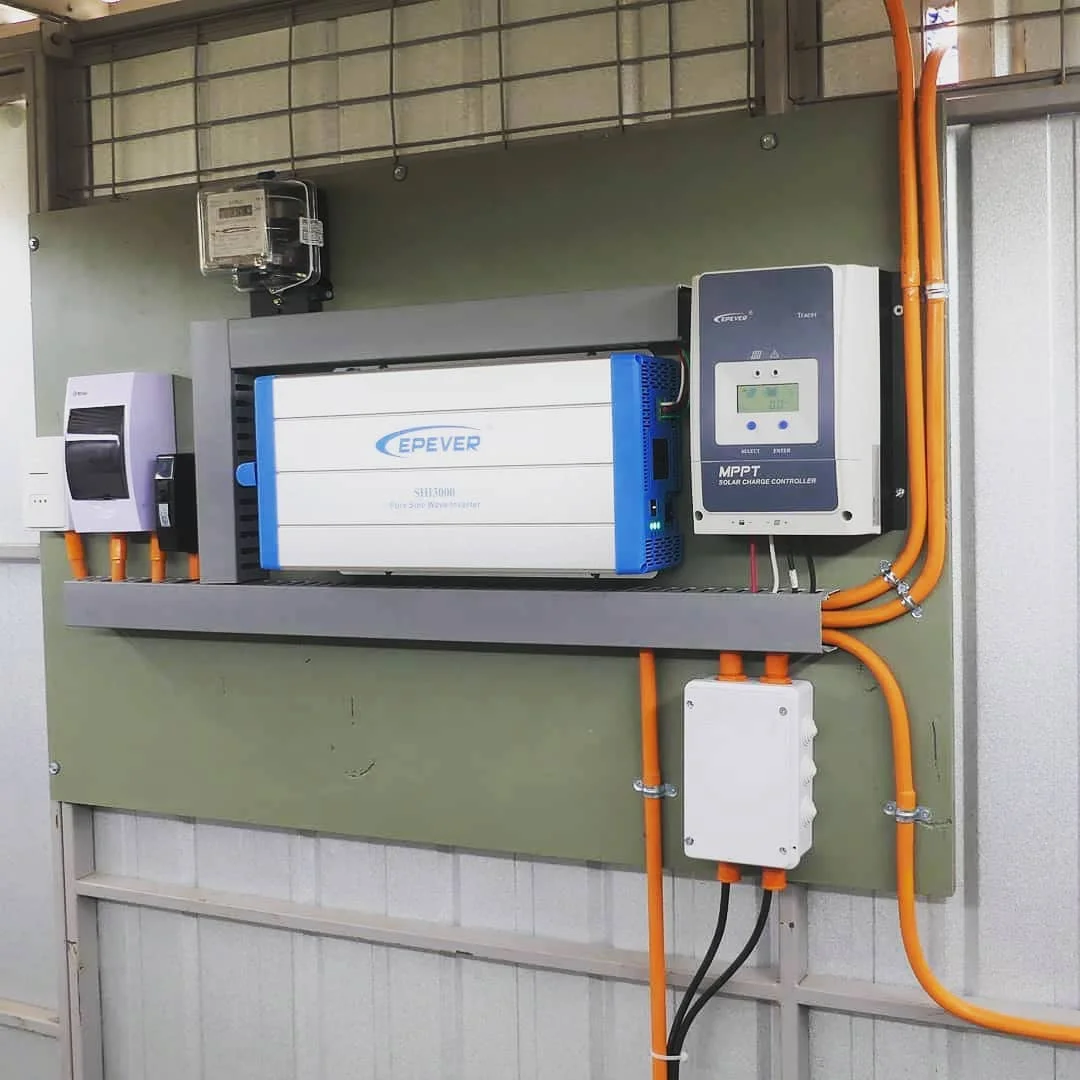

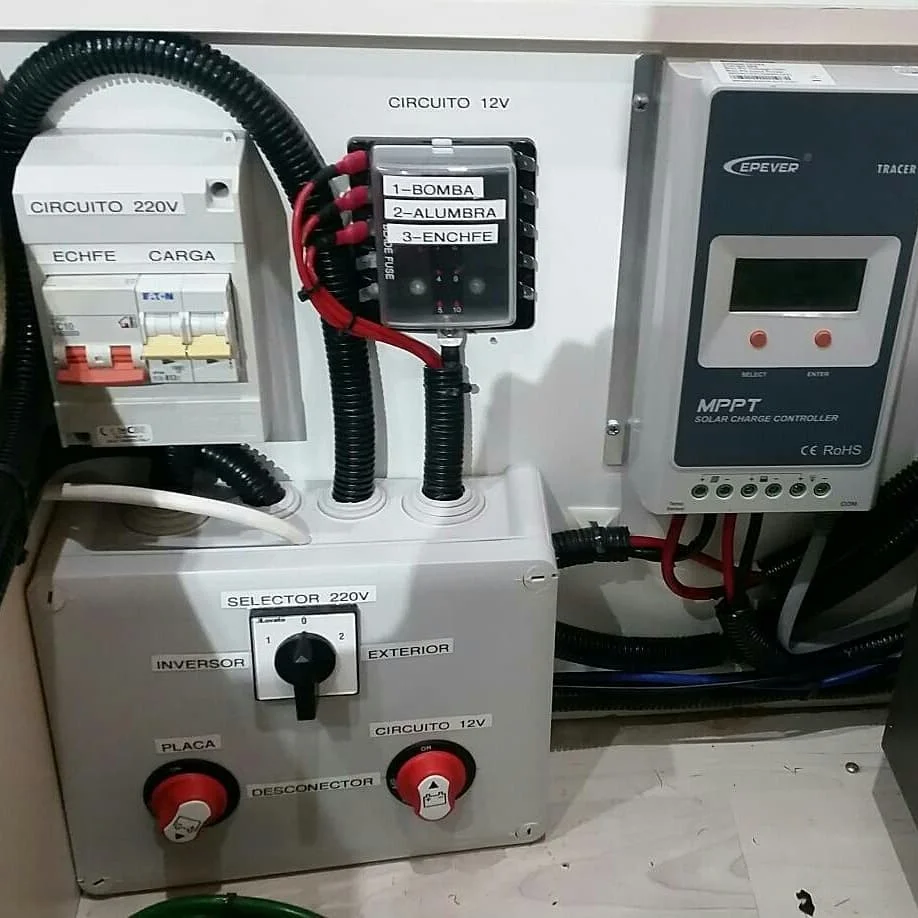

Application
The MPPT solar charge controllers can be used for various applications, e.g. solar RV, household system, solar boat and field monitoring, etc, pleasured to discuss your solar system details.

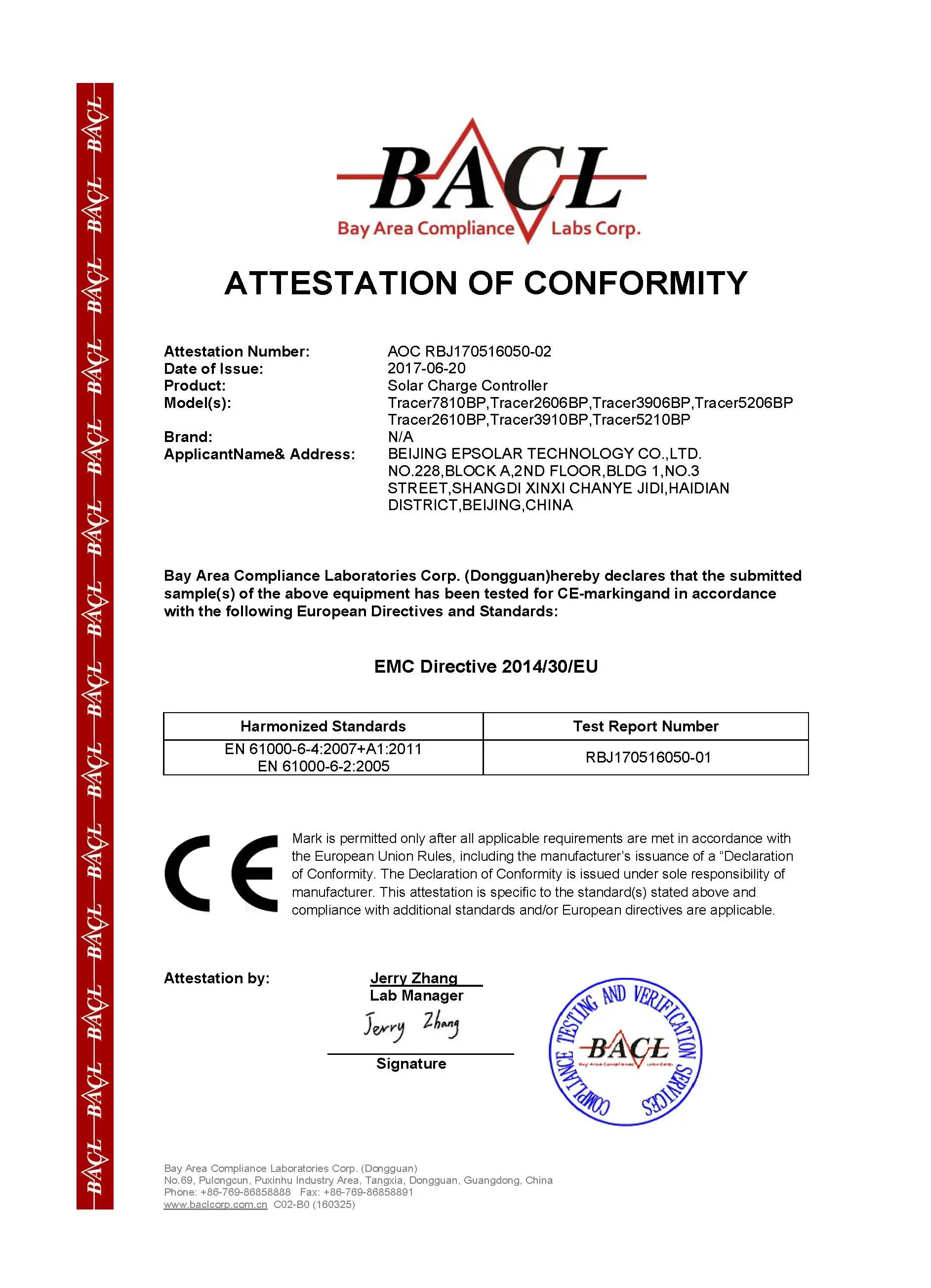

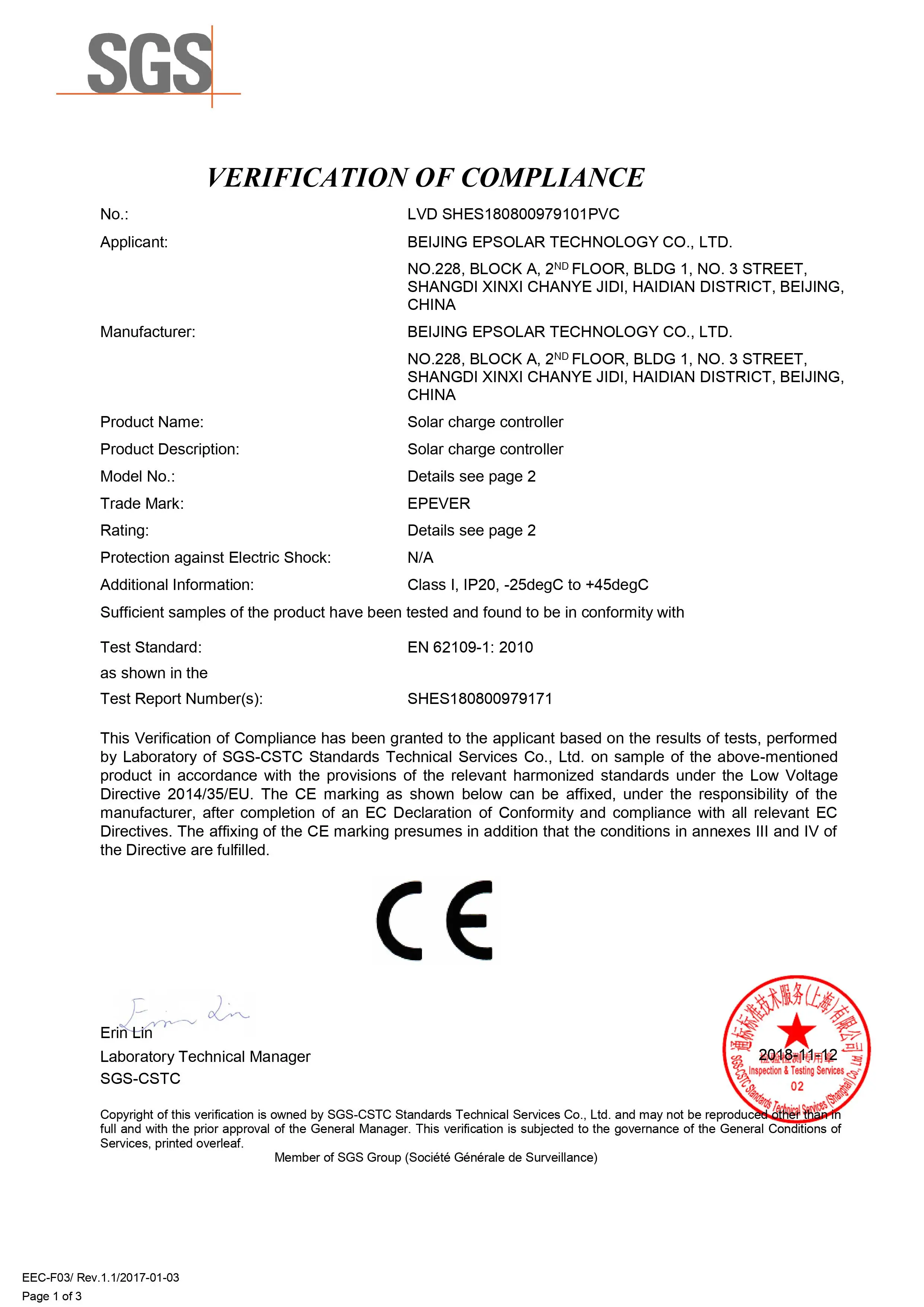

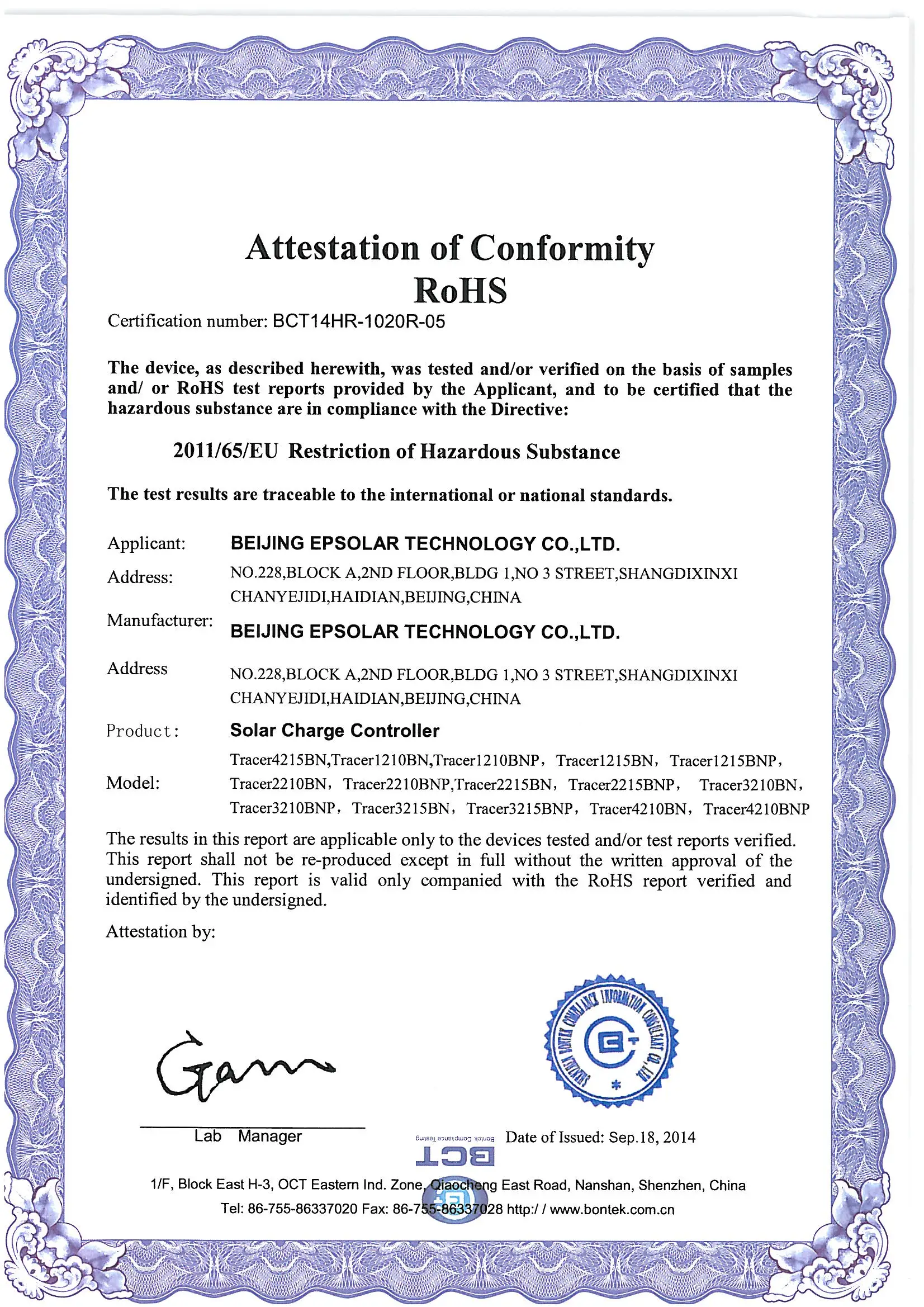

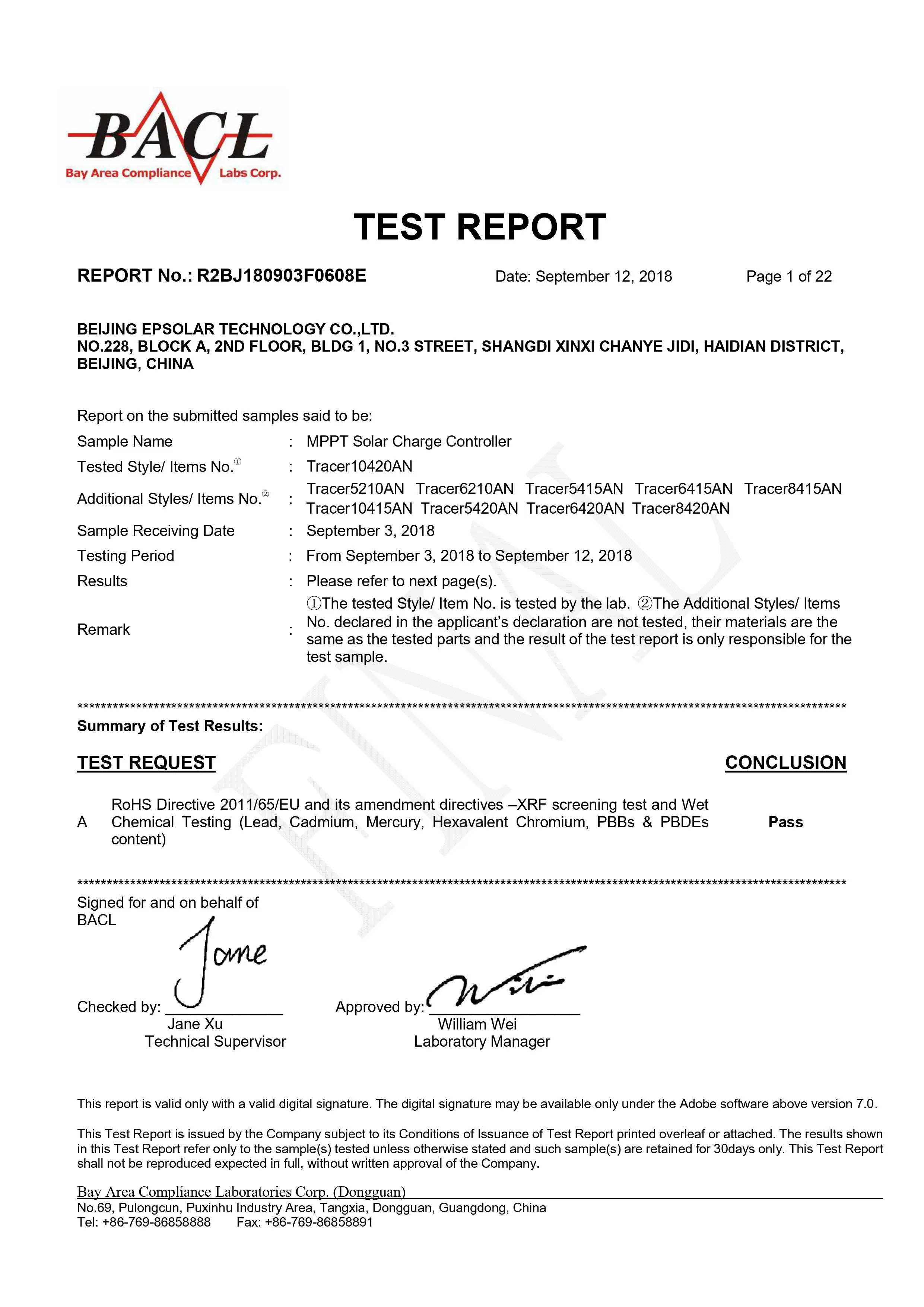

Certifications
