Easy To Operate Foif A90 Gps Rtk Gnss Receiver 1408 Channels Imu Base And Rover External Battery Rtk Gnss Gps Foif A90
- Category: >>>
- Supplier: Shanghai Apekstool Optoelectronic Technology Co. Ltd.Shanghai Ltd.
Share on (1601316865746):
Product Overview
Description
Product Description
Shanghai Apekstool 1408 Channels Imu Removable Battery Foif A90 Gnss Gps Receiver And Rover
Top Features:
1) Smart Design
With the increasing demand for smart-design GNSS, to develop the receiver featured with miniaturization turns into our new goal until today it comes true. It is completely no doubt that small size and light weight design can greatly alleviate general field work and improve productivity a lot.
2) Brand new idea:
In terms of cellular mobile and wireless system, we tend to introduce more into our product. Besides a set
of bluetooth, wireless radio and mobile network, we bring in the WIFI function which quite broaden data communications for GNSS.
3) Excellent performance:
Embedded with high-sensitivity GNSS module , A90 can implement massive surveys: RTK, DGPS, (SBAS) , Static, etc.
1) Smart Design
With the increasing demand for smart-design GNSS, to develop the receiver featured with miniaturization turns into our new goal until today it comes true. It is completely no doubt that small size and light weight design can greatly alleviate general field work and improve productivity a lot.
2) Brand new idea:
In terms of cellular mobile and wireless system, we tend to introduce more into our product. Besides a set
of bluetooth, wireless radio and mobile network, we bring in the WIFI function which quite broaden data communications for GNSS.
3) Excellent performance:
Embedded with high-sensitivity GNSS module , A90 can implement massive surveys: RTK, DGPS, (SBAS) , Static, etc.
Specification
Promotion Price New Board 1408 Cahnnels Imu Tilt Survey Removable Battery Foif A90 Gnss | ||||
GNSS | Channels | 1408 | ||
BDS: B1, B2, B3 | ||||
GPS: L1CA, L1P. L1C, L2P, L2C, L5 | ||||
GLOASS: G1,G2, P1, P2 | ||||
GALILEO: E1BC, E5a. E5b | ||||
QZSS: L1CA. L2C. L5, L1C | ||||
SBAS: L1CA, L5; | ||||
L-Band | ||||
Static | H: 2.5 mm±1ppm , V: 5 mm±1ppm | |||
RTK | H: 8 mm±1ppm, V:15 mm±1ppm | |||
DGNSS | <0.5m | |||
ATLAS | 8cm | |||
System | Initialization Time | 8s | ||
Initialization Reliable | 99.90% | |||
Operating System | Linux | |||
Merrory | 8GB, support expanable MisroSD | |||
Wifi | 802.11 b/g/n | |||
Bluetooth | V2.1+EDR/V4.1Dual,Class2 | |||
E-Bubble | support | |||
Tilt Survey | IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate | |||
Audio | support TTS audio broadcast | |||
UHF | Tx/Rx Internal Radio, 1W/2W adjustable, radio support 410-470Mhz | |||
Protocol | support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target | |||
Network | 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS) | |||
Interface | 1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232) | |||
Button | 1 Power Button | |||
Indication Light | 4 Indication Lights | |||
Size | Φ156mm * H 76mm | |||
Weight | 1.2kg | |||

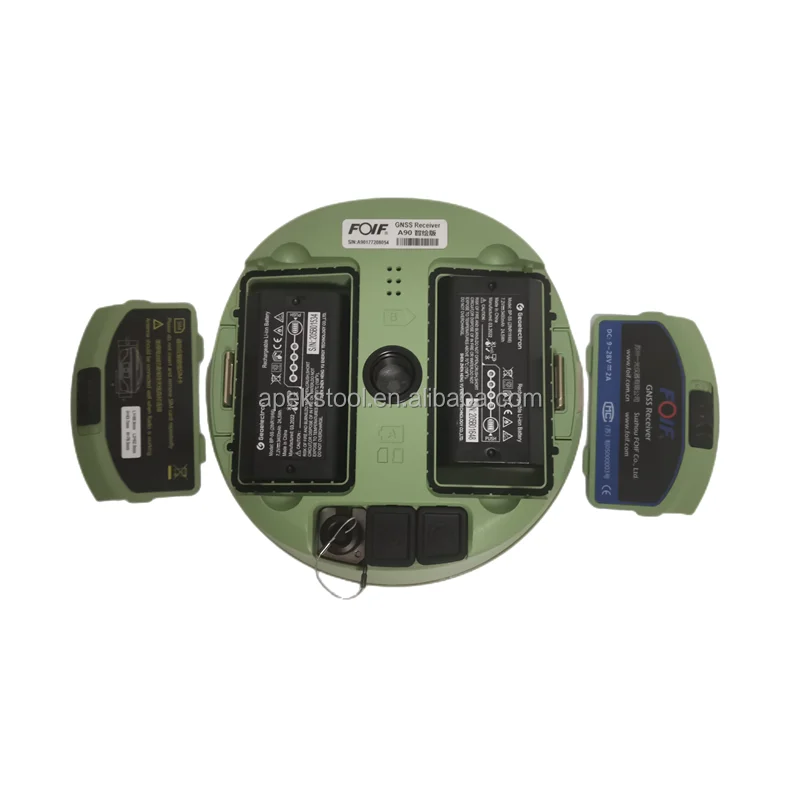

Power supply | Battery capacity | 7.2V, 24.5Wh(standard two batteries) | ||
battery Life Timer | Static Survey: 15 hours, Rover RTK survey: 12h | |||
External power source | DC 9-18V, with overvoltage protection | |||
Work Temporature | -35℃ ~ +65℃ | |||
Storage Temporature | -55℃ ~ +80℃ | |||
waterproof&dustproof | IP68 | |||
Humidity | 100% anti-condensation | |||
