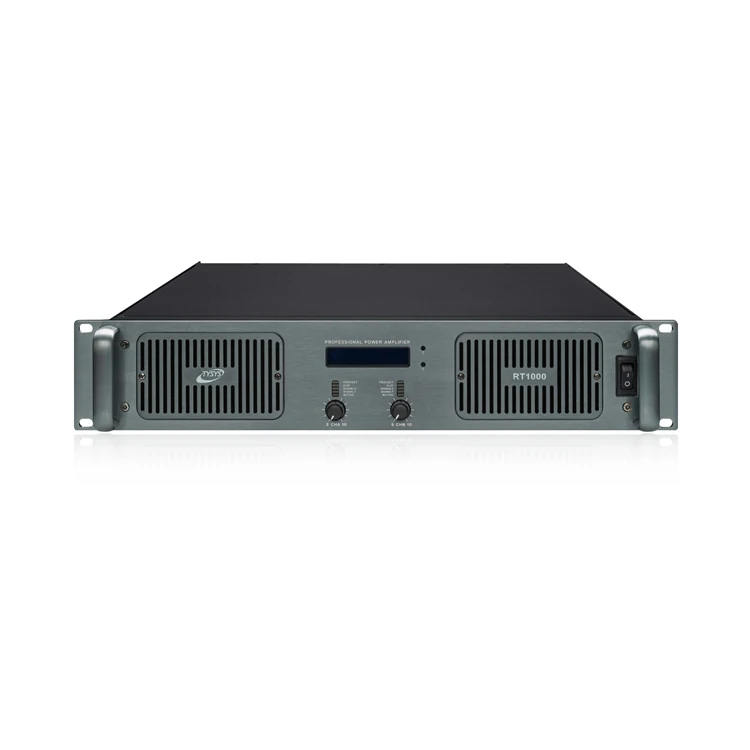

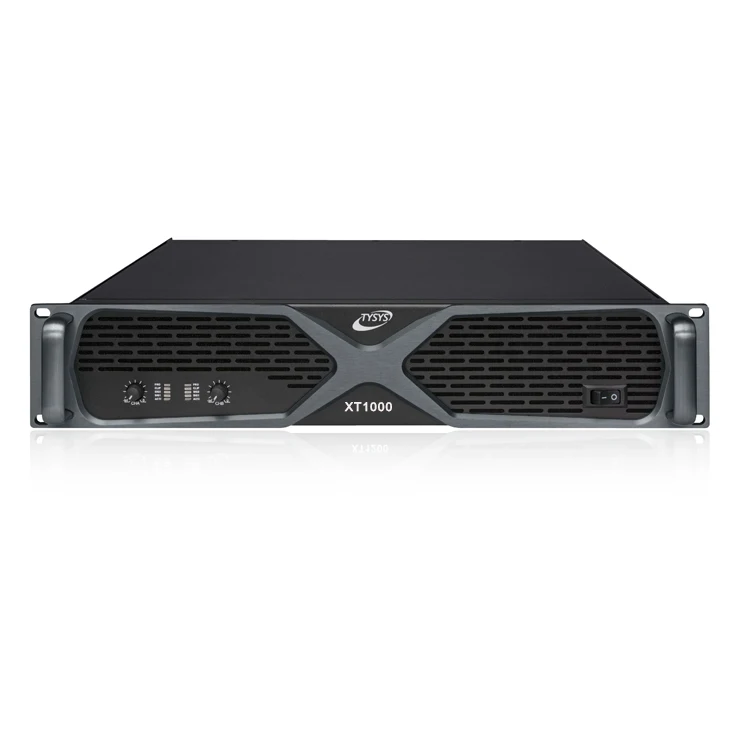

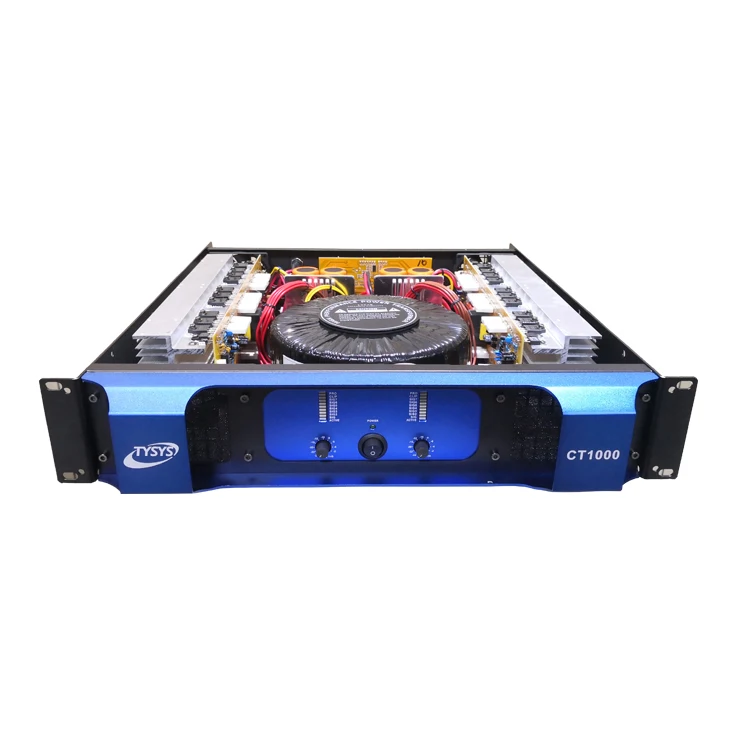

TYSYS 2 channel sound equipment/amplifiers/speaker professional audio power amplifier
- Category: >>>
- Supplier: Guangzhou Tianyin Electronic Technology Co. Ltd.Guangzhou Ltd.
Share on (1601317307201):
Product Overview
Description
Product Description
Model No. | XT300 | XT400 | XT600 | XT800 | XT1000 | XT1200 | XT1300 | ||||||
8Ω stereo power 4Ω stereo power | 2x300W 2x450W | 2x400W 2x600W | 2x600W 2x900W | 2x800W 2x1200W | 2x1000W 2x1500W | 2x1200W 2x1800W | 2x1300W 2x1850W | ||||||
8Ω bridge power | 900W | 1200W | 1800W | 2400W | 3000W | 3600W | 3700W | ||||||
Frequency response | 2channel /2U | ||||||||||||
Frequency response | 20Hz-20kHz / ± 0.5dB | ||||||||||||
THD+N (20Hz-20KHz) | ≤0.5% @ 8Ω1kHz | ||||||||||||
S/N ratio (20Hz -20 kHz） | ＞110dB | ||||||||||||
Crosstalk (20Hz -20 kHz） | ＞35dB | ||||||||||||
Slew rate | 20Vs | ||||||||||||
Damping factor | >500 | ||||||||||||
Input sensitivity | 0.775V,1V,1.4V, | ||||||||||||
Input impedance | 20K Ω balance/ 10K Ω unbalance | ||||||||||||
cooling system | 2pcs inteligent fan, from front to back exhaust cooling system | ||||||||||||
Input Connectors (per.ch) | XLR Active balanced / pin1 gnd/pin 2+/pin3- | ||||||||||||
Output Connectors (per.ch) | 2 Neutrik NL4 Sockets / 2input posts | ||||||||||||
Protections | Power-on buffer, overheating protection, short circuit protection, output DC Protection | ||||||||||||
Operating Voltage | 110V/220V available | ||||||||||||
Circuit | Class H | ||||||||||||
Packing size (L×W×D) | 605mm×575mm×180mm (2U) | ||||||||||||
Gross weight (KG) | 18kg | 22.5kg | 26kg | 27kg | 28kg | 29kg | 30kg | ||||||

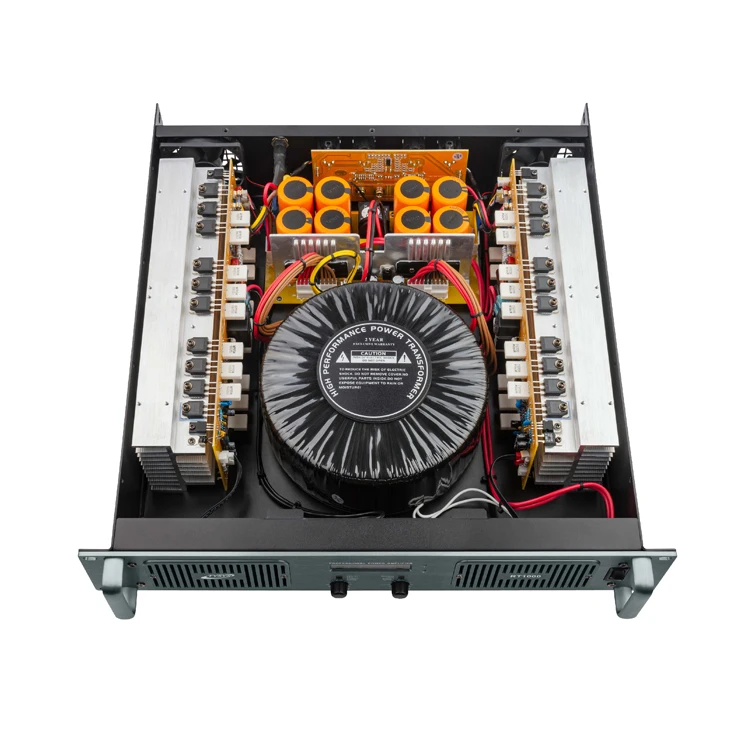

* High voltage ring transformer, large volume capacitor, makes the output current more strong, output power more bigger.\t\t\t\t\t\t
* Use original America ON transistor (NJW0302 / 0281G), assure low frequency strong, high frequency sweet&clear.\t\t\t\t\t\t
* PCB board is AI plug-in, it can assure products high stability\t\t\t\t\t\t
* Built-in soft clipping wave limit function, low noise, good sound quality.\t\t\t\t\t\t
* Perfect protection: power-on buffer, overheating protection, short circuit protection, output DC protection and other function.\t\t\t\t\t\t
* Support 4ohm impedance. Sensitivity: 0.775V/1V/1.4V\t\t\t\t\t\t
* Applications: KTV, Entertainment club, Stadium, Conference hall.\t\t\t\t\t\t
\t\t\t\t
Details Images
World -Wide Customers Comments & Feedback
Here is some of comments from our world-wide customers.
{ please note : all our customer comments is real one , NOT FAKE .
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

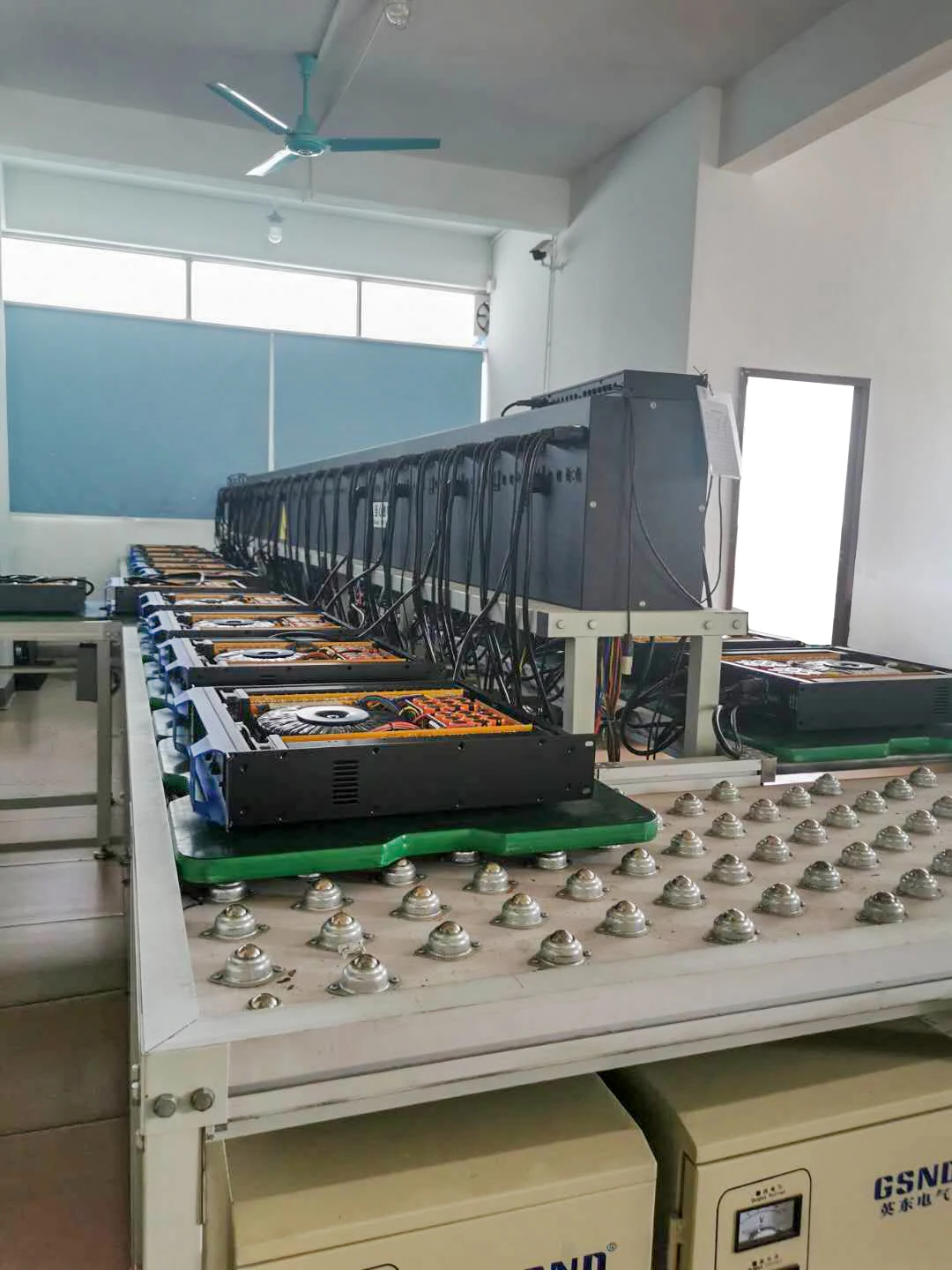

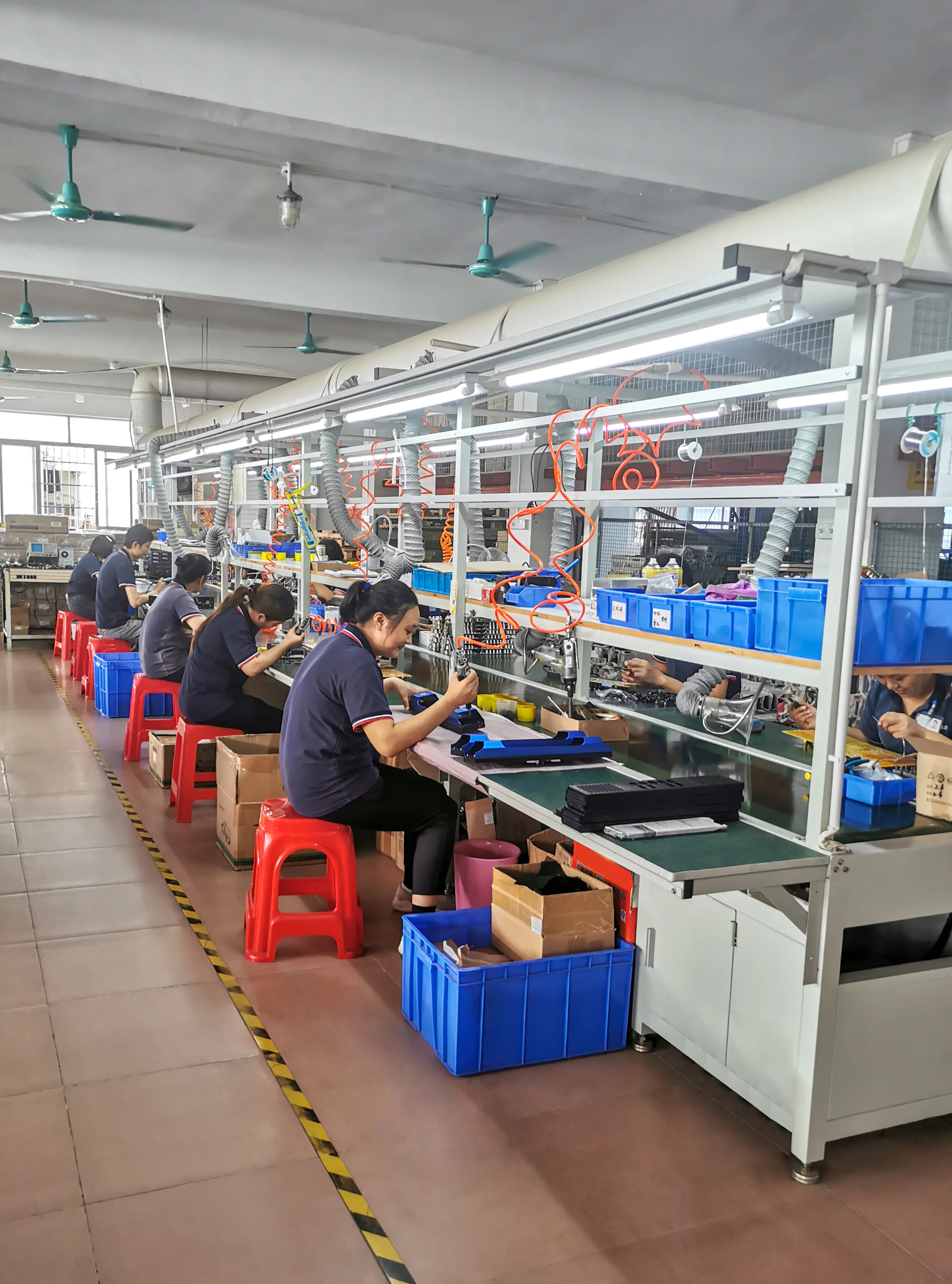

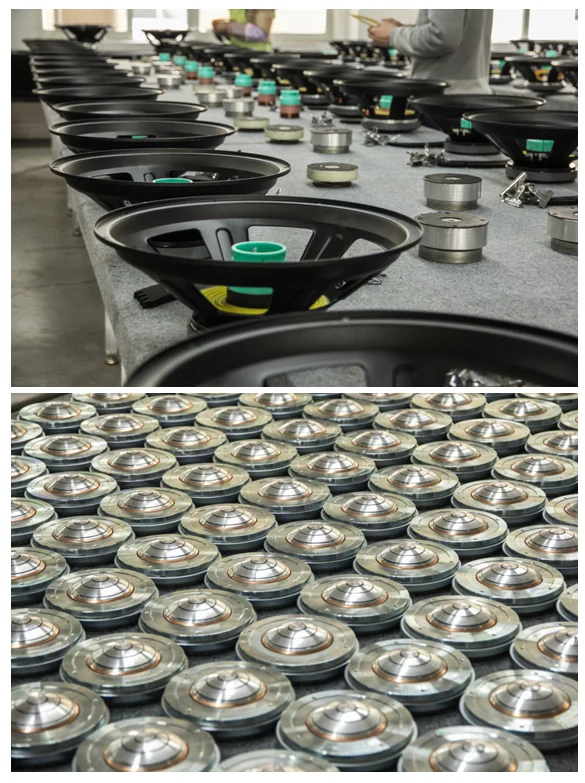

Our Factory
(About TIANYIN )
1- PROFESSIONAL AUDIO MANUFACTURER, More than 10 years of precipitation and continuous technological innovation make us have strong R&D and technical strength
2- OUR MAIN PRODUCTS IS Power Amplifier; Karaoke amplifier,Loudspeaker; Professional Speaker; sound system.
3- OUR VALUE MESSAGE IS ( Quality Is Our Culture). ( 3 factories - + OEM/ODM service - +100 workers - +small order -+ quick shipping-).
4- We have passed CE, FCC, RoHS, CB certificates.
5- 90% of our production equipment is imported from Japan and European to offer our customers the best competitive advantage PRODUCTS.
6- OUR R&D and QC ENGINEER HAVE MORE THAN 10 YEARS EXPERIENCE MANAGEMENT TEAM.
OUR MAIN PRODUCTS IS :
1: Professional amplifier ( Class TD & Class H & Class D)
2: Loudspeaekr component ( woofer & HF driver)
3: Sound system ( Line array systm & full range speaker & subwoofer)
4: Accessories ( bumper, case, speaker cable, connector and so on)
5: more products will arrived
We had the honor to serve many of the famous audio companies all over the world.
WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS".
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE".
WELCOME TO CONTACT US.
"With us your MONEY in safe ; Your BUSINESS in safe"

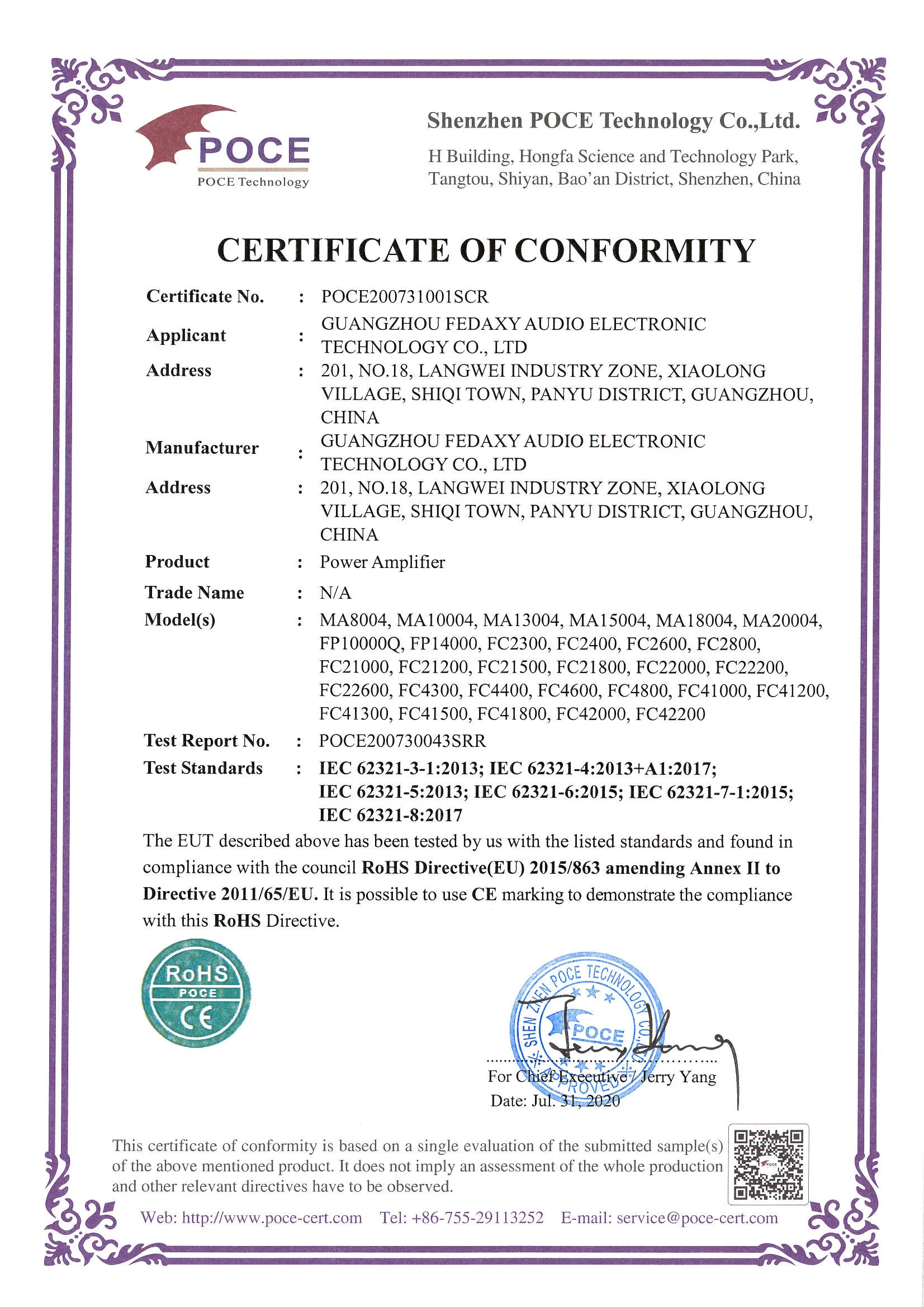

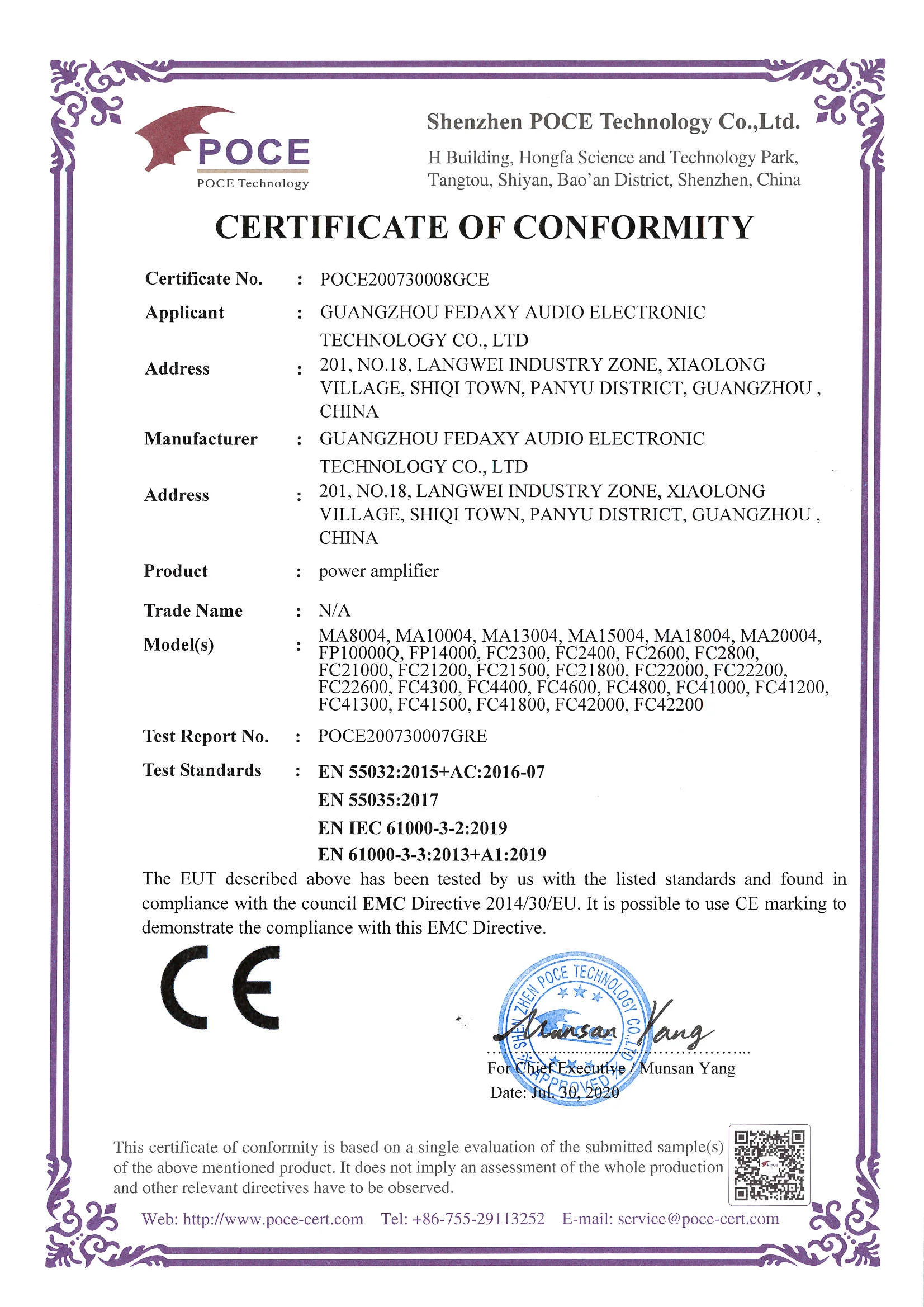

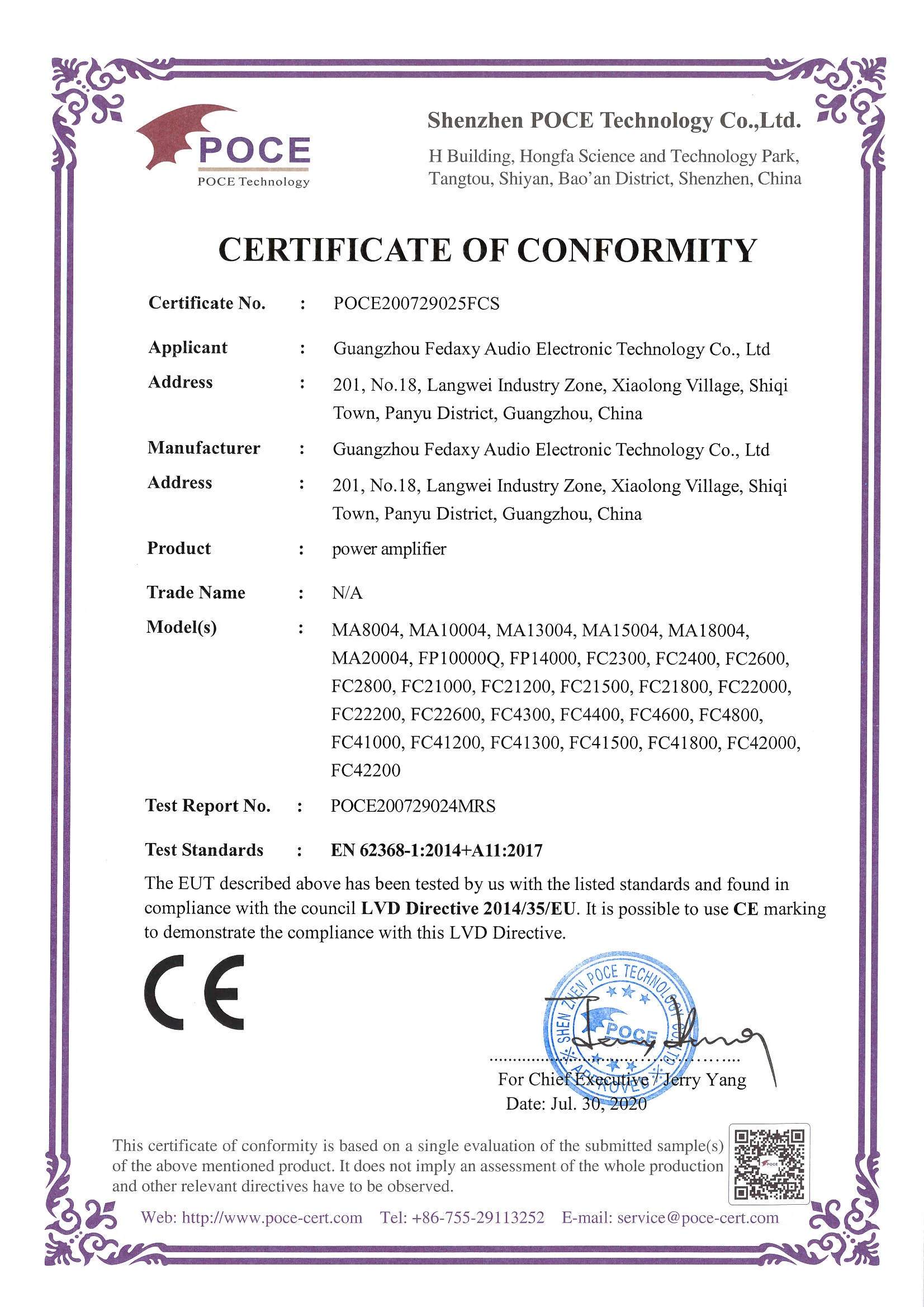

Certifications
