Model | LFP48200-M | LFP48230-M | LFP48300-M | ||
Nominal voltage | 51.2V | 51.2V | 51.2V | ||
Nominal capacity | 200AH/5120WH | 230AH/11776WH | 300AH/15360WH | ||
Cell type | LiFePO4 | ||||
Composition | 16S1P | 16S1P | 16S1P | ||
Charging cutoff Voltage | 58.4V | ||||
Discharging Cut-off Voltage | 40V | ||||
Maximum continuous discharge current | 200A | 200A | 200A | ||
Instantaneous discharge current | 400A | 400A | 400A | ||

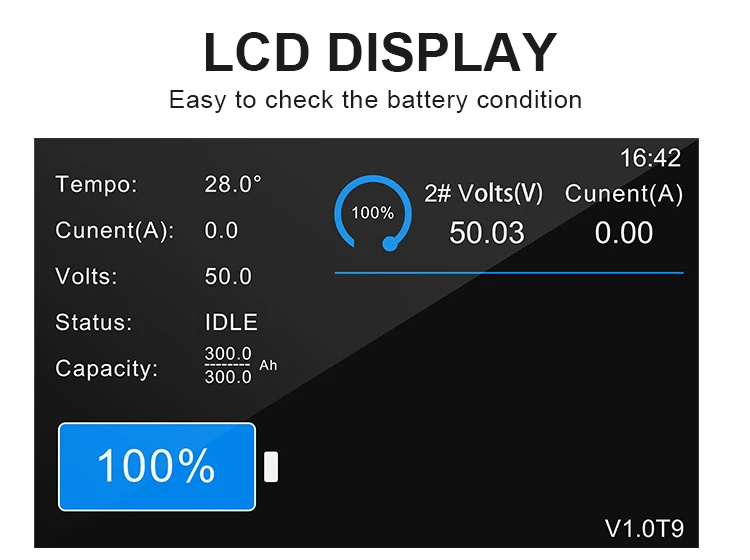

Dispaly | LCD dispalyscreen/touch screen display screen | ||||
Standard charging current | <100A | <100A | <100A | ||
Standard discharge current | 200A | 200A | 200A | ||
Charge suitable temperature | 0℃~45℃ | ||||
Discharge suitable temperature | -20℃~65℃ | ||||

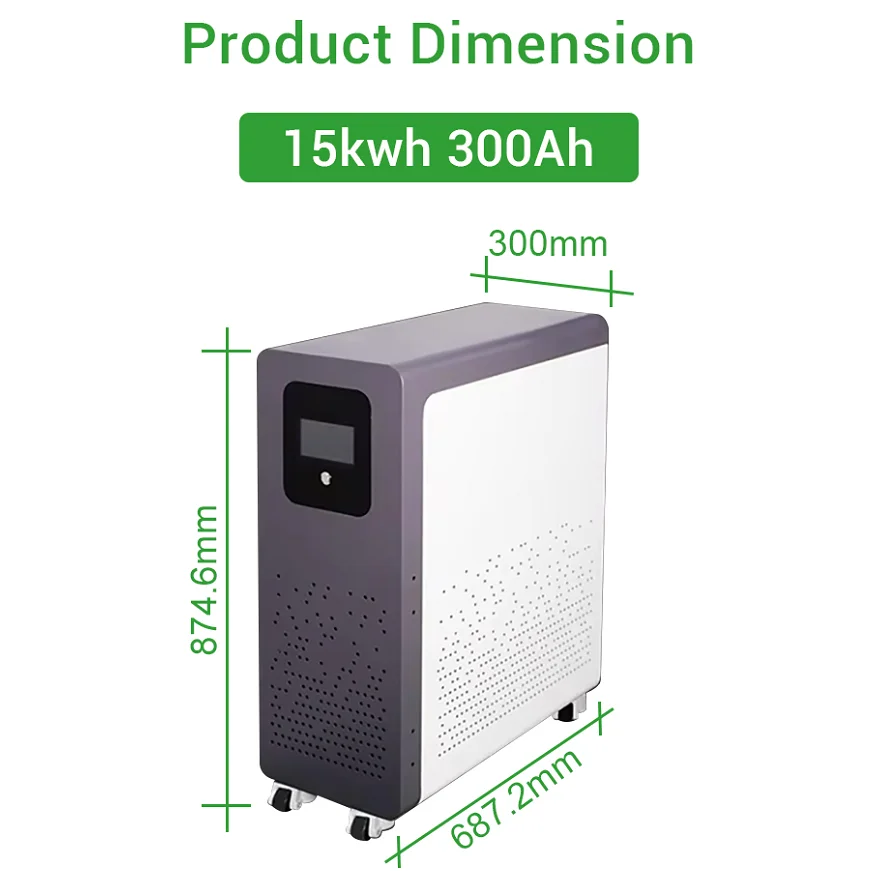

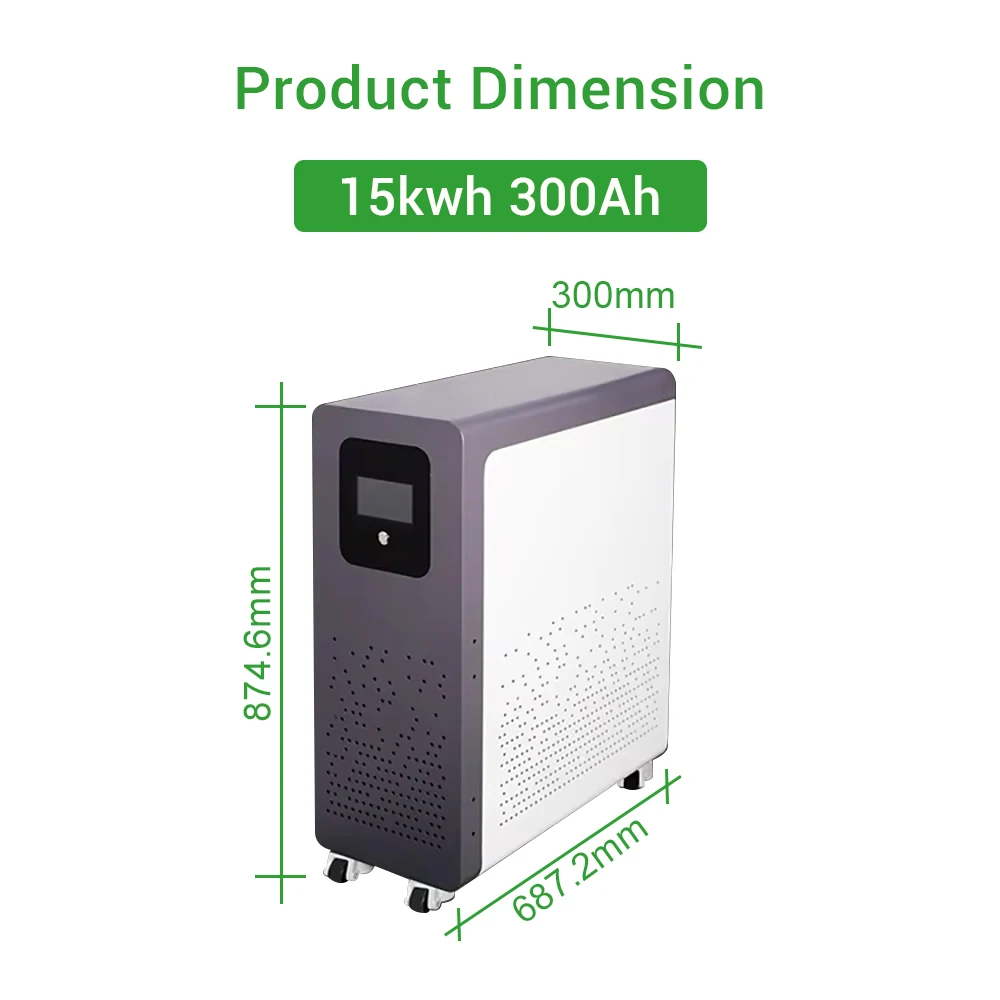

Battery pack size | 550*300*870mm | 550*300*870mm | 300*800*690mm | ||

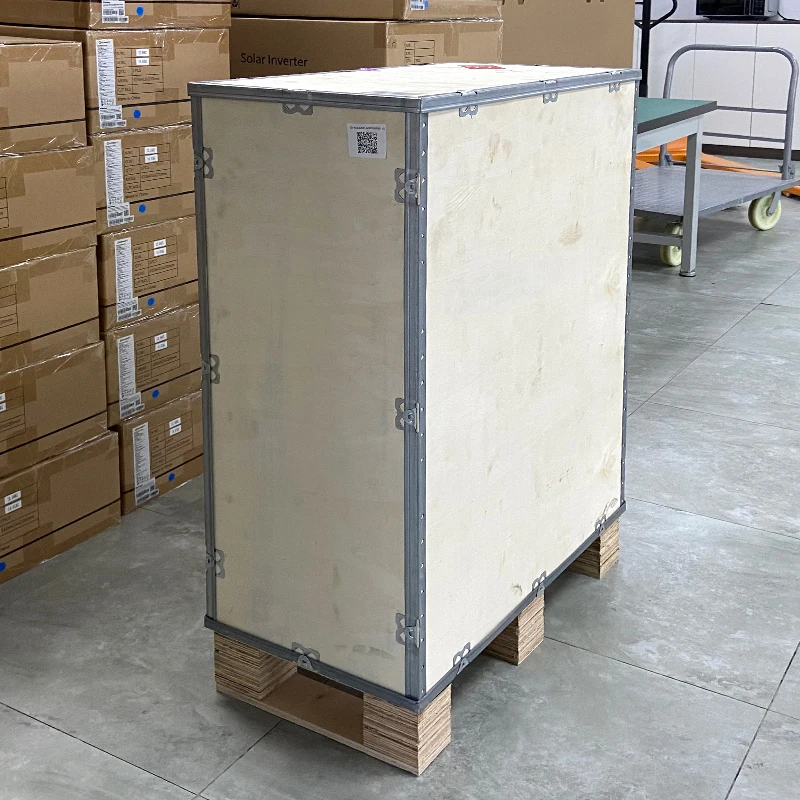

Package size | 765*370*1050mm | 765*370*1050mm | 1045*760*392 | ||
Battery pack N.W/G.W | 86kg/94.5kg | 100kg/118.3kg | 125.2kg/142.5kg | ||
Communication interface | CZN/RS232/RS485 | ||||
Cooling/balancing method | Air cooling/active balancing |
