Product Overview
Description

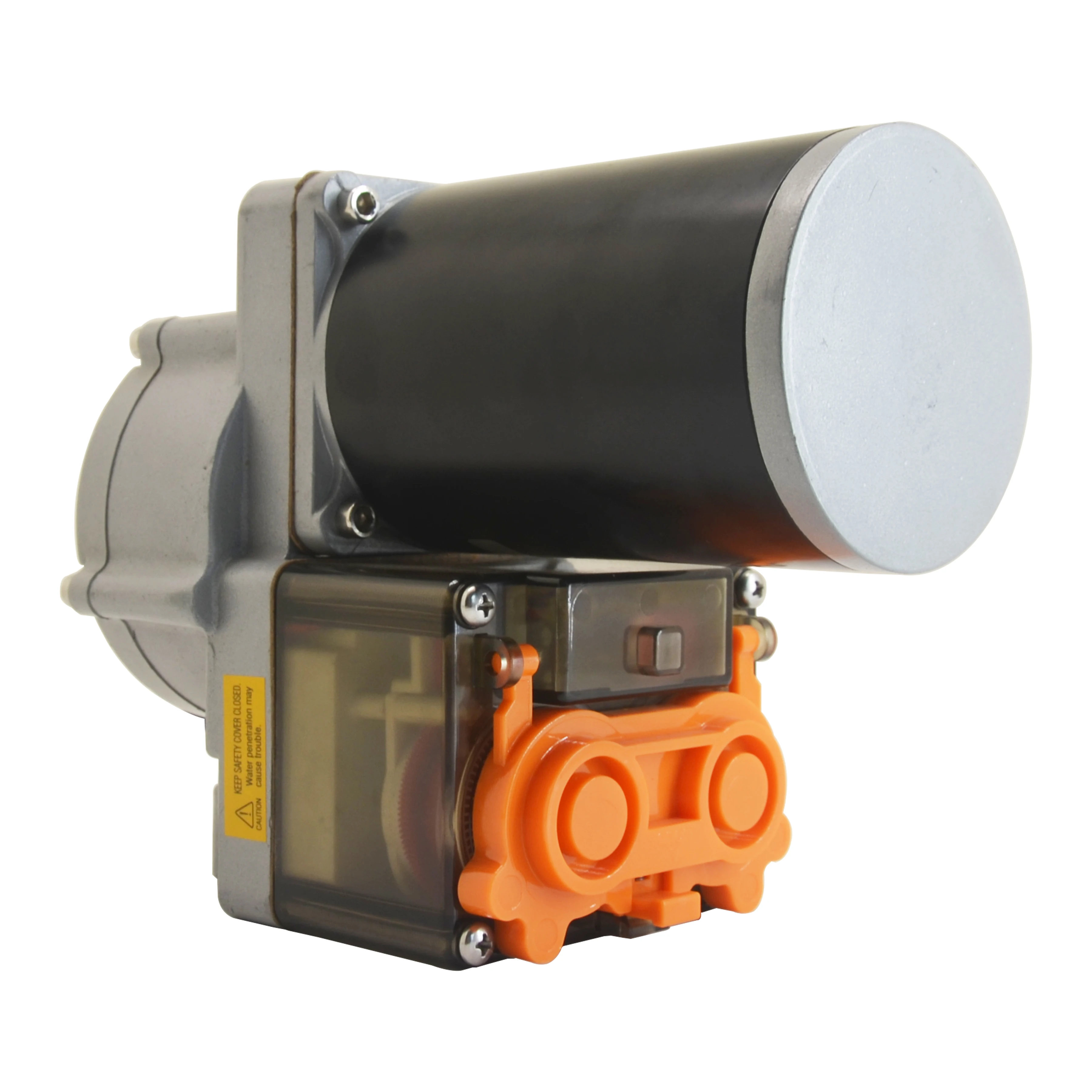

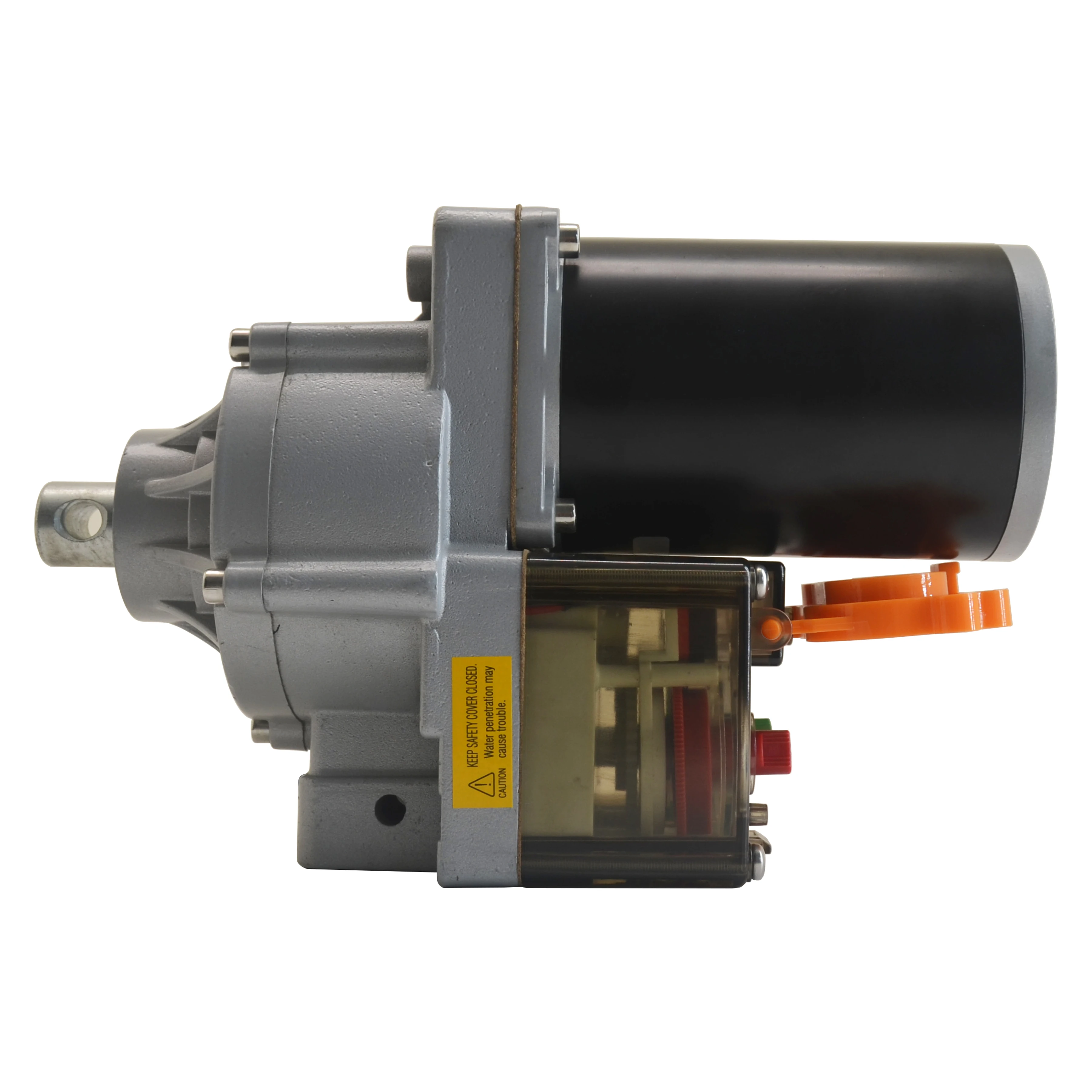

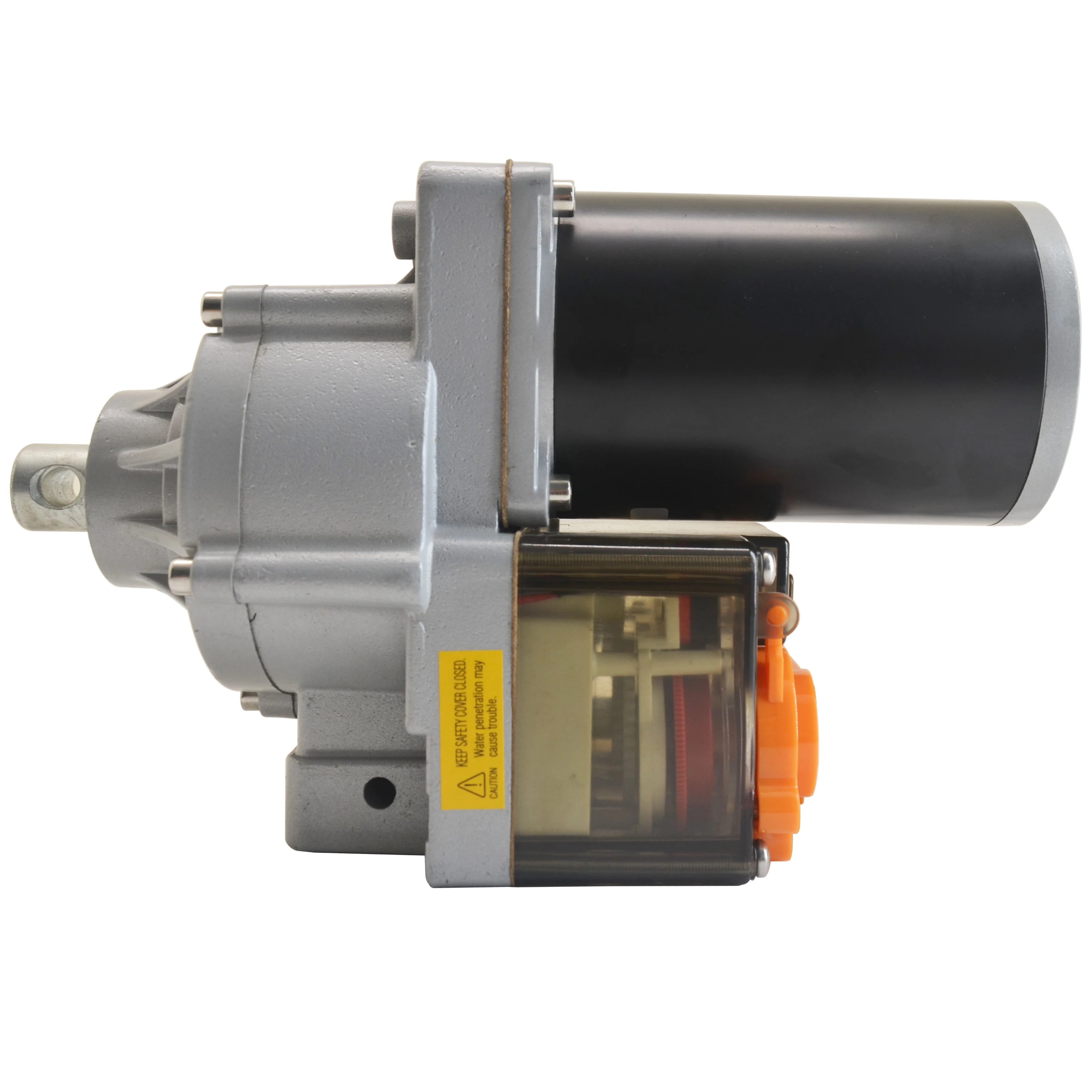

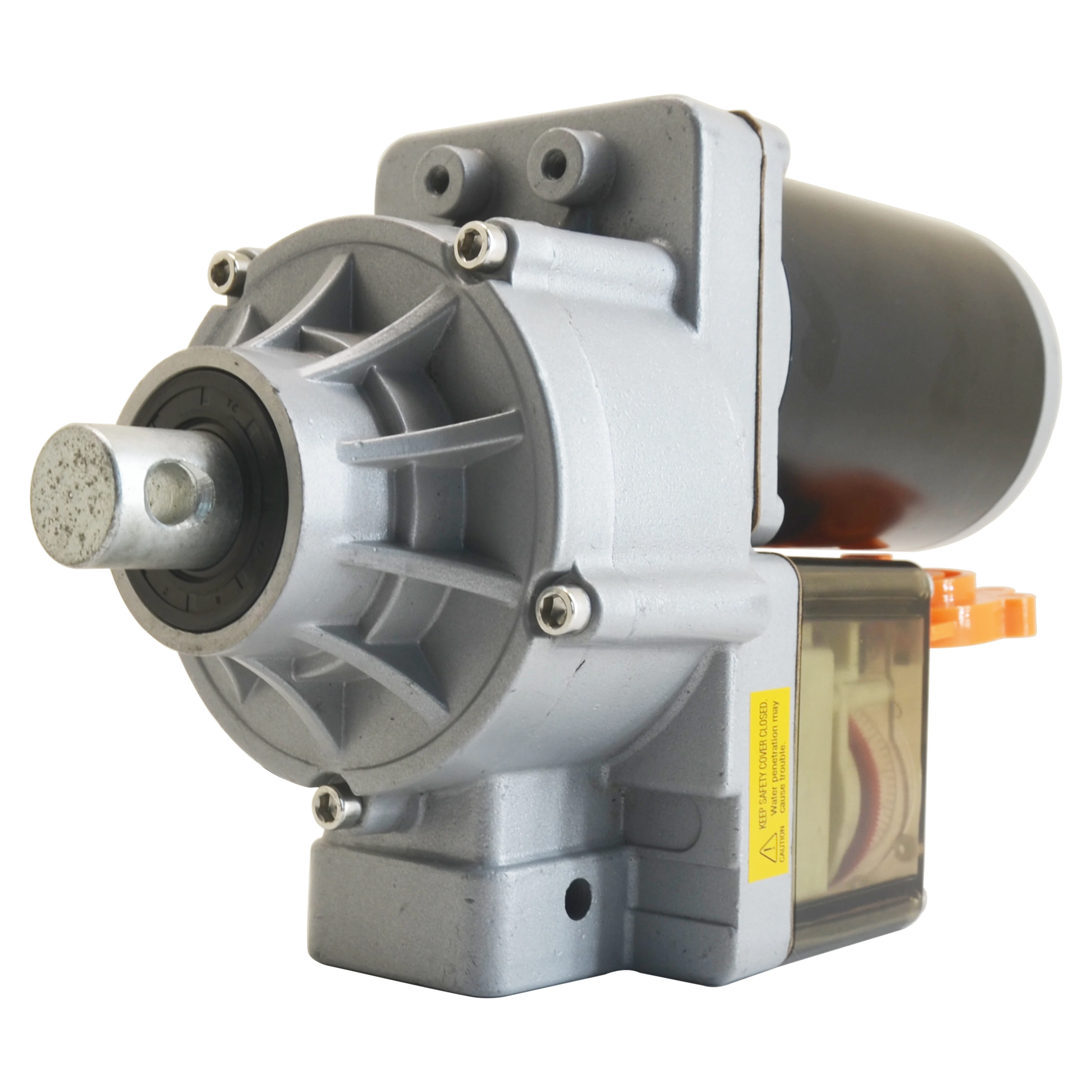

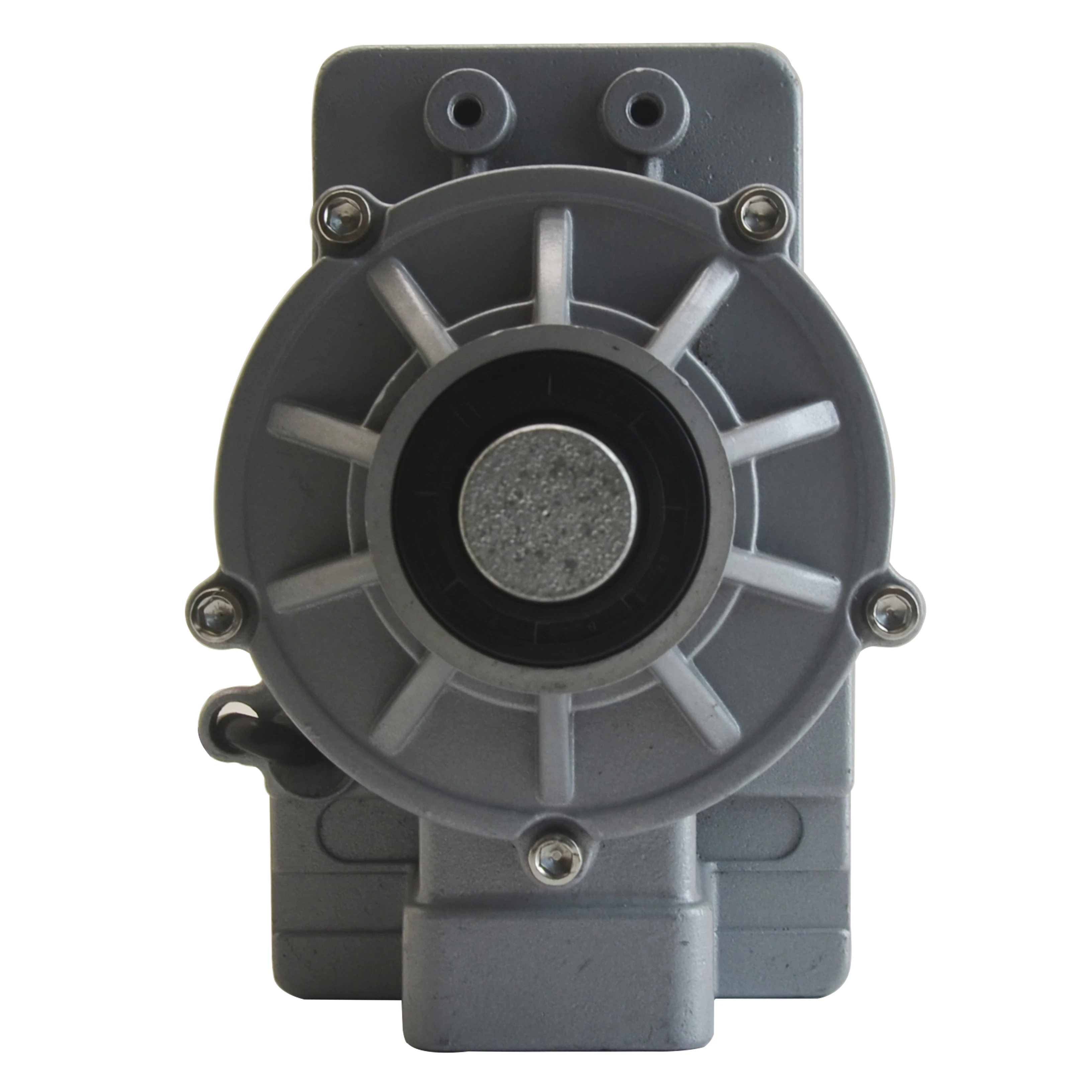

AC220V 150W/200W Electric Roll Up Motor
Products Description
Model | MP-A15275 | MP-D19875 | |
Voltage | AC220V | AC220V | |
Power | 150W | 200W | |
Current | 0.68A | 0.9A | |
Torque | 152N.m | 198N.m | |
Rotate Speed | 1.5/2.5 r/min | 1.5/2.5 r/min | |
Max Rotations | 13/35/77r | 13/35/77r | |
Weight | 6.6kg | 6.8kg | |
Roll Length | ≤150m | ≤200m (Film) ≤100m (Canvas) | |
Application | Film rolling/Curtain rolling | Film rolling/ Curtain rolling | |

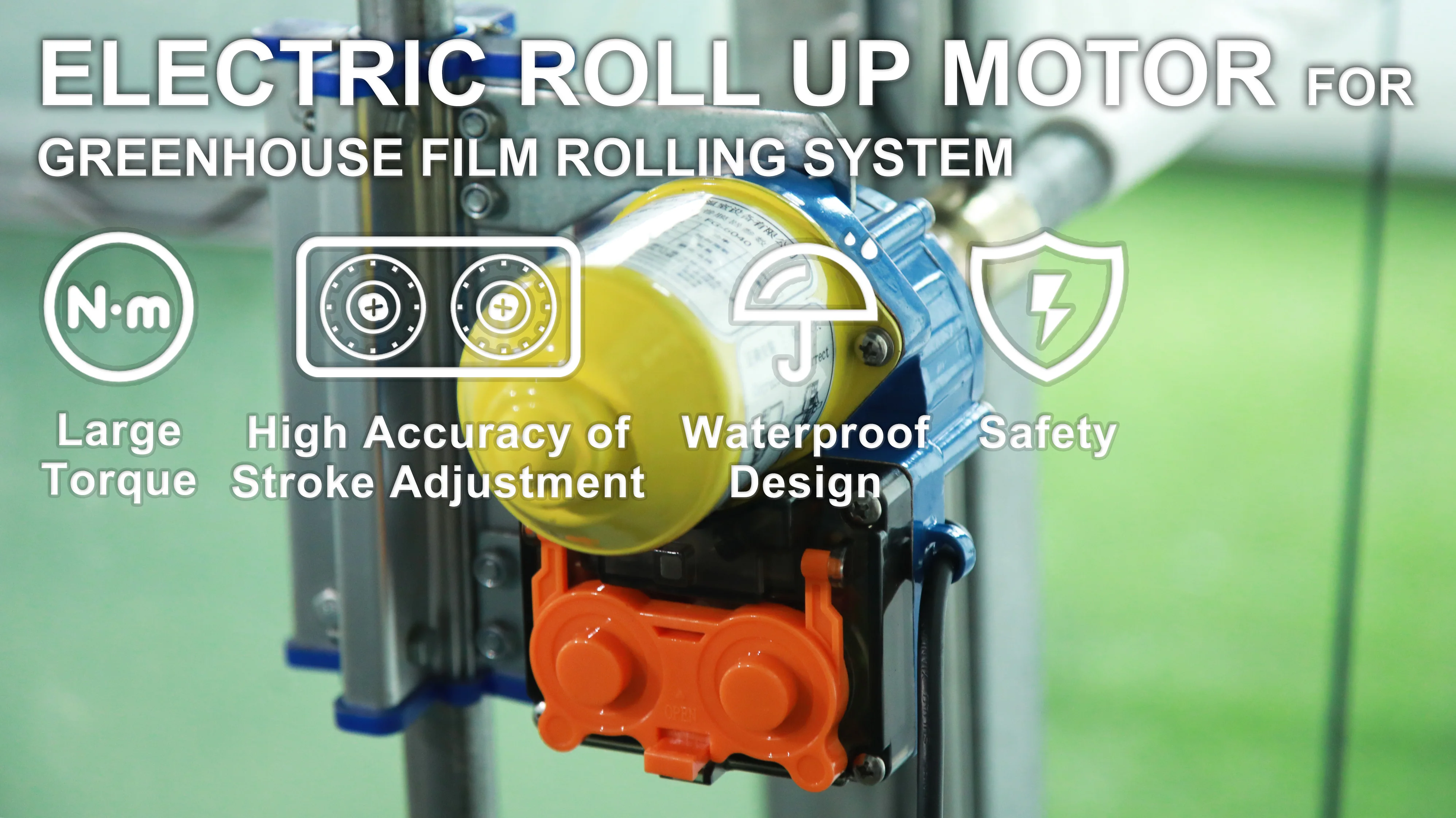

Maxpower's electric roll up motors are mainly used to open and close the greenhouse side and top film. They are suitable for use under different climatic conditions and is the best choice for modern film greenhouses.
Motor for greenhouse side

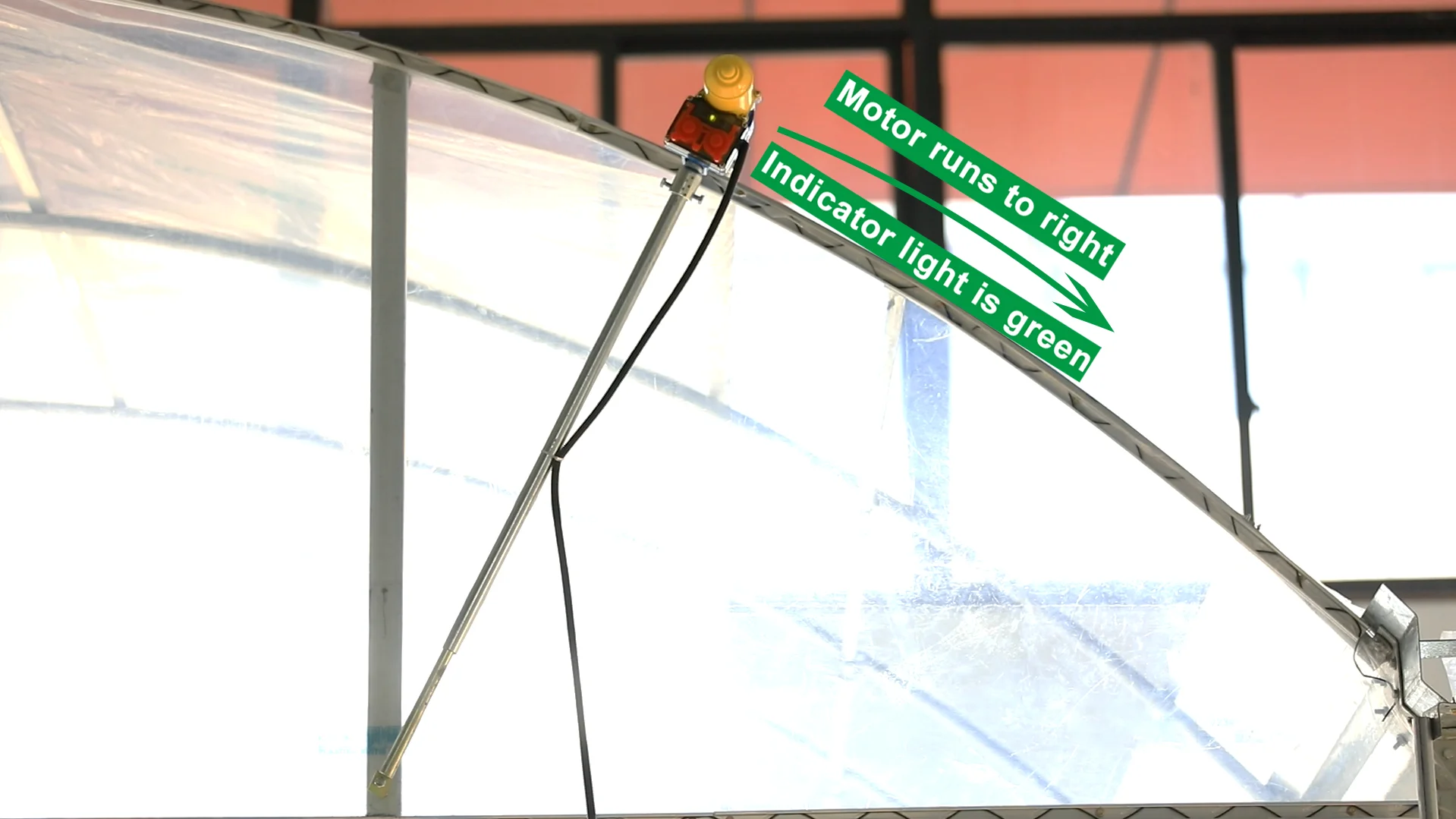

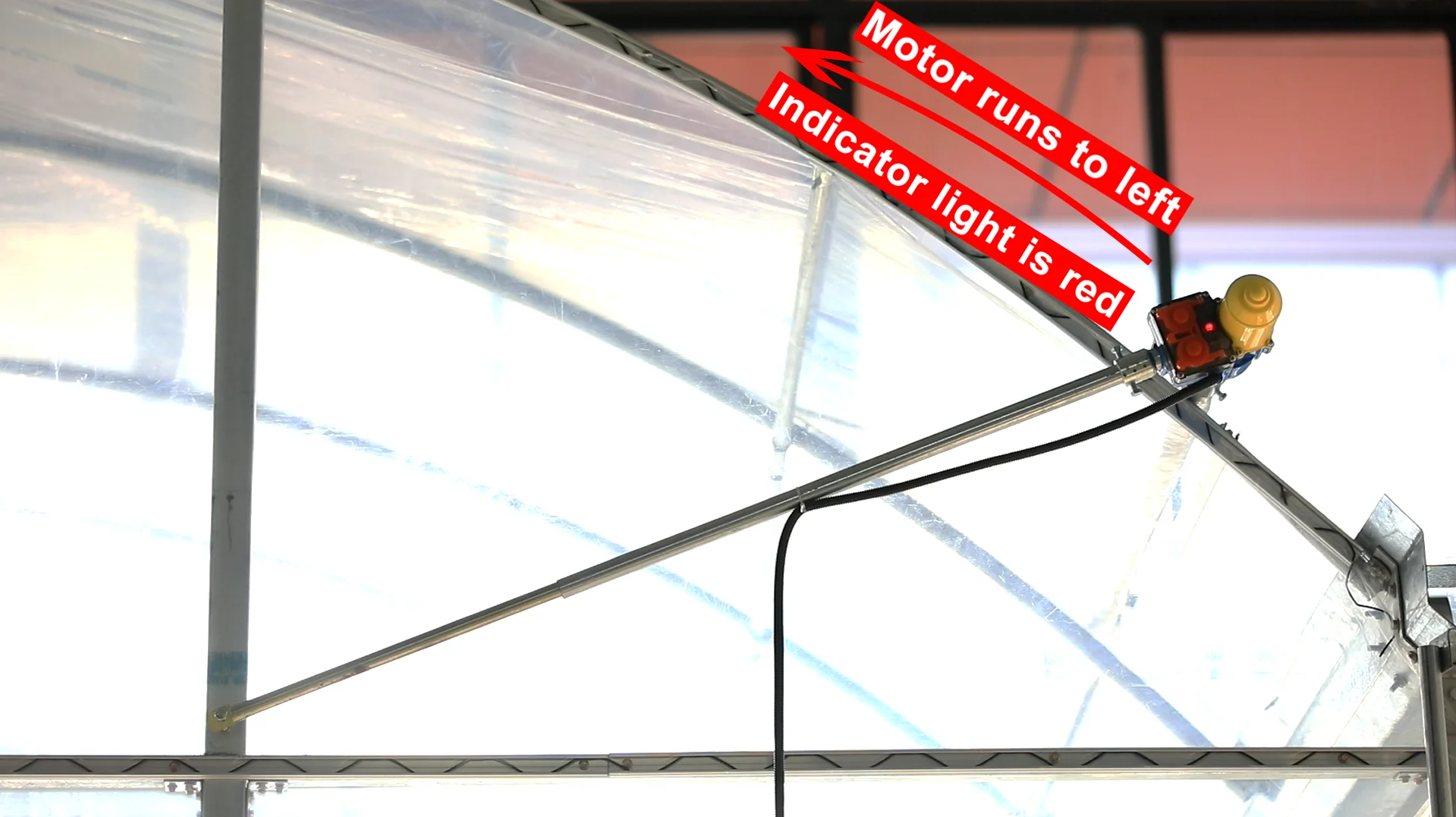

Motor for greenhouse roof

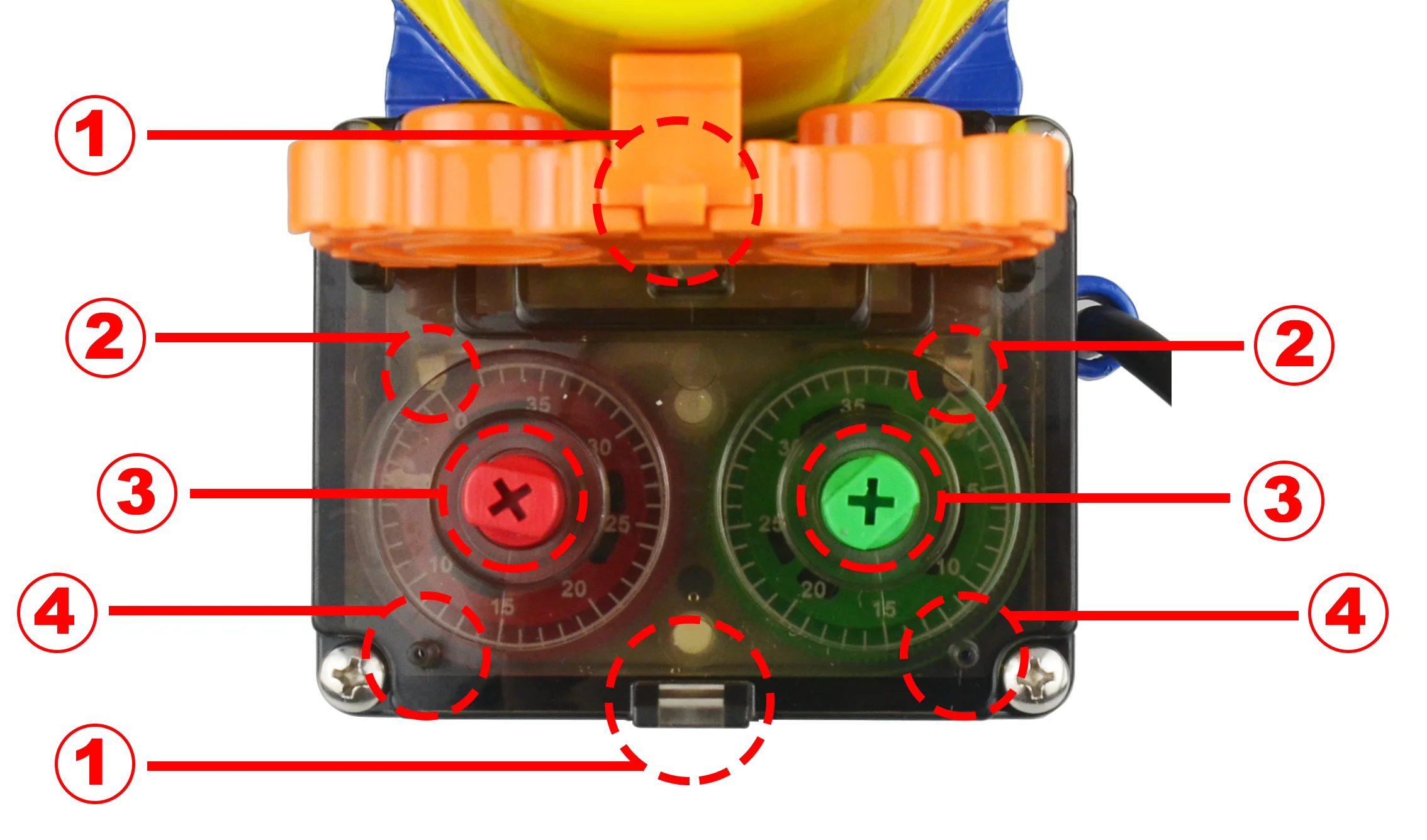

① Waterproof cover with snap design
It will not fall under the action of no external force, solving the problem of limited water inflow.

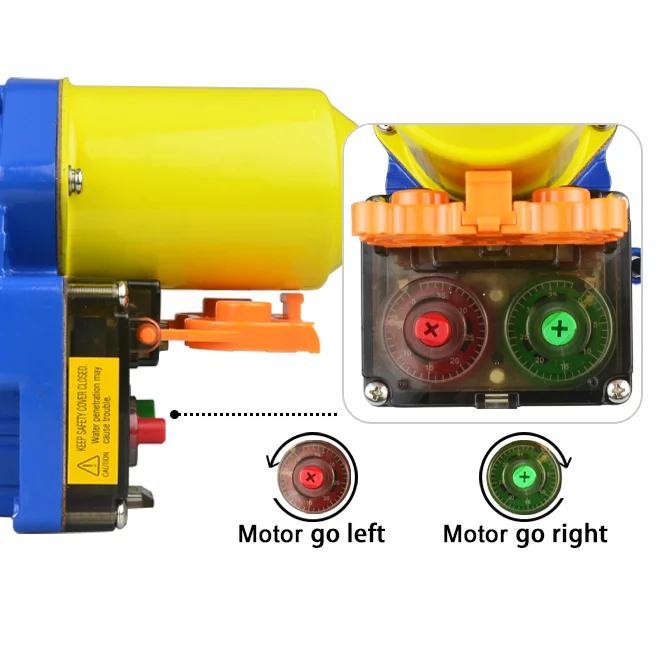

② Limit increase emergency stop device
In case of excessive adjustment limits or other unexpected situations, an emergency shutdown can be achieved. To restart, just return to the adjustment.

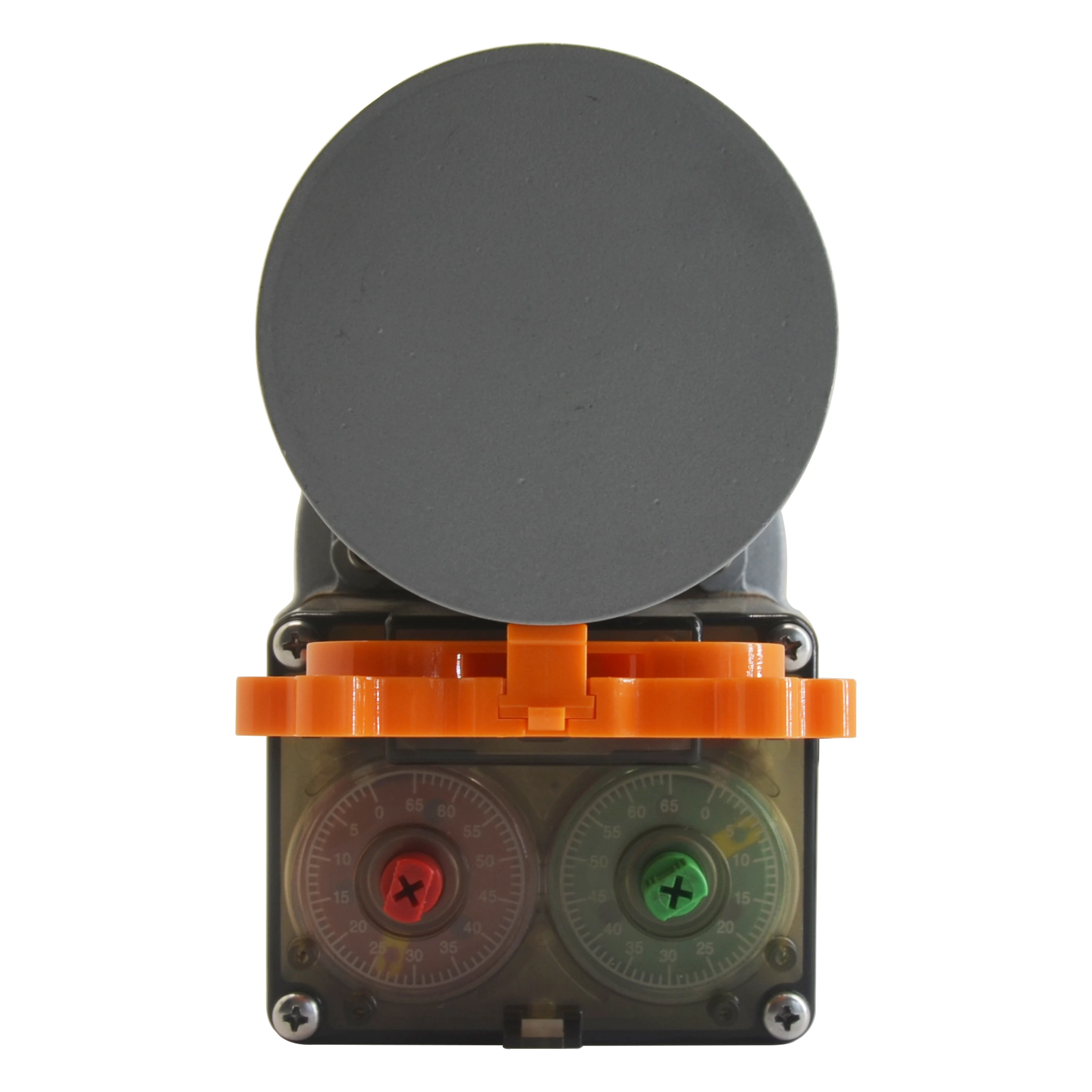

③ Flat knob design
Adjusting the limit saves time and effort, making it convenient and textured.
④ Increase vent holes (drainage)
The condensed water or water inflow generated by the operation of the motor can be discharged.
② Limit increase emergency stop device
In case of excessive adjustment limits or other unexpected situations, an emergency shutdown can be achieved. To restart, just return to the adjustment.
③ Flat knob design
Adjusting the limit saves time and effort, making it convenient and textured.
④ Increase vent holes (drainage)
The condensed water or water inflow generated by the operation of the motor can be discharged.

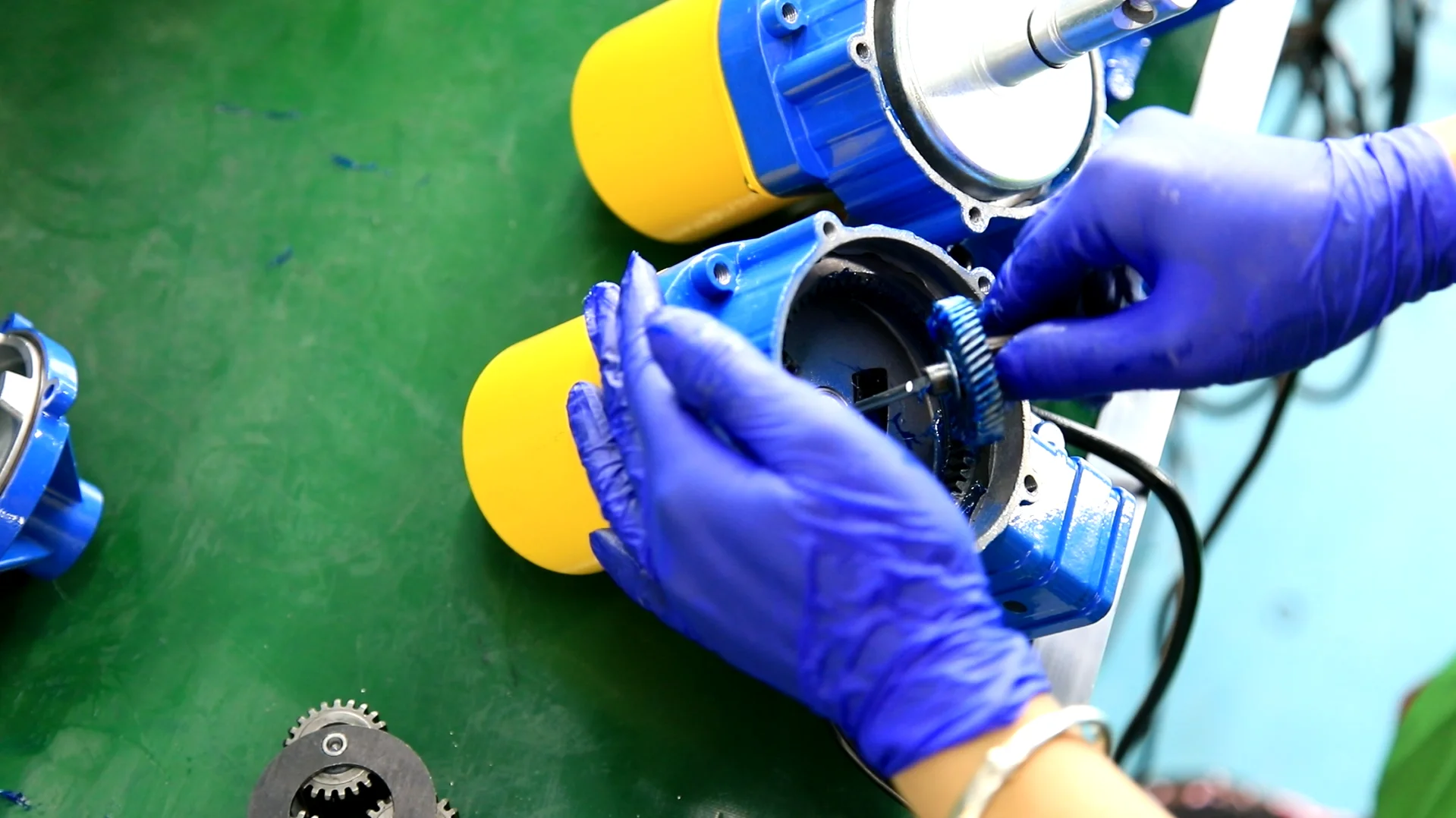

Gear transmission
The internal gear adopts a combination of helical gears and planetary gears, which has high transmission efficiency. 20CrMnTi material, carburizing treatment for higher hardness.

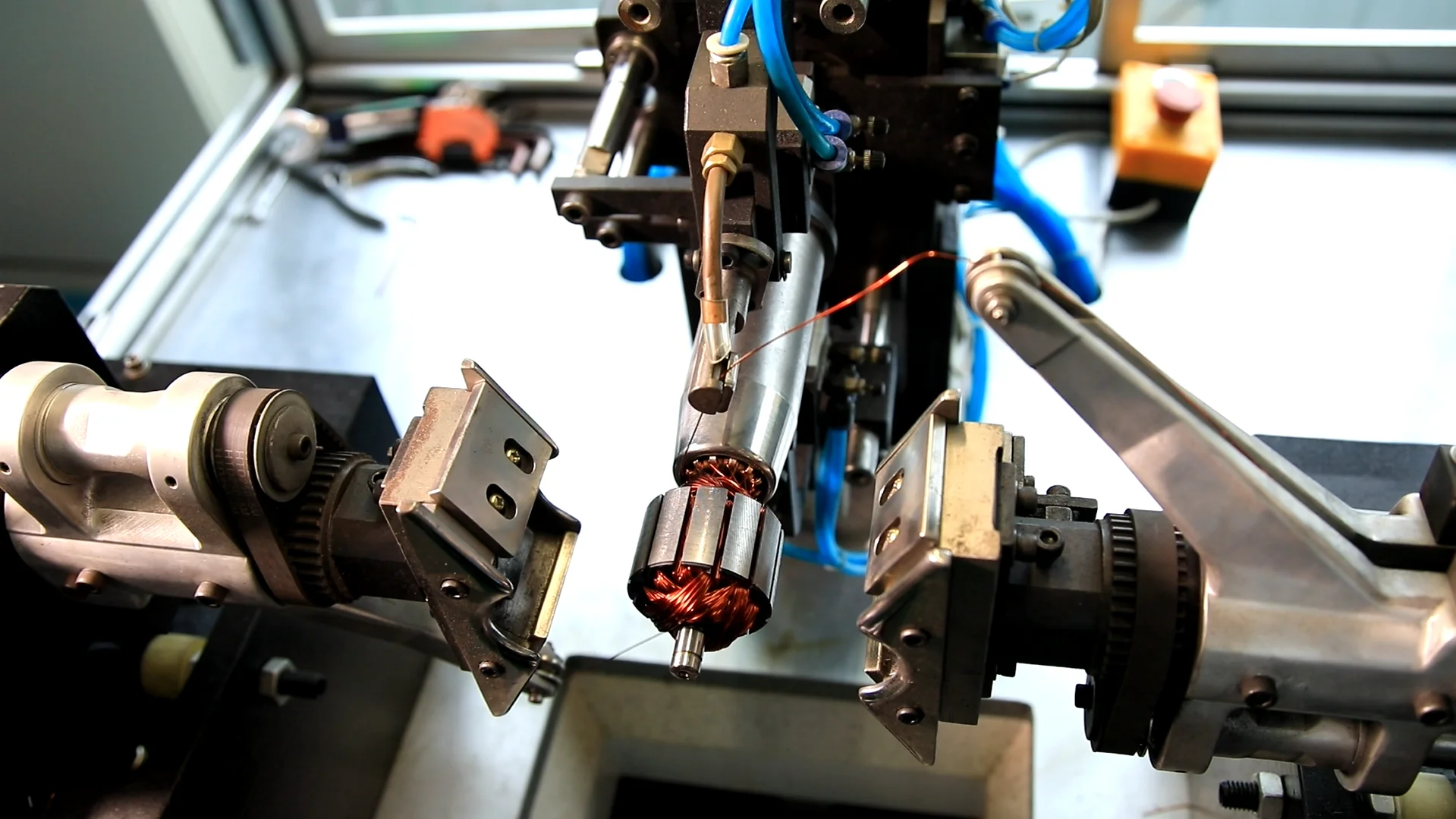

All copper movement
Copper movement, thickened magnets, fine polishing, super insulation protection, high power, long service life.
