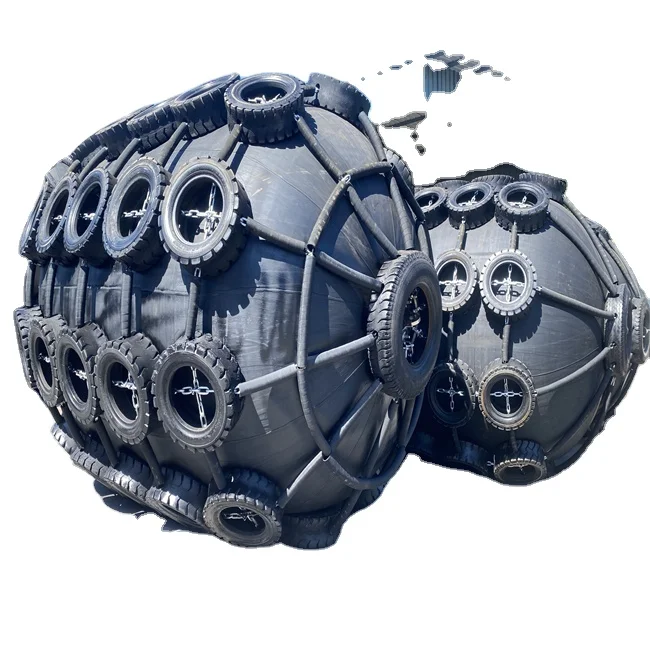

Inflatable Floating Rubber Fender Marine Boat Bumper Fender Marine Supplies
- Category: >>>
- Supplier: Qingdao Wellwish Co. Ltd.Qingdao Ltd.
Share on (1601317872304):
Product Overview
Description
Company Profile
About us
QINGDAO WELLWISH is an enterprise that integrates , scientific research and design, product development, and technical services.
Our company mainly supplies Pneumatic Rubber Fender, Ship Launching Airbag, EVA (Foam Filled) Fender, Solid Rubber Fender， Mooring
equipment, Navigational Aids, Anchor Chains and other ship supplies. Our company's fenders and airbags are produced according to
international ISO standards and have been approved by authoritative classification societies such as BV and CCS.
QINGDAO WELLWISH has accumulated rich experience and knowledge in the field of Marine Supply, providing high-quality products and
professional solutions for shipyards, shipping companies, and STS projects around the world. Currently, its main markets are
Southeast Asia, South America, the Middle East, South Africa, Europe, the United States, and other countries and regions.
Vision
To become a world-class supplier of marine supplies and make marine work safer
Mission
Going the extra mile to make our clients more satisfied
Our company mainly supplies Pneumatic Rubber Fender, Ship Launching Airbag, EVA (Foam Filled) Fender, Solid Rubber Fender， Mooring
equipment, Navigational Aids, Anchor Chains and other ship supplies. Our company's fenders and airbags are produced according to
international ISO standards and have been approved by authoritative classification societies such as BV and CCS.
QINGDAO WELLWISH has accumulated rich experience and knowledge in the field of Marine Supply, providing high-quality products and
professional solutions for shipyards, shipping companies, and STS projects around the world. Currently, its main markets are
Southeast Asia, South America, the Middle East, South Africa, Europe, the United States, and other countries and regions.
Vision
To become a world-class supplier of marine supplies and make marine work safer
Mission
Going the extra mile to make our clients more satisfied

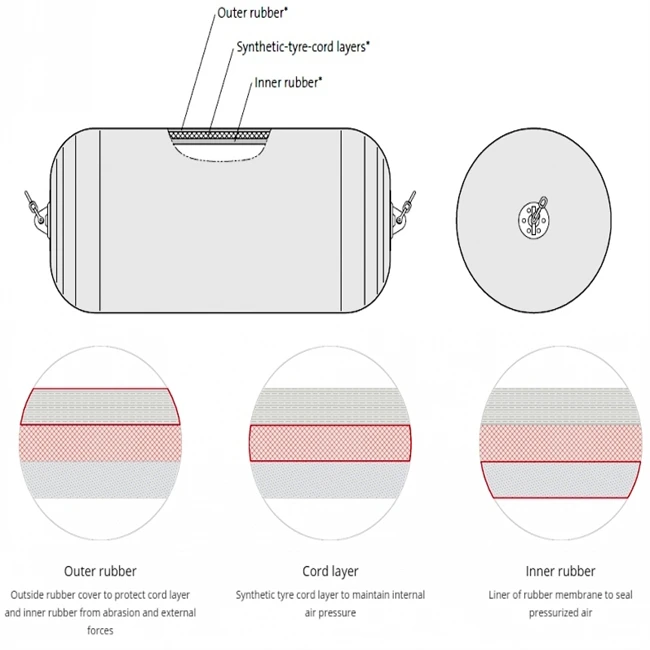

Structure
Inner Rubber:Main function: to maintain pressure and enhance airtightness
Cord Layers:Make the fender stronger
Out Rubber:Protect the entire fender

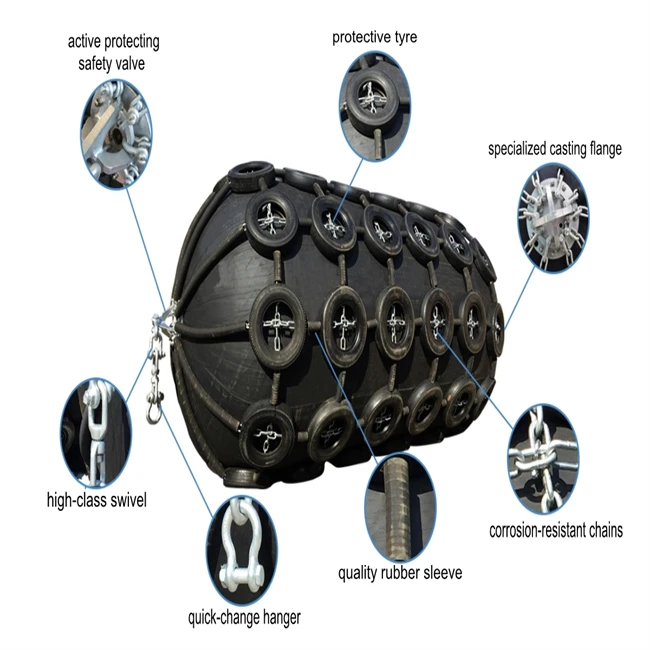

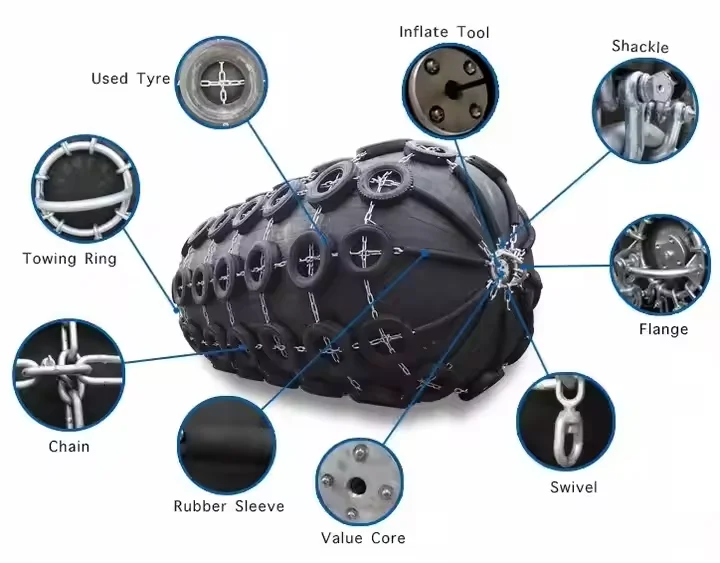

Details of the fender
STS
STD
Drawing
Performance Curve
Normal Size (Diameter × Length) | Initial Internal Pressure | Guaranteed Energy Absorption (GEA) | Reaction Force At GEA (RF) | Hull Pressure At GEA (PR) |
(mm) | (KPa) | (KN/M) | (KN) | (KPa) |
500×1000 | 50 | 6 | 64 | 132 |
600×1000 | 50 | 8 | 74 | 126 |
700×1500 | 50 | 17 | 137 | 135 |
1000×1500 | 50 | 32 | 182 | 122 |
1000×2000 | 50 | 45 | 257 | 132 |
1200×2000 | 50 | 63 | 297 | 126 |
1350×2500 | 50 | 102 | 427 | 130 |
1500x3000 | 50 | 153 | 579 | 132 |
1500×4000 | 50 | 230 | 815 | 130 |
1700×3000 | 50 | 191 | 639 | 128 |
2000×3500 | 50 | 308 | 875 | 128 |
2500×4000 | 50 | 663 | 1381 | 137 |
2500×5500 | 50 | 943 | 2019 | 148 |
3000x5000 | 50 | 965 | 1815 | 148 |
3000x6000 | 50 | 1184 | 2243 | 152 |
3300×4500 | 50 | 1175 | 1884 | 130 |
3300×6500 | 50 | 1814 | 3015 | 146 |
3300x10600 | 50 | 3067 | 5257 | 158 |
4500x9000 | 50 | 4752 | 5747 | 146 |
Test item | Test method | Required value | |||||
Outer rubber | Inner rubber | ||||||
1.Before aging | - | - | - | ||||
1.1 Tensile strength | ISO 37:2011 | 18 MPa or more | 10MPa pr more | ||||
1.2 Elongation | ISO 37:2011 | 400% or more | 400% or more | ||||
1.3 Hardness | ISO 7619-1:2010 | 60±10(Durometer hardness Type A) | 50±10(Durometer hardness Type A) | ||||
2. After aging | ISO 188:2011 | Air oven aging,70℃±1℃,96h | Air oven aging,70℃±1℃,96h | ||||
2.1 Tensile strength | ISO 37:2011 | Not less than 80% of the original property | Not less than 80% of the original property | ||||
2.2 Elongation | ISO 37:2011 | Not less than 80% of the original property | Not less than 80% of the original property | ||||
2.3 Hardness | ISO 7619-1:2010 | Not to exceed the original property by more than 8 | Not to exceed the original property by more than 8 | ||||
3.Tear | ISO 34-1:2010 | 400N/cm or more | No requirement | ||||
4.Compression set | IOS 815-1:2008 | 30%(70±1℃,22hours)or less | No requirement | ||||
5.Static ozone aging test | ISO 1431-1:2012 | No cracks after elongation by 20% and exposure to 50 pphmа at 40℃ for 96h | No requirement | ||||
Product Description
Yokohama Type Fender
Application: STS STD
Structure:Inner Rubber,cord layers,out rubber
Initial internal pressure: 50Kpa/80kpa
Composition material: high-quality rubber,Q235HDG
Marine Airbag
Application:Ship launching,Assist Floating
Structure:Cord layers,out rubber
Size:Customized available
EVA Filled Fender
Application: STS STD
Feature:High energy absorption, low reaction force, long lifespan
Popular Color:Black,Grey,Orange
Steel Buoy
Structure:Steel,EVA filled
Application:Anchoring, mooring
Size:customized available
PVC Fender
Material:PVC
Application:Yacht ,small boat
Air Filled
Anchor
Application:Mooring
Japanese style rodless anchor
Vulcanization tank for Pneumatic Rubber Fender
Vulcanization tank for Marine AIrbag
Pressure compression testing machine
Packing & Delivery
Why Choose Us
1.Professional, dedicated, and enthusiastic
2.Quality first, long-term win-win
3.Make every effort to provide customers with high-quality services and enable them to
