FAW 6, 000 Liter Sewage Vacuum Suction Truck for City Sewage Cleaning

Product Overview

Description

I. SUCTION SEWAGE TRUCK DISPLAY

Suction truck is a new type of sanitation vehicle that collects, transfers and clean up transportation sludge and sewage to avoid secondary pollution. Suction truck can self-suction and self-discharge, fast working speed, large capacity, convenient transportation, suitable for collecting and transporting feces, mud, crude oil and other liquid substances. The suction truck adopts the domestic technology leading suction vacuum pump, large suction, long suction range, especially suitable for suction, loading and discharge of sludge in the sewer, especially can suck sewage mud, silt, stone, brick and other large objects.



II. SUCTION SEWAGE TRUCK PARAMETERS

FAW 6, 000 Liter Sewage Vacuum Suction Truck for City Sewage Cleaning
Description	FAW Suction Sewage Truck
Drive Model	4x2, Left/Right Hand Drive; New condition
Fuel Type	Diesel oil
Cab	Dongfeng brand
Passenger	3 person
Vehicle Main Dimensions	Dimensions(L x W x H)mm	6200x2550x2950
	Wheel base (mm)	3800
Max. driving speed(km/h)		95
Engine	Model	YC120-TC51
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	120HP
	Emission standard	Euro 2/3/4/5
Tire	7.00R16,6pcs + 1 spare
Specification of Sewage Suction Truck
Tank material	Q235 carbon steel
Tank capacity	Sewage tank:4cbm; Cleanwater tank:2cbm
Thickness of the tank	5 mm
Vacuum pump	China famous brand/Italy brand
Rate of pumping	3-10 minutes
Inlet and Outlet pipe	6m/7m/9m/15m
Hydraulic function	The tank can be hydraulically lifted and the back cover can be hydraulically opened
Other equipment	1. The total volume of the tank is about 6 cubic meters (the volume of the water tank and the sewage tank can be freely distributed), made of high-quality steel plates from Wuhan Iron and Steel Corporation, with a wall thickness of 5. The middle of the tank is designed with a reasonable anti wave plate, and the sewage tank is lined with a butterfly shaped head (with reinforcing ribs).   2. The interior of the sewage tank is covered with stainless steel plates, which prevent corrosion to the bottom of the tank and facilitate unloading. The tank is equipped with a ladder inside.   3.The double top design of the left and right oil cylinders of the tank body (with buffering support rods) makes the lifting and lowering of the tank body more reliable, and the vehicle has strong stability.

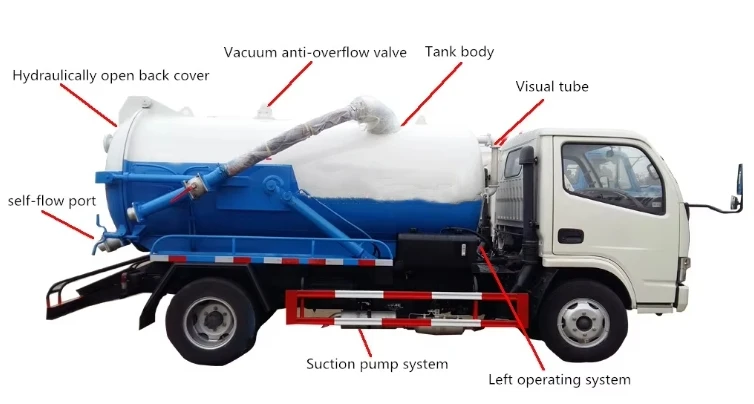

III.SUCTION SEWAGE TRUCK DETAILED VIEW:

IV. SHIPPING&DELIVERYV.Company profile

VI.FAQ

Why choose us?



Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng, foton, sinotruck,shacman,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

Any more information regarding to suction sewage truck, please do not hesitate contact with us! I will always be glad to serve! ——Lucy
