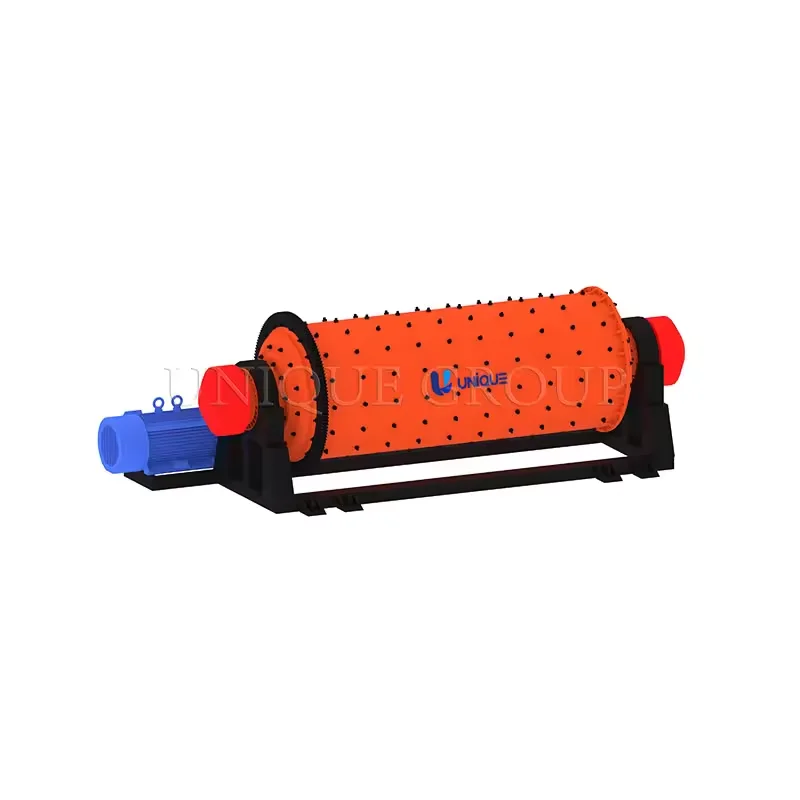

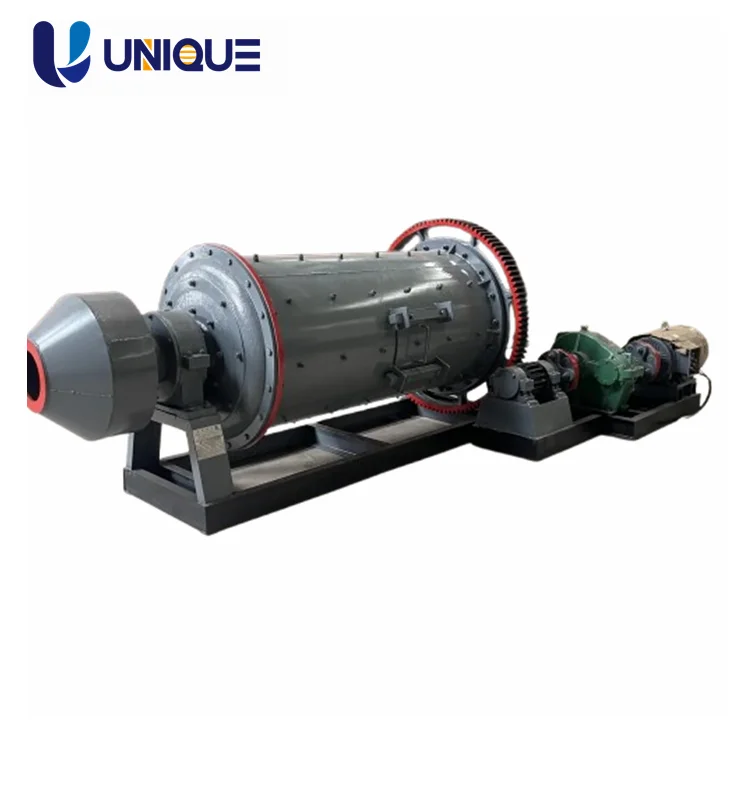

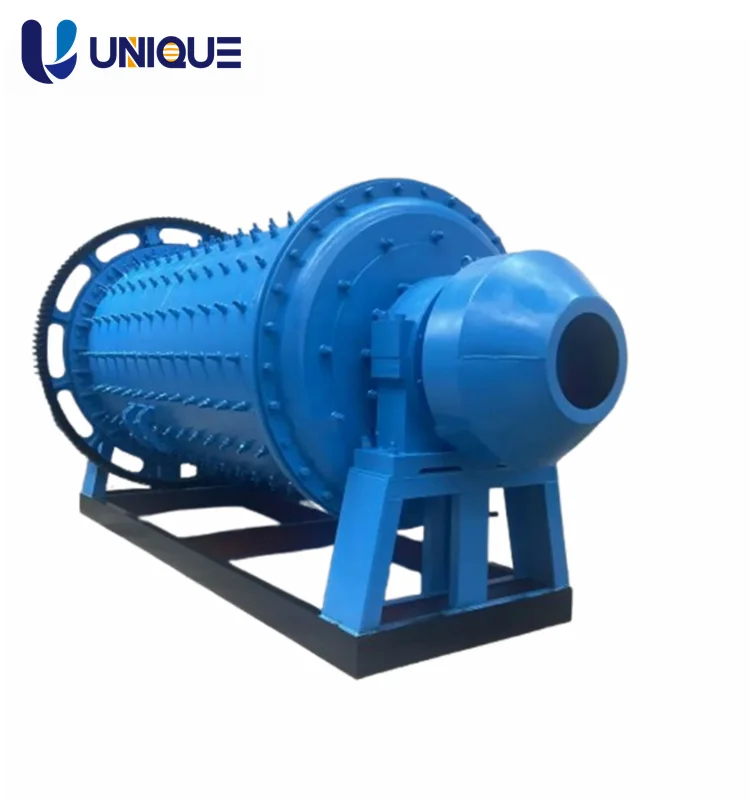

Tanzania Mining Cement Limestone powder rotary dry ball mills Energy saving gold copper ore wet ball mill
Tanzania Mining Cement Limestone powder rotary dry ball mills Energy-saving gold copper ore wet ball mill
Tanzania Mining Cement Limestone powder rotary dry ball mills Energy-saving gold copper ore wet ball mill
Tanzania Mining Cement Limestone powder rotary dry ball mills Energy-saving gold copper ore wet ball mill
Tanzania Mining Cement Limestone powder rotary dry ball mills Energy-saving gold copper ore wet ball mill
Tanzania Mining Cement Limestone powder rotary dry ball mills Energy-saving gold copper ore wet ball mill
Tanzania Mining Cement Limestone powder rotary dry ball mills Energy-saving gold copper ore wet ball mill

Tanzania Mining Cement Limestone powder rotary dry ball mills Energy saving gold copper ore wet ball mill

Share on (1601317888024):


Price:$40,000.00-50,000.00

Quantity:


Product Overview

Description



Products Description

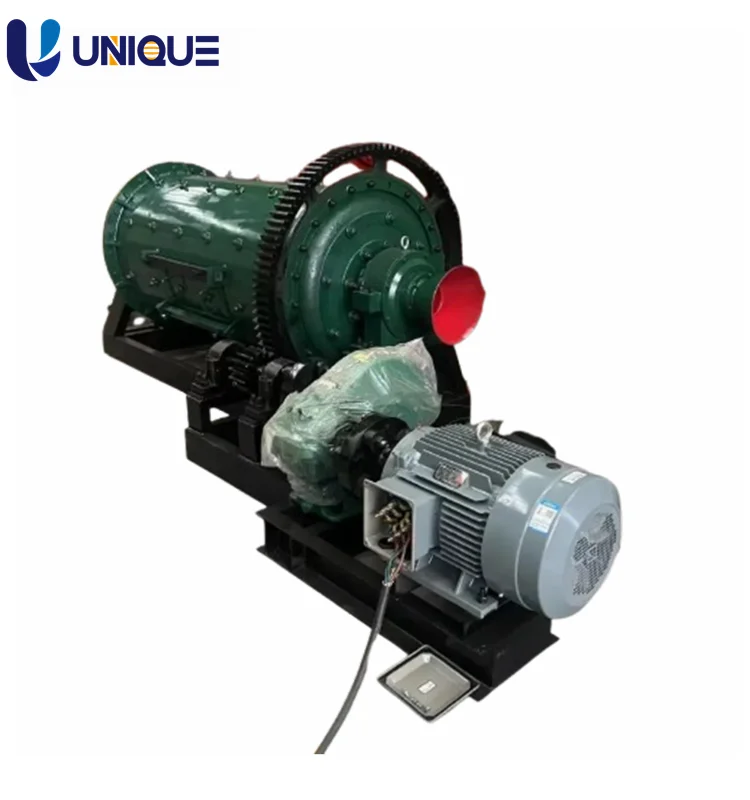

Introduction of Energy-saving grid Ball Mill
Energy-saving grid (overflow) ball mill is the key equipment after the material is broken and crushed.They are used for dry or wet grinding of various ores and other materials.It is widely used in mineral processing,cement and silicate products,new building materials,refractory materials,chemical fertilizers and glass ceramics and so on production industry.It is also widely used in mineral processing ,construction and chemical industry and other national economic departments.

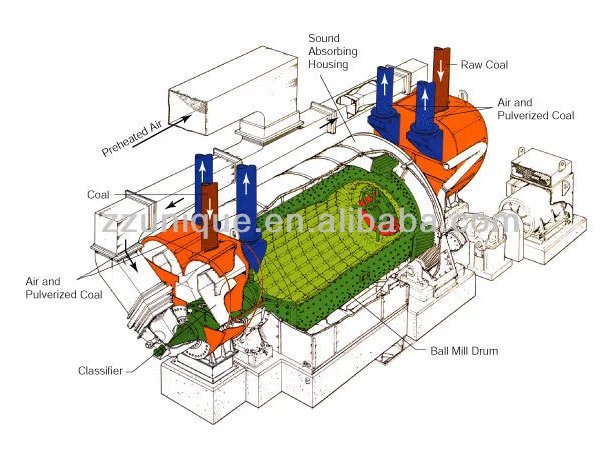

Working principle of Energy-saving grid(overflow) Ball Mill：
When the ball mill works, motor and speed reducer transmit torque force to big and small gears of ball mill, so the barrel

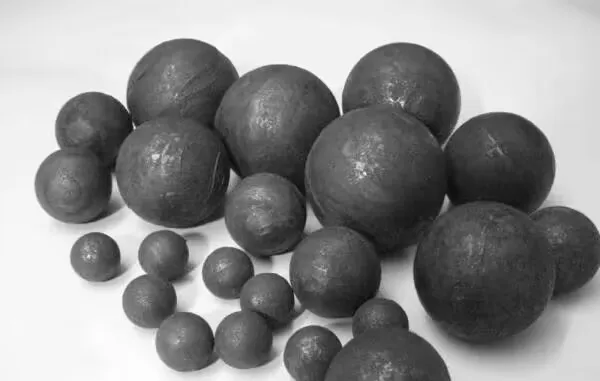

rotates.When the barrel rotates, Steel balls or other grinding media in the barrel are lifted to a certain height and fall down
freely, so materials in the barrel are impacted.
Grinding media mixing with materials impact and grind materials continuously. The grinding media and materials impact and grind each other when the ball mill rotates continuously.The final product will be discharged from outlet when it meets the request, so the grinding process is finished.




Product Paramenters


Model
Cylinder RPM(r/min)
Ball load(t)
Feeding size(mm)
Discharge size(mm)
Capacity(t/h)
Power(kw)
Weight(t)
MQG600*1800
45.8
0.56
≤10
0.074-0.8
0.15-0.6
7.5
2
MQG900*1800
38
1.8
≤25
0.075-0.6
0.4-2.7
22
5.5
MQG900*3500
37.4
3
≤25
0.074-0.34
0.8-3.9
30
8
MQG1200*2400
36
4.8
≤20
0.075-0.6
1.5-5.2
37
9.8
MQG1200*4500
36
5.2
≤25
0.074
1.5-5.6
45
13.7
MQG1300*4000
32
5.8
≤25
0.075-0.6
2-7.5
45
14.8
MQG1500*3500
28.8
8.3
≤25
0.074-0.4
3.4-14
75
17.6
MQG1500*4500
28.8
10
≤25
0.074-0.4
3.5-15
95
22.5
MQG1500*5700
28.8
12
≤25
0.074-0.4
3.5-16
110
26.7
MQG1500*6400
28.8
13
≤25
0.074-0.4
4-18
130
29.2
MQG1830*3600
24.5
16
≤25
0.074-0.4
5.8-25
130
31.4
MQG1830*4500
24.5
17.5
≤25
0.074-0.4
6.6-28
155
32.6
MQG1830*7000
24.5
20
≤25
0.074-0.4
7.5-31
245
39.6
MQG2100*3600
23.8
21
≤25
0.074-0.6
6-29
210
43.2
MQG2100*4500
23.8
26
≤25
0.074-0.6
7.2-32
245
48.8
MQG2200*7500
22.8
28
≤25
0.074-0.6
9-40
380
68
MQG2400*3600
21.7
31
≤25
0.074-0.6
9-42
280
56
MQG2400*9000
21.7
45
≤25
0.074-0.6
10-50
630
92
MQG2700*3600
21.4
39
≤25
0.074-0.6
13-145
400
86
MQG2700*4500
21.4
50
≤25
0.074-0.6
15-160
475
91
MQG3000*5400
19
58
≤25
0.074-0.6
20-180
630
113.5
MQG3200*3600
18.6
52
≤25
0.074-0.6
20-192
630
119
MQG3200*4500
18.6
65
≤25
0.074-0.6
30-210
800
127
MQG3200*5400
18.6
72
≤25
0.074-0.6
35-260
1000
145
MQG3600*4500
17.3
88
≤25
0.074-0.6
30-230
1120
159.7
MQG3600*5000
17.3
96
≤25
0.074-0.6
35-260
1250
165
MQG3600*6000
17.3
117
≤25
0.074-0.6
38-280
1400
182
MQG4000*6000
16.9
145
≤25
0.074-0.6
60-460
1500
216
MQG4500*6000
15.6
180
≤25
0.074-0.6
80-550
2300
269.6

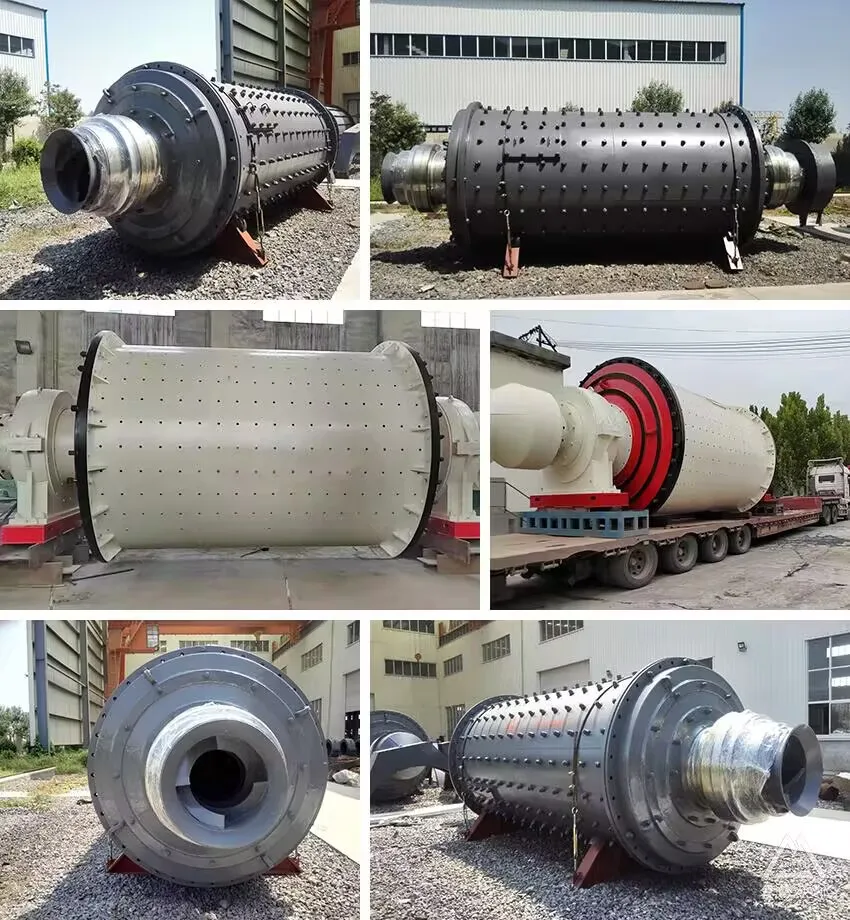

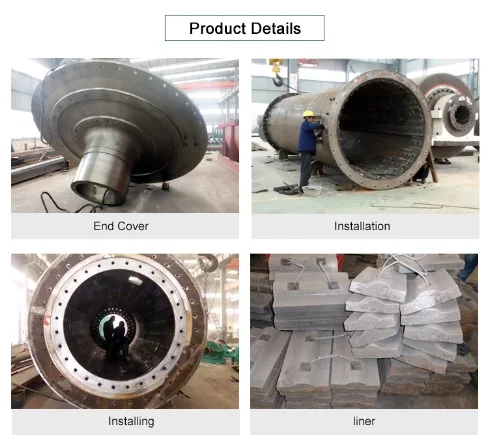

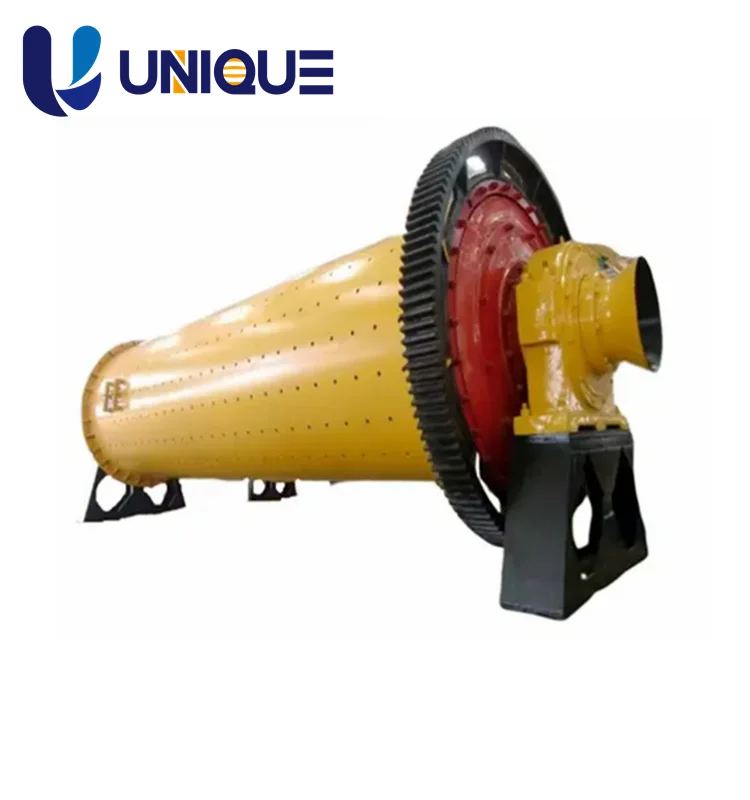

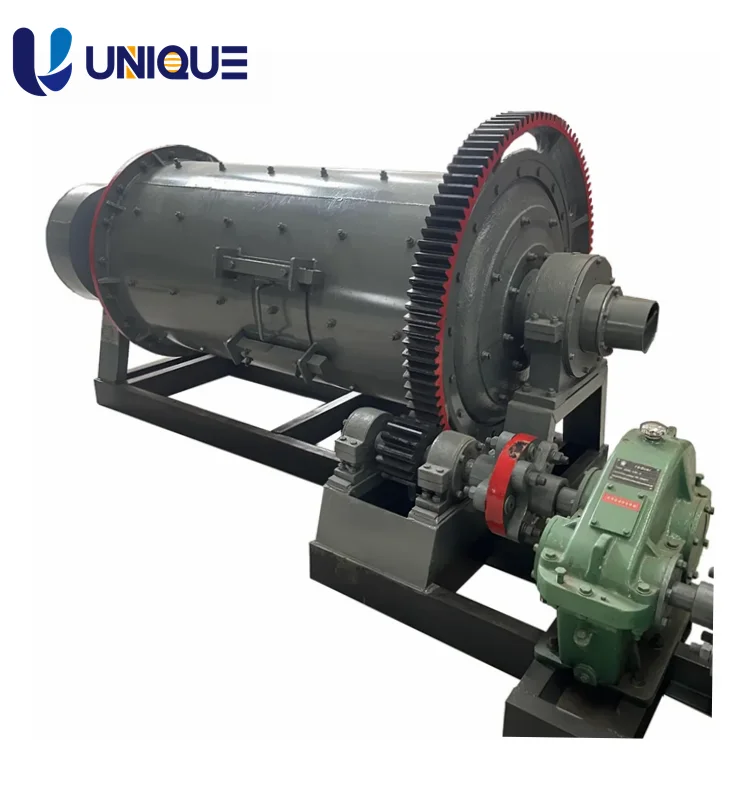

Details Images

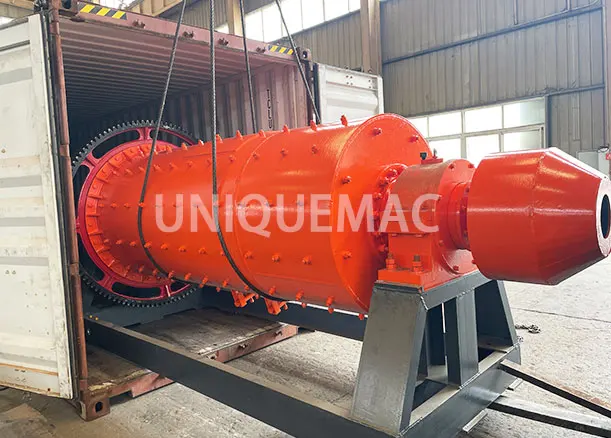

Product packaging


Packaging:standard Container, standard Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.

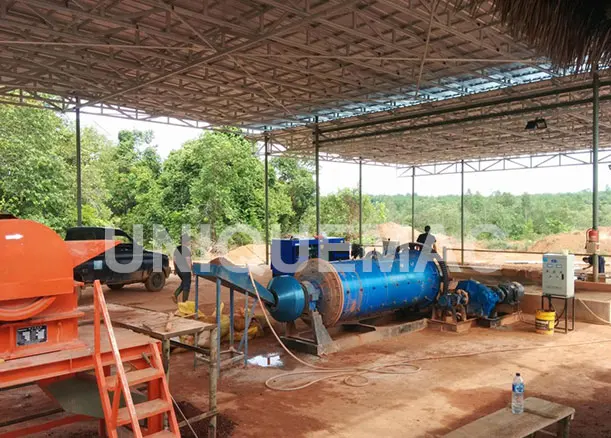

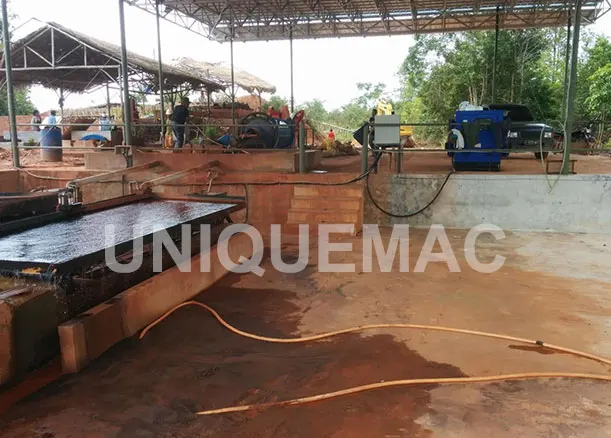

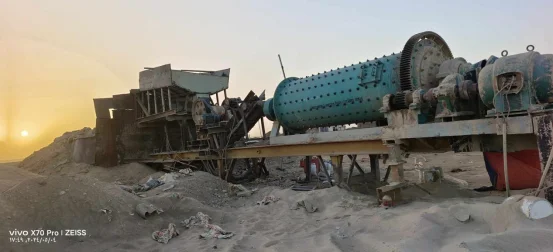

Working site

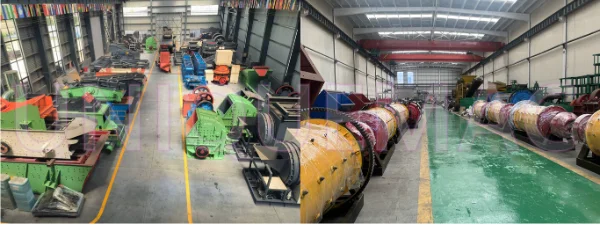

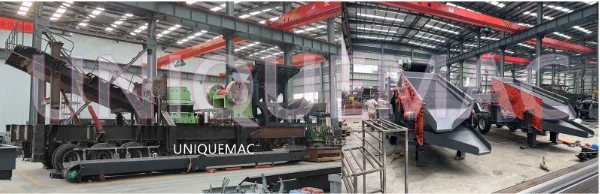

Company Profile


Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Mining Machinery in China.Our products comprise three categories: Stone Crushing & Screening, Portable Crushing Plant, and Complete Crushing Plant. Our primary products are Jaw Crusher, Impact Crusher, Hydraulic Cone Crusher, Spring Cone Crusher, Vibrating Screen, Vibrating Feeder,Portable Crushing Plant and Aggregate Crushing Plant. Our vast line of products is available for countless uses, meeting any and all of our customers' special needs.

Unique has been dedicated to producing Mining machinery for 30 years.We take pride in manufacturing our mining machinery, and the chance to serve the varied needs of our customers worldwide. Our brand is recognized worldwide for our high quality,reliability, and our customer service. We currently supply over 60 different countries with our products,With the increasing occupation ratio in domestic market, our products have been exporting to Russia, Mongolia, Chile, Media Asia, Africa etc. countries and regions.






FAQ


Q1: How long is the warranty of your equipment? Does your company supply the spare parts?
A: The warranty period of crusher equipment is one year. Yes, we supply the spare parts for you at lowest cost and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?

Q3. Can you test our samples?Do you provide benefit flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow
for various ores benefit, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.

Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advice as long as you need. We had
already build many mining projects in China & Overseas.

Our Advantages---
A.We have over 30 years experiences of manufacturing crushers, crusher line and other mining equipment.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.

Any questions , please contact us freely.
