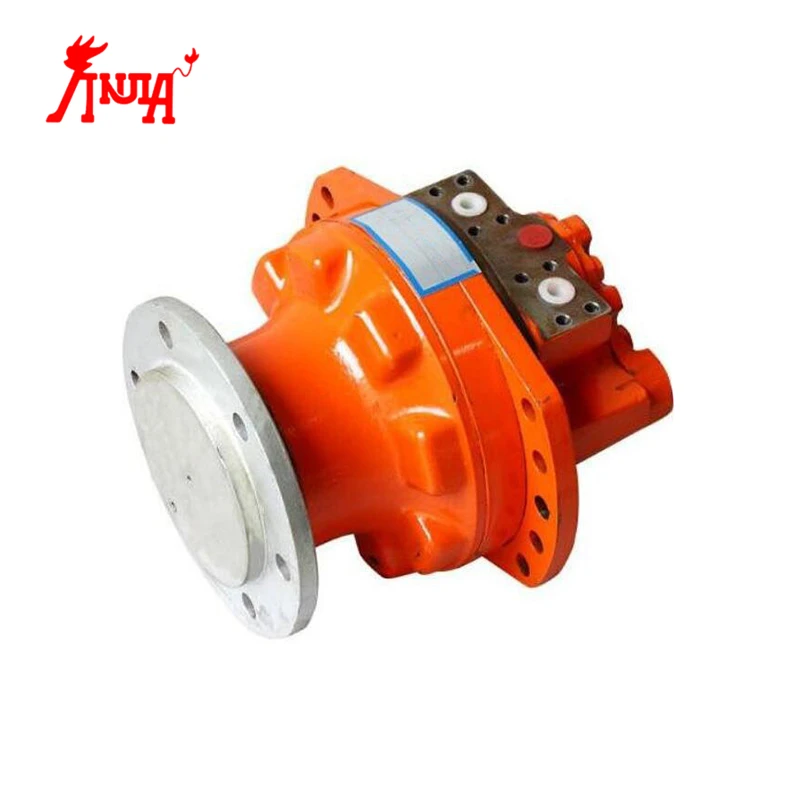

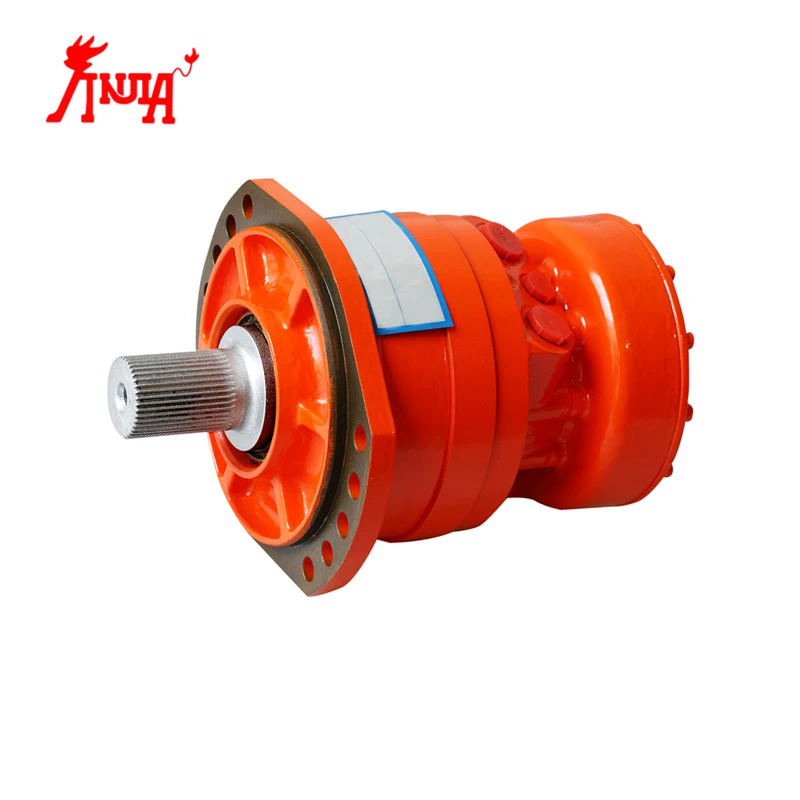

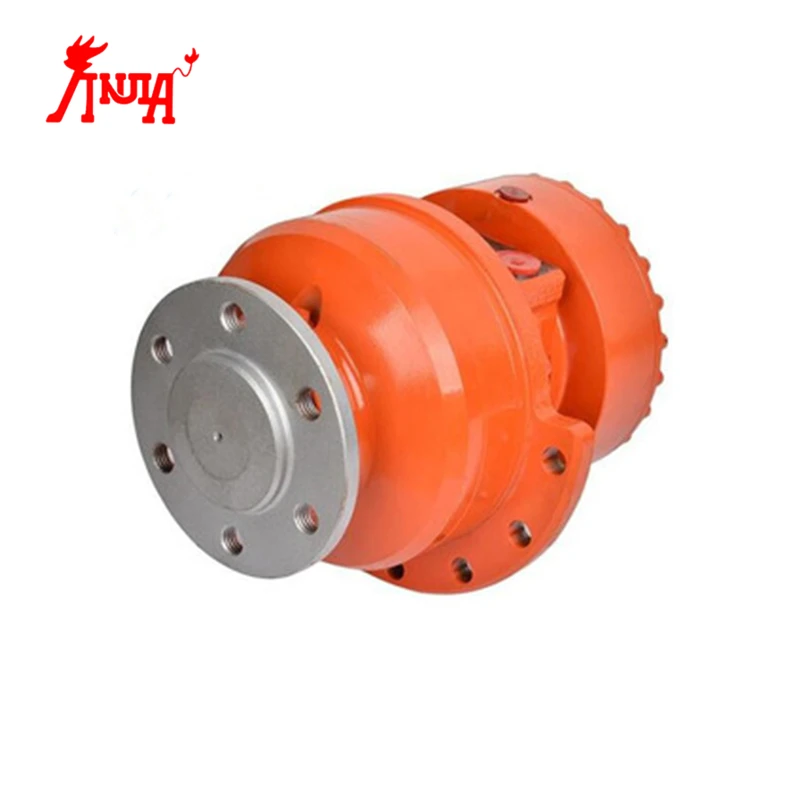

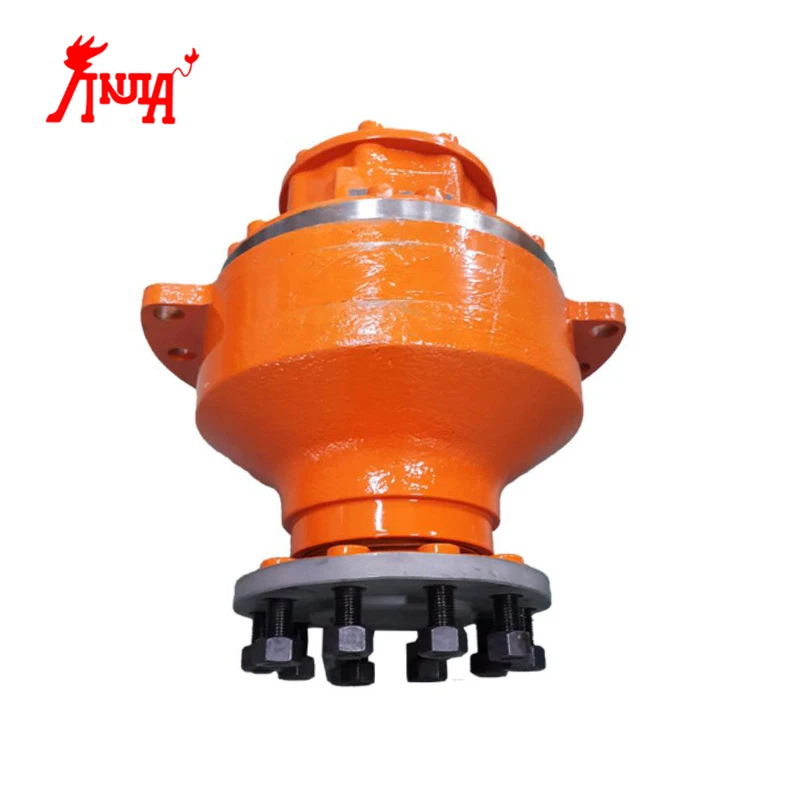

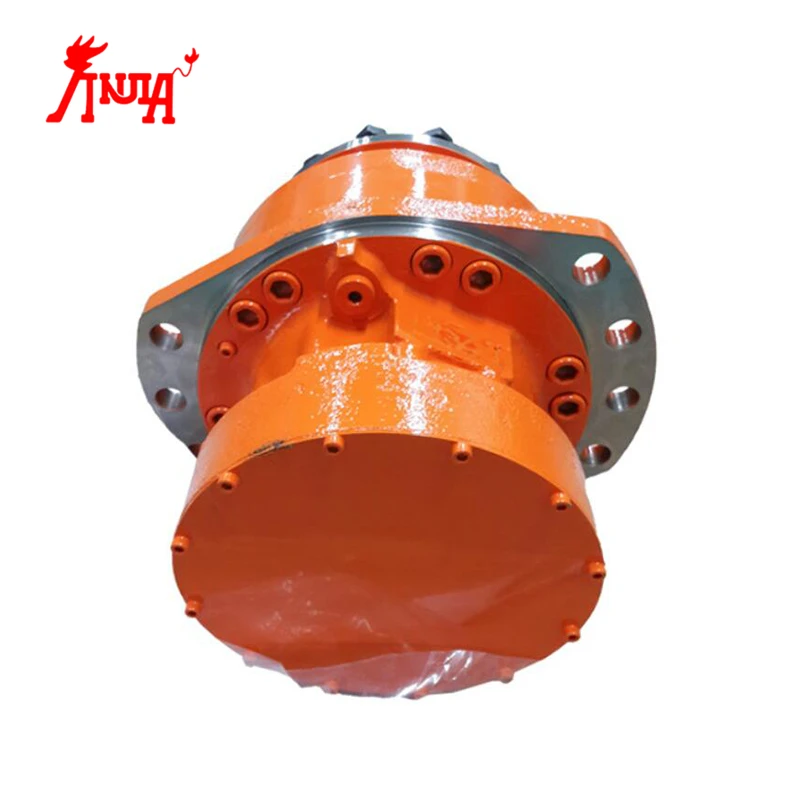

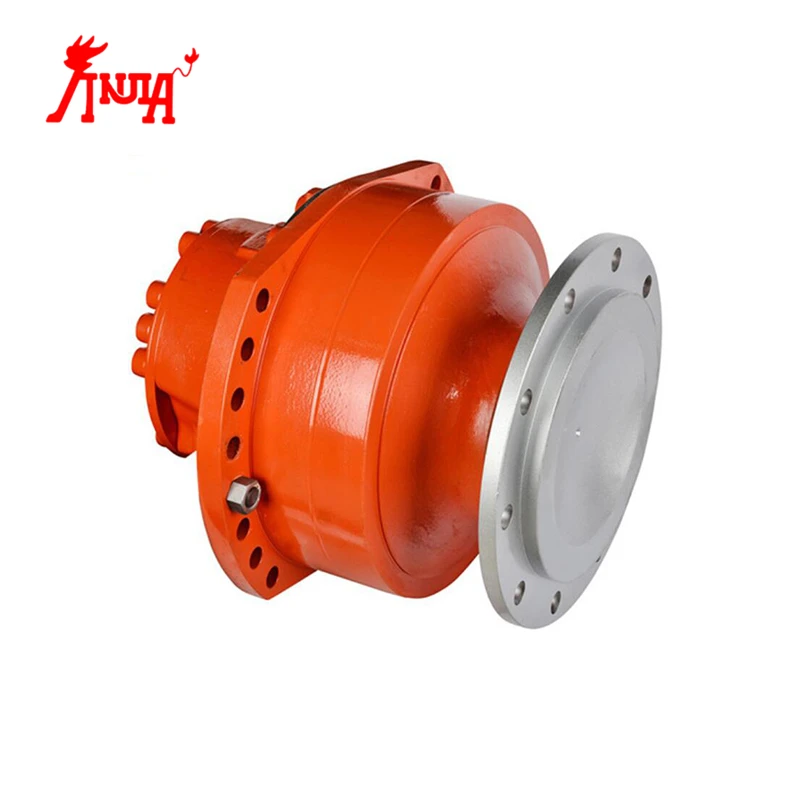

Replace Poclain Motors Low Speed High Torque Drive Wheel Hydraulic Motors Radial Piston Hydraulic Motor MS MSE Series
- Category: >>>
- Supplier: Jining Jinjia Hydraulic Co. Ltd.Jining Ltd.
Share on (1601317896169):
Product Overview
Description
Product Description
Jinjia brand MS/MSE Series Hydraulic Motor is one kind of low speed high torque radial piston motor with modular design, multi-disc brake (holding brake) ,high pressure tolerance, smooth running even at very low speeds, available with different valves.
The MS/MSE series motor can be added all kinds of hydraulic valves, mechanical brake, wheel output shaft and other components, motor can make a double displacement, multi-functions collocation can meet the needs of users in various fields.
The MS/MSE hydraulic motor is widely used in shearer, skid steer loaders, DTH drill, rotary drilling ilg, small road header, mixer, cutting machine, heavy duty handling car,cavenging machine, aircraft tractor, beam carrier,hoisting machineport crane,boring machine, scraper, mini farming vehicle, ditcher,heavy-duty truck and coal mine drilling machine.
100% interchangeable with original Poclain MS/MSE series 02 /05 /08 /11 /18 /25 /35 /50 /83 /125 /250 motors!
The MS/MSE series motor can be added all kinds of hydraulic valves, mechanical brake, wheel output shaft and other components, motor can make a double displacement, multi-functions collocation can meet the needs of users in various fields.
The MS/MSE hydraulic motor is widely used in shearer, skid steer loaders, DTH drill, rotary drilling ilg, small road header, mixer, cutting machine, heavy duty handling car,cavenging machine, aircraft tractor, beam carrier,hoisting machineport crane,boring machine, scraper, mini farming vehicle, ditcher,heavy-duty truck and coal mine drilling machine.
100% interchangeable with original Poclain MS/MSE series 02 /05 /08 /11 /18 /25 /35 /50 /83 /125 /250 motors!
MS50 radial piston motor displacement diagram | ||||||||
Code | MS50 | |||||||
Displacement (ml/r) | 3500 | 4008 | 4997 | 6001 | ||||
Theoretical Torque at 10Mpa(N.m) | 5565 | 6373 | 7945 | 9557 | ||||
Rated Speed (r/min) | 80 | 80 | 63 | 50 | ||||
Rated Pressure (Mpa) | 25 | 25 | 25 | 25 | ||||
Rated Torque (N.m) | 11500 | 13150 | 16400 | 19750 | ||||
Max. Pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | ||||
Max. Torque (N.m) | 14150 | 16250 | 20250 | 24350 | ||||
Speed Range (r/min) | 0-148 | 0-138 | 0-111 | 0-92 | ||||
Max. Power (kw) | Standard displacement is 140 KW,variable displacement priority rotation 93 KW,no priority is 70 KW. | |||||||
Recommend Products

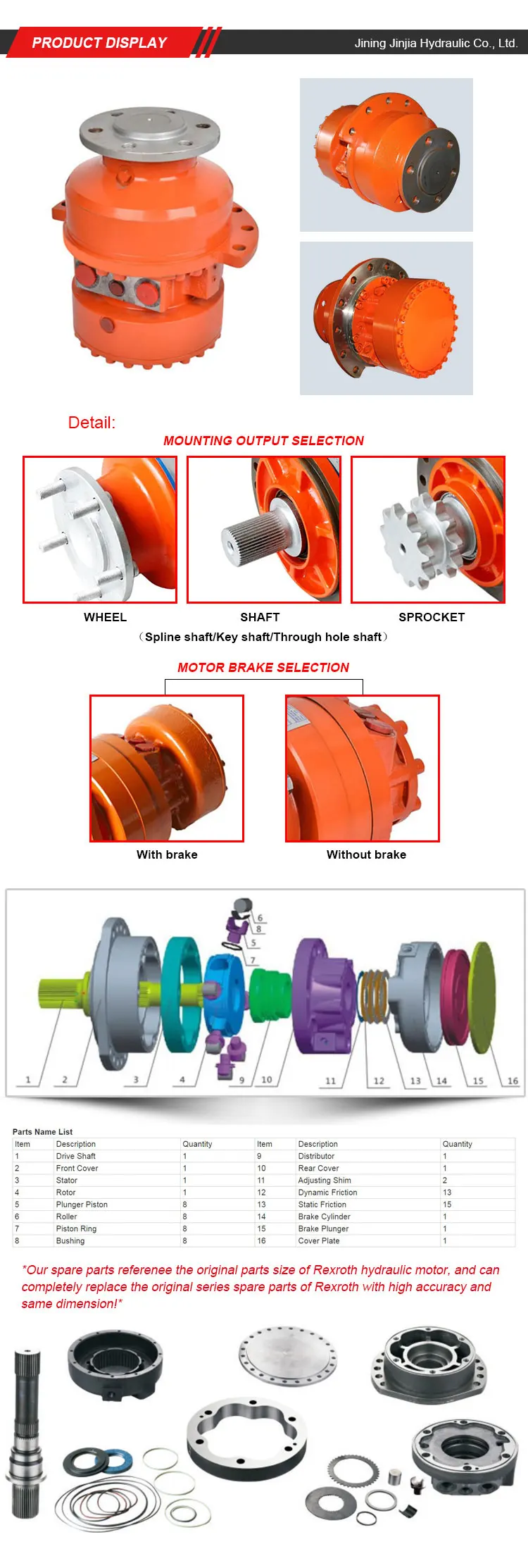

Product Application
Customer Feedback
Company Profile

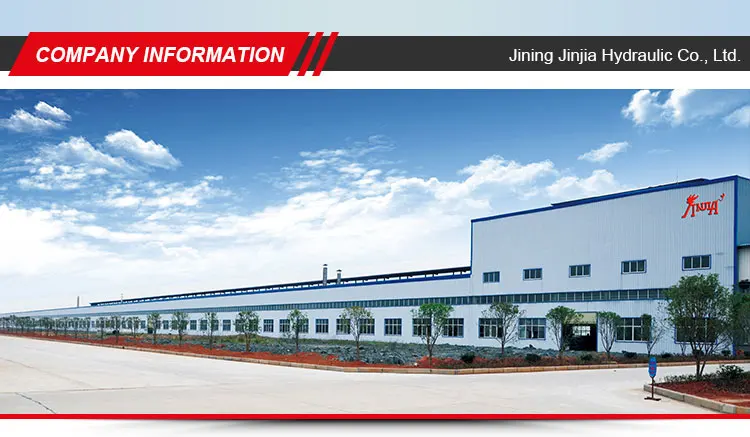

Jining Jinjia Hydraulic Co. t Ltd. is a Chinese manufacturer of hydraulic products,which locates at Jining Chemical Industry Economic and Technological Development Zone, Shandong province. The company occupies an area of 20 acres, with the building area of 9,000 square meters.
Our company's CNC machining centers, forming grinder,CNC cars are imported from Europe. We manufacture and supply cycloid hydraulic motors and other hydraulic products categories.
More than 3000 kinds of orbit motors with variety series of models and data can be offered, with rated displacement from 50cc/r to1000cc/r, rotation speed from 1000 r/min to100r/min, and max torque from100Nm~2000Nm. Our products can substitute Danfoss and Eaton (Char-Lynn) series products.
We supply different kinds of hydraulic motors,including hydraulic orbital motor and hydraulic pumps, hydraulic cylinders,hydraulic valves and hydraulic winches.
The hydraulic products have been exported to countries such as the United States,Germany, Brazil, Canada, India, Turkey, Finland and Malaysia, etc. We have outstanding experience in product design, manufacturing processes and quality assurance, etc., and advanced product improvements awareness. We aim to become a world-class manufacturer of hydraulic products. Our eternal pursuit and objectives is to improve the performance of our products as a starting point and to provide the best products and service to our customers.
Our company's CNC machining centers, forming grinder,CNC cars are imported from Europe. We manufacture and supply cycloid hydraulic motors and other hydraulic products categories.
More than 3000 kinds of orbit motors with variety series of models and data can be offered, with rated displacement from 50cc/r to1000cc/r, rotation speed from 1000 r/min to100r/min, and max torque from100Nm~2000Nm. Our products can substitute Danfoss and Eaton (Char-Lynn) series products.
We supply different kinds of hydraulic motors,including hydraulic orbital motor and hydraulic pumps, hydraulic cylinders,hydraulic valves and hydraulic winches.
The hydraulic products have been exported to countries such as the United States,Germany, Brazil, Canada, India, Turkey, Finland and Malaysia, etc. We have outstanding experience in product design, manufacturing processes and quality assurance, etc., and advanced product improvements awareness. We aim to become a world-class manufacturer of hydraulic products. Our eternal pursuit and objectives is to improve the performance of our products as a starting point and to provide the best products and service to our customers.
