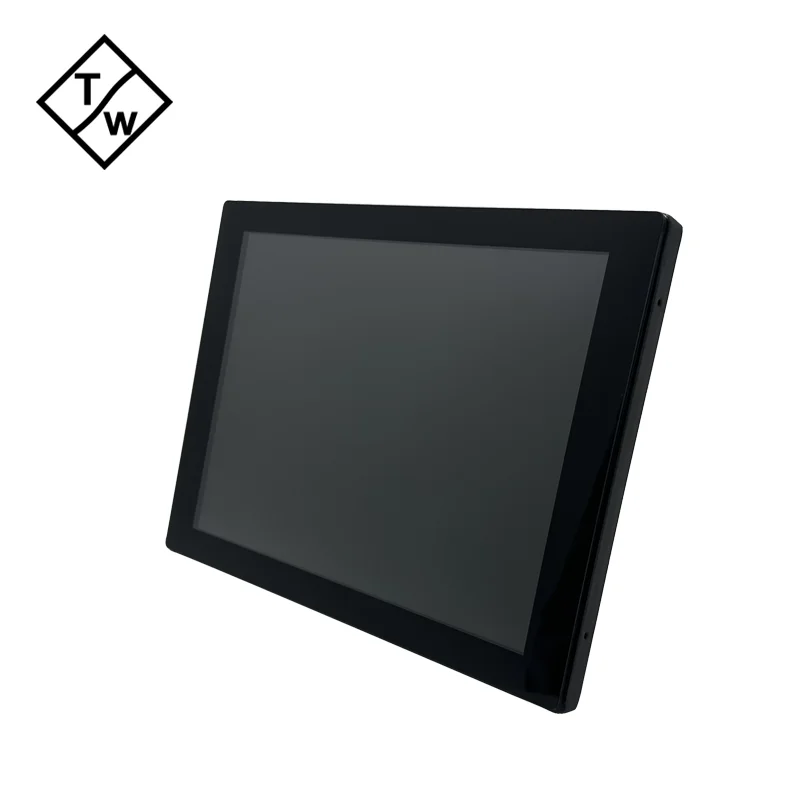

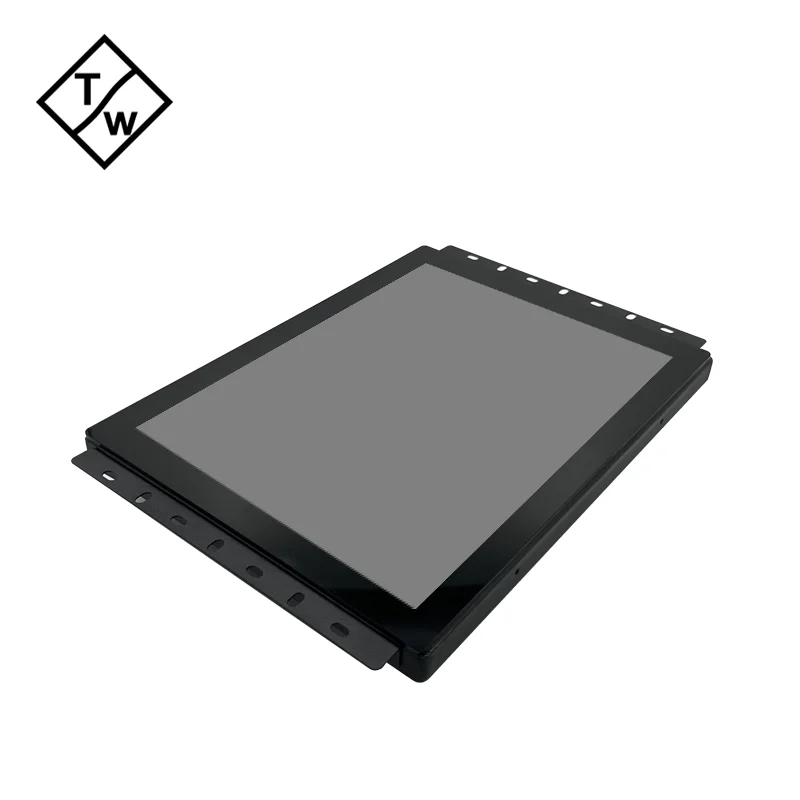

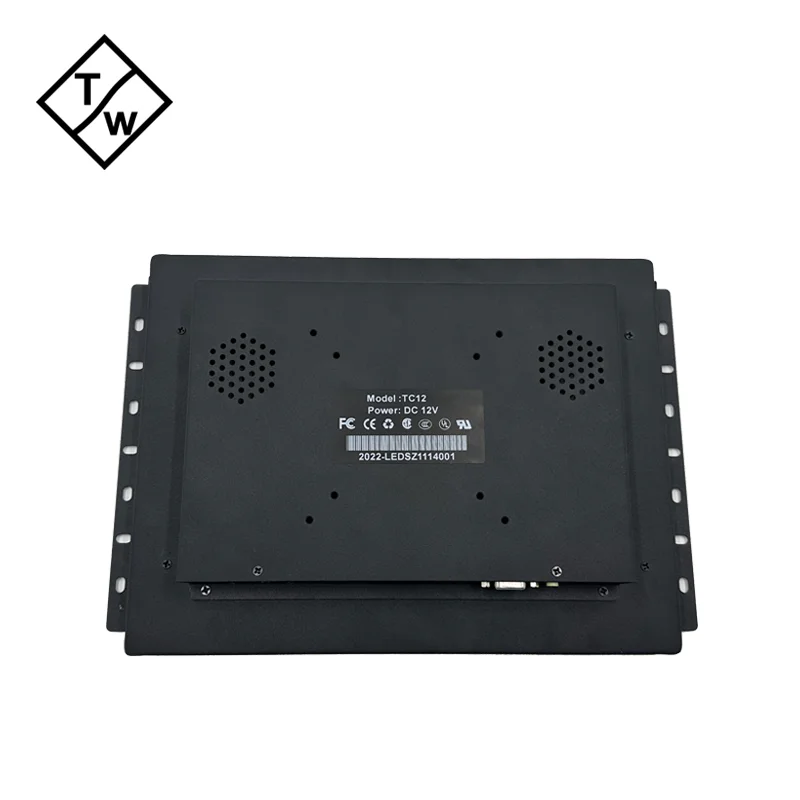

TC12 Multi Touch Screen 1000 Nits 12 inch LCD Monitor Open Frame Display Embedded Panel
- Category: >>>
- Supplier: Shenzhen Top-Willing Technology Co. LimitedShenzhen Limited
Share on (1601318064495):
Product Overview
Description
TC12 Multi Touch Screen 1000 Nits 12 inch LCD Monitor Open Frame Display Embedded Panel
Model: TC12
Brief information:
-10 Points capacitive touch screen (PCAP),free driver, USB for touch;
-Metal Frame,with removable side brackets;
-Size from 7" to 32" are available
-OEM like boot logo,metal casing size,inputs.etc are welcomed!
Specification:
| Description | 12 inch Industrial Capacitive Touch Monitor | ||
| Model | TC12 | ||
| Panel size | 12 inch Square Screen | ||
| Number of Colors | 16.7M 72% NTSC | ||
| Dot Resolution | 1024x768 | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 1000cd/m² | ||
| Contrast Ratio | 1200:1 | ||
| Response time | 30ms | ||
| Viewing Angle | 85/85/85/85 | ||
| Power Consumption | Max 20W | ||
| Frequency | 60Hz | ||
| Power Supply | DC 12V | ||
| Working Temperature | 0 to 50°C | ||
| Storage Temperature | -20 to 70°C | ||
| Touch type | G+G,10 Points Capacitive Touch screen,free driver | ||
| Touch validity | >5,000,000 | ||
| Installation | Wall-mount or desktop or Embedded | ||
| Language | Multi-Language | ||

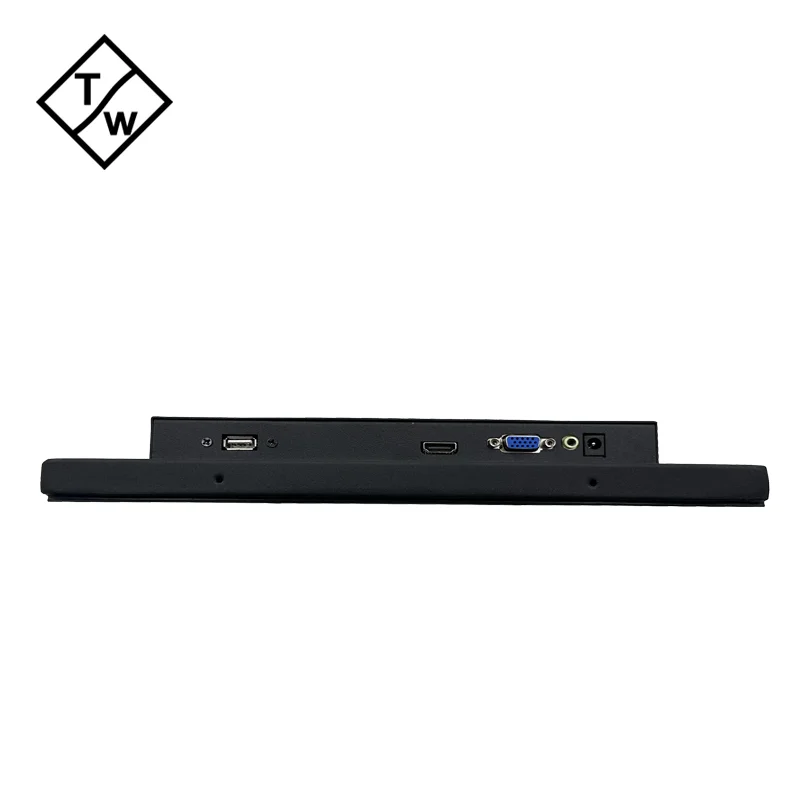

| Connector | VGA+HD | ||
| Touch input | USB | ||

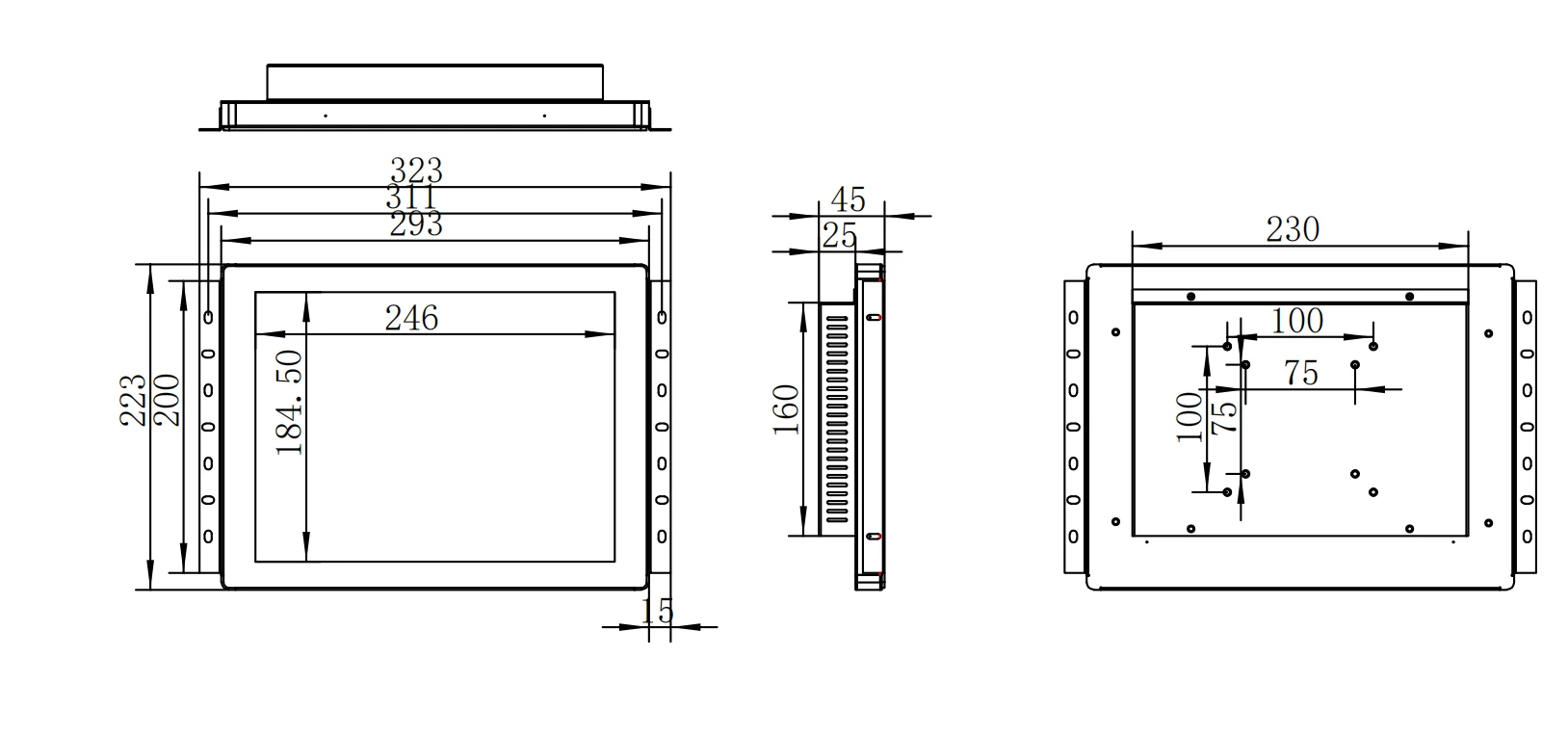

| Unit Size without brackets | 293*223*45mm | ||
| Net Weight | 2.1KG | ||
| Casing | Metal Casing | ||

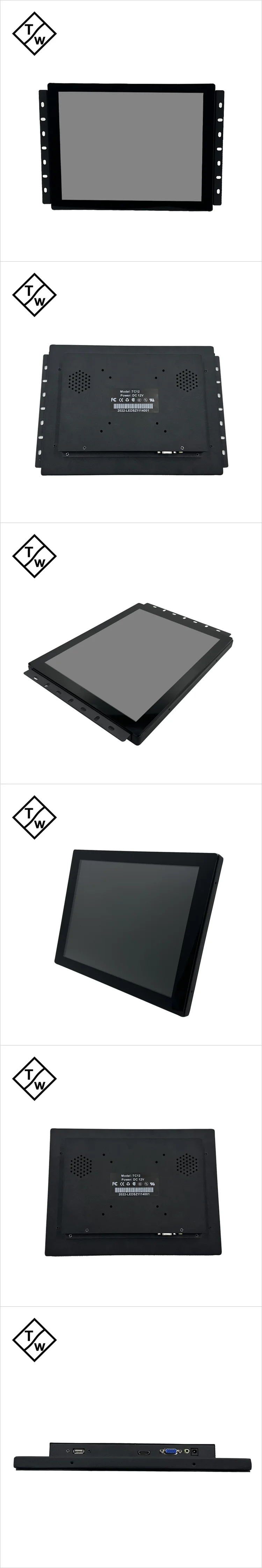

Pictures:
Packaging & Shipping
Neutral Package or OEM
