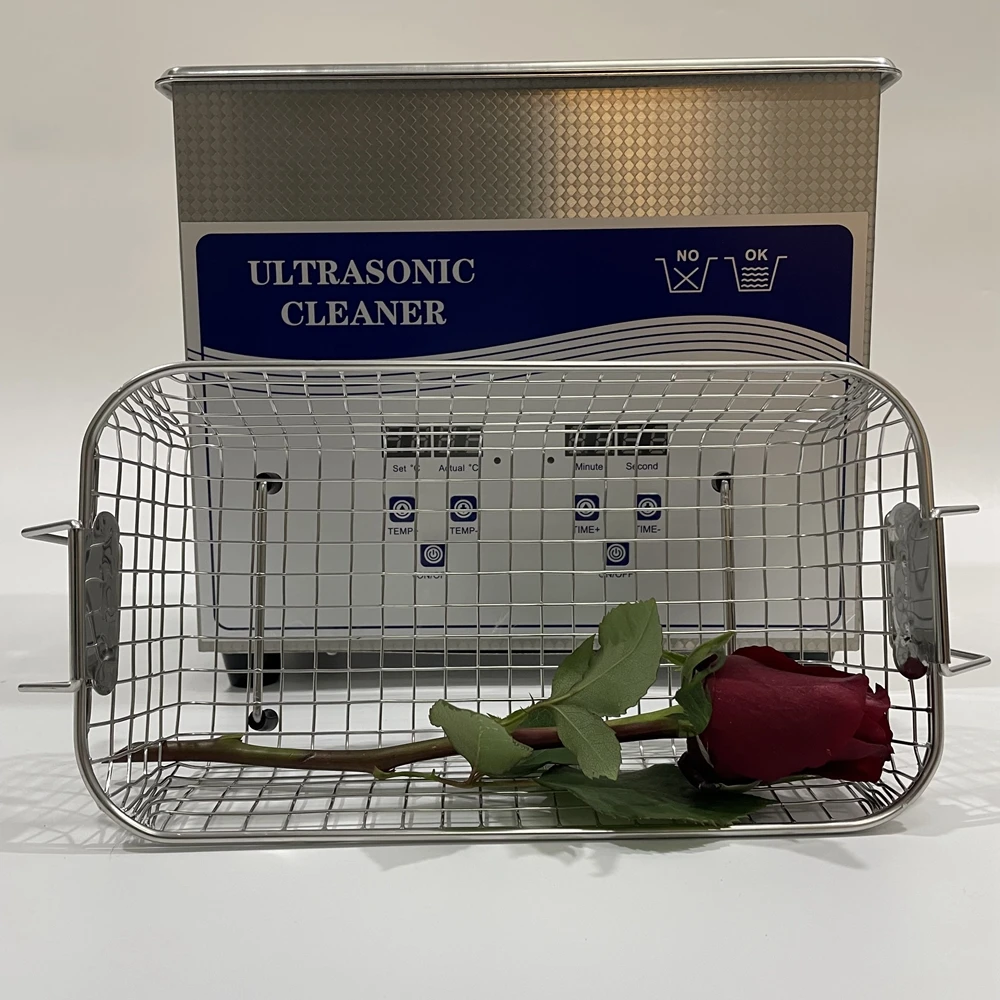

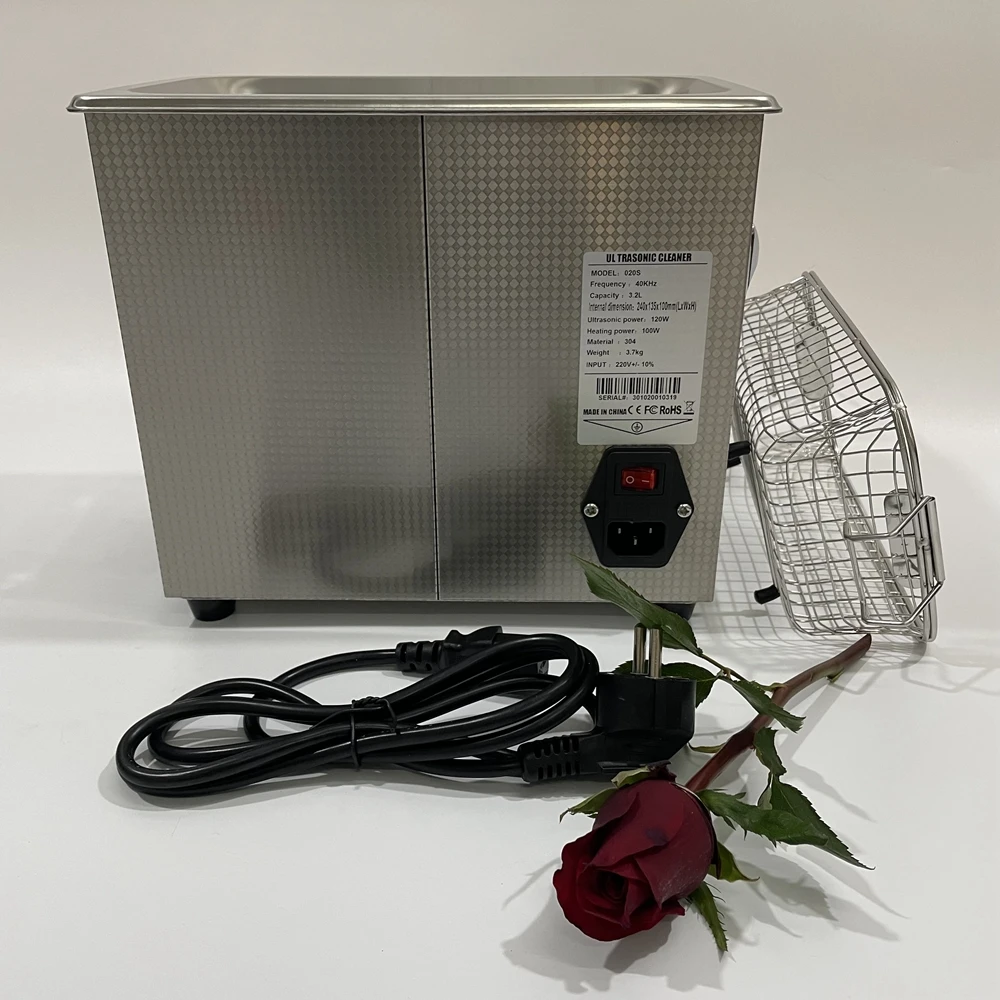

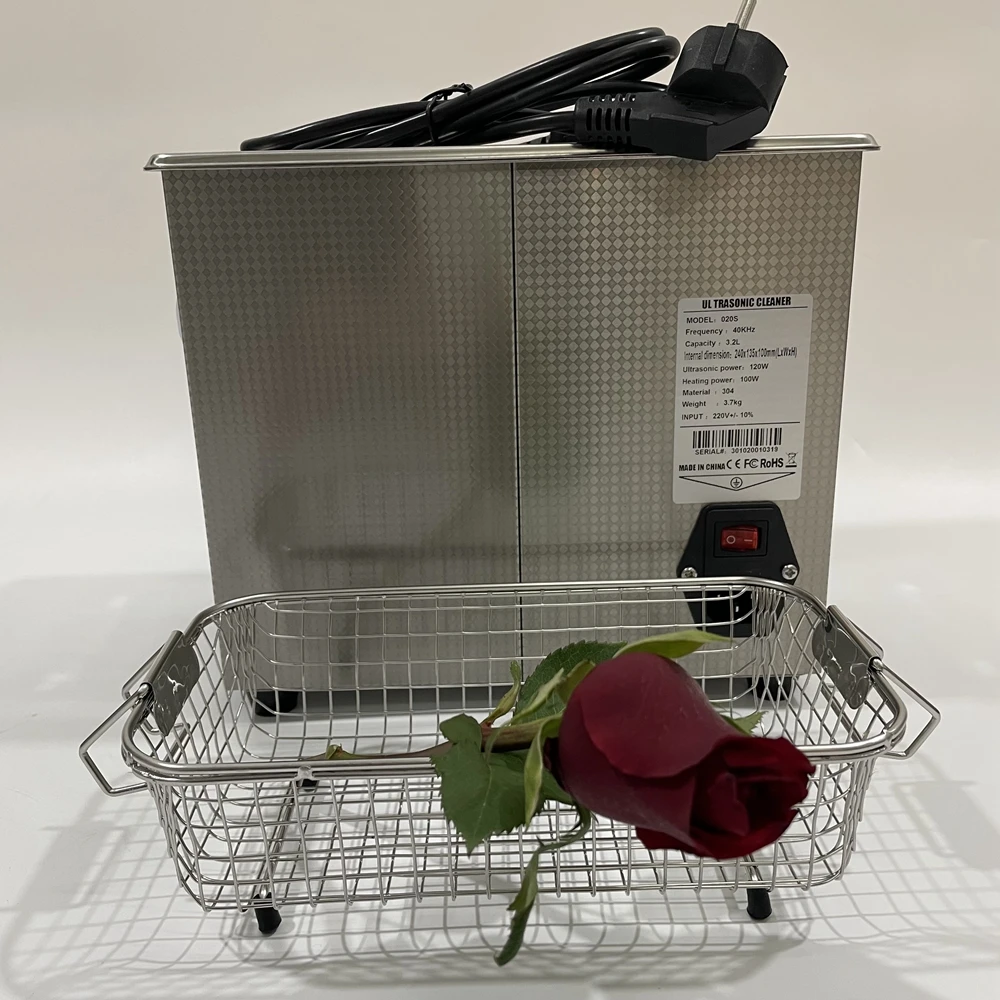

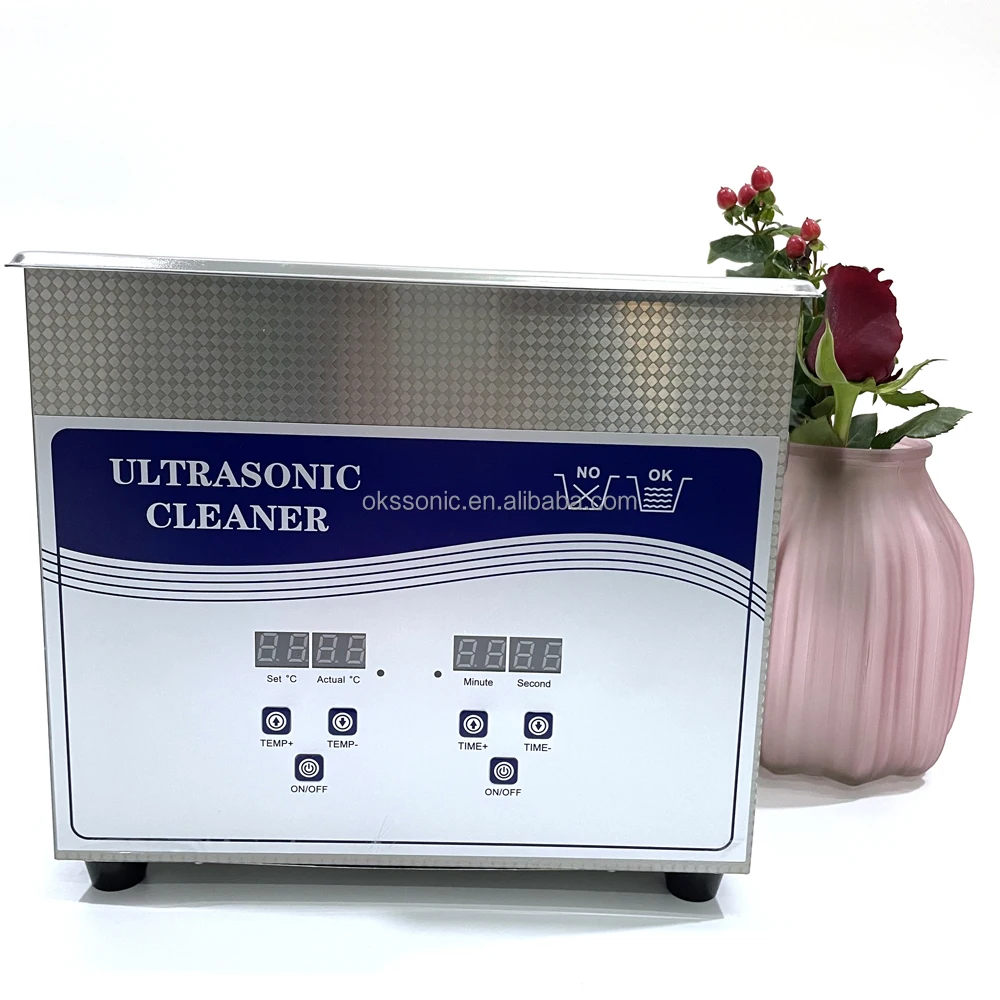

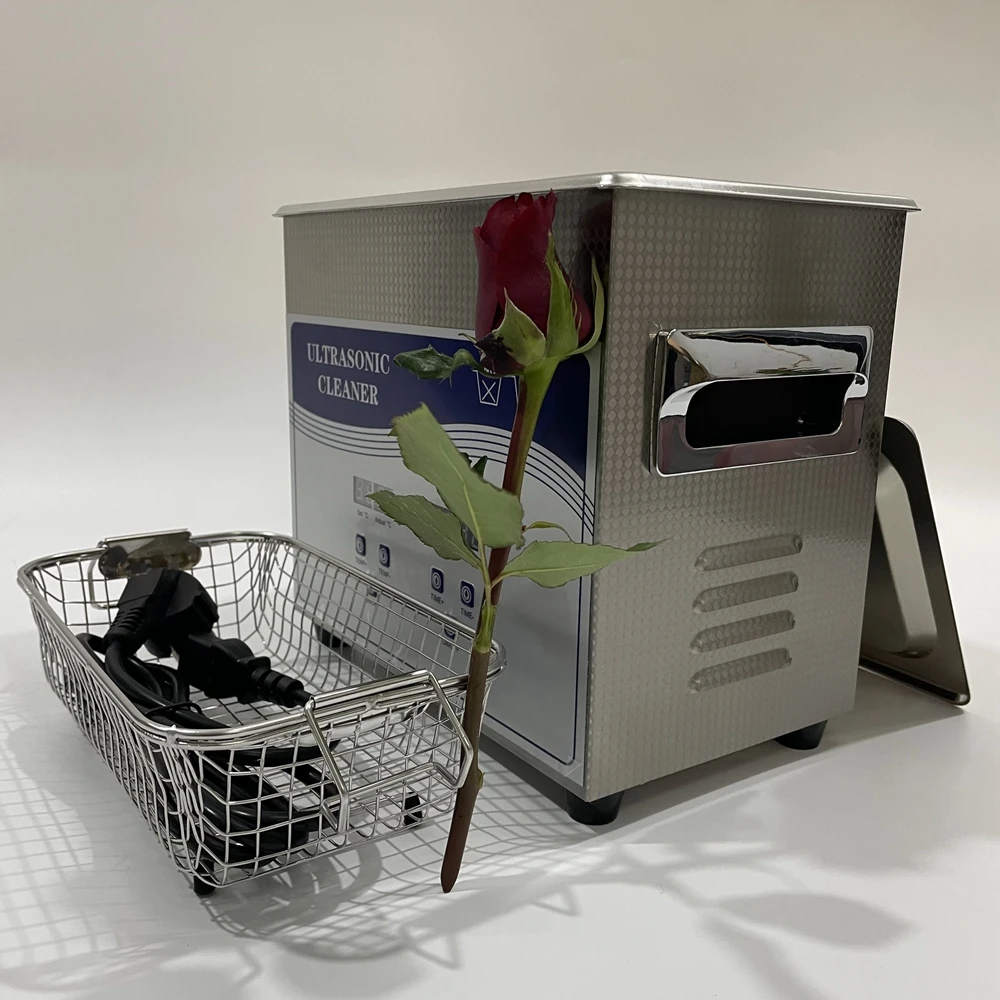

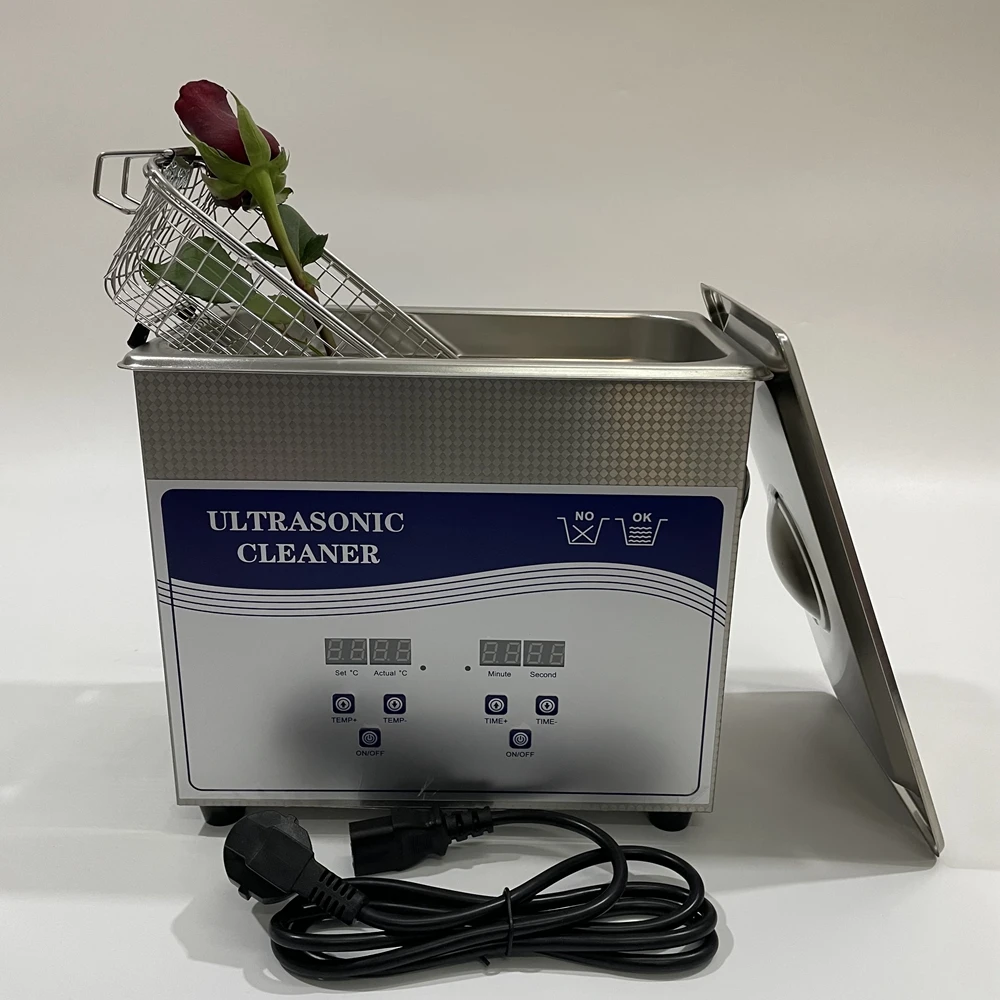

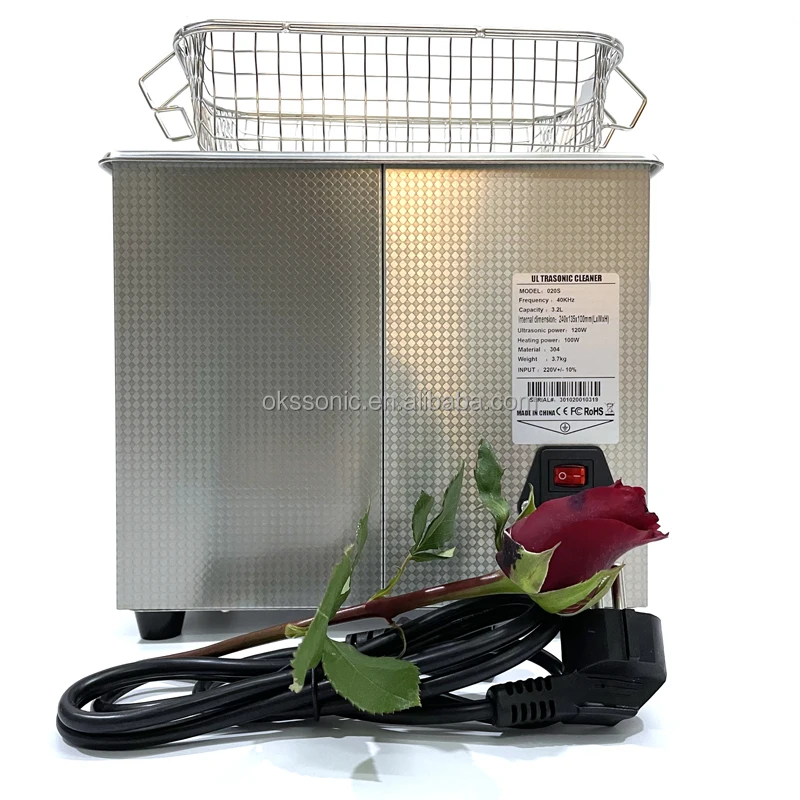

28khz Or 40khz 6Liter Portable Tabletop Digital Ultrasonic Bottle Glass Washing Machine

Product Overview

Description

28khz Or 40khz 6Liter Portable Tabletop Digital Ultrasonic Bottle Glass Washing Machine

The single tank ultrasonic cleaning machine is an ultrasonic cleaning machine consisting of only one cleaning tank and an electronic control box. This ultrasonic cleaning machine has good stability, few failures, strong output, and can be customized according to user needs. The ultrasonic wave emitted by the single-tank ultrasonic cleaning machine is conducted in the liquid with 46,000 vibrations per second. Because the ultrasonic wave is a compression longitudinal wave, the pressure in the liquid will change under the use of the pushing medium to produce countless tiny Vacuum bubbles cause a cavitation effect. When the bubbles burst under pressure, they will produce a strong impact. At the same time, ultrasonic waves and emulsification and neutralization can more effectively prevent the cleaned oil from reattaching to the cleaned object. It is deeply loved by people and is widely used in the cleaning of electronic parts; electroplating parts, precision hardware, watchbands, watch cases, spectacle frames, lenses, jewelry, semiconductor wafers, spinnerets, filter elements, glassware, etc.



Features:

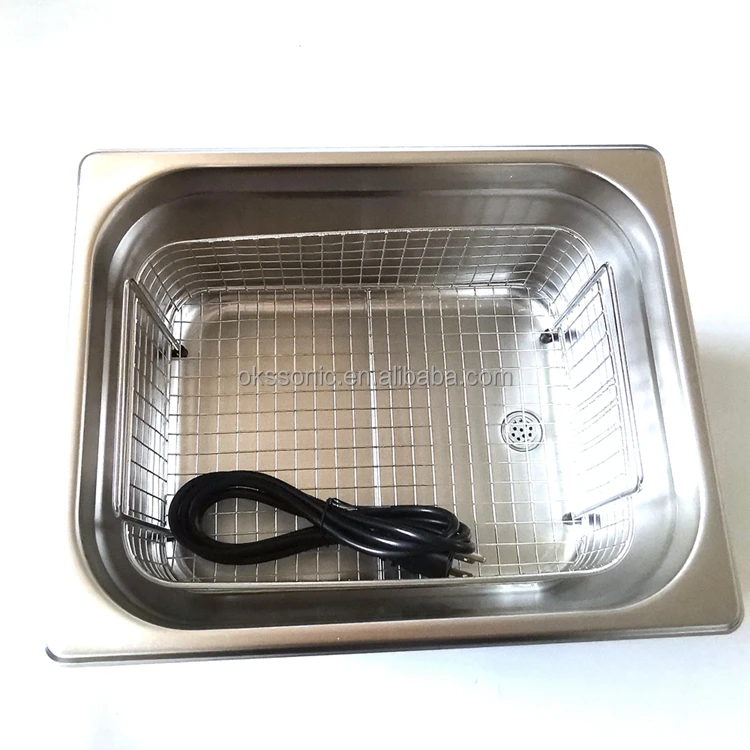

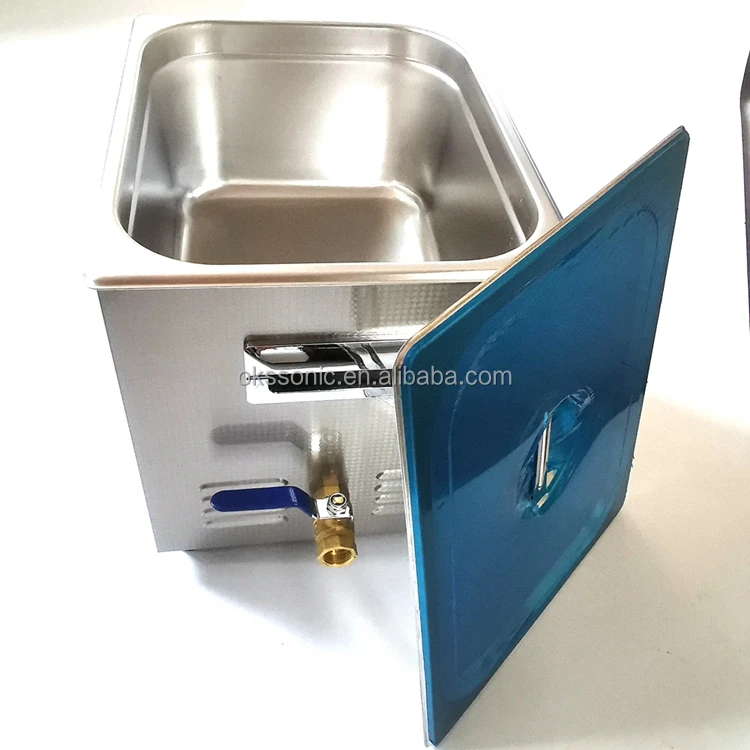

The tank is made of high-quality stainless steel, resistant to acid and alkali, and has a beautiful appearance.
Using high-quality transducer and digital display ultrasonic generator, the ultrasonic output is strong and powerful.
Using high-performance adhesive and unique bonding process to ensure that the transducer can work for a long time at 100 water temperature and is durable.

 Equipped with automatic temperature control heating device, temperature control range: normal temperature -100 ℃.
Integrated structure of ultrasonic generator and cylinder,
Easy to use and maintain.
Ultrasonic generator adopts the current international leading other-excited oscillating circuit structure. Compared with the traditional self-excited oscillating circuit structure, the output power is increased by more than 15%, which can maximize the potential of the transducer. Working voltage AC220±10V. It has protection measures such as overvoltage, overcurrent, and output short circuit. It has the functions of frequency fine-tuning and frequency automatic tracking, which can achieve good results under different working conditions. The cleaning liquid is driven to form a fine backflow, so that the dirt on the workpiece is quickly removed from the surface of the workpiece while being ultrasonically peeled, and the cleaning efficiency is improved. With the function of stepless power adjustment, the output power can be adjusted continuously from 10% to 100% to meet the requirements of various cleaning objects.

Model	Tank Size	Unit Size	Volume	Power	Ultrasonic Frequency	Heating Power	Heating	Input Voltage
	L x W x H(mm)	L x W x H(mm)	(L)	(W)	(KHz)	(W)	(℃)	(V)
OKS-CL002DH	150x135x100	175x160x210	2	60	40KHZ	50	05-90	110-240V Optional
OKS-CL003DH	240x135x100	265x165x230	3	120	40KHZ	50	05-90	110-240V Optional
OKS-CL0045DH	300x150x100	325x180x230	4.5	180	40KHZ	200	05-90	110-240V Optional
OKS-CL006DH	300x150x150	360x180x270	6	180	40KHZ	200	05-90	110-240V Optional
OKS-CL010DH	300x240x150	330x270x310	10	240	40KHZ	400	05-90	110-240V Optional
OKS-CL015DH	330x300x150	400x325x280	15	360	40KHZ	400	05-90	110-240V Optional
OKS-CL022DH	500x300x150	580x325x280	20	480	40KHZ	500	05-90	110-240V Optional
OKS-CL030DH	500x300x200	580x325x335	30	600	40KHZ	500	05-90	110-240V Optional
We welcome size customization, we make according to your requirements!
